Dreadnought-E
A new level of confidence has arrived. The Forbidden Dreadnought-E is built from the ground up for one purpose -- to charge the most chaotic, rowdy lines you can find, then send you back to the top ready for more. Big travel. Full power. Zero hesitation.
At the core of the Dreadnought-E is a full carbon frame built around Forbidden's Trifecta V3 high-pivot suspension platform. With 170mm of rear travel paired to a 180mm fork, the bike delivers a predictable, planted ride that thrives in rough terrain while still offering the pop and support needed to generate speed and stay playful.
The geometry is unapologetically downhill-focused. Designed as a mixed-wheel (MX) platform only, with a tall front end, slack angles, and shorter cranks, the Dreadnought-E positions the rider in a more centered, upright stance -- delivering control and composure typically reserved for downhill race bikes.
Powering the Dreadnought-E is the latest Avinox drive system with the all-new M2 motor, delivering up to 1100W of peak power and 110Nm of torque (up to 125Nm in boost mode). More importantly, it's how that power is delivered -- refined control lets you maintain traction on steep, technical climbs while still delivering explosive acceleration when needed.
Paired with an 800Wh battery, the Dreadnought-E delivers maximum range for long days in the mountains. Fast-charging capability gets you from 0-75% in just 1.5 hours, so you can spend more time riding and less time waiting. The Avinox system also features a full-color OLED display, wireless controls, and deep app integration -- allowing you to fine-tune assist modes, track ride data, and even integrate navigation directly into your cockpit.

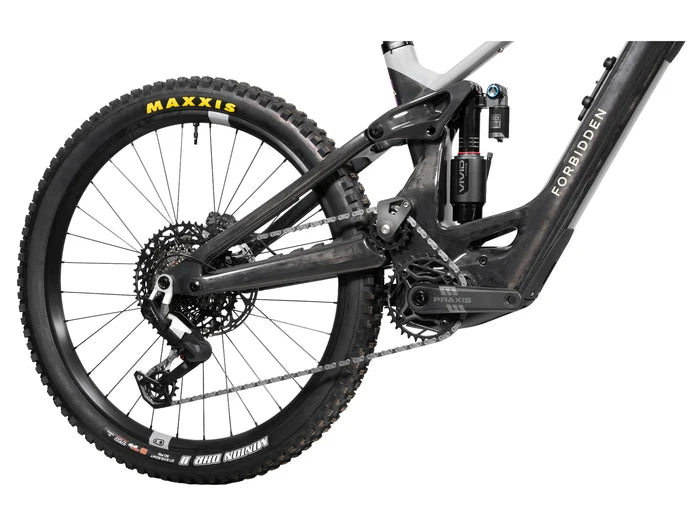

Built with details that matter, the Dreadnought-E features a carbon rocker link for reduced weight and improved suspension performance, an updated e-bike-specific idler pulley for durability, clean external cable routing, and full in-house frame protection with RideWrap installed from the factory. The Forbidden Dreadnought-E isn't here to play nice -- it's here to go further, hit harder, and redefine what a full-power, big-travel e-MTB should feel like.
- Full carbon Dreadnought-E frame with Trifecta V3 high-pivot suspension
- 170mm rear / 180mm front travel for aggressive riding
- Mullet (MX) wheel setup for control and maneuverability
- Avinox M2 motor -- 1100W peak power, 110Nm torque (125Nm boost)
- 800Wh battery for maximum range
- Fast charging -- 0-75% in approximately 1.5 hours
- OLED display, wireless controls, and full app integration
- Downhill-focused geometry with OneRide proportional sizing
- Carbon rocker link, e-bike-specific idler pulley, factory RideWrap protection
| Measurement | S1 | S2 | S3 | S4 |
|---|---|---|---|---|
| Reach (mm) | 425 | 445 | 461 | 481 |
| Stack (mm) | 635 | 648 | 669 | 682 |
| Top Tube (mm) | 575 | 598 | 619 | 642 |
| Head Tube Angle (deg) | 63 | 63 | 63 | 63 |
| Head Tube Length (mm) | 100 | 115 | 138 | 153 |
| Seat Tube Angle (deg) | 76.75 | 76.75 | 76.75 | 76.75 |
| Seat Tube Length (mm) | 400 | 420 | 440 | 470 |
| Chainstay (mm) | 434 | 449 | 463 | 478 |
| Wheelbase (mm) | 1215.5 | 1256.9 | 1298.2 | 1339.5 |
| BB Height (mm) | 340.8 | 340.8 | 340.8 | 340.8 |
| BB Drop (mm) | 20 | 20 | 20 | 20 |
| Standover (mm) | 720 | 720 | 720 | 720 |
| Max Seatpost Insertion (mm) | 260 | 275 | 300 | 320 |
Measured with a 180mm fork in mixed-wheel (MX) setup. Size-specific chainstay lengths grow with frame size (Forbidden OneRide proportional sizing) to keep handling balanced across all four sizes.
