SPECS

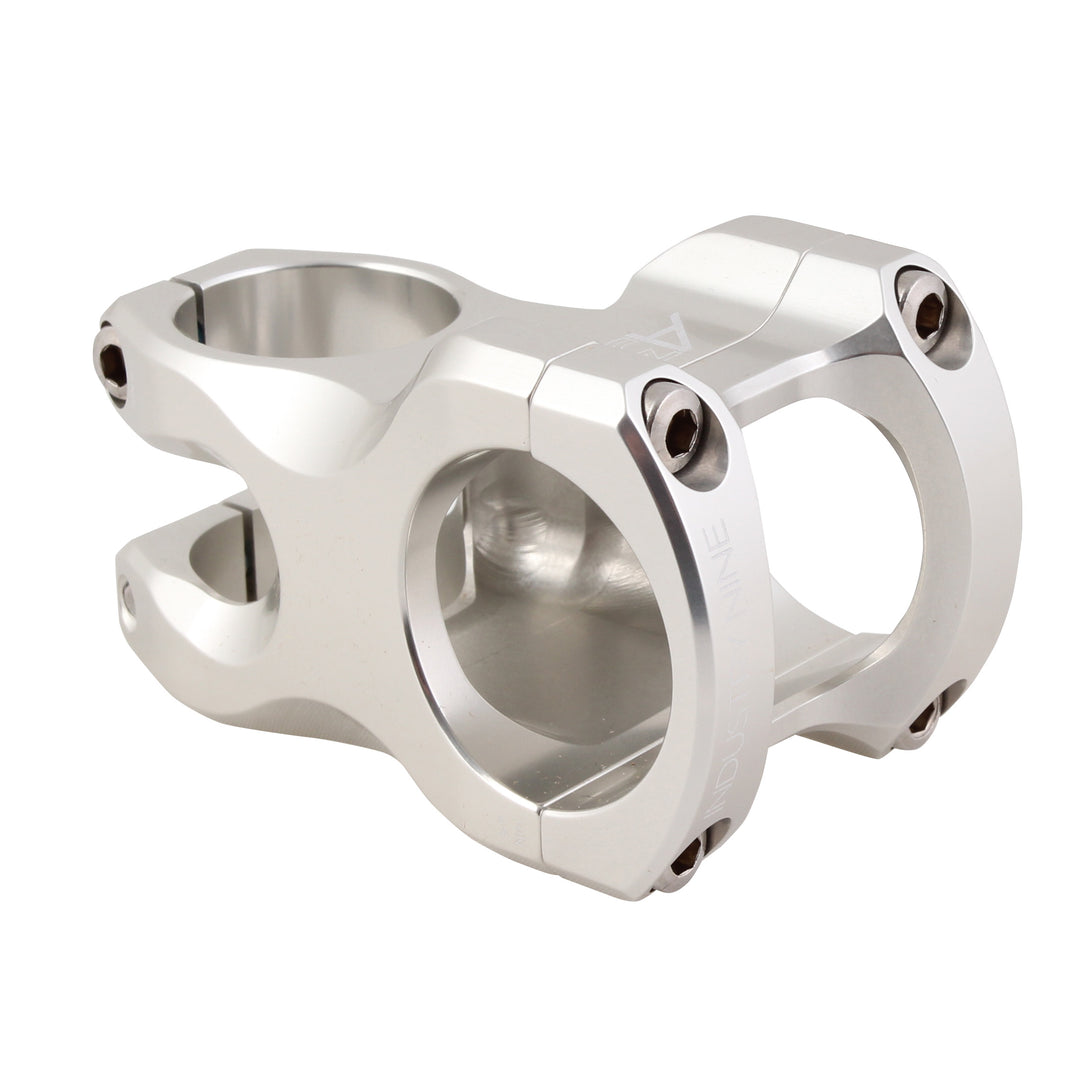

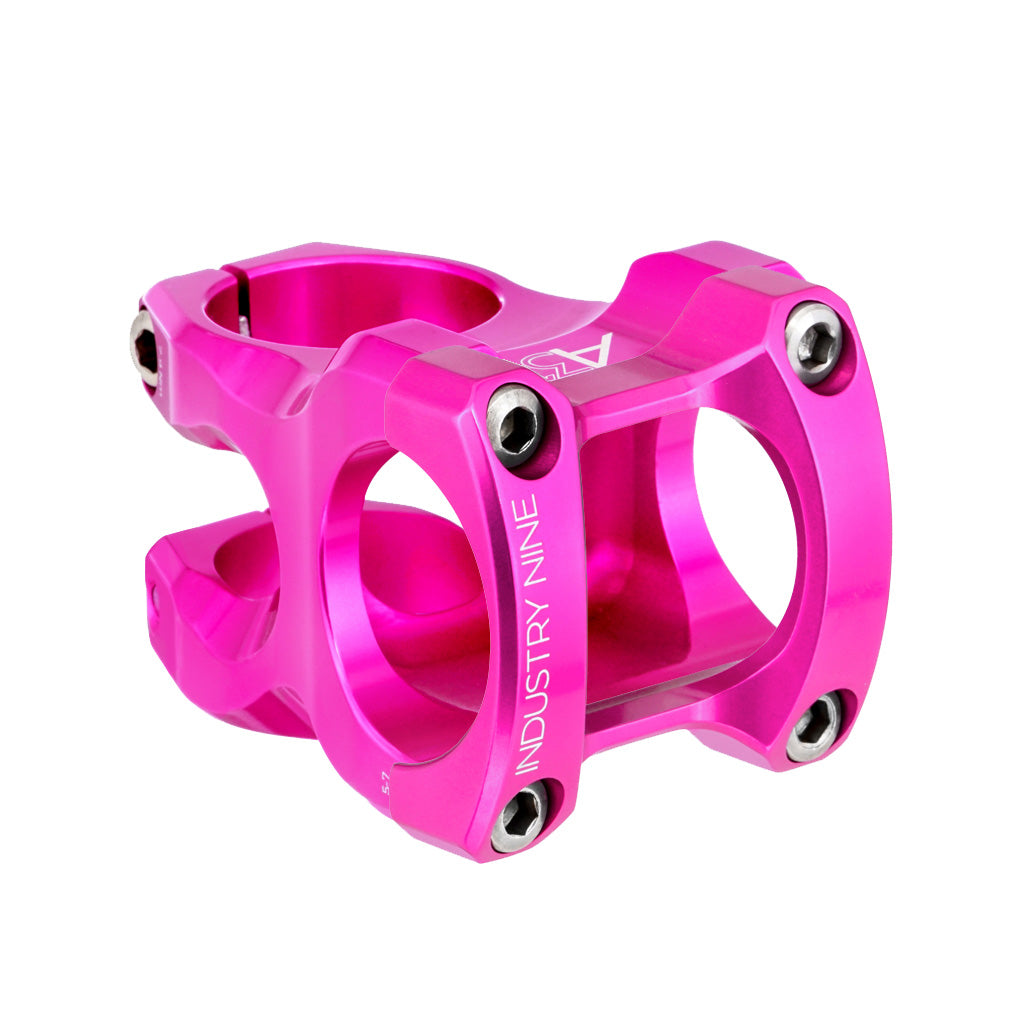

Industry Nine’s A-Series mountain bike stems are crafted from domestically-sourced 7075 aluminum billet into a svelte design achieving a nexus of form and function. Using advanced manufacturing techniques honed over decades in our CNC machine shop, we continue our proud tradition of offering riders uncompromising components.

Taking name and shape from the A-axis in our five-axis machining centers, the A35 and A318 are destined for your favorite all-mountain rides. The A35 and A318 utilize either a 35mm or 31.8mm handlebar clamp diameter providing 180 degrees of contact on the stem body for twist-free security that will play nice with both alloy and carbon bars. Stainless steel hardware ensures everything stays in place and looks great, regardless of mud-blasting washes or rainforest climates.

Every A-Series stem is machined, anodized and assembled entirely in our Asheville, NC facility and available in a variety of lengths geared for modern trail bike geometry. Add our expressive mix of 11 anodized colors, and you’ve arrived at the intersection of execution and desire.

Handlebar Clamp Diameter:

35Ø

Lengths:

30mm, 40mm, 50mm

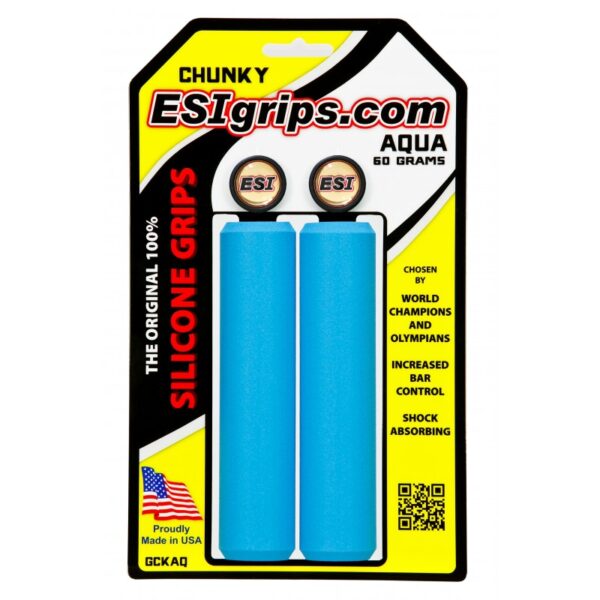

Recommended for grip shift and riders looking for the best shock absorbing grip in the industry!

• 60 Grams
• Standard Grip Length – 5 1/8″
• 32mm
• Weight plus or minus 5%
• Made for 22mm bars (can fit applications down to 19mm)
• Bar Plugs included
• *Install Bar Plugs first for the protection of grips and ease of installation



When you've got to finish your bike off right

Kit includes 2x 5mm spacer, 1x 10mm spacer, 1x 20mm spacer



• Light Action version features a longer lever, allowing more leverage and less force to be applied for activation
• Upgraded remote lever for cable actuated dropper seatposts can be used with KS, Thomson, Fox Transfer, Race Face, Easton, Specialized Command and Giant Contact posts
• Cable is attached at the lever making setup quick and easy
• Large diameter ball bearing pivot for smooth operation
• Features a breakaway axle pivot to reduce replacement cost in the case of a crash
• Lever features a machined surface for grip and control

A Threadless, no tap install option that lets you store the EDC V2 Tool  inside your stem/steerer tube without threading your steerer tube. EDC Tool sold separately.

The Threadless Carrier replaces your star nut and lets you preload your headset with a bolt, while also creating a space for the EDC Tool.

Easy to install in less than 10 minutes. Install instructions

Available in 8 colours

(Black, Red, Green, Blue, Orange, Purple, Gold & Oil Slick)

Compatible with EDC V2 Tool (You must use the small EDC V2 Storage Capsule with the Threadless Carrier.) The tire plug and bacon strips fit within the small storage capsule.

Chain pliers are not compatible with the threadless carrier set up.

The EDC Threadless Carrier is NOT compatible with V1 EDC Tools (Green Multi-Tool)



ENSURE YOUR FORK IS COMPATIBLE - VERY IMPORTANT

Incompatible forks: Fox 38 with oval steerer (Use a EDC Threaded install), Rock Shox 35 Forks, Giant Overdrive 2 Forks. Cannondale Lefty Forks. Carbon Steerers



STEERER TUBE LENGTH

Most forks are compatible, except for a small number of forks with very short steerer tubes. For the following cases your fork steerer tube length must meet the minimum length requirement.

• Fox except Fox 38 with oval steerer = 190mm min
• RockShox Forks  = 220mm min
• All other compatible forks = 190mm min

Measure from the underside of your fork crown to the top of your spacer stack, or top of your stem if you are not running any spacers above your stem.

• The seatpost clamp should match the diameter of the seat tube on your frame and not the diameter of the seatpost itself.
• The M5 bolt includes spherical washer and mates with a cylindrical anchor barrel. This means that threads are always perfectly aligned, preventing binding and ensuring consistent clamping force.
• Lightweight 6061 T6 aluminum, M5 stainless steel bolt with integrated washer
• Tool interface: 4mm hex key
• CNC Machined in Minneapolis, MN

The EDC Cap Kit includes the worlds lightest headset top cap (4.2g), and an EDC steerer plug with drain hole which keeps crud out of your steerer.

Top caps are compatible with all 1-1/8" aluminum steerer tubes.

The EDC steerer plug is required for EDC tool storage and is compatible with most aluminum tapered steerer tubes.

Check fork compatibility.



KIT INCLUDES

• EDC TOP CAP
• EDC steerer plug
• 2x 1mm, 3mm, & 5mm Headset Spacers



INSTALL THE EDC TOP CAP

1. You need a minimum of 5mm of headset spacer above the stem and your steerer tube should be 1-2mm below the top of this spacer.
2. Apply a small amount of grease to your newly cut thread and screw in your new EDC top cap.
3. The Top Cap interface uses a standard cassette lockring tool. You do not need to apply much torque as you are only preloading the bearings. (Your stem pinch bolts are what holds your fork in place). The EDC multitool contains a top cap tightening tool. So even when riding you always have the ability to tighten your headset if need be.
4. Align your stem and tighten your stem bolts to the manufacturers recommended torque.
5. The final step is to insert the plastic bung/plug into the bottom of your fork. Turn your 8mm hex sideways and use it to push the plug into the fork by pulling the 8mm towards your chest. This piece holds the bottom of the EDC Tool and stops it from rattling. It also keeps dirt out of your fork and has a small drain hole.

Note* The EDC Tap kit includes a star nut puller and self aligning tap

Patents Pending

All compatibility and fit determinations have been made solely by OneUp. Use of this or any other aftermarket product may void any warranty you have with the original part manufacturer.





Bolts not included

Genuine replacement stem faceplates for A35 stems

Mix up the colorway of your stem

Due to numerous anodizing batches, colors may not match exactly between faceplate and stem of similar colors



• Dropper post levers are something a lot of us overlook, we want our dropper to work but don't think about the button that makes the magic happen. After testing a bunch of levers, from the plastic ones to the ergonomically weird, even the best in class, PNW decided they could do better. So they made the Loam Lever. It's the most adjustable lever around, ensuring you can modify it to fit your exact ergonomic specifications. The levers grippy injection molded pad has got your back in sloppy weather conditions. And speaking of weather, we made sure the whole thing was as weather proof as possible, meaning your lever won't squeak, bind up or fail after being in the rain.

  **Product image is shown without mount and may not match title. Please confirm your fitment matches the title before purchase**

  THE LOAM LEVER HAS 5 KEY CHARACTERISTICS:

  • Adjustability - We believe precision matters, this lever provides two forms of adjustment so you can dial in your perfect placement.
  • Weather Proof - Oversized high quality sealed bearing paired with an additional seal and all stainless hardware for longevity and durability.
  • No Slip Grip - Speaking of weather, the Loam Lever features a grippy injection molded thumb pad to keep your paws in place in even the sloppiest of conditions. The thumb pad is available in Teal, Orange, Grey, Black and Red.
  • Techy AF - Custom CNC machining throughout the whole design of the Loam Lever for precision and weight reduction.
  • Direct Mount - Available in SRAM's MatchMaker X, Shimano's I-Spec II and I-Spec EV

  TECH SPECS:

  • Clamp Styles:
    • Standard 22.2mm Hinge Clamp
    • 31.8mm Hinge Clamp for road bars
    • SRAM MatchMaker X (Code, Guide, excluding Level T versions)
    • Shimano I-Spec II (XTR M9000, XT M8000, SLX M7000, DEORE M6000)
    • Shimano I-Spec EV (XTR 7100, 8100, and 9100)
  • Weight: 32g w/o clamp
  • Works with just about all dropper posts with cable routing from either direction
  • Includes Jagwire derailleur cable
  • 1x Shifter Style
  • We don't believe in waste: 100% recyclable packaging




• Exclusive collaboration with SDG Components for the very best bases in the industry
• DEITY’s own foam mold
• Hollow CR-MO rails
• Highest quality mid density EVA foam
• Highest quality Kevlar sides with embossed synthetic cover
• D2 edge flex - provides softened edges for optimal pedal strokes
• Color matched bases and bumpers
• 280mm length x 140mm width
• Intended use: All MTN / Enduro / and DH
• All options available on black cover with color matched graphics in black, bronze, stealth, white, red, green, blue, orange, turq, and chrome
• 241 grams

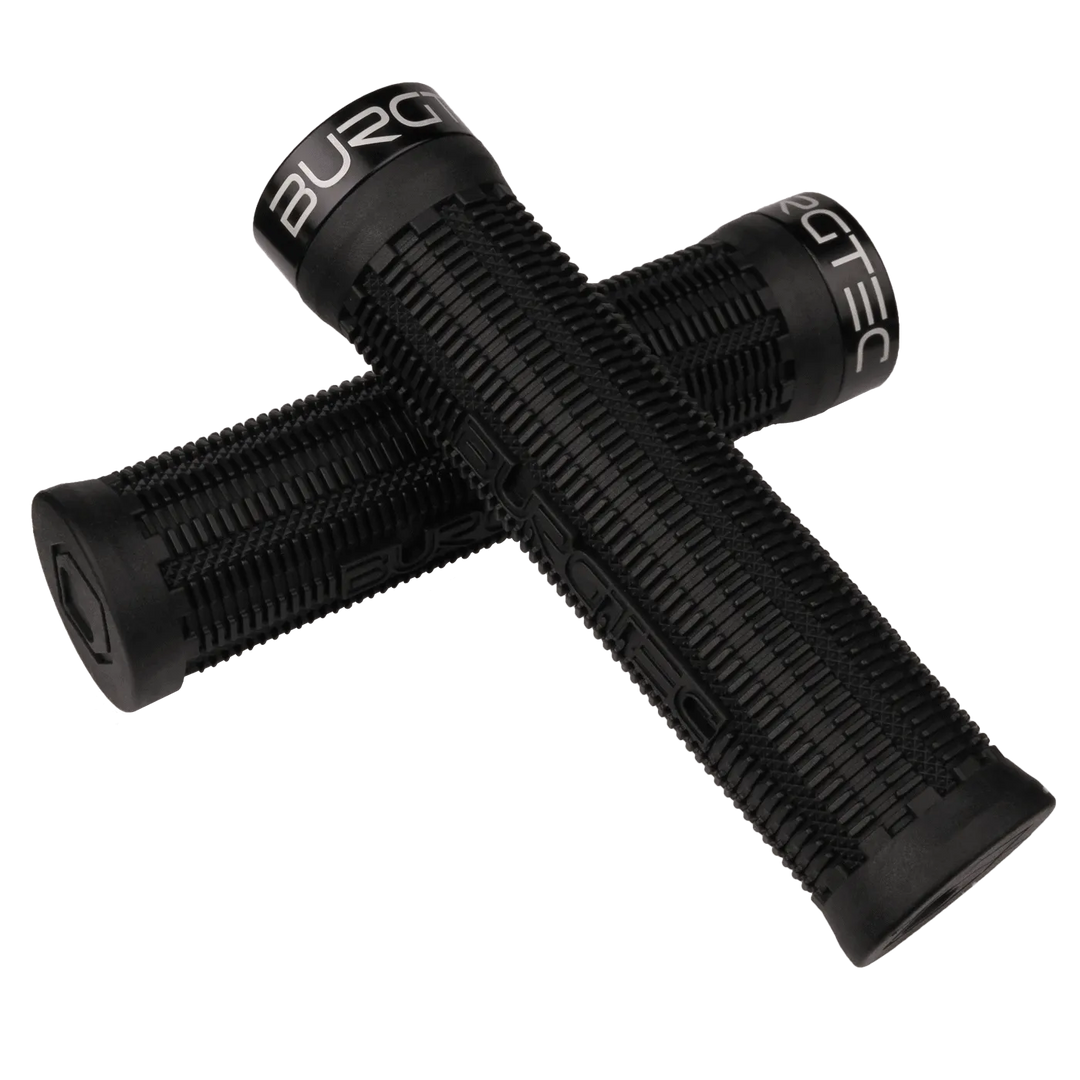

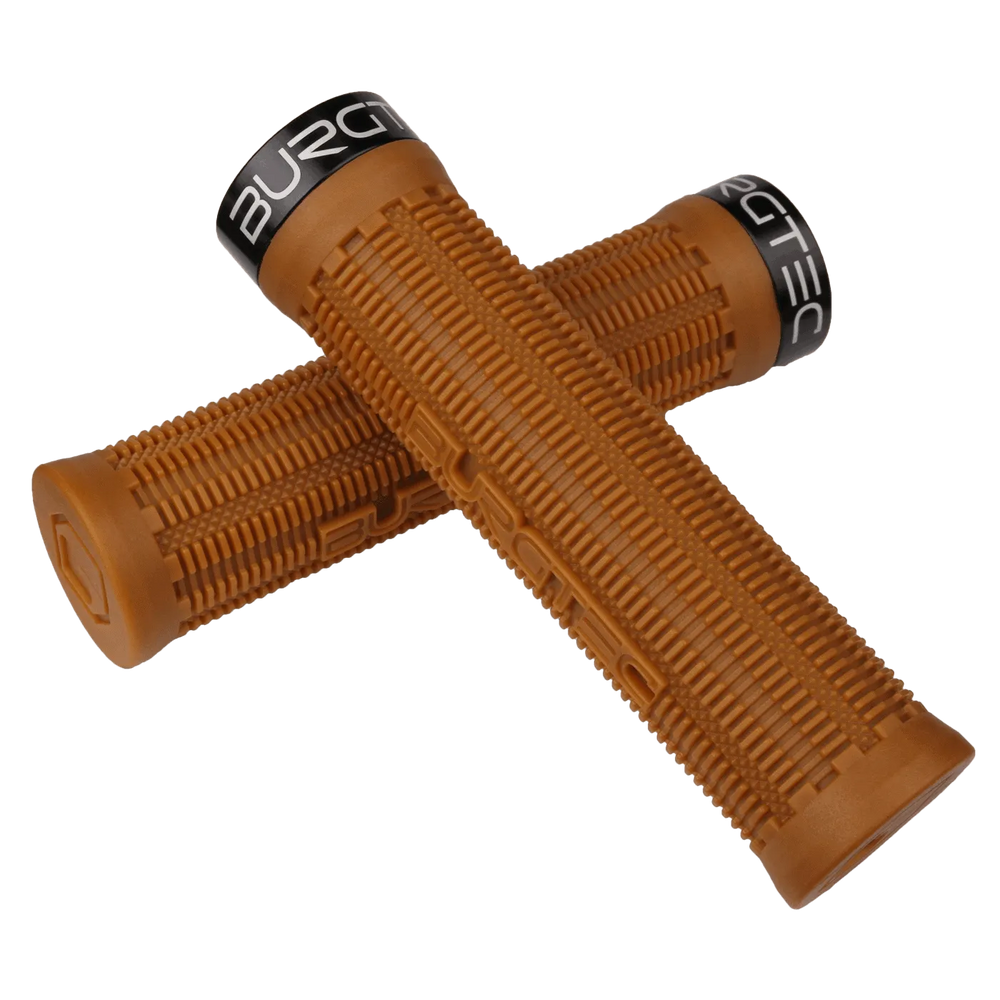

The Bartender Pro is the next level in grip design for Burgtec.

We’ve collaborated with 3 x World Champion Greg Minnaar over the the 2018 season to hone the construction of the grip to produce unrivalled vibration dampening.

• 31.5mm Diameter.
• 30A Rubber Compound (Softer compound is available)
• Single Lock On
• Tapered Core
• 9 Colours: Burgtec Black, Race Red, Deep Blue, Purple Rain, Gum, Iron Bro Orange, Electric Yellow, Nasa Grey, Toxic Barbie Pink

• Oversized 35mm Bore Carbon Handlebar
• Designed for DH / Enduro / All Mountain
• Developed and designed exclusively with our own in house DEITY molds
• Unidirectional Carbon Construction
• Damping properties reduce hand fatigue
• 30mm Rise
• 810mm Width
• 9 degree bend x 5 degree upsweep
• The ultimate combination of Strength, Weight, and Ride Quality
• Textured non slip stem clamping surface
• The strongest 35mm Downhill/Enduro Carbon Handlebar on the market!
• Available in Matte Unidirectional Black Carbon with Stealth, Chrome, White, Red, Green, Blue, Orange, Turquoise and Bronze Graphics
• Recommended MAX Torque Spec range (4 - 4.5 Nm)
• Backed by a Lifetime Crash Replacement Plan
• Weight: 245 grams​

From OneUp-

The goal for the new OneUp Carbon Handlebars was to make the best feeling bar possible, something which would let us ride harder for longer.

The solution is our patent pending oval shape which combines the best ride characteristics of 31.8mm and 35mm bar standards into one package. This is the most comfortable bar we’ve ever ridden, period. It's strong, lightweight, minimizes arm pump and vibration and maximize steering response. 35 done right.

The OneUp bar profile minimizes the length of the 35 diameter clamping area as this is the stiffest portion of any 35 diameter bar. The 35mm clamp diameter quickly changes to a flattened, oval shape in the transition zone and then to a standard 22.2mm clamp diameter for the control zone.

We bench marked the OneUp bar against the most popular carbon bars on the market as well as foam filled aluminum bars. The results were, on average, a 21% increase in vertical compliance (comfort) coupled with a 28% increase in steering stiffness (responsiveness). These are more than just marginal gains.

COMPATIBILITY

• Grips with a single outer clamp are not compatible with this bar.
• Control Bar ends (Bull Horns) are not compatible with this bar.
