Amflow PX Carbon Pro
- Free Domestic Shipping On Orders Over $100
- In stock
- Backordered, shipping soon
- Add To Cart For Final Price
PX Carbon Pro

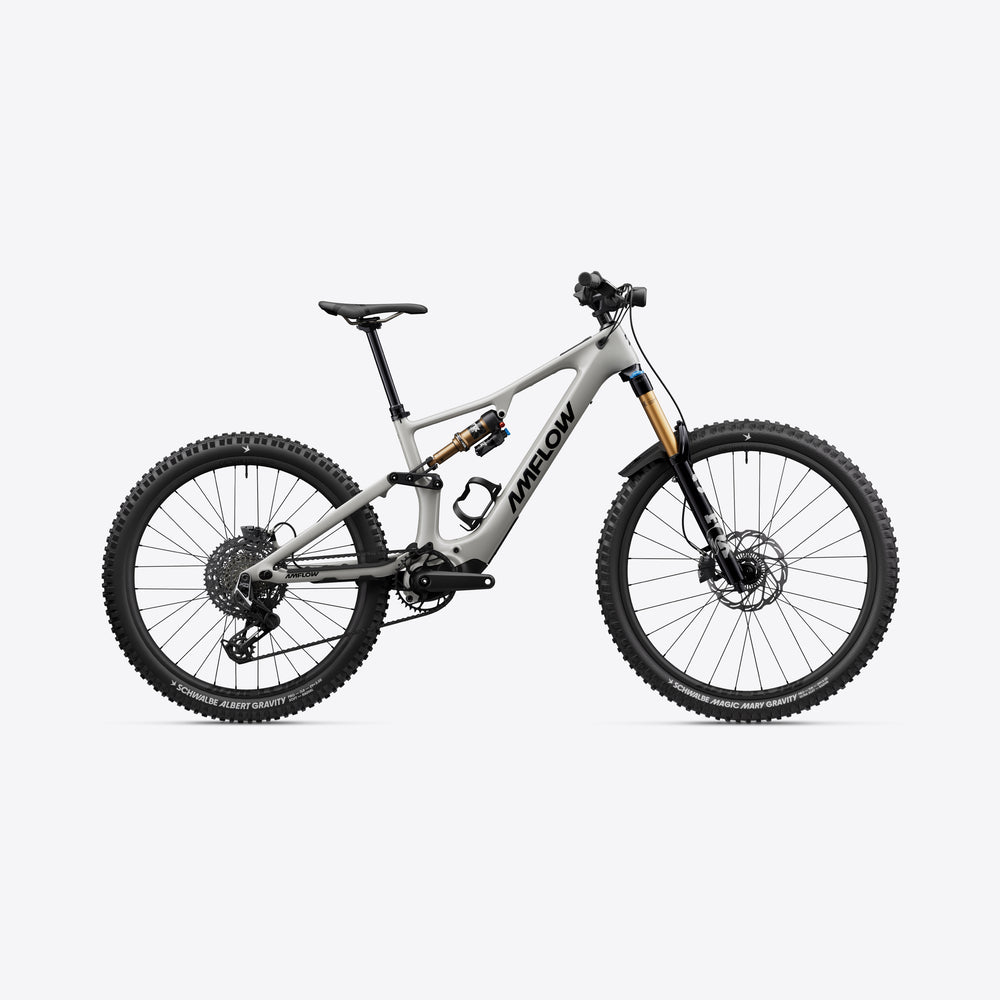

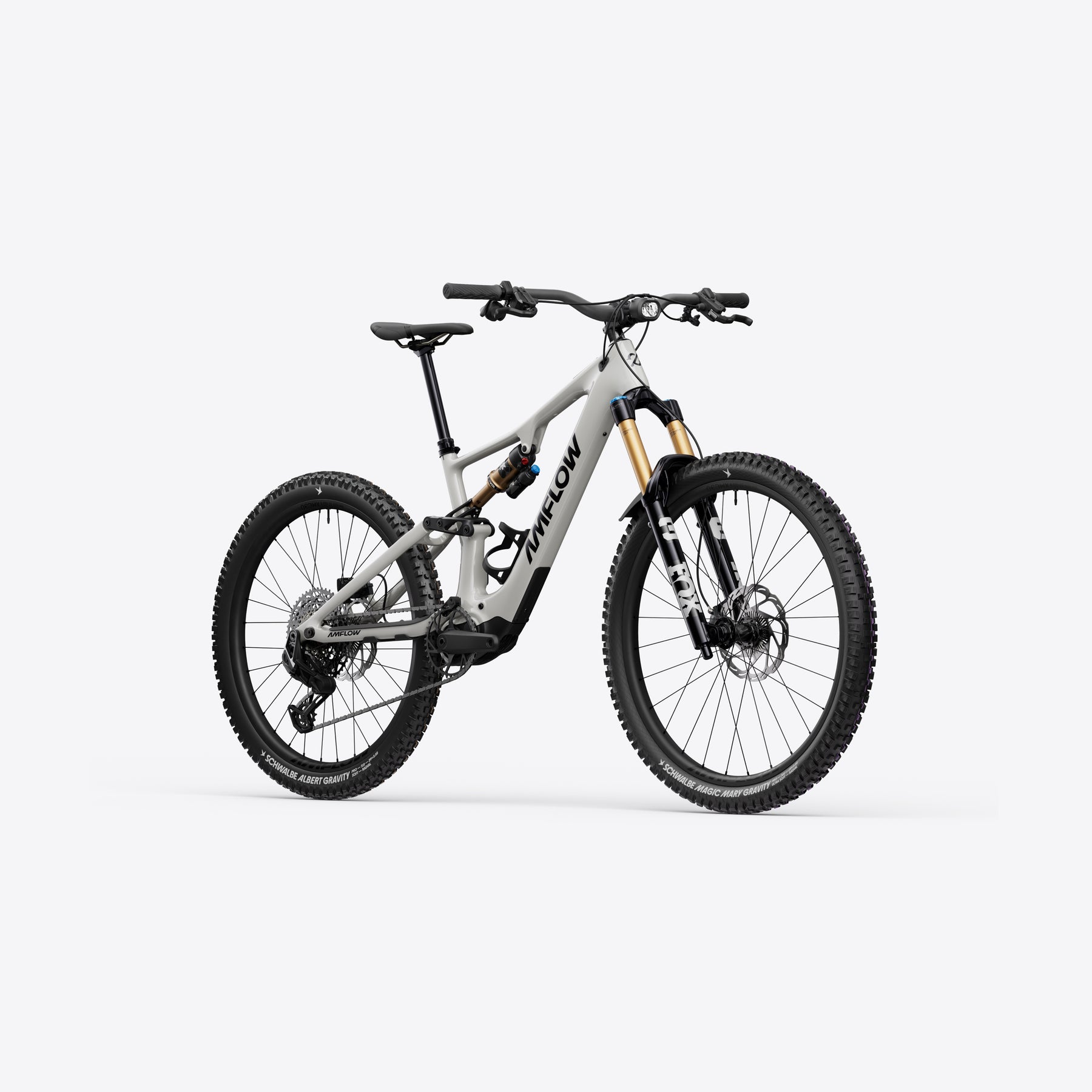

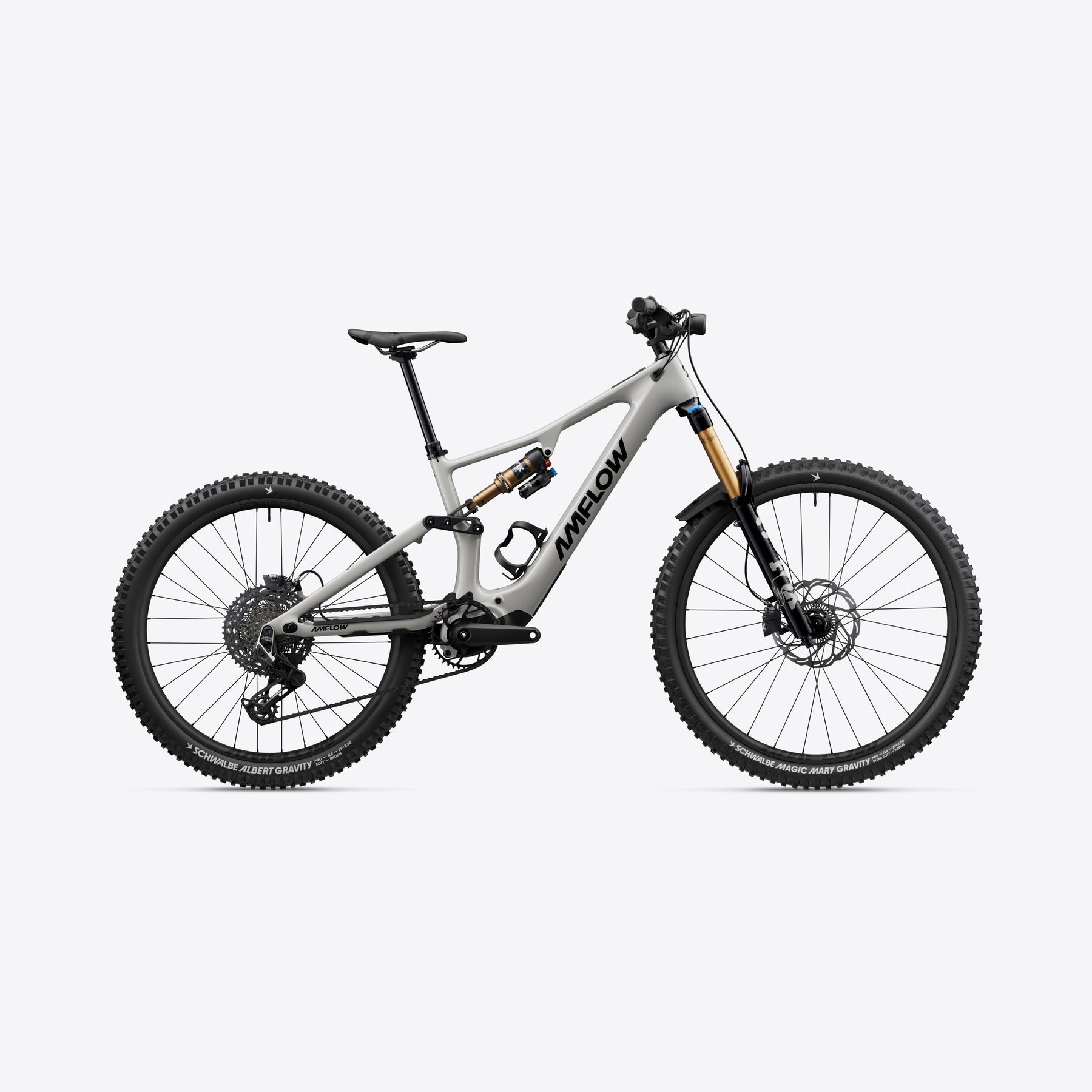

The Amflow PX Carbon Pro is the flagship build of the PX platform -- full-carbon frame and wheels, FOX Factory suspension with GRIP X2, SRAM X0 Eagle Transmission, and the Avinox M2S drive unit paired with a 700Wh battery. With up to 40 geometry configurations and both 27.5" and 29" rear wheel compatibility, the Pro is the most capable and refined expression of the PX Carbon.

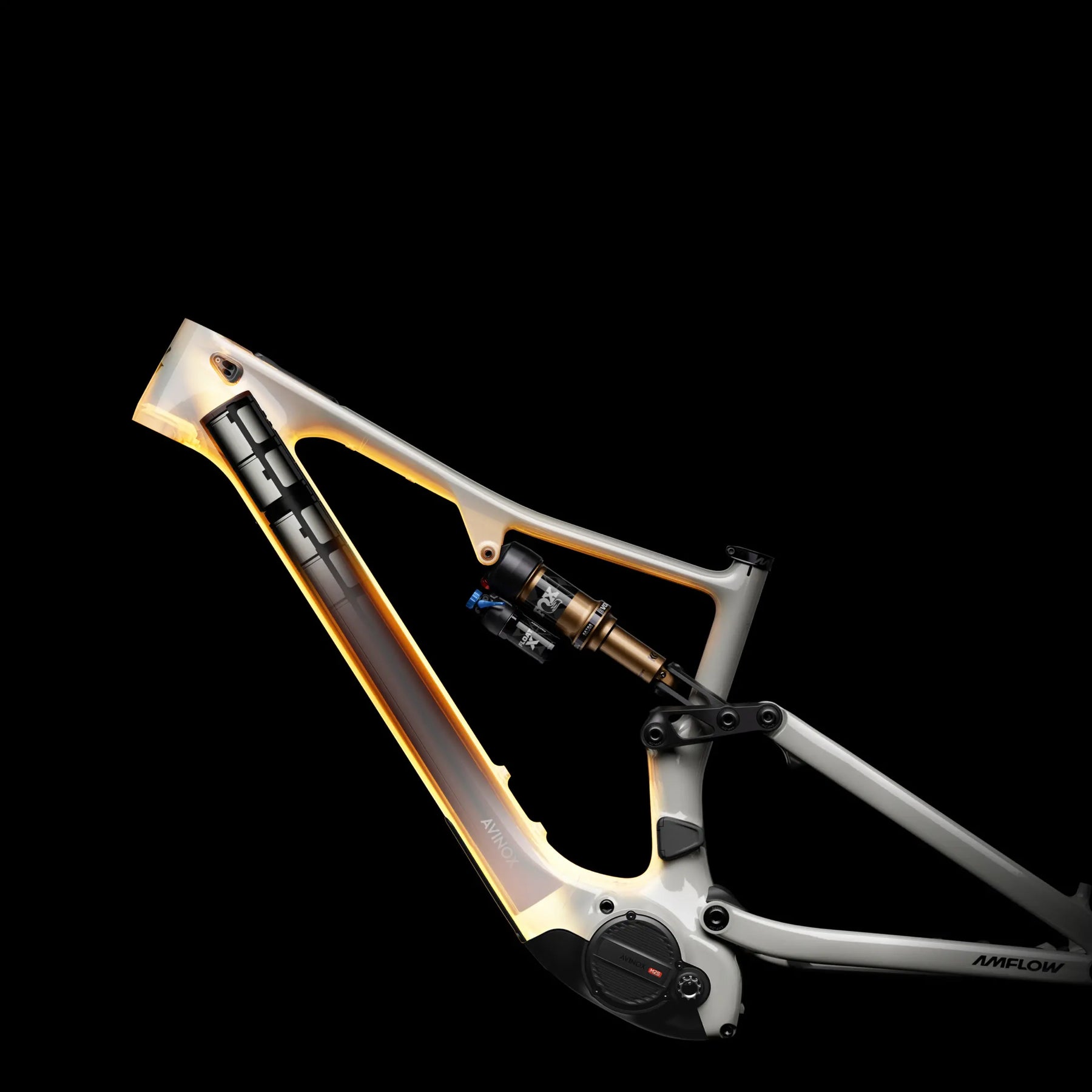

- Amflow PX Carbon Pro frame -- Moonstone Gray

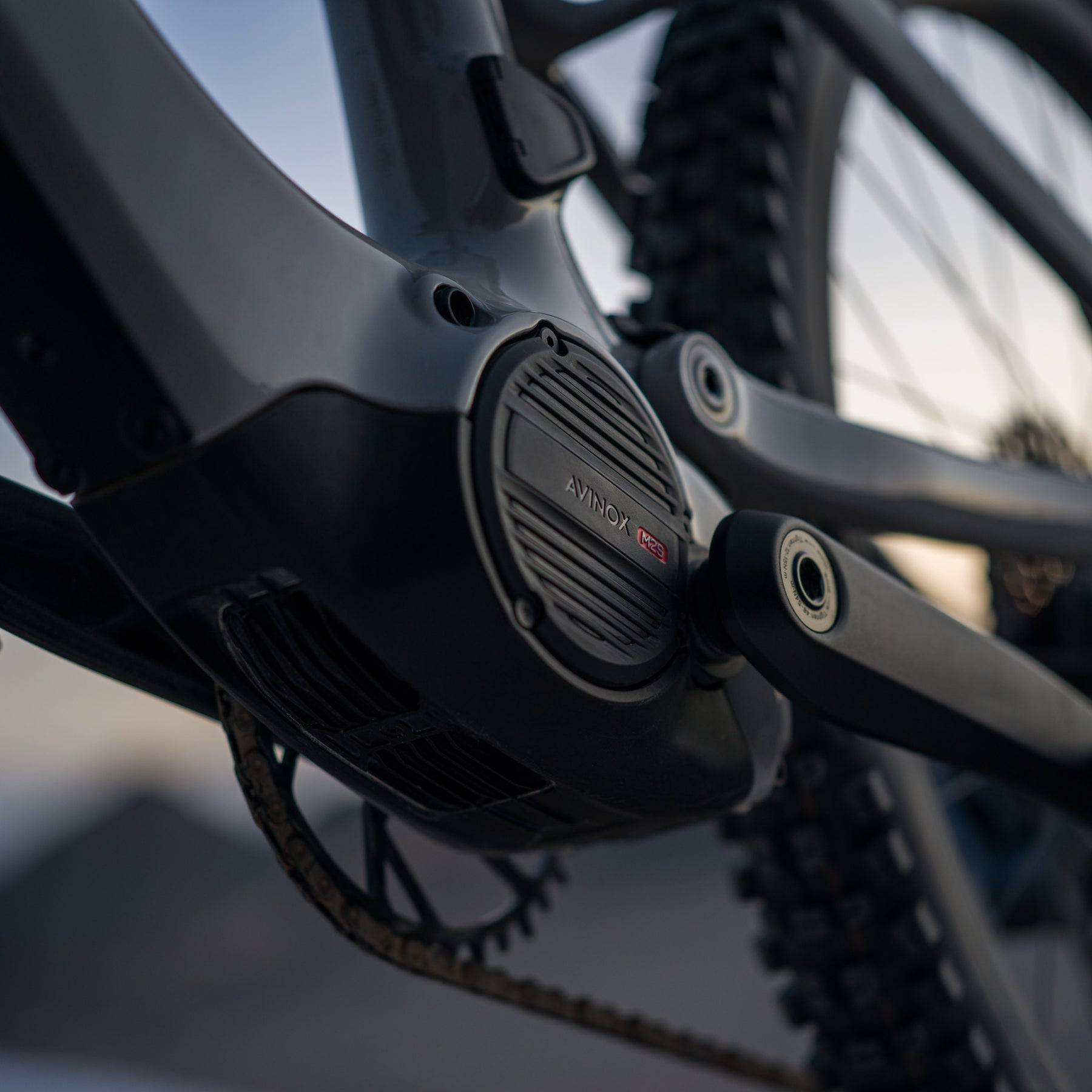

- Avinox M2S drive unit -- 130N·m nominal, 150N·m peak
- Avinox 700Wh integrated battery with 12A/508W fast charger

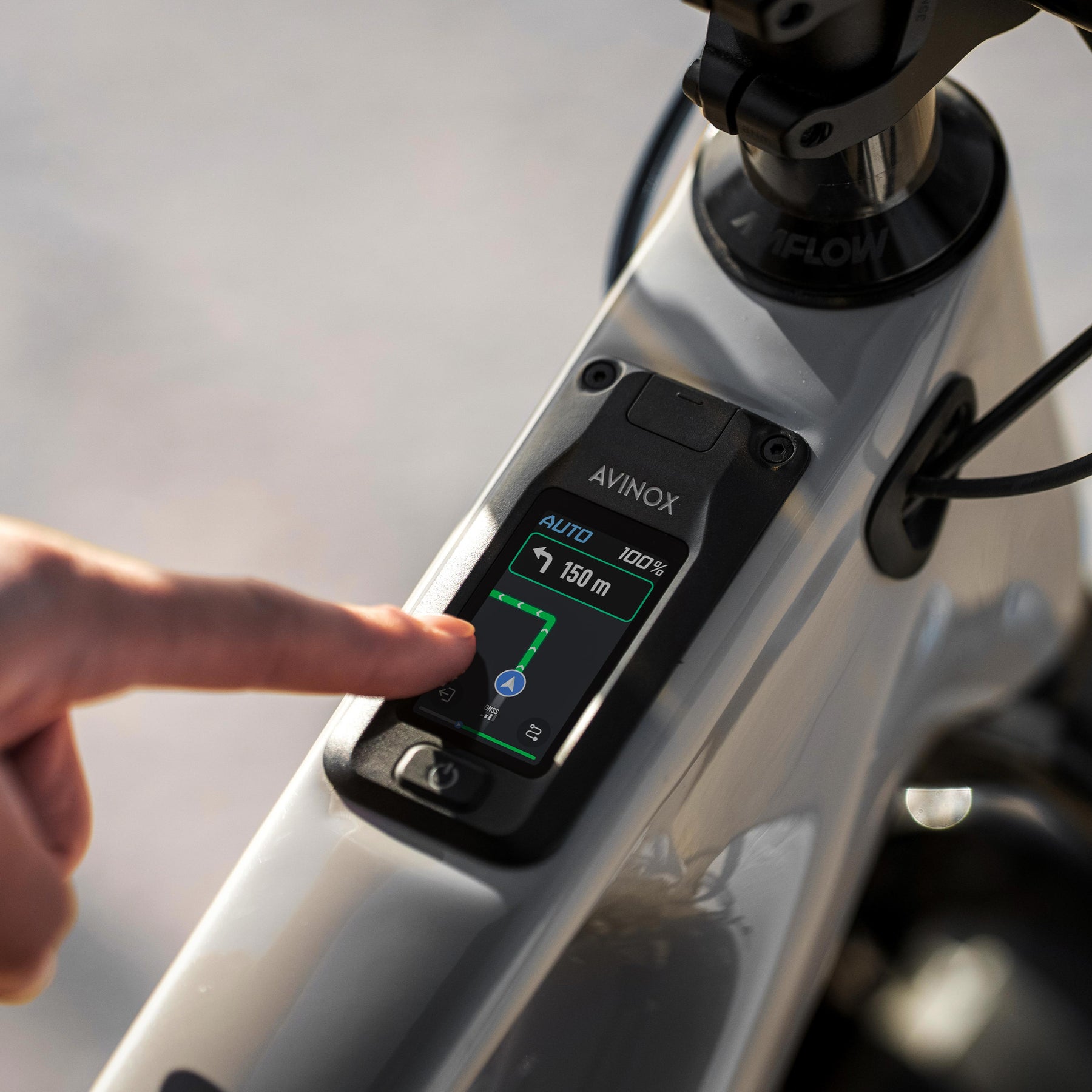

- Avinox 2-inch OLED control display with wireless controllers (left and right)
- 40 adjustable geometry configurations -- 5 headset angles, 2 BB heights, 4 chainstay lengths
- Mullet setup -- 29" front / 27.5" rear, compatible with both wheel sizes

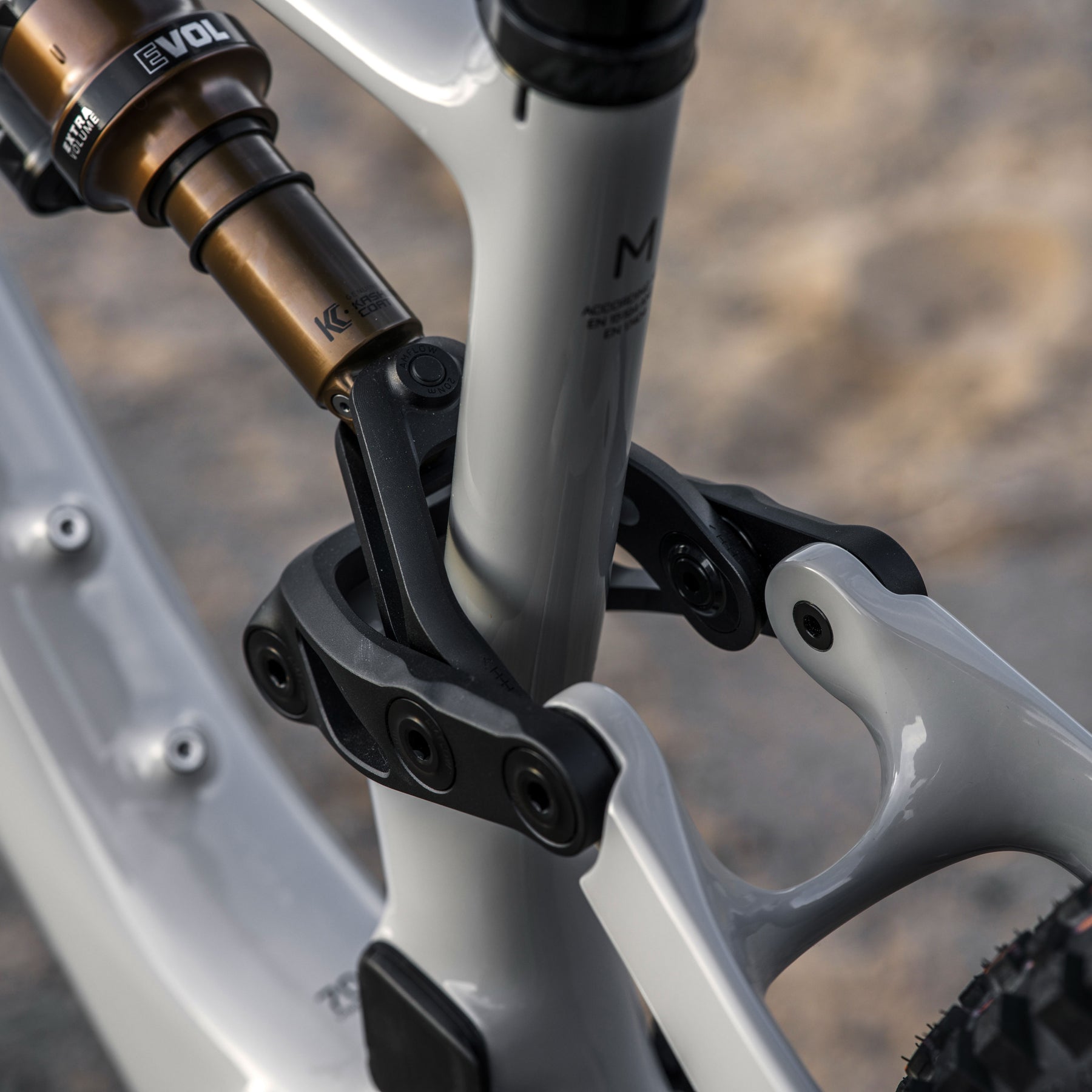

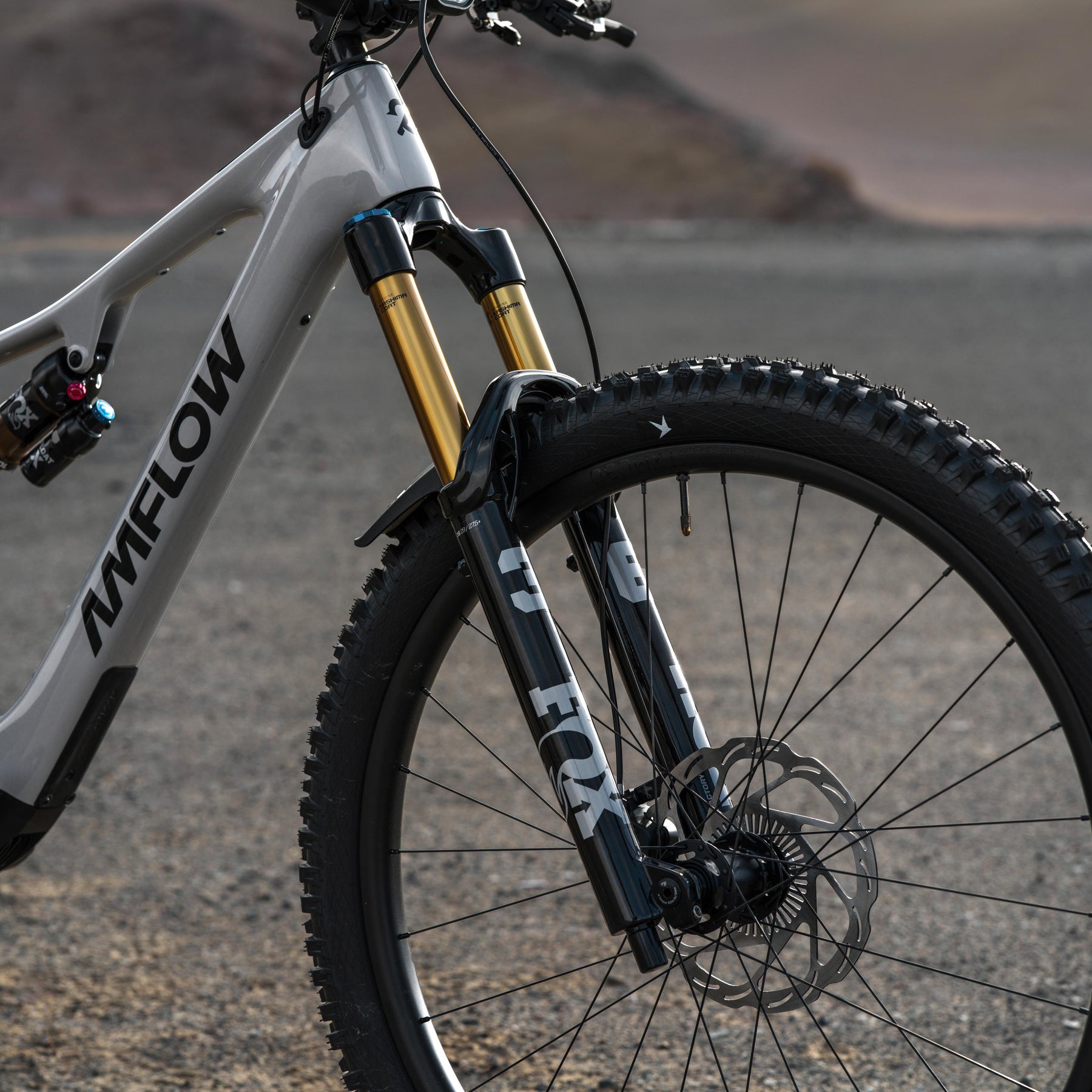

- FOX 36 Factory fork (160mm, GRIP X2) + FOX Float X Factory shock
- SRAM X0 Eagle Transmission drivetrain
- Magura Gustav Pro 4-piston brakes with 203mm rotors
- Schwalbe Magic Mary / Albert Radial Gravity Pro tires
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
| Size | Height (cm) | Height (in) |
|---|---|---|
| M | 162 - 178 | 5'4" - 5'10" |
| L | 170 - 185 | 5'7" - 6'1" |
| XL | 175 - 191 | 5'9" - 6'3" |
| XXL | 185 - 201 | 6'1" - 6'7" |
| Measurement | M | L | XL | XXL |
|---|---|---|---|---|
| Reach (mm) | 455 | 478 | 503 | 528 |
| Stack (mm) | 622.1 | 632.2 | 645.9 | 659 |
| Standover (mm) | 780 | 785 | 790 | 795 |
| Front Center (mm) | 793.1 | 820.9 | 852 | 883.9 |
| Fork Length (mm) | 570 | 570 | 570 | 570 |
| Wheelbase (mm) | 1231.3 | 1259.1 | 1290.2 | 1322.1 |
| Chainstay (mm) | 438 / 451 | 438 / 451 | 438 / 451 | 438 / 451 |
| BB Drop (mm) | 10.5 / 23.7 | 10.5 / 23.7 | 10.5 / 23.7 | 10.5 / 23.7 |
| BB Height (mm) | 345.5 | 345.5 | 345.5 | 345.5 |
| Effective Top Tube (mm) | 586.9 | 619.7 | 642.8 | 672.2 |
| Head Tube Angle (deg) | 64.2 | 64.2 | 64.2 | 64.2 |
| Head Tube Length (mm) | 109 | 120 | 135 | 150 |
| Actual Seat Angle (deg) | 72 | 72 | 72 | 72 |
| Effective Seat Angle (deg) | 78 | 78 | 78 | 77.7 |
| Seat Tube Length (mm) | 415 | 427 | 447 | 466 |
Chainstay and BB drop show two values reflecting the chainstay flip-chip. Figures represent one configuration -- the frame offers up to 40 geometry combinations via headset cups, BB height, and chainstay settings.
