PR Carbon Pro

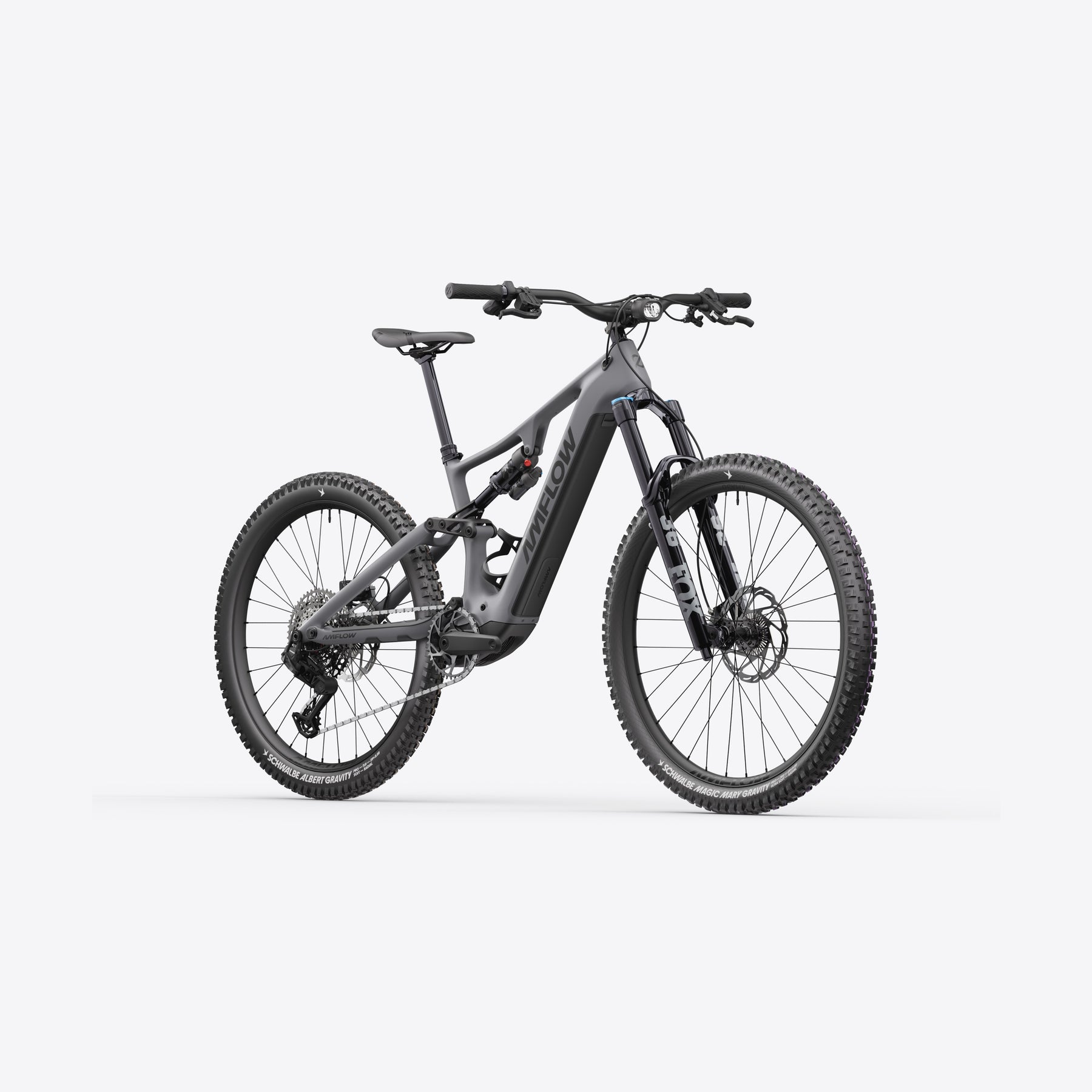

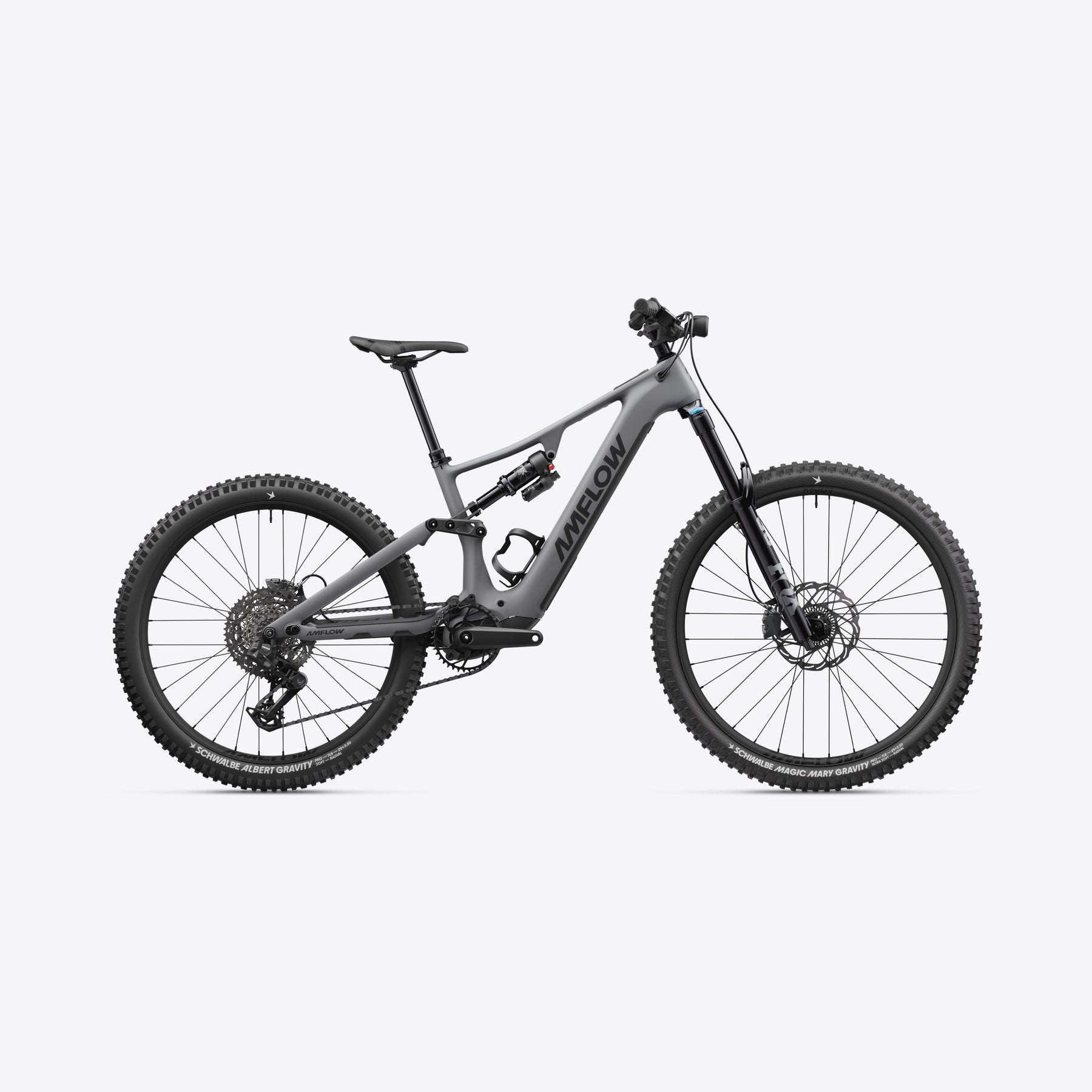

The Amflow PR Carbon Pro is the upgraded PR build -- the more powerful Avinox M2S drive unit (130N·m nominal, 150N·m peak), FOX Performance suspension, Magura Gustav Pro brakes, and Schwalbe Gravity Pro tires -- paired with a removable 800Wh battery and fast charging. Up to 40 geometry configurations and both 27.5" and 29" rear wheel compatibility make the PR Carbon Pro adaptable to any rider, terrain, or style.
- Amflow PX Carbon frame -- Phantom Black

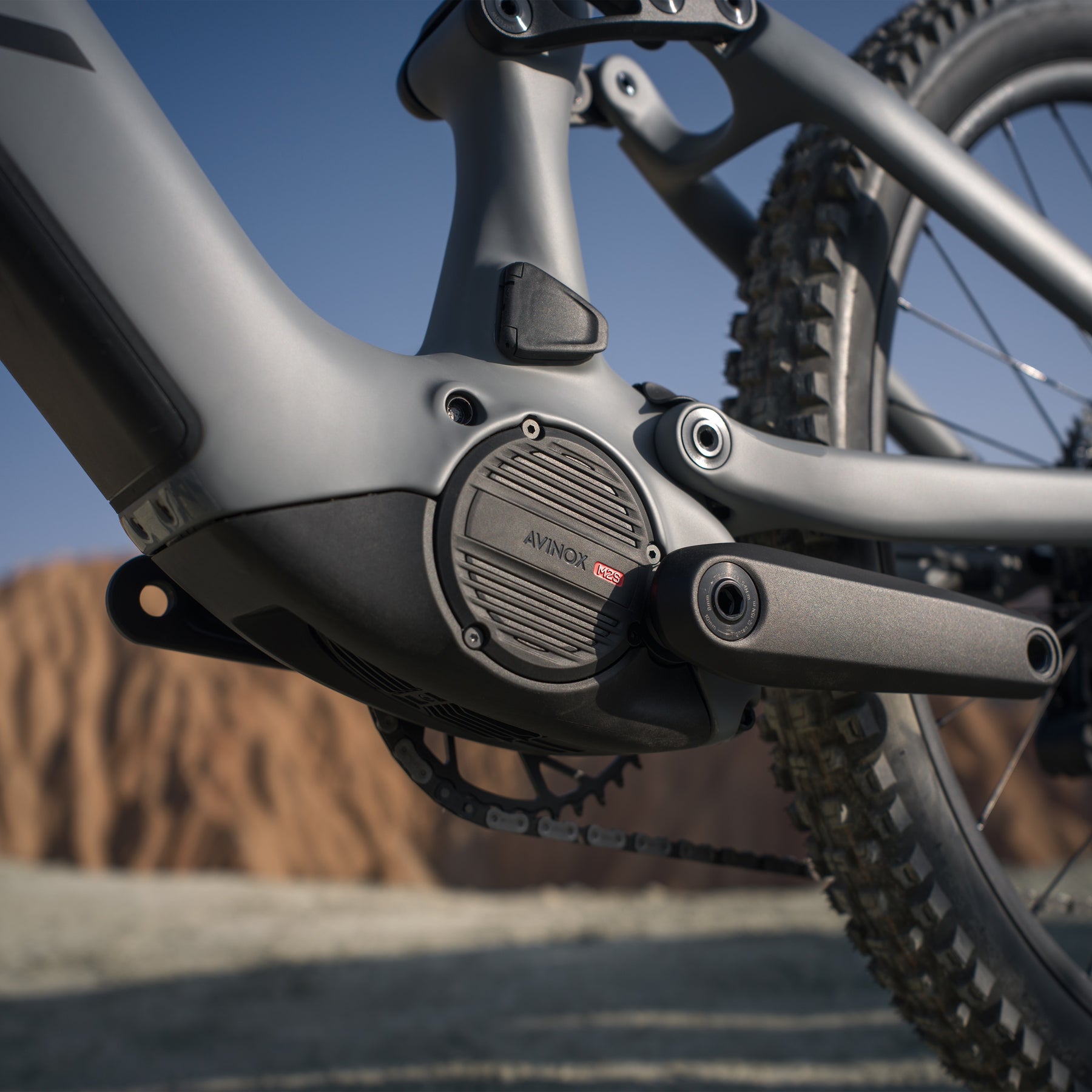

- Avinox M2S drive unit -- 130N·m nominal, 150N·m peak

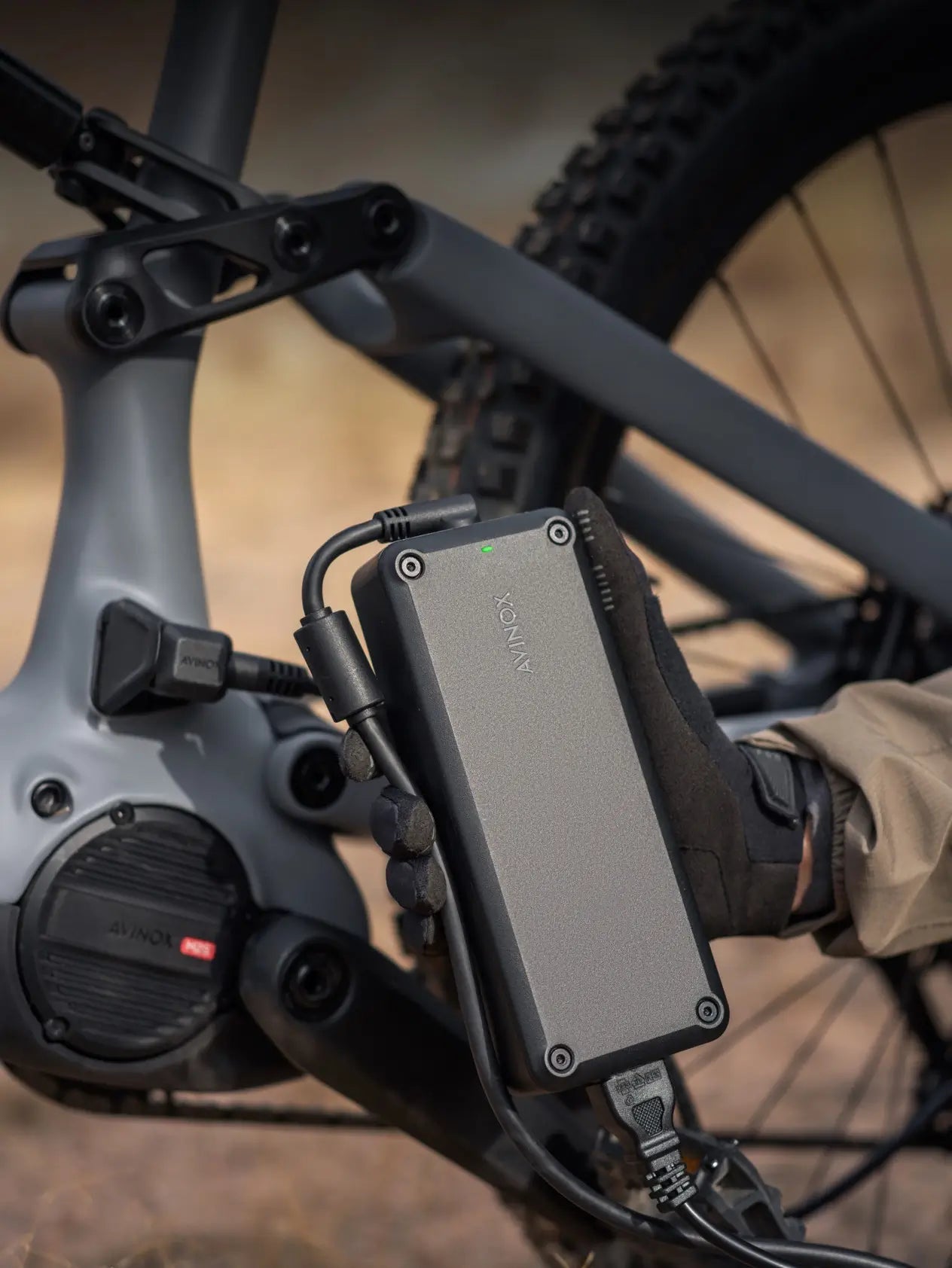

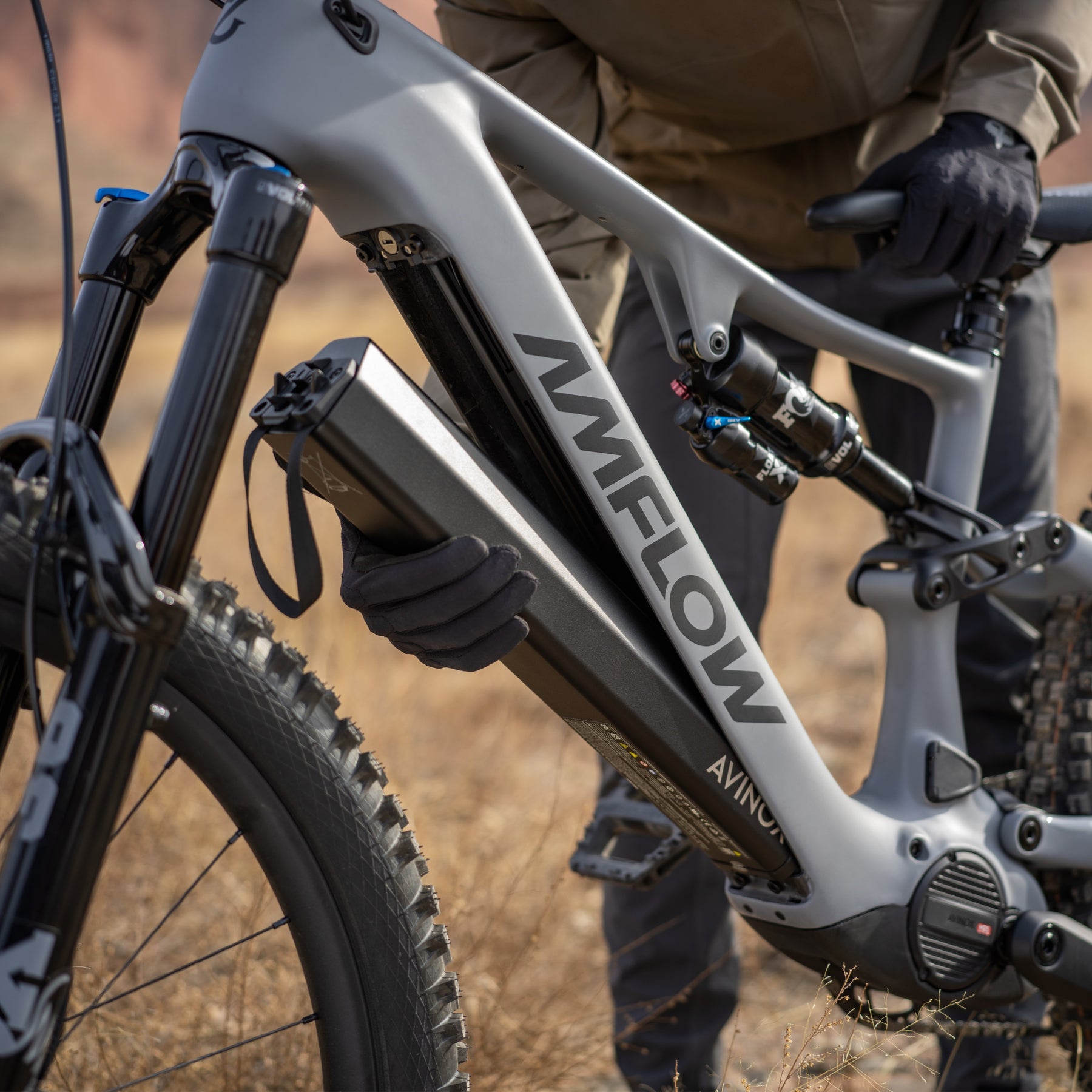

- Avinox 800Wh removable battery with 12A/508W fast charger

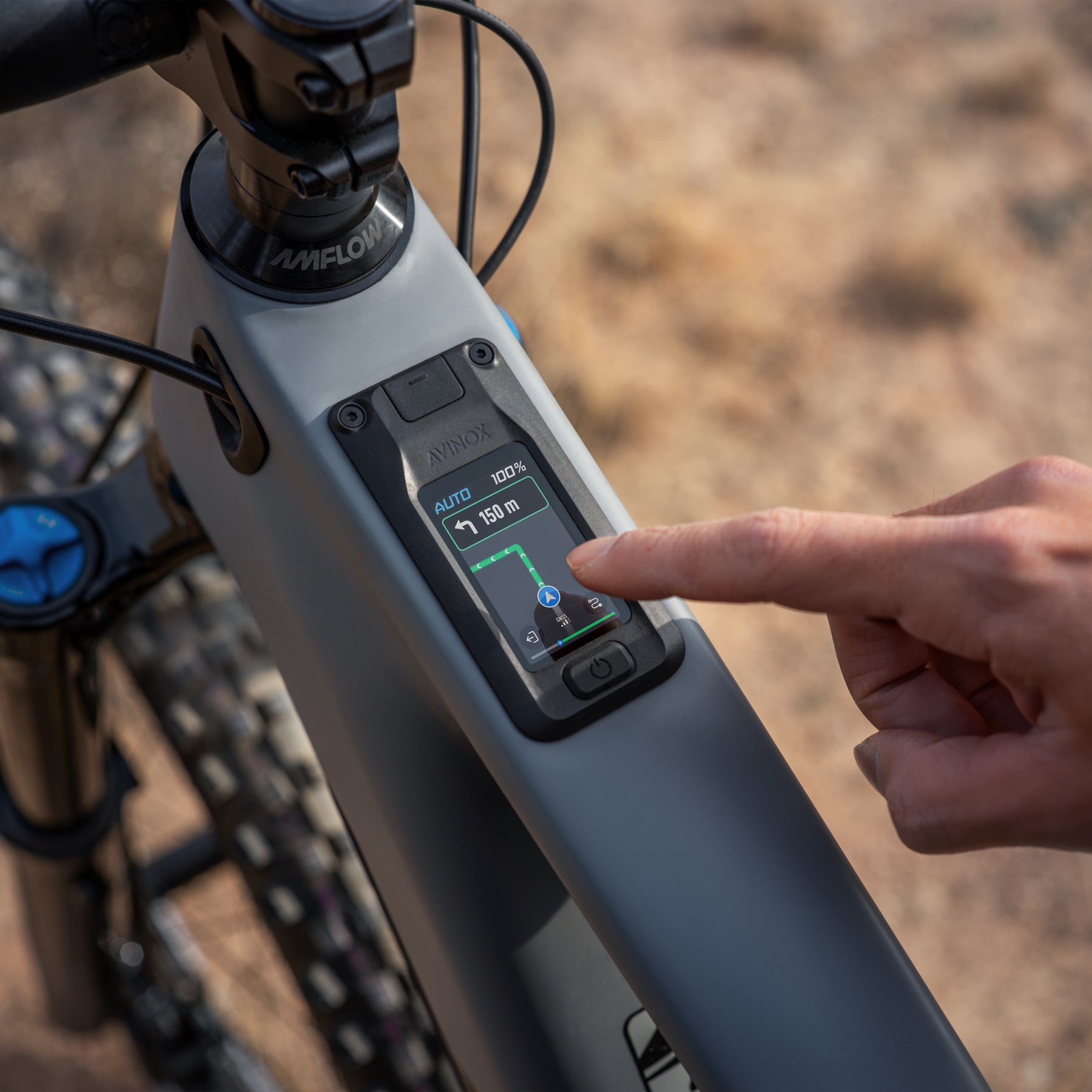

- Avinox 2-inch OLED control display with wireless controllers (left and right)
- 40 adjustable geometry configurations -- 5 headset angles, 2 BB heights, 4 chainstay lengths
- Mullet setup -- 29" front / 27.5" rear, compatible with both wheel sizes
- FOX 36 Performance fork (160mm) + FOX Float X Performance shock
- SRAM S1000 Eagle Transmission drivetrain
- Magura Gustav Pro 4-piston brakes with 203mm rotors
- Schwalbe Magic Mary / Albert Radial Gravity Pro tires
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
| Size | Height (cm) | Height (in) |
|---|---|---|
| M | 160 - 176 | 5'3" - 5'9" |
| L | 168 - 183 | 5'6" - 6'0" |
| XL | 173 - 189 | 5'8" - 6'2" |
| XXL | 183 - 199 | 6'0" - 6'6" |
| Measurement | M | L | XL | XXL |
|---|---|---|---|---|
| Reach (mm) | 452 | 475 | 500 | 527 |
| Stack (mm) | 626 | 637 | 649 | 662 |
| Standover (mm) | 782.5 | 788.9 | 791.5 | 799.1 |
| Front Center (mm) | 787.7 | 816 | 846.8 | 879.9 |
| Fork Length (mm) | 576 | 576 | 576 | 576 |
| Wheelbase (mm) | 1227.9 | 1256.2 | 1287 | 1320.1 |
| Chainstay (mm) | 440 / 452 | 440 / 452 | 440 / 452 | 440 / 452 |
| BB Drop (mm) | 10.4 / 24.5 | 10.4 / 24.5 | 10.4 / 24.5 | 10.4 / 24.5 |
| BB Height (mm) | 349.5 | 349.5 | 349.5 | 349.5 |
| Effective Top Tube (mm) | 596.5 | 623.5 | 652.9 | 684.6 |
| Head Tube Angle (deg) | 64.5 | 64.5 | 64.5 | 64.5 |
| Head Tube Length (mm) | 111.4 | 123.6 | 136.9 | 151.3 |
| Actual Seat Angle (deg) | 70 | 70 | 70 | 70 |
| Effective Seat Angle (deg) | 77 | 76.9 | 76.7 | 76.6 |
| Seat Tube Length (mm) | 405 | 425.3 | 445 | 464 |
Chainstay and BB drop show two values reflecting the chainstay flip-chip. Figures represent one configuration -- the frame offers up to 40 geometry combinations via headset cups, BB height, and chainstay settings.
