PR Carbon

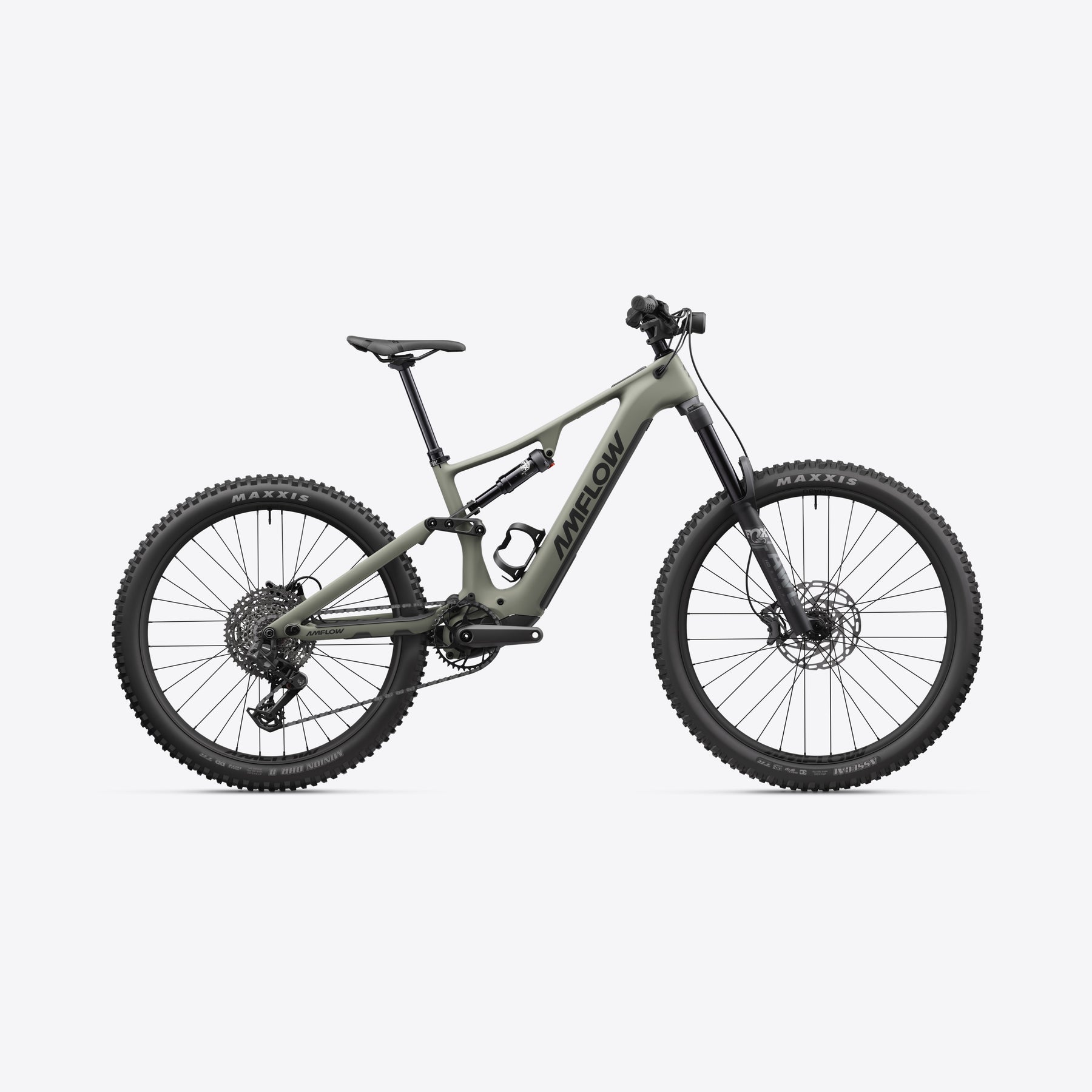

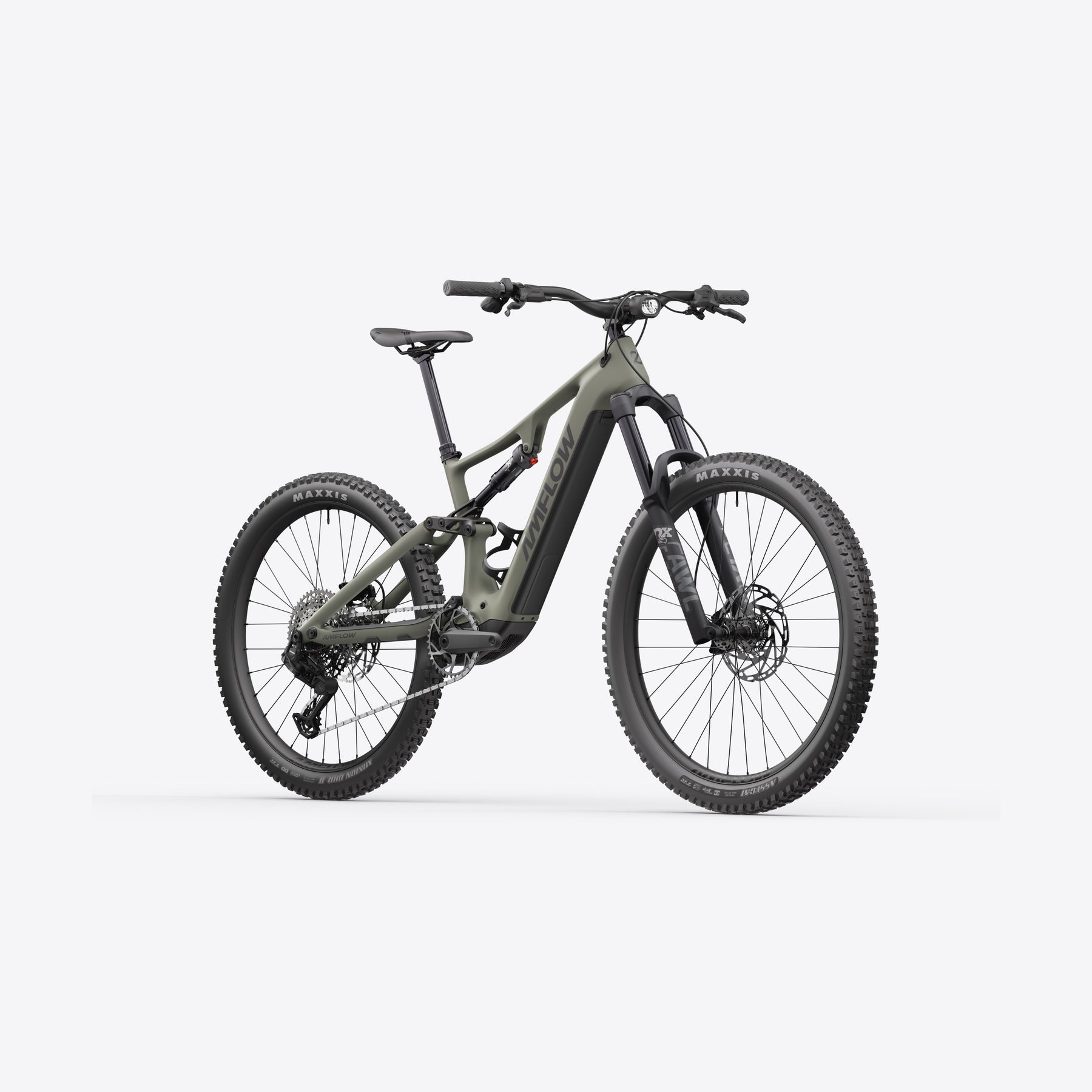

The Amflow PR Carbon is a full-carbon eMTB built around the Avinox M2 drive unit -- 110N·m nominal, 125N·m peak -- paired with a removable 800Wh battery and a 2-inch OLED control display. With a highly adjustable frame offering up to 40 geometry configurations and compatibility with both 27.5" and 29" rear wheels, the PR Carbon adapts to any rider, terrain, or style.
- Amflow PX Carbon frame -- Phantom Black
- Avinox M2 drive unit -- 110N·m nominal, 125N·m peak
- Avinox 800Wh removable battery with 4A/168W charger
- Avinox 2-inch OLED control display with wireless controllers (left and right)
- 40 adjustable geometry configurations -- 5 headset angles, 2 BB heights, 4 chainstay lengths
- Mullet setup -- 29" front / 27.5" rear, compatible with both wheel sizes
- FOX 36 Performance fork (160mm) + FOX Float X Performance shock
- SRAM S1000 Eagle Transmission drivetrain
- Tektro TKD173 4-piston brakes (Amflow custom) with 203mm rotors
- Maxxis Assegai / DHR II tires
* The bike offers 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings. Users can combine these settings based on different riding styles and terrain conditions. Theoretically, these parameters can form up to 40 geometry configurations. The specific adjustable range and applicable effects are subject to actual usage.
| Size | Height (cm) | Height (in) |
|---|---|---|
| M | 160 - 176 | 5'3" - 5'9" |
| L | 168 - 183 | 5'6" - 6'0" |
| XL | 173 - 189 | 5'8" - 6'2" |
| XXL | 183 - 199 | 6'0" - 6'6" |
| Measurement | M | L | XL | XXL |
|---|---|---|---|---|
| Reach (mm) | 452 | 475 | 500 | 527 |
| Stack (mm) | 626 | 637 | 649 | 662 |
| Standover (mm) | 782.5 | 788.9 | 791.5 | 799.1 |
| Front Center (mm) | 787.7 | 816 | 846.8 | 879.9 |
| Fork Length (mm) | 576 | 576 | 576 | 576 |
| Wheelbase (mm) | 1227.9 | 1256.2 | 1287 | 1320.1 |
| Chainstay (mm) | 440 / 452 | 440 / 452 | 440 / 452 | 440 / 452 |
| BB Drop (mm) | 10.4 / 24.5 | 10.4 / 24.5 | 10.4 / 24.5 | 10.4 / 24.5 |
| BB Height (mm) | 349.5 | 349.5 | 349.5 | 349.5 |
| Effective Top Tube (mm) | 596.5 | 623.5 | 652.9 | 684.6 |
| Head Tube Angle (deg) | 64.5 | 64.5 | 64.5 | 64.5 |
| Head Tube Length (mm) | 111.4 | 123.6 | 136.9 | 151.3 |
| Actual Seat Angle (deg) | 70 | 70 | 70 | 70 |
| Effective Seat Angle (deg) | 77 | 76.9 | 76.7 | 76.6 |
| Seat Tube Length (mm) | 405 | 425.3 | 445 | 464 |
Chainstay and BB drop show two values reflecting the chainstay flip-chip. Figures represent one configuration -- the frame offers up to 40 geometry combinations via headset cups, BB height, and chainstay settings.
