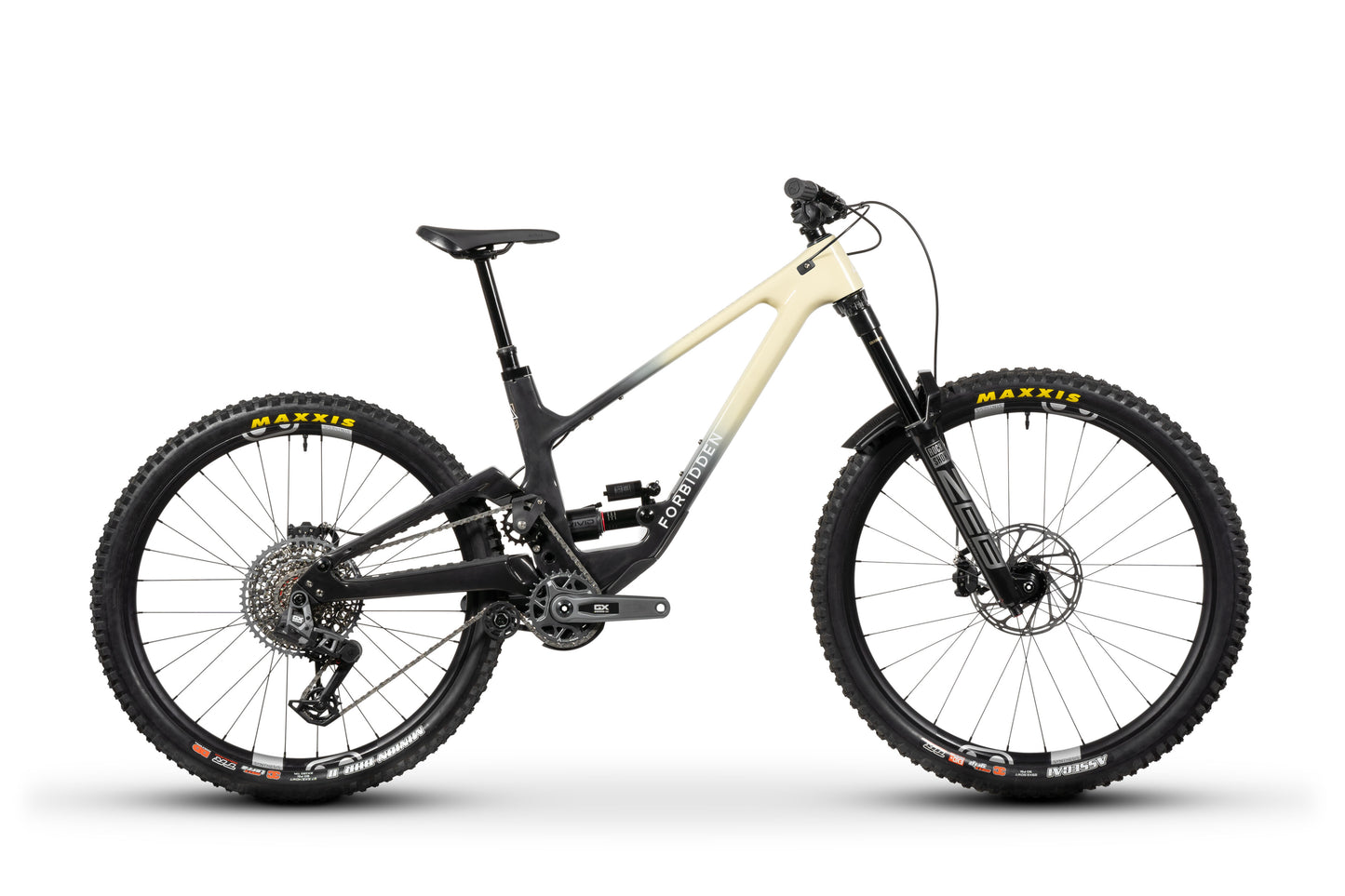

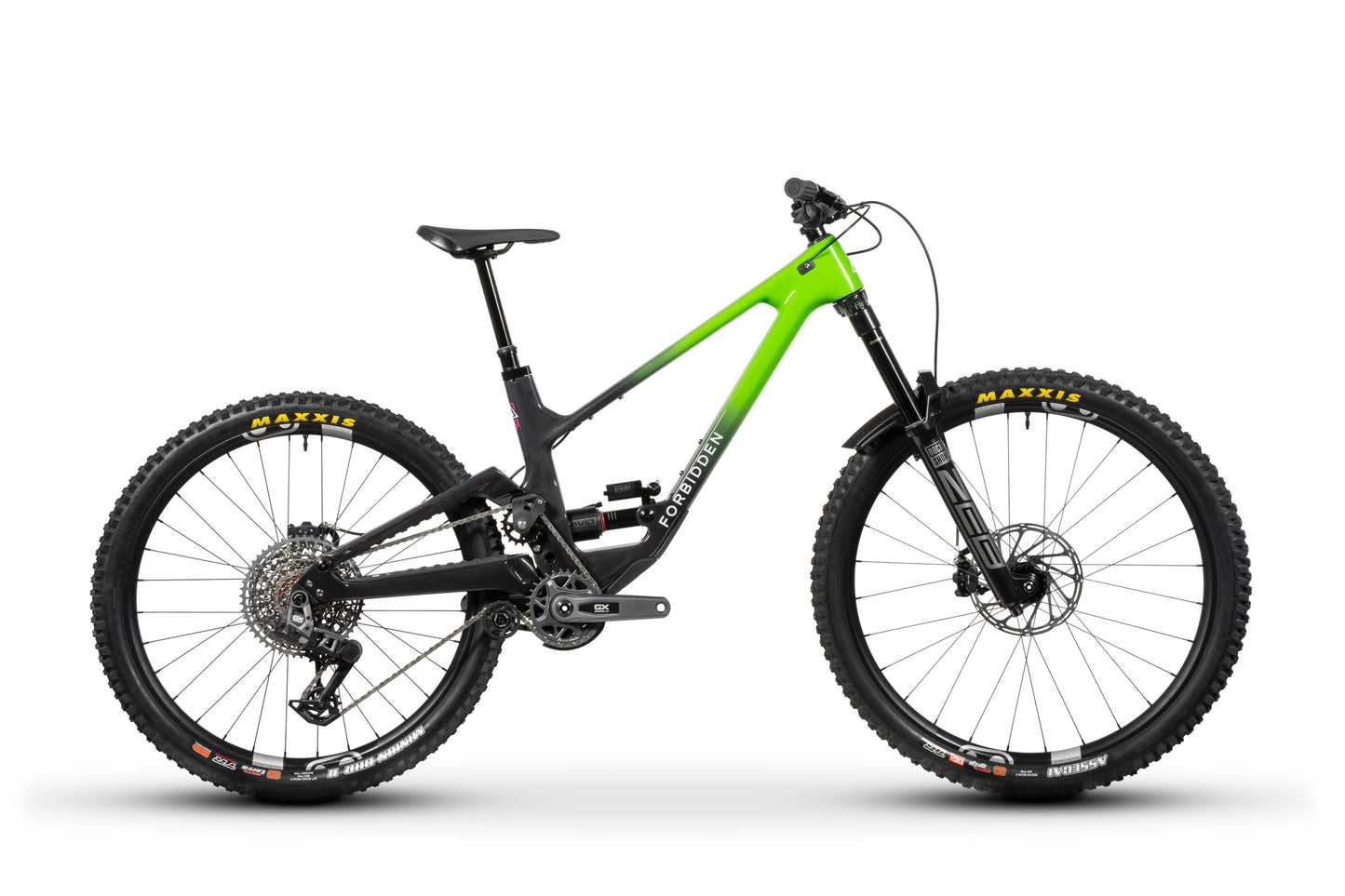

2025 Forbidden Dreadnought 2 Bike

2025 Forbidden Dreadnought 2 Bike

$5,624.00
$5,624.00
Sale Sold out
Shipping calculated at checkout.
  • Premium Component Quality
Color: KX500
Size
Wheel Size
Animation Image

Free Shipping Over $50

Key Features

  • Trifecta V2 High Pivot Suspension: 160mm of rear travel via an inverted four-bar linkage, optimized for stability, speed, and deep travel control.
  • SRAM GX Eagle Transmission (T-Type): Reliable and robust electronic wireless GX Eagle Transmission shifting.
  • RockShox Select+ Suspension: Features a robust 170mm **ZEB Select+** fork and a **Vivid Select+** rear shock with a Touchdown damper and hydraulic bottom out.
  • SRAM Maven Silver Brakes: Powerful 4-piston Maven Silver brakes with 200mm HS2 rotors for exceptional stopping power.
  • Proportional Geometry: Features true size-specific chainstay lengths (431mm to 475mm) for balanced handling across all S1-S4 sizes.
  • Wheel Versatility: Converts between full 29" and Mixed Wheel (MX) configurations with included modular dropouts.
  • Crankbrothers Synthesis Enduro Alloy Wheels: Durable alloy wheelset (31.5mm F / 29.5mm R) for optimal performance.
  • Integrated Chainguide: Forbidden Race upper idler guide and MRP MXg lower guide with bashguard for high-pivot chain security.

Full Specifications

Product Forbidden Dreadnought 2 Bike
Model Year 2025
Intended Use Enduro / All-Mountain / Freeride / Bike Park
Rider Unisex
Sizes and Geometry S1, S2, S3, S4 (29" and MX)
Wheel Size 29" or Mixed (29" Front / 27.5" Rear)
Frame Material Carbon Fiber
Frame Material Details High-modulus carbon fiber front and rear triangles, forged V2 Rate Control Linkage, molded protection, integrated rear fender
Rear Travel 160mm
Rear Shock RockShox Vivid Select+, Touchdown RT damper, 205mm x 60mm
Fork RockShox ZEB Select+, Charger 3.1 RC2 damper, 44mm offset, 38mm stanchions
Fork Travel 170mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset Cane Creek 40, ZS44/28.6 upper, ZS56/40 lower
Handlebar Burgtec Ride Wide Enduro Alloy, 800mm width, 35mm clamp
Rise: 22.5mm (S1/S2), 30mm (S3/S4)
Stem Forbidden, 40mm length, 35mm bar clamp
Grips Forbidden, single clamp lock-on, 128mm length
Brakes SRAM Maven Silver, 4-piston, organic pads
Rotors: SRAM HS2, 6-bolt, 200mm
Brake Levers SRAM Maven Silver Stealth, tool-free reach and contact point adjust
Drivetrain 1x
Shifters SRAM Eagle Pod Rocker Controller, 12-speed, AXS electronic wireless
Front Derailleur None
Rear Derailleur SRAM GX Eagle Transmission, 12-speed, AXS electronic wireless
ISCG Tabs ISCG05, lower two bolts only
Chainguide Forbidden Race upper idler pulley guide, MRP MXg lower pulley with bashguard
Cranks SRAM GX Eagle Transmission Alloy DUB, 165mm length
Chainrings SRAM GX Eagle Transmission, 32 tooth
Bottom Bracket SRAM DUB Wide, 73mm English/BSA threaded
Pedals None
Chain SRAM GX Eagle Transmission Flattop, 12-speed
Cassette SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth
Rims Crankbrothers Synthesis Enduro Alloy, tubeless ready
Front: 31.5mm inner; Rear: 29.5mm inner
Hubs Crankbrothers, 15x110mm Boost front, 12x148mm Boost rear with Ratchet freehub and XD driver
Spokes Sapim Race, stainless steel, 2.0/1.8/2.0mm double-butted
Tires Front: Maxxis Assegai, 3C MaxxTerra, EXO, TR, 29" x 2.5"
Rear: Maxxis Forekaster, 3C MaxxTerra, EXO+, TR, 2.4"
Saddle fi'zi:k Terra Alpaca X5, S-Alloy rails, 145mm width
Seatpost OneUp dropper
Drop: 120mm (S1), 150mm (S2), 180mm (S3), 210mm (S4)
Seatpost Diameter 31.6mm
Seatpost Clamp Forbidden, 7075 CNC anodized aluminum, 34.9mm
Rear Dropout / Hub Dimensions 12mm x 148mm (Boost)
Max. Tire Size 2.5"
Bottle Cage Mounts One inside front triangle, plus accessory mounts under top tube
Colors KX500, Arrakis
Warranty Lifetime frame
Weight
Miscellaneous
  • Trifecta V2 high pivot inverted four-bar rear suspension design with V2 Rate Control Linkage
  • Internal cable routing
  • SRAM UDH (Universal Derailleur Hanger)
  • Includes SRAM AXS Powerpack battery charger and Stan's NoTubes tire sealant
  • Modular dropouts (0mm offset) included for 29" and MX setup; +/-10mm aftermarket options available.

Geometry

Figures are based on stock **0mm offset** dropouts and a 170mm fork (586mm A-C, 44mm offset). Values are listed as: **29" Geometry** / **Mixed (MX) Geometry**. All measurements are in millimeters (mm) unless otherwise noted.

Size S1 S2 S3 S4
Reach 435 / 430 455 / 450 475 / 471 495 / 491
Stack 615 / 618 628 / 632 642 / 645 655 / 659
Top Tube Length (Effective) 571 / 572 594 / 595 617 / 618 640 / 641
Head Tube Angle 63.5° / 63.1° 63.5° / 63.1° 63.5° / 63.1° 63.5° / 63.1°
Seat Tube Angle (Effective) 77.5° / 77.1° 77.5° / 77.1° 77.5° / 77.1° 77.5° / 77.1°
Chainstay Length (Rear Center) 431 446 460 475
Wheelbase 1206.5 / 1206.5 1247.7 / 1247.6 1288.9 / 1288.8 1330.1 / 1330.0
Standover 771 775 777 780
Bottom Bracket Height 347 / 341 347 / 341 347 / 341 347 / 341
Head Tube Length 90 105 120 135
Recommended Fork Offset 44mm 44mm 44mm 44mm
Additional Info
  • BB Drop: -26mm (29" setup) / -19.6mm (MX setup).
  • Chainstay length is size-specific (Proportional Sizing).
  • Geometry is adjusted by the modular dropouts: MX setting is 0.4° slacker and 6mm lower than 29" setting.
