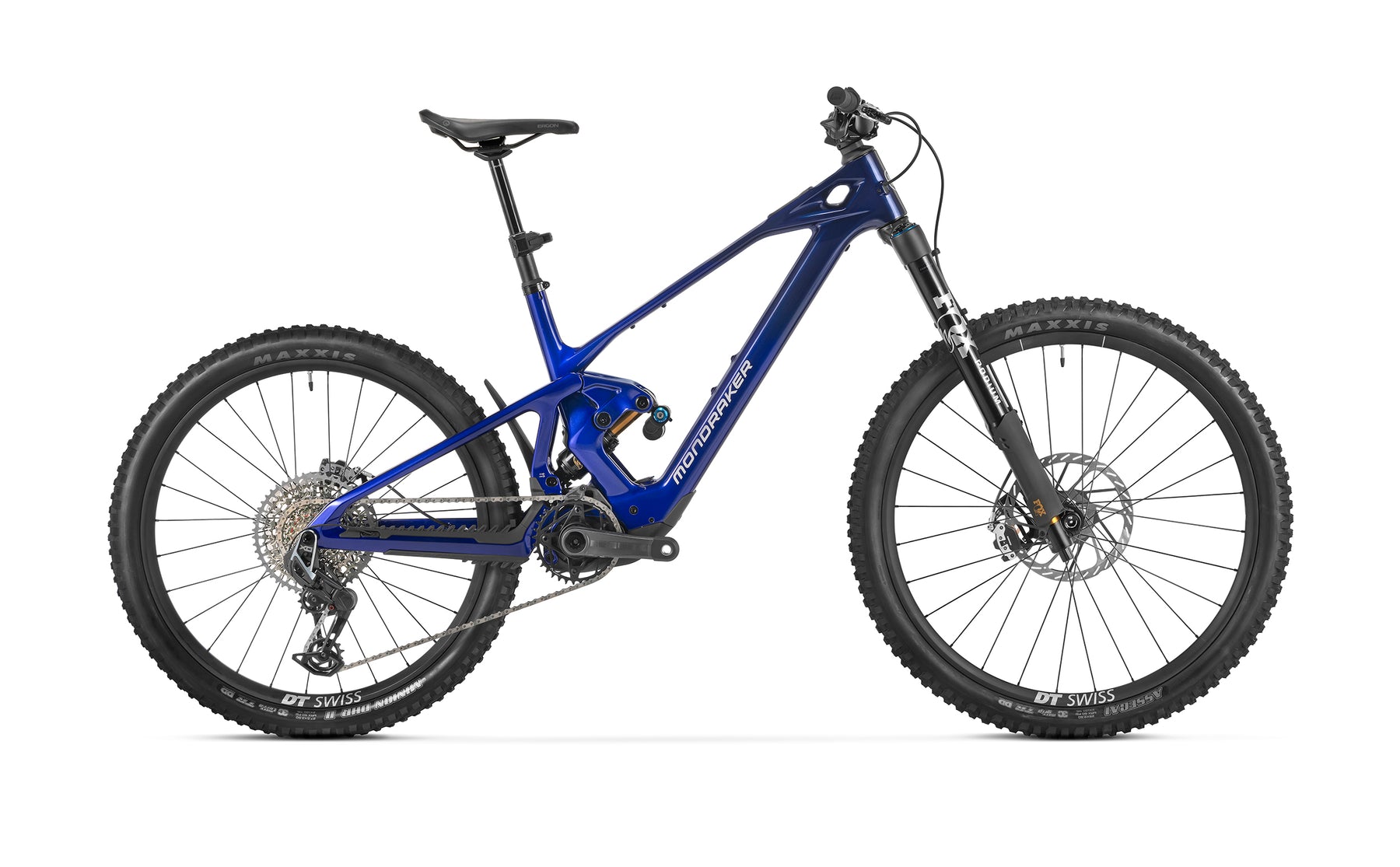

Zendit XR
The Mondraker Zendit XR is designed for riders who refuse to save all the fun for the descent and demand the most capable electric mountain bike ever created. Built from the ground up around the revolutionary Avinox M2S drive system, the Zendit represents a complete evolution in eMTB design -- not an adaptation of an existing platform, but a purpose-built gravity machine that can claw its way up the steepest technical climbs and unleash uncompromising performance on the way down.

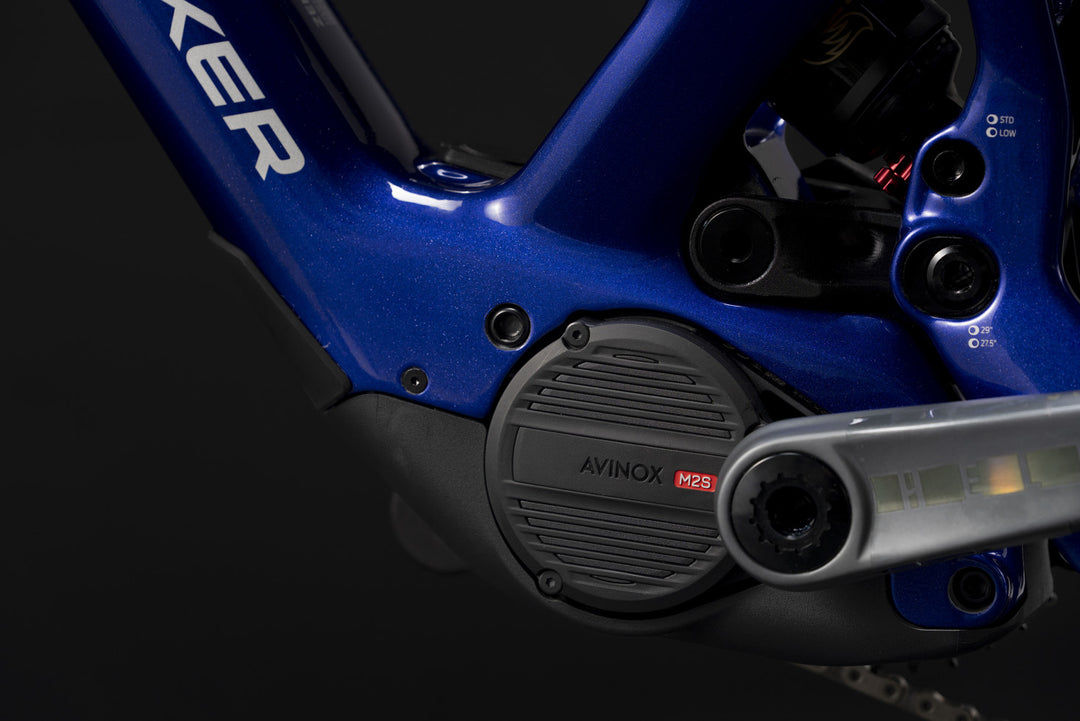

The Avinox M2S motor delivers 130Nm of torque (150Nm in Boost mode) with 1,300W peak power, featuring Multi Sensor Fusion Algorithm technology that acts like traction control -- seamlessly transferring assistance from pedal to rear tire for predictable traction everywhere. The integrated 800Wh battery maintains 80% capacity after 500 charge cycles, while the intuitive touchscreen control interface pairs with the Avinox Ride app for complete customization from Eco to the extreme 60-second Boost mode.

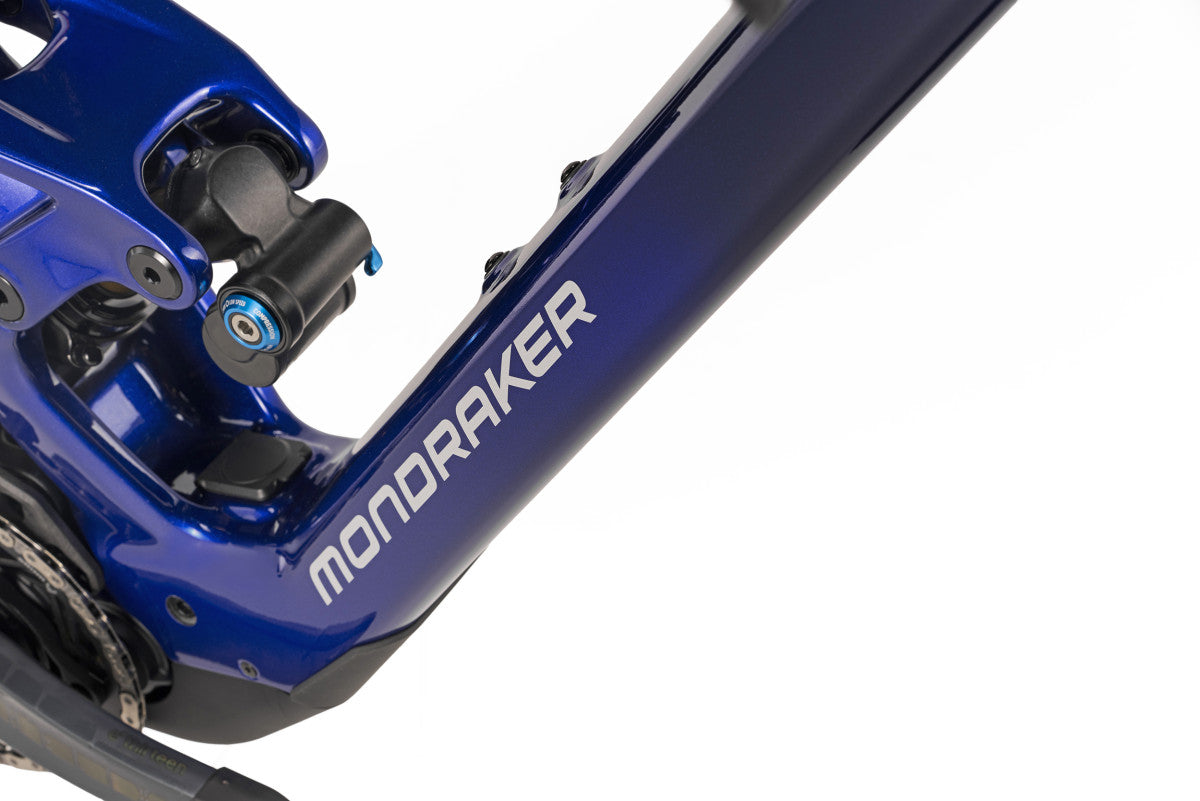

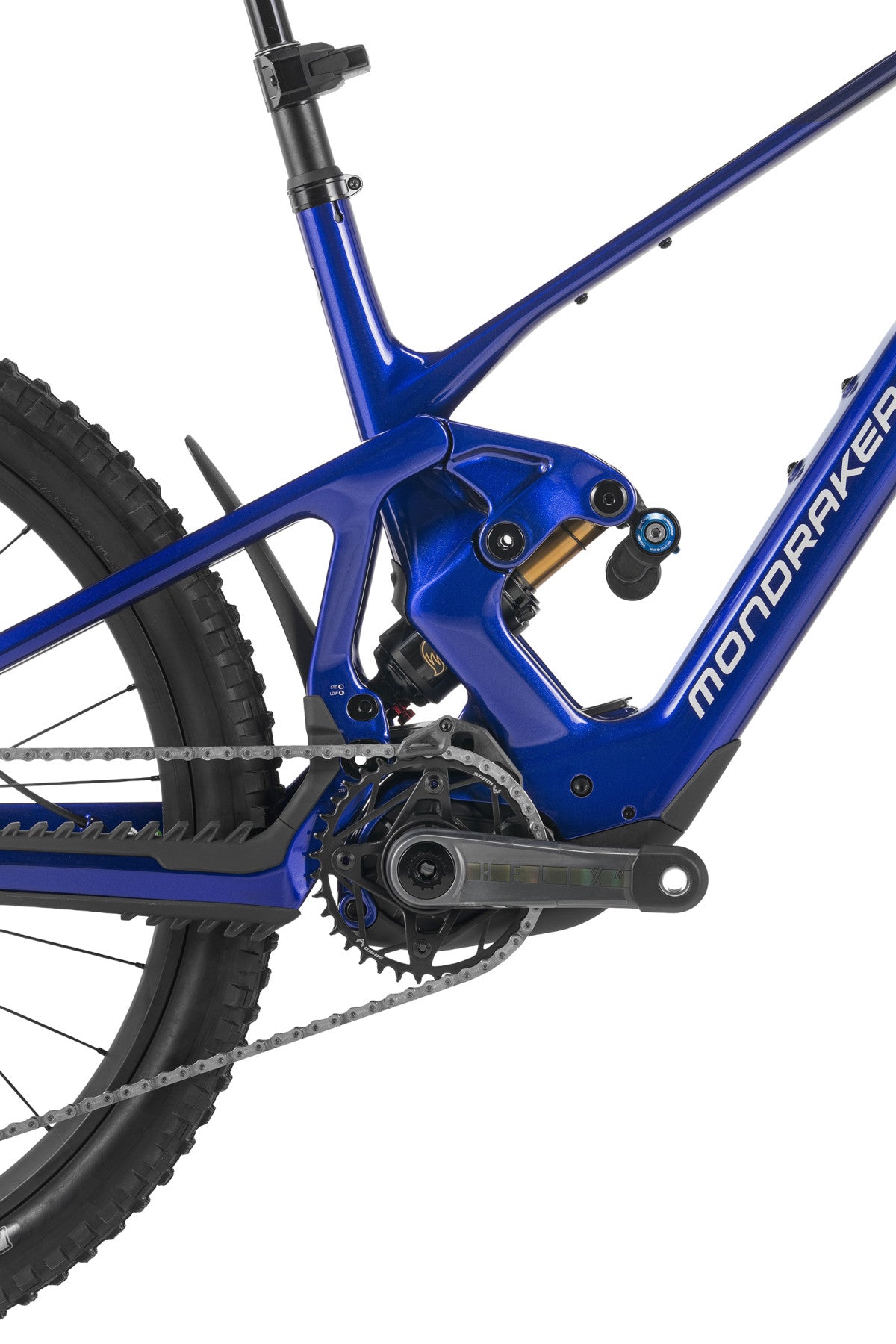

The Stealth Air Carbon frame weighs exactly 3,000 grams (size M/L) through advanced manufacturing using 6-axis CNC machines for unprecedented precision. The evolved ZERO suspension platform features 27% progression, 105% anti-squat, and 99% anti-rise -- completely revised to handle the Avinox motor's output. FOX worked closely with Mondraker to deliver custom-tuned Float X2 Factory and Podium GripX2 Factory suspension. Evolved Forward Geometry includes adjustable head angle (±0.35°), flip-chip geometry, proportional chainstays across sizes, and seamlessly integrated display with wireless controllers, action camera control, USB-C fast charging, and digital motor lock with alarm and tracking.
- Stealth Air Full Carbon frame -- 165mm rear travel, ZERO suspension (27% progression, 105% anti-squat, 99% anti-rise)
- Avinox M2S 2026 motor -- 130Nm (150Nm Boost), 1300W peak, Multi Sensor Fusion traction algorithm
- Integrated 800Wh battery -- 80% capacity retained after 500 charge cycles
- FOX Podium GripX2 Factory fork (170mm) and Float X2 Factory shock -- custom Mondraker tune
- SRAM X0 Eagle AXS T-Type wireless drivetrain
- DT Swiss Hybrid HXC 1500 Spline carbon wheelset
- Adjustable head angle (±0.35 deg) and flip-chip geometry -- MX standard, full 29" compatible
- Touchscreen display with Avinox Ride app, action camera control, USB-C fast charging, digital motor lock
- Frame weight: 3,000g (size M/L) via 6-axis CNC manufacturing
| Measurement | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| Seat Tube Length (mm) | 380 | 410 | 435 | 460 | 490 |
| Top Tube (mm) | 586 / 586 | 606 / 606 | 628 / 629 | 650 / 651 | 672 / 673 |
| Reach (mm) | 440 / 436 | 460 / 456 | 480 / 476 | 500 / 496 | 520 / 516 |
| Stack (mm) | 631 / 633 | 631 / 634 | 640 / 643 | 649 / 652 | 658 / 661 |
| Head Tube Angle (deg) | 63.5 / 63.15 | 63.5 / 63.15 | 63.5 / 63.15 | 63.5 / 63.15 | 63.5 / 63.15 |
| Seat Tube Angle (deg) | 73.5 / 73.15 | 73.5 / 73.15 | 73.5 / 73.15 | 73.5 / 73.15 | 73.5 / 73.15 |
| Effective Seat Angle (deg) | 77 / 76.65 | 77 / 76.65 | 77 / 76.65 | 77 / 76.65 | 77 / 76.65 |
| BB Drop (mm) | 6 / 11 | 6 / 11 | 6 / 11 | 6 / 11 | 6 / 11 |
| Chainstay (mm)* | 345 / 340 | 345 / 340 | 345 / 340 | 345 / 340 | 345 / 340 |
| Seat Stay (mm) | 450 / 451 | 450 / 451 | 450 / 451 | 455 / 456 | 455 / 456 |
| Wheelbase (mm) | 1241 / 1242 | 1261 / 1262 | 1286 / 1287 | 1315 / 1316 | 1339 / 1340 |
| Head Tube Length (mm) | 110 | 110 | 120 | 130 | 140 |
| Fork Rake (mm) | 44 | 44 | 44 | 44 | 44 |
*Chainstay length increases by 7mm with a 29" rear wheel. Low / High = flip-chip position.
