About This Bike

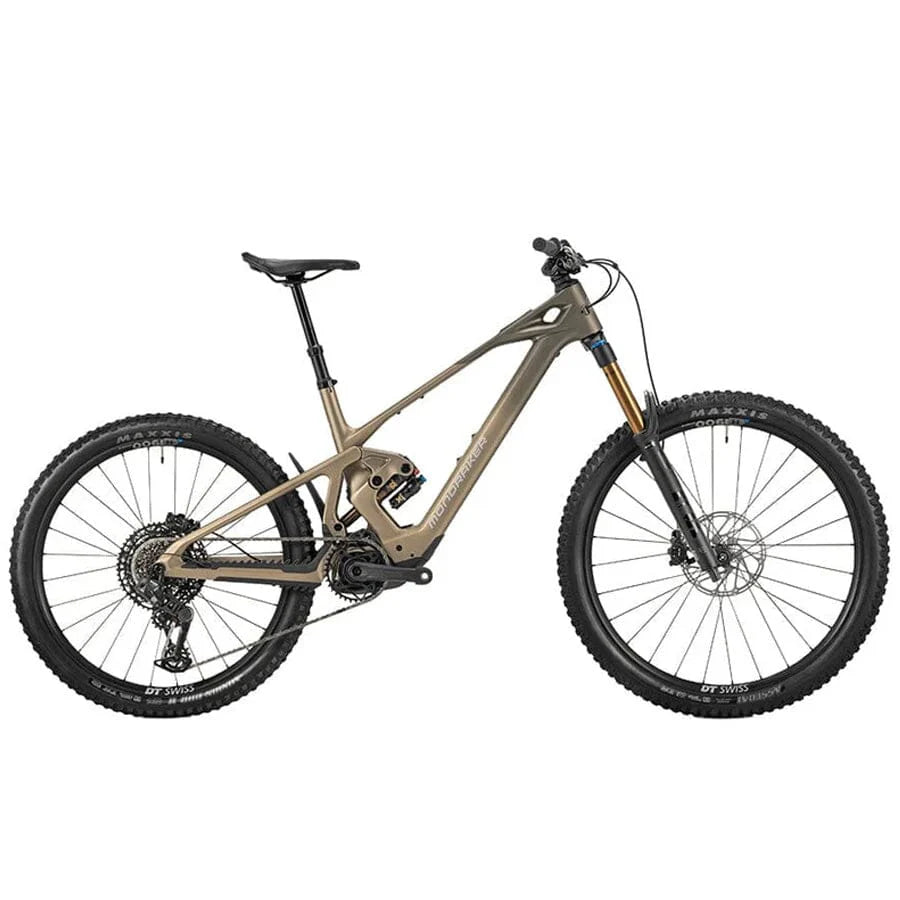

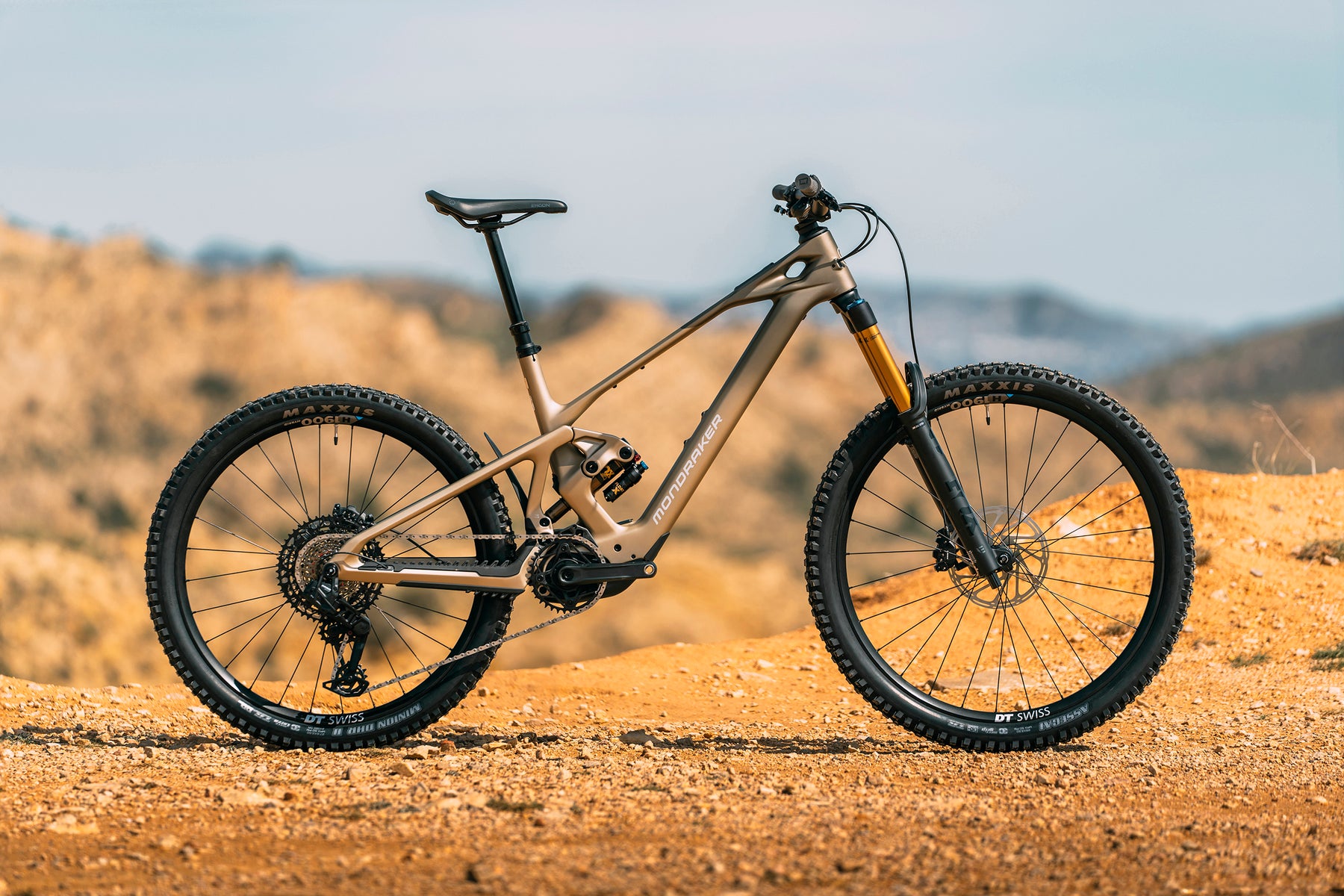

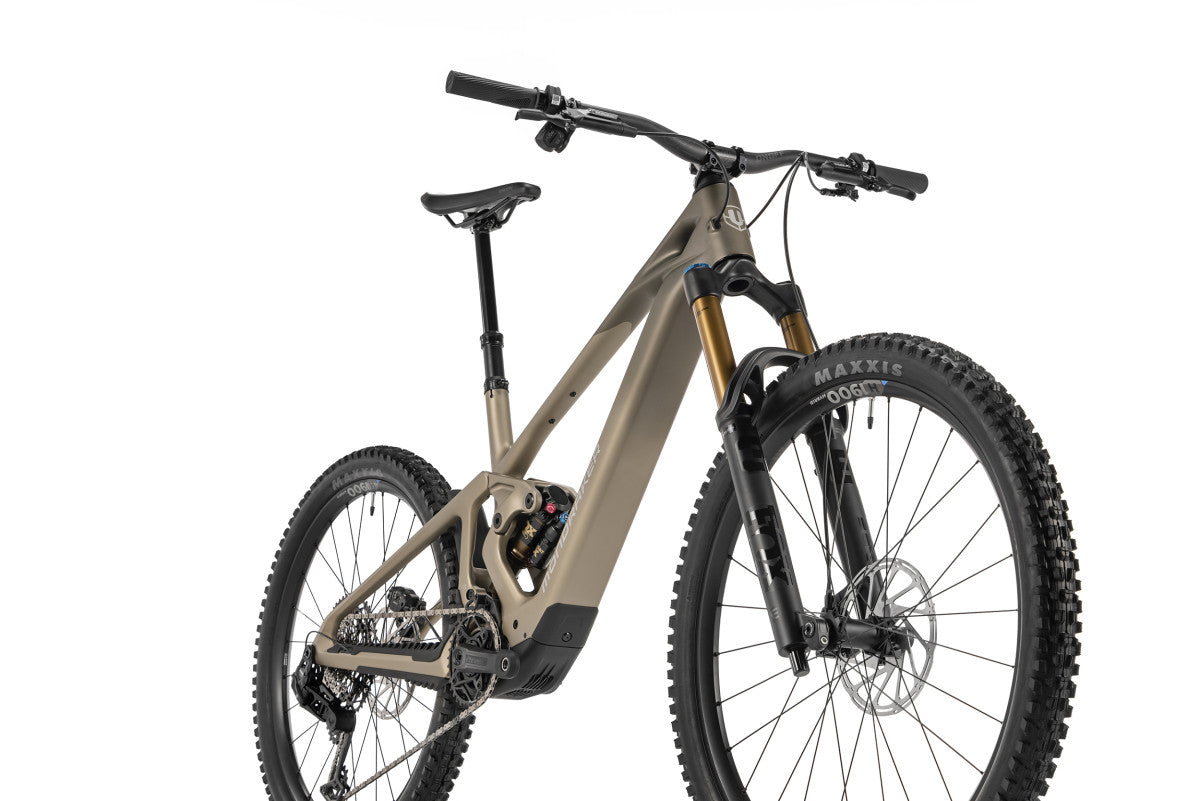

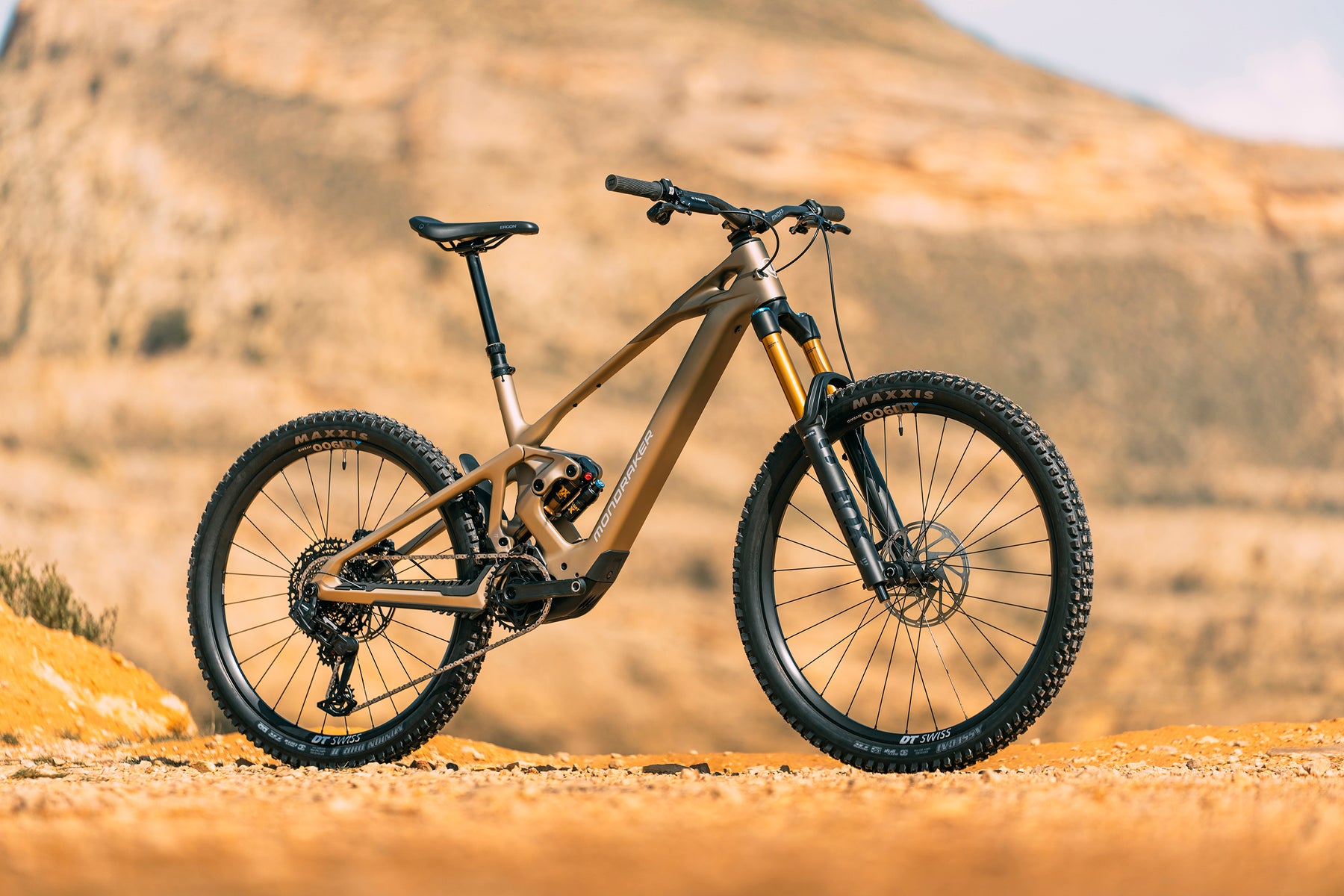

The Mondraker Zendit RR is a next-generation electric mountain bike built to redefine what's possible on the trail. Designed from the ground up around the powerful Avinox M2S drive system, this long-travel machine delivers unmatched performance on the steepest climbs and most demanding descents. With 165mm of rear travel, 170mm up front, and Mondraker's evolved ZERO suspension kinematics, the Zendit RR is engineered for aggressive riders who refuse to hold back.

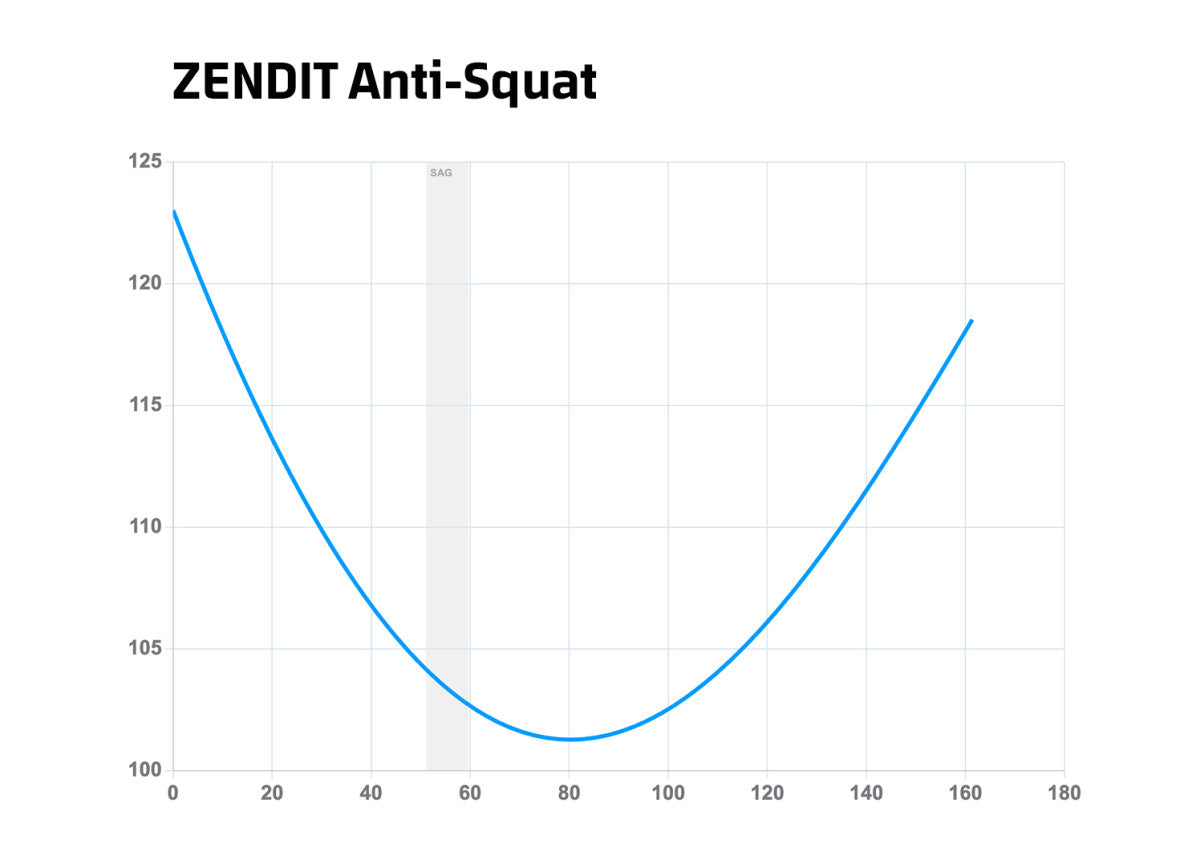

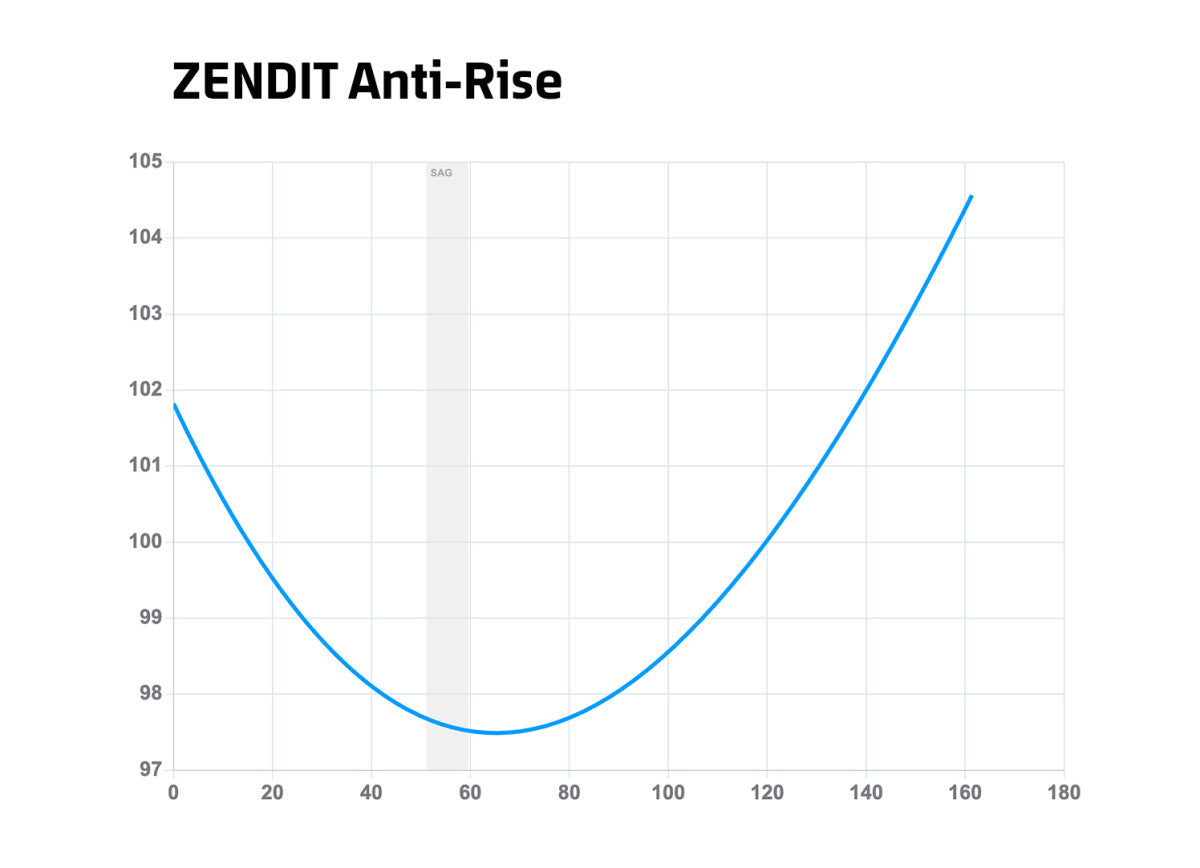

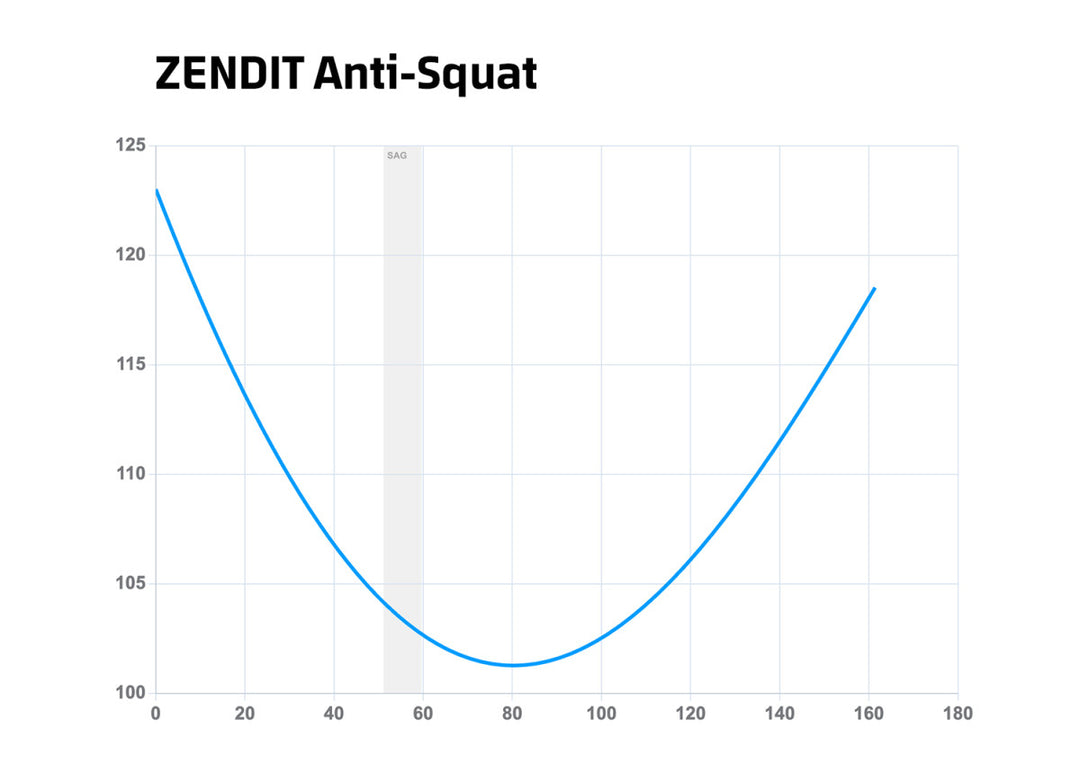

The Stealth Air full carbon frame represents Mondraker's most advanced construction to date -- precision manufacturing and refined design achieving exceptional stiffness, durability, and a remarkably low system weight. The updated ZERO suspension platform is tuned to handle the immense power of the Avinox system, with optimized anti-squat and anti-rise characteristics for efficient power transfer and outstanding traction.
Power comes from the Avinox M2S motor delivering up to 130Nm of torque (150Nm in Boost mode) and 1300W peak output, paired with an integrated 800Wh battery. Intelligent multi-sensor technology ensures smooth, controlled assistance across varied terrain, with customizable ride modes adapting to everything from efficient cruising to full-power climbs. A mixed wheel (MX) setup enhances agility and control, with the option to run full 29" for added rolling efficiency. Adjustable geometry via flip-chip allows fine-tuning for different terrain and riding styles.
Highlights
- Stealth Air full carbon frame -- ZERO suspension platform, 165mm rear travel
- Avinox M2S motor -- up to 150Nm (Boost mode) and 1300W peak output
- Integrated 800Wh battery for long, demanding rides
- FOX 38 Factory GRIP X2 fork -- 170mm
- FOX Float X Factory EVOL LV rear shock
- SRAM S1000 Eagle AXS T-Type wireless drivetrain
- DT Swiss Hybrid H 1900 Spline wheelset
- Mixed wheel (MX) -- option to run full 29"
- Flip-chip adjustable geometry
- Intelligent multi-sensor assistance with customizable ride modes
Frame and Suspension
Frame

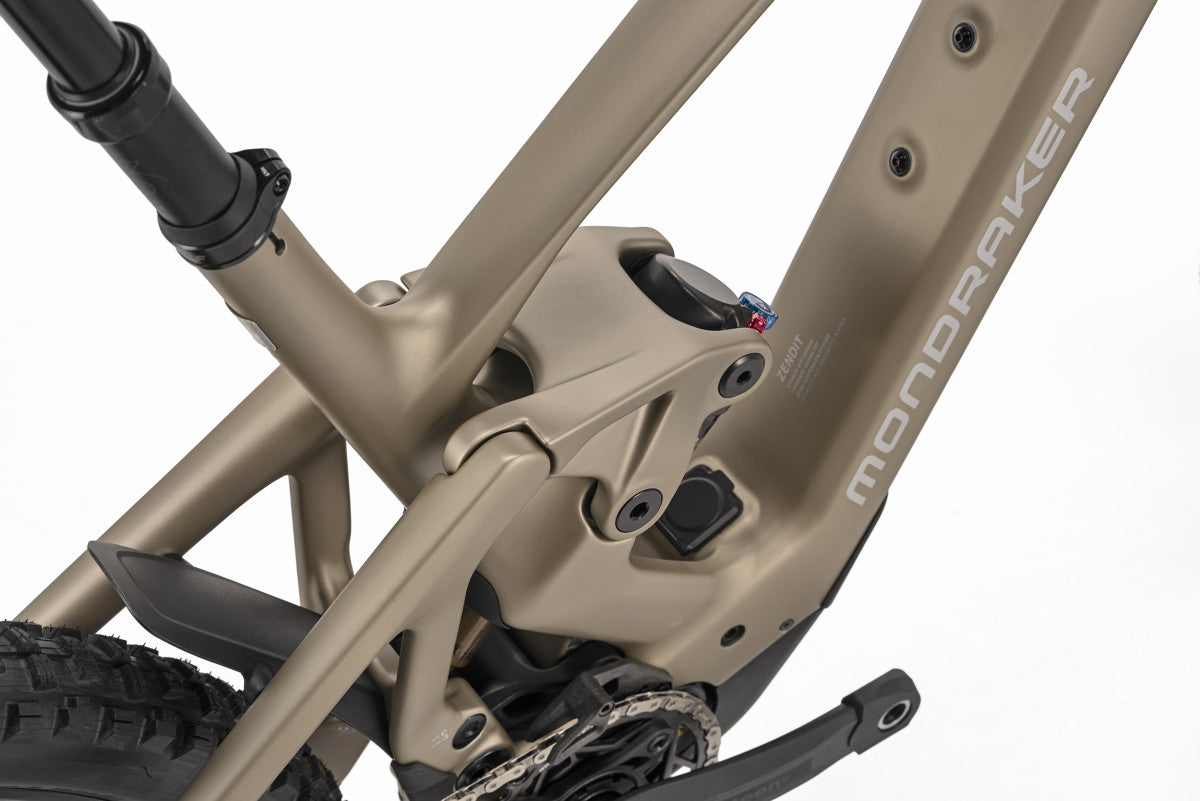

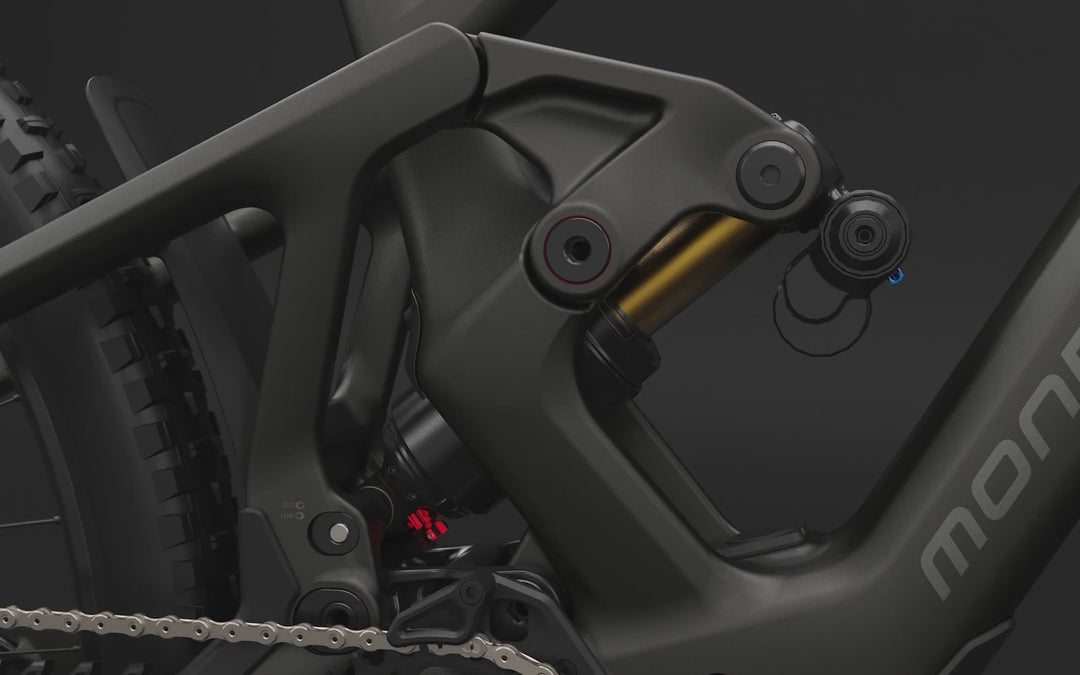

Zendit Stealth Air Full Carbon -- Updated ZERO suspension, 165mm travel, Forward Geometry, integrated battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear Shock
Fox Float X Factory Kashima EVOL LV 205x65mm -- 2-position lever compression (Open/Firm), low-speed compression, low-speed rebound, air preload, Trunnion top mount, 30x8mm bottom bushings
Shock Settings
CS 30 compression, 1.1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
Fork
Fox 38 Float GRIP X2 Factory Kashima -- 170mm, tapered steerer, Boost 15x110mm Kabolt axle, 44mm offset, high and low-speed compression and rebound, air preload
Headset
Acros custom ZS56/ZS56 -- 1-1/8" to 1.5" head tube, internal cable routing, sealing plugs
Motor and Battery
Battery
Avinox 800Wh integrated
Display

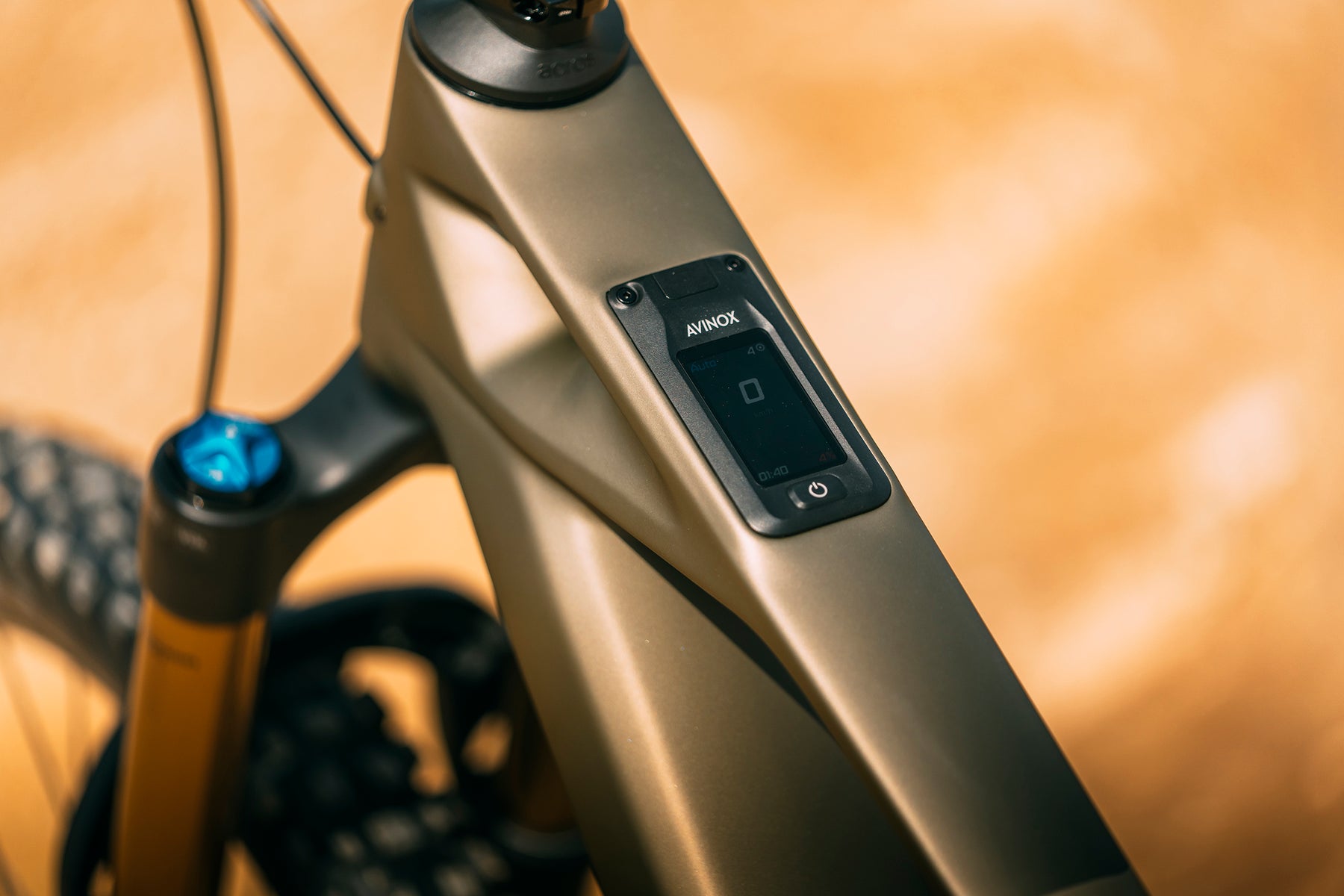

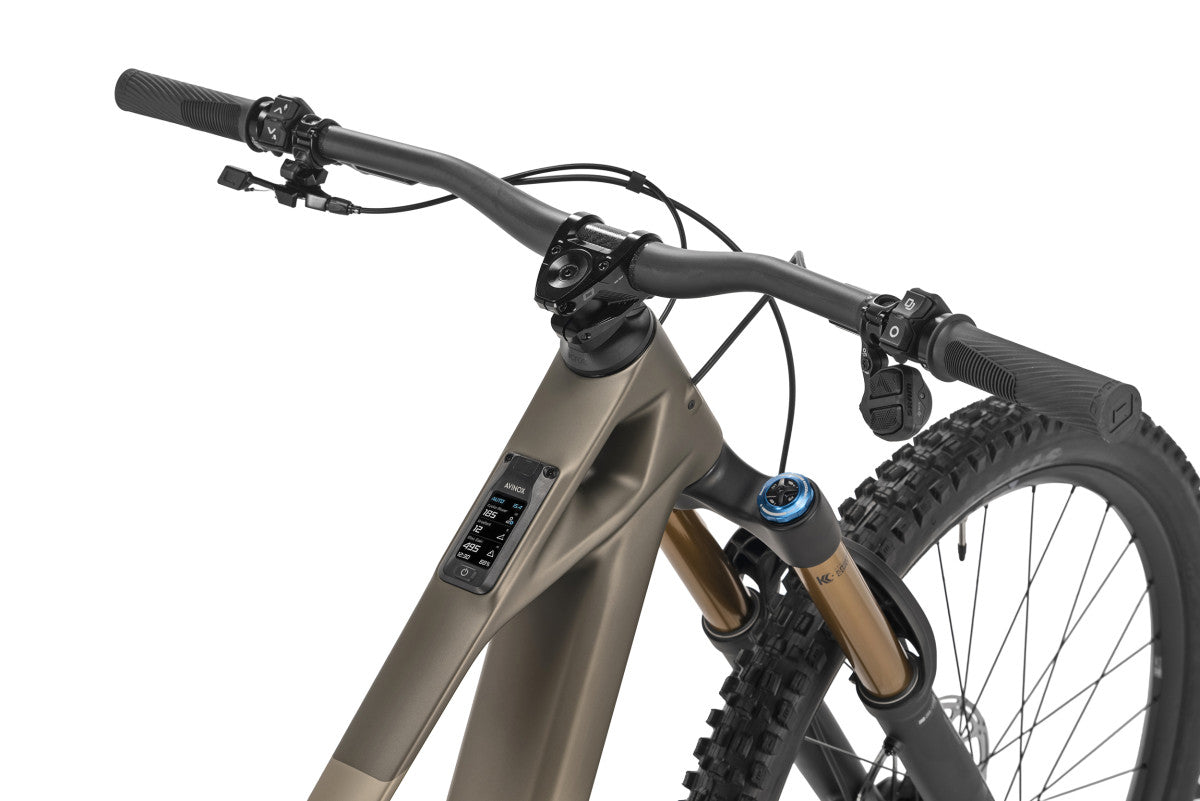

Avinox DP100 Display with Avinox BC100 Wireless Controller (L and R)
Charger
Avinox 4A Charger
Drivetrain
Rear Derailleur
SRAM S1000 Eagle AXS T-Type -- 12-speed
Shift Levers
SRAM Eagle AXS Pod Controller with discrete clamp -- 12-speed
Cassette
SRAM XS 1270 -- 10-52T, T-Type, 12-speed
Chain
SRAM GX Eagle T-Type -- 12-speed Flattop with Powerlock
Crankset
e*thirteen Helix Race e*spec alloy -- 155mm all sizes
Chainring
SRAM Eagle 36T T-Type -- 104BCD, steel, CL55
Extras
SRAM AXS Extension Cord included
Brakes
Front Brake
SRAM Maven Base -- 18mm 4-piston caliper, Centerline 200mm IS 6-bolt rotor, steel-backed organic pads
Rear Brake
SRAM Maven Base -- 18mm 4-piston caliper, Centerline 200mm IS 6-bolt rotor, steel-backed organic pads
Brake Levers
SRAM Maven Base -- Directlink and lever pivot bushings, tool-free reach adjust
Wheels and Tires
Rims
DT Swiss Hybrid H 1900 Spline -- aluminum, hooked tubeless TC, 30mm internal width, tubeless ready, 28 spokes
Spokes
DT Swiss Straightpull Hybrid I -- black
Front Hub
DT Swiss 370 -- Boost 15x110mm, IS 6-bolt
Rear Hub
DT Swiss 370 with 18T Ratchet LN System -- Boost 12x148mm, IS 6-bolt, HG freehub
Front Tire
Maxxis Assegai 29x2.5WT -- tubeless ready, 3C MaxxGrip, EXO+ protection, 60TPI, folding bead
Rear Tire
Maxxis Minion DHR II 27.5x2.5WT -- tubeless ready, 3C MaxxTerra, Double Down protection, 120x2TPI, folding bead
Cockpit and Contact
Stem
Onoff S6 30mm 0 deg -- 6061 forged alloy and CNC, 31.8mm clamp
Handlebar

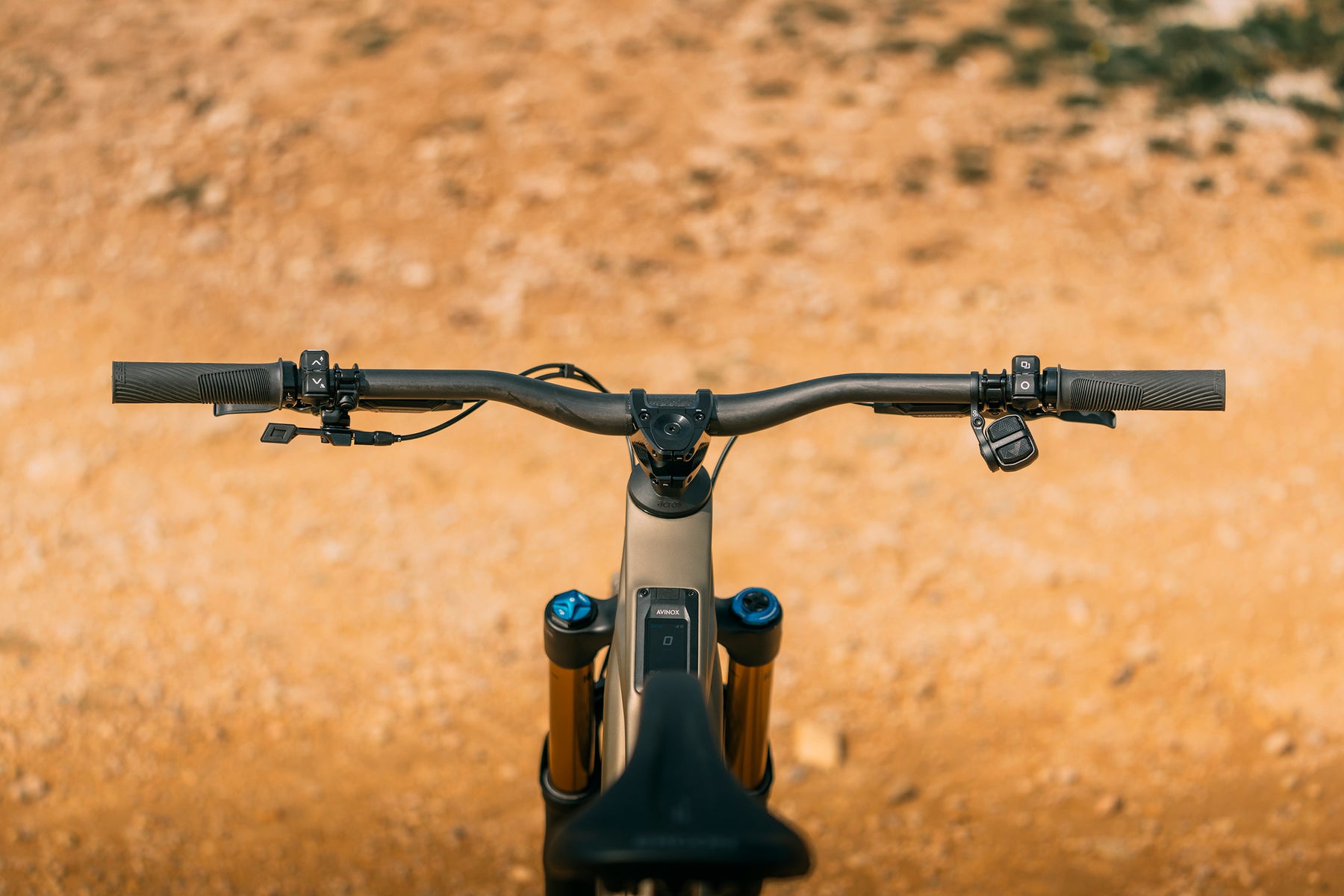

Onoff S6 1.0 7050 alloy -- 25mm rise (L and XL: 38mm), 800mm width, 8 deg backsweep, 5 deg upsweep, 31.8mm clamp
Grips
Onoff Desert Pro -- CNC lock-on, 135mm (L and XL: thicker size)
Dropper Post

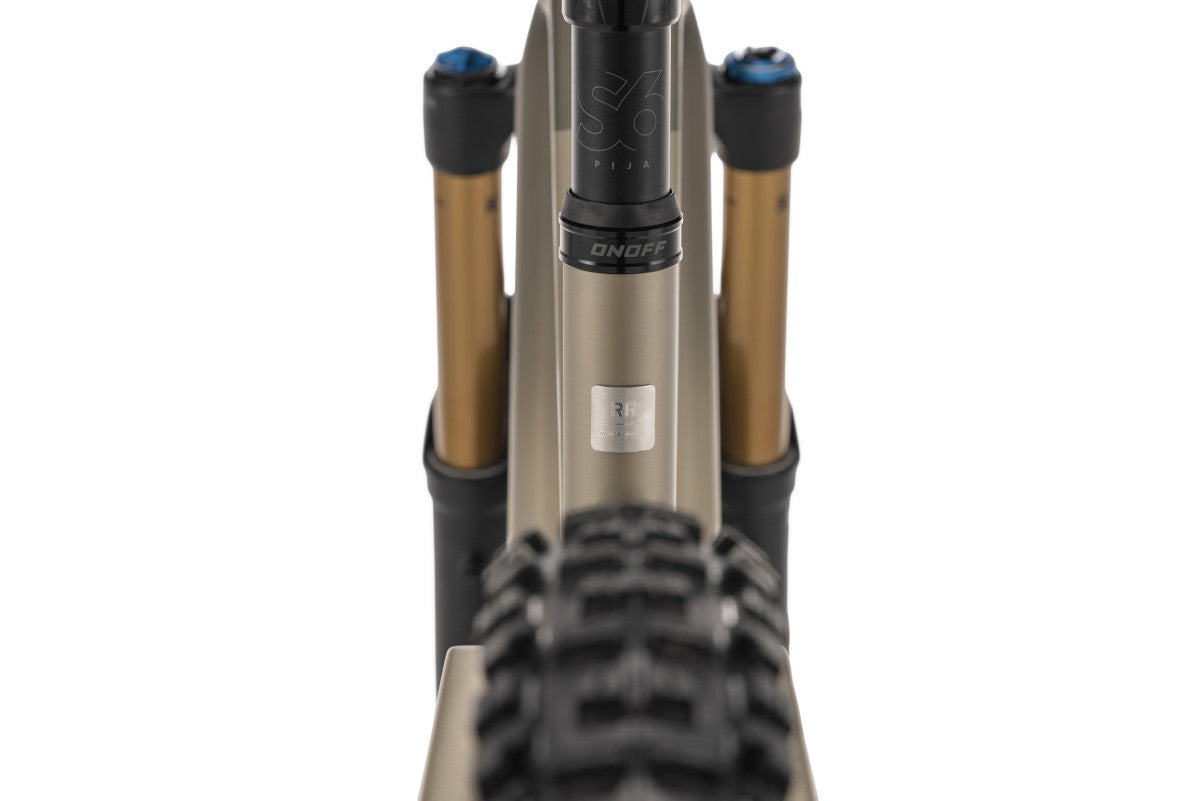

Onoff Pija internal dropper -- 31.6mm, 1X remote lever with bearing -- S: 140/115mm / M: 160/135mm / ML: 180/155mm / L: 210/185mm / XL: 210/185mm
Saddle
Ergon SM10 E-Mountain Black
