Carbon R 2026

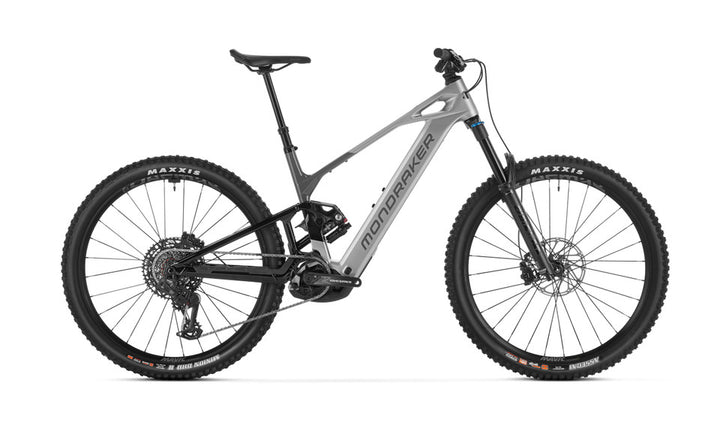

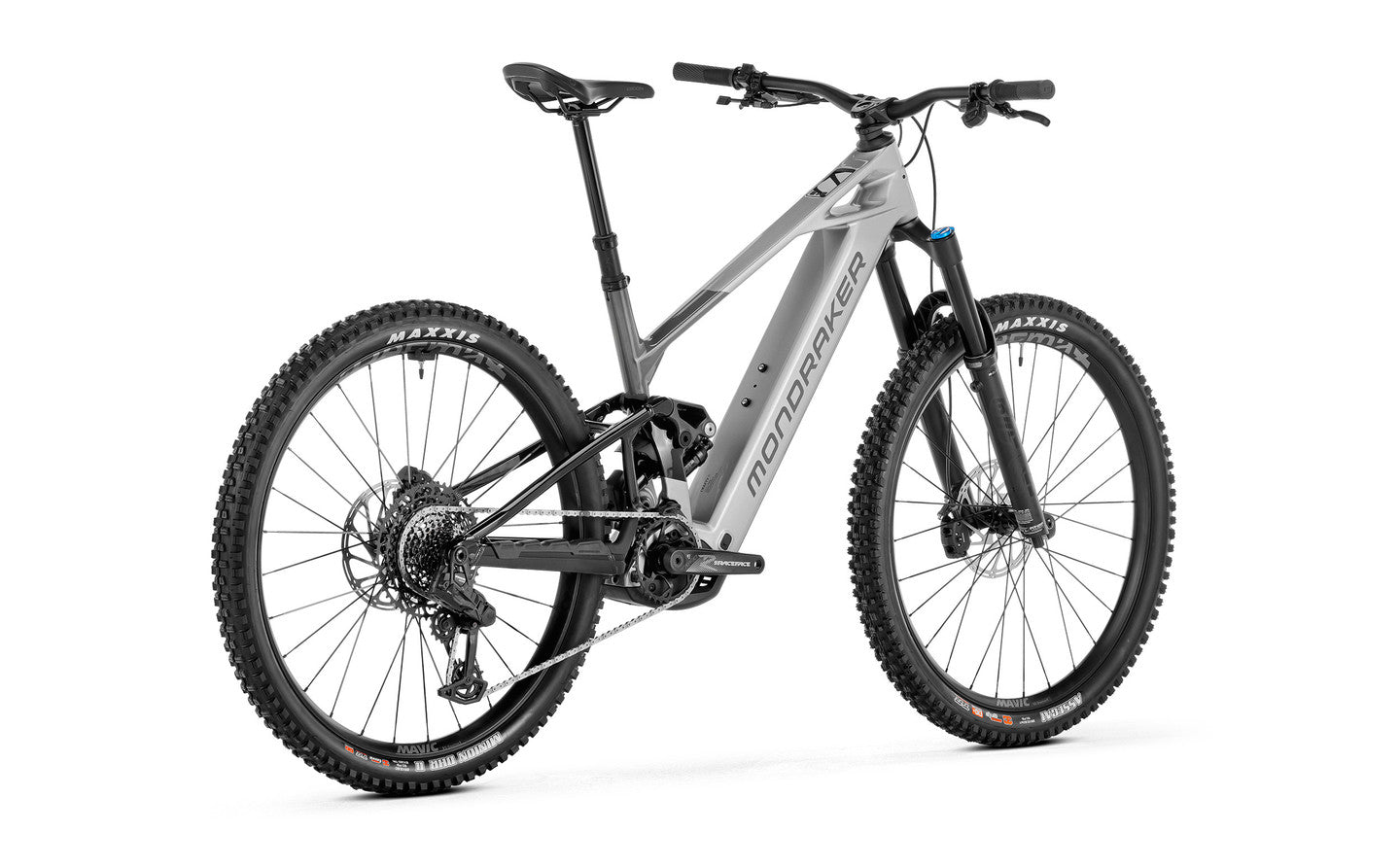

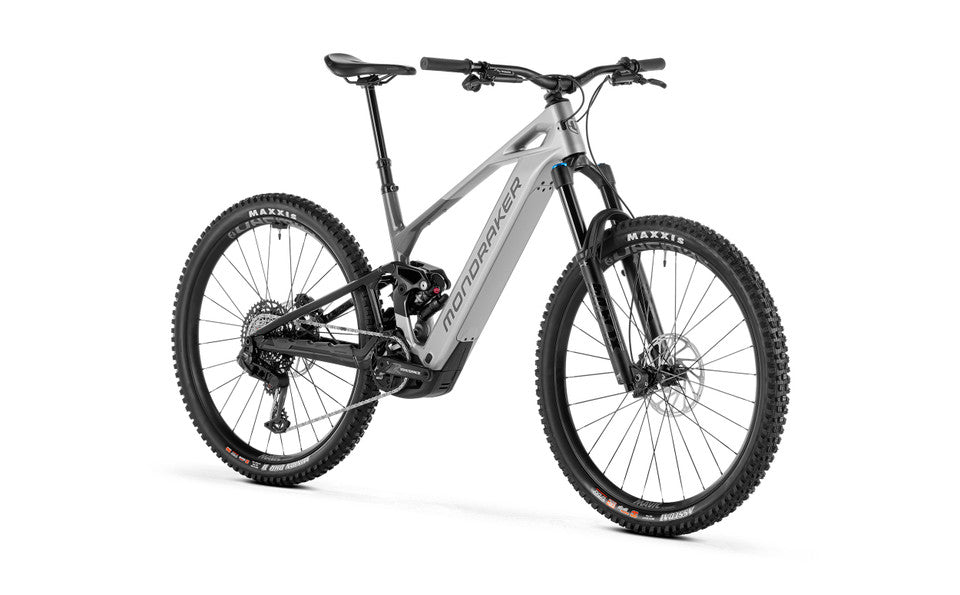

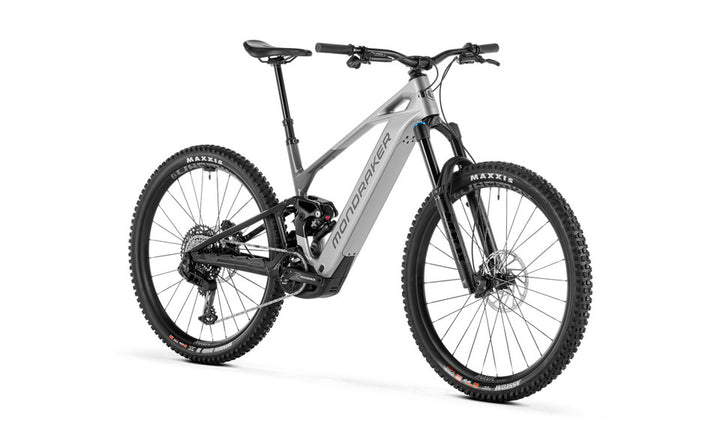

The Mondraker Crafty Carbon R is a full-carbon front triangle eMTB built around Bosch's Performance Line CX Smart System motor and an integrated 800Wh Powertube battery. With 150mm of rear travel and 160mm up front via Fox Performance suspension, E-Bike Optimized Zero Suspension System, and Mondraker's Forward Geometry, the Crafty Carbon R delivers efficient climbing and capable descending across any terrain.
SRAM's fully wireless S1000 Eagle Transmission AXS drivetrain, Maven Base 4-piston brakes, Mavic E-Deemax wheels, and a ONOFF Pija adjustable-travel dropper round out a build designed to go further and ride harder -- powered by Bosch's customizable eMTB mode and the Bosch eBike Flow app.
- Stealth Air carbon front triangle -- E-Bike Optimized Zero Suspension System, 150mm rear travel
- Bosch Performance Line CX Smart System -- 85 or 100Nm torque, 600W peak, Turbo / eMTB / Tour+ / Eco / Walk modes
- Bosch Powertube 800Wh integrated battery -- compatible with 250Wh Powermore range extender
- Bosch Kiox 400 top-tube display with wireless Mini Remote
- Fox Float 38 Performance E-Bike tuned fork -- 160mm, GRIP damper
- Fox Float X Performance rear shock -- 185x55mm, EVOL LV
- SRAM S1000 Eagle Transmission AXS -- fully wireless 12-speed
- SRAM Maven Base 4-piston brakes with 200mm Centerline rotors
- Mavic E-Deemax 30mm inner width rims with ID360 Ratchet freehub
- Maxxis Assegai EXO+ front / Minion DHR II DoubleDown rear -- fully tubeless ready
- ONOFF Pija adjustable-travel dropper -- 31.6mm
- Flip-chip geometry adjust -- Standard and Low
- Customizable via Bosch eBike Flow app
| Measurement | SM | MD | ML | LG | XL |
|---|---|---|---|---|---|
| Reach (mm) | 445 / 441 | 460 / 456 | 480 / 476 | 500 / 496 | 520 / 516 |
| Stack (mm) | 638 / 641 | 638 / 641 | 647 / 650 | 656 / 659 | 665 / 668 |
| Top Tube (mm) | 581 / 582 | 596 / 597 | 618 / 619 | 640 / 641 | 662 / 663 |
| Seat Tube Length (mm) | 380 | 410 | 435 | 460 | 490 |
| Head Tube Angle (deg) | 64.5 / 64.15 | 64.5 / 64.15 | 64.5 / 64.15 | 64.5 / 64.15 | 64.5 / 64.15 |
| Seat Tube Angle (deg) | 73 / 72.65 | 73 / 72.65 | 73 / 72.65 | 73 / 72.65 | 73 / 72.65 |
| Effective Seat Angle (deg) | 77.95 / 77.6 | 77.95 / 77.6 | 77.95 / 77.6 | 77.95 / 77.6 | 77.95 / 77.6 |
| Chainstay (mm) | 455 / 456 | 455 / 456 | 455 / 456 | 465 / 466 | 465 / 466 |
| Wheelbase (mm) | 1240 / 1241 | 1255 / 1256 | 1280 / 1281 | 1314 / 1315 | 1338 / 1339 |
| Head Tube Length (mm) | 120 | 120 | 130 | 140 | 150 |
| BB Drop (mm) | -25 / -30 | -25 / -30 | -25 / -30 | -25 / -30 | -25 / -30 |
| BB Height (mm) | 350 / 345 | 350 / 345 | 350 / 345 | 350 / 345 | 350 / 345 |
| Fork Offset (mm) | 44 | 44 | 44 | 44 | 44 |
| Dropper Travel (mm) | 115-140 | 135-160 | 155-180 | 185-210 | 185-210 |
Standard / Low = flip-chip position in lower/rear shock mount.
