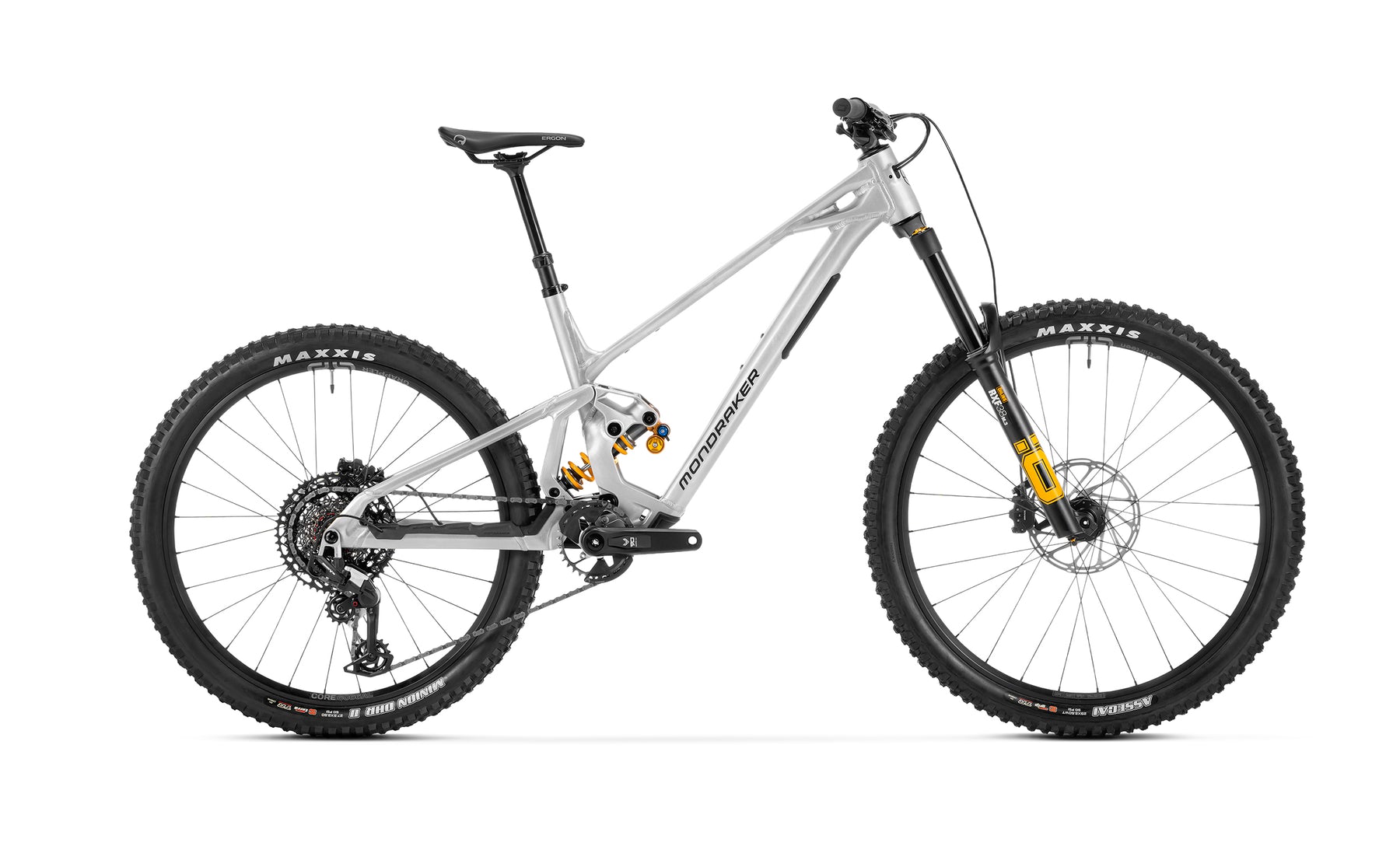

Mondraker Anark XR - Raw Aluminium
- Free Domestic Shipping On Orders Over $100
- Low stock - 1 item left
- Backordered, shipping soon
- Add To Cart For Final Price
Anark XR 2026
The Anark XR steps up where the R leaves off -- same bomber 6061 alloy Stealth Evo chassis and Zero Suspension System, but with premium Ohlins damping front and rear, e*thirteen Grappler Core wheels, and an ONOFF Pija adjustable-travel dropper. The Ohlins TTX 22M.2 coil shock and RXF 38 M.3 fork bring a level of tunability and feel that's hard to match, with high and low-speed compression and rebound adjust on both ends.
SRAM Eagle 90 rear derailleur, Maven Base 4-piston brakes, Maxxis DH-cased tires, and a mullet wheel setup make the XR the choice for riders who want maximum performance from an alloy platform without moving to carbon.
- 6061 alloy Stealth Evo hydroformed frame -- one-piece Monoblock upper link, 170mm rear travel
- Ohlins RXF 38 M.3 fork -- TTX18 Twin Tube damper, high/low-speed compression and rebound, 180mm travel
- Ohlins TTX 22M.2 Coil shock -- high/low-speed compression and rebound, climb mode, 205x65mm, size-specific spring rates
- Mixed (mullet) wheel setup -- 29" front, 27.5" rear
- SRAM Eagle 90 rear derailleur -- 12-speed Transmission
- SRAM Maven Base 4-piston brakes with 200mm Centerline rotors
- e*thirteen Grappler Core hookless rims -- 30mm inner width, 28 hole
- e*thirteen triple-sealed hubs with 6 deg engagement
- Maxxis Assegai 29x2.5 DH front / Minion DHR II 27.5x2.5 DH rear
- ONOFF Pija adjustable-travel dropper -- 31.6mm
- Flip-chip geometry adjust -- Standard and Low positions
- Lifetime frame warranty with registration
- 39 lbs 8 oz (17,917g)
| Measurement | SM | MD | ML | LG | XL |
|---|---|---|---|---|---|
| Reach (mm) | 440 | 460 | 480 | 500 | 520 |
| Stack (mm) | 644 | 644 | 653 | 662 | 671 |
| Top Tube (mm) | 583 | 603 | 625 | 647 | 669 |
| Seat Tube Length (mm) | 380 | 410 | 435 | 460 | 490 |
| Head Tube Angle (deg) | 63.5 | 63.5 | 63.5 | 63.5 | 63.5 |
| Seat Tube Angle (deg) | 74 | 74 | 74 | 74 | 74 |
| Effective Seat Angle (deg) | 77.5 | 77.5 | 77.5 | 77.5 | 77.5 |
| Chainstay (mm) | 445 | 445 | 445 | 445 | 445 |
| Wheelbase (mm) | 1241 | 1261 | 1285 | 1310 | 1334 |
| Head Tube Length (mm) | 110 | 110 | 120 | 130 | 140 |
| BB Drop (mm) | -10 | -10 | -10 | -10 | -10 |
| BB Height (mm) | 346 | 346 | 346 | 346 | 346 |
| Fork Offset (mm) | 44 | 44 | 44 | 44 | 44 |
| Spring Rate (lbs) | 343 | 411 | 457 | 502 | 502 |
| Dropper Travel (mm) | 115-140 | 135-160 | 155-180 | 185-210 | 185-210 |
Standard position. Low position values pending. Ohlins spring rates are size-specific -- confirm with shop before ordering a replacement coil.
