Name: Orbea TERRA H30 2026
Brand: Orbea
SKU: T15502DG
Price: 2518.95 USD
Availability: InStock

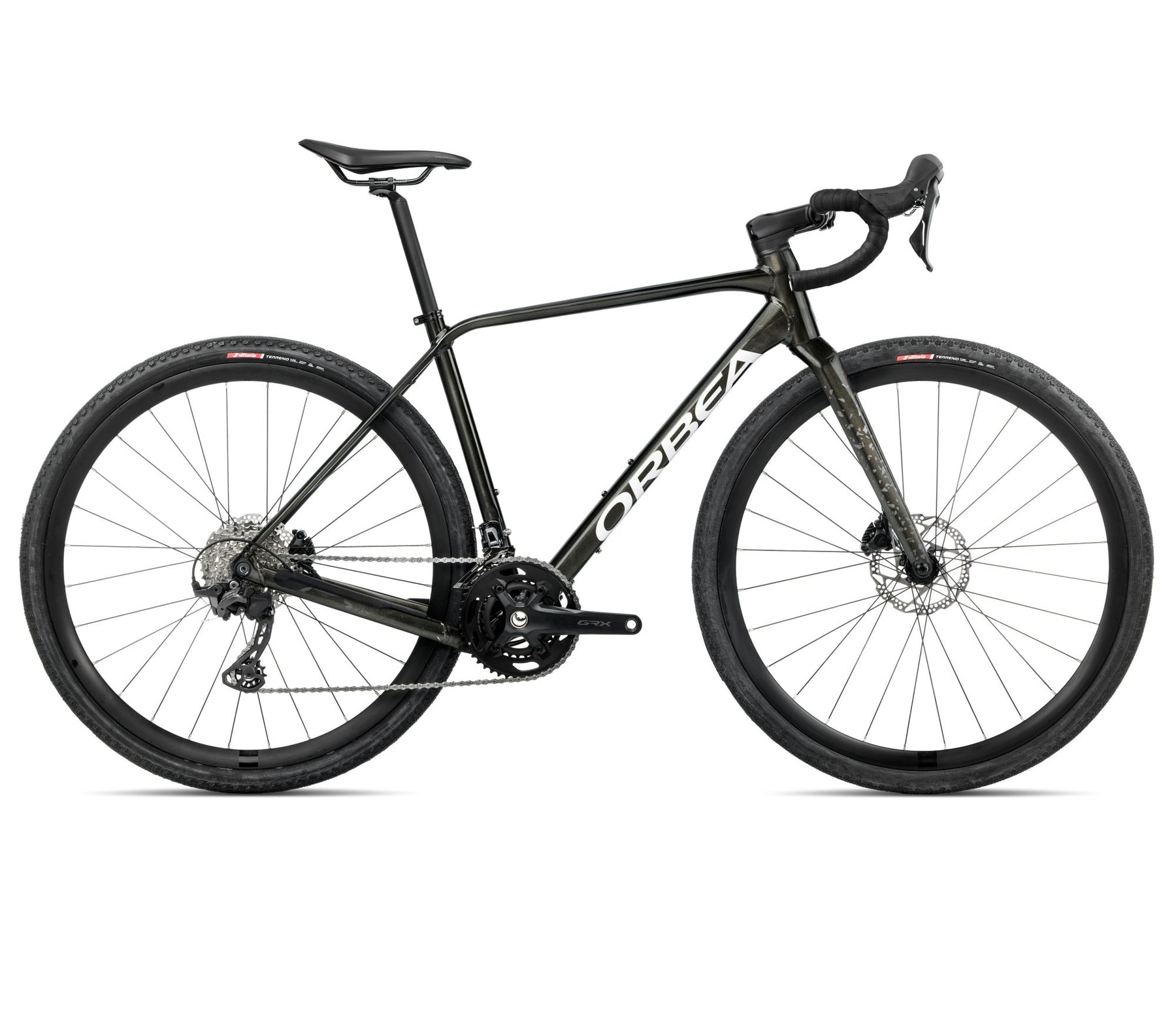

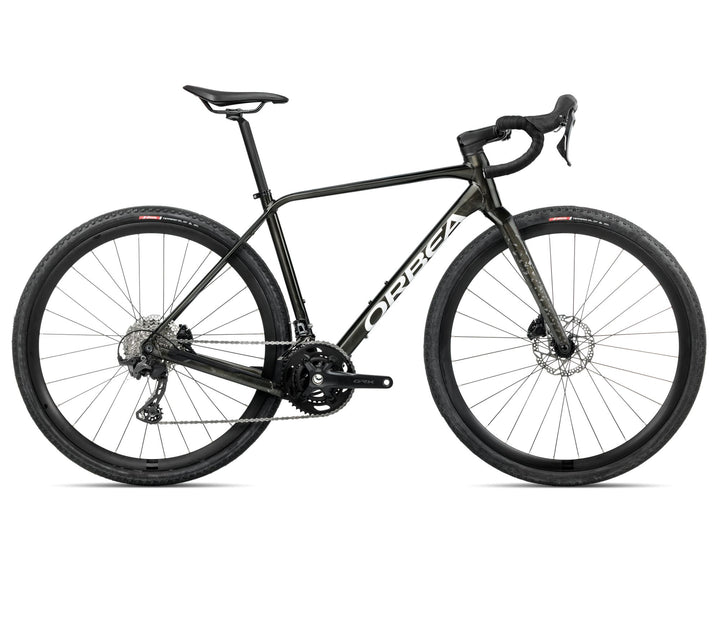

Orbea TERRA H30 2026 Infinity Green-Ivory White (Gloss)

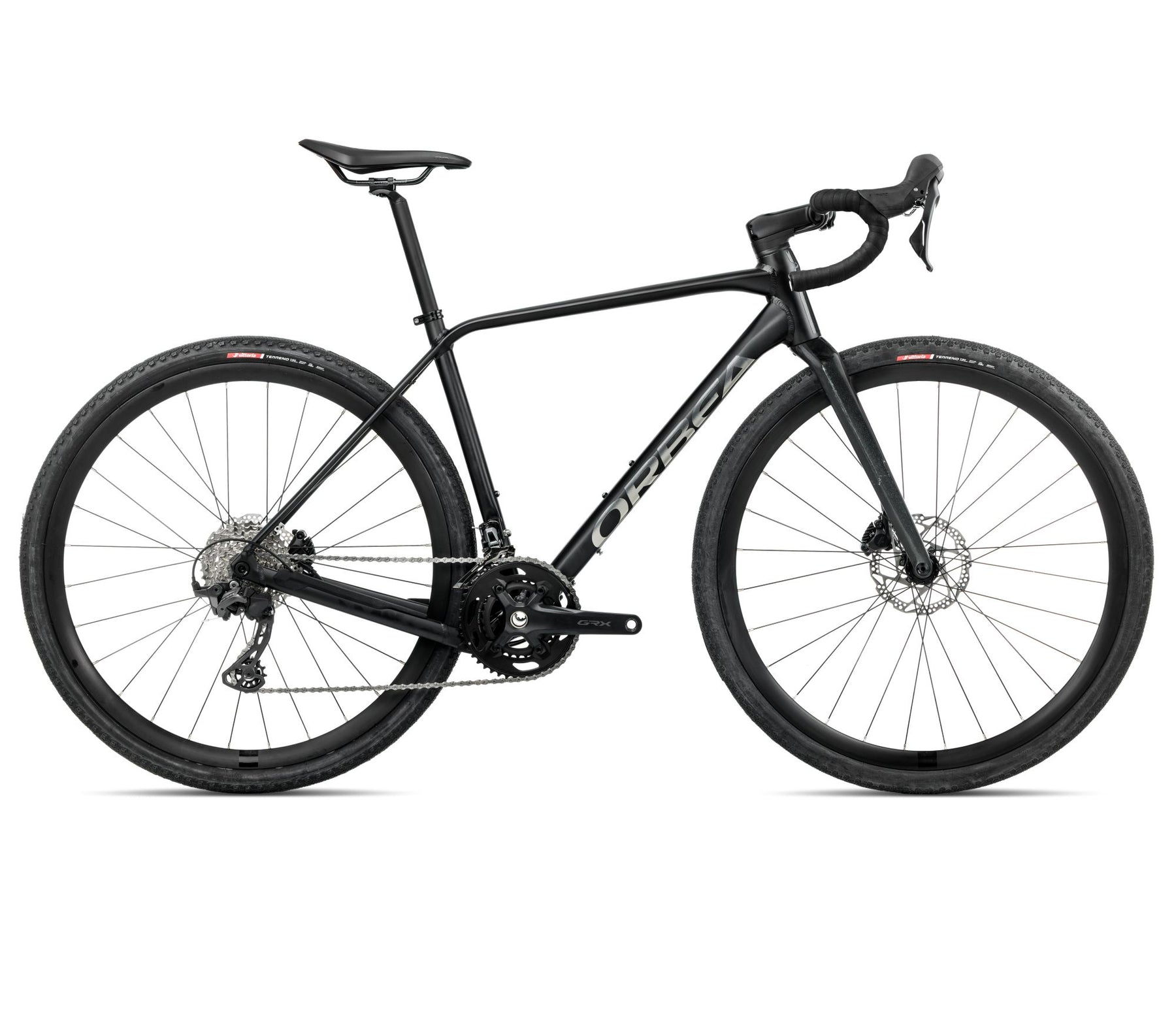

Orbea TERRA H30 2026 Diamond Black (Matt) - Diamond Carbon View (Gloss)

$2,518.95

Shipping calculated at checkout.

Size

Color

Infinity Green-Ivory White (Gloss)

Diamond Black (Matt) - Diamond Carbon View (Gloss)

Free Domestic Shipping On Orders Over $100

In stock
Backordered, shipping soon

Add To Cart For Final Price

Orbea TERRA H30

TERRA · 2026 · Road Bike · $2518.95 USD

Overview Specs Sizes & Colours

About This Bike

The Orbea TERRA H30 is a 2026 road bike.

Built with an Orbea Terra Hydro disc frame, an Orbea Terra ICR fork, a Shimano GRX RX610 drivetrain, and Shimano RX410 Hydraulic disc brakes.

Highlights

Frame: Orbea Terra Hydro disc, hydroformed triple butted aluminium
Fork: Orbea Terra ICR, full carbon
Shifters: Shimano GRX RX610
Cassette: Shimano HG710 11-36t 12-Speed
Crankset: Shimano GRX RX610 30x46t
Brakes: Shimano RX410 Hydraulic disc
Wheels: Alloy, Tubeless
Tyres: Vittoria Terreno T30 fine loose Gravel 700x40c
Sizes: XS, S, M, XL
Colours: Infinity Green-Ivory White (Gloss), Diamond Black (Matt) - Diamond Carbon View (Gloss)

Frame and Suspension

Frame

Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system

Fork

Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

Headset

FSA 1-1/2" Integrated Aluminium Cup

Drivetrain

Shifters

Shimano GRX RX610

Front Derailleur

Shimano GRX RX820

Rear Derailleur

Shimano GRX RX820

Cassette

Shimano HG710 11-36t 12-Speed

Chain

Shimano M6100

Crankset

Shimano GRX RX610 30x46t

Brakes

Shimano RX410 Hydraulic disc

Wheels and Tires

Wheels

Alloy, Tubeless, 700c, 21c

Front Hub

Orbea Thru Axle 12x100mm M12x2 P1 Solid

Rear Hub

Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

Tyres

Vittoria Terreno T30 fine loose Gravel 700x40c

Cockpit and Contact

Stem

OC Road Performance RP23, -5º

Handlebar

OC Gravel GR31-R, Rise 15, Reach 70, Drop 110

Seatpost

SP 0.2 Carbon, 27.2mm, Setback 20

Saddle

Fizik Terra Argo X7 Aluminium Rail 150mm

Available Configurations

Size	Infinity Green-Ivory White (Gloss)	Diamond Black (Matt) - Diamond Carbon View (Gloss)
XS	●	●
S	●	●
M	●	●
XL	●	●
