Name: Orbea GAIN M40 20mph 2026
Brand: Orbea
SKU: T68302GN
Price: 5563.95 USD
Availability: InStock

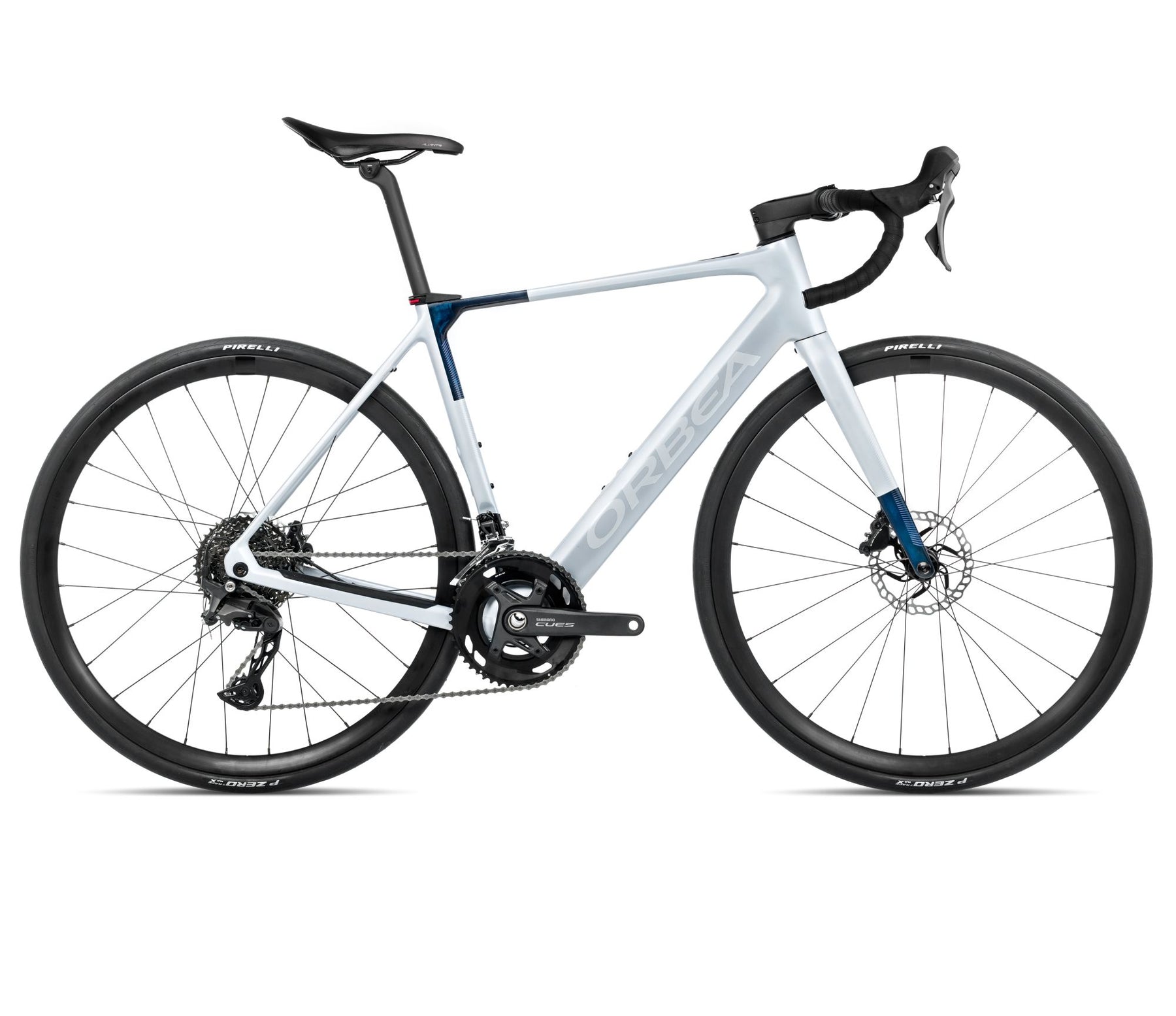

Orbea GAIN M40 20mph 2026 Halo Silver (Matt) - Blue Carbon View (Gloss)

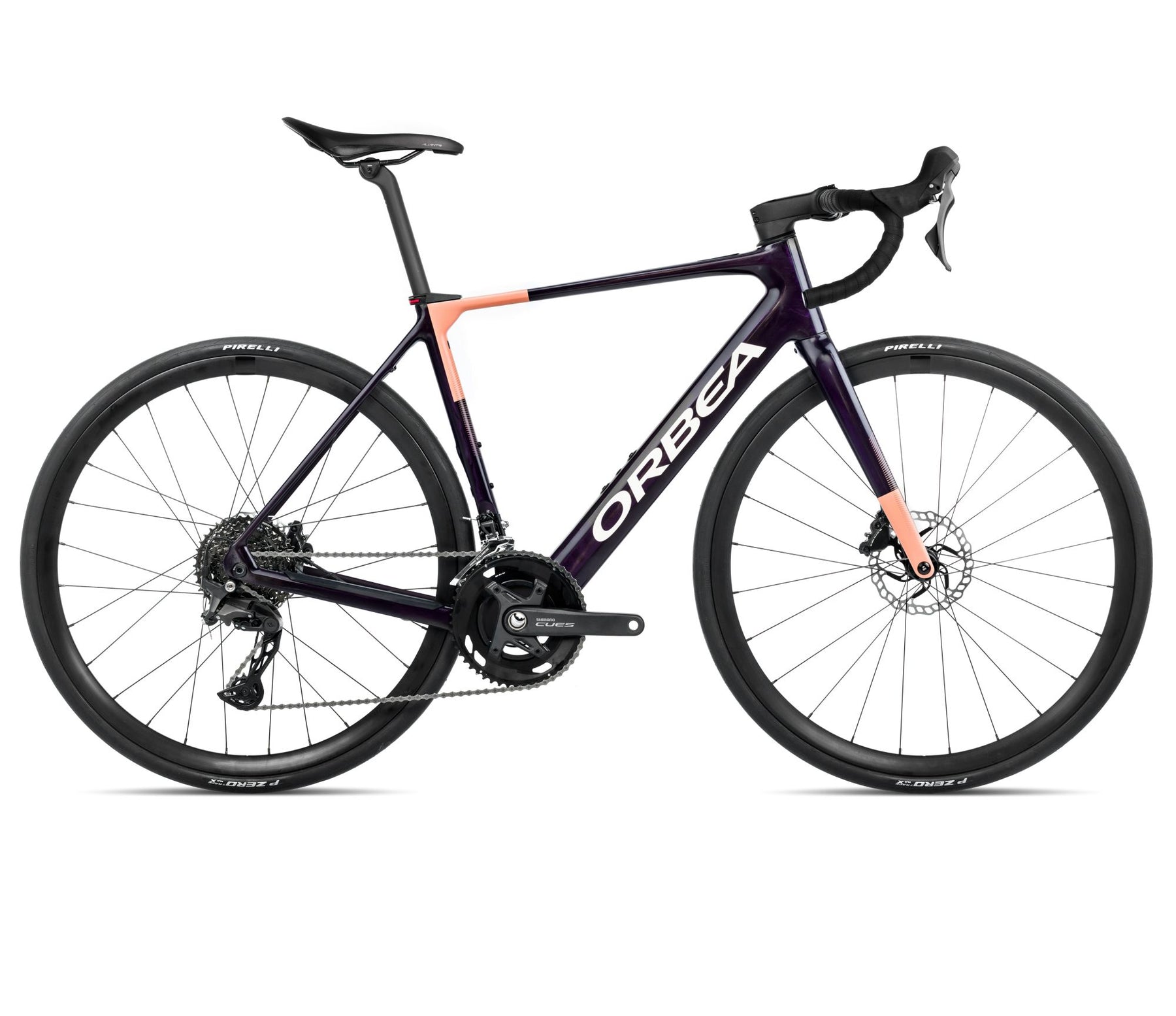

Orbea GAIN M40 20mph 2026 Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt)

$5,563.95

Shipping calculated at checkout.

Size

Color

Halo Silver (Matt) - Blue Carbon View (Gloss)

Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt)

Free Domestic Shipping On Orders Over $100

Low stock - 1 item left
Backordered, shipping soon

Add To Cart For Final Price

Orbea GAIN M40 20mph

GAIN · 2026 · Electric Road Bike · $5563.95 USD

Overview Specs Sizes & Colours

About This Bike

The Orbea GAIN M40 20mph is a 2026 electric road bike.

Built with an Orbea Gain Carbon OMR monocoque structure frame, a Gain OMR carbon fork fork, a Shimano U6030 drivetrain, and Shimano U6030 Hydraulic Disc brakes.

Highlights

Frame: Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light
Fork: Gain OMR carbon fork, 700x35 maximun tyre
Shifters: Shimano U6030
Cassette: Shimano CS-LG400 11-39t 10-Speed
Crankset: Shimano Cues U6040 34x50t
Brakes: Shimano U6030 Hydraulic Disc
Wheels: Alloy, Tubeless
Tyres: Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
Sizes: XS, S, M, L
Colours: Halo Silver (Matt) - Blue Carbon View (Gloss), Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt)

Frame and Suspension

Frame

Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.

Fork

Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1

Headset

FSA 1-1/2" Integrated Aluminium Cup

Drivetrain

Shifters

Shimano U6030

Front Derailleur

Shimano Cues U6030

Rear Derailleur

Shimano Cues U6020 SGS Shadow

Cassette

Shimano CS-LG400 11-39t 10-Speed

Chain

Shimano LG500

Crankset

Shimano Cues U6040 34x50t

Brakes

Shimano U6030 Hydraulic Disc

Wheels and Tires

Wheels

Alloy, Tubeless, 700c, 21c

Front Hub

Orbea Thru Axle 12x100mm M12x2 P1 Lite

Rear Hub

Orbea Thru Axle 12x142mm M12x2 P1 Lite

Tyres

Pirelli P ZERO™ Race X SmartEVO TLR 700x30c

Cockpit and Contact

Stem

OC Road Performance RP10, -8º

Handlebar

OC Road Performance RP21 Alu SL, Reach 80, Drop 125

Seatpost

OC Performance XP10-S Carbon, 27.2mm, Setback 20

Saddle

Fizik Aliante R5

Details

Front light

Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.

Rear light

Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO

Available Configurations

Size	Halo Silver (Matt) - Blue Carbon View (Gloss)	Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt)
XS	●	—
S	●	—
M	●	●
L	●	●
