Name: Orbea DENNA M40 28mph 2026
Brand: Orbea
SKU: T73102RC
Price: 5668.95 USD
Availability: InStock

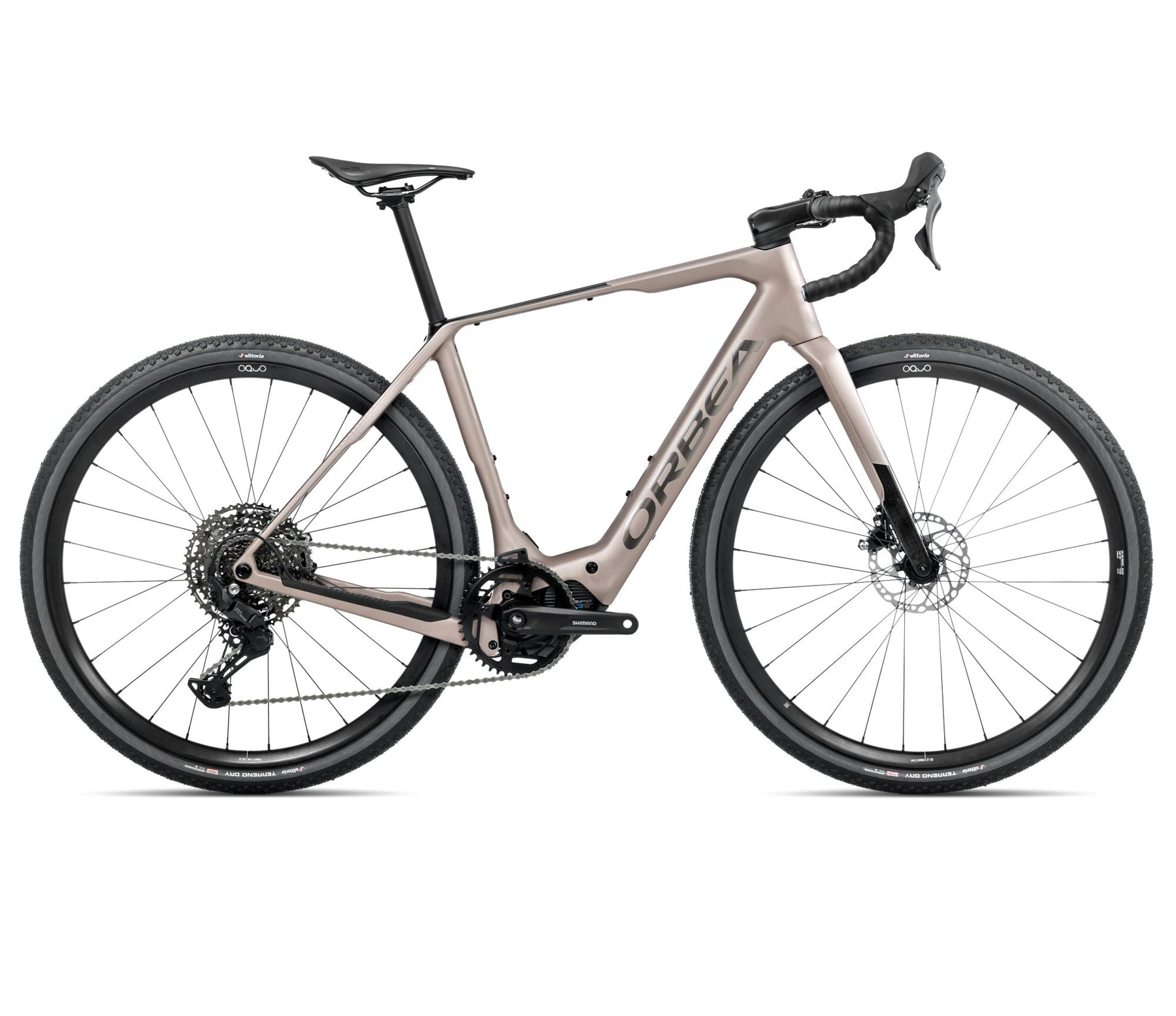

Orbea DENNA M40 28mph 2026 Nickel Matt - Carbon Raw Gloss

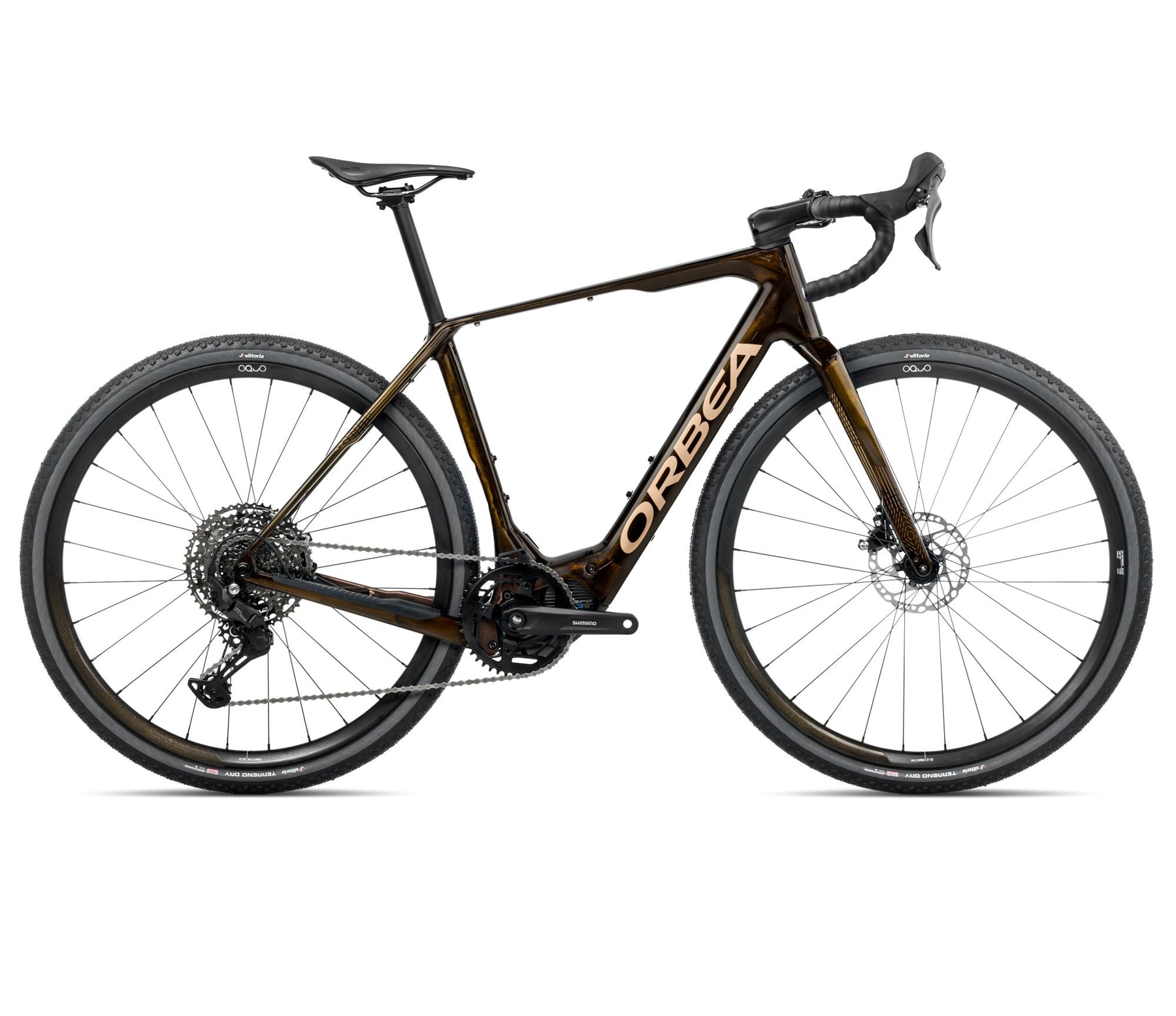

Orbea DENNA M40 28mph 2026 Caramel C. View (Gloss) - Metallic Gold (Gloss)

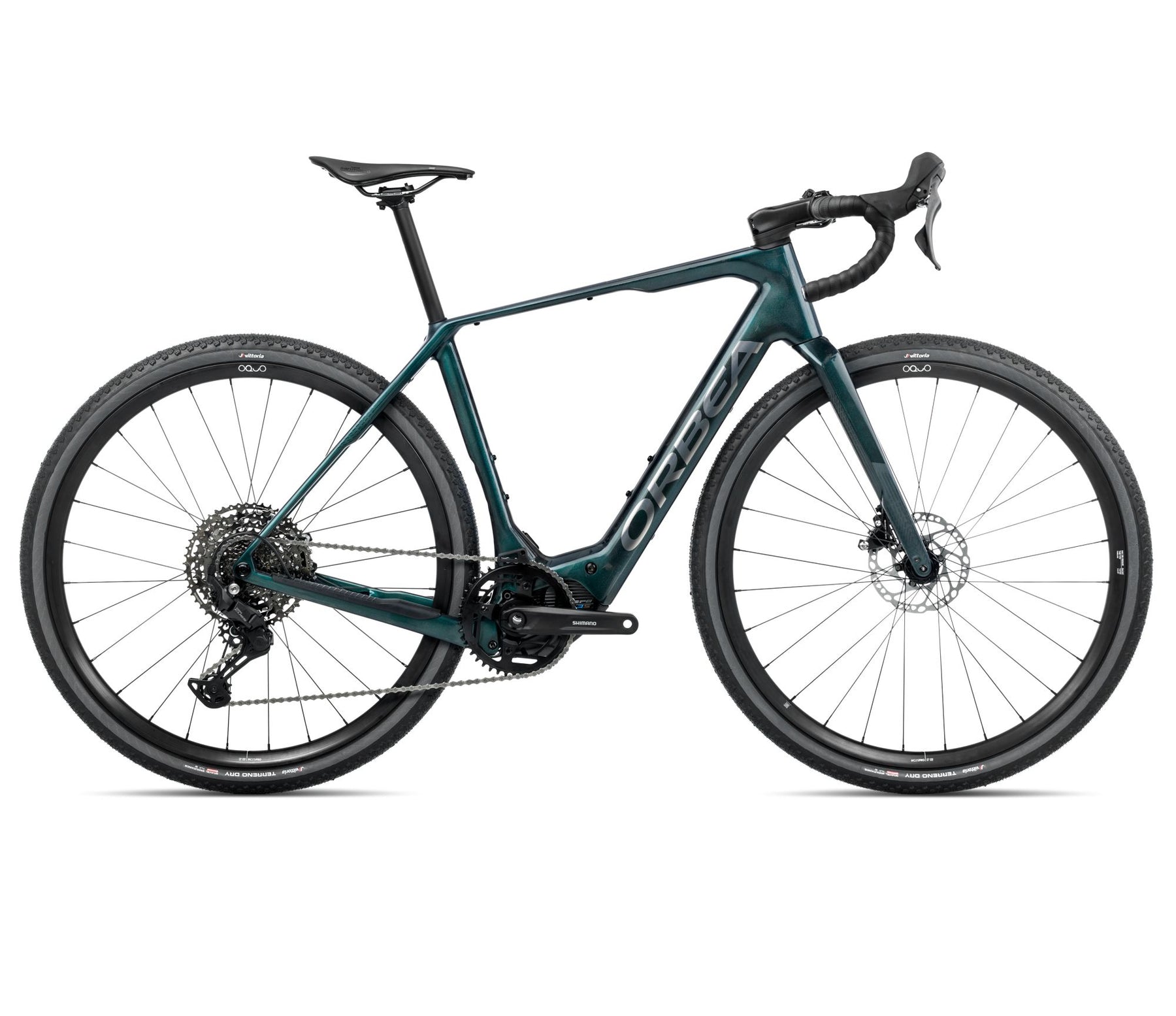

Orbea DENNA M40 28mph 2026 Escape Green Gloss - Foggy Matt

$5,668.95

Shipping calculated at checkout.

Size

Color

Nickel Matt - Carbon Raw Gloss

Caramel C. View (Gloss) - Metallic Gold (Gloss)

Escape Green Gloss - Foggy Matt

Free Domestic Shipping On Orders Over $100

Low stock - 1 item left
Backordered, shipping soon

Add To Cart For Final Price

Orbea DENNA M40 28mph

DENNA · 2026 · Electric Road Bike · $5668.95 USD

Overview Specs Sizes & Colours

About This Bike

The Orbea DENNA M40 28mph is a 2026 electric road bike.

Built with an Orbea Denna frame, an Orbea Denna OMR ICR fork, a Shimano U6030 drivetrain, and Shimano RS405 Hydraulic Disc brakes.

Highlights

Frame: Orbea Denna, Thru Axle 12mm x 142mm rear
Fork: Orbea Denna OMR ICR, full carbon
Shifters: Shimano U6030
Cassette: Shimano CS-LG400 11-50t 11-Speed
Brakes: Shimano RS405 Hydraulic Disc
Wheels: Oquo Road Control RC25PRO
Tyres: Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
Sizes: XS, S, M, XL
Colours: Nickel Matt - Carbon Raw Gloss, Caramel C. View (Gloss) - Metallic Gold (Gloss), Escape Green Gloss - Foggy Matt

Frame and Suspension

Frame

Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.

Fork

Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1

Headset

FSA 1-1/2" Integrated Aluminium Cup

Drivetrain

Shifters

Shimano U6030

Rear Derailleur

Shimano Cues U6000 GS Shadow

Cassette

Shimano CS-LG400 11-50t 11-Speed

Chain

Shimano LG500

Chainguide

Orbea eBike chainguide

Crank

Shimano Steps EM600

Brakes

Shimano RS405 Hydraulic Disc

Wheels and Tires

Wheels

Oquo Road Control RC25PRO

Front Hub

Orbea Thru Axle 12x100mm M12xP1 Hollow

Rear Hub

Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

Tyres

Vittoria Terreno Dry Gravel G2.0 TLR 700x45c

Cockpit and Contact

Stem

OC Road Performance RP23, -5º

Handlebar

OC Gravel GR31, Reach 70, Drop 110

Seatpost

SP 0.2 Carbon, 27.2mm, Setback 0

Saddle

Selle San Marco Shortfit 2.0 Start Up Off Road

Available Configurations

Size	Nickel Matt - Carbon Raw Gloss	Caramel C. View (Gloss) - Metallic Gold (Gloss)	Escape Green Gloss - Foggy Matt
XS	●	—	—
S	—	●	—
M	●	—	●
XL	●	—	—
