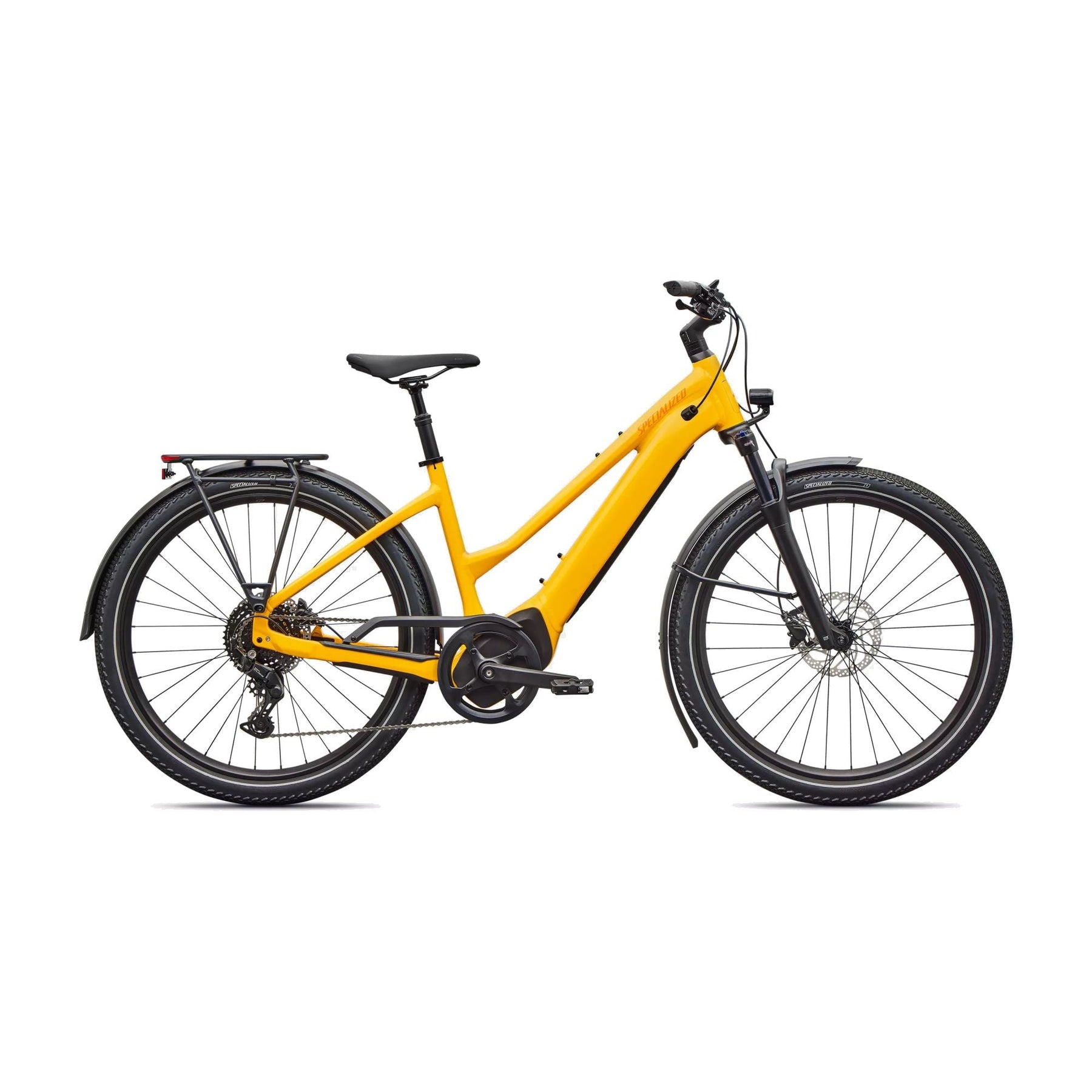

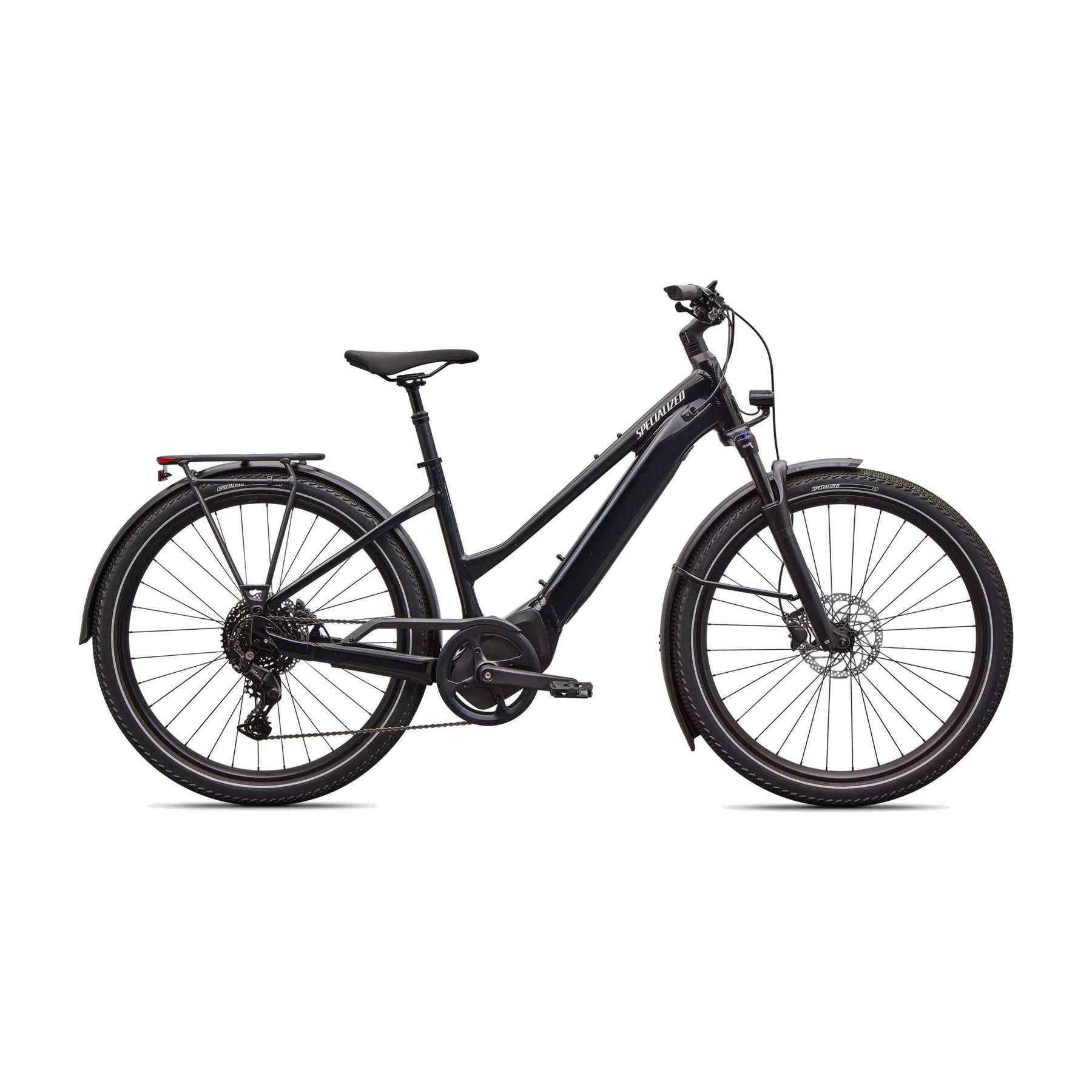

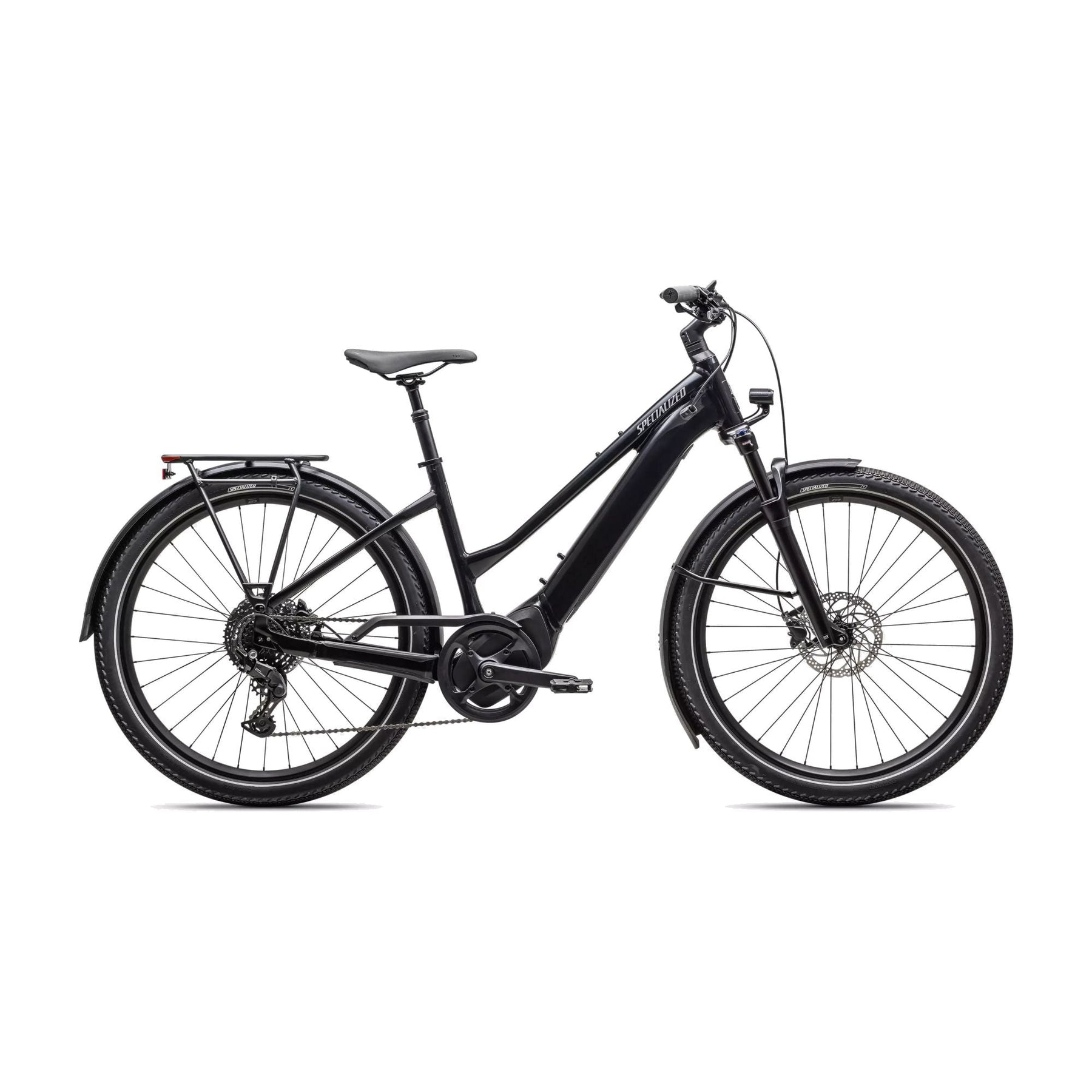

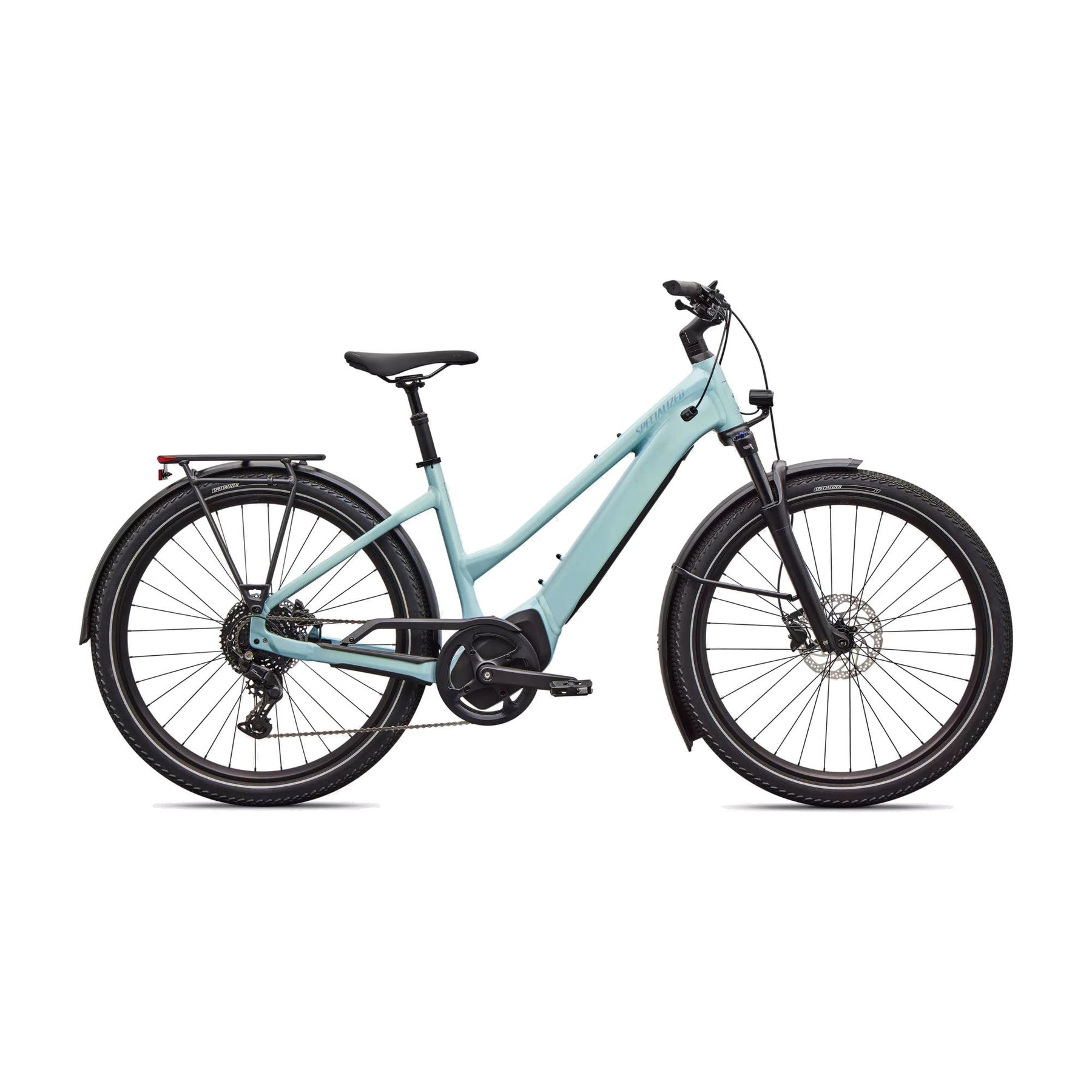

Turbo Vado 4.0 Step-Through
Urban E-Bike · Step-Through · 710Wh · Turbo 2.0 · Shimano CUES 9spd
The Turbo Vado 4.0 Step-Through shares all the performance of the standard Vado 4.0 — same Turbo Full Power 2.0 motor, same 710Wh battery, same Shimano CUES drivetrain, same urban kit — in a low-step frame that makes mounting and dismounting effortless. Up to 90 miles of eco range, Turbo System Lock, and all the commuter essentials.
- Turbo Full Power 2.0 Motor: 250W nominal, 70Nm torque — 4x your pedal power.
- 710Wh Integrated Battery: UL certified, lockable, removable, up to 90 miles eco range.
- Step-Through Frame: Easy on/off — perfect for stop-and-go city riding.
- Shimano CUES 9-speed: RD-5000GS rear derailleur, 11-41t cassette, simple and reliable.
- SR Suntour MobieA32: 80mm suspension fork w/ lockout, integrated light mount.
- Turbo System Lock: Anti-theft motor disable + motion alarm.
- Complete Urban Kit: DRYTECH fenders, LED lights, bell, rack, kickstand.
- 26.85kg (59 lb): Same weight as standard Vado 4.0 within tolerance.
Same Vado 4.0 performance in a step-through frame — accessible, confident, and ready for anything the city throws at you.
Turbo Full Power 2.0 Motor
250W nominal, 70Nm torque. Amplifies your effort 4x. Up to 28mph. Previous generation vs the 2.2 in the Vado 5.0.
710Wh Integrated Battery
Fully integrated, lockable, removable. UL certified. Turbo System Lock support. Up to 90 miles eco range.
Step-Through E5 Aluminum Frame
Low entry point, 617-626mm standover. Easy mounting and dismounting for urban riding.
Shimano CUES 9-speed
RD-5000GS rear derailleur, SL-U4000 shift levers, CS-LG300-9 cassette 11-41t. Simple, reliable mechanical shifting.
SR Suntour MobieA32
80mm suspension fork, lockout, fender mounts, integrated light mount. Paired with 40mm suspension seatpost.
Complete Urban Kit
DRYTECH fenders (65mm), Lezyne LED headlight (300 lumen), Spanninga taillight w/ auto brake, MIK HD rack (27kg), kickstand.
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170 | 170 | 170 | 170 |
| Handlebar Width | 680 | 680 | 680 | 680 |
| Stem Length | 60 | 60 | 75 | 75 |
| Saddle Width | 155 | 155 | 155 | 155 |
| Seatpost Length | 350 | 350 | 400 | 400 |
| Stack | 625 | 639 | 652 | 676 |
| Reach | 423 | 444 | 464 | 481 |
| Headtube Length | 135 | 150 | 165 | 190 |
| Headtube Angle | 68° | 68° | 68° | 68° |
| BB Height | 285 | 285 | 285 | 285 |
| BB Drop | 70 | 70 | 70 | 70 |
| Trail | 96 | 96 | 96 | 96 |
| Fork Length (full) | 480 | 480 | 480 | 480 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Front Center | 699 | 724 | 750 | 777 |
| Chainstay Length | 470 | 470 | 470 | 470 |
| Wheelbase | 1160 | 1186 | 1212 | 1239 |
| Top Tube Length | 585 | 615 | 645 | 675 |
| Bike Standover Height | 618 | 617 | 617 | 626 |
| Seat Tube Length | 400 | 450 | 460 | 500 |
| Seat Tube Angle | 75.5° | 75° | 74.5° | 74° |
E-Bike
Motor
Specialized 2.0, 250W nominal, 70Nm torque, custom tuned
Battery
Specialized integrated battery, 710Wh, UL certified, lockable, removable, state of charge display
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
UI/Remote
MasterMind TCD w/ handlebar remote, built-in anti-theft feature, Bluetooth, customizable display pages
Frameset
Frame
E5 Aluminum step-through, mid-drive motor, fully integrated & lockable downtube battery, internal cable routing, wheel lock mount, front rack compatible
Seat Binder
Alloy bolt-type, 34.9mm
Suspension
Fork
SR Suntour MobieA32, 80mm travel, lockout, fender-mounts, integrated light mount
Seatpost
Suspension, 40mm travel, 34.9mm
Brakes
Front Brake
Shimano BR-MT200, hydraulic disc, 180mm rotor
Rear Brake
Shimano BR-MT200, hydraulic disc, 180mm rotor
Drivetrain
Shift Levers
Shimano CUES 9-Speed with Optical Gear Display
Rear Derailleur
Shimano RD-5000GS CUES, GS, 9-speed
Cassette
Shimano CUES CS-LG300-9, 9-speed, 11-41t
Chain
Shimano LG
Crankset
Custom alloy forged crankarms
Chain Cover
Specialized Chain Cover
Wheels & Tires
Wheels
29" front / 27.5" rear, 30mm inner width, 32h. Shimano Center Lock disc hubs.
Front Tire
Pathfinder Sport Reflect, 650b x 2.3"
Rear Tire
Pathfinder Sport Reflect, 650b x 2.3"
Inner Tubes
Standard 40mm Schrader valve, 650Bx1.75-2.4
Cockpit
Handlebars
Specialized alloy, 15° backsweep, 46mm rise, 31.8mm clamp, 680mm width
Stem
Specialized Flowset, 3D-forged alloy, 20° rise, 31.8mm clamp. S-M: 60mm, L-XL: 75mm
Saddle
Bridge Sport, steel rails, 155mm
Grips
Specialized Body Geometry
Safety & Security
Turbo System Lock
Disable motor + motion sensor alarm via Specialized app. Motor cannot be re-enabled except by owner.
Headlight
Lezyne Ebike Mini STVZO E300+, 300 lumen, 160cm wire, w/ reflector
Taillight
Spanninga STVZO Commuter Glow with auto brake function
Bell
Bell
Accessories
Fenders
Specialized DRYTECH fenders, 65mm width, extra strong aluminum fenderstay
Rack
Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load, child seat compatible, thru-axle trailer rated
Kickstand
Specialized kickstand, 40mm mount
Pedals
Specialized Commuter w/ grip tape & reflectors
Weight
Weight
26.85kg (59 lb, 3.1 oz)
Weight Size
MD
