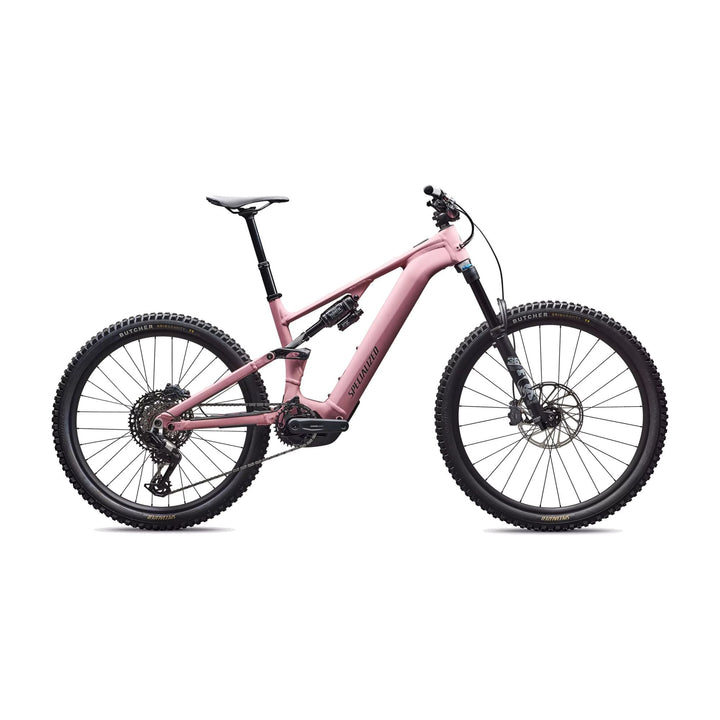

2026 Specialized Turbo Levo 4 Comp Alloy
- Free Domestic Shipping On Orders Over $100
- Low stock - 5 items left
- Backordered, shipping soon
- Add To Cart For Final Price
Turbo Levo 4 Comp Alloy
E-MTB Trail · Alloy Frame · 150mm · 840Wh
The most affordable Levo 4 — M5 alloy frame instead of carbon, mechanical SRAM Eagle 90 drivetrain instead of wireless AXS. Same motor, same battery, same suspension travel. The budget option for riders who want the Levo 4 platform without the premium price.
- 3.1 Motor + 840Wh: 810W, 105Nm — same as all other Levo 4 models.
- M5 Alloy Frame: More affordable than the carbon frames, heavier at 25.70kg.
- Mechanical Eagle 90: No AXS wireless — SRAM Eagle 90 with trigger shifters.
- FOX Float 36 Rhythm + Float X Performance: Same spec as the carbon Comp.
- 6 Sizes S1–S6: One more size than the carbon Levo 4 range.
- S1 Gets 150mm Fork: S1 ships with 150mm fork travel vs 160mm on S2–S6.
The value is in the frame material and mechanical drivetrain — not the suspension.
3.1 Motor + 840Wh
810W, 105Nm, 840Wh. Same motor and battery as all other Levo 4 models.
M5 Alloy Frame
Alloy chassis — heavier than carbon but significantly more affordable. 150mm rear travel, adjustable chainstay, head tube angle, and bottom bracket. SWAT storage.
Mechanical SRAM Eagle 90
SRAM Eagle 90 T-Type with SRAM 90 trigger shifters — fully mechanical, no wireless AXS. 12-speed, 10-52t cassette. No batteries in the derailleurs.
FOX Float 36 Rhythm + Float X Performance
Same suspension as the carbon Comp: FOX 36 Rhythm 160mm (150mm on S1) and Float X Performance with GENIE shock tech.
Maven Bronze + Basic Hubs
SRAM Maven Bronze brakes, 220/200mm Centerline rotors. Bear Pawls hubs vs the carbon models' DT Swiss.
6 Sizes — S1 Unique Geo
S1: 64° HTA, 355mm BB, 150mm fork. S2–S6: 64.5° HTA, 350mm BB, 160mm fork. S1 is distinctly different from the rest.
| S1 | S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|---|
| Crank Length | 155 | 155 | 155 | 155 | 155 | 155 |
| Handlebar Width | 780 | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 40 | 40 | 40 | 40 | 40 | 40 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 100 | 125 | 150 | 170 | 190 | 190 |
| Stack | 609 | 618 | 626 | 638 | 652 | 667 |
| Reach | 407 | 435 | 455 | 480 | 505 | 535 |
| Head Tube Length | 94 | 95 | 103 | 117 | 132 | 149 |
| Head Tube Angle | 64° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 355 | 350 | 350 | 350 | 350 | 350 |
| BB Drop | 24.13 | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail | 132 | 132 | 132 | 132 | 132 | 132 |
| Fork Length (full) | 567 | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 |
| Front Center | 744 | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length | 435 | 435 | 435 | 435 | 435 | 435 |
| Wheelbase | 1179 | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) | 556 | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height | 753 | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length | 379 | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 76° | 77° | 77° | 77° | 77° | 77° |
| Max Seatpost Insertion | 264 | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 | 80 |
E-Bike
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
Battery
840Wh, fully integrated. Optional Range Extender compatible.
Charger
Specialized 4amp charger
UI/Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizable with Specialized app
Frameset
Frame
All New Levo 4 M5 Alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage, 148mm spacing, 29" front / 27.5" rear wheel, fork travel up to 180mm
Seat Binder
Alloy, 38.6mm
Suspension
Fork
FOX 36 Rhythm, 29", S1: 150mm, S2-S6: 160mm, GRIP damper with Sweep adjust, 44mm offset, 15x110mm boost
Rear Shock
FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Drivetrain
Shift Levers
SRAM 90 trigger, 12-speed, single click (mechanical)
Rear Derailleur
SRAM Eagle 90 T-Type (mechanical)
Cassette
SRAM, 12-speed, 10-52t
Chain
SRAM 70 Transmission 12-Speed Flattop Chain
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Crankset
SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
Wheels & Tires
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Spokes
DT Swiss Industry
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON T9 compound, TLR, 29x2.4"
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON T9 compound, TLR, 27.5x2.4"
Inner Tubes
Standard, Presta valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore, 40mm
Handlebars
Specialized 6061 alloy, 6-degree upsweep, 8-degree backsweep, S1-S2: 780mm/30mm rise; S3-S6: 800mm/50mm rise
Seatpost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, Remote SLR LE lever, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm, S4: 170mm, S5/S6: 190mm
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
Grips
Specialized Trail Grips
Accessories
SWAT
SWAT internal downtube storage
Weight
Weight
25.70kg (56 lb, 11.2 oz)
Weight Size
