Technology

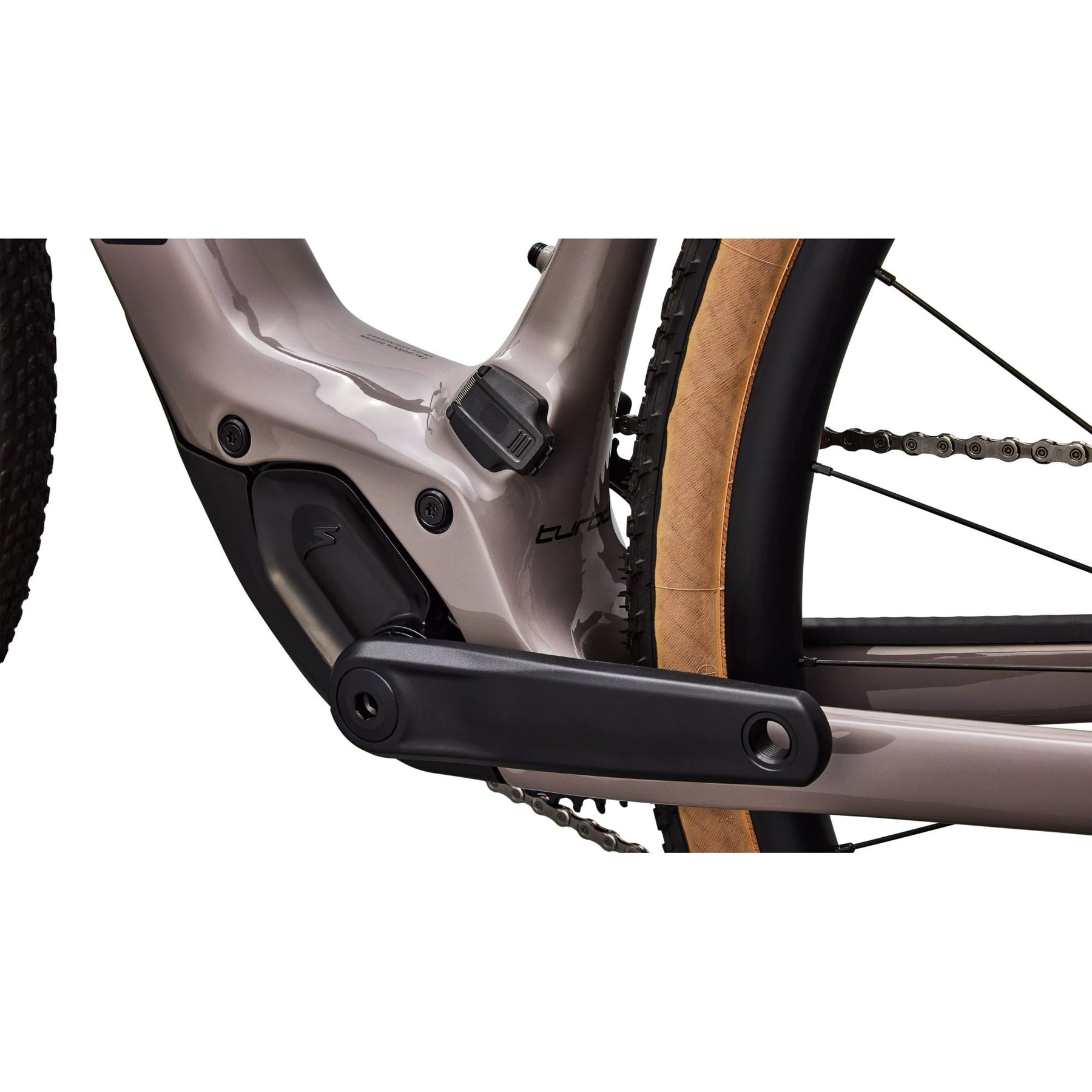

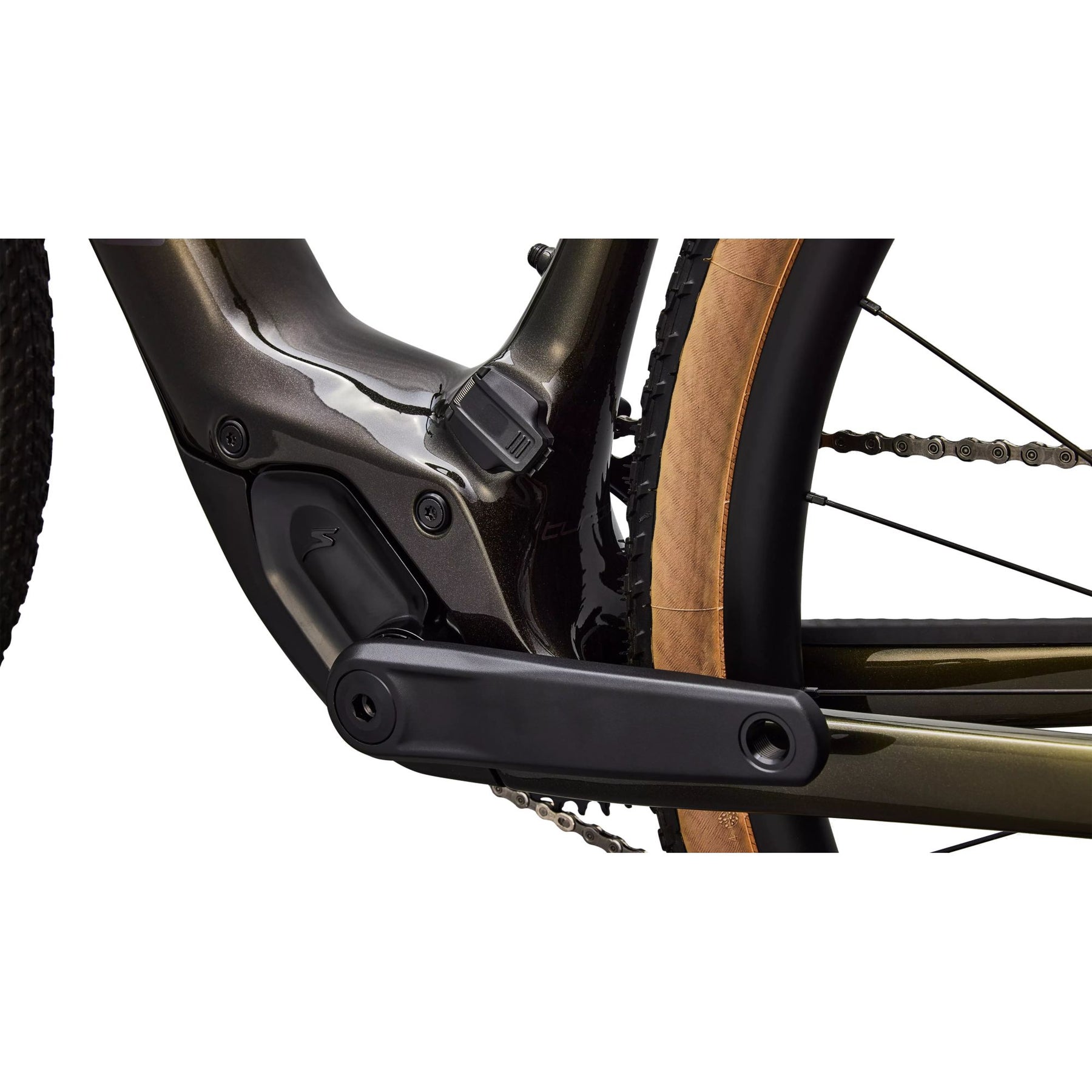

SL 1.2 Motor
320W, 50Nm — most efficient e-bike system in the world. Up to 5 hours range, whisper quiet, 40% less noise than predecessor.

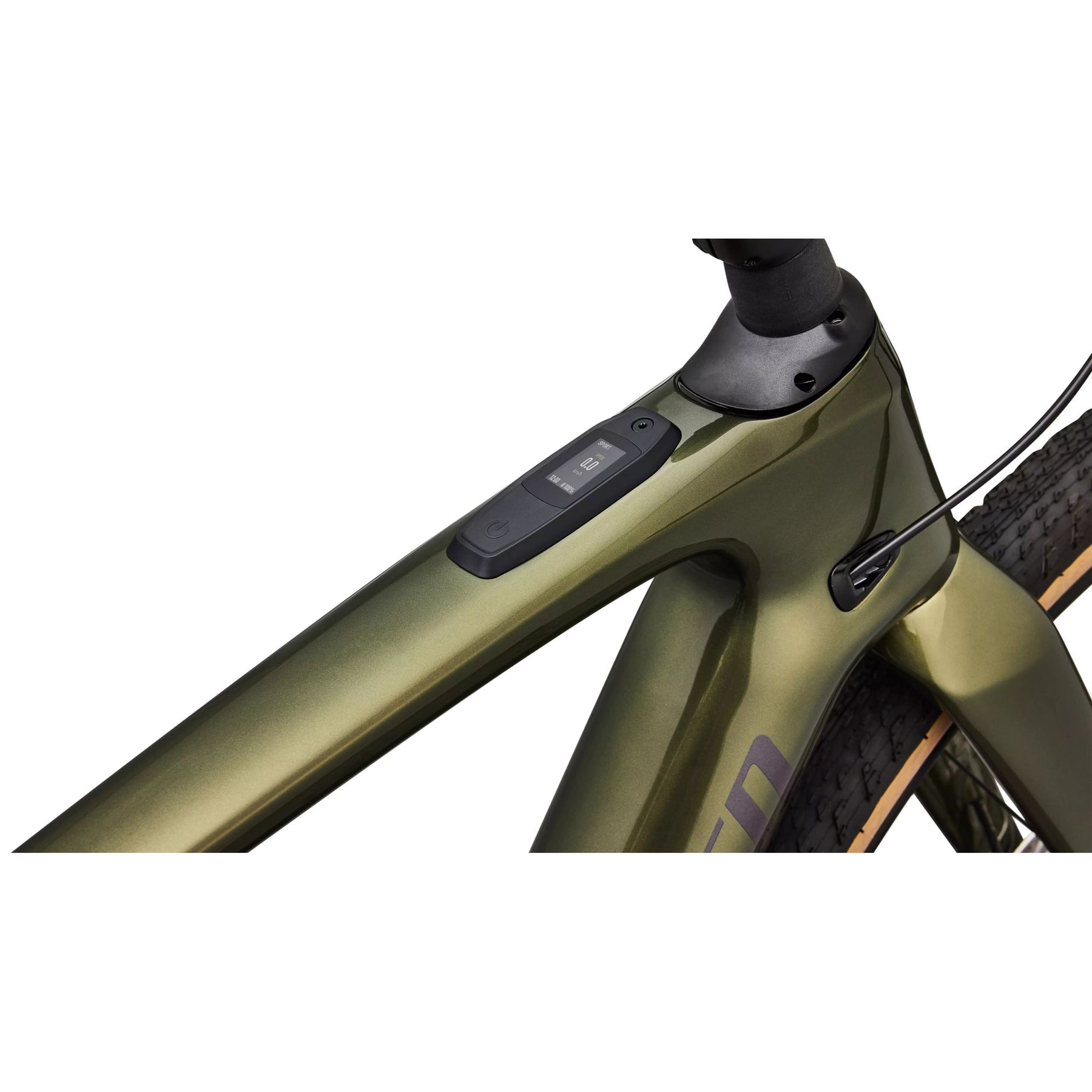

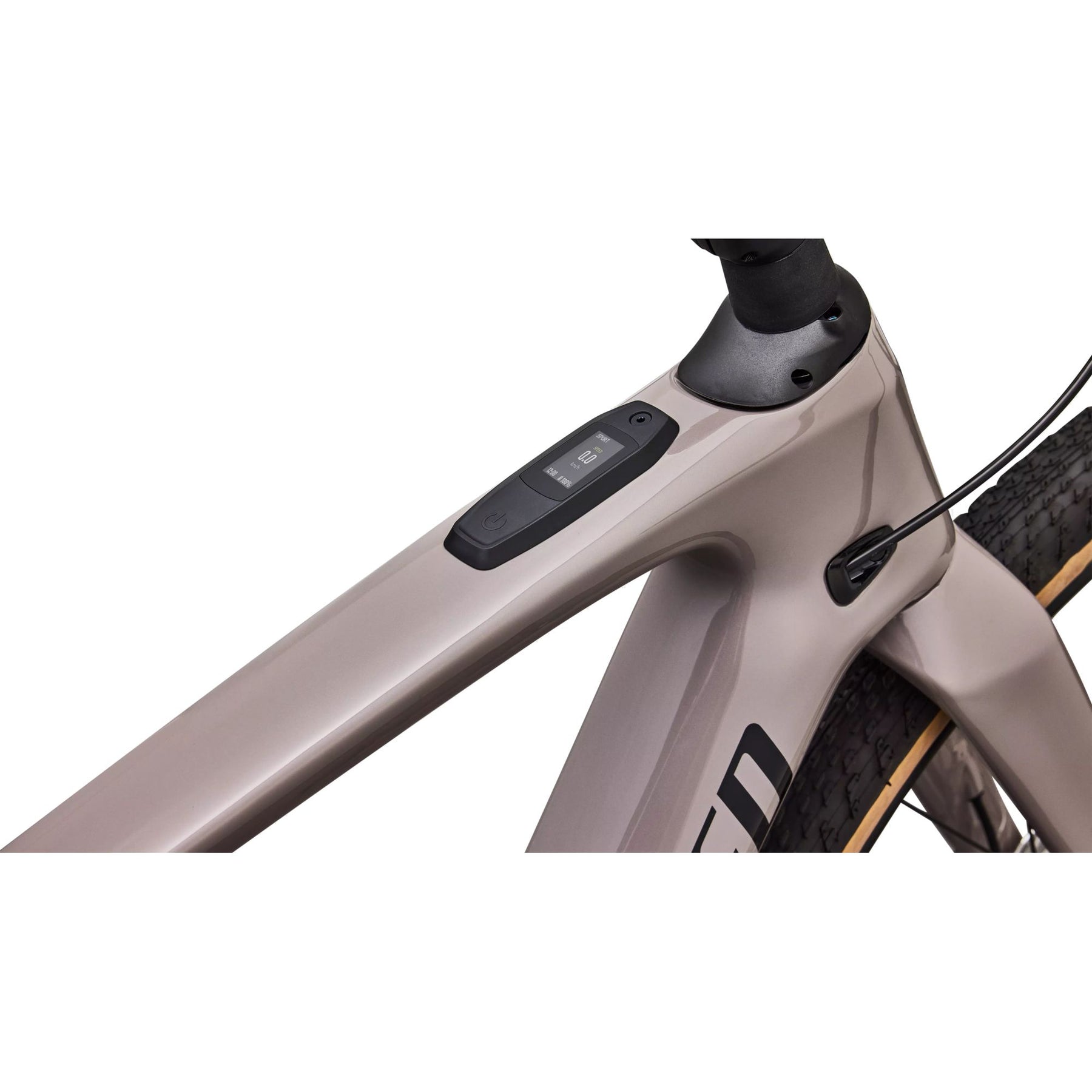

Mastermind TCU
2.2" display, 120 configurations, MicroTune in 10% increments, over-the-air updates, ANT+/Bluetooth, handlebar remote.
320Wh SL1-320 Battery
Fully integrated, range-extender compatible.

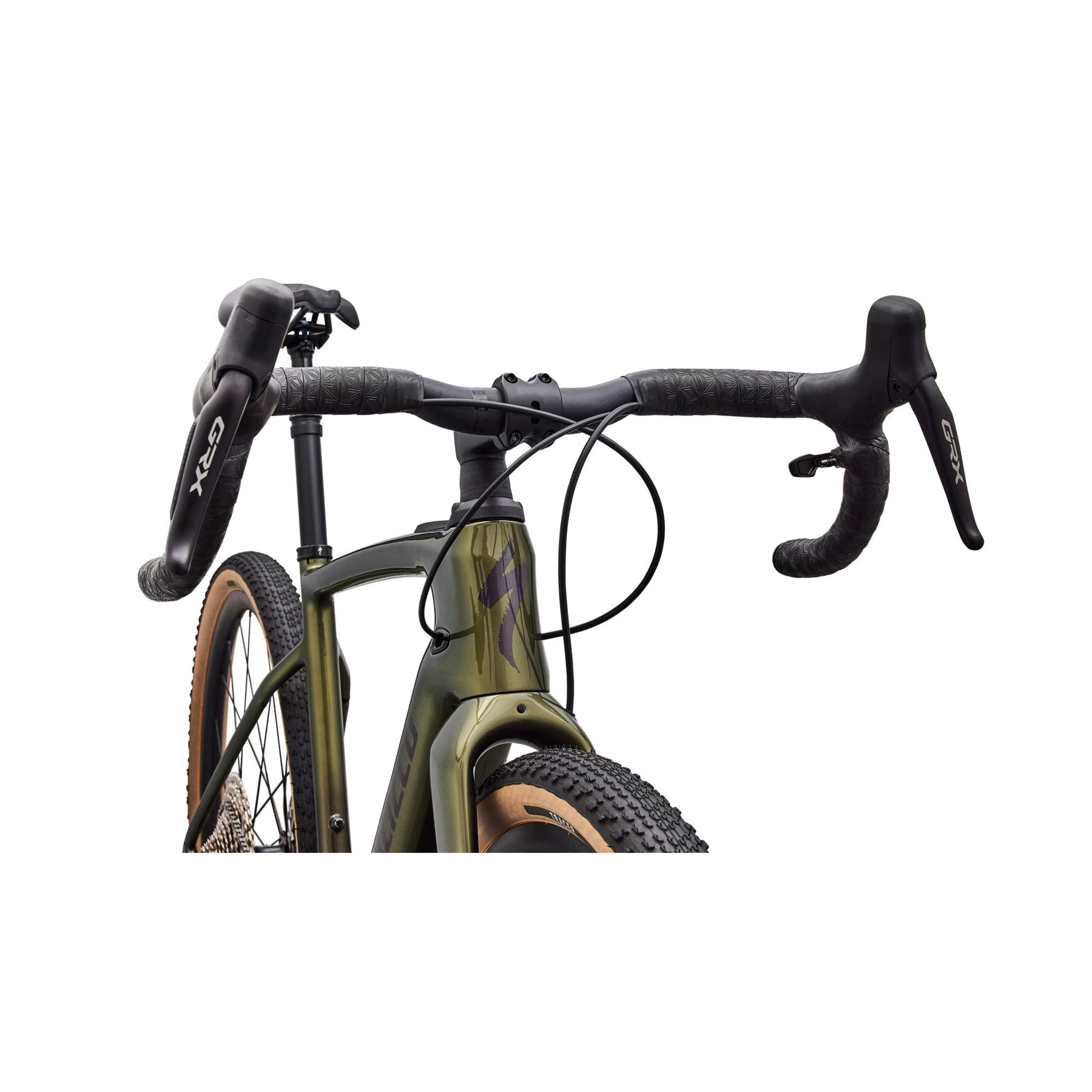

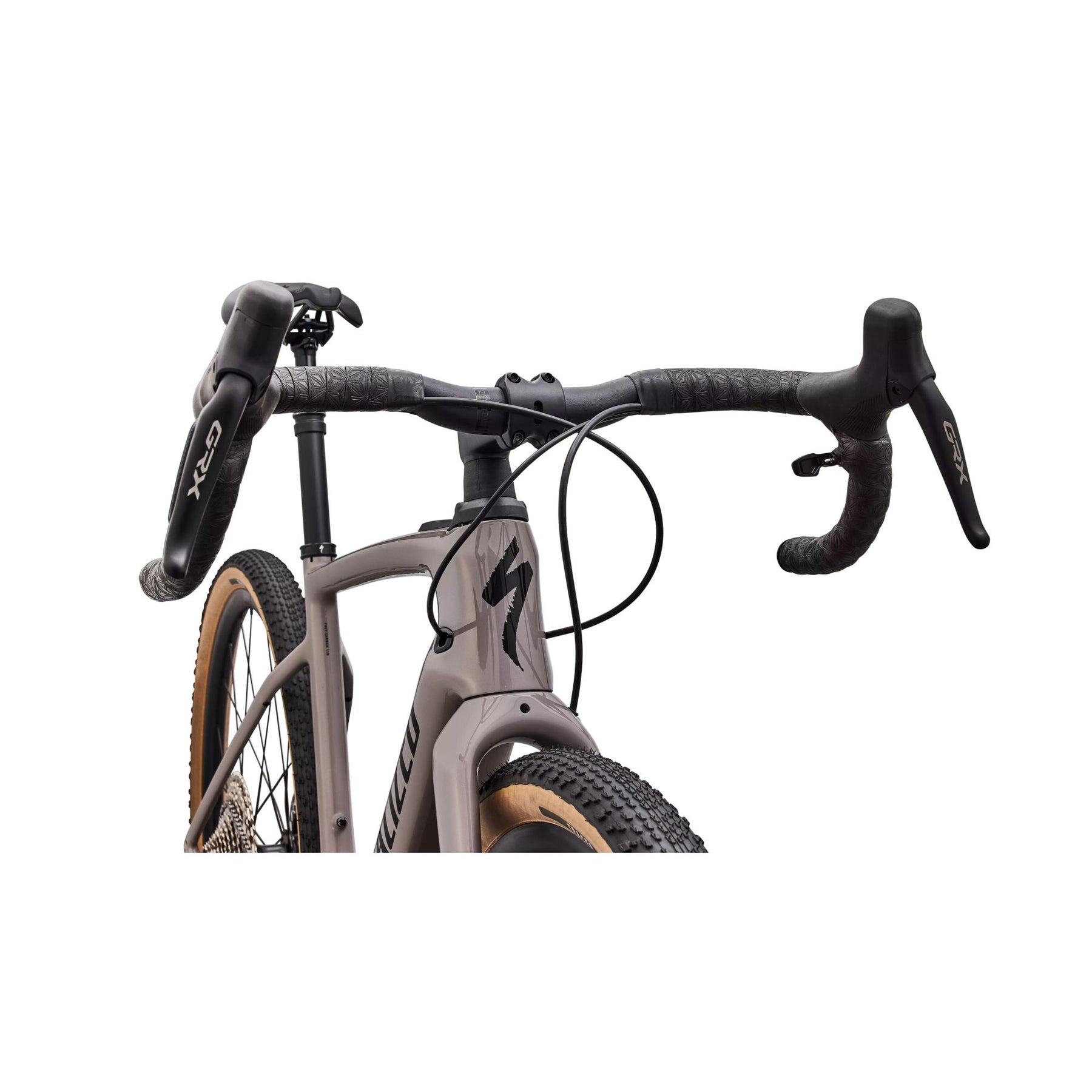

Shimano GRX Di2
RX715 shift levers, RX717 rear derailleur, 12-speed, 10-51t cassette, Deore M6100 chain. Electronic shifting on gravel.
Future Shock 3.2
20mm smooth travel at handlebars, reduces impacts by 53%. Smooth Boot, flat-mount disc, 12x100mm thru-axle.
700x50c + 29x2.2" Clearance
Tracer TLR All Terrain Gravel Tires, tubeless ready. Huge tire clearance for road and gravel versatility.

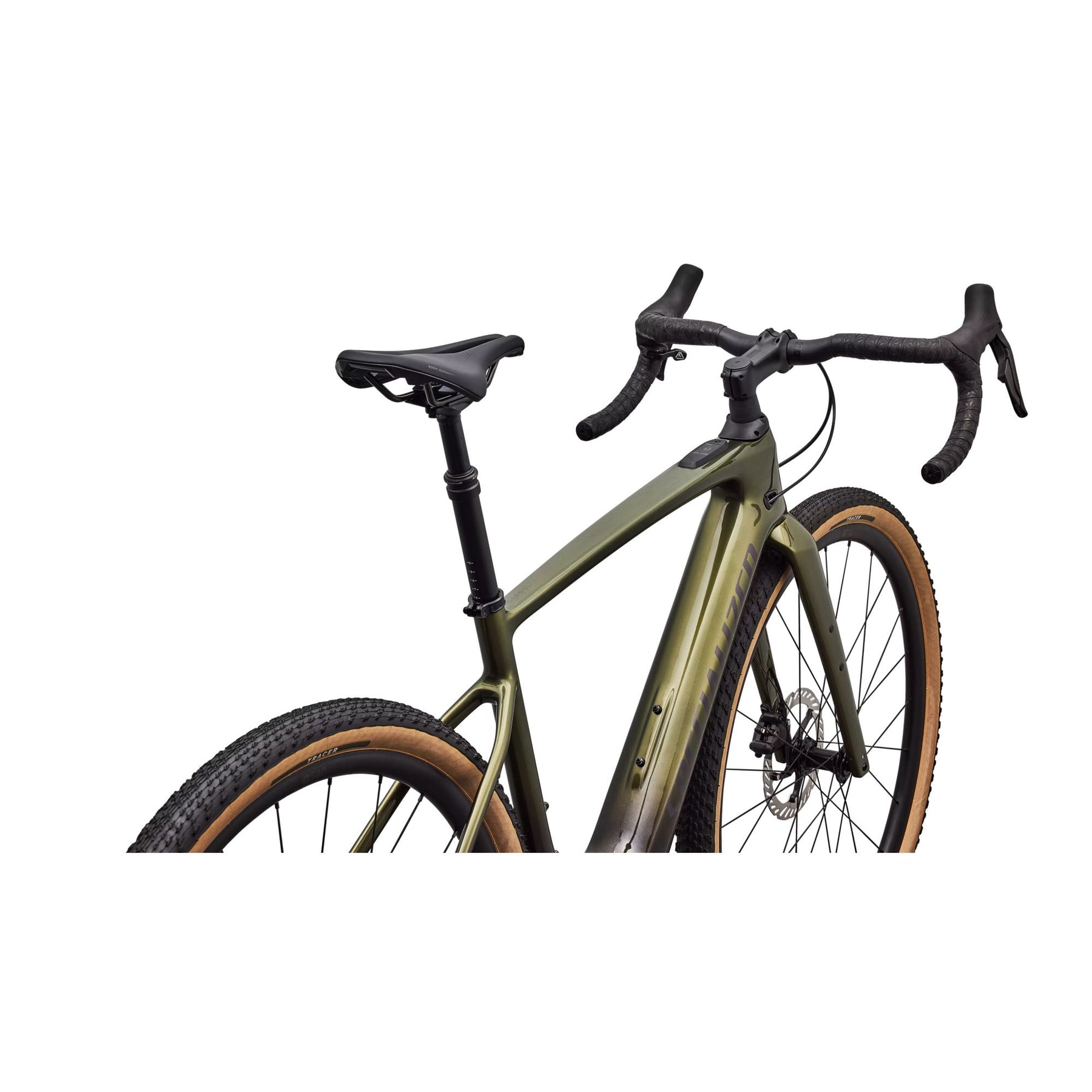

Dropper Post
X-Fusion Manic, 50mm travel. Lower your center of gravity for better cornering and control.

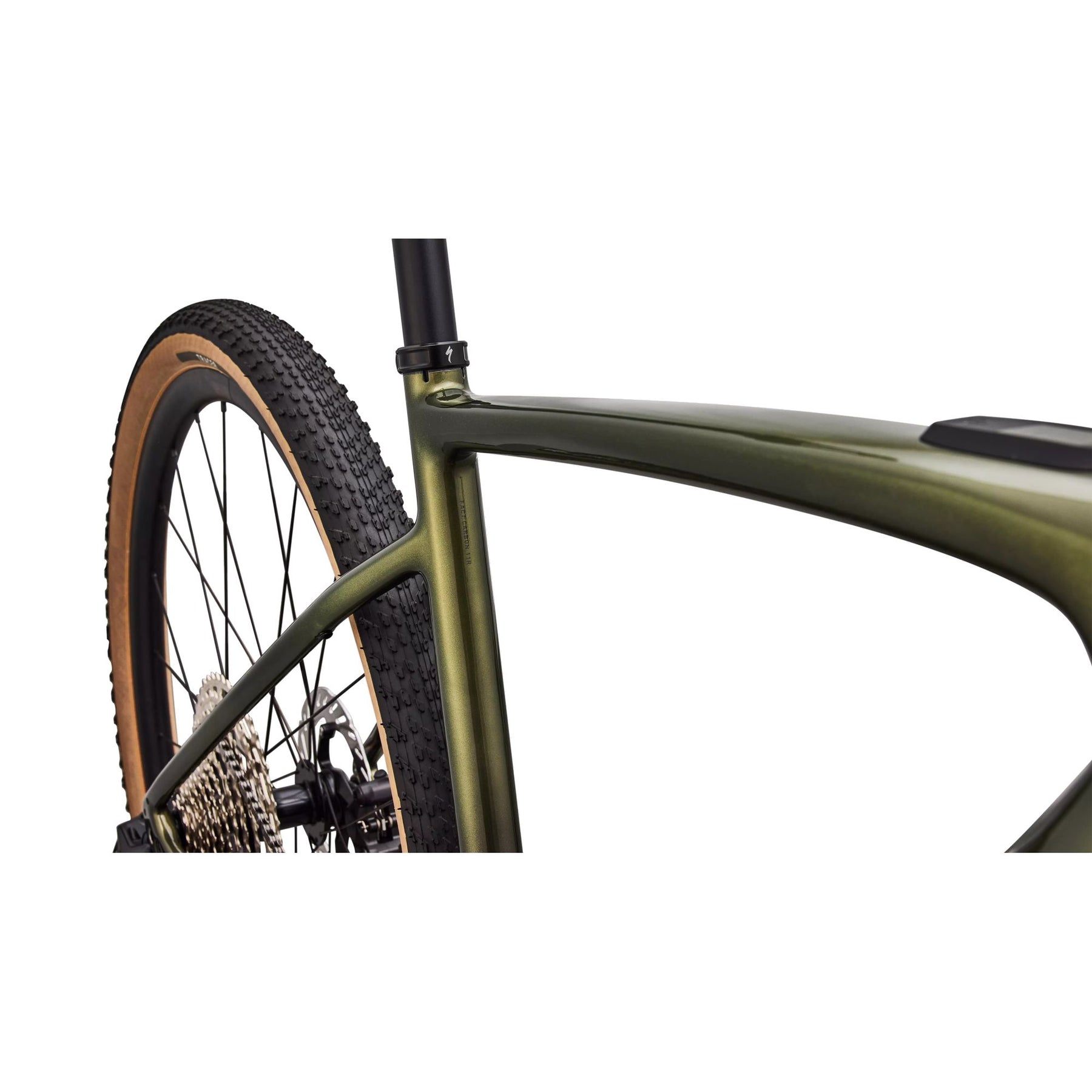

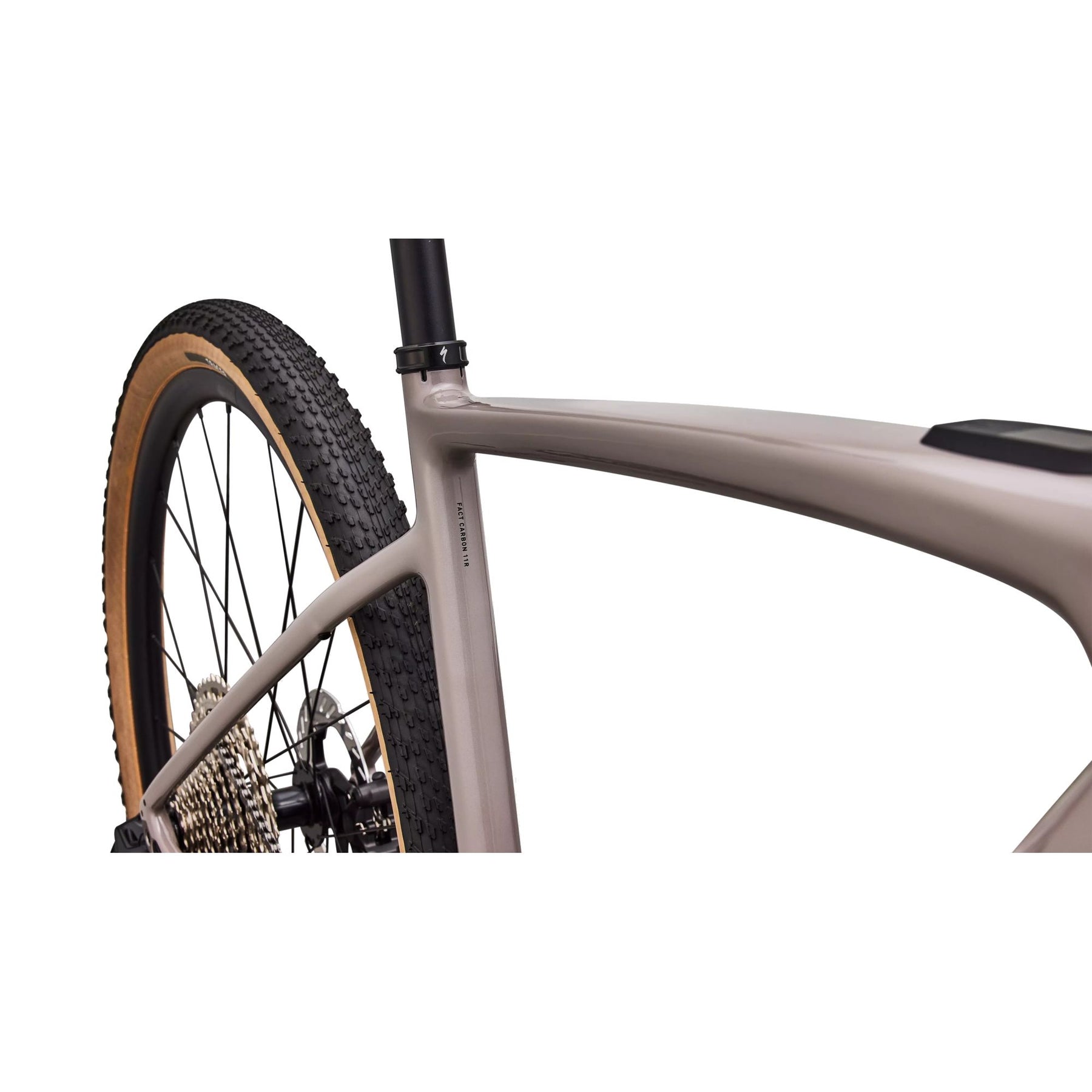

FACT 11r Carbon
12x142mm rear thru-axle, fully integrated down tube battery, internal cable routing, fender/rack mounts.
Built For
Gravel
Road
All-Day Range
E-Road
Performance Numbers
50Nm
Torque
SL 1.2 Motor
5hr
Range
Eco Mode
700x50c
Tire Size
Up to 29x2.2"
32lb
Weight
14.65kg
Gallery
Sizing
| Size | Stack | Reach | Wheelbase |
|---|---|---|---|
| 49 | 578mm | 365mm | 1022mm |
| 52 | 578mm | 374mm | 1031mm |
| 54 | 595mm | 383mm | 1046mm |
| 56 | 607mm | 392mm | 1059mm |
| 58 | 638mm | 401mm | 1079mm |
| 61 | 663mm | 410mm | 1097mm |
Rider Height
49
5'0" – 5'4" (152 – 163cm)
52
5'4" – 5'7" (163 – 170cm)
54
5'7" – 5'10" (170 – 178cm)
56
5'10" – 6'0" (178 – 183cm)
58
6'0" – 6'3" (183 – 191cm)
61
6'3"+" (191cm+)
