Technology

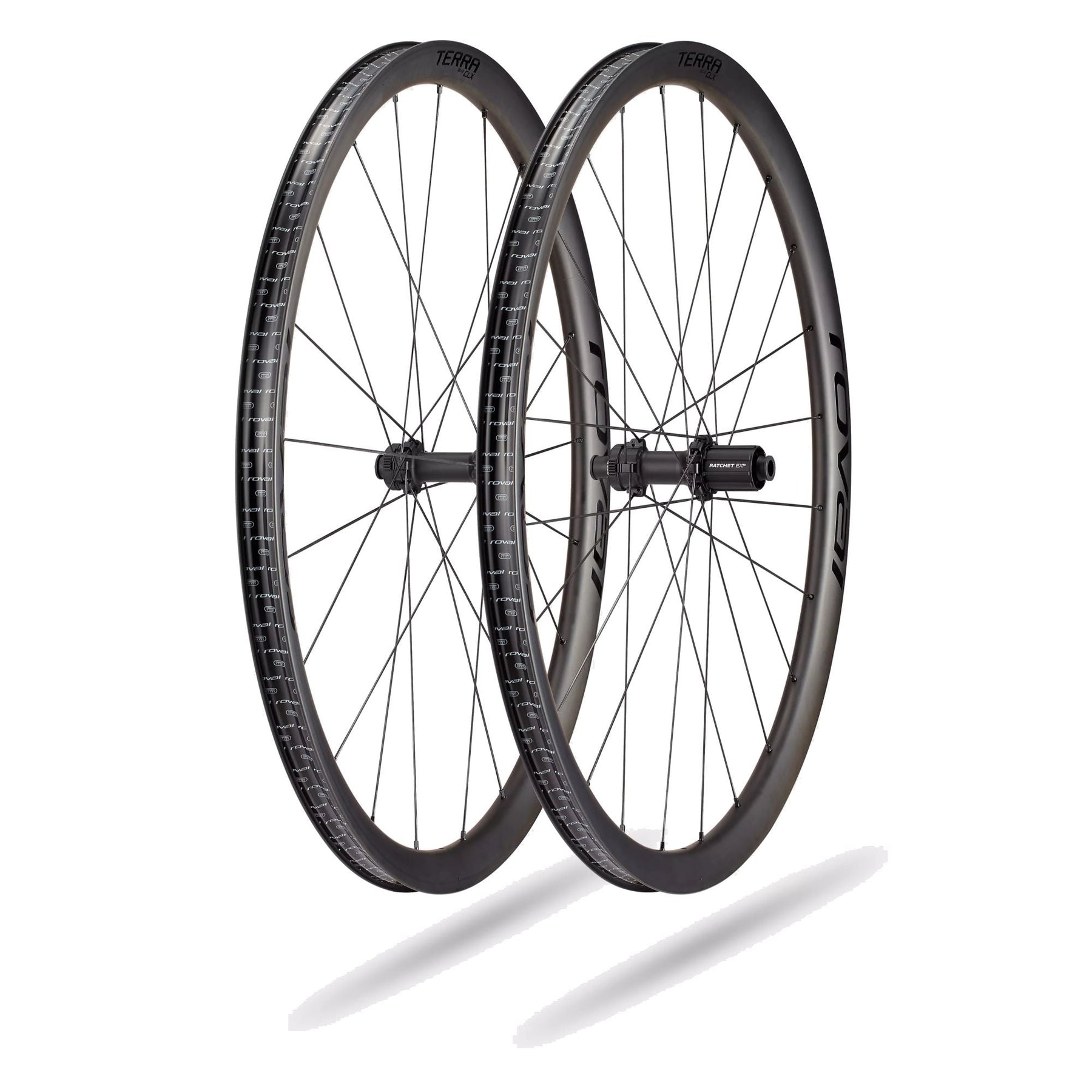

1,250g Wheelset
50 grams lighter than the previous generation. Rivaling pure climbing wheels while maintaining gravel-ready toughness. Hand-built from rim layup to the last nipple turn.
Hooked Rim Design
Hooked rim construction allows more tire options and the ability to run whatever pressure is right for your ride. Works with 28–47c tires up to 80 PSI.
25mm Internal Width
Optimized for the modern gravel tire. Seamlessly runs 28–47c tires. 32mm Pathfinder for rough stuff, or 32mm Turbo for all-road. ERD 577mm.

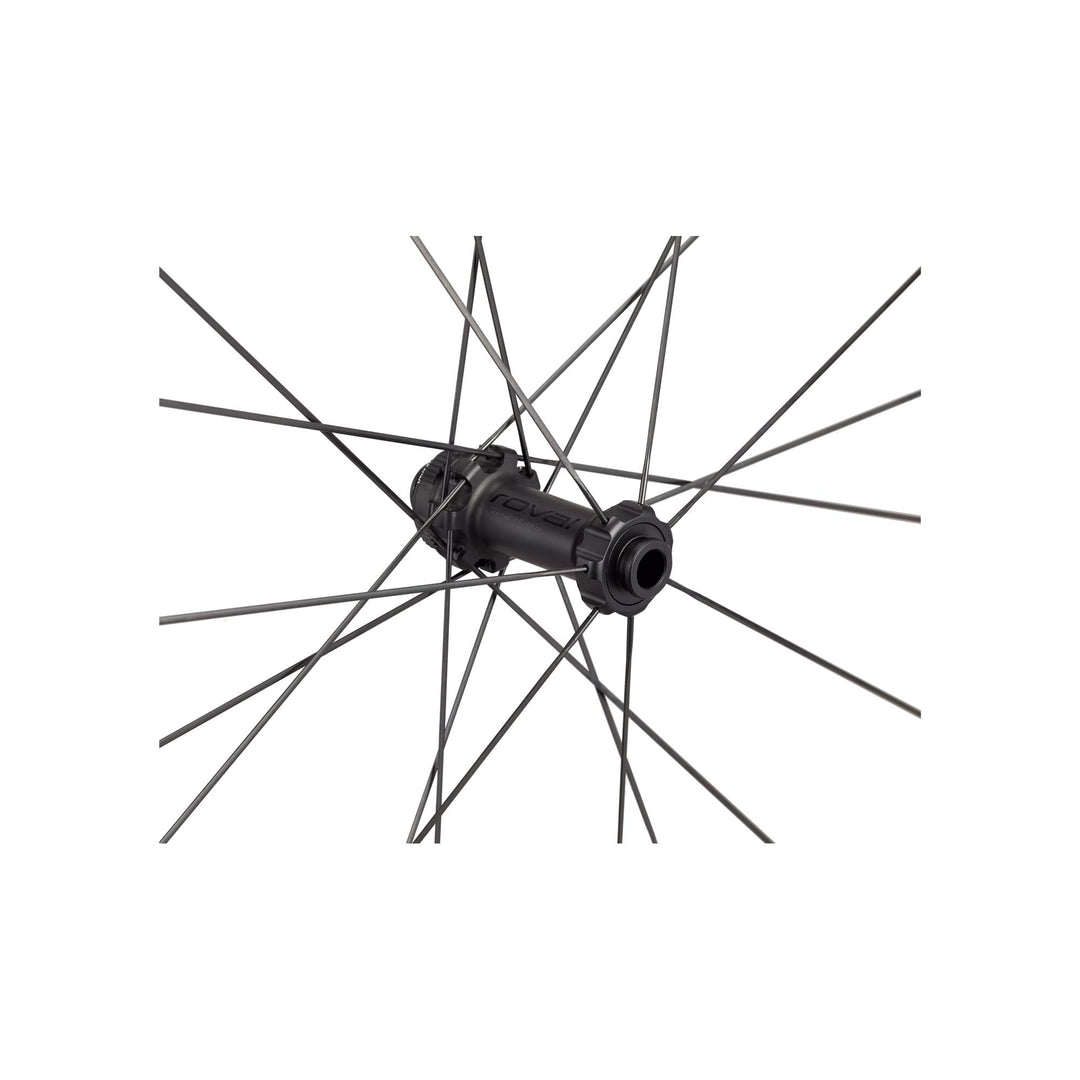

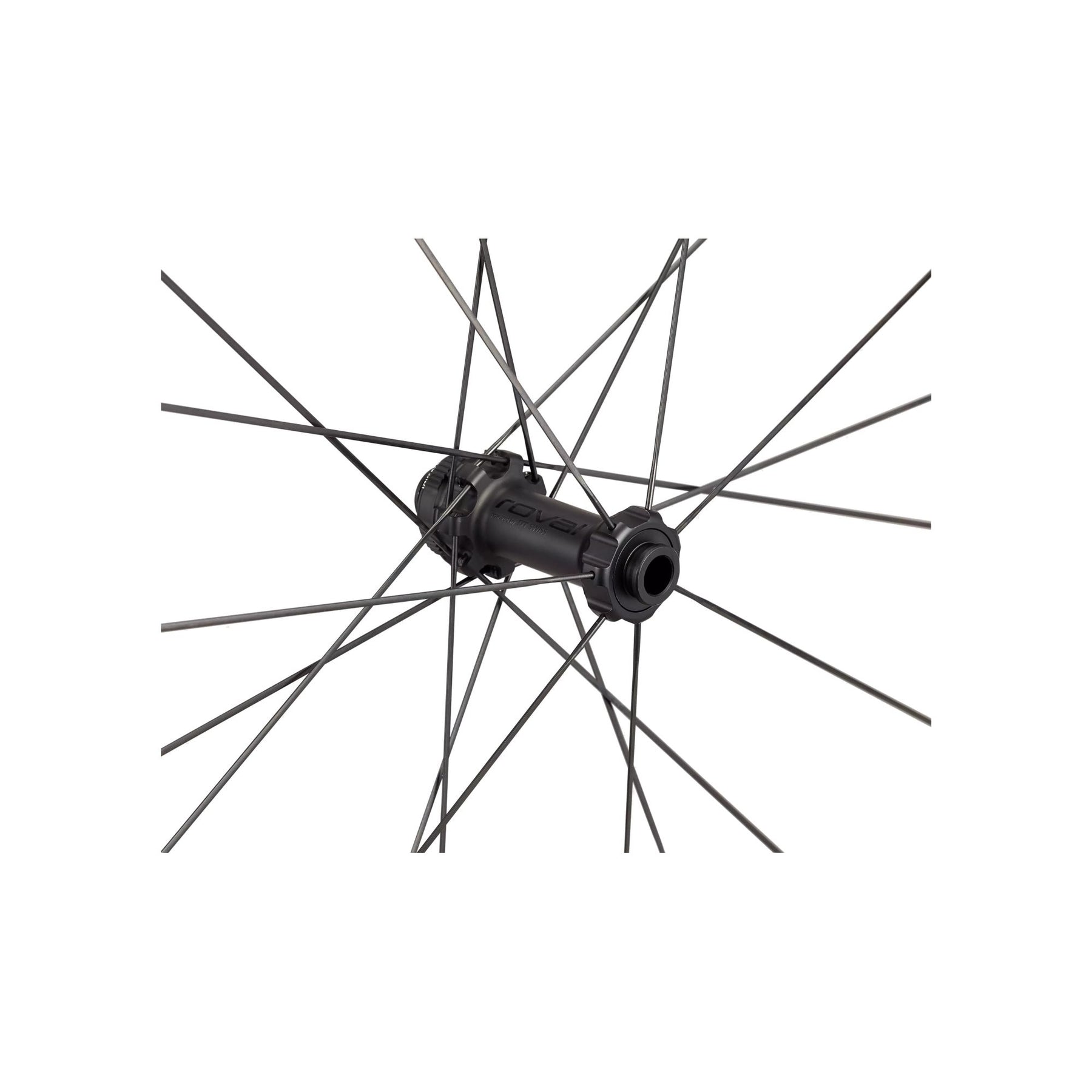

Roval LFD Hubs

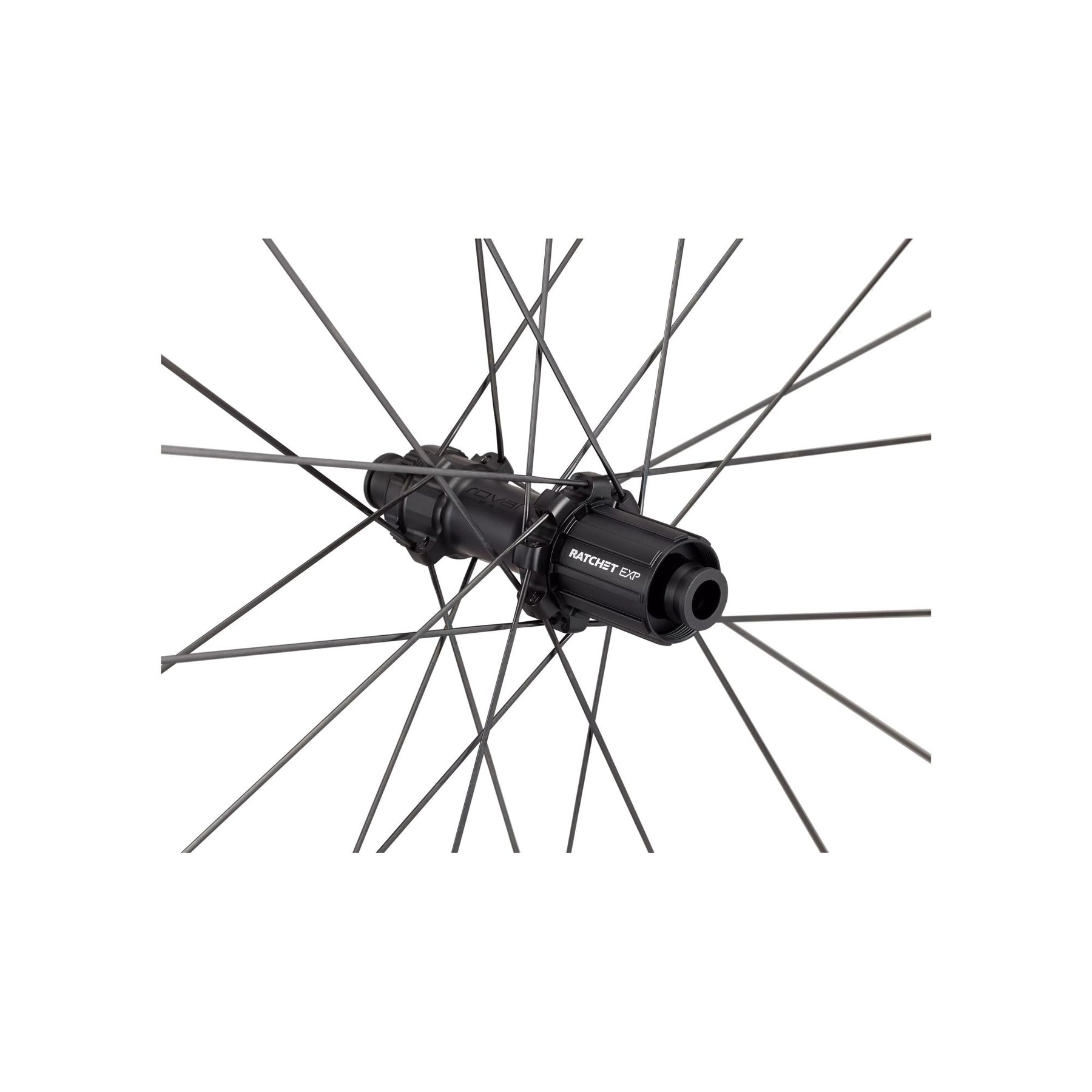

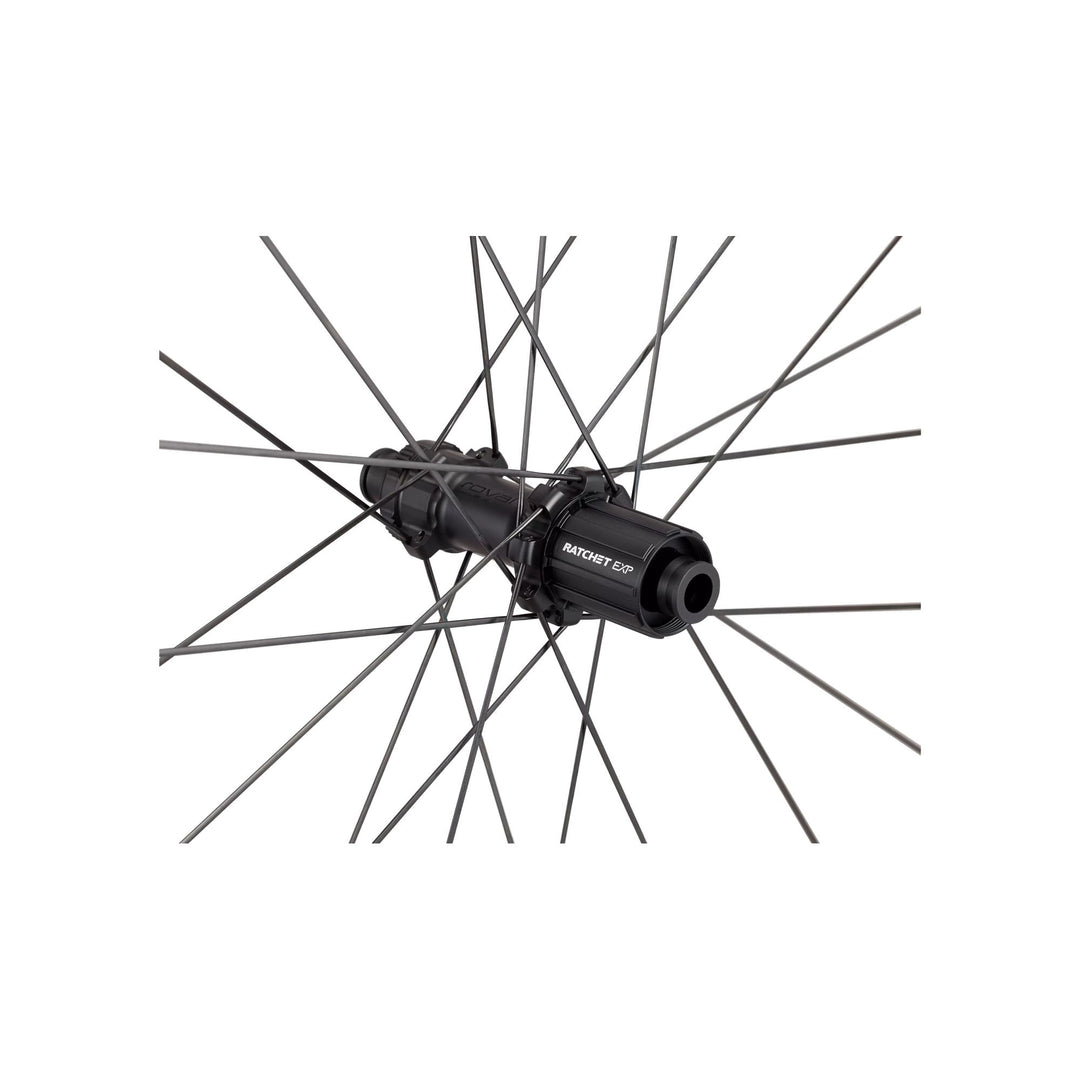

Low Flange Disc hubs, borrowed from the Alpinist CLX II. DT Swiss 180 Ratchet EXP 36t internals (10°), 100x12mm / 142x12mm. Shimano HG freehub.
DT Swiss SINC Ceramic
CINC ceramic bearings inside DT Swiss 180 internals. Serious efficiency for long-haul gravel excursions and all-road adventures.
Unbound Proven
Multiple Unbound victories — the world's most demanding gravel race. Pro-level performance validated by the best gravel athletes in the sport.

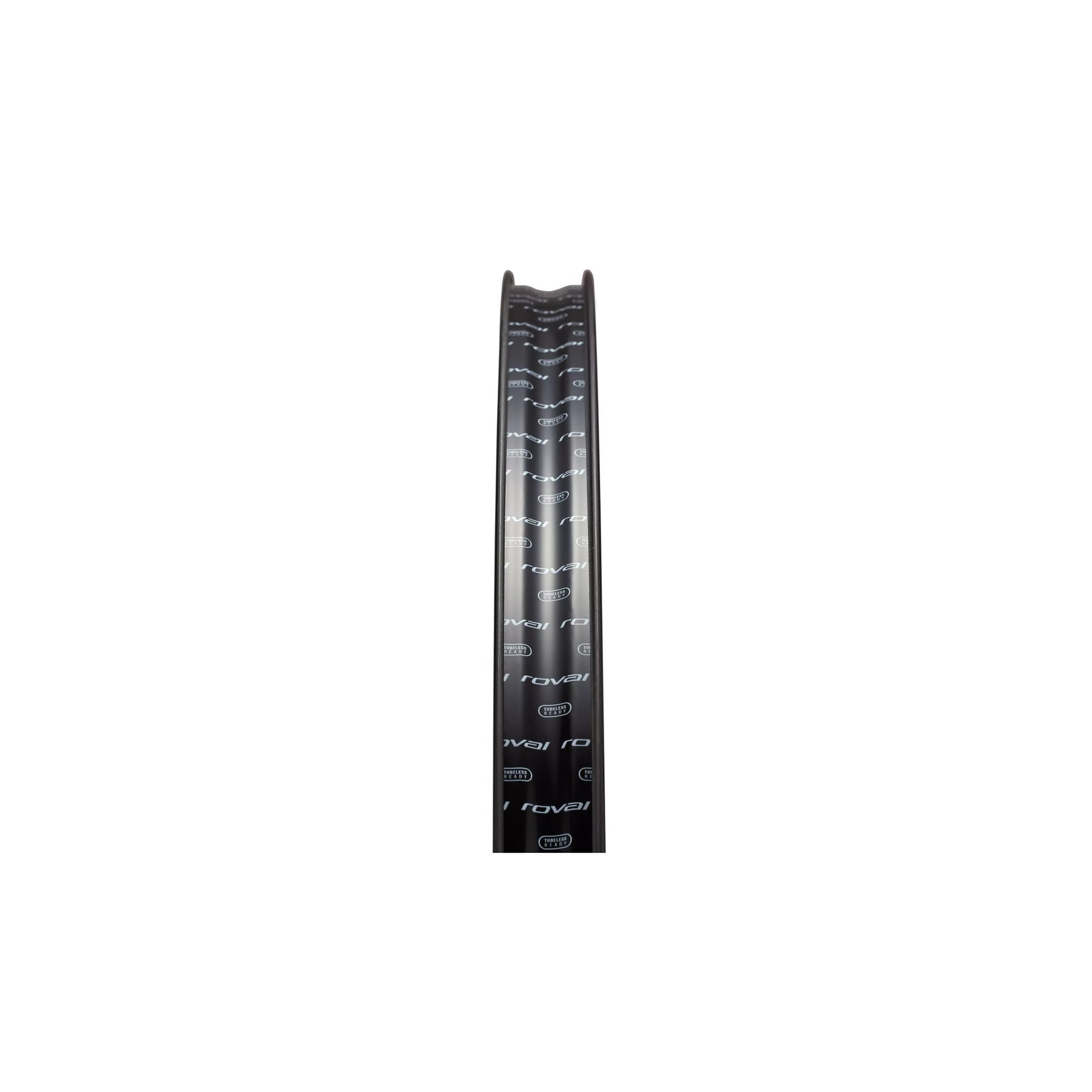

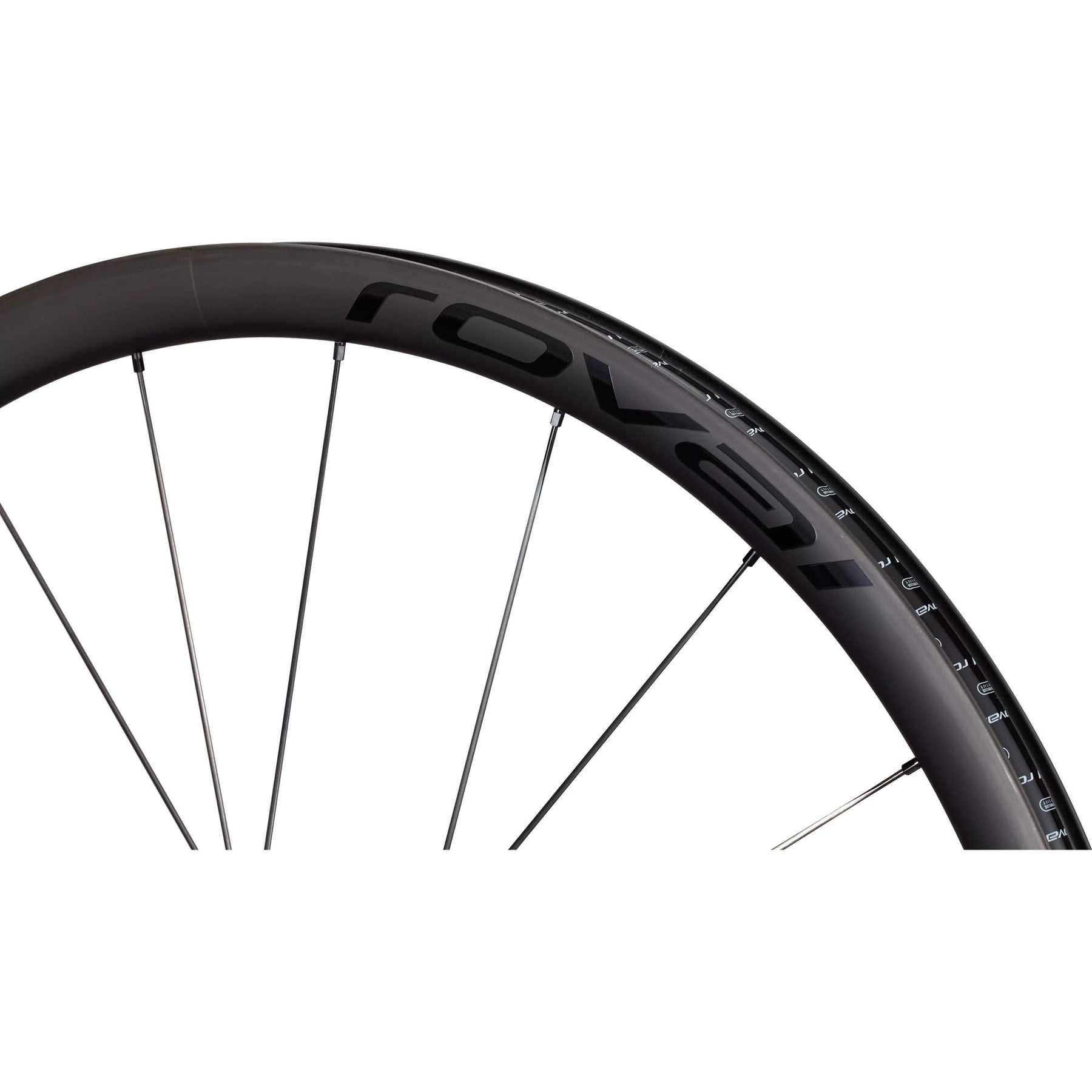

32mm Depth
32mm rim depth balances aero efficiency and cross-wind compliance. Wide enough for modern gravel tires, deep enough for speed on open roads.
275lb System Limit
Built to handle loaded-down long-haul excursions. Includes Roval rim tape, spare spoke & nipple kit. 275lbs / 125kg system weight limit.
Built For
Gravel Racing
All-Road
Unbound Winners
Gran Fondo
Performance Numbers
1,250g
Wheelset Weight
50g Lighter Than Gen 1
32mm
Rim Depth
30mm External / 25mm Internal
28–47c
Tire Range
Hooked, Tubeless Ready
275lb
System Weight
125kg Limit
Gallery
Specifications
| Component | Detail |
|---|---|
| Rim | Terra CLX Carbon Clincher, 700c, Disc Brake, Tubeless Compatible |
| Rim Depth | 32mm |
| External Width | 30mm |
| Internal Width | 25mm (ERD 577mm) |
| Hub | Roval LFD (LF13/LF14R) Center Lock, DT Swiss 180 Ratchet EXP 36t |
| Bearings | DT Swiss SINC Ceramic |
| Spokes | DT Swiss Aerolite T-head, 21H Front / 24H Rear (2:1) |
| Freehub | Shimano HG 11-speed |
| Axles | 100x12mm / 142x12mm |
| Assembly | Hand-built |
Tire Pressure Guide
28–32c
80 psi max
33–36c
65 psi max
37–47c
60 psi max
570g

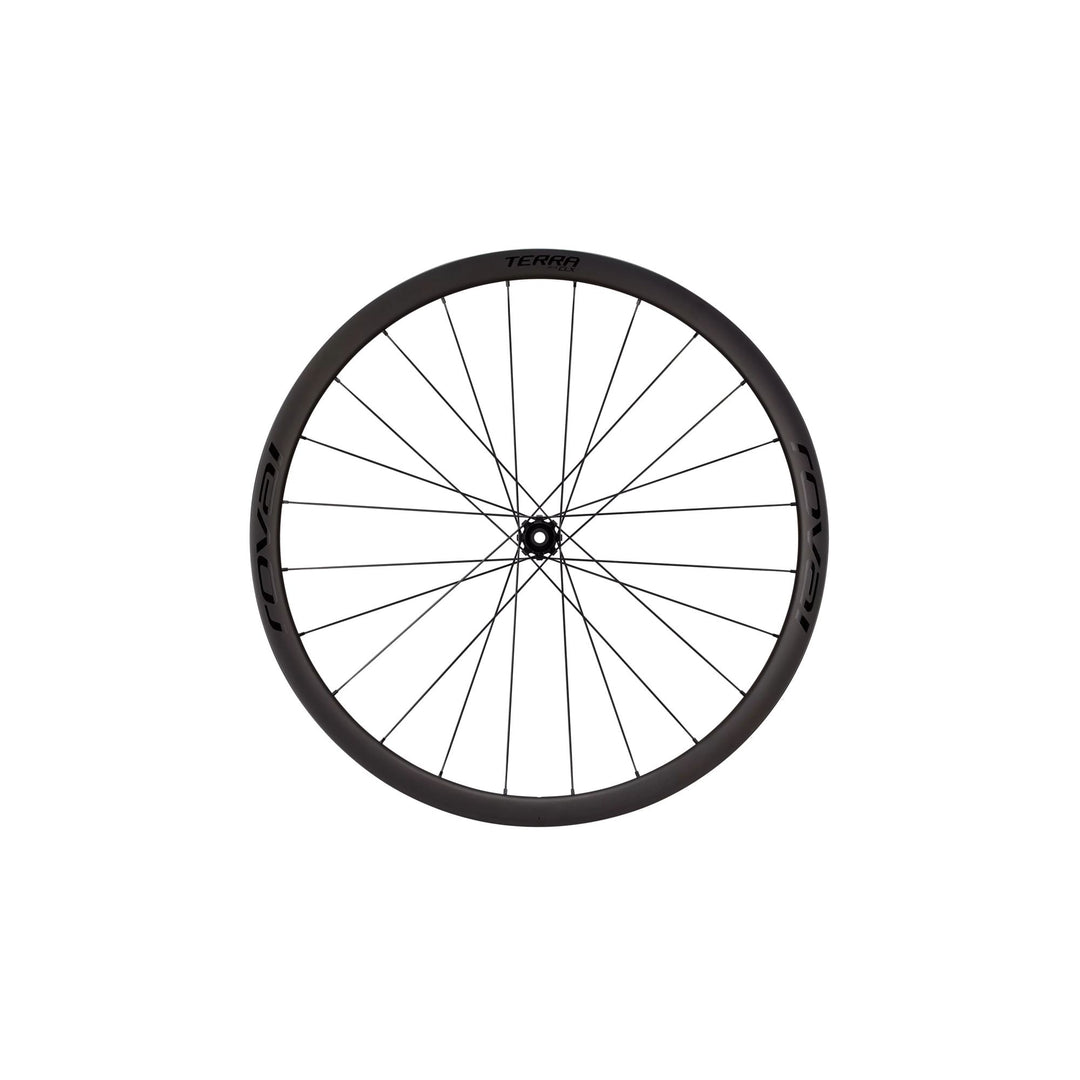

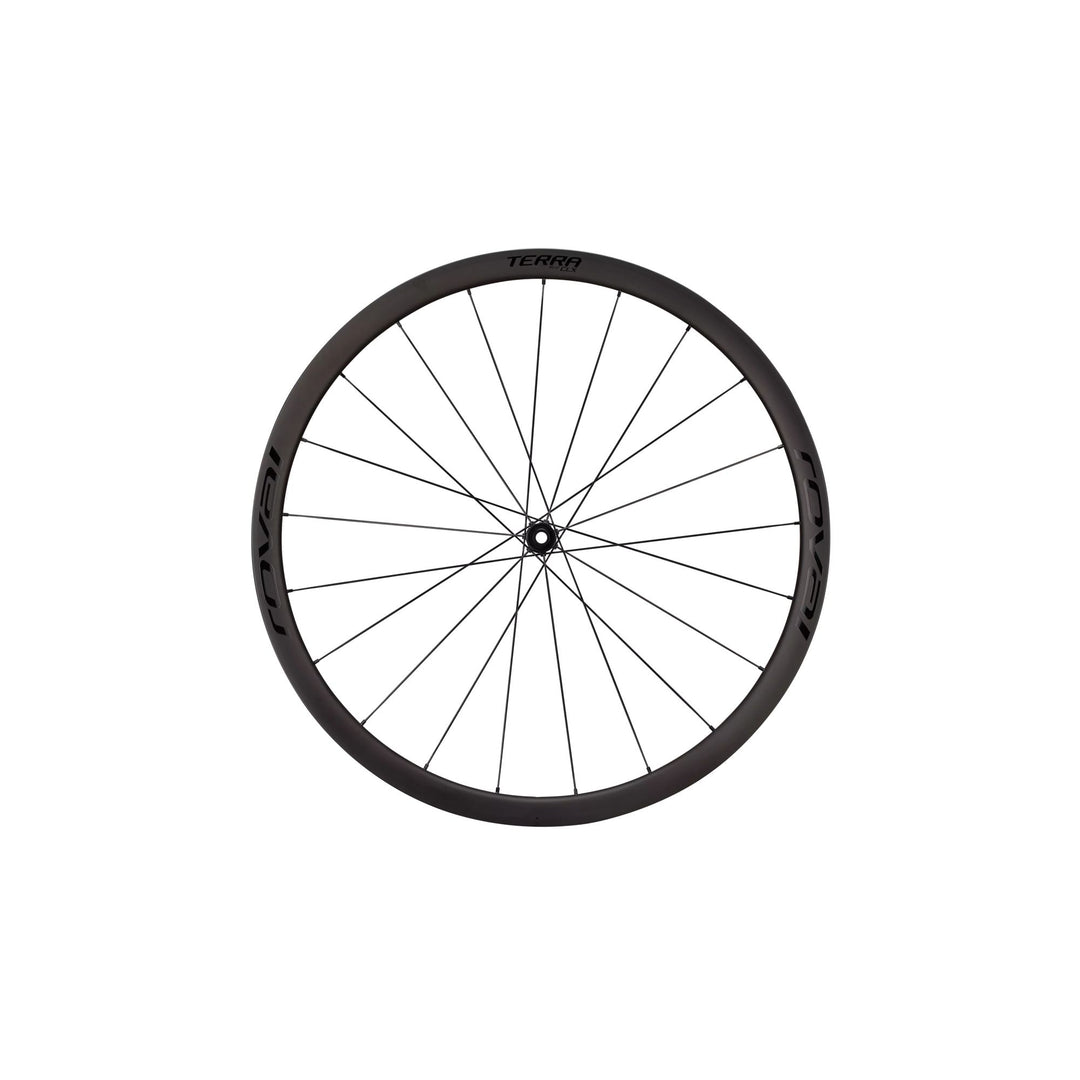

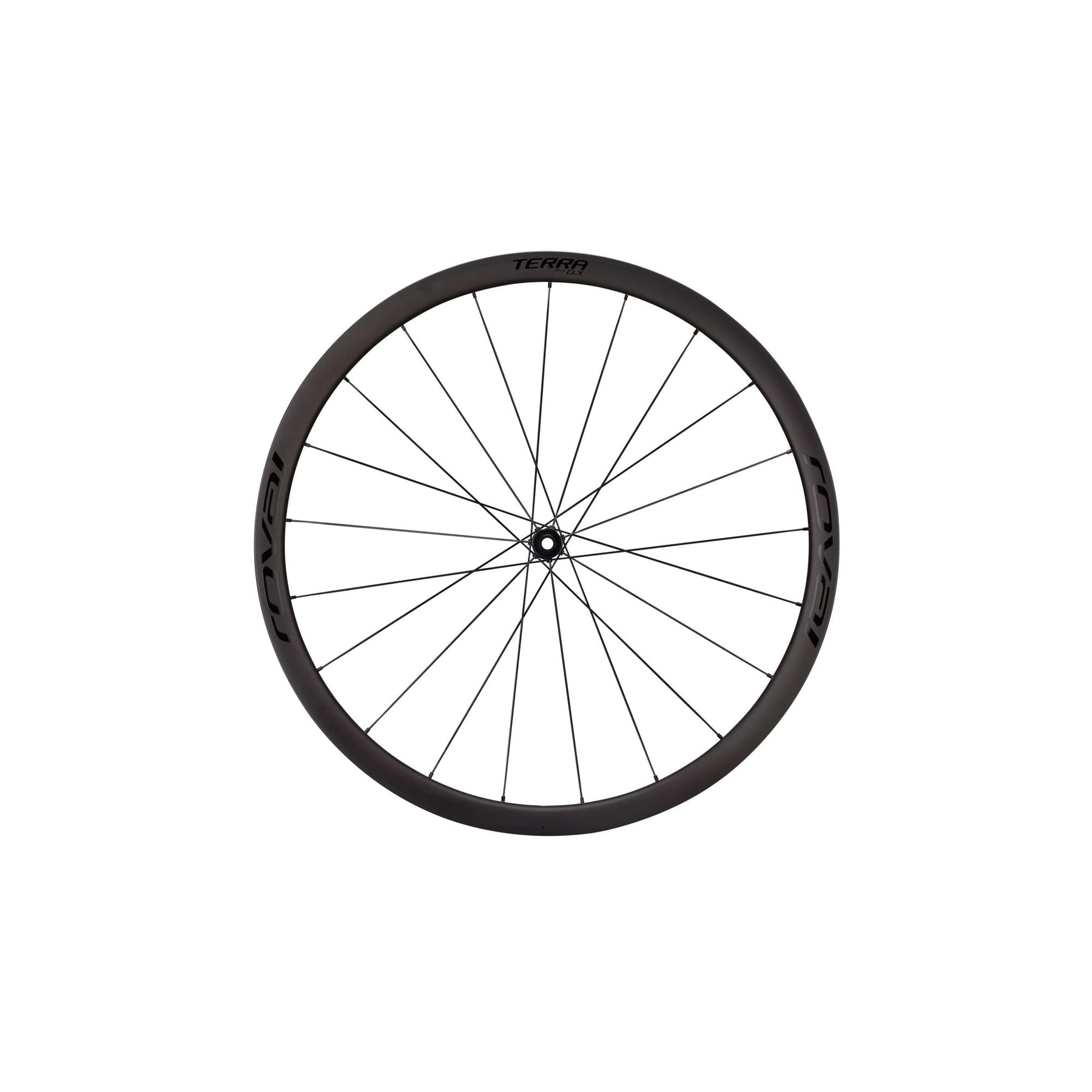

Front Wheel
680g

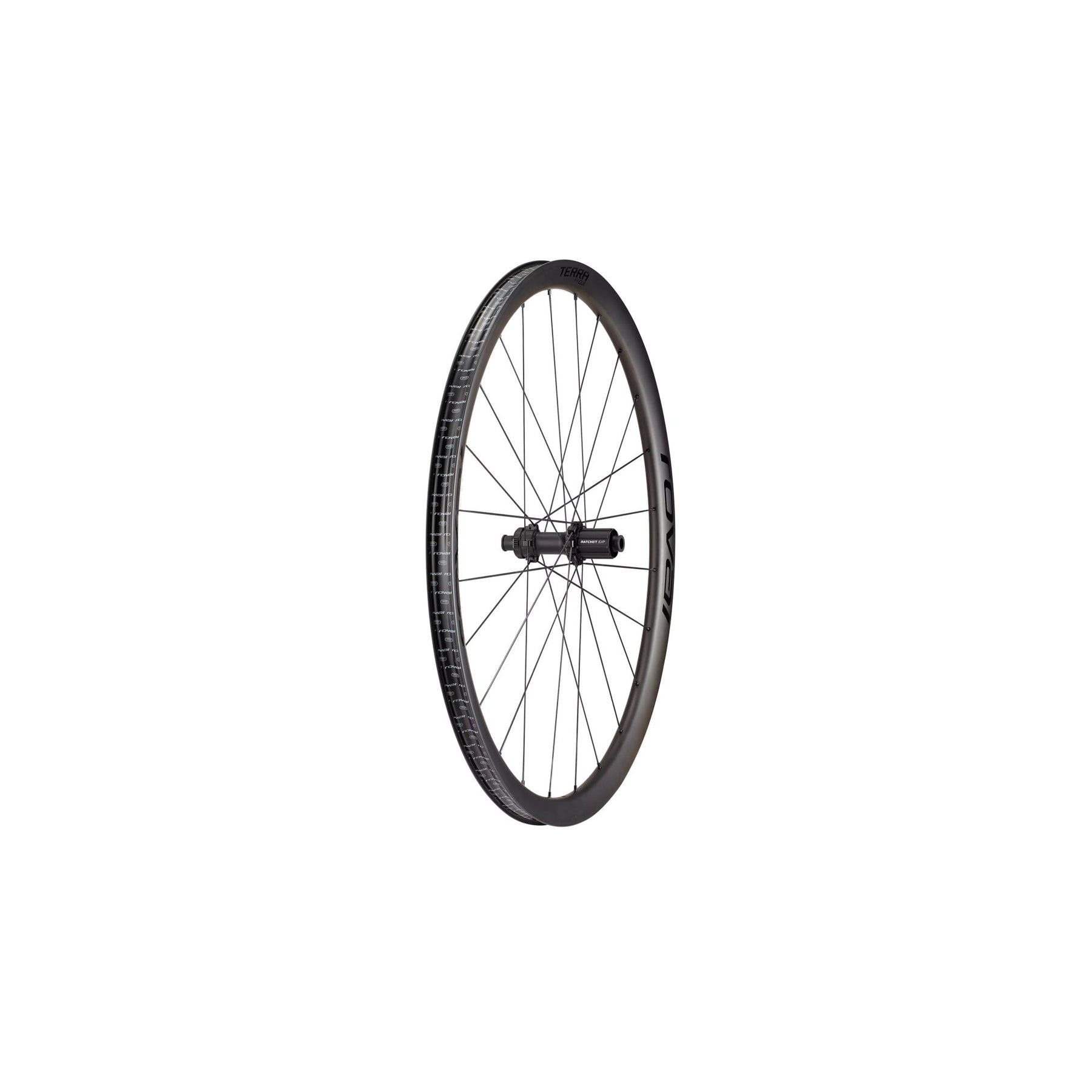

Rear Wheel
