Technology

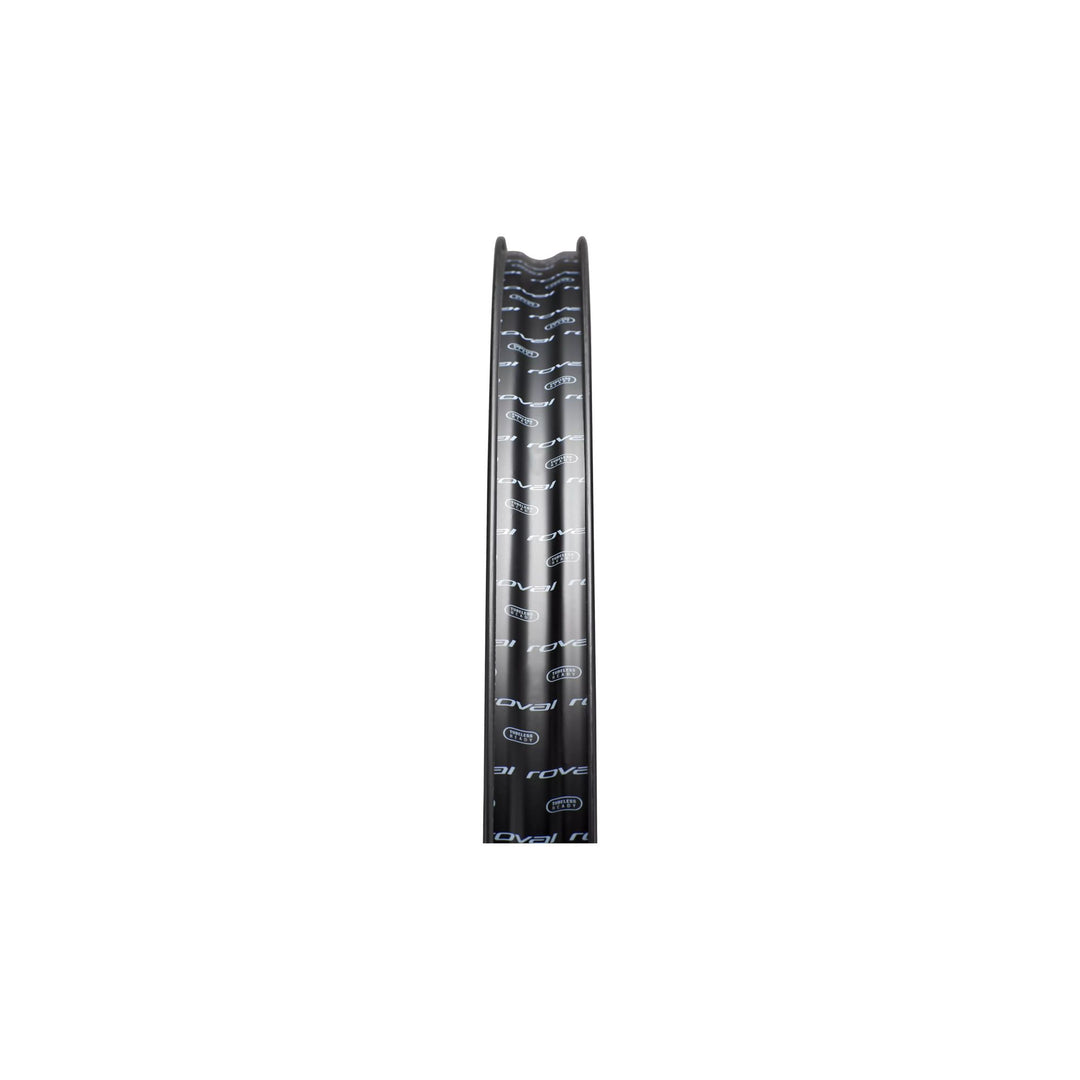

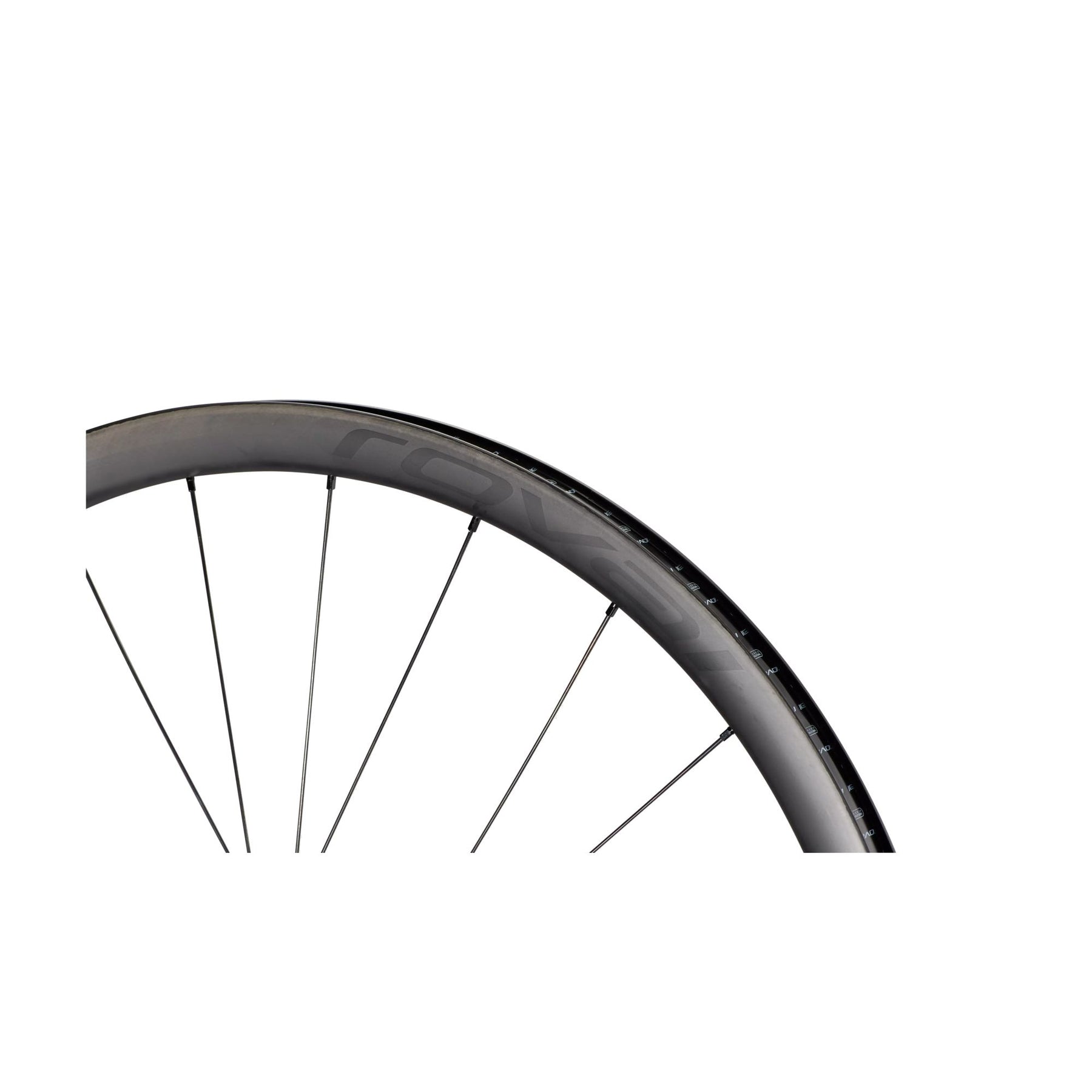

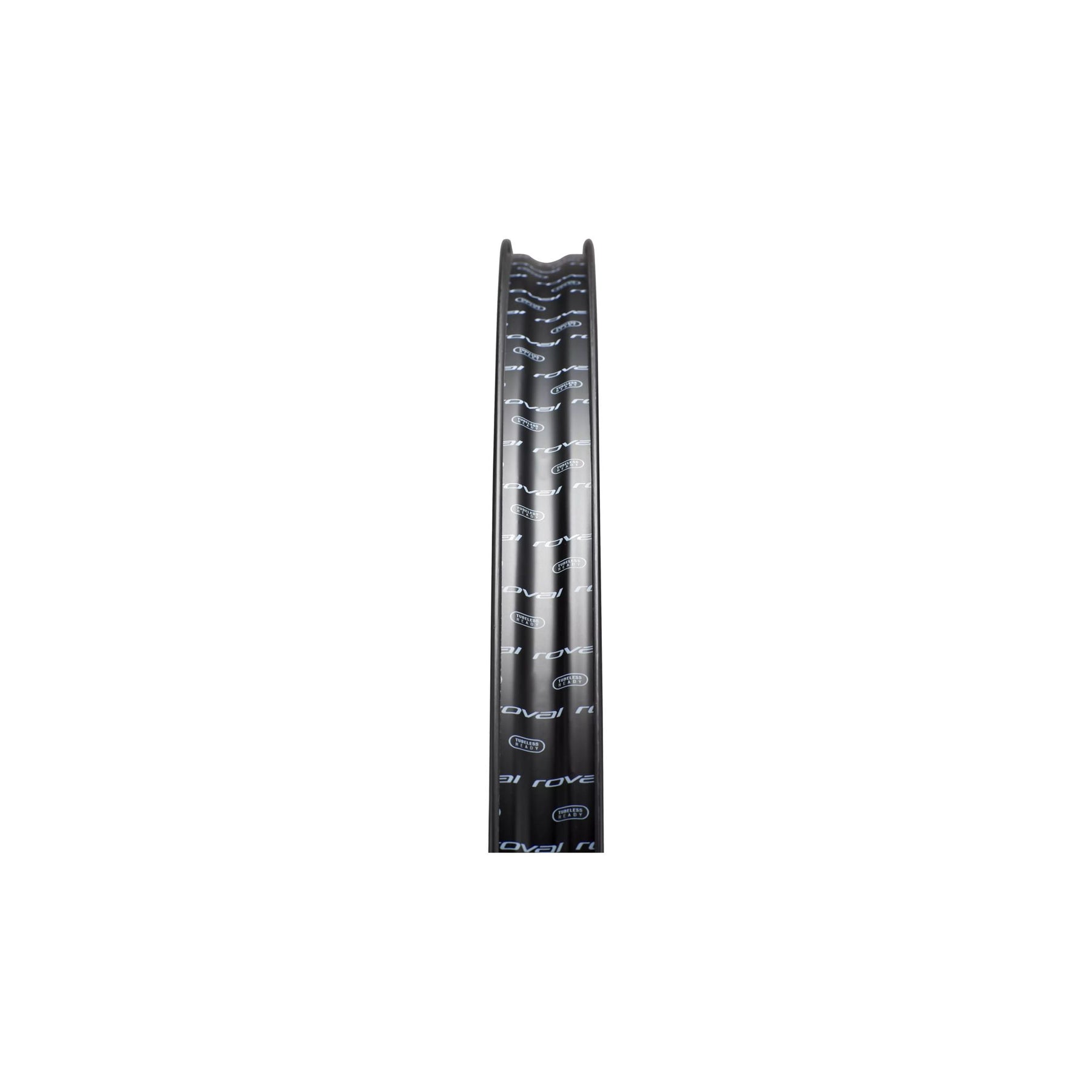

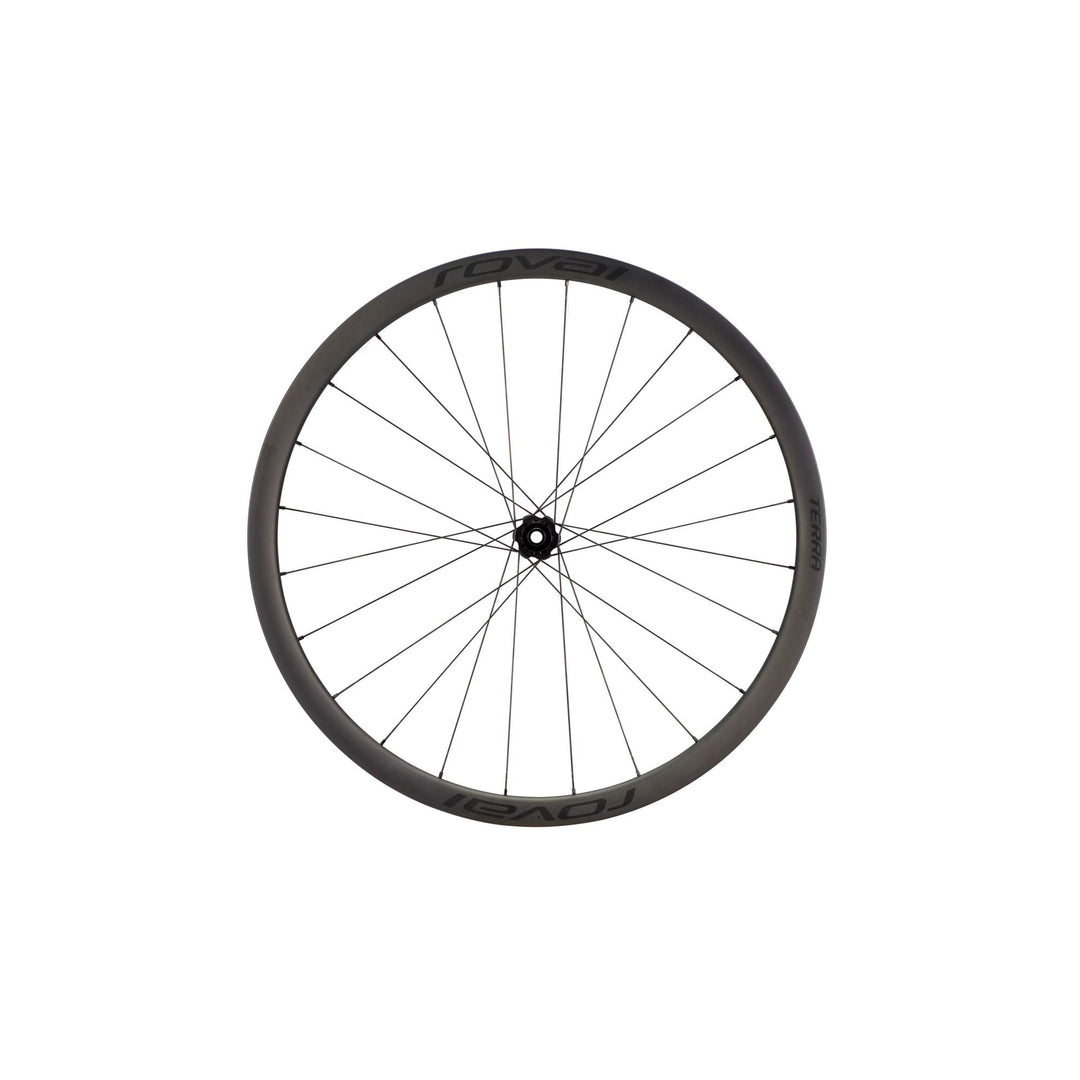

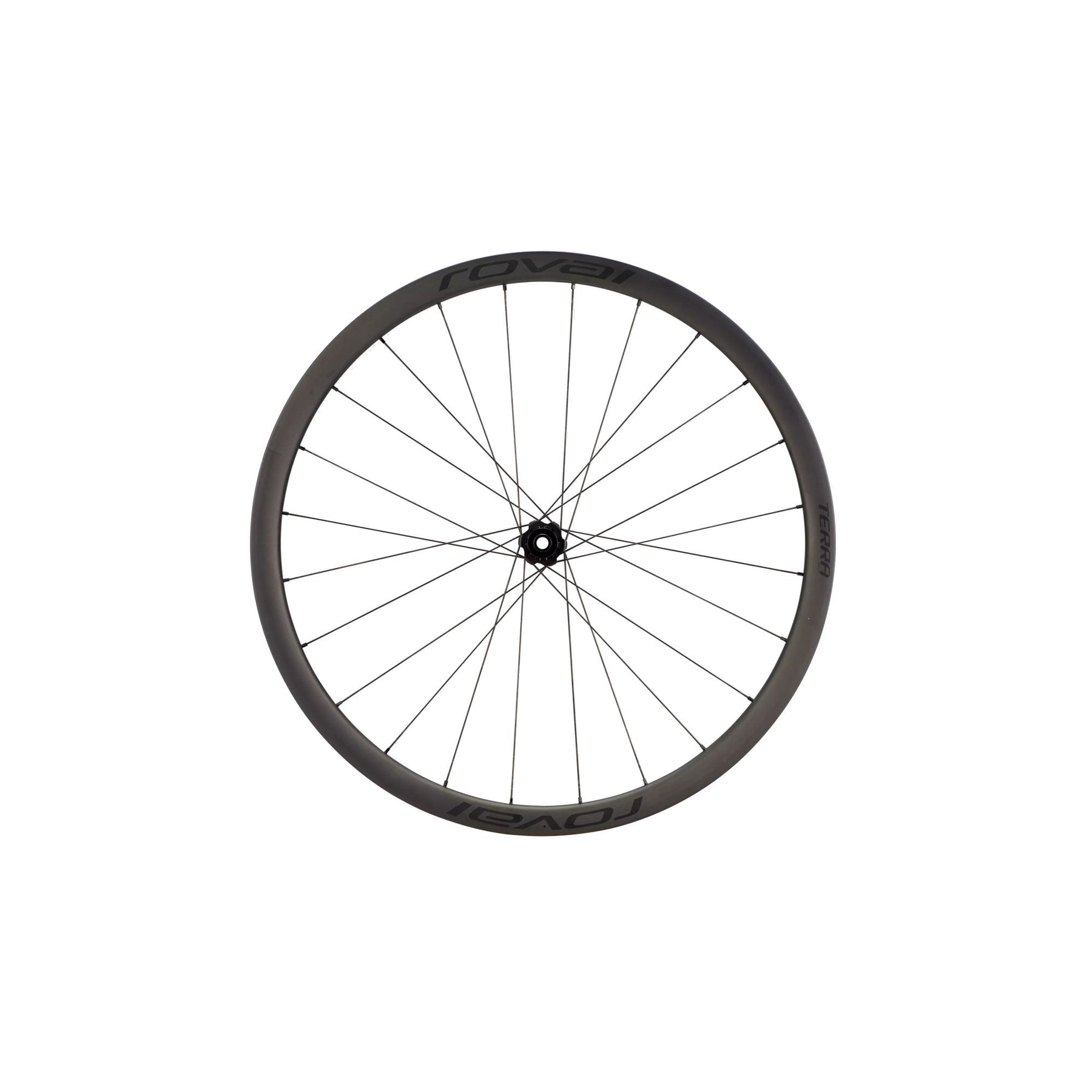

Same Rim as Flagship CLX
Uses the same superlight, incredibly tough rim as the Terra CLX. Hook bead, 33mm deep carbon fiber with 25mm inner width — built for gravel glory without the CLX price tag.
Hooked Rim Design
Hooked bead allows mounting tires from 28mm to 47mm wide at whatever pressure you prefer. More tire flexibility than hookless designs.

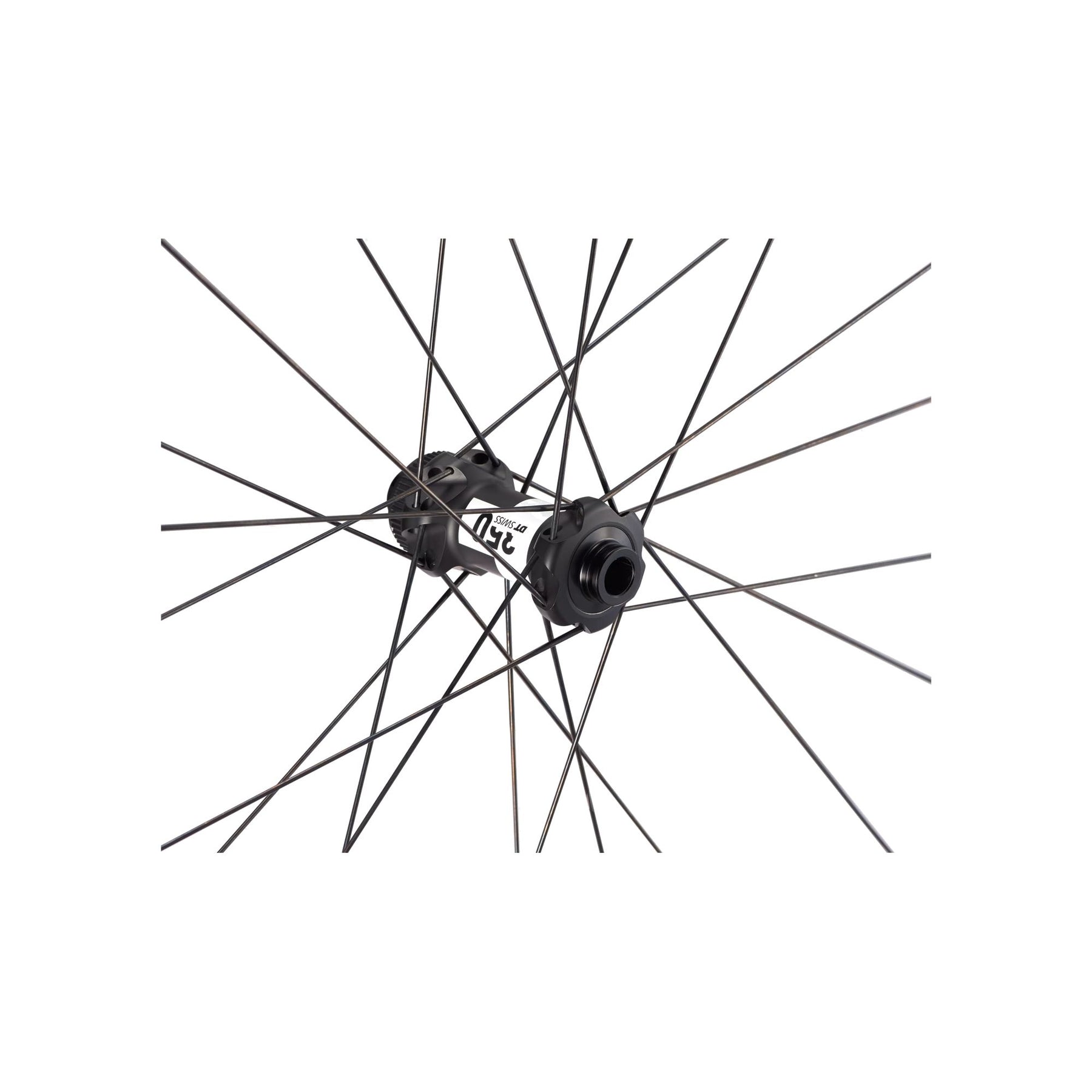

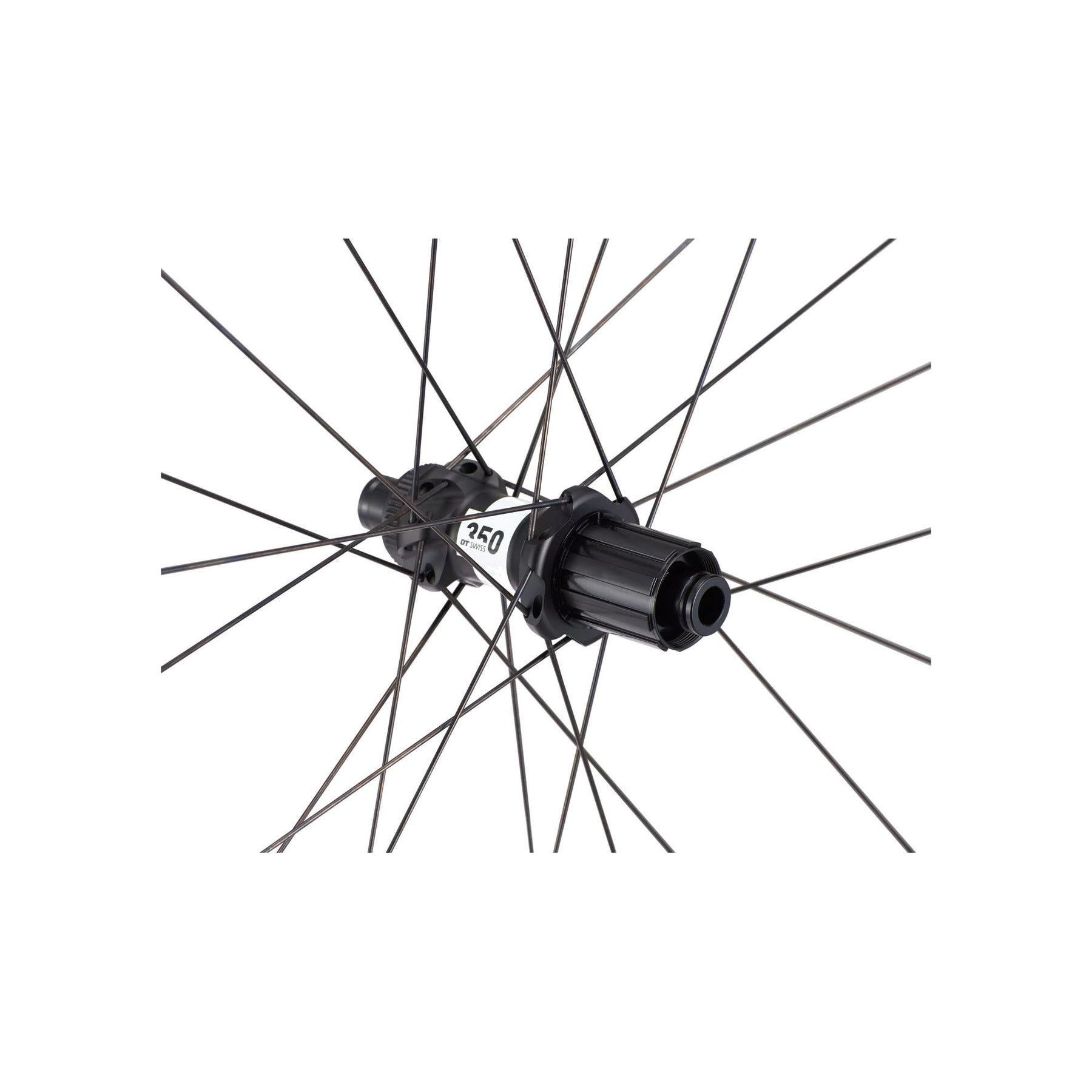

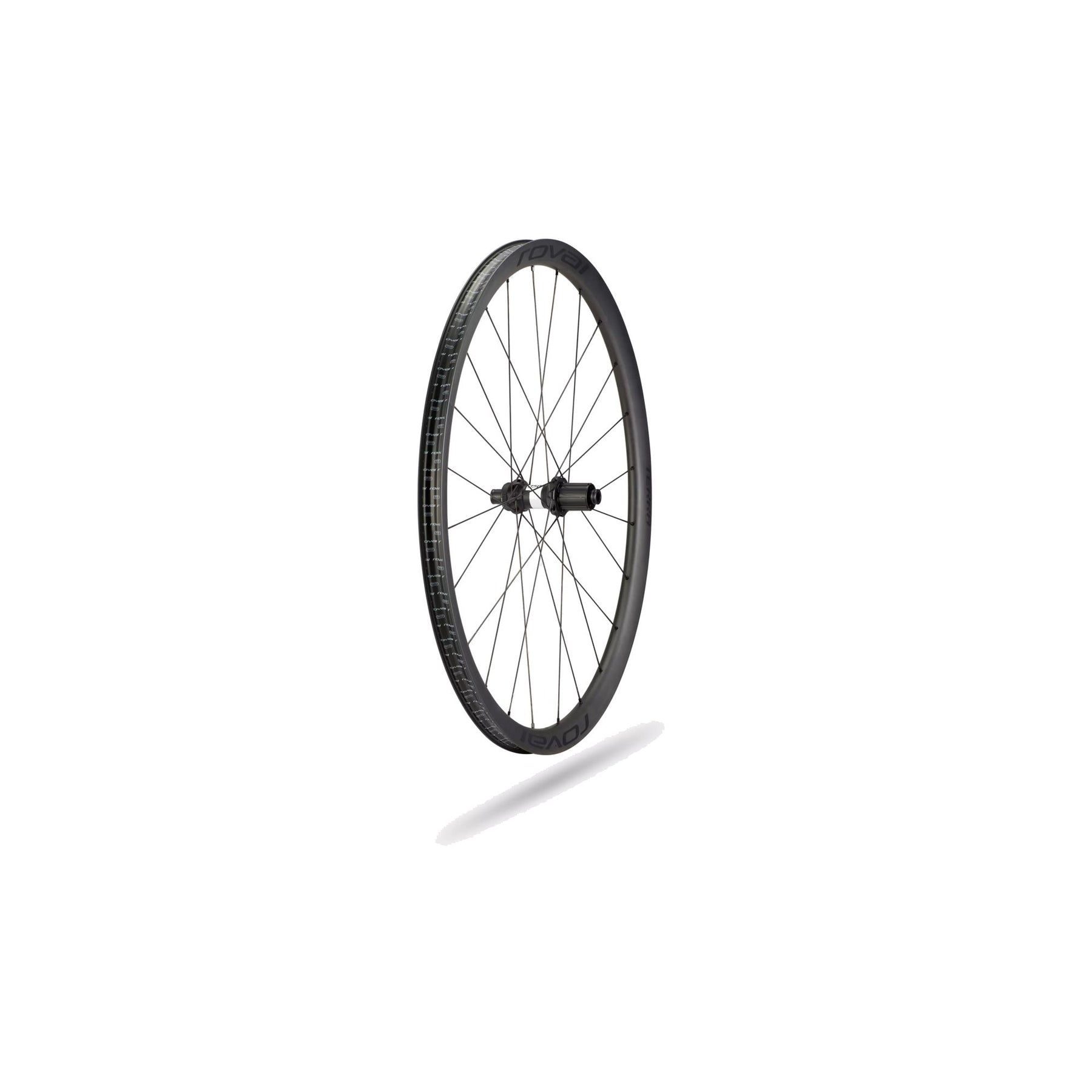

DT Swiss 350 Hubs
Ultra-dependable Star Ratchet 36t internals (10°), 100x12mm / 142x12mm. Convertible freehub — Shimano HG compatible, easily swappable to other body types.
DT Swiss Competition Spokes
DT Swiss Competition Race Straightpull spokes. 24H 2-cross (1:1) lacing front and rear. Strong, light, and easy to service anywhere in the world.
25mm Internal Width
Perfect for modern gravel tires. 32mm depth with 30mm external width. ERD 577mm. Runs 28–47c tires tubeless at pressures up to 80psi.
275lb System Limit
Hand-built from rim layup to the last nipple turn. Includes Roval tubeless rim tape, valve, spare spoke & nipple kit. 275lbs / 125kg system weight limit.
Built For
Gravel Riding
All-Road
Gran Fondo
Adventure
Performance Numbers
1,408g
Wheelset Weight
Great Value Carbon Gravel
32mm
Rim Depth
30mm External / 25mm Internal
28–47c
Tire Range
Hooked, Tubeless Ready
275lb
System Weight
125kg Limit
Specifications
| Component | Detail |
|---|---|
| Rim | Terra CLX Carbon Clincher, 700c, Disc Brake, Tubeless Compatible |
| Rim Depth | 32mm |
| External Width | 30mm |
| Internal Width | 25mm (ERD 577mm) |
| Hub | DT Swiss 350 Straight-pull Center Lock, Star Ratchet 36t |
| Bearings | DT Swiss Sealed Steel Cartridge |
| Spokes | DT Swiss Competition Race Straightpull, 24H 2-cross (1:1) |
| Freehub | Shimano HG 11-speed (Convertible) |
| Axles | 100x12mm / 142x12mm |
| Assembly | Hand-built |
Wheel Weights
654g
Front Wheel
754g
Rear Wheel
28–32c
80 psi max
33–36c
65 psi max
37–47c
60 psi max
