Technology

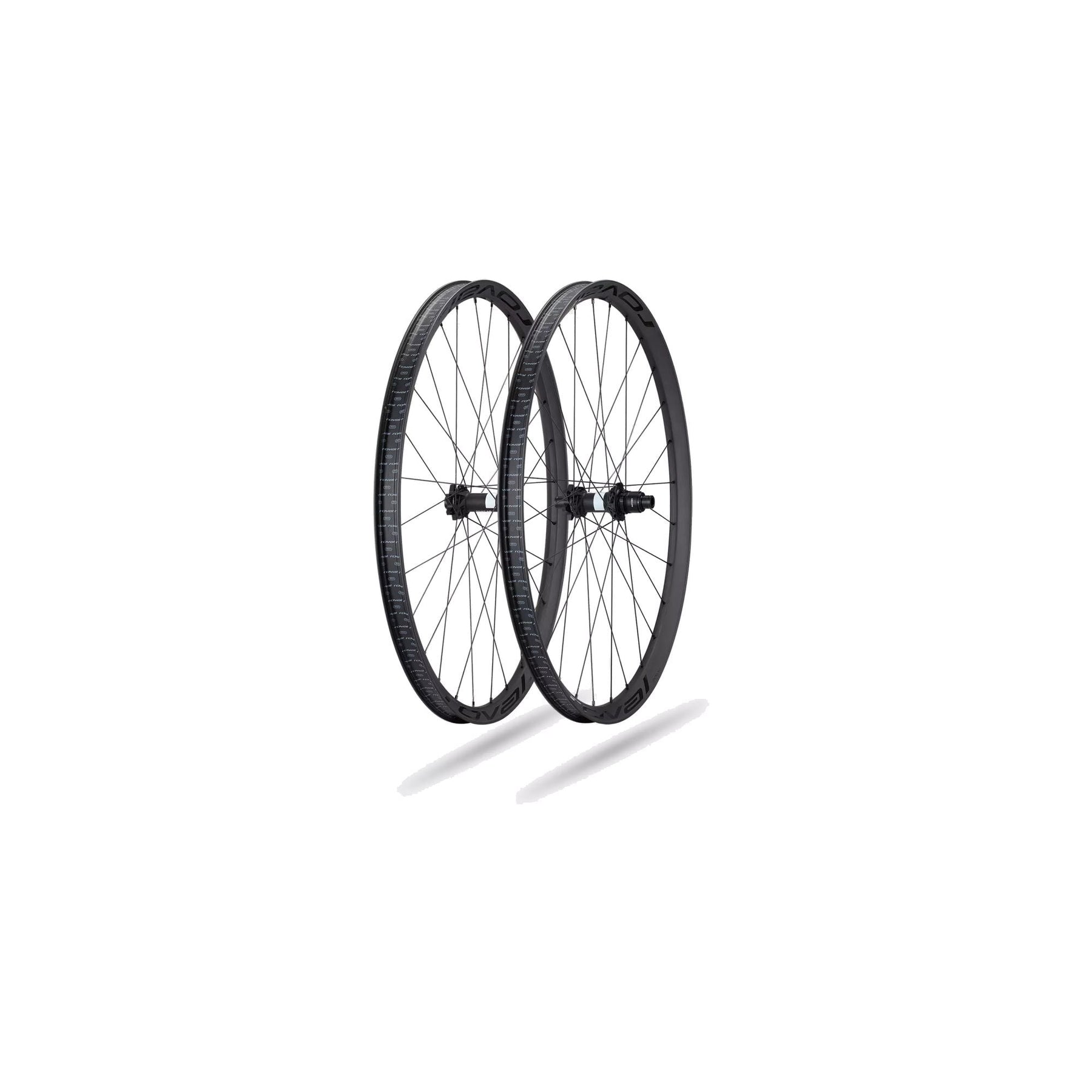

1,478g Wheelset
XC race weight meets trail-ready durability. Tuned carbon layup for better traction, stronger rear rim for impact resistance. DT Swiss Revolution spokes throughout.

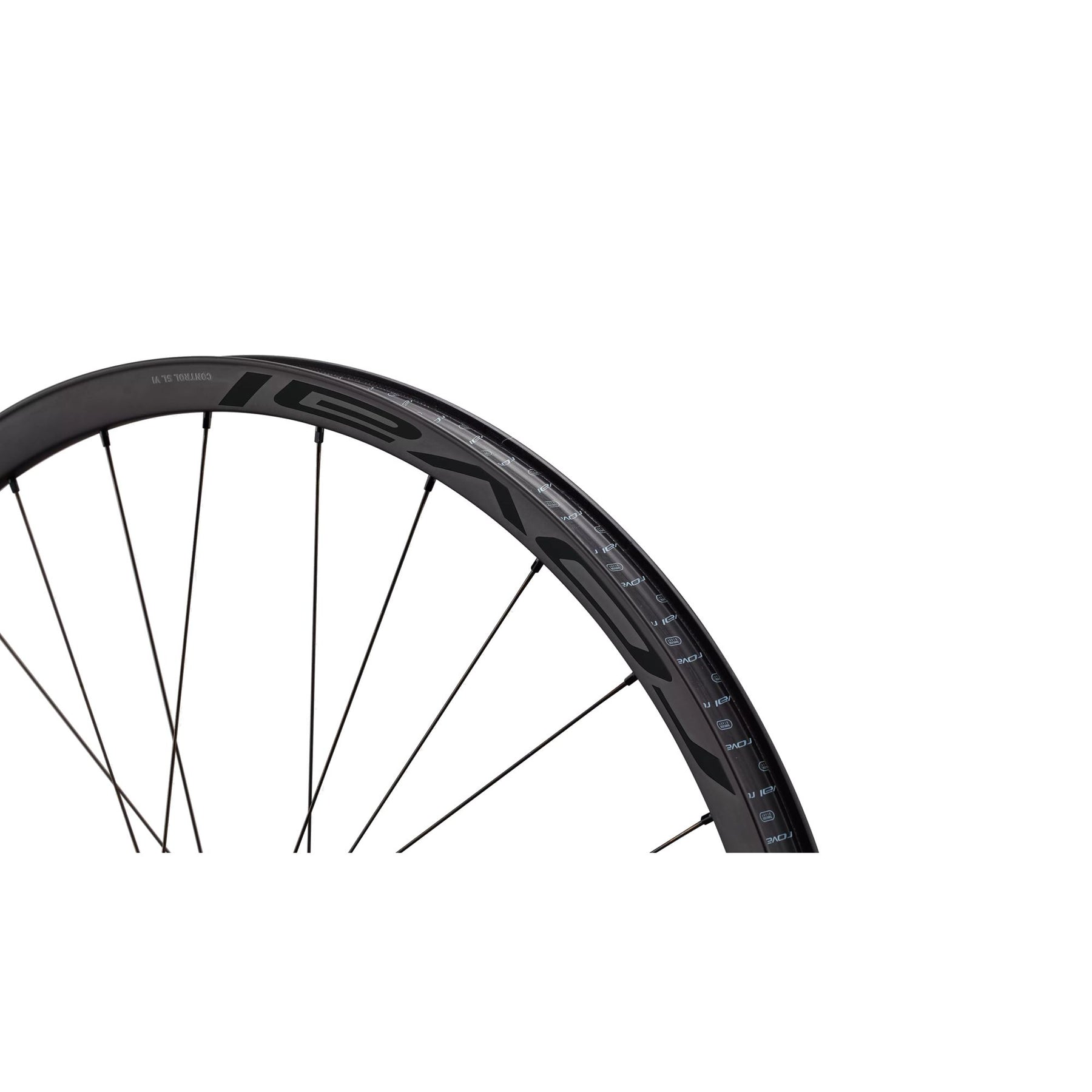

FlatStop 4mm Bead Hook
4mm FlatStop beadhook reduces pinch flats by 39%. Asymmetric rim profile boosts longevity. Hookless carbon clincher construction.
Front/Rear Specific Layup
Optimized carbon layup for better traction (front) and stronger rear rim for impact resistance. Tuned for the demands of XC racing and down country.

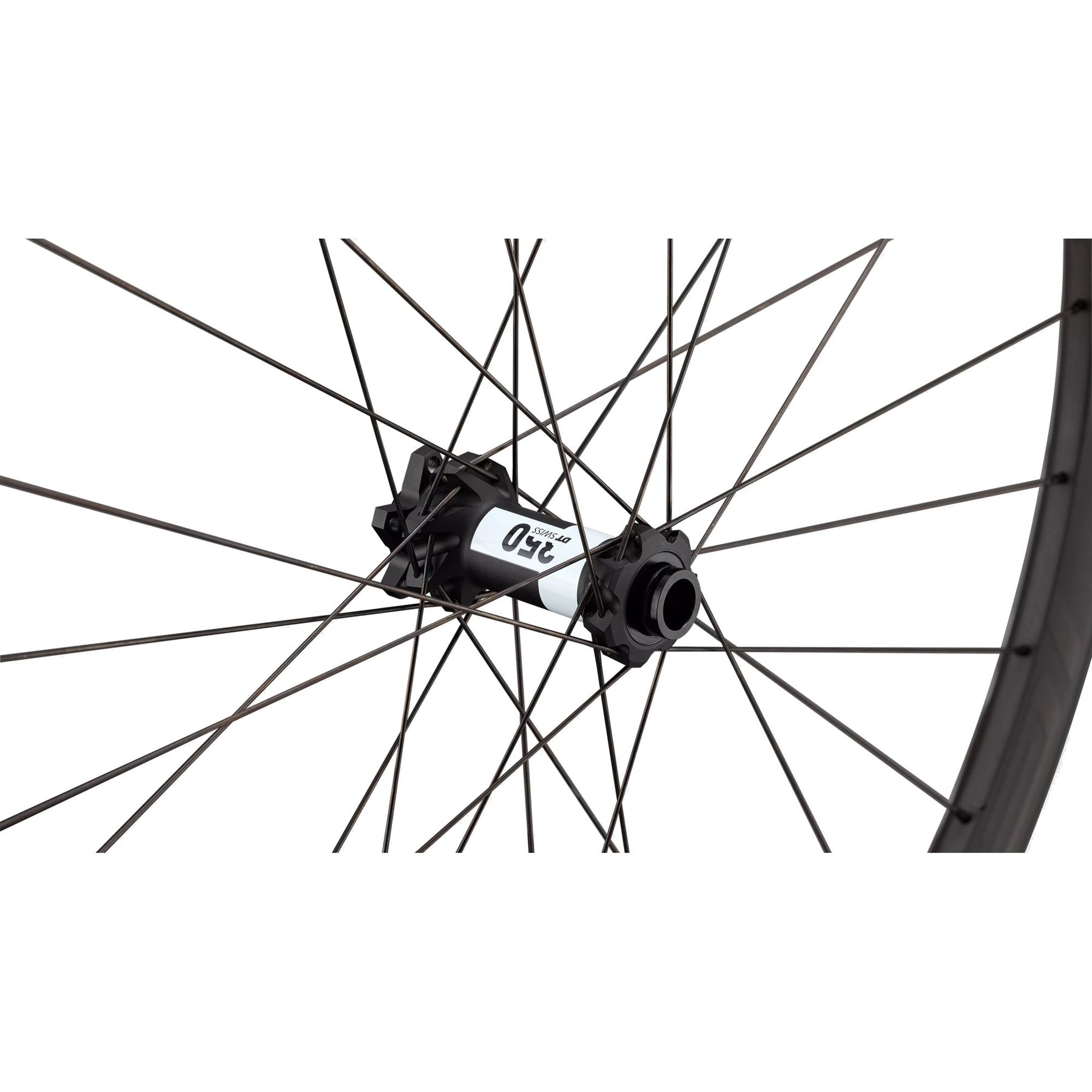

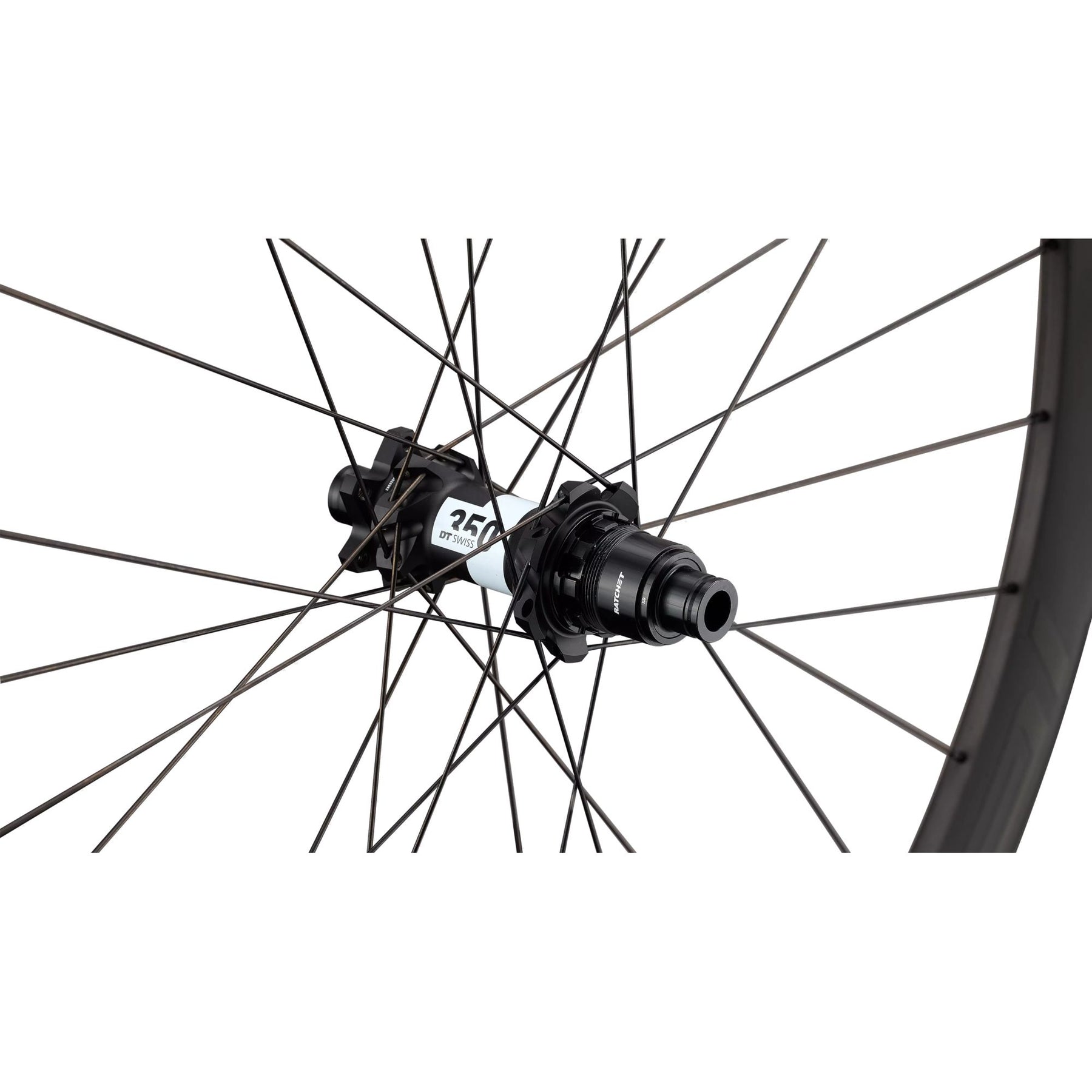

DT Swiss 350 Hubs
Star Ratchet 36t internals, 10° engagement. 15x110mm front / 12x148mm rear. Sram XD freehub body. Stainless steel cartridge bearings.

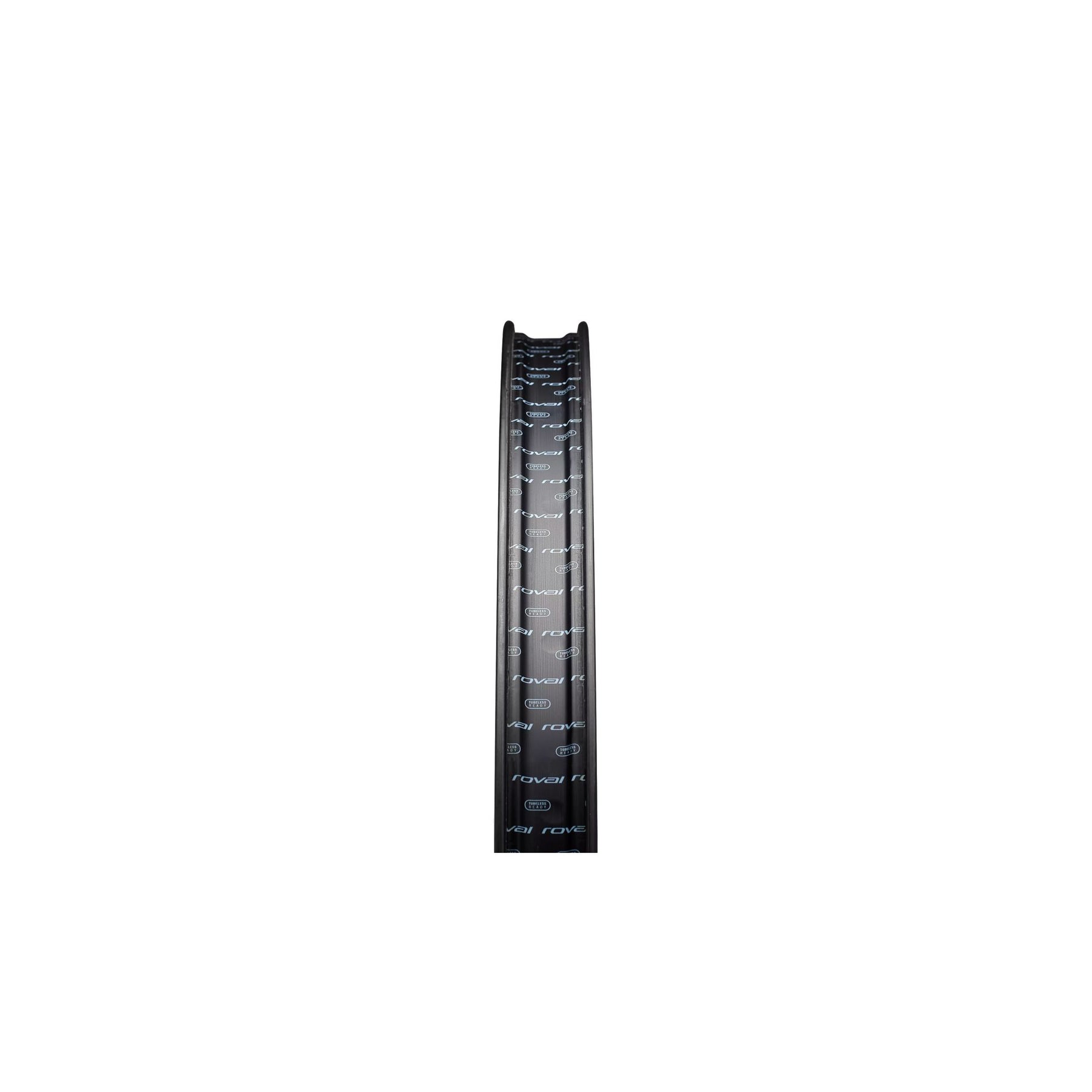

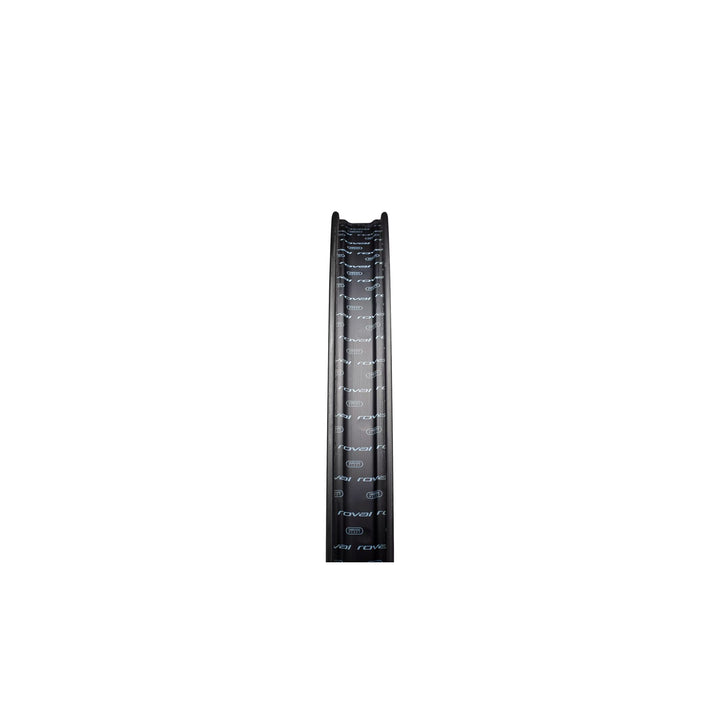

29mm Internal Width
25mm depth, 37mm external / 29mm internal width. 4mm bead hook width. Approved for 1.9"–2.6" tires including AirTrack and Fast Track.
Lifetime Warranty
Limited lifetime warranty. E-bike approved (SL style systems, max 350W). Includes 4 extra spokes & nipples, 31mm OD endcaps.
Built For
XC Racing
Down Country
E-Bike Compatible
Trail Riding
Performance Numbers
1,478g
Wheelset Weight
With Tape & Valves
25mm
Rim Depth
37mm External / 29mm Internal
10°
Engagement
DT Swiss Star Ratchet 36T
275lb
System Weight
125kg Limit
Gallery
Specifications
| Component | Detail |
|---|---|
| Rim | Control SL V/VI Asymmetric Carbon, 29", Hookless, Tubeless |
| Rim Depth | 25mm |
| External Width | 37mm |
| Internal Width | 29mm |
| Bead Hook | FlatStop 4mm |
| Hub | DT Swiss 350 Straight Pull 6-bolt |
| Freehub | Sram XD (DT Swiss Ratchet 36T) |
| Axles | 15x110mm / 12x148mm |
| Spokes | DT Swiss Revolution Straight Pull, 28H 2-cross (1:1) |
| Approved Tires | 1.9" – 2.6" (AirTrack, Fast Track) |
Wheel Weights
690g
Front (with tape & valve)
788g
Rear (with tape & valve)
40 psi
Max Pressure (tubeless)
E-bike
Approved (SL style, ≤350W)
