Specialized

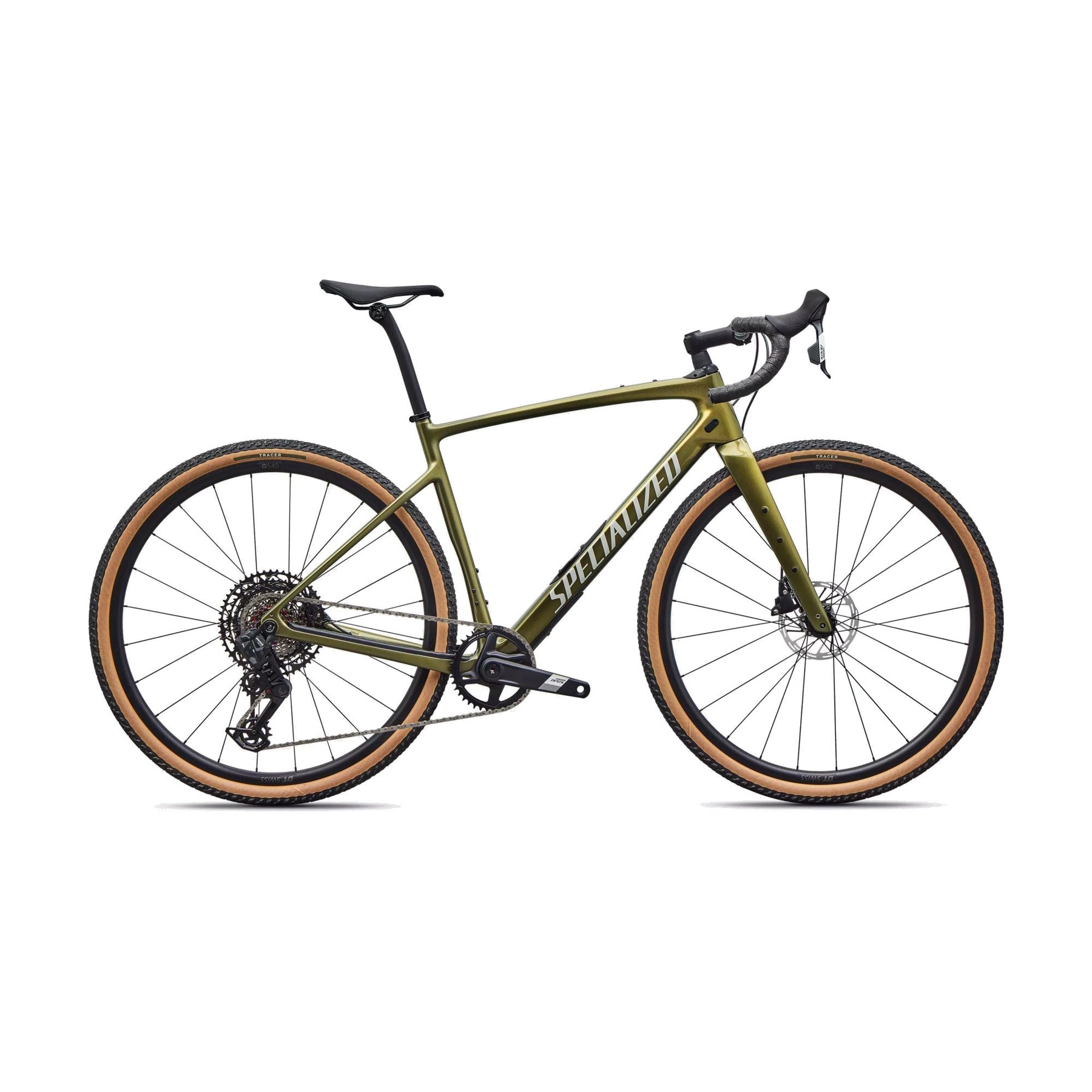

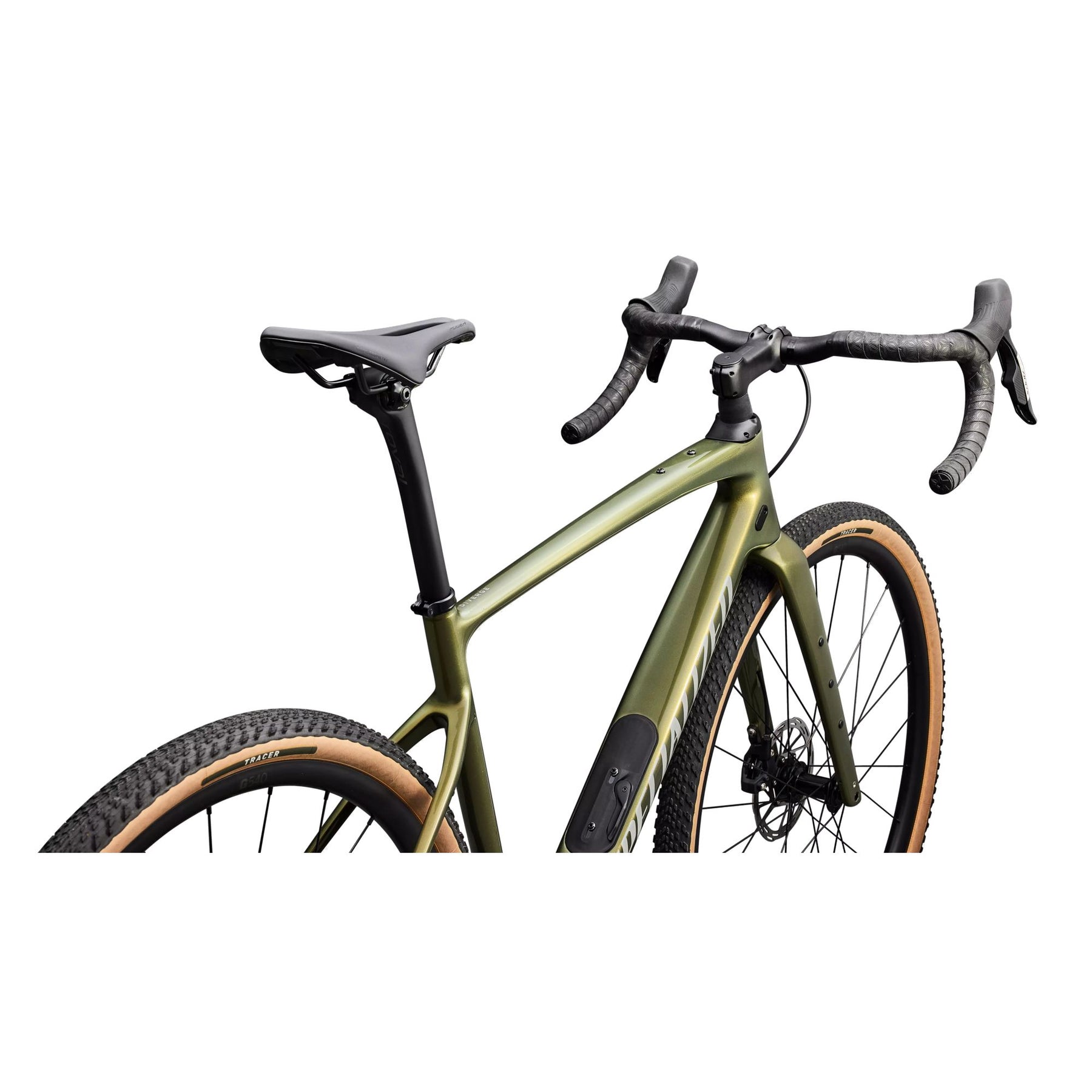

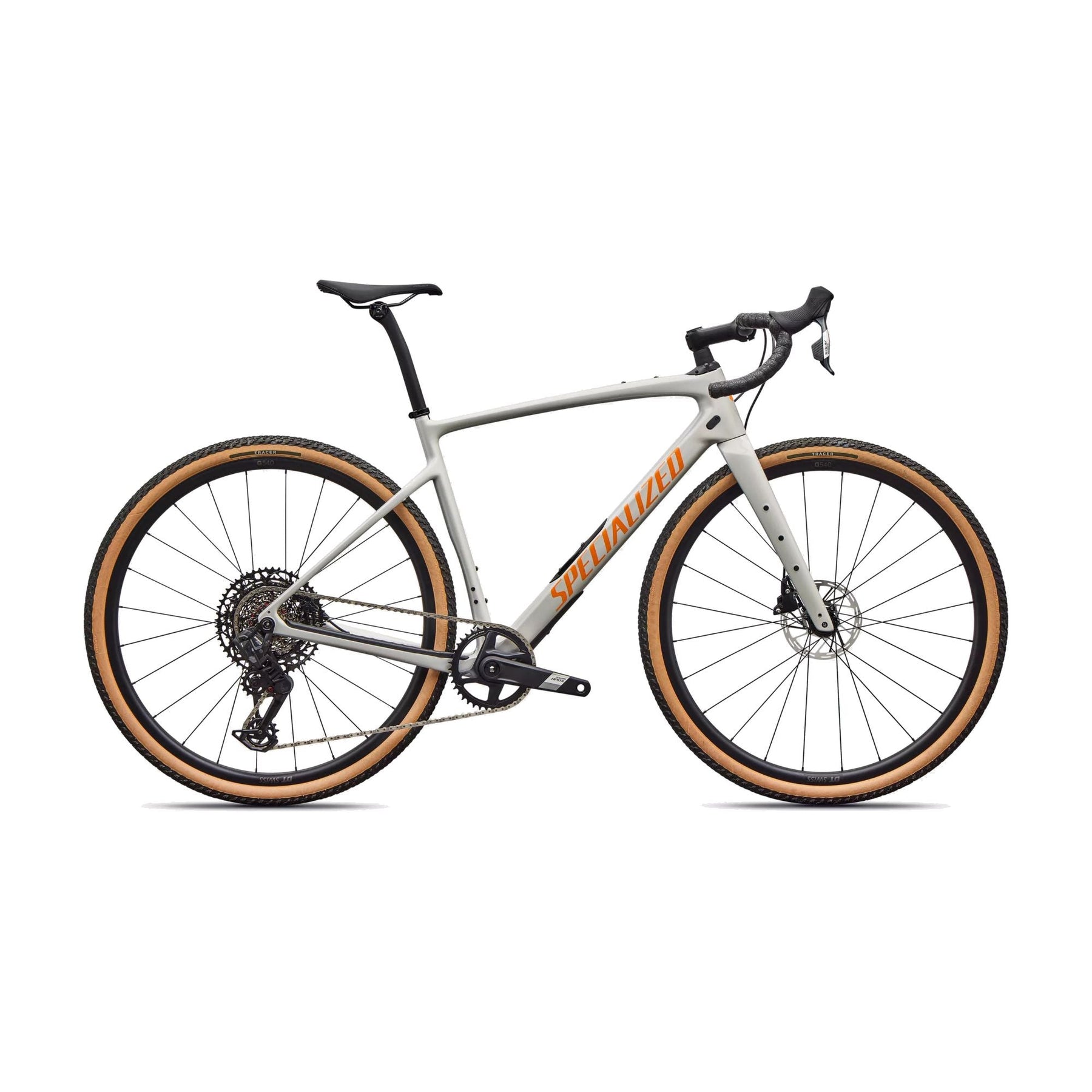

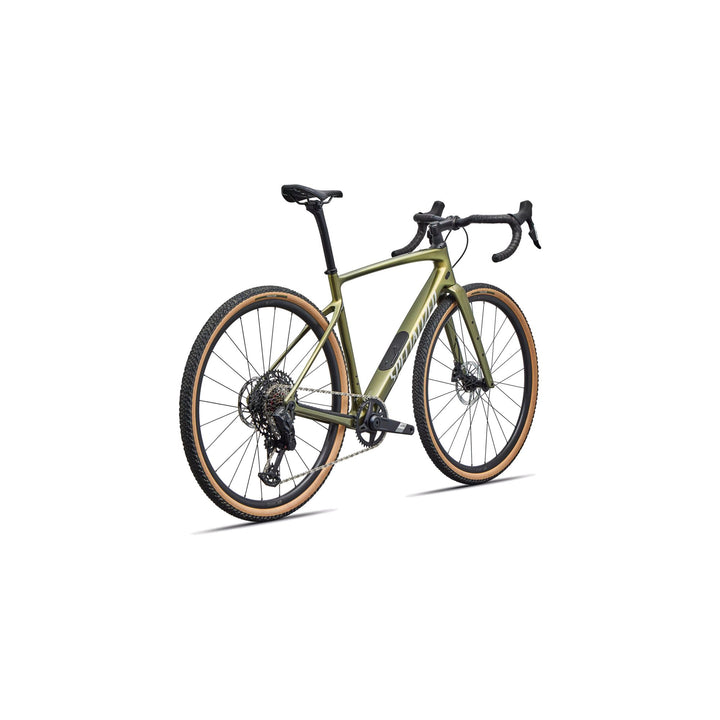

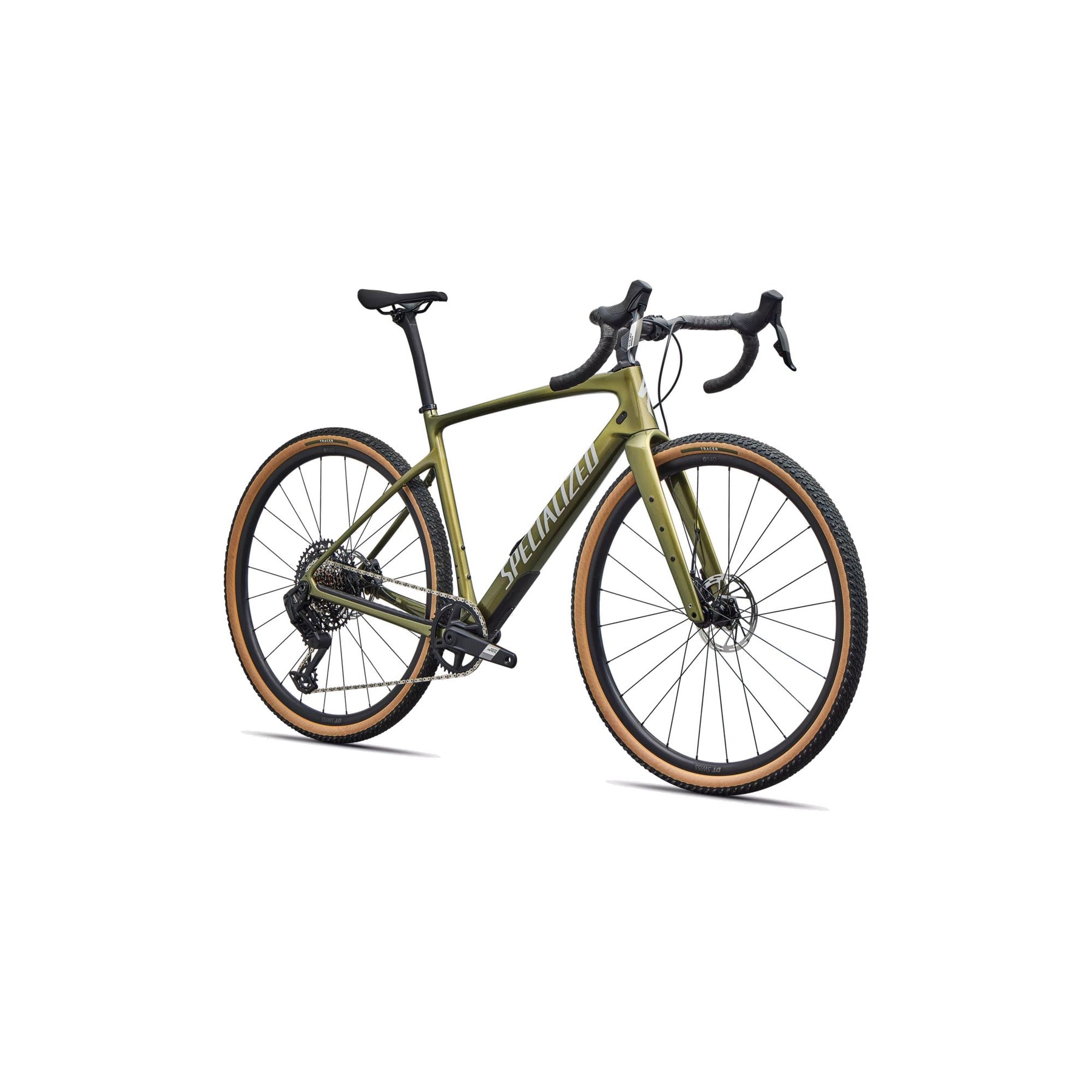

2026 Specialized Diverge 4 Comp Carbon - SRAM Apex AXS/S1000

$4,200.00
/
Shipping calculated at checkout.
Color
Size
  • Free Domestic Shipping On Orders Over $100
  • Low stock - 2 items left
  • Backordered, shipping soon
  • Add To Cart For Final Price
Diverge 4 Comp Carbon — SRAM Apex AXS
Diverge 4 Comp Carbon
SRAM Apex AXS · FACT 9r Carbon · Gravel · 9.70kg

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and internal storage for the first time ever on an alloy bike, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it's built for both.

  • FACT 9r Carbon Frame: Race-tuned gravel geometry with SWAT™ Door integration.
  • Future Shock 3.0: 20mm front suspension for the rough stuff, smooth boot.
  • SRAM Apex AXS + S1000: 12-speed wireless shifting, 10-52t massive range cassette.
  • 700x45c Tire Clearance: Tracer TLR All Terrain tires, tan sidewall, tubeless-ready.
  • UDH Dropout: Universal Derailleur Hanger for easy replacement anywhere.
  • SWAT 4.0 Storage: First-ever internal storage on an alloy gravel frame.
  • 40T Single Ring: Simplified gravel gearing, powerful braking.
  • DT Swiss G540 Wheels: Gravel-ready alloy build, 24mm internal width.

Complete build at 9.70kg (56cm). Six sizes: 49, 52, 54, 56, 58, 61.

FACT 9r Carbon Frame
Race-tuned gravel geometry with SWAT™ Door integration — first-ever internal storage on an alloy gravel frame. Threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout.
Future Shock 3.0
20mm front suspension with smooth boot. Progressive spring rate tuned for gravel, reduces vibration and impact without sacrificing pedaling efficiency.
SRAM Apex AXS + S1000 Transmission
12-speed wireless AXS shifting with 10-52t cassette — massive range for steep climbs and fast descents. S1000 Eagle AXS rear derailleur, Apex DUB Wide 40T crankset. Hydraulic disc brakes.
700x45c Tire Clearance
Tracer TLR All Terrain tires, tan sidewall, tubeless-ready. Go full gas on any surface.
DT Swiss G540 Wheels
Gravel-ready alloy clinchers, 24mm internal width. Specialized full sealed bearing thru axle hubs, DT Swiss Champion spokes, brass nipples.

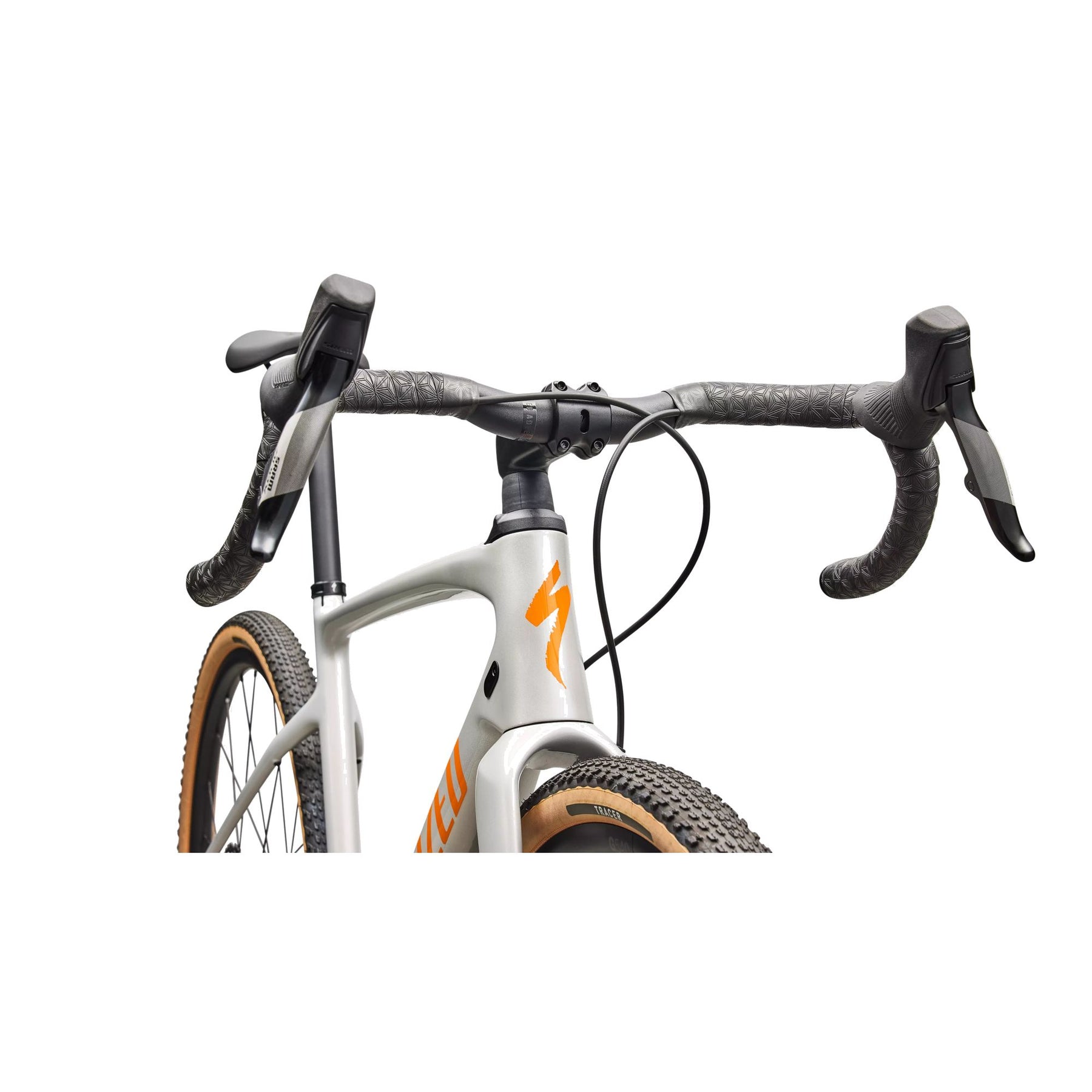

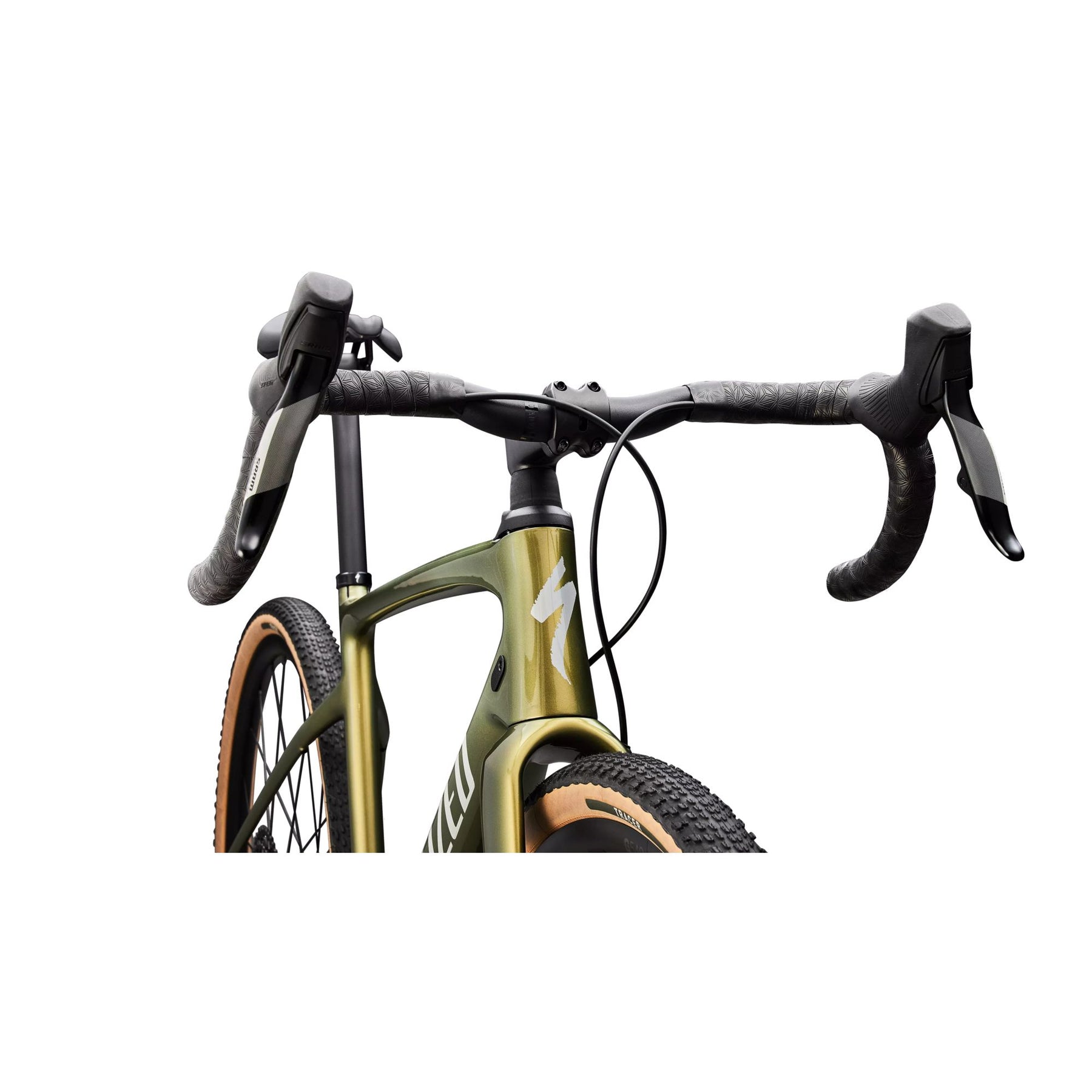

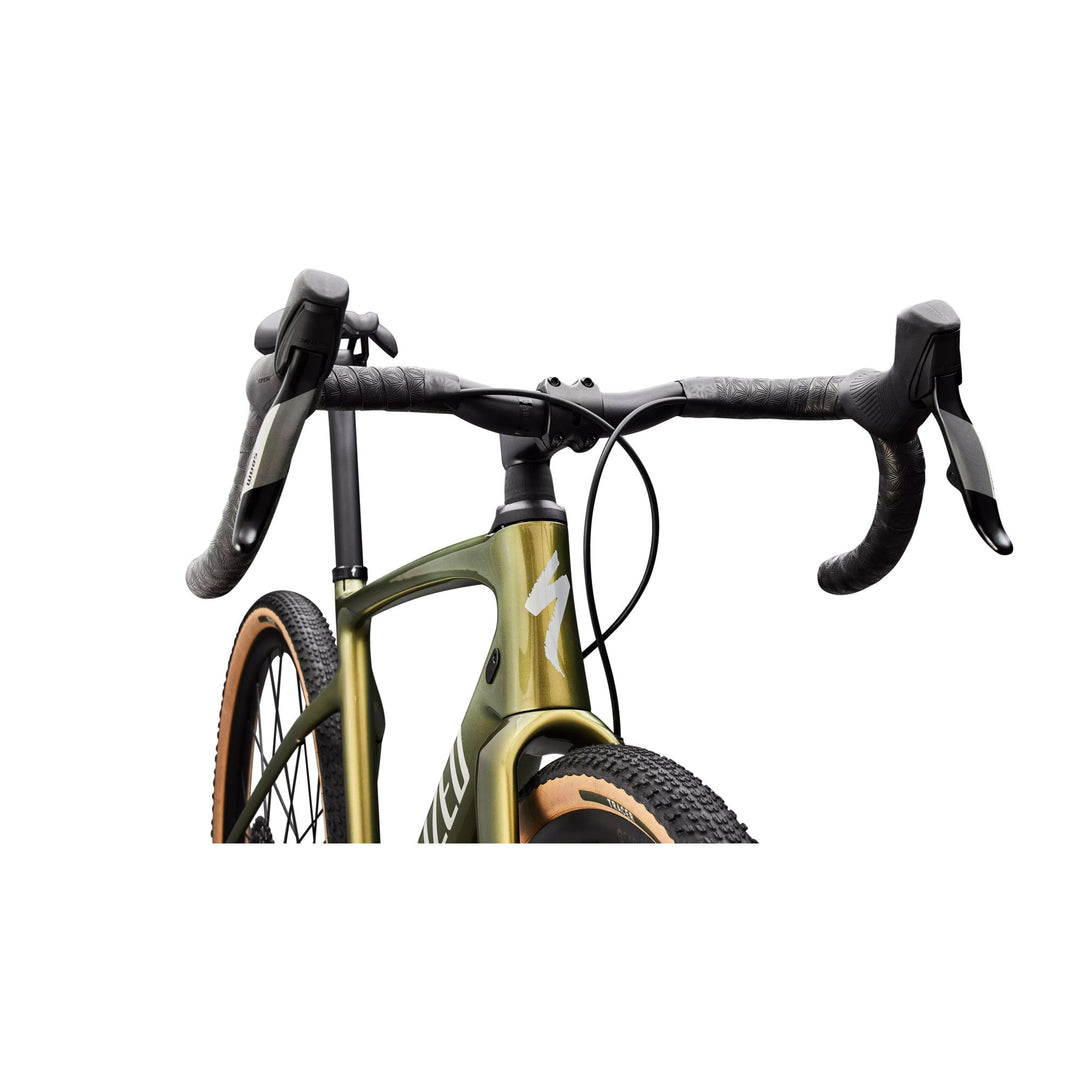

Adventure Cockpit
Specialized Adventure Gear Hover bars (103mm drop, 70mm reach, 12° flare), Future Stem Comp, Roval Terra Carbon seatpost with 20mm offset. Supacaz Super Sticky Kush tape.
49 52 54 56 58 61
Crank Length 165 170 172.5 172.5 175 175
Handlebar Width 380 400 420 420 440 440
Stem Length 60 70 80 90 100 100
Saddle Width 155 155 143 143 143 143
Seatpost Length 330 330 380 380 380 380
Stack 563 578 592 610 634 659
Reach 365 374 387 400 412 425
Head Tube Length 90 104 116 135 161 187
Head Tube Angle 70° 70.5° 71° 71° 71° 71°
BB Drop 85 85 85 85 85 85
Trail 72 68 65 65 65 65
Fork Length, Full 391 391 391 391 391 391
Fork Rake/Offset 55 55 55 55 55 55
Front Center 604 613 626 645 665 686
Chainstay Length 430 430 430 430 430 430
Wheelbase 1019 1031 1041 1060 1081 1102
Top Tube Length, Horizontal 521 537 556 575 593 613
Bike Standover Height 700 725 754 779 805 832
Seat Tube Length 400 430 470 500 530 560
Seat Tube Angle 74.5° 74° 74° 74° 74° 74°
Frameset
Frame
Specialized Diverge FACT 9r Carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork
Future Shock 3.2 w/ Smooth Boot, FACT Carbon, 12x100mm thru-axle, flat-mount disc
Seat Binder
Specialized Alloy, 30.8mm
Suspension
Future Shock 3.0
20mm travel, progressive spring rate, smooth boot
Brakes
Front Brake
SRAM Apex, hydraulic disc
Rear Brake
SRAM Apex, hydraulic disc
Shift Levers
SRAM Apex AXS
Drivetrain
Bottom Bracket
SRAM DUB BSA 68 Wide
Chain
SRAM GX T-Type 12-speed
Crankset
SRAM Apex DUB Wide, 40T
Cassette
SRAM, 12-speed, 10-52t
Rear Derailleur
SRAM S1000 Eagle AXS
Wheels & Tires
Front Wheel
DT Swiss G540, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, Centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear Wheel
DT Swiss G540, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, Centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Front Tire
Tracer TLR All Terrain, 700x45c, Tan Sidewall, Tubeless Ready
Rear Tire
Tracer TLR All Terrain, 700x45c, Tan Sidewall, Tubeless Ready
Inner Tubes
Presta, 700x32-50mm
Cockpit
Handlebars
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12° flare
Stem
Future Stem, Comp
Seatpost
Roval Terra Carbon Seatpost, 20mm Offset
Saddle
Body Geometry Power Sport, steel rails
Tape
Supacaz Super Sticky Kush
Accessories
SWAT
SWAT 4.0 internal downtube storage

Shipping Policy

Components:

All component items (wheels, drivetrains, suspension, brakes, etc.) ship within 1–4 business days of purchase.

Bicycles:

Complete bikes typically ship within 2–3 weeks due to build, tuning, and inspection times. You will receive tracking information as soon as your order is ready to ship.

Riding Gear & Apparel:

Riding gear and apparel orders (helmets, jerseys, gloves, etc.) ship within 1–3 business days.

Returns & Exchanges:

If you received the wrong size or wish to exchange an item, it must be returned in original condition—unused, uninstalled, and with all packaging intact.

For full details, please see our Refund Policy before initiating a return.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Technology
💨
Future Shock 3.2
53% smoother & 11 watts faster. 20mm of tunable, adjustable, hydraulically damped travel without compromising responsiveness.
📦
SWAT 4.0 Storage
5% more storage, 10% larger opening. Most internal storage in gravel. Super tanker meets speed boat.
🛞
50mm Tire Clearance
50mm of traction, confidence, and freedom. Tracer TLR All Terrain 700x45c tubeless ready.
⚡
SRAM Apex AXS + S1000
Wireless electronic shifting. S1000 Eagle AXS rear derailleur, 12-speed, 10-52t cassette. Massive range.
🎡
DT Swiss G540 Wheels
24mm internal width, tubeless ready. Specialized full sealed bearing hubs, DT Swiss Champion spokes, brass nipples.
🏆
Rider First Engineering
Most responsive Diverge ever. FACT 9r carbon, tuned for every rider in any size.
Built For
Gravel Racing
Adventure
All-Road
Endurance
Performance Numbers
9.70kg
Bike Weight
Size 56 as built
50mm
Tire Clearance
Tracer TLR 700x45c
10-52t
Cassette
S1000 Eagle AXS
430mm
Chainstay
Extended for balance

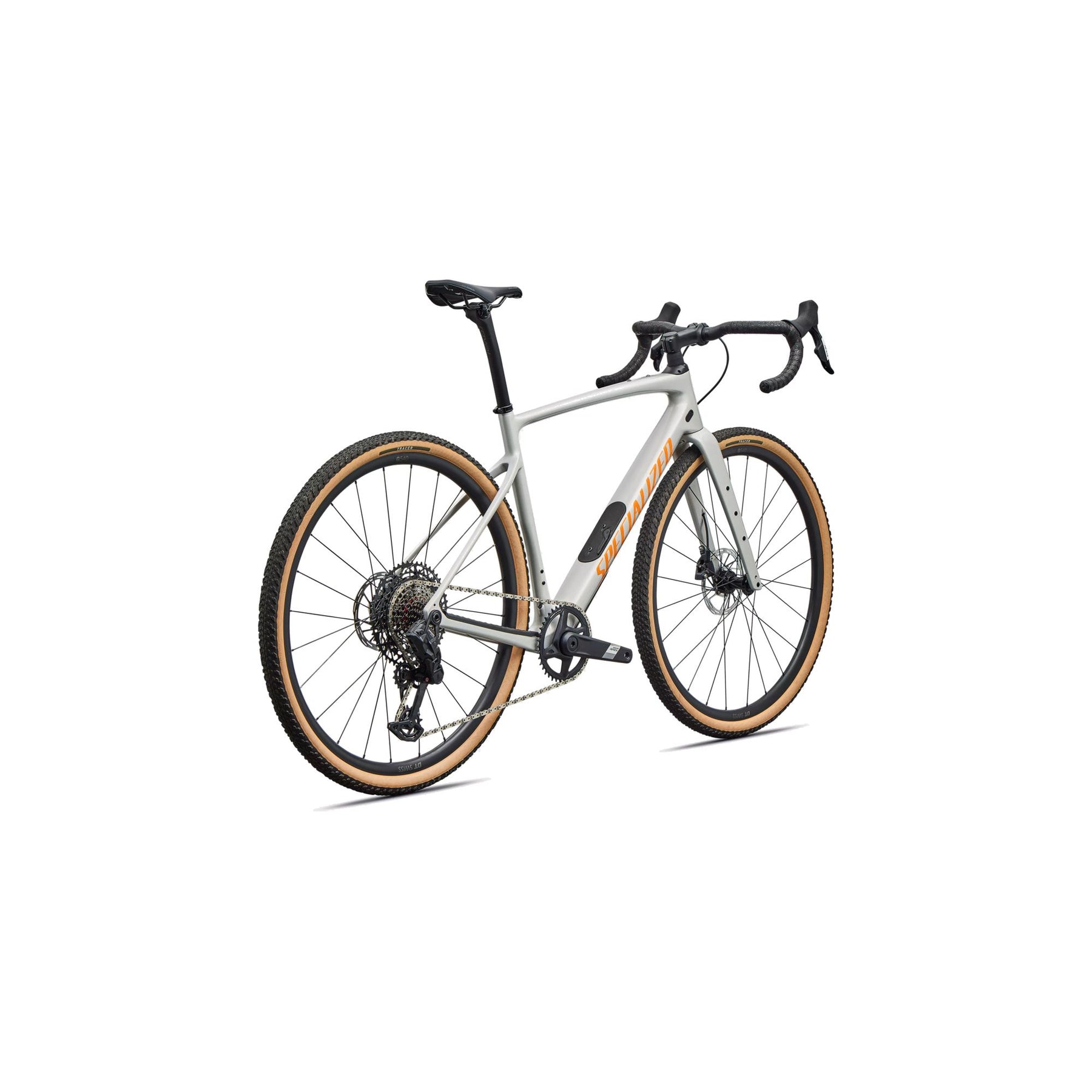

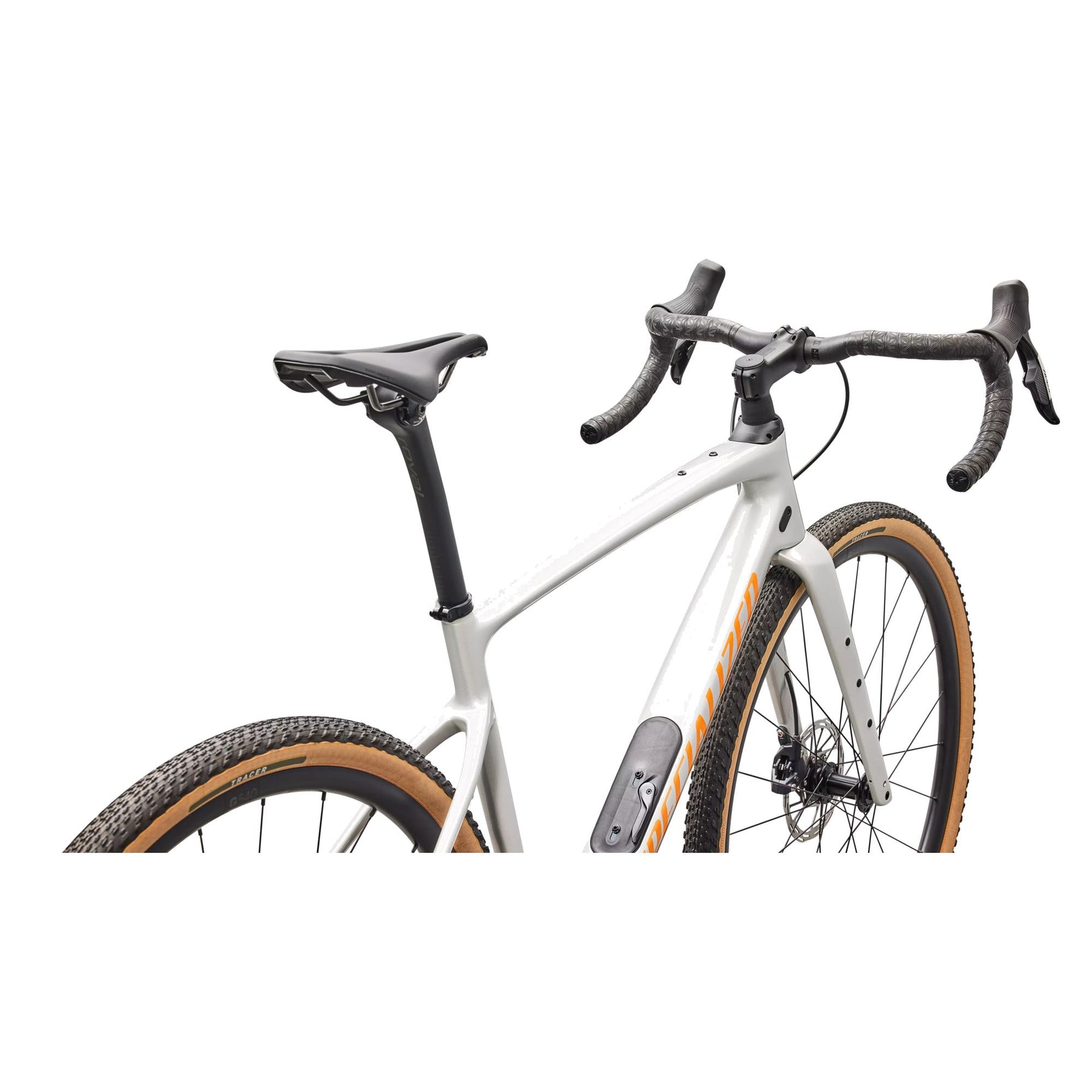

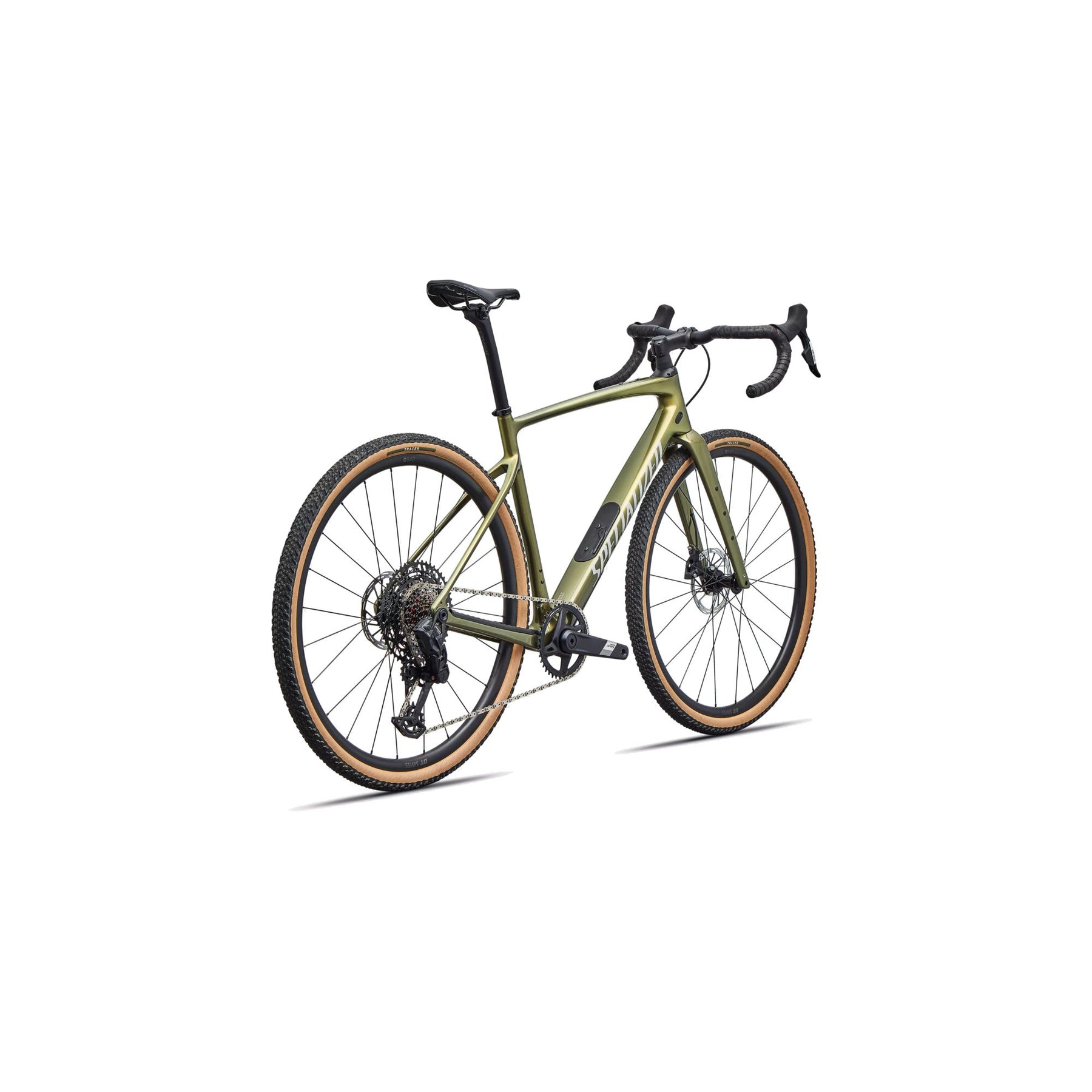

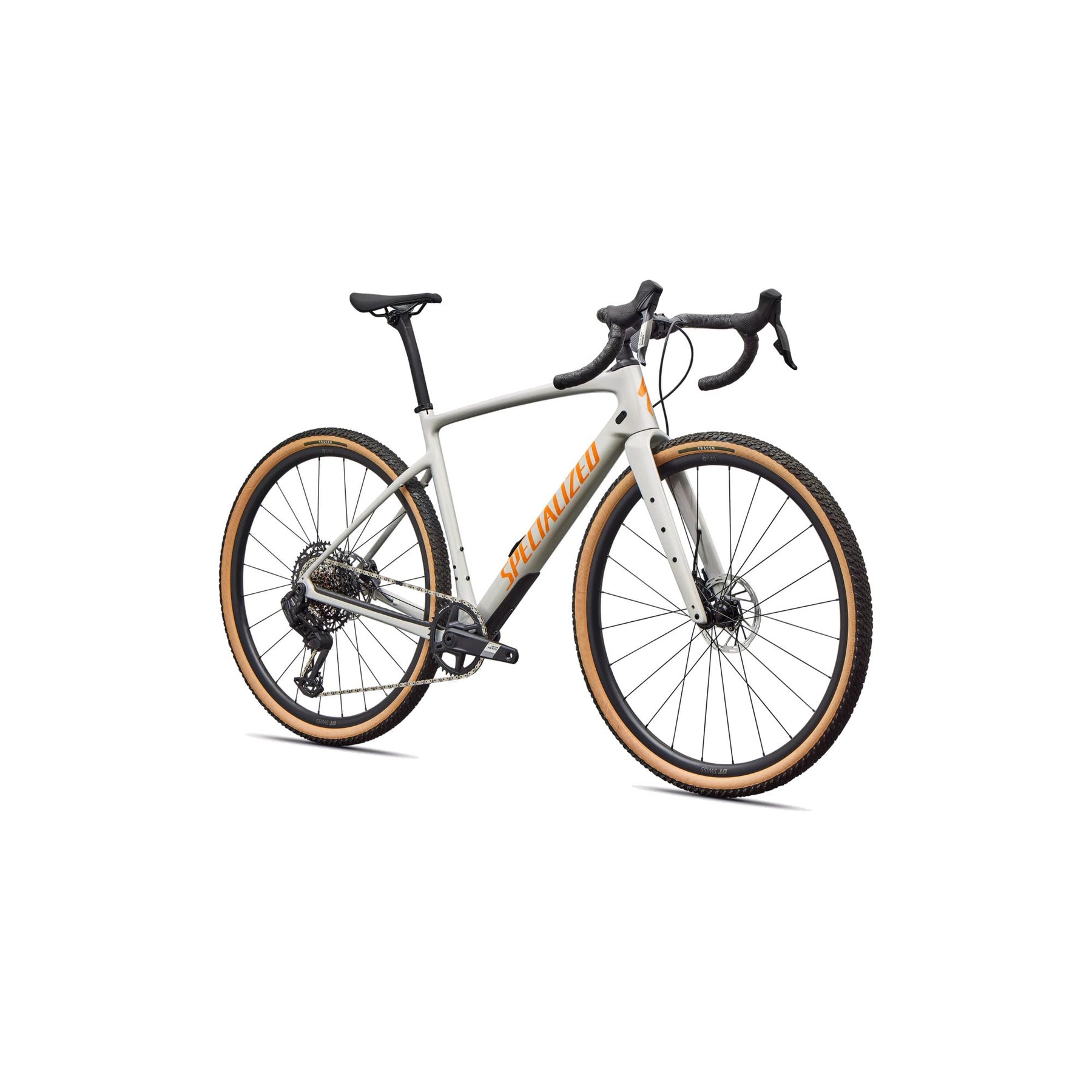

Gallery
Diverge 4 Comp Carbon
Diverge 4 Comp Carbon
Diverge 4 Comp Carbon
Specifications
Component Detail
FrameFACT 9r Carbon, SWAT Door integration, Future Shock 3.2
ForkFACT Carbon, Future Shock 3.2, 12x100mm, flat-mount disc
ShiftersSRAM Apex AXS, wireless electronic
Rear DerailleurSRAM S1000 Eagle AXS, 12-speed
CranksetSRAM Apex DUB Wide, 40t
CassetteSRAM 12-speed, 10-52t
BrakesSRAM Apex Hydraulic, flat-mount disc
Wheels & Cockpit
DT Swiss G540 24mm int / Tubeless Ready
Tracer TLR All Terrain, 700x45c
SWAT 4.0 Internal Downtube Storage
Specialized Adventure Gear Hover Bars
Future Stem Comp Stem
Body Geometry Power Sport Saddle
