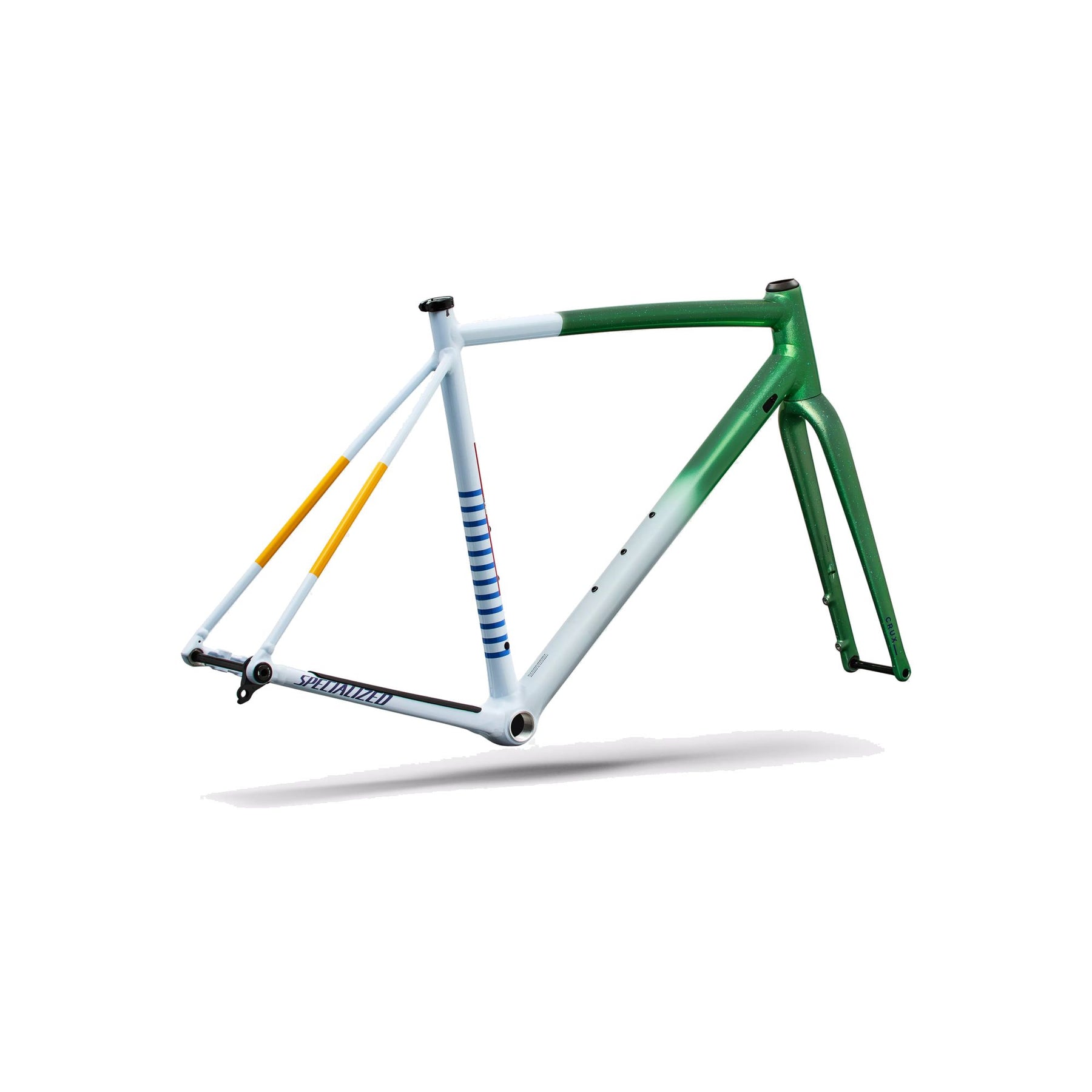

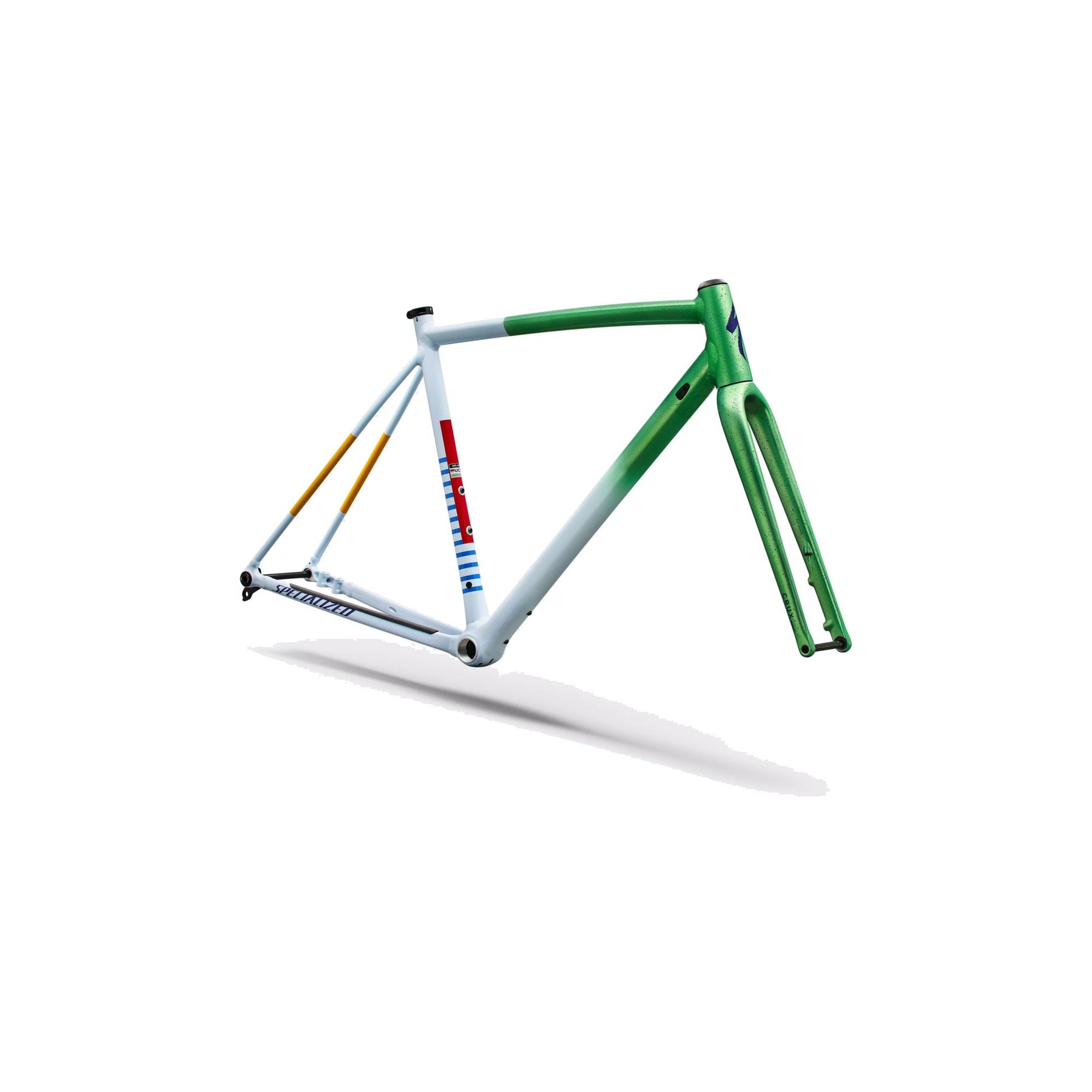

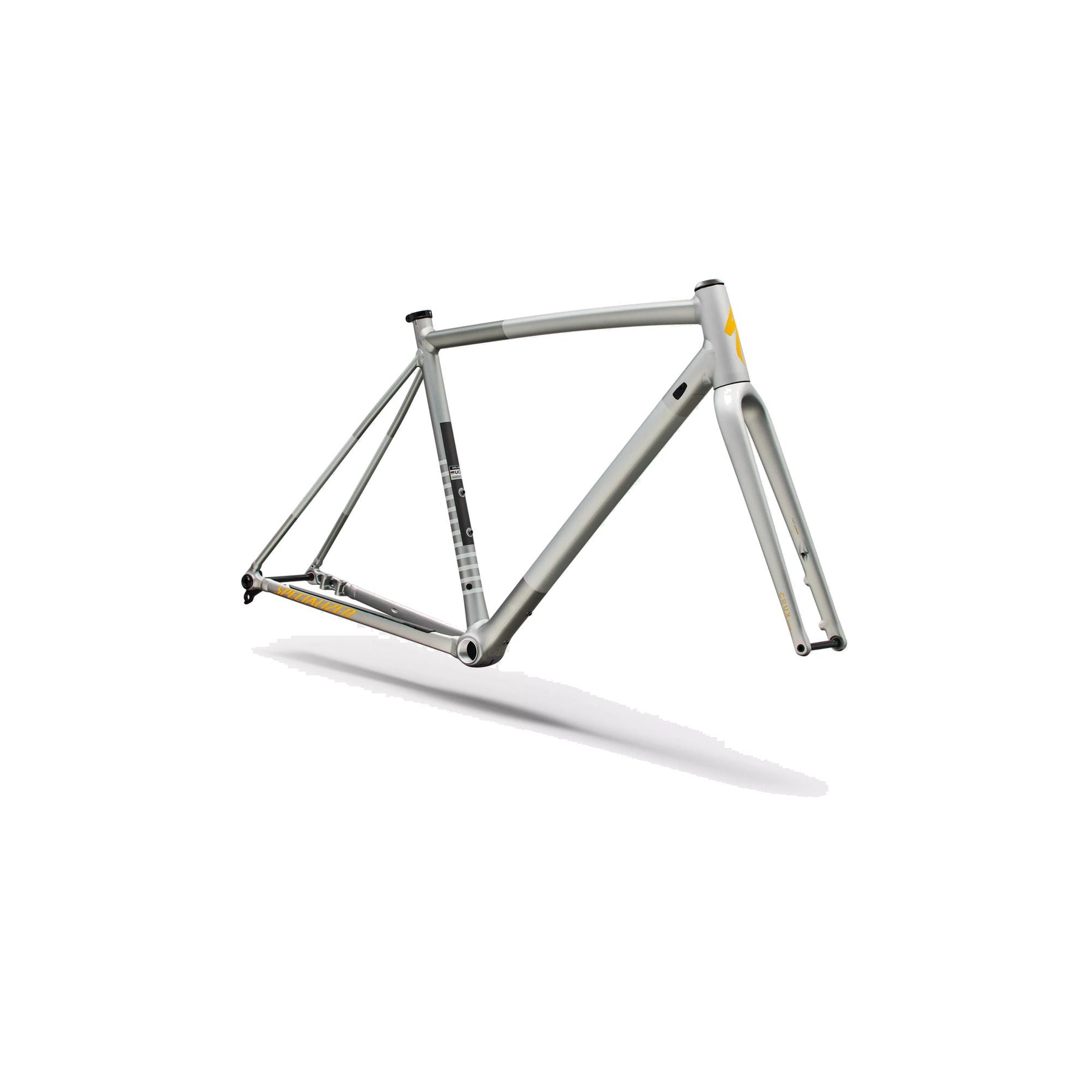

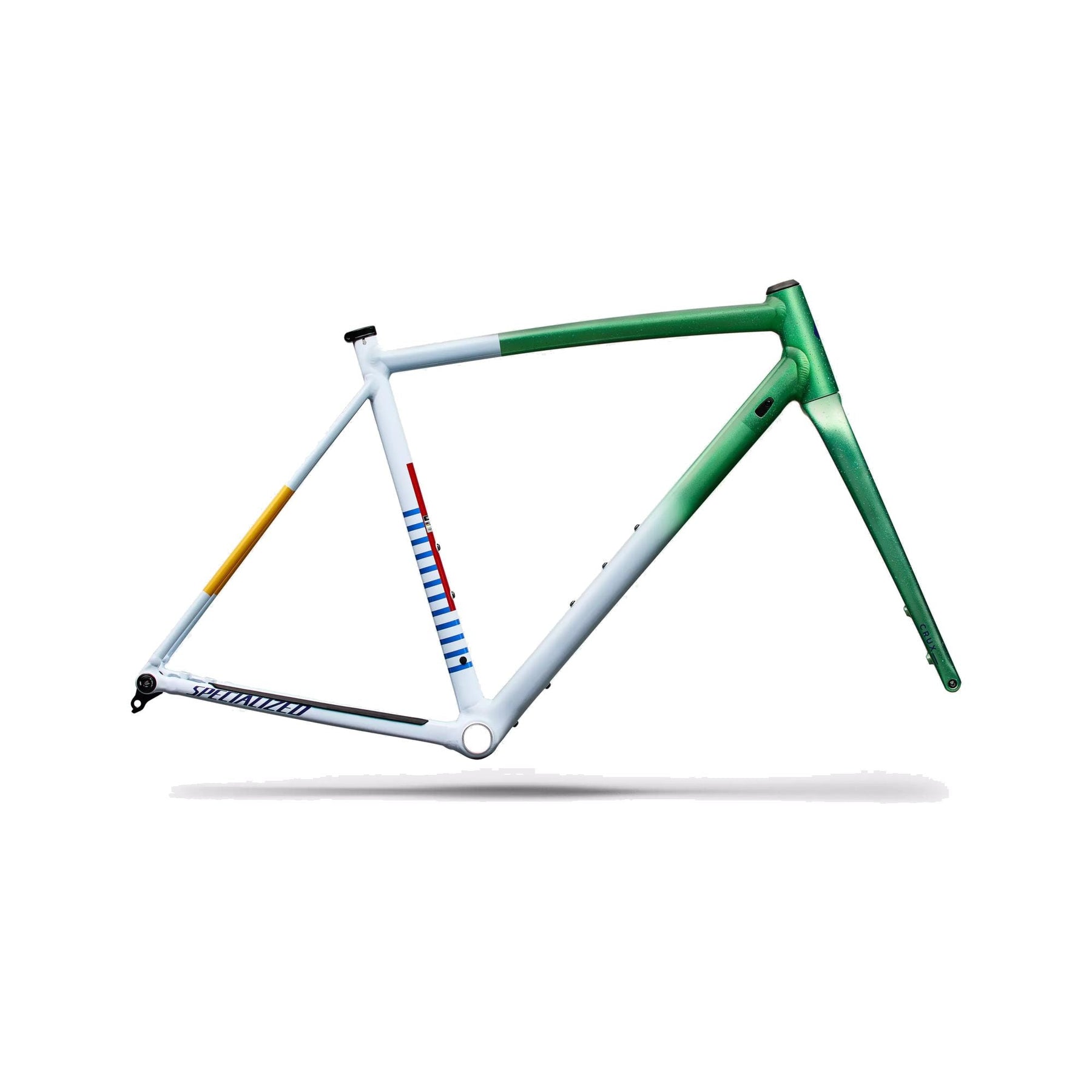

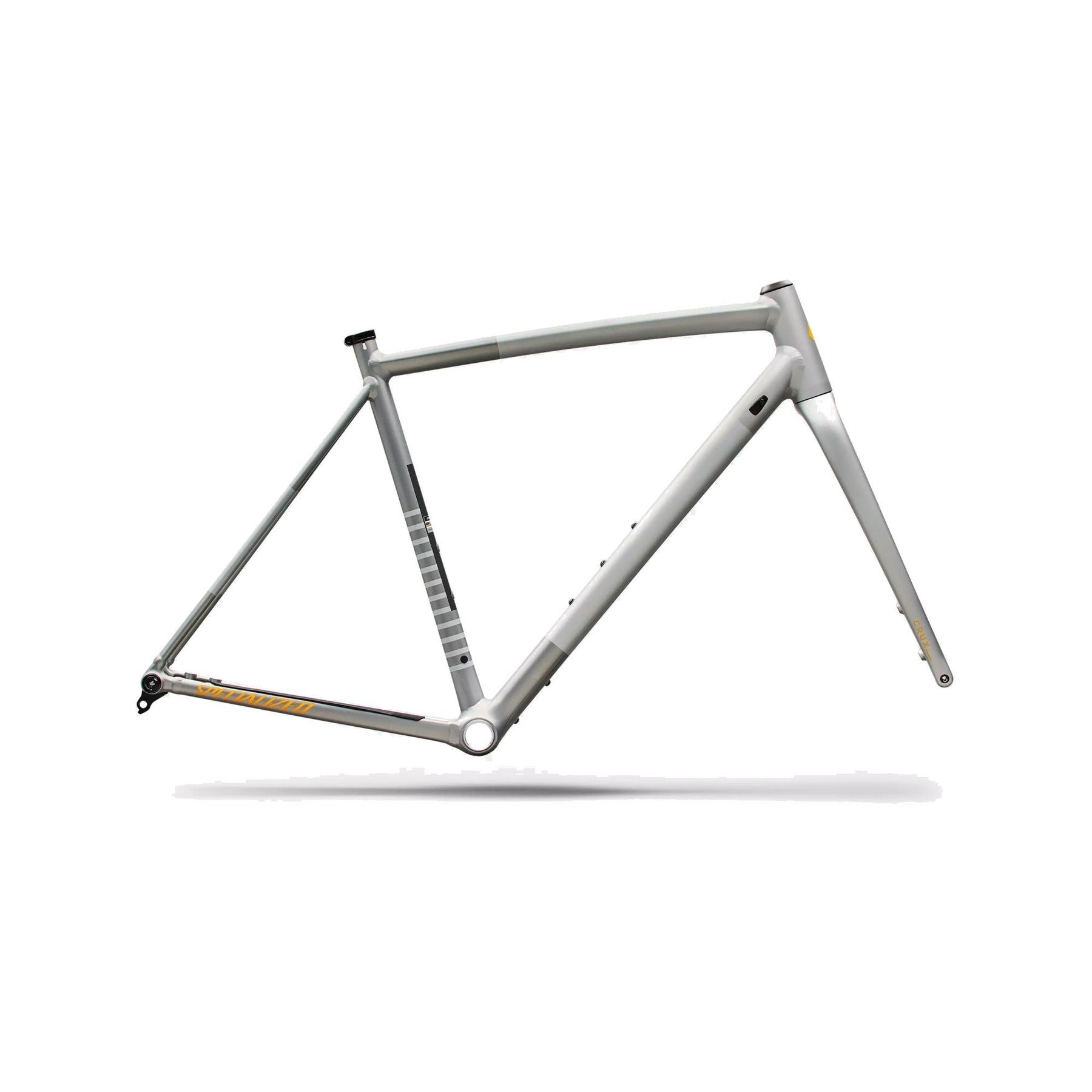

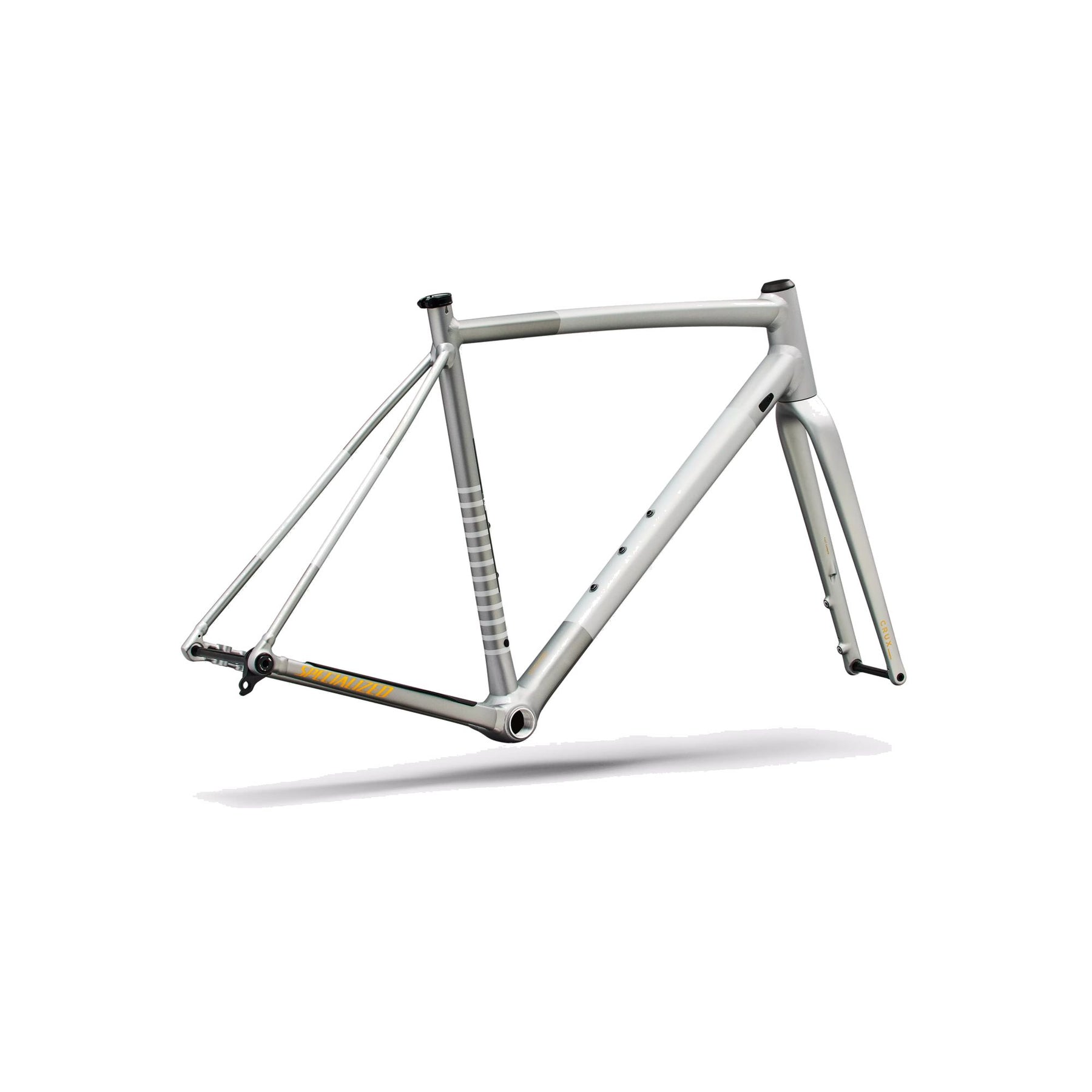

Crux DSW Frameset — D'Aluisio Smartweld Alloy

Crux DSW Frameset

D'Aluisio Smartweld · E5 Premium Aluminum · Lightest Alloy Gravel Frame

The Crux DSW is more than the lightest alloy gravel bike ever made. We took everything we learned creating the carbon Crux and used our patented D'Aluisio Smartweld to make it a reality in alloy. We've created the most capable, nimble, balanced, and responsive alloy gravel bike ever made. Some may call it a carbon copy, but we call it the Crux DSW.

D'Aluisio Smartweld Technology: Hydroformed tube-to-tube joints, single-piece downtube and bottom bracket.
1,399g Frame: Lightest alloy gravel frame in the world (56cm lightest colorway).
S-Works FACT Carbon Fork: Same fork as carbon Crux, 12x100mm thru-axle, flat-mount disc.
47c / 650b x 2.1" Tire Clearance: Same as carbon Crux — go anywhere at full gas.
72mm BB Drop: Sweet spot between nimble and stable.
Performance Gravel Geometry: Longer reach for better weight distribution, lower stack for race-first position.
UDH Dropout: Universal Derailleur Hanger, future-proof.
Threaded BB: No special tools required.

Frameset weight: 1.98kg (56cm). Six sizes: 49, 52, 54, 56, 58, 61.

D'Aluisio Smartweld Technology

Hydroforming precisely matches tube-to-tube joints for better, stronger welds. Creates a unique single-piece downtube and bottom bracket — lighter frame, twice as durable as traditional alloy.

1,399g Lightest Alloy Gravel Frame

Lightest alloy gravel frame in the world (56cm in lightest colorway). Combined with S-Works FACT carbon fork and a performance build, a complete Crux DSW tips the scales at 9.37kg.

47c / 650b x 2.1" Tire Clearance

Same tire clearance as carbon Crux. Diverge-level clearance means you can go anywhere you imagine at full gas.

Performance Gravel Geometry

Nimble, supple, and reactive. Longer reach for better weight distribution, lower stack for race-first position. 72mm bottom bracket drop hits the sweet spot between nimble and stable.

S-Works FACT Carbon Fork

Same S-Works FACT carbon fork as the carbon Crux. 12x100mm thru-axle, flat-mount disc, tuned for the perfect balance of compliance and steering precision.

	49	52	54	56	58	61
Stack	530	547	560	578	598	621
Reach	375	382	388	397	405	415
Head Tube Length	100	115	130	147	167	190
Head Tube Angle	70.5°	71.25°	71.5°	72°	72.25°	72.5°
BB Height	284	284	286	286	286	286
BB Drop	74	74	72	72	72	72
Trail	74	69	67	64	62	60
Fork Length, Full	401	401	401	401	401	401
Fork Rake/Offset	50	50	50	50	50	50
Front Center	594	600	608	618	630	644
Chainstay Length	425	425	425	425	425	425
Wheelbase	1008	1014	1023	1033	1045	1059
Top Tube Length, Horizontal	512	539	549	568	582	599
Bike Standover Height	749	772	794	816	841	866
Seat Tube Length	466	496	521	546	576	606
Seat Tube Angle	75.5°	74°	74°	73.5°	73.5°	73.5°

Frameset

Frame

Specialized E5 Premium Aluminum Disc with D'Aluisio Smartweld Technology, hydroformed aluminum tubing, tapered head tube, threaded BB, UDH dropout

Fork

S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Seat Binder

Specialized Alloy, 30.8mm

Shipping Policy

Components:

All component items (wheels, drivetrains, suspension, brakes, etc.) ship within 1–4 business days of purchase.

Bicycles:

Complete bikes typically ship within 2–3 weeks due to build, tuning, and inspection times. You will receive tracking information as soon as your order is ready to ship.

Riding Gear & Apparel:

Riding gear and apparel orders (helmets, jerseys, gloves, etc.) ship within 1–3 business days.

Returns & Exchanges:

If you received the wrong size or wish to exchange an item, it must be returned in original condition—unused, uninstalled, and with all packaging intact.

For full details, please see our Refund Policy before initiating a return.

[{"id":52004989927744,"title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 49","option1":"Oasis Tint Flake Silver Morning Mist\/Purple Haze","option2":"49","option3":null,"sku":"71426-7349","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576019264,"product_id":10131548832064,"position":1,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280","variant_ids":[52004989927744,52004989960512,52004989993280,52004990026048,52004990058816]},"available":false,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 49","public_title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 49","options":["Oasis Tint Flake Silver Morning Mist\/Purple Haze","49"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625261312","featured_media":{"alt":null,"id":43510233071936,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52004989960512,"title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 52","option1":"Oasis Tint Flake Silver Morning Mist\/Purple Haze","option2":"52","option3":null,"sku":"71426-7352","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576019264,"product_id":10131548832064,"position":1,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280","variant_ids":[52004989927744,52004989960512,52004989993280,52004990026048,52004990058816]},"available":false,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 52","public_title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 52","options":["Oasis Tint Flake Silver Morning Mist\/Purple Haze","52"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625261350","featured_media":{"alt":null,"id":43510233071936,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52004989993280,"title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 56","option1":"Oasis Tint Flake Silver Morning Mist\/Purple Haze","option2":"56","option3":null,"sku":"71426-7356","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576019264,"product_id":10131548832064,"position":1,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280","variant_ids":[52004989927744,52004989960512,52004989993280,52004990026048,52004990058816]},"available":true,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 56","public_title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 56","options":["Oasis Tint Flake Silver Morning Mist\/Purple Haze","56"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625261329","featured_media":{"alt":null,"id":43510233071936,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52004990026048,"title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 58","option1":"Oasis Tint Flake Silver Morning Mist\/Purple Haze","option2":"58","option3":null,"sku":"71426-7358","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576019264,"product_id":10131548832064,"position":1,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280","variant_ids":[52004989927744,52004989960512,52004989993280,52004990026048,52004990058816]},"available":true,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 58","public_title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 58","options":["Oasis Tint Flake Silver Morning Mist\/Purple Haze","58"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625261305","featured_media":{"alt":null,"id":43510233071936,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52004990058816,"title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 61","option1":"Oasis Tint Flake Silver Morning Mist\/Purple Haze","option2":"61","option3":null,"sku":"71426-7361","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576019264,"product_id":10131548832064,"position":1,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280","variant_ids":[52004989927744,52004989960512,52004989993280,52004990026048,52004990058816]},"available":true,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 61","public_title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 61","options":["Oasis Tint Flake Silver Morning Mist\/Purple Haze","61"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625261398","featured_media":{"alt":null,"id":43510233071936,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52004990091584,"title":"Shadow Silver\/California Sunshine \/ 49","option1":"Shadow Silver\/California Sunshine","option2":"49","option3":null,"sku":"71426-7449","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576052032,"product_id":10131548832064,"position":4,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280","variant_ids":[52004990091584,52004990124352,52004990157120,52004990189888,52004990222656,52004990255424]},"available":false,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Shadow Silver\/California Sunshine \/ 49","public_title":"Shadow Silver\/California Sunshine \/ 49","options":["Shadow Silver\/California Sunshine","49"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625260698","featured_media":{"alt":null,"id":43510233104704,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52004990124352,"title":"Shadow Silver\/California Sunshine \/ 52","option1":"Shadow Silver\/California Sunshine","option2":"52","option3":null,"sku":"71426-7452","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576052032,"product_id":10131548832064,"position":4,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280","variant_ids":[52004990091584,52004990124352,52004990157120,52004990189888,52004990222656,52004990255424]},"available":false,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Shadow Silver\/California Sunshine \/ 52","public_title":"Shadow Silver\/California Sunshine \/ 52","options":["Shadow Silver\/California Sunshine","52"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625261152","featured_media":{"alt":null,"id":43510233104704,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52004990157120,"title":"Shadow Silver\/California Sunshine \/ 54","option1":"Shadow Silver\/California Sunshine","option2":"54","option3":null,"sku":"71426-7454","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576052032,"product_id":10131548832064,"position":4,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280","variant_ids":[52004990091584,52004990124352,52004990157120,52004990189888,52004990222656,52004990255424]},"available":true,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Shadow Silver\/California Sunshine \/ 54","public_title":"Shadow Silver\/California Sunshine \/ 54","options":["Shadow Silver\/California Sunshine","54"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625261107","featured_media":{"alt":null,"id":43510233104704,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52004990189888,"title":"Shadow Silver\/California Sunshine \/ 56","option1":"Shadow Silver\/California Sunshine","option2":"56","option3":null,"sku":"71426-7456","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576052032,"product_id":10131548832064,"position":4,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280","variant_ids":[52004990091584,52004990124352,52004990157120,52004990189888,52004990222656,52004990255424]},"available":true,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Shadow Silver\/California Sunshine \/ 56","public_title":"Shadow Silver\/California Sunshine \/ 56","options":["Shadow Silver\/California Sunshine","56"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625261206","featured_media":{"alt":null,"id":43510233104704,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52004990222656,"title":"Shadow Silver\/California Sunshine \/ 58","option1":"Shadow Silver\/California Sunshine","option2":"58","option3":null,"sku":"71426-7458","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576052032,"product_id":10131548832064,"position":4,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280","variant_ids":[52004990091584,52004990124352,52004990157120,52004990189888,52004990222656,52004990255424]},"available":true,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Shadow Silver\/California Sunshine \/ 58","public_title":"Shadow Silver\/California Sunshine \/ 58","options":["Shadow Silver\/California Sunshine","58"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625260834","featured_media":{"alt":null,"id":43510233104704,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52004990255424,"title":"Shadow Silver\/California Sunshine \/ 61","option1":"Shadow Silver\/California Sunshine","option2":"61","option3":null,"sku":"71426-7461","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576052032,"product_id":10131548832064,"position":4,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280","variant_ids":[52004990091584,52004990124352,52004990157120,52004990189888,52004990222656,52004990255424]},"available":true,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Shadow Silver\/California Sunshine \/ 61","public_title":"Shadow Silver\/California Sunshine \/ 61","options":["Shadow Silver\/California Sunshine","61"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625261091","featured_media":{"alt":null,"id":43510233104704,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7449_4786cd68-b1e0-43e5-8d9d-89541a67cecf.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":52004989993280,"title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 56","option1":"Oasis Tint Flake Silver Morning Mist\/Purple Haze","option2":"56","option3":null,"sku":"71426-7356","requires_shipping":true,"taxable":true,"featured_image":{"id":55959576019264,"product_id":10131548832064,"position":1,"created_at":"2026-05-12T14:11:18-07:00","updated_at":"2026-05-12T14:11:20-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280","variant_ids":[52004989927744,52004989960512,52004989993280,52004990026048,52004990058816]},"available":true,"name":"2026 Specialized Crux DSW Frameset - D'Aluisio Smartweld Alloy - Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 56","public_title":"Oasis Tint Flake Silver Morning Mist\/Purple Haze \/ 56","options":["Oasis Tint Flake Silver Morning Mist\/Purple Haze","56"],"price":180000,"weight":0,"compare_at_price":180000,"inventory_management":"shopify","barcode":"196625261329","featured_media":{"alt":null,"id":43510233071936,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/spokex.com\/cdn\/shop\/files\/71426-7349_9293fb30-138e-4195-926f-31b5947cd75a.jpg?v=1778620280"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Technology

⚙️

D'Aluisio Smartweld (DSW)

Patented hydroforming process precisely matches tube-to-tube joints. Lighter, stronger, more responsive than traditional alloy frames.

🏆

World's Lightest Alloy Frame

1399g (56cm). No alloy gravel bike can compete. Lighter than many carbon frames.

🛞

47mm Tire Clearance

Same clearance as carbon Crux. 47mm (700c) or 2.1" (650b). Take anywhere at full gas.

🌊

Single-Piece Downtube & BB

DSW enables unique single-piece construction. Shaves weight, amplifies responsiveness.

🏆

FACT 12r Carbon Fork

Full carbon FACT 12r Crux fork. The same performance fork as the carbon Crux.

⚡

Race Geometry

Longer reach, lower stack, 72mm BB drop. Responsive at the pedals, supple in the saddle.

Built For

Gravel Racing

Cyclocross

All-Road

Fast Fun

Performance Numbers

1399g

Frame Weight

56cm in lightest colorway

9.37kg

Complete Bike

With curated build

47mm

Tire Clearance

700c / 2.1" 650b

72mm

BB Drop

Sweet spot balance

Gallery

Frameset Details

Component	Detail
Frame	E5 Premium Aluminum, D'Aluisio Smartweld, single-piece downtube/BB
Fork	FACT 12r Carbon, full carbon steerer, 12x100mm thru-axle
BB	Threaded BSA (68mm wide)
Seatpost	27.2mm, 2-bolt clamp
Seat Binder	Specialized Alloy, 30.8mm
Rear Axle	12x142mm thru-axle, UDH compatible
Front Axle	12x100mm thru-axle
Brake Mount	Flat-mount disc

Geometry Highlights

72mm BB Drop

Longer Reach for Weight Distribution

Lower Stack for Performance Fit

Same as Carbon Race-Inspired Geometry

UDH Universal Derailleur Hanger
