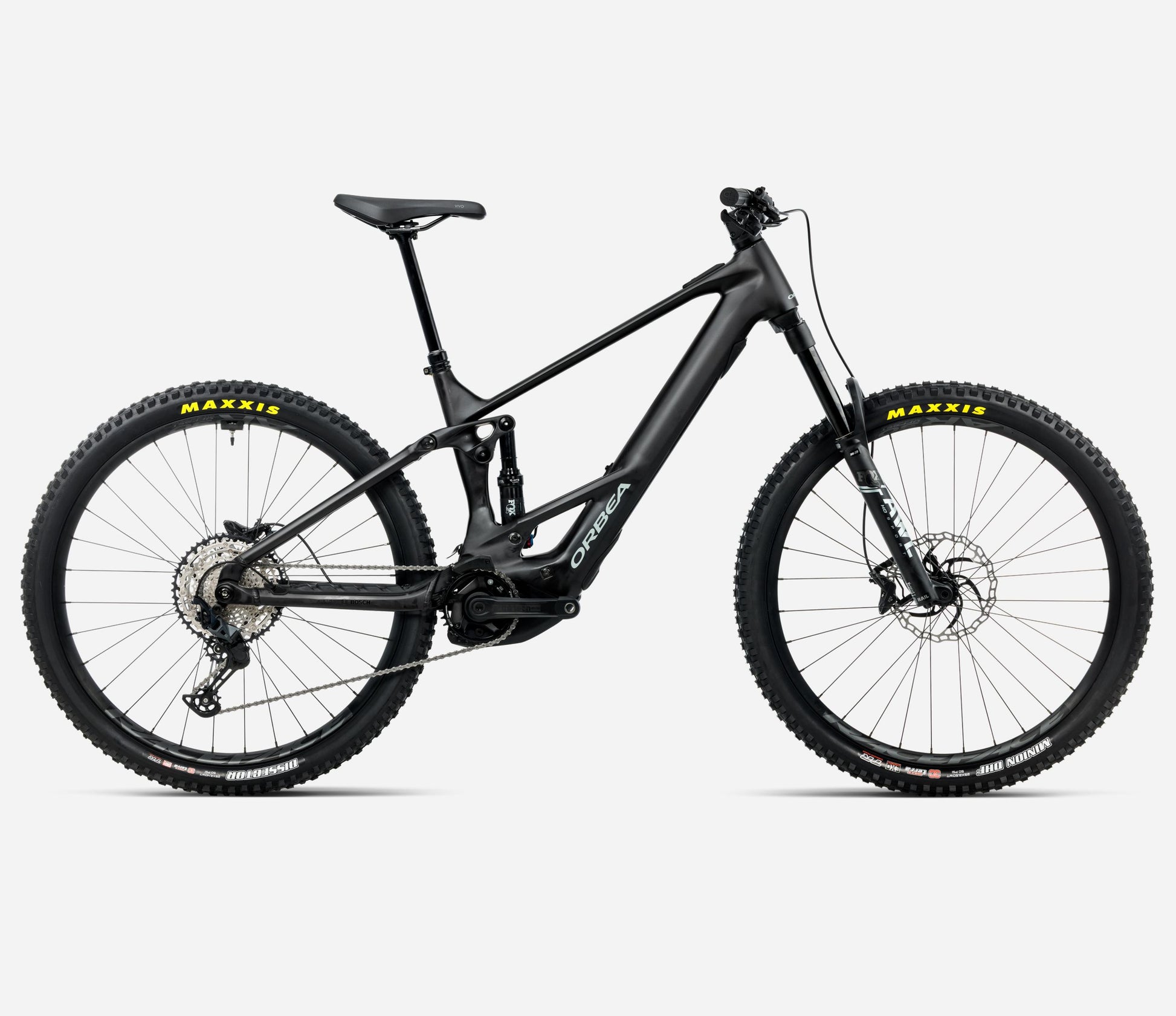

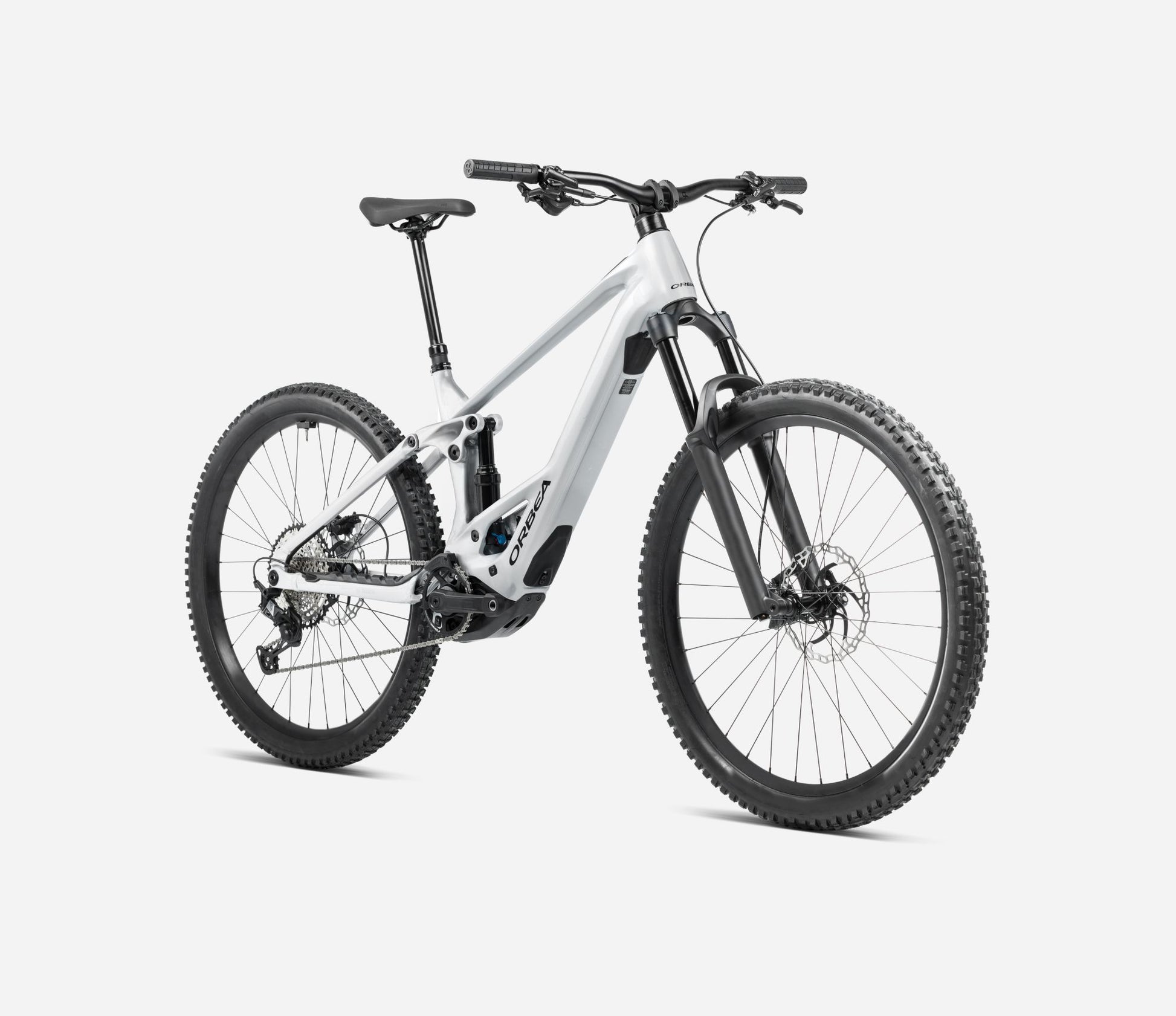

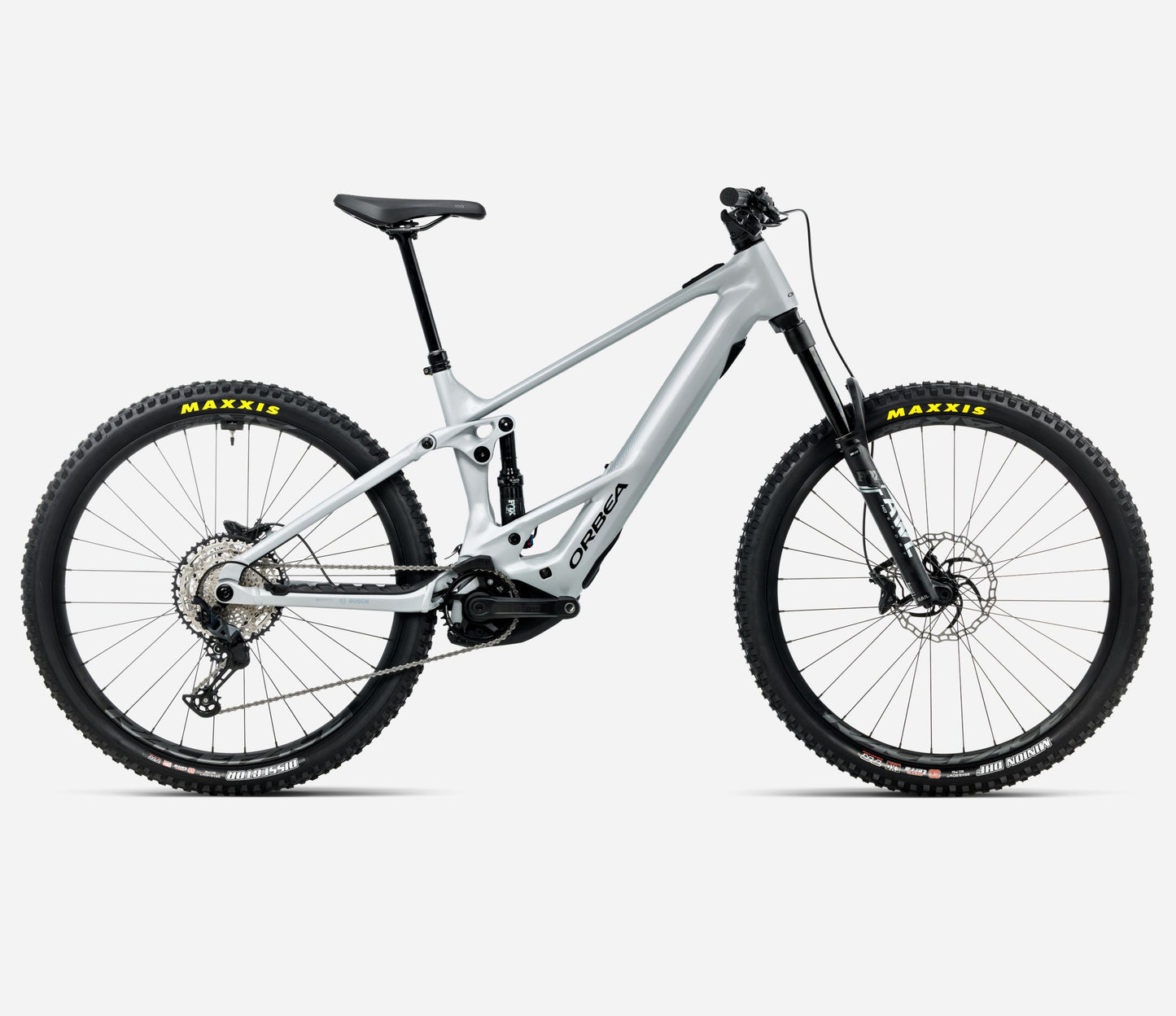

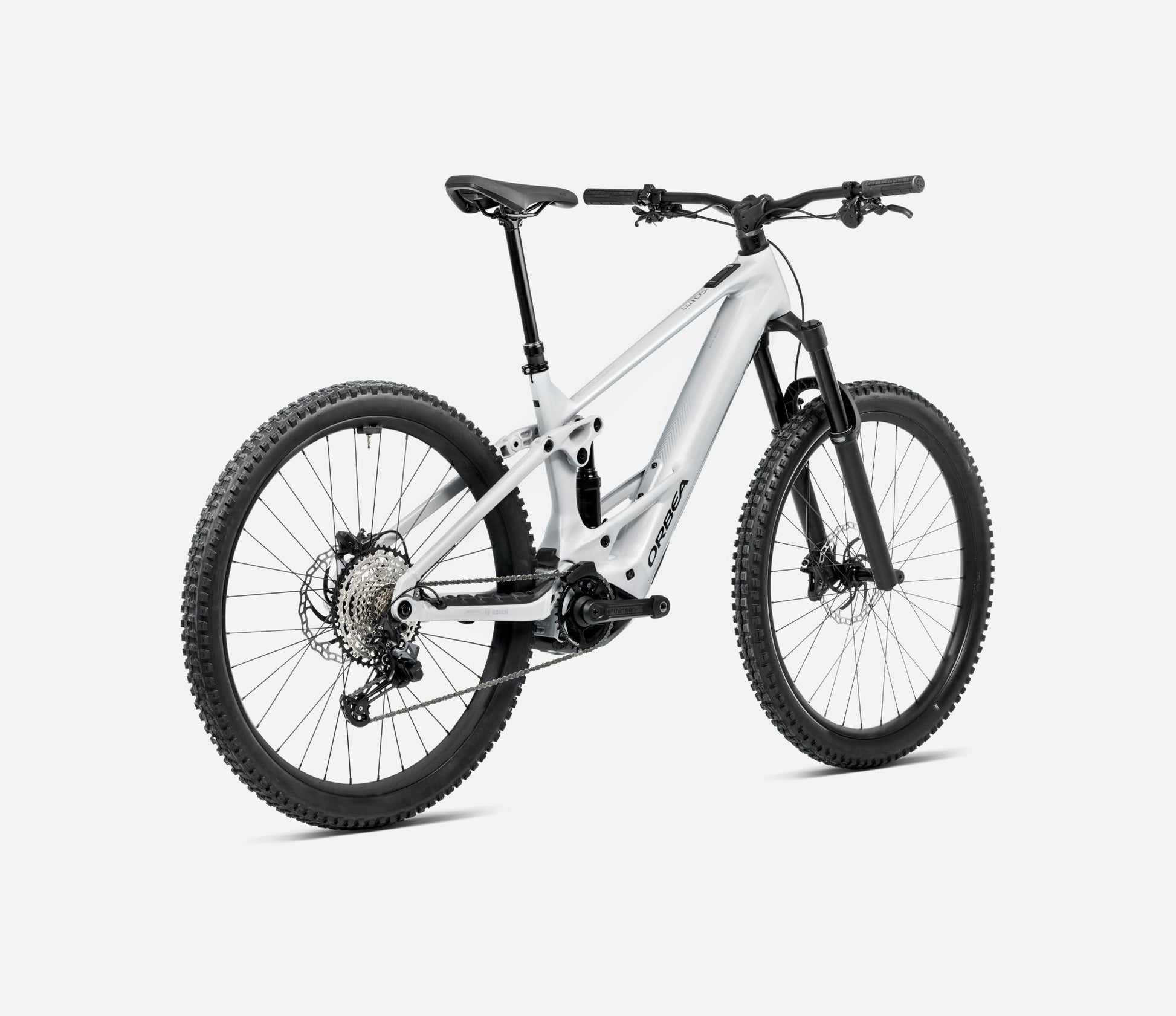

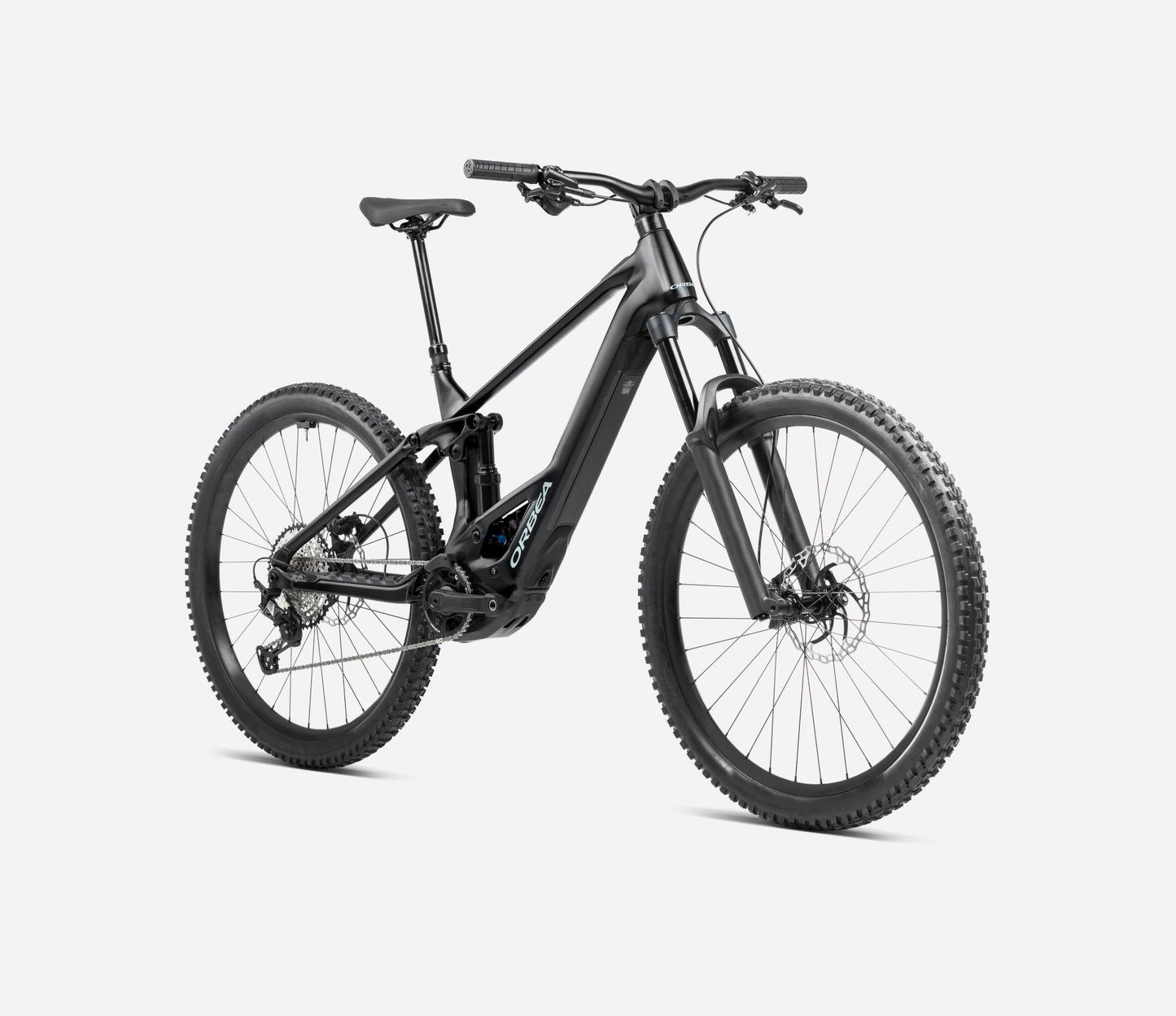

2026 Orbea Wild ST H20 E-Bike

2026 Orbea Wild ST H20 E-Bike

$5,999.00
$5,999.00
Sale Sold out
Shipping calculated at checkout.
  • Premium Component Quality
Color
Size
Animation Image

Free Shipping Over $50

Key Features

  • Orbea Wild Hydro aluminum frame, built tough for aggressive trail riding.
  • Long-lasting Bosch Powertube 750Wh battery paired with the powerful Bosch Performance Line CX motor.
  • Durable and capable suspension featuring the Fox 36 Float AWL HD Sport fork (150mm) and Fox Float Performance rear shock (2-Pos Evol LV).
  • Reliable Shimano Deore/SLX 1x12-speed drivetrain with a wide-range 10-51t cassette.
  • Strong braking provided by Shimano M6120 4-piston Hydraulic Disc Brakes with 203mm Galfer Wave Rotors.
  • Durable Race Face AR 30c Tubeless Ready wheelset.
  • Fast-rolling and grippy Maxxis Dissector 2.40" 3C MaxxTerra Exo+ tires.
  • Features the clean Bosch System Controller and Mini Remote interface.
  • Geometry supports both full 29" and mixed ("Mullet") wheel configurations.

Full Specifications

Frame Orbea Wild Hydro (Aluminum), 29" wheels, Concentric Boost 12x148
Rear Shock Fox Float Performance Trunion 2-Pos Evol LV custom tune 205x57.5mm
Fork Fox 36 Float AWL HD Sport 150 Rail 2.0, QR15x110
Fork Travel 150mm
Head Tube Diameter 1-1/2" (Steerer tube: Alloy, Black Oxidated Bearing)
Motor Bosch Performance Line CX BDU3843
Battery Bosch Powertube 750Wh Horizontal BBP3775
Display / Remote Bosch System Controller BRC3100 (Display) / Bosch Mini Remote BRC3300 (Remote)
Charger Bosch Charger 4A (110V) BPC3410
Chainring e*thirteen e*spec Direct Mount 34T Boost
Cranks e*thirteen Helix Core
Shifters Shimano Deore M6100 I-Spec EV, 12-speed
Cassette Shimano CS-M7100 (SLX), 10-51t, 12-Speed
Rear Derailleur Shimano SLX M7100 SGS Shadow Plus, 12s
Chain Shimano M6100 (Deore)
Chainguide e*thirteen Plus Bosch CX Gen4 CL 55 32-36t
Handlebar OC Mountain Control MC30, Rise 20, Width 800mm
Stem OC Mountain Control MC20, 0º
Computer Mount OC Computer Mount CM-05, Garmin/Sigma
Brakes Shimano M6120 Hydraulic Disc (4-piston)
Rotors Galfer Wave Rotors, 203mm front / 203mm rear
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Dissector 2.40", 120 TPI, 3C MaxxTerra Exo+, TLR
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever Shimano SL-MT500 I-Spec EV
Saddle Selle Royal Vivo Sport Men 145 x 269mm
Grips OC Lock On

Geometry

Size SM 29" MD 29" LG 29" XL 29" SM Mullet MD Mullet LG Mullet XL Mullet
Top Tube Length 563mm 586mm 612mm 639mm 561mm 583mm 610mm 636mm
Head Tube Angle 63.5° 63.5° 63.5° 63.5° 63.5° 63.5° 63.5° 63.5°
Head Tube Length 110mm 120mm 130mm 140mm 110mm 120mm 130mm 140mm
Seat Tube Angle 77.5° 77.5° 77.5° 77.5° 77.5° 77.5° 77.5° 77.5°
Seat Tube Length 415mm 415mm 435mm 460mm 415mm 415mm 435mm 460mm
Bottom Bracket Height 358mm (22mm drop) 358mm (22mm drop) 358mm (22mm drop) 358mm (22mm drop) 358mm (22mm drop) 358mm (22mm drop) 358mm (22mm drop) 358mm (22mm drop)
Chainstay Length 448mm 448mm 448mm 448mm 448mm 448mm 448mm 448mm
Wheelbase 1228mm 1252mm 1282mm 1311mm 1226mm 1250mm 1279mm 1309mm
Standover 730mm 730mm 730mm 730mm 727mm 727mm 727mm 727mm
Reach 435mm 455mm 480mm 505mm 435mm 455mm 480mm 505mm
Stack 625mm 634mm 643mm 652mm 627mm 636mm 645mm 654mm
Additional Info
  • Compatible with 29" wheels front/rear or mixed ("Mullet") wheels (29" front, 27.5" rear) via alternate linkages.
  • Note: Frame is designed for 170mm fork, but this spec lists a 150mm fork. Geometry figures are calculated with a 170mm fork (as per the spec sheet "Additional Info"), so actual head angle may be slightly steeper with the listed 150mm fork.
