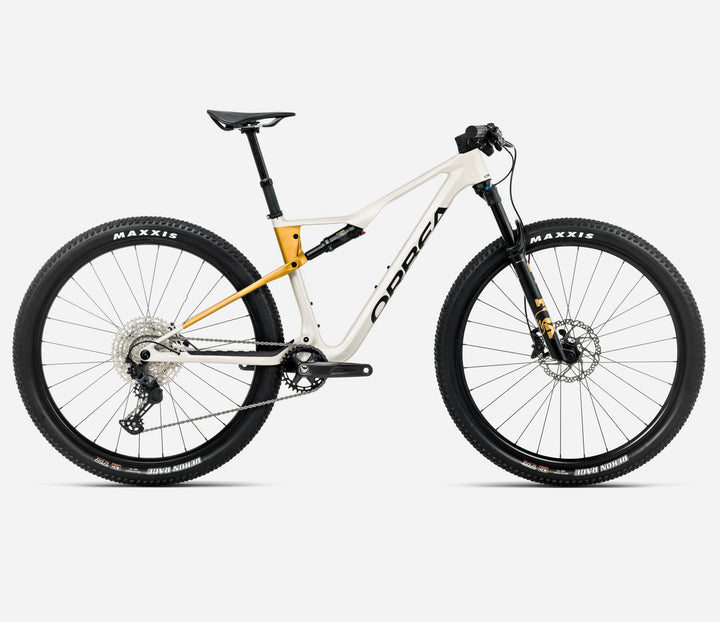

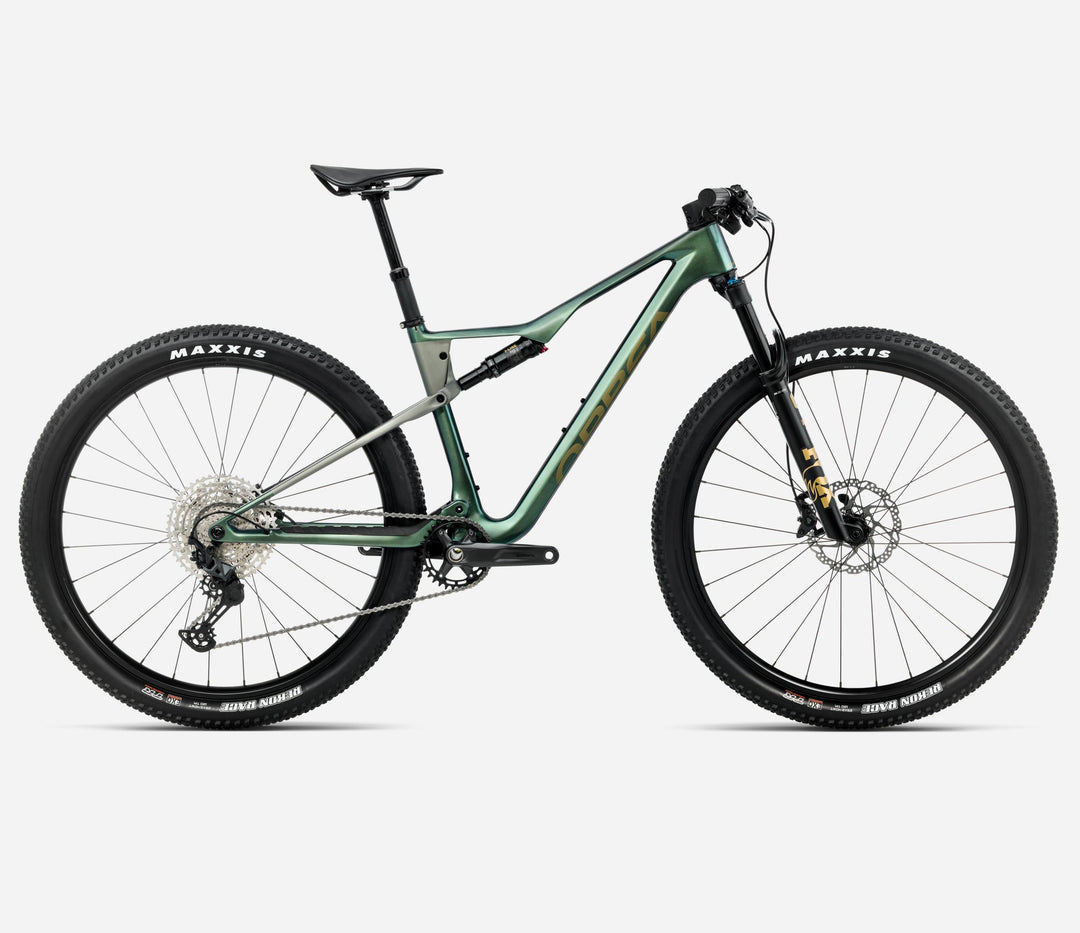

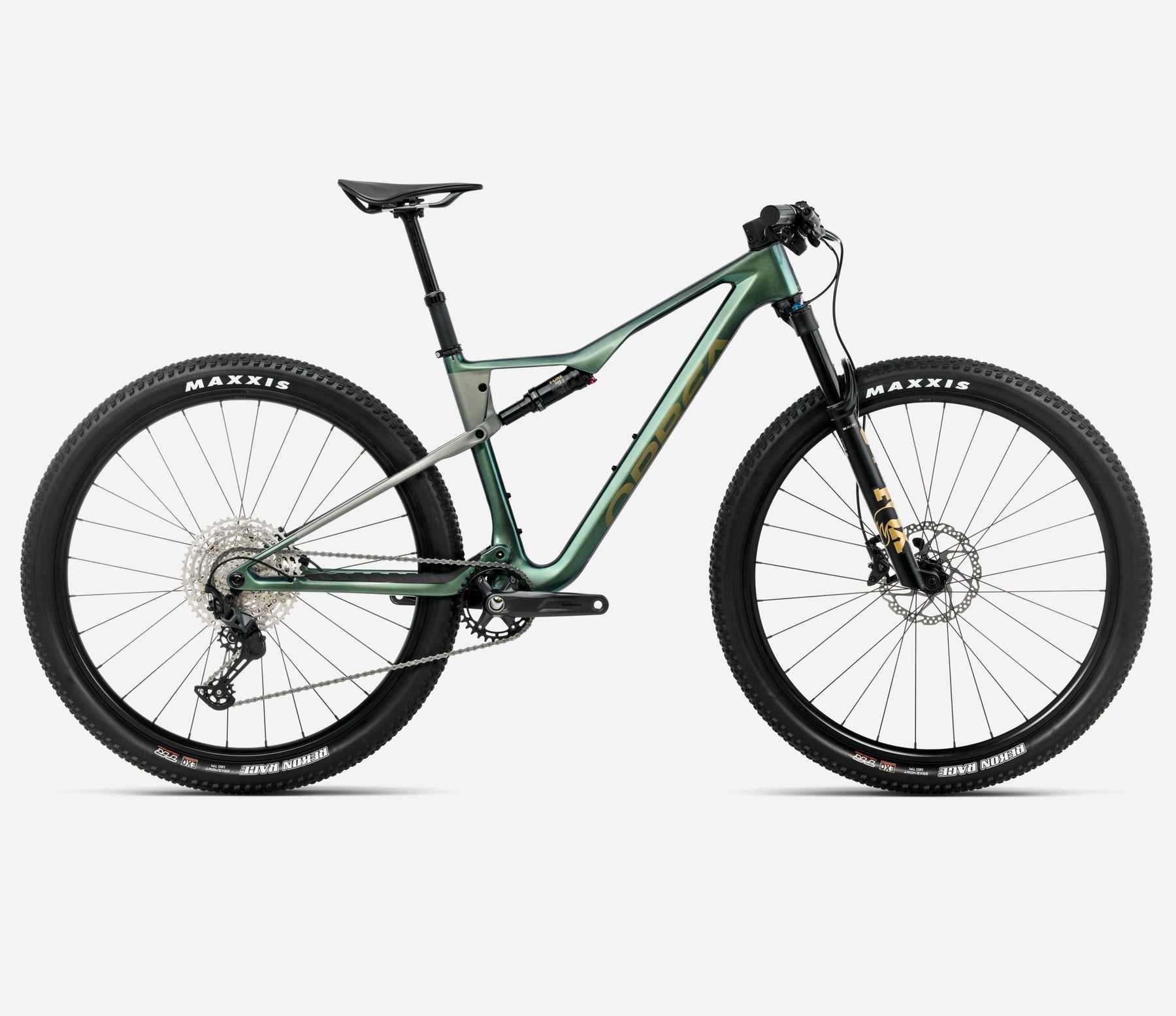

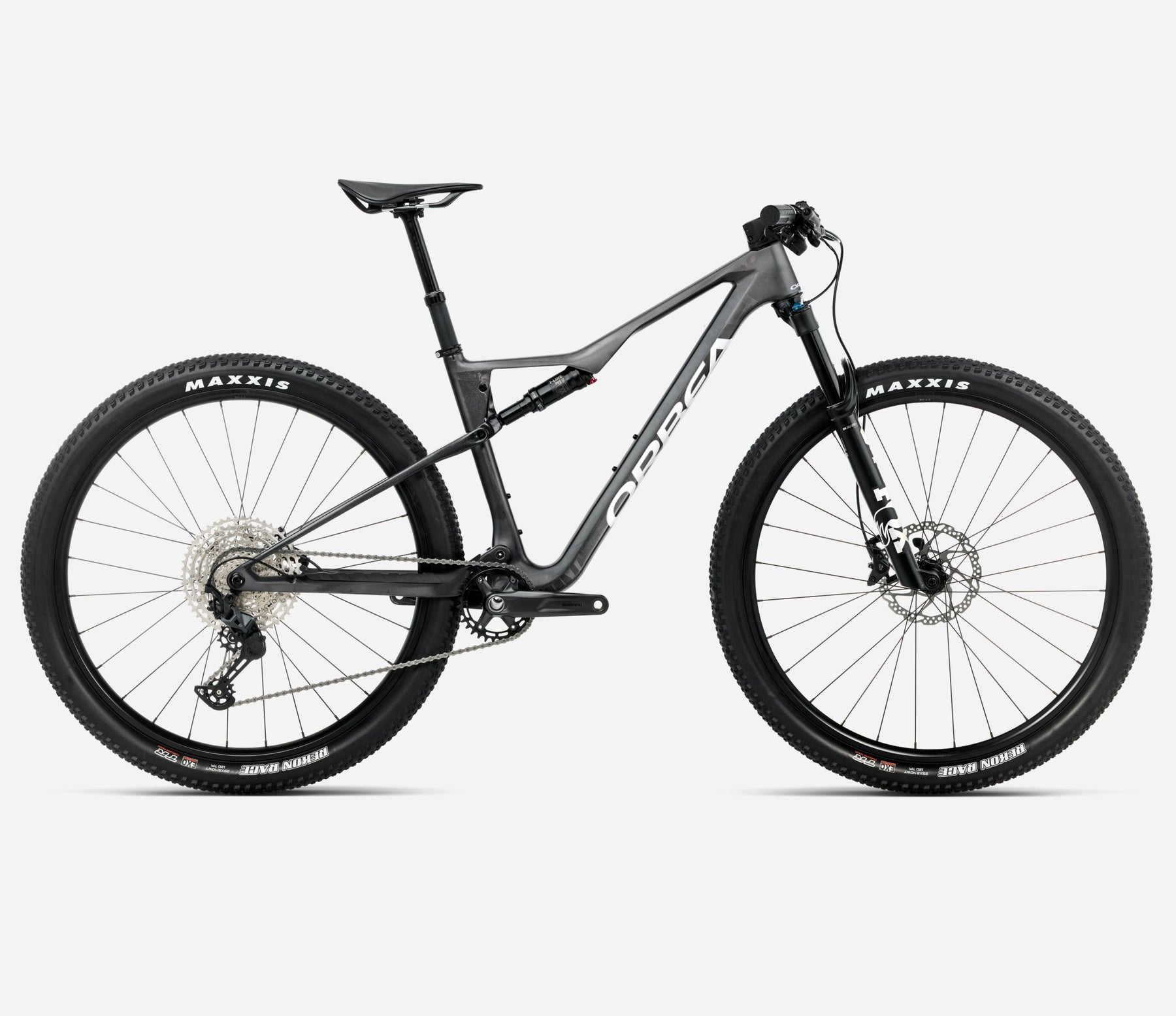

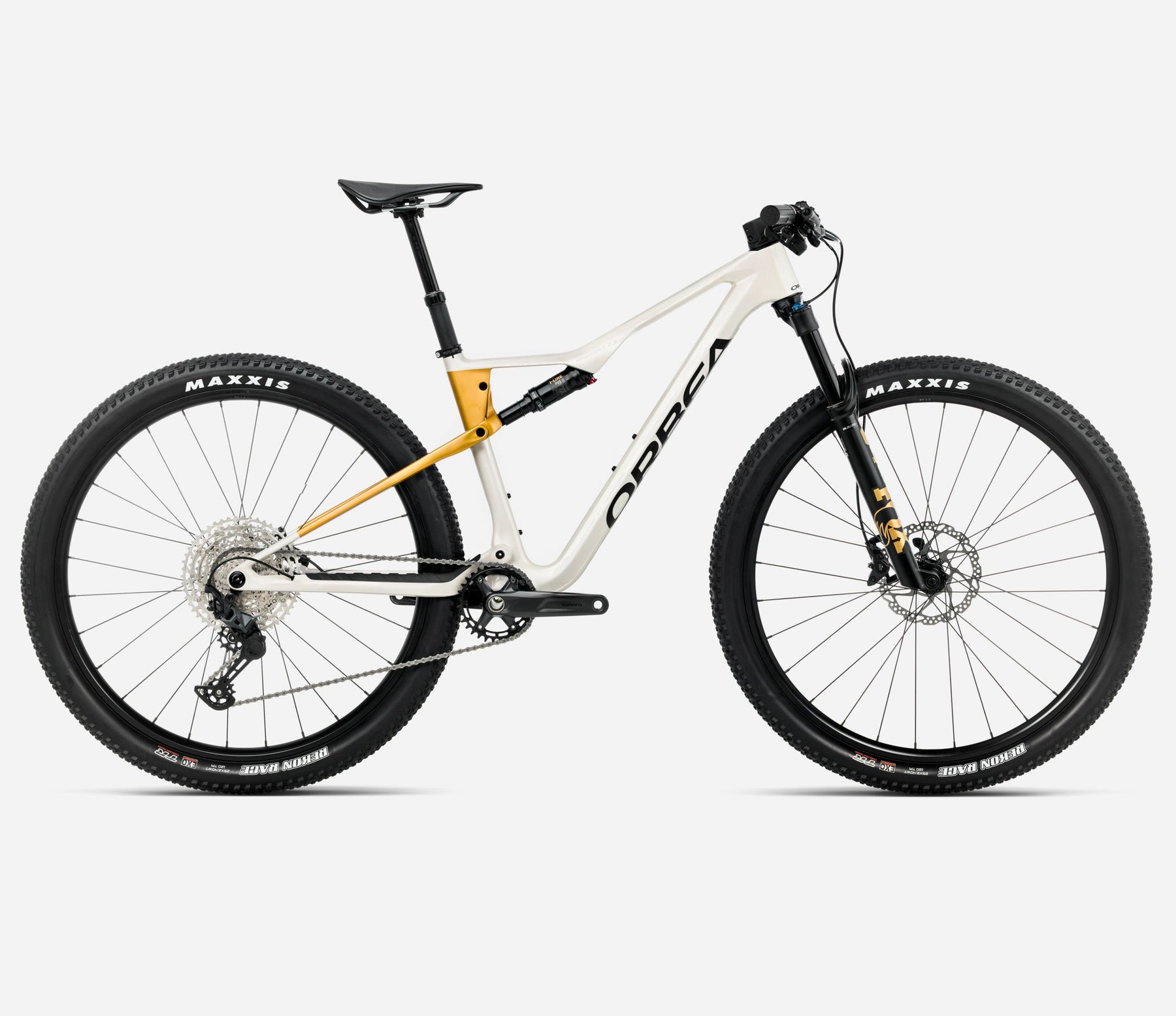

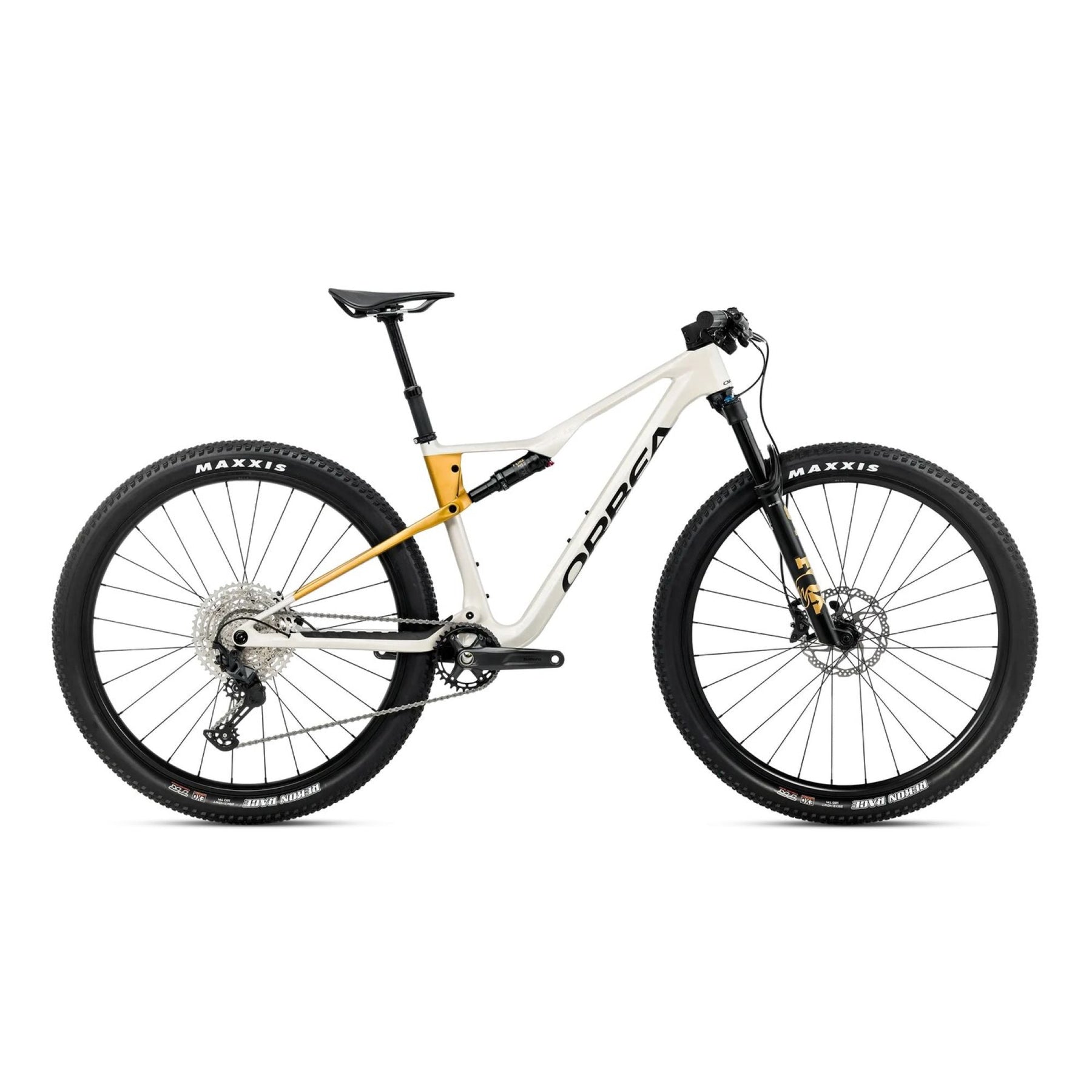

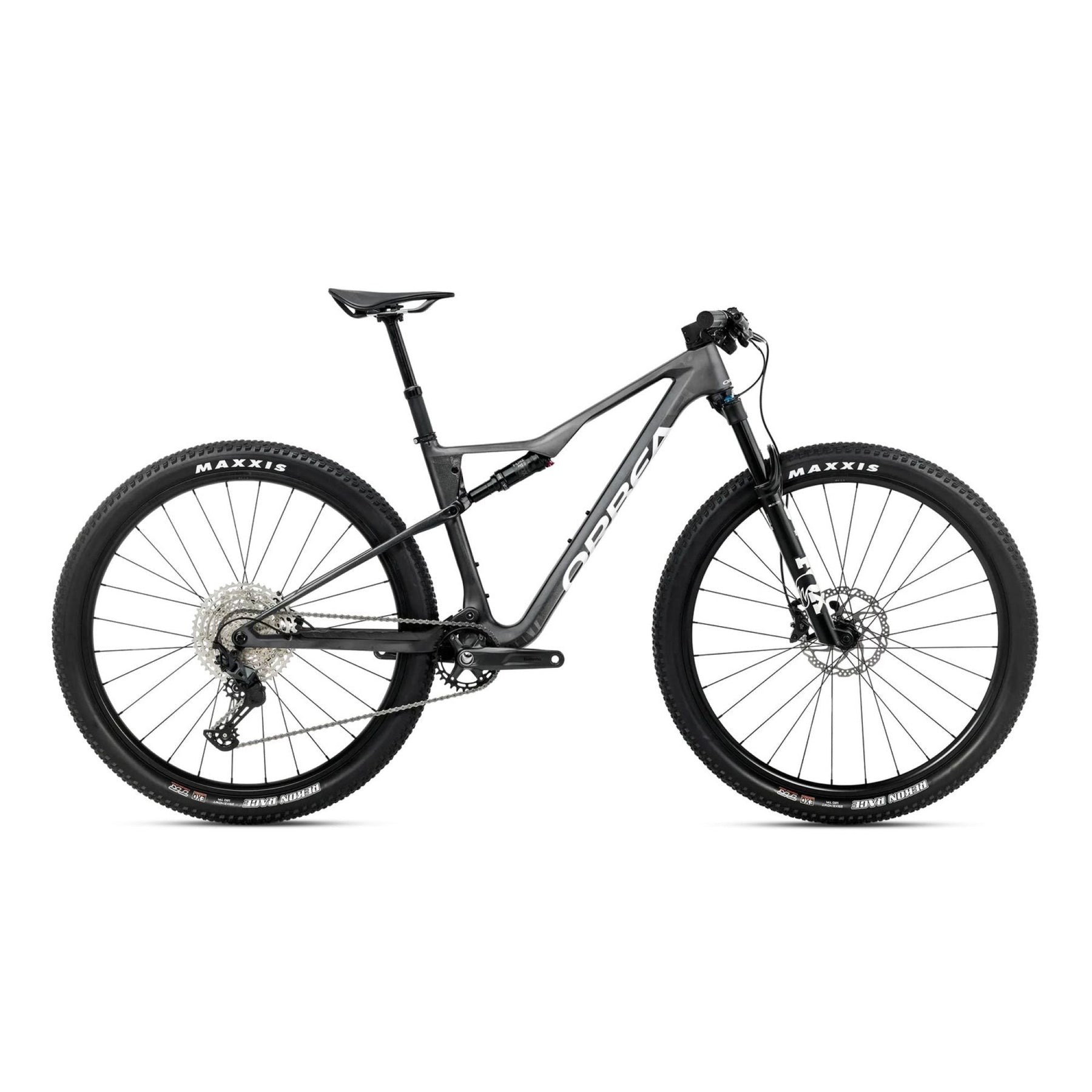

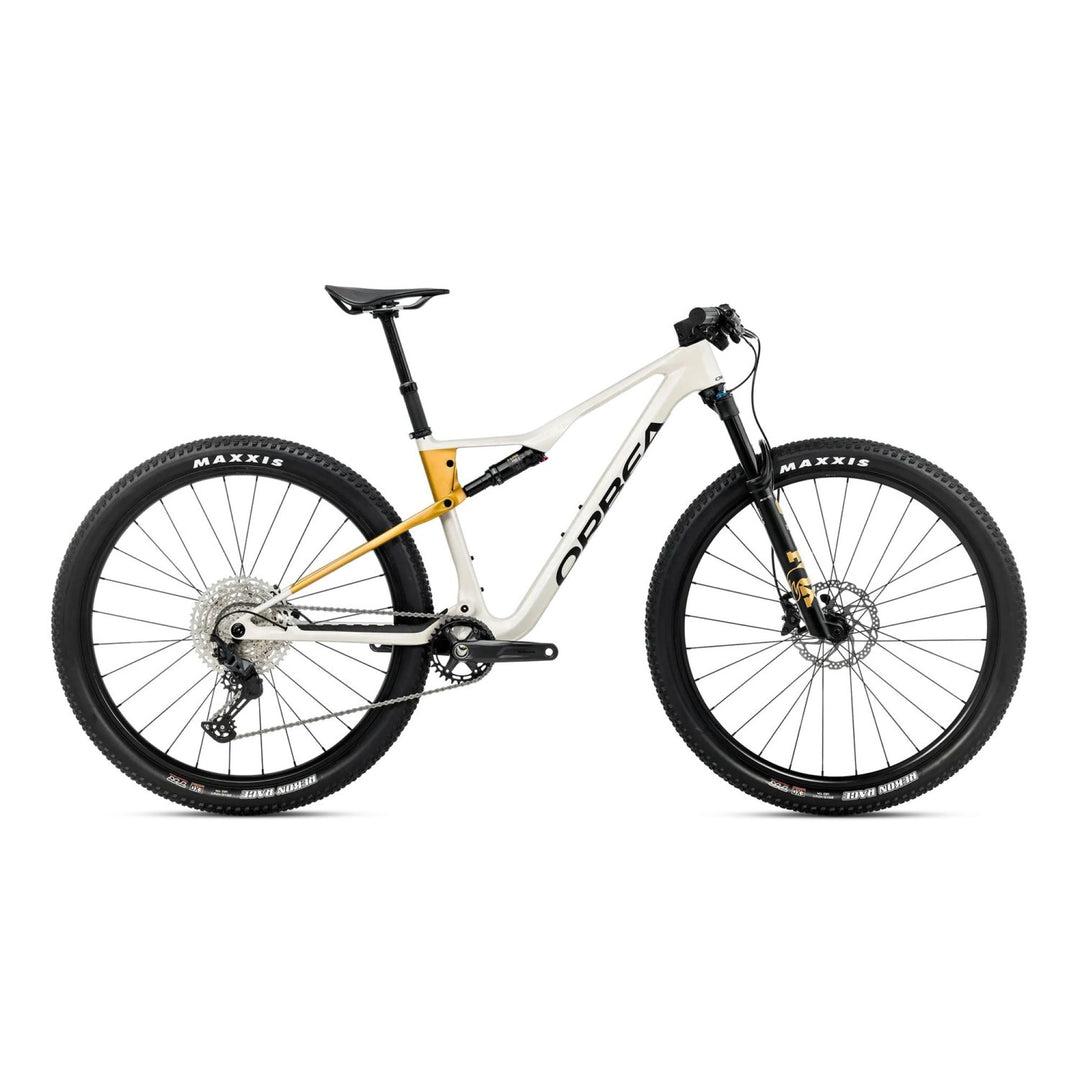

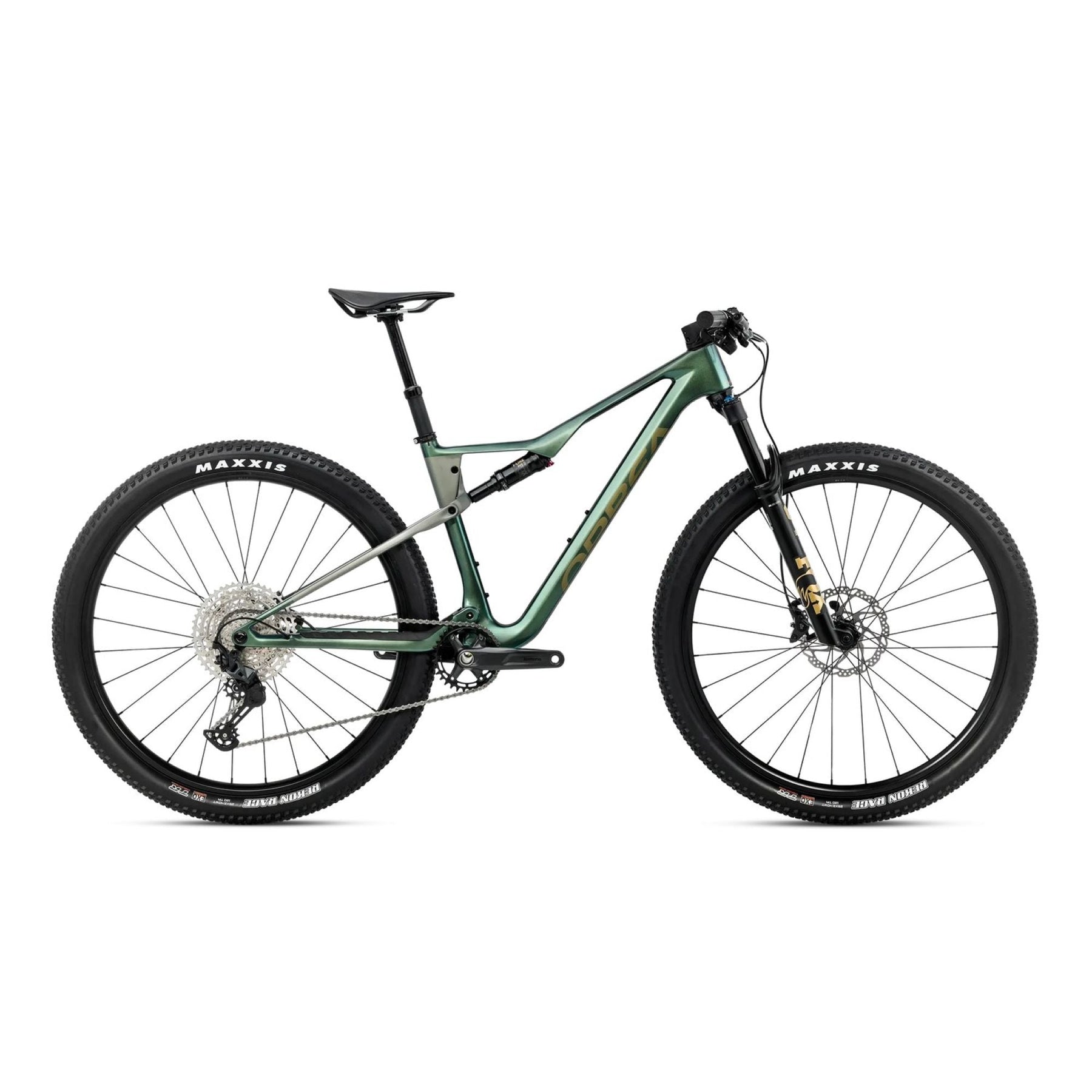

2026 Orbea OIZ M30 Bike
No reviews
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Orbea Oiz OMR Carbon frame, featuring Fiberlink suspension, Boost spacing, and integrated SIC/I-Line technologies.
- Performance suspension from the Fox 34 Float SL Performance 120 fork and Fox Float SL Performance shock.
- Integrated OC Squidlock MP11 remote controls suspension lockout and dropper post from a single lever.
- Reliable **Shimano Deore/SLX 1x12-speed drivetrain** with a wide-range 10-51t cassette.
- Responsive geometry with a **slack 67° head tube angle** and **steep 76.5° seat tube angle**.
- Fast-rolling, race-ready tires: **Maxxis Rekon Race 2.40" WT** with 120 TPI Exo TLR casing.
- Includes an **OC Mountain Control MC22 dropper post** for technical terrain versatility.
- **Shimano M6100 (Deore)** hydraulic disc brakes provide confident stopping power.
Full Specifications
| Frame | Orbea Oiz Carbon OMR, Fiberlink, Boost 12x148, BSA, SIC, UFO, I-line shock |
|---|---|
| Rear Shock | Fox Float SL Performance 120mm Remote Push-lock Evol custom tune 190x45mm |
| Rear Travel | 120mm |
| Fork | Fox 34 Float SL Performance 120, Grip damper, Remote Push to Lock, QR15x110 |
| Fork Travel | 120mm |
| Remote Lockout | OC Squidlock MP11 (Controls Suspension + Dropper) |
| Head Tube Diameter | 1-1/2" (Steerer tube: Alloy, Black Oxidated Bearing) |
| Handlebar | OC Mountain Performance MP30, 760mm Width |
| Stem | OC Mountain Performance MP21, -6º rise |
| Grips | OC Lock On |
| Brakes | Shimano M6100 Hydraulic Disc (Deore) |
| Rotors | (Not specified, typically 160mm/180mm Shimano Center Lock or 6-bolt) |
| Drivetrain | 1x |
| Shifters | Shimano Deore M6100 I-Spec EV, 12-speed |
| Rear Derailleur | Shimano SLX M7100 SGS Shadow Plus, 12s |
| Crankset | Shimano MT511, 32 tooth |
| Bottom Bracket | BSA (English Threaded) |
| Chain | Shimano M6100 (Deore), 12-speed |
| Cassette | Shimano CS-M6100 (Deore), 10-51t, 12-Speed |
| Wheels | Alloy, 26c inner width, 28H, Tubeless Ready (TLR) |
| Tires | Maxxis Rekon Race 2.40" WT, 120 TPI, Exo, TLR |
| Saddle | Selle Italia Model X Greentech |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Seatpost Lever | (Integrated into OC Squidlock MP11 remote) |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 575mm | 598mm | 623mm | 650mm |
| Head Tube Angle | 67° | 67° | 67° | 67° |
| Head Tube Length | 90mm | 90mm | 100mm | 115mm |
| Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Seat Tube Length | 405mm | 432mm | 460mm | 510mm |
| Bottom Bracket Height | 333mm (42mm drop) | 333mm (42mm drop) | 333mm (42mm drop) | 333mm (42mm drop) |
| Chainstay Length | 432mm | 432mm | 432mm | 432mm |
| Wheelbase | 1138mm | 1163mm | 1189mm | 1219mm |
| Standover | 731mm | 741mm | 741mm | 750mm |
| Reach | 425mm | 450mm | 472mm | 496mm |
| Stack | 596mm | 596mm | 606mm | 619mm |
| Additional Info |
|
|||
