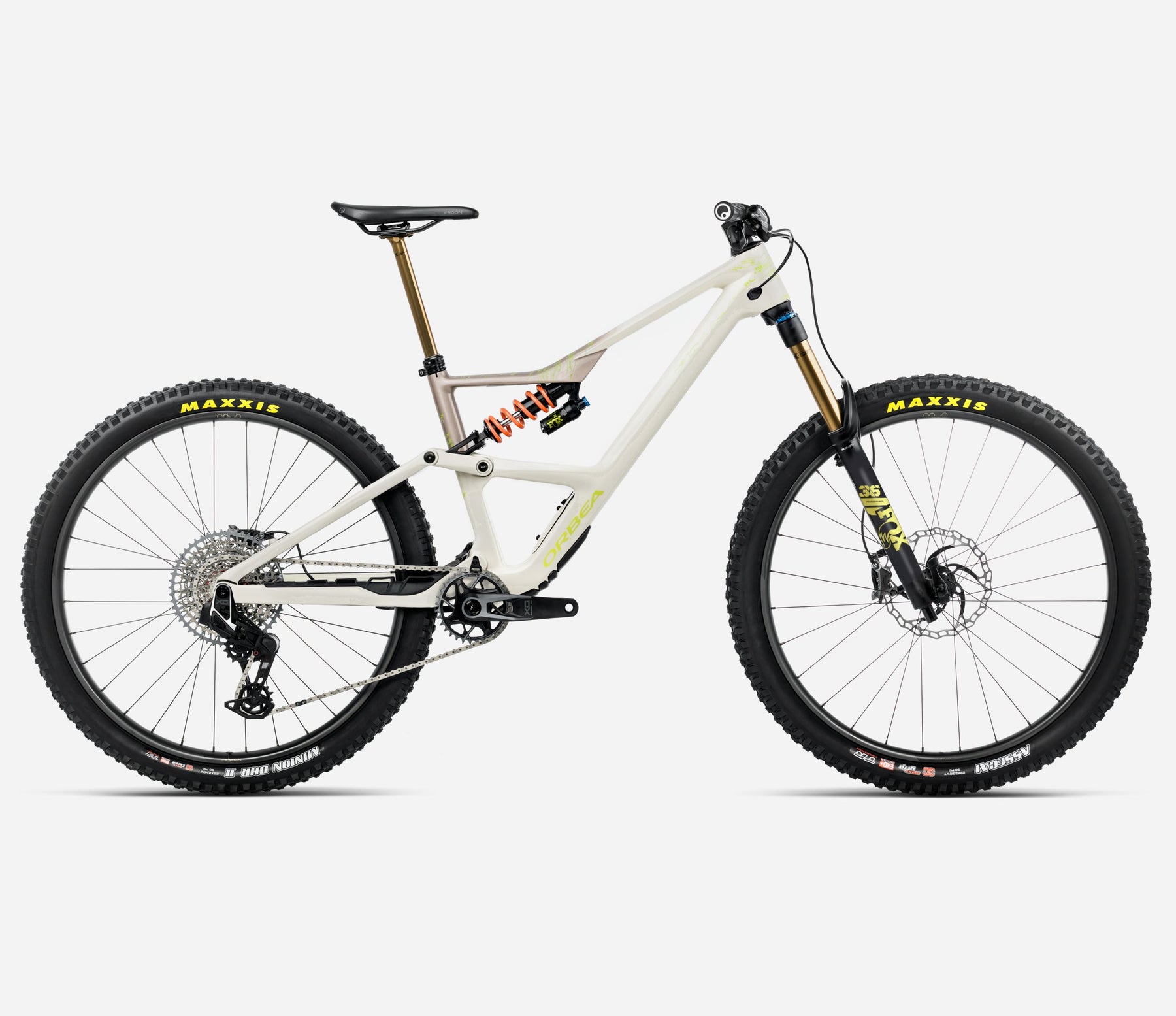

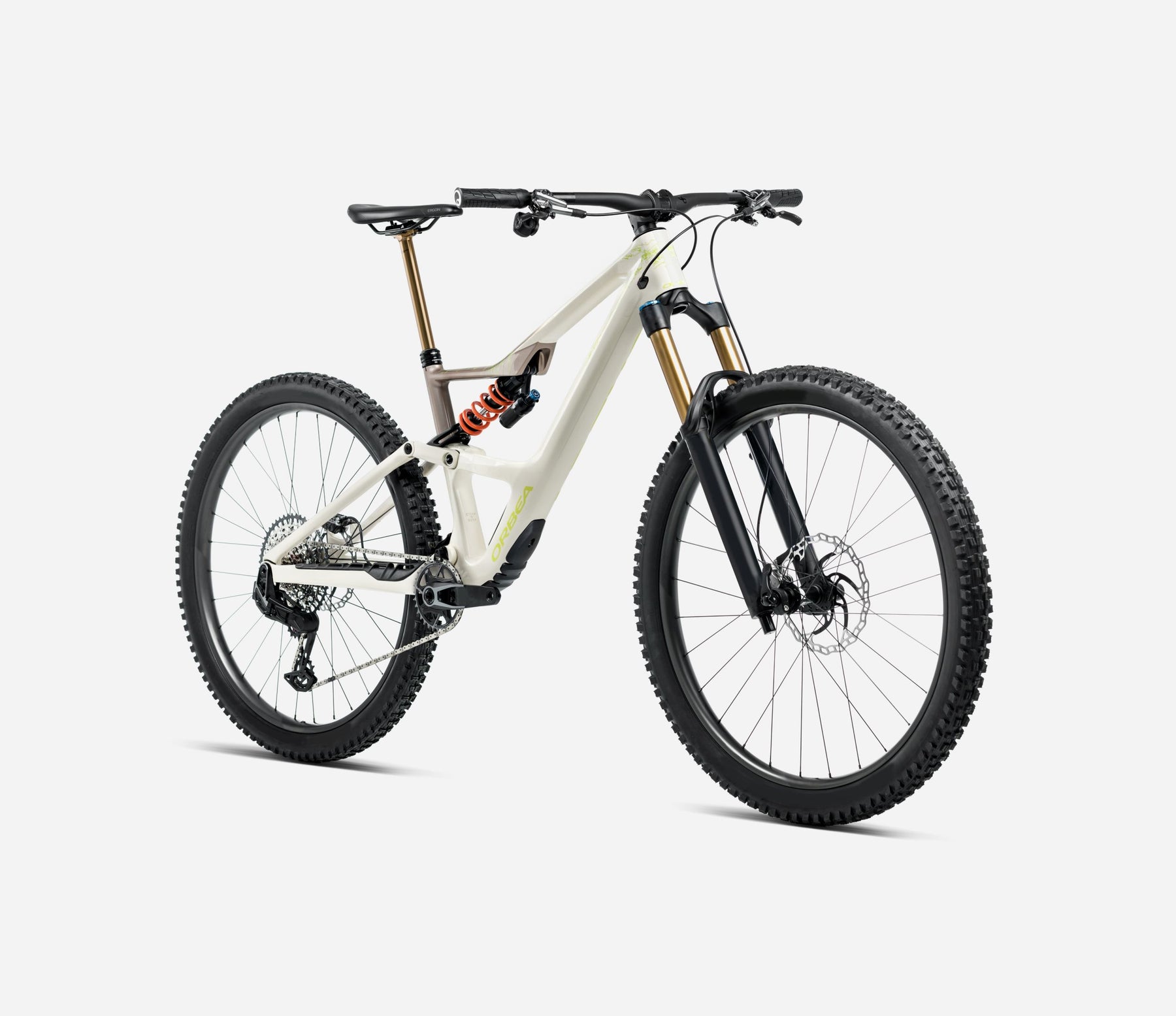

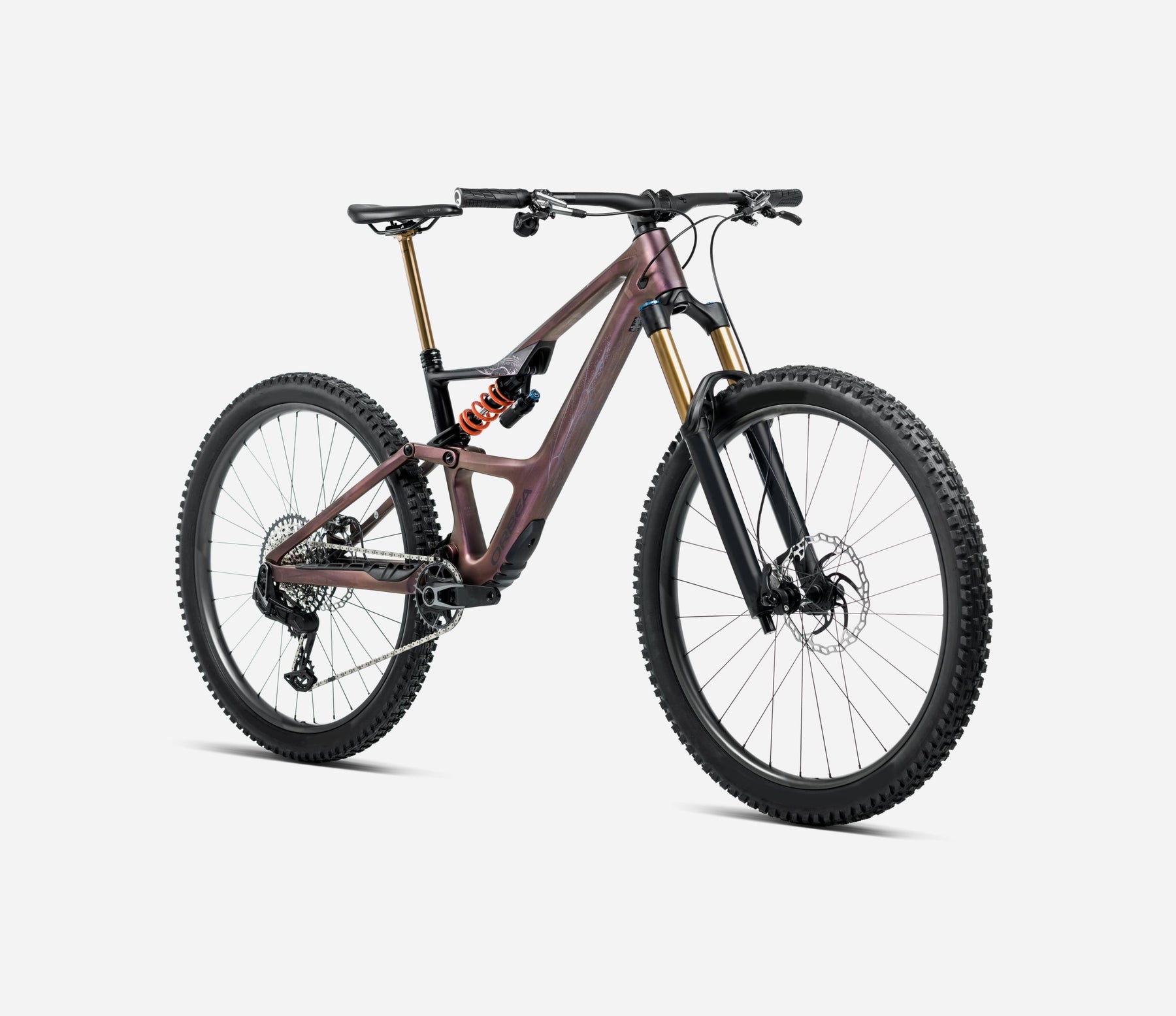

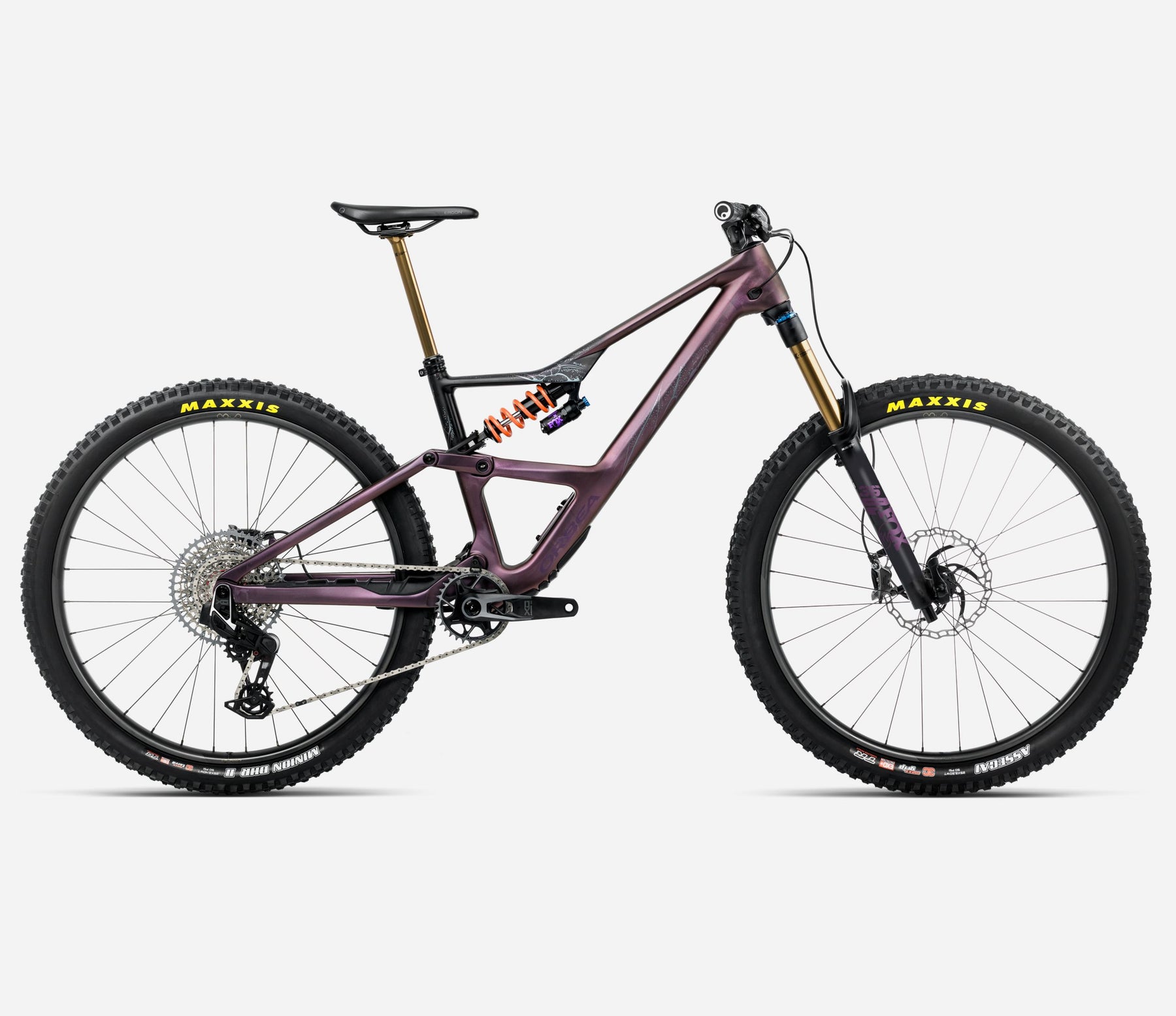

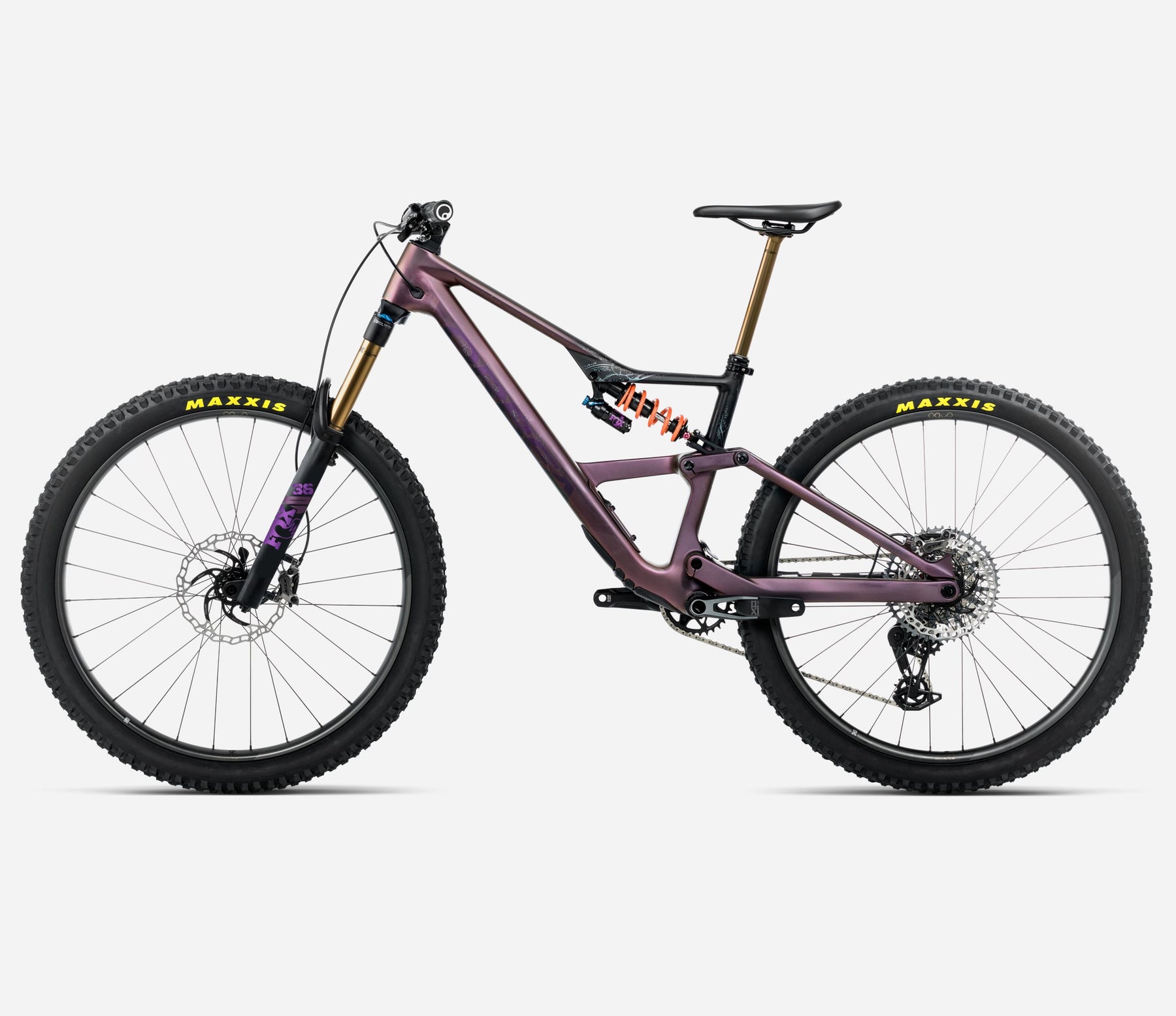

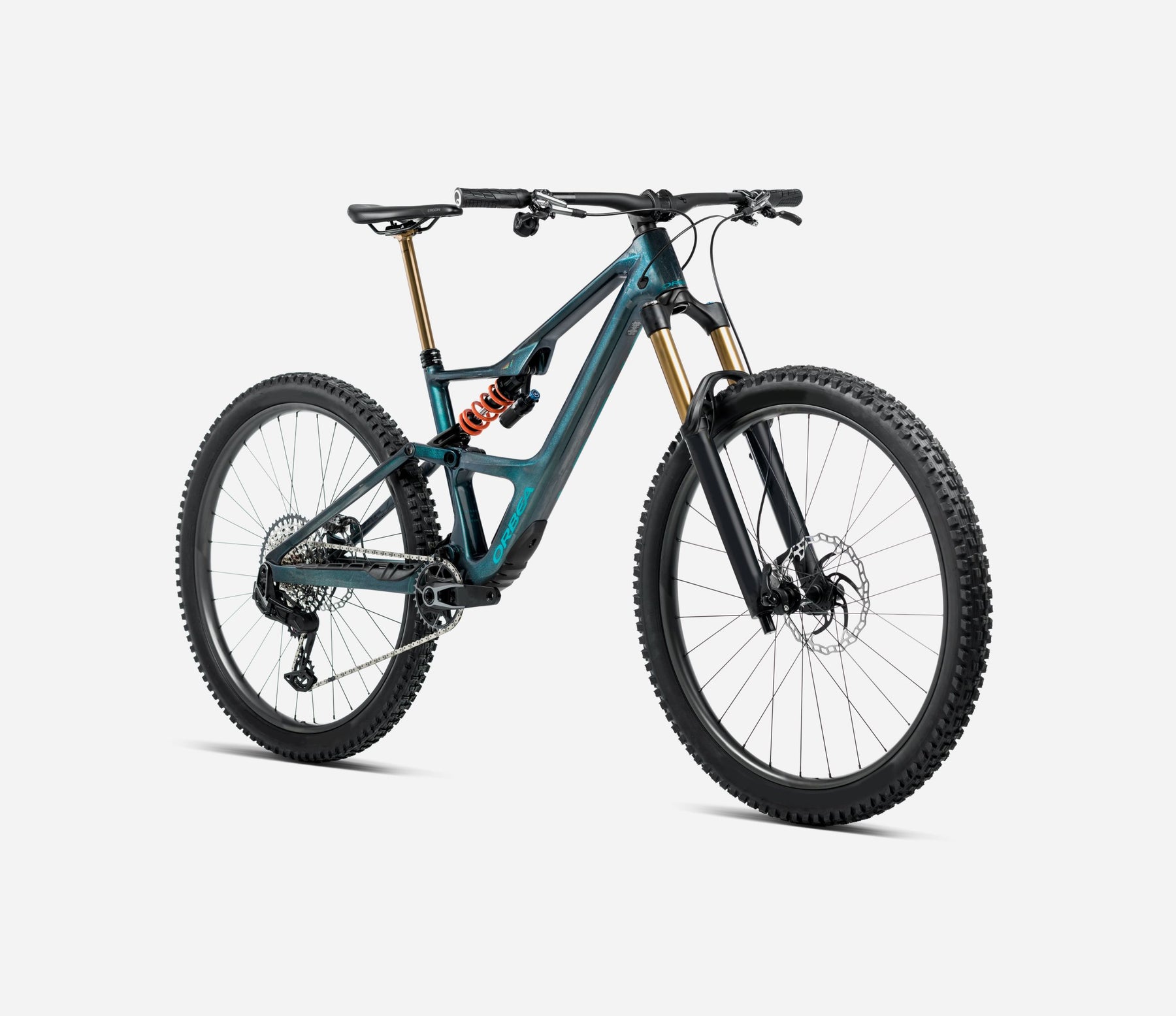

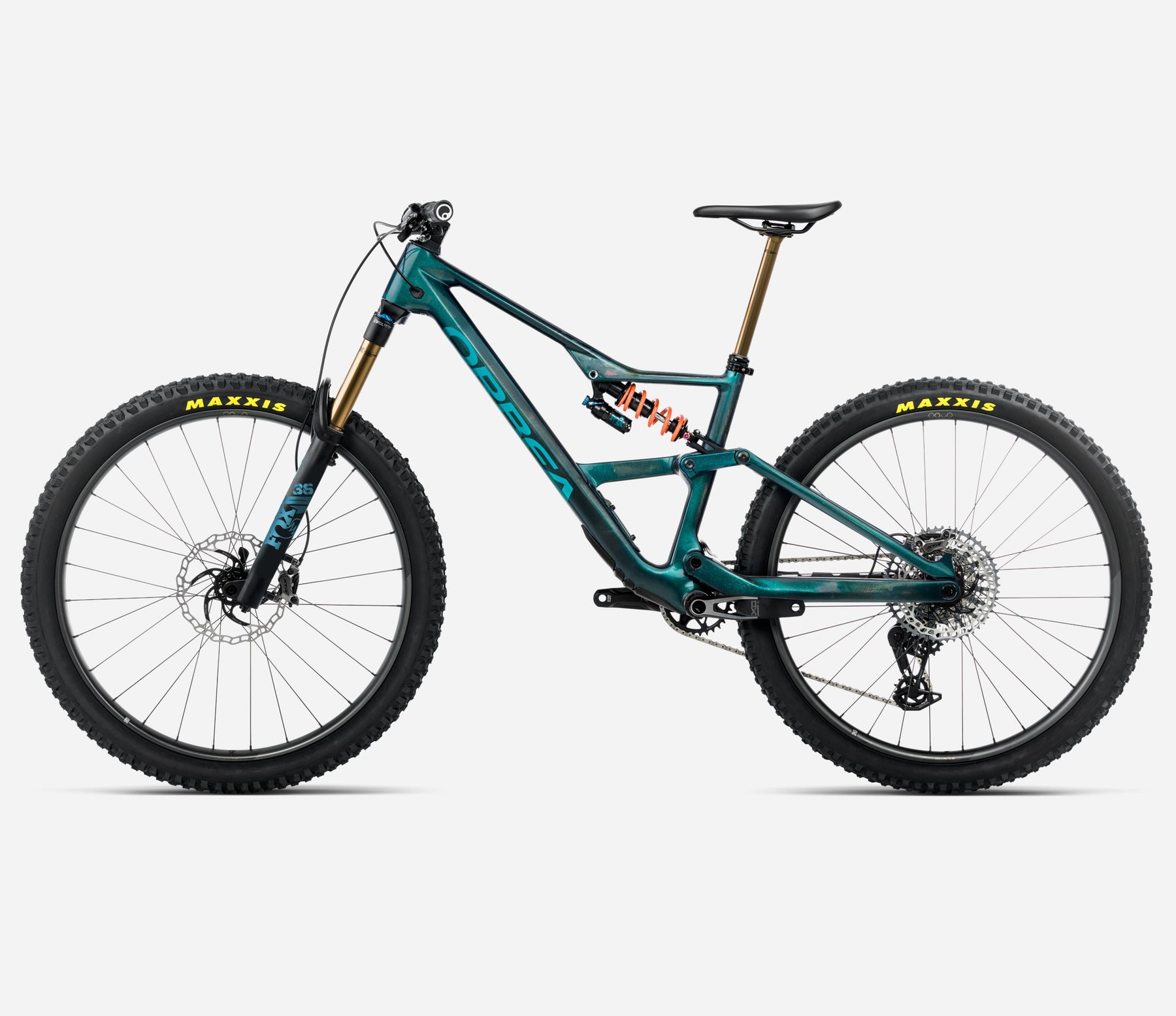

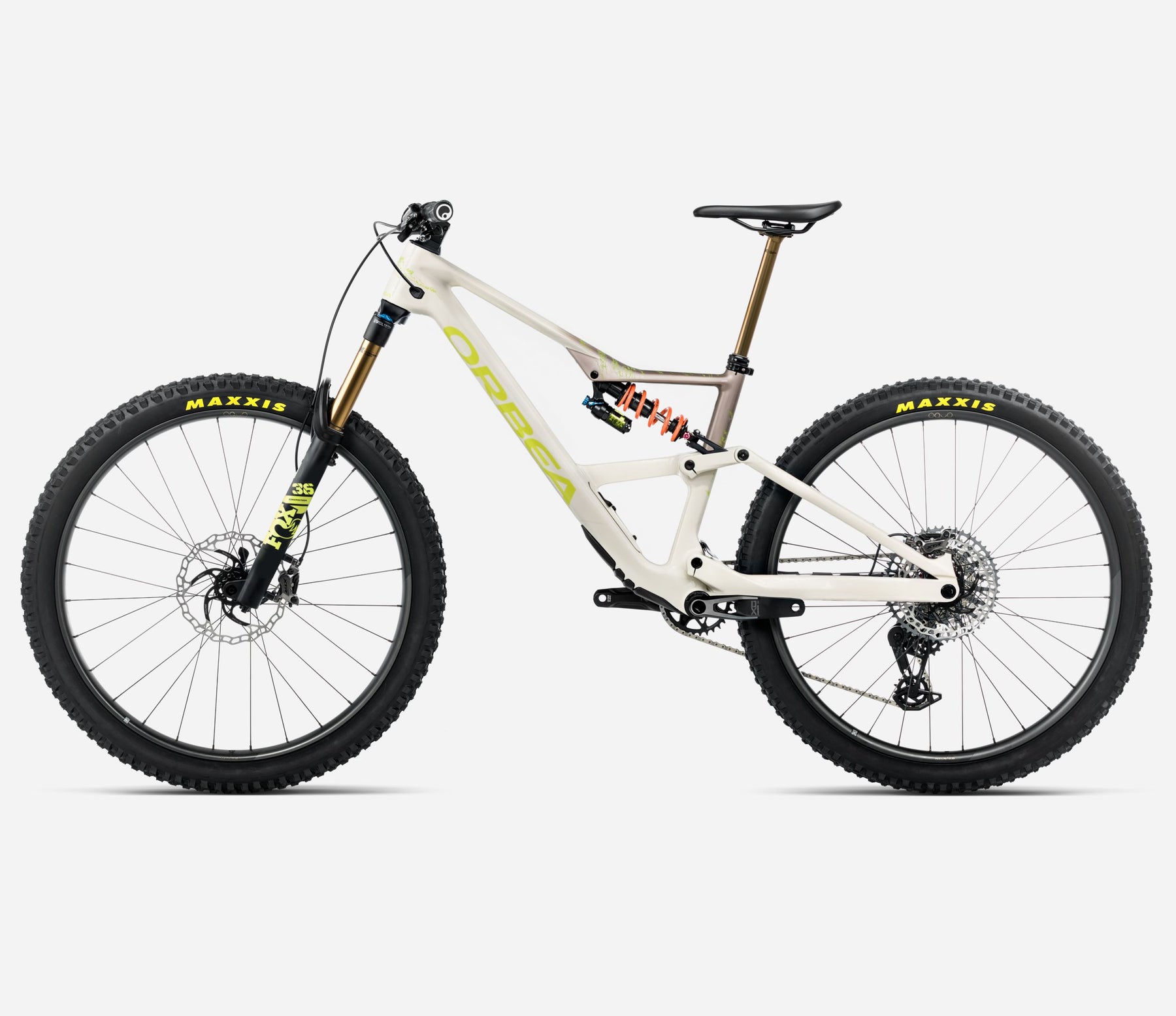

Name: 2026 Orbea Occam LT M-Team Bike
Brand: Orbea
Price: 7399.0 USD
Availability: InStock

$8,199.00 $7,399.00 Save $800.00

Shipping calculated at checkout.

Free Domestic shipping

Low stock - 2 items left
Backordered, shipping soon

Key Features

Orbea Occam OMR Carbon frame, featuring an Asymmetric design and Pure Trail geometry.
Top-tier FOX Factory Suspension: Includes the 36 Float Fork (160mm, Grip X, Kashima) and DHX Factory Coil Shock for maximum gravity control.
Flawless shifting with the SRAM X0 Eagle AXS 12-speed electronic wireless drivetrain and SRAM AXS Pod controller.
Powerful Shimano XT 8220 4-piston Hydraulic Disc Brakes with a 203mm front rotor for consistent stopping performance.
High-end Oquo Mountain Control MC32LTD Carbon wheelset.
Aggressive Maxxis tire pairing: Assegai (front, MaxxGrip) and Minion DHR II (rear, MaxxTerra Exo+).
Quick Flip chip allows for adjustment between 64.0° (Low) and 64.5° (High) head tube angles.
Includes integrated internal storage (Accessories Containers) and an MT-20 FLP Multitool.
Features a premium OC Mountain Control MC10 Carbon handlebar and OC Dropper Seatpost.

Full Specifications

Product	Orbea Occam
Frame	Orbea Occam OMR Carbon, Concentric Boost 12x148 rear axle, Asymmetric design, 29" wheels
Rear Shock	Fox DHX Factory 2-Pos Adjust custom tune 210x55mm (Coil)
Fork	Fox 36 Float Factory 160, Grip X damper, QR15x110, Kashima coating
Fork Travel	160mm
Head Tube Diameter	1-1/2" (Steerer tube: Alloy, Black Oxidated Bearing)
Headset	Alloy, oxidated bearings (Included with frame/steerer)
Handlebar	OC Mountain Control MC10 Carbon, Rise 20, Width 800mm
Stem	OC Mountain Control MC11 Alu SL, 0º
Grips	Ergon GE10
Brakes	Shimano XT 8220 Hydraulic Disc (4-piston)
Rotors	Galfer Wave Rotors, 203mm front / 180mm rear
Drivetrain	1x
Shifters	SRAM AXS Pod, 12-speed wireless
Rear Derailleur	SRAM X0 Eagle AXS, 12-speed wireless
Crankset	SRAM X0 Eagle DUB Black, 32 tooth
Bottom Bracket	SRAM DUB (Assumed from crankset)
Chain	SRAM GX Eagle, 12-Speed
Cassette	SRAM GX-1275 Eagle, 10-52t, 12-Speed
Chainguide	e*thirteen Plus Bosch CX Gen4 CL 55 32-36t (Note: This chainguide model is typically for Bosch eBikes, may vary for non-eBike)
Wheels	Oquo Mountain Control MC32LTD (Carbon)
Front Tire	Maxxis Assegai 2.50", 60TPI, 3CG/EXO+/TR, MaxxGrip
Rear Tire	Maxxis Minion DHR II 2.40" WT FB, 120 TPI, 3C MaxxTerra Exo+ TR
Saddle	Ergon SM Enduro Comp Men S/M
Seatpost	OC Mountain Control MC10, 31.6mm, Dropper
Seatpost Lever	Shimano SL-MT500 I-Spec EV
Rear Dropout / Hub Dimensions	12mm x 148mm (Concentric Boost)
Cable routing	External Cable Routing (as listed, though frame supports Internal)
Tools / Storage	MT-20 FLP Multitool (2/3/4/5mm hex) + Accessories Containers for internal storage

Geometry

Size (Setting)	SM (High, Low)	MD (High, Low)	LG (High, Low)	XL (High, Low)
Top Tube Length	571mm, 572mm	597mm, 598mm	624mm, 625mm	651mm, 653mm
Head Tube Angle	64.5°, 64.0°	64.5°, 64.0°	64.5°, 64.0°	64.5°, 64.0°
Head Tube Length	95mm	100mm	110mm	120mm
Seat Tube Angle	77.5°, 77.0°	77.5°, 77.0°	77.5°, 77.0°	77.5°, 77.0°
Seat Tube Length	405mm	415mm	430mm	460mm
Bottom Bracket Height	350mm (28mm drop), 342mm (36mm drop)	350mm (28mm drop), 342mm (36mm drop)	350mm (28mm drop), 342mm (36mm drop)	350mm (28mm drop), 342mm (36mm drop)
Chainstay Length	440mm	440mm	440mm	440mm
Wheelbase	1199mm, 1200mm	1226mm, 1227mm	1255mm, 1257mm	1285mm, 1286mm
Reach	435mm, 430mm	460mm, 455mm	485mm, 480mm	510mm, 505mm
Stack	616mm, 621mm	621mm, 625mm	630mm, 635mm	639mm, 644mm
Additional Info	Geometry is adjustable via Quick Flip chip at rear shock extension. The Low setting provides a slacker head angle (64.0°) and lower bottom bracket (36mm drop) for gravity riding. The High setting steepens the angles (64.5° HTA) and raises the BB (28mm drop) for better climbing and general trail use. All specifications listed are with 160mm travel fork with 575mm axle-to-crown length and 44mm offset.
