Name: 2026 Orbea KEMEN TOUR 20 20mph
Brand: Orbea
SKU: T66605W7
Price: 3985.0 USD
Availability: OutOfStock

$3,988.95 $3,985.00 Save $3.95

Shipping calculated at checkout.

Free Domestic Shipping On Orders Over $100

Low stock - 5 items left
Backordered, shipping soon

Add To Cart For Final Price

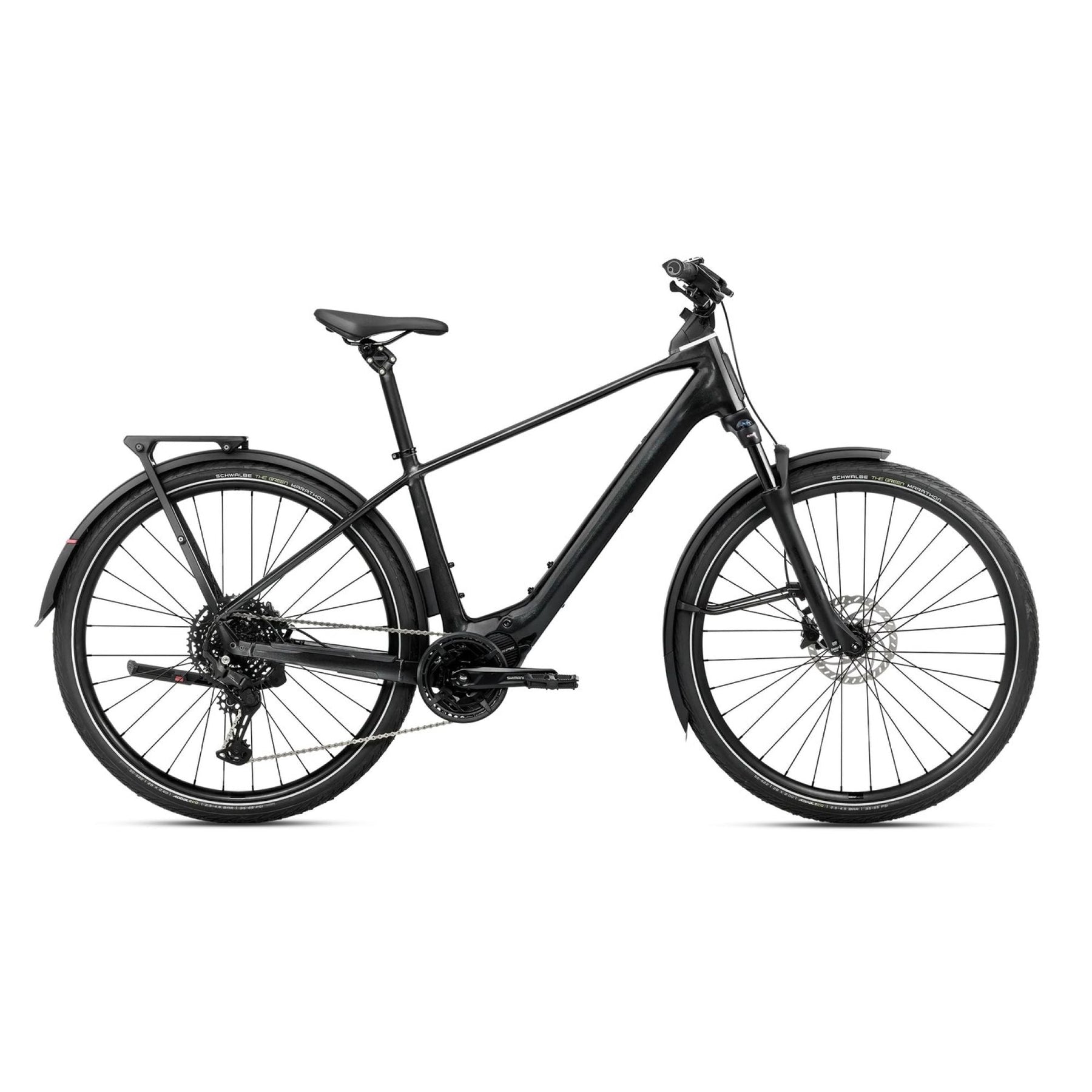

KEMEN TOUR 20 20mph

Urban & Active

Description Key Features Specifications

The KEMEN TOUR 20 20mph is Orbea's versatile performance bike — equally at home on extended tours or daily commutes.

Hydroformed Frame: Triple-butted aluminum construction with optimized strength-to-weight
Quality Components: Selected drivetrain and braking components for reliable performance
Thru-Axle Wheels: Stiff, precise wheel alignment
Hydraulic Disc Brakes: Consistent stopping in all conditions
Tubeless-Ready: Run lower tyre pressures for comfort and flat protection
Fork: SR Suntour NX1 80mm Air Q15x110
Wheels: Alloy, 26c, 32H
Tyres: Schwalbe Marathon, 50-622, Reflective Tape
Brakes: Magura AT2 Hydraulic Disc Easy Route Connection
Rear Derailleur: Shimano Cues U6000 GS Shadow
Cassette: Shimano CS-LG300 11-48t 10-Speed
Motor: Shimano EP600
Battery: Orbea Internal 630Wh

The KEMEN TOUR 20 20mph features a complete component spec from trusted brands — built to perform, day after day.

Hydroformed Aluminum Frame

Triple-butted tubing with shaped profiles — thins where stress is low, thickens where it matters. Lighter, stronger, and more compliant than standard tubing.

Quality Fork

SR Suntour NX1 80mm Air Q15x110

Pedal-Assist Motor

Integrated motor system delivers natural-feeling assistance — more power when you need it, seamless transition back to human power when you don't.

Alloy Wheels

Tubeless-ready alloy rims paired with quality thru-axle hubs — stiff, durable, and ready to accept lower tyre pressures for better traction.

Hydraulic Disc Brakes

Powerful, consistent stopping in all conditions — no levers to squeeze hard, just reliable control when you need it.

Frame & Fork

Frame

Orbea Kemen Top Bar Hydro High Polished 2026, 148x12, Belt drive compatible, Headset Routing, Orbea Urban Cockpit and equipment compatible, lock mount, kickstand mount.

Fork

SR Suntour NX1 80mm Air Q15x110

Headset

FSA 1-1/2" Integrated Aluminium Cup

Drivetrain

Rear Derailleur

Shimano Cues U6000 GS Shadow

Shifters

Shimano Cues SL-U6000

Cassette

Shimano CS-LG300 11-48t 10-Speed

Chain

KMC eGlide

Pedals

VP-892 Black with reflectors

Brakes

Magura AT2 Hydraulic Disc Easy Route Connection

Wheels & Tyres

Wheels

Alloy, 26c, 32H

Tyres

Schwalbe Marathon, 50-622, Reflective Tape

Cockpit

Handlebar

Orbea Urban, Integrated Light, Rise 50, Width 720

Seatpost & Saddle

Seatpost

Alloy, 31.6mm, Setback 0, suspension

Saddle

Selle Royal Vivo Ergo

E-Bike System

Motor

Shimano EP600

Battery

Orbea Internal 630Wh

Display

Shimano EN500

Charger

Orbea 2.Generation eBike Smart charger 42V/2-4A

Storage & Extras

Front light

Supernova Starstream Pure, Low Beam

Rear light

Orbea Fender integrated, with alert light

Bell

Knog OI Classic

Mudguard

Curana Apollo Orbit 60mm

Quick stand

Massload rear adjustable

Rear carrier

Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
