2026 Orbea GAIN M30i 20mph
2026 Orbea GAIN M30i 20mph
2026 Orbea GAIN M30i 20mph
2026 Orbea GAIN M30i 20mph
Orbea

2026 Orbea GAIN M30i 20mph

$6,718.95 $6,715.00 Save $3.95
/
Shipping calculated at checkout.
Color
Size
  • Free Domestic Shipping On Orders Over $100
  • Low stock - 1 item left
  • Backordered, shipping soon
  • Add To Cart For Final Price

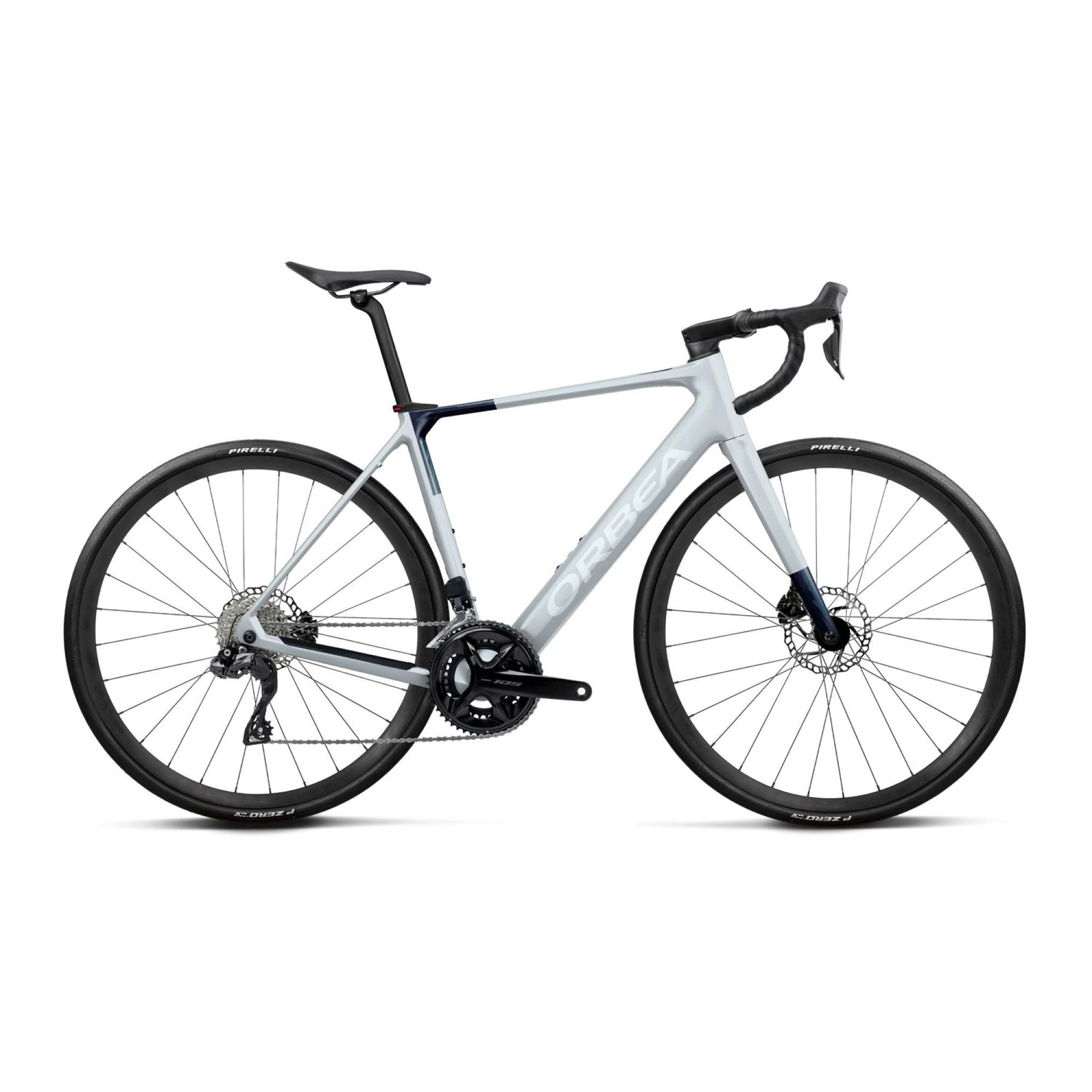

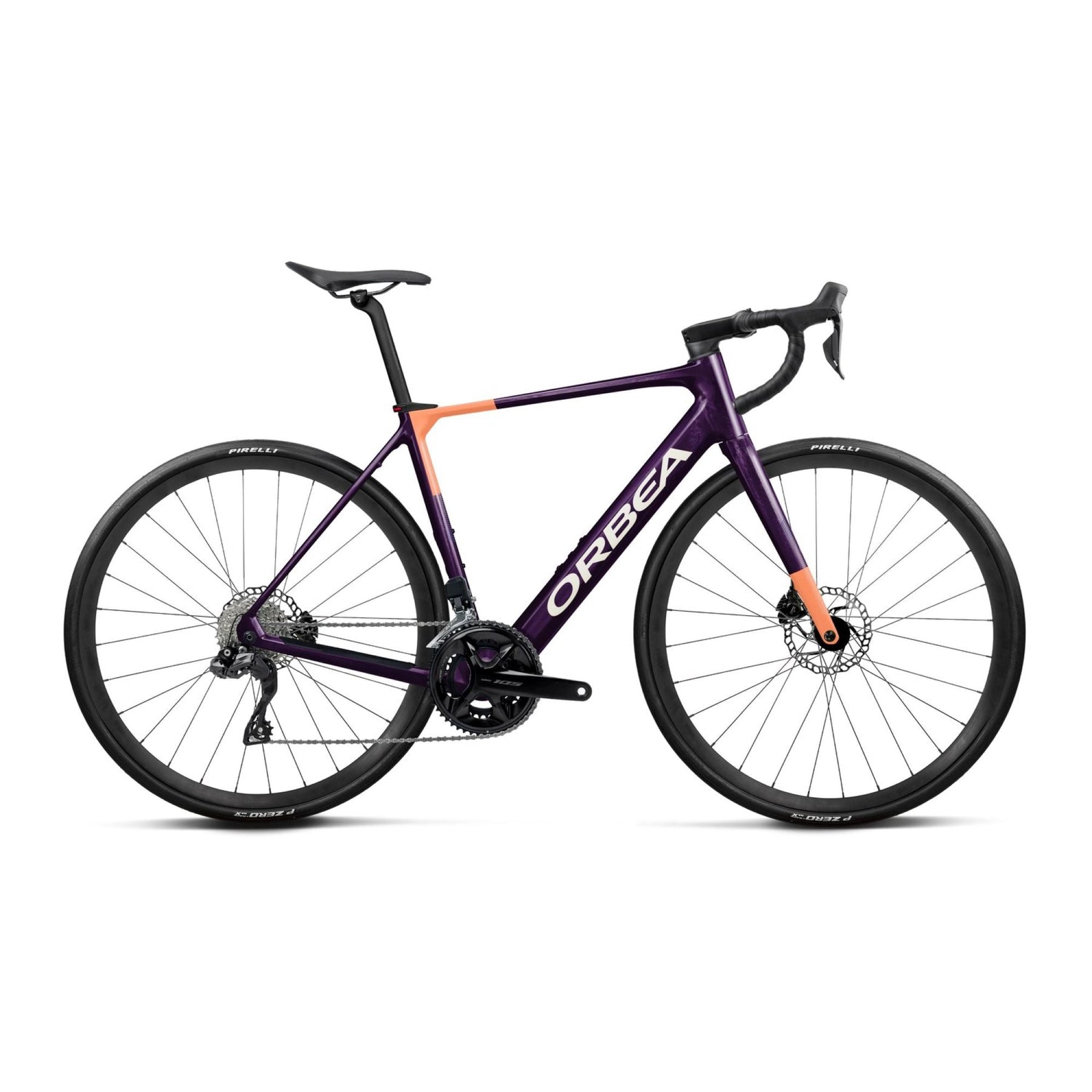

GAIN M30i 20mph
GAIN M30i 20mph
Road

The GAIN M30i 20mph is Orbea's endurance road bike — built for all-day comfort on rough roads without giving up the efficiency of a proper race machine.

  • Endurance Geometry: Slightly taller head tube and longer wheelbase for all-day comfort
  • Triple-Butted Frame: Hydroformed aluminum with optimized wall thickness for compliance
  • Full Carbon Fork: Absorbs road chatter while maintaining precise steering
  • Thru-Axle Wheels: Stiff, precise wheel alignment front and rear
  • Hydraulic Disc Brakes: Powerful, consistent stopping in any weather
  • Crankset: Shimano 105 R7100 34x50t
  • Wheels: Alloy, Tubeless, 700c, 21c
  • Tyres: Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
  • Brakes: Shimano R7170 Hydraulic Disc
  • Rear Derailleur: Shimano 105 Di2 R7150
  • Front Derailleur: Shimano 105 Di2 R7150
  • Cassette: Shimano 105 R7100 11-34t 12-Speed
  • Motor: Mahle motor hub X20, ALC
  • Battery: Mahle iX350 36V 353Wh

The GAIN M30i 20mph features a complete component spec from trusted brands — built to perform, day after day.

Hydroformed Aluminum Frame
Triple-butted tubing with shaped profiles — thins where stress is low, thickens where it matters. Lighter, stronger, and more compliant than standard tubing.
Full Carbon Fork
1-1/8" to 1.5" tapered steerer with thru-axle — pairs with the frame to absorb bumps while maintaining precise steering.
Pedal-Assist Motor
Integrated motor system delivers natural-feeling assistance — more power when you need it, seamless transition back to human power when you don't.
Alloy Wheels
Tubeless-ready alloy rims paired with quality thru-axle hubs — stiff, durable, and ready to accept lower tyre pressures for better traction.
Hydraulic Disc Brakes
Powerful, consistent stopping in all conditions — no levers to squeeze hard, just reliable control when you need it.
Frame & Fork
Frame
Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Fork
Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Headset
FSA 1-1/2" Integrated Aluminium Cup
Drivetrain
Front Derailleur
Shimano 105 Di2 R7150
Rear Derailleur
Shimano 105 Di2 R7150
Shifters
Shimano Di2 R7170
Cassette
Shimano 105 R7100 11-34t 12-Speed
Chain
Shimano M6100
Crankset
Shimano 105 R7100 34x50t
Brakes
Brakes
Shimano R7170 Hydraulic Disc
Wheels & Tyres
Wheels
Alloy, Tubeless, 700c, 21c
Rear Hub
Orbea Thru Axle 12x142mm M12x2 P1 Lite
Front Hub
Orbea Thru Axle 12x100mm M12x2 P1 Lite
Tyres
Pirelli P ZERO™ Race X SmartEVO TLR 700x30c
Cockpit
Stem
OC Road Performance RP10, -8º
Handlebar
OC Road Performance RP21 Alu SL, Reach 80, Drop 125
Handlebar Plugs
Orbea Anti-Slippery/Shock Proof
Seatpost & Saddle
Seatpost
OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle
Fizik Aliante R5
E-Bike System
Motor
Mahle motor hub X20, ALC
Battery
Mahle iX350 36V 353Wh
Display
Mahle Pulsar One monochrome ANT+ LEV
Charger
Mahle Active Charger up to 4A
Remote1
Mahle ONE Head Unit (BT/ANT+)
Storage & Extras
Front light
Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.
Rear light
Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
