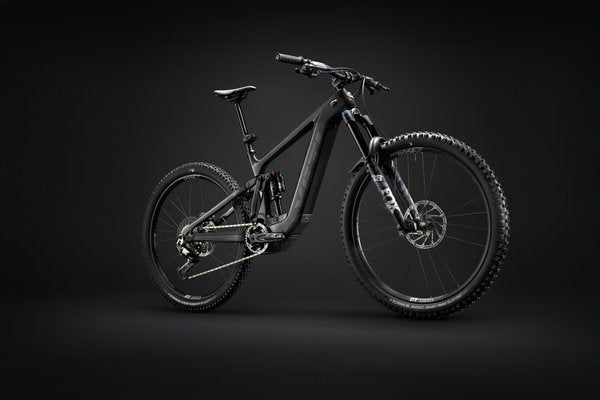

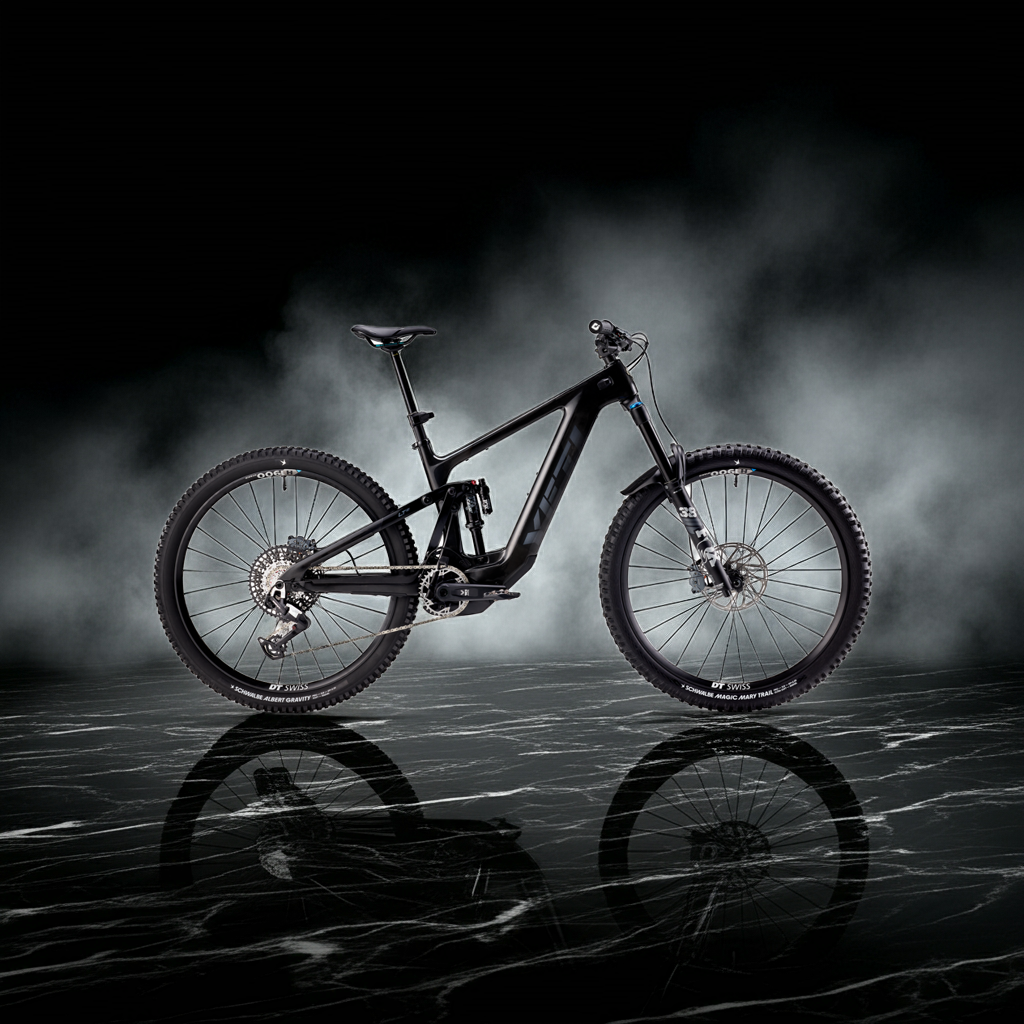

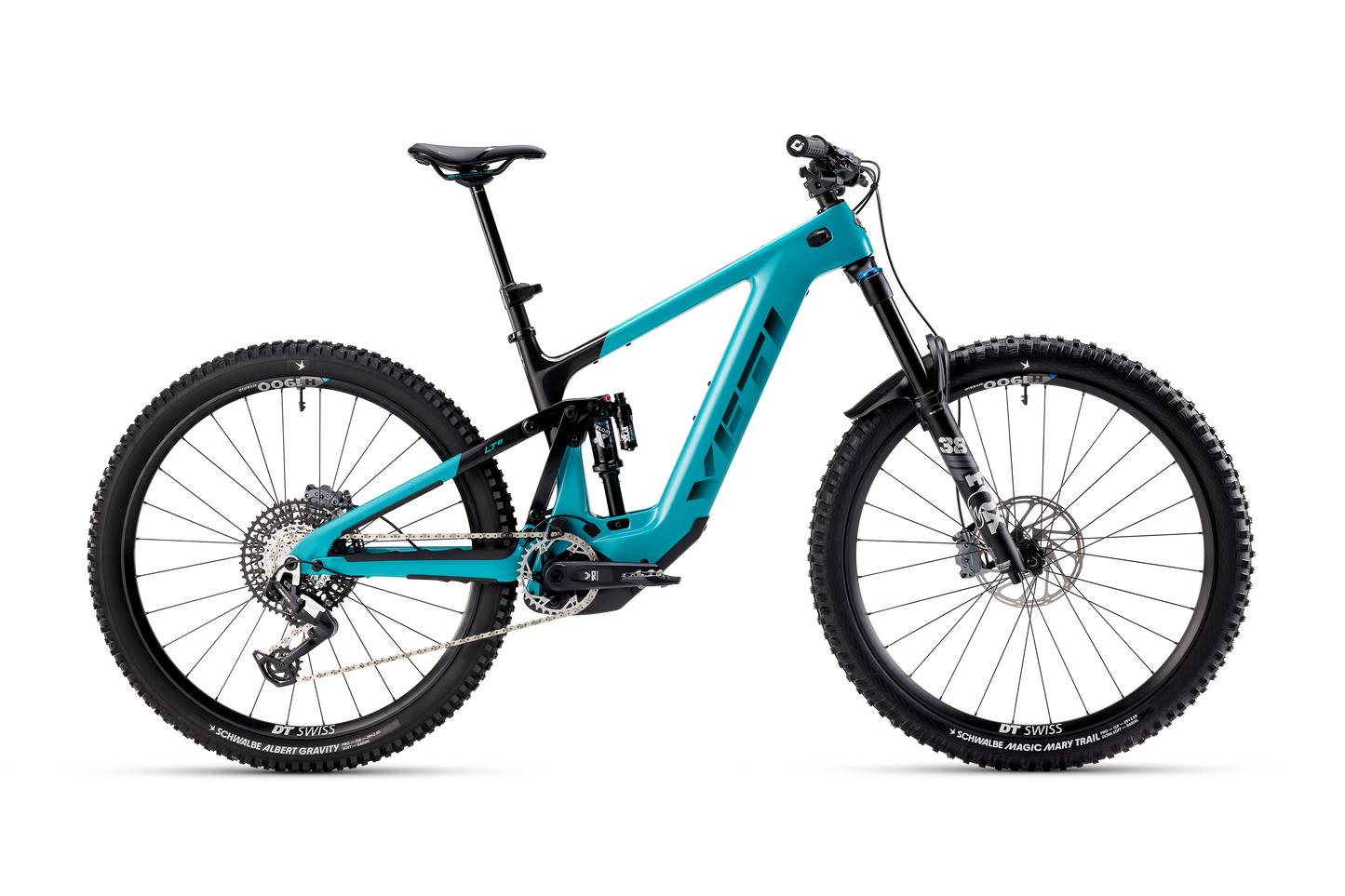

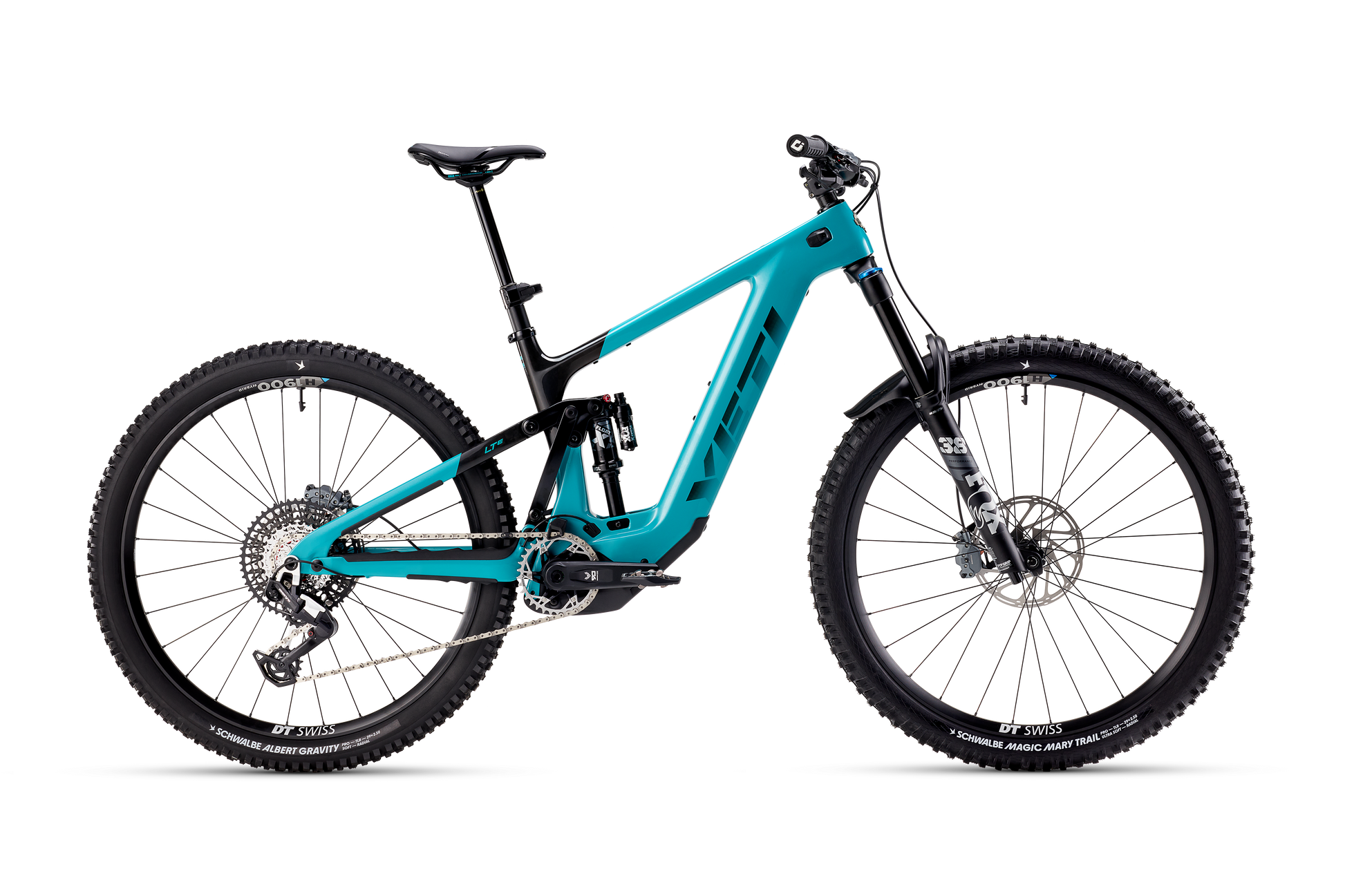

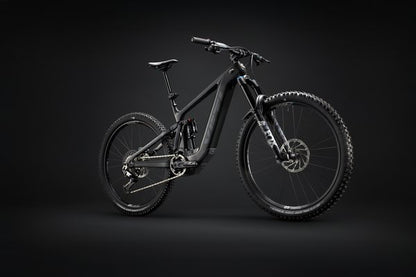

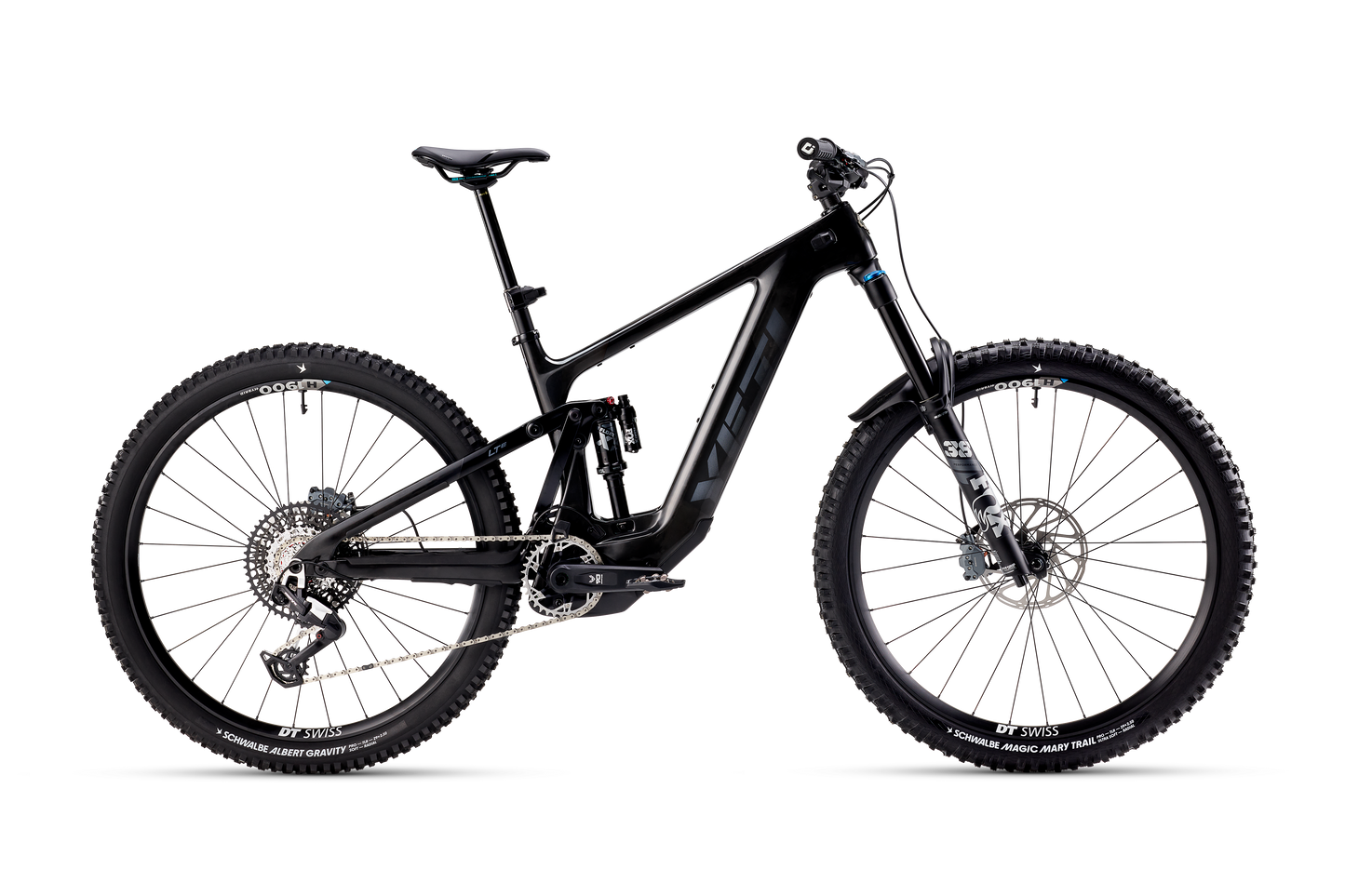

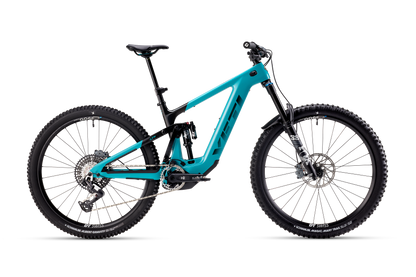

2026 Yeti LTe C2 E90 Transmission E-Bike

2026 Yeti LTe C2 E90 Transmission E-Bike

$10,300.00
$10,300.00
Sale Sold out
Shipping calculated at checkout.
  • Premium Component Quality
Color
Size
Animation Image

Free Shipping Over $50

Key Features

  • Bosch Performance Line CX BDU38 motor with 100 Nm max torque and 750 W max power
  • 800 Wh Bosch PowerTube battery with optional 250 Wh PowerMore range extender (compatible with MD-XL only)
  • FOX FLOAT X Performance rear shock and FOX FLOAT 38 Performance 170mm fork, both with essential damping features and 44mm offset
  • Carbon front and rear triangles with Vectran reinforcements and molded protection
  • SRAM Eagle 90 Transmission 12-speed drivetrain with custom integrated chainguide
  • DT Swiss H 1900 Alloy wheels with Schwalbe Magic Mary and Albert tires
  • RockShox Reverb AXS electronic wireless dropper seatpost with size-dependent travel
  • Sixfinity 6-bar linkage rear suspension with adjustable leverage rate via 3-position flip chip
  • Compatible with mixed (mullet) wheels via flip chips in upper linkage
  • Lifetime frame warranty with 1-year paint/finish warranty

Full Specifications

Product Yeti LTe C2 E90 Transmission E-Bike
Model Year 2026
Intended Use Enduro / All-Mountain
Freeride / Bike Park
Rider Unisex
Sizes and Geometry SM
MD
LG
XL
Wheel Size 29"
E-Bike Class Class 1: Pedal Assist (Pedelecs)

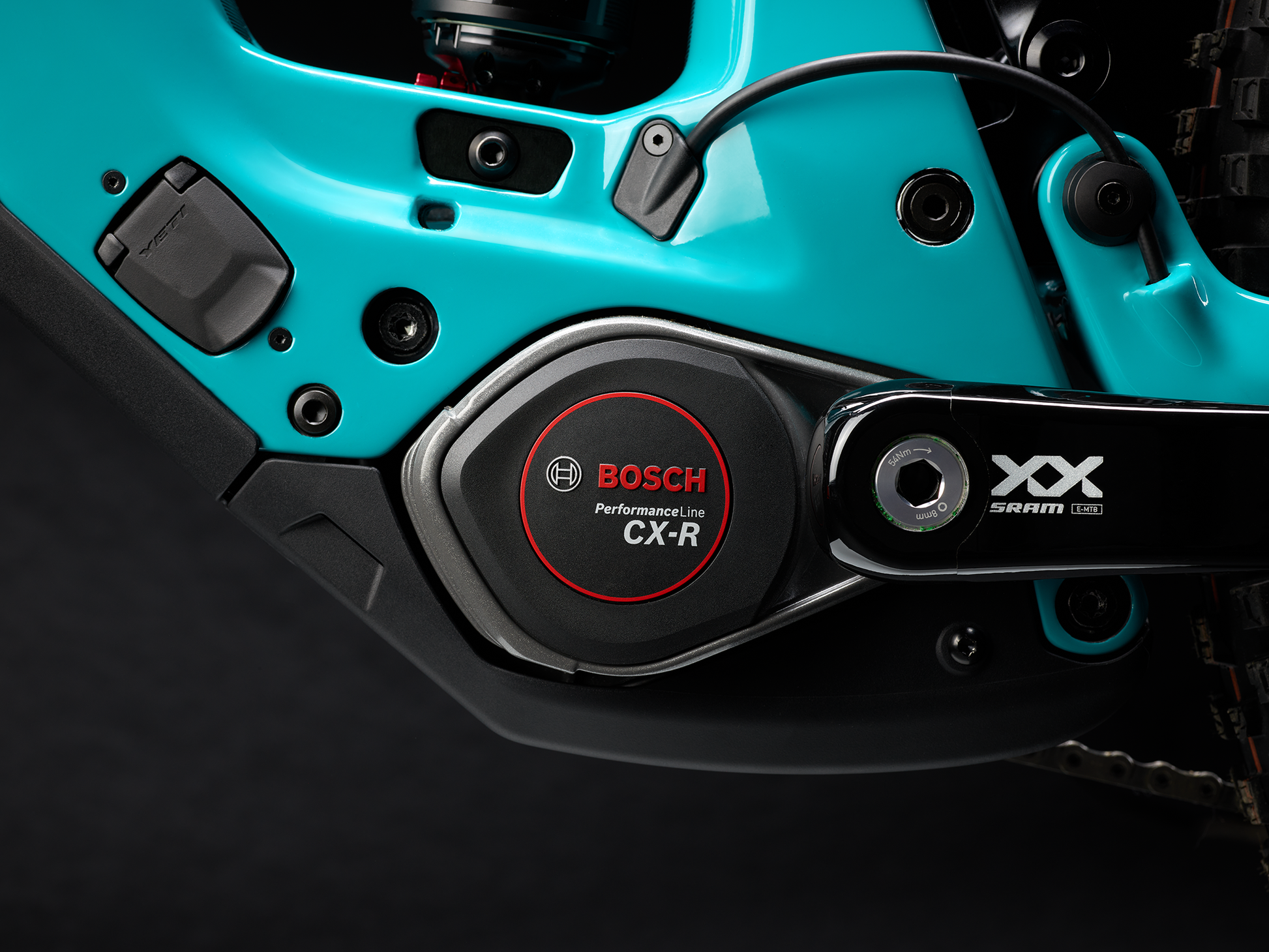

Motor Bosch Performance Line CX BDU38, 100 Nm max torque, 750 W max power
Battery Bosch PowerTube, integrated, removable
Option: Bosch PowerMore 250 Wh range extender (MD-XL only)
Battery Capacity 800 Wh
Display/Remote Bosch Kiox 400C full-color display, top tube integrated; Bosch wireless Mini Remote
Modes Turbo, eMTB, Tour+, Eco, Walk Assist
Max Speed with Assist USA/Canada/New Zealand: 20 mph (32.2 km/h)
Other: 15.5 mph (25 km/h)
Frame Material Carbon Fiber
Frame Material Details Carbon front and rear triangles, Vectran reinforcement plies in high-impact areas; molded chainstay and seatstay protection, lower down tube/motor protection/battery access door
Rear Travel 160mm
Rear Shock FOX FLOAT X Performance, trunnion mount
Fork FOX FLOAT 38 Performance, GRIP damper, 44mm offset
Fork Travel 170mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset Cane Creek 40, ZS44 upper, ZS56 lower
Handlebar Yeti Carbon, 800mm width, 35mm rise, 35mm clamp diameter
Stem Burgtec Enduro MK3, 50mm length, 35mm bar clamp
Grips ODI Elite Pro
Brakes SRAM Maven Bronze, 4-piston
Rotors: SRAM CenterLine, 200mm
Brake Levers SRAM Maven Bronze Stealth, tool-free reach adjust
Drivetrain 1x
Shifters SRAM Eagle 90 Transmission, 12-speed
Front Derailleur None
Rear Derailleur SRAM Eagle 90 Transmission, 12-speed
Chainguide Yeti custom integrated upper slider
Cranks SRAM Eagle 90 Transmission Alloy, 160mm length
Chainrings SRAM Eagle 90 Transmission, 34 tooth
Pedals None
Chain SRAM GX Eagle Transmission Flattop, 12-speed
Cassette SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth
Rims DT Swiss H 1900 Alloy, 30mm width
Hubs DT Swiss, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver
Spokes DT Swiss wheelset
Tires Front: Schwalbe Magic Mary Radial, Trail Pro casing, Ultra Soft compound, 29" x 2.5"
Rear: Schwalbe Albert Radial, Gravity Pro casing, Soft compound, 2.5"
Saddle WTB Solano, chromoly rails
Seatpost RockShox Reverb AXS dropper, electronic wireless
Drop: 150mm (SM), 175mm (MD), 200mm (LG/XL)
Seatpost Diameter 31.6mm
Seatpost Clamp Single bolt
Rear Dropout / Hub Dimensions 12mm x 148mm (Boost)
Bottle Cage Mounts One inside front triangle, plus accessory mounts under top tube

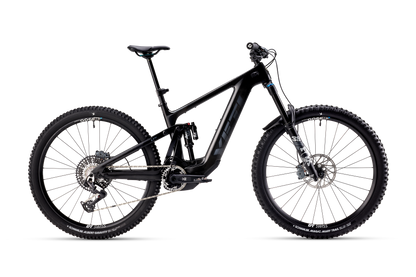

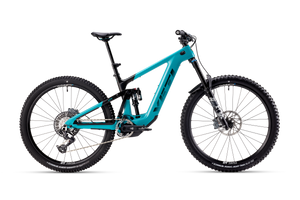

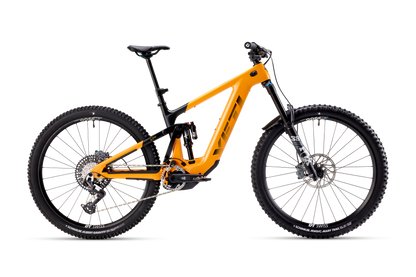

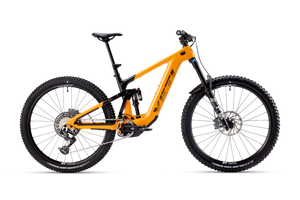

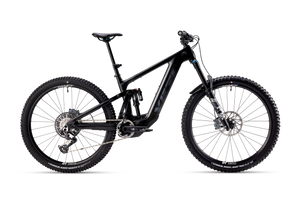

Colors Turquoise, Raw Carbon, Manjo
Warranty Lifetime frame, 1 year paint/finish
Weight 51 lb 12.9 oz (23,500 g)
Miscellaneous
  • Sixfinity 6-bar linkage rear suspension design
  • Rear suspension leverage rate adjustable via 3-position flip chip (25/30/35%)
  • Compatible with mixed ("Mullet") wheels (29" front, 27.5" rear) via flip chips in upper linkage
  • Internal cable routing with secure clamp closures and grommets
  • SRAM UDH (Universal Derailleur Hanger)
  • Integrated rear mudguard/fender
  • Power settings customizable via Bosch eBike Flow Mobile App
  • Includes Bosch 4A battery charger

Geometry

Size SM MD LG XL
Top Tube Length 566mm 598mm 620mm 647mm
Head Tube Angle 64° 64° 64° 64°
Head Tube Length 92mm 100mm 111mm 122mm
Seat Tube Angle 78° 78° 78° 78°
Seat Tube Length 390mm 420mm 440mm 460mm
Bottom Bracket Height 350mm 350mm 350mm 350mm
Chainstay Length 449mm 449mm 449mm 449mm
Wheelbase 1223mm 1257mm 1282mm 1312mm
Standover 754mm 765mm 765mm 765mm
Reach 435mm 465mm 485mm 510mm
Stack 618mm 625mm 635mm 645mm
Additional Info
  • Compatible with mixed ("Mullet") wheels (29" front, 27.5" rear) via flip chips in upper linkage
  • All specifications listed are with 170mm travel fork with 588mm axle-to-crown length and 44mm offset
  • Bottom bracket heights are listed as "estimated" by Yeti
