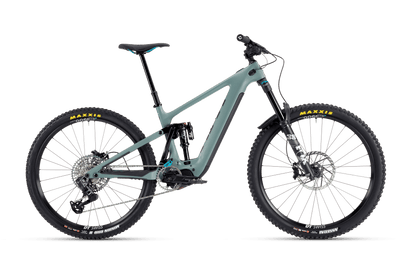

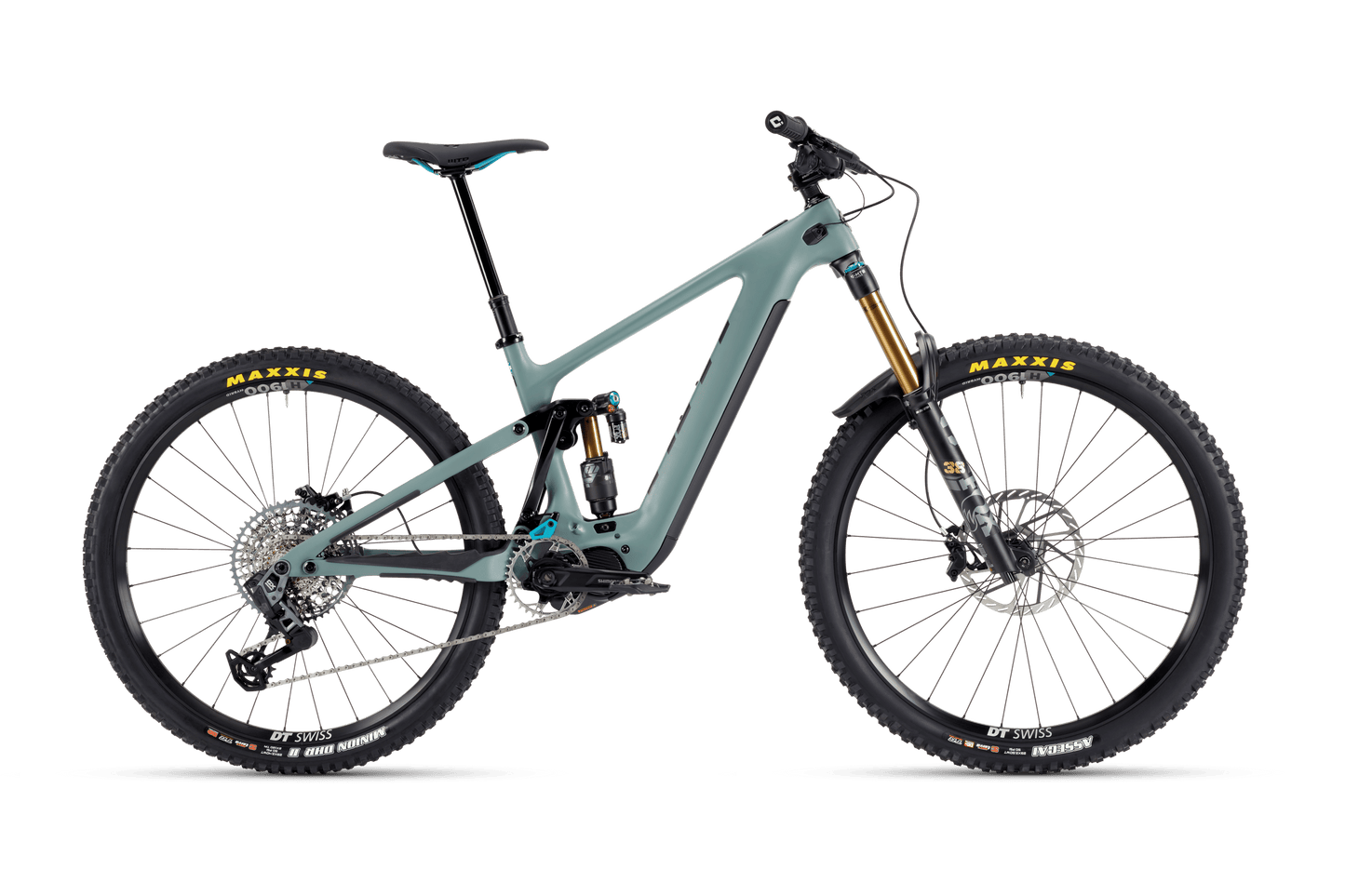

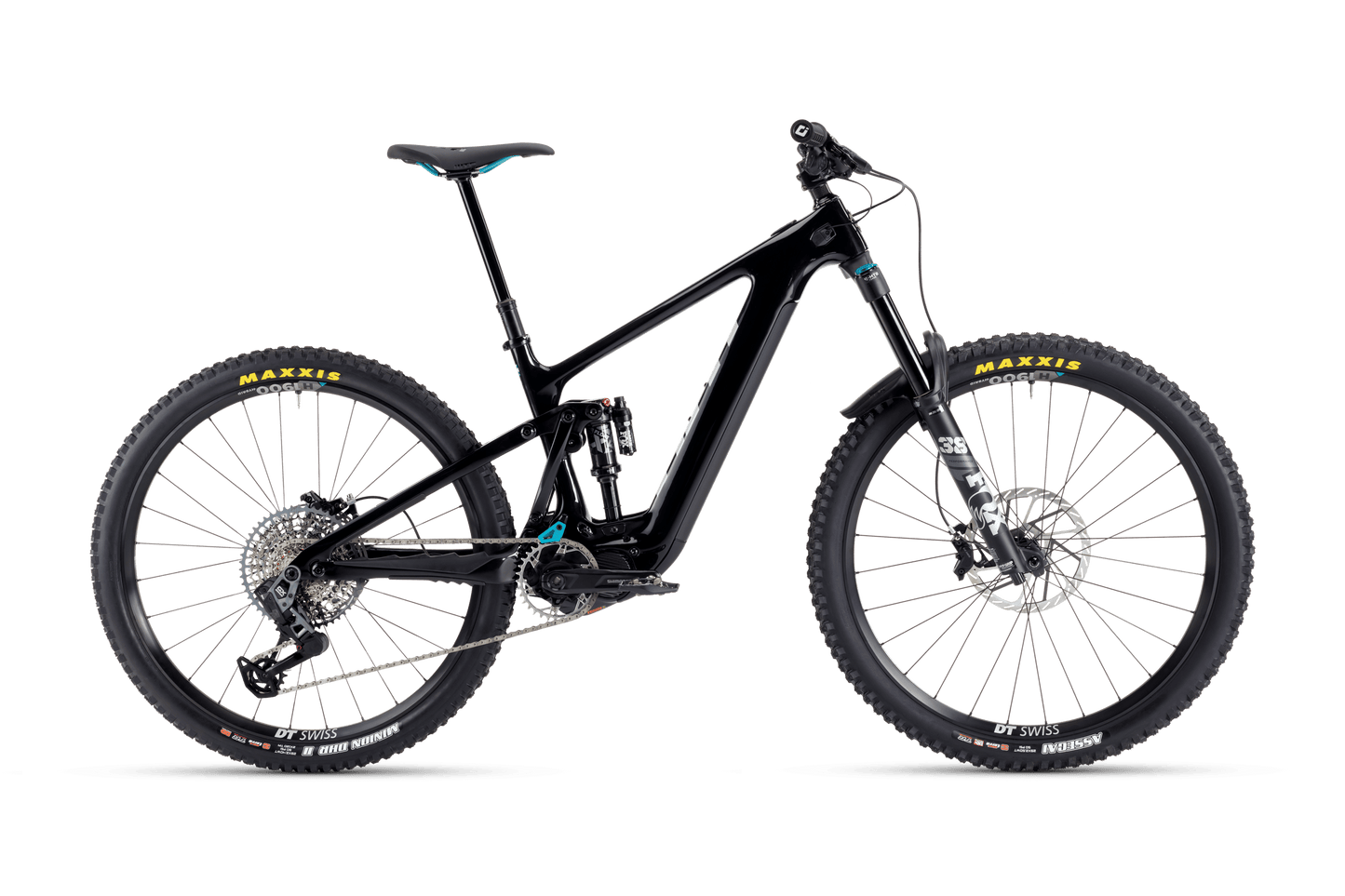

2025 Yeti Cycles 160E C3 GX Transmission E-Bike
2025 Yeti Cycles 160E C3 GX Transmission E-Bike
Premium Component Quality
Free Shipping Over $50
Couldn't load pickup availability
Key Features
- Shimano STEPS EP801 Motor and Shimano STEPS 630 Wh integrated, removable Battery
- Sixfinity 6-bar linkage rear suspension design with 160mm travel
- Adjustable rear suspension leverage rate (25%, 30%, or 35% progression) via flip chip

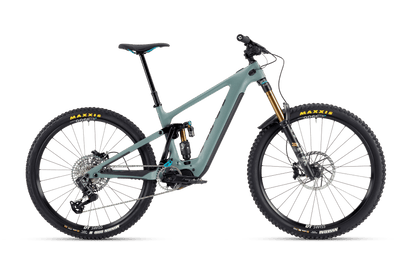

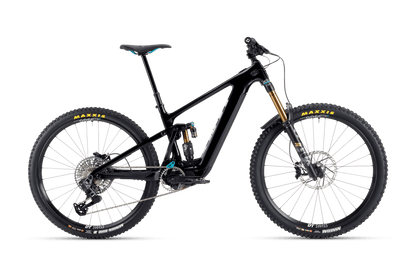

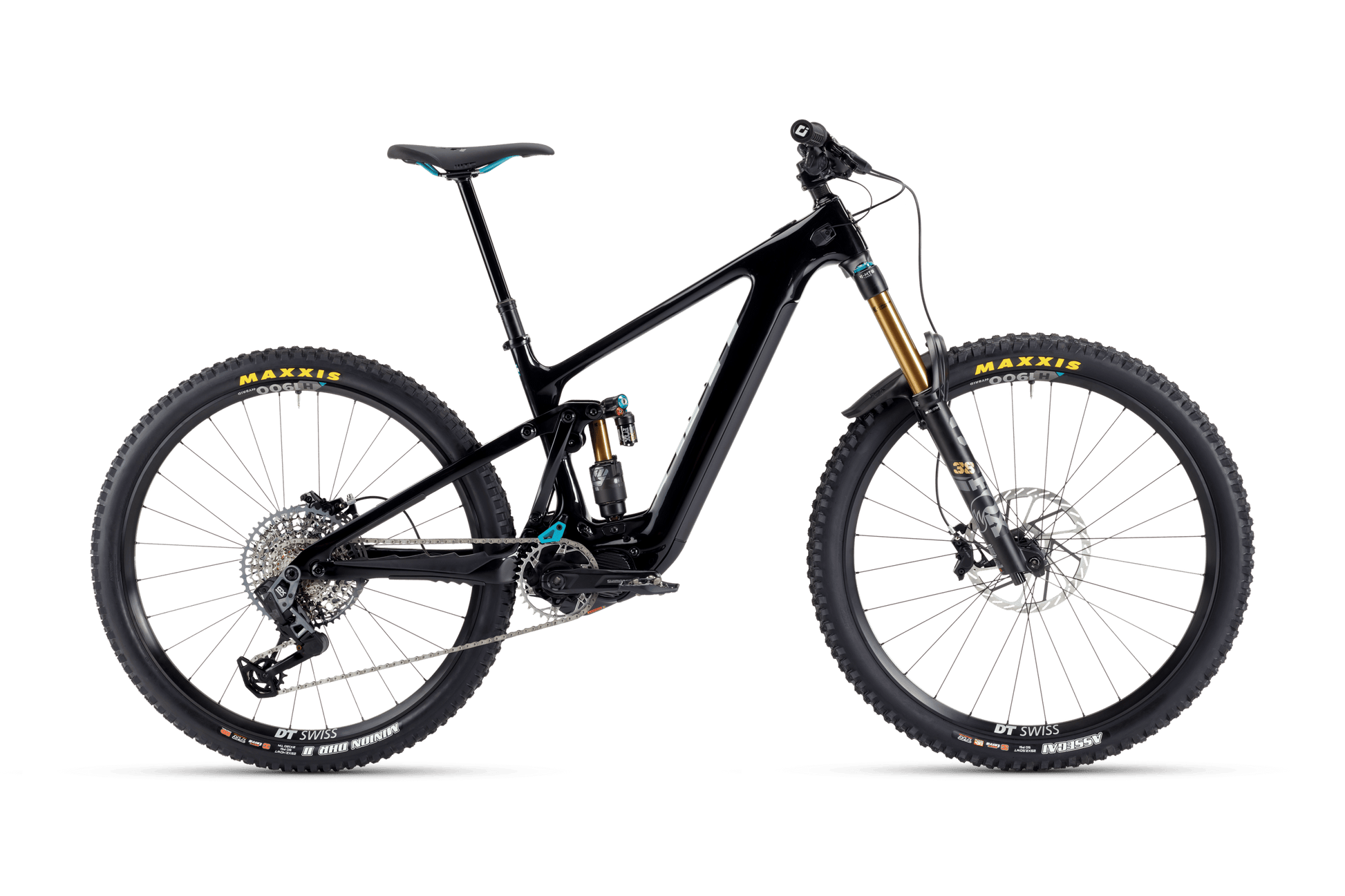

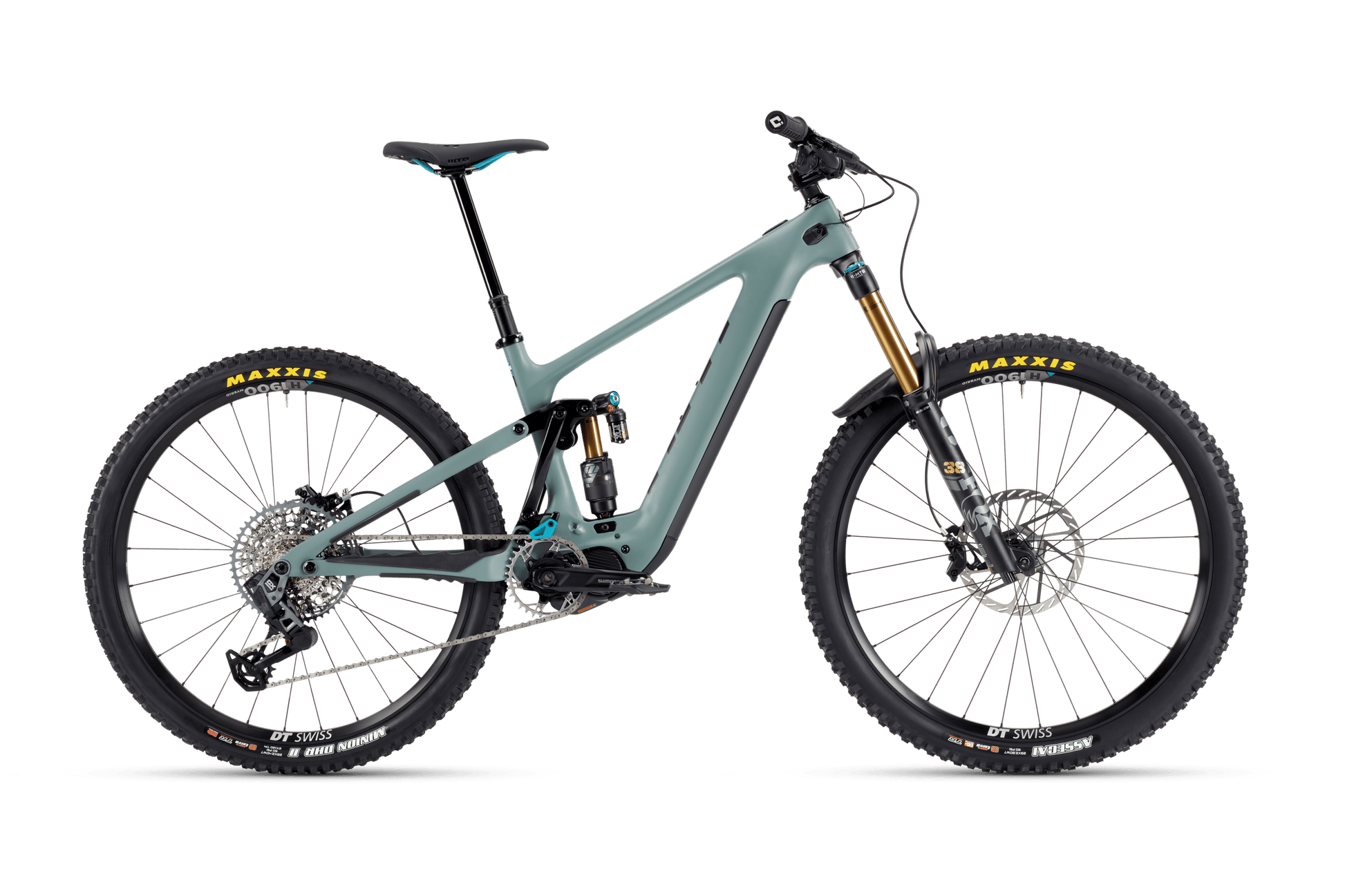

- FOX FLOAT 38 Performance 170mm fork (E-Tune) and FOX FLOAT X Performance 160mm shock (Optional Factory upgrades available)
- SRAM GX Eagle Transmission 12-speed AXS electronic wireless drivetrain
- SRAM Maven Bronze 4-piston brakes with large 220mm HS2 rotors
- DT Swiss HX 1700 Alloy wheelset (30mm width, Optional Carbon upgrade available)
- Maxxis Assegai (front) and Maxxis Minion DHR II (rear) tires (EXO+ and DoubleDown casing)
- RockShox Reverb AXS dropper seatpost (electronic wireless)
- Lifetime frame warranty
Full Specifications
| Product | Yeti 160E C3 GX AXS Transmission E-Bike |
|---|---|
| Model Year | 2025 |
| Intended Use | Enduro / All-Mountain Freeride / Bike Park |
| Rider | Unisex |
| Sizes and Geometry | SM MD LG XL View Full Geometry |
| Wheel Size | 29" |
| E-Bike Class | Class 1: Pedal Assist (Pedelecs) |
| Frame Material | Carbon Fiber |
| Frame Material Details | C series carbon front and rear triangles, molded seatstay and chainstay protection |
| Rear Travel | 160mm |
| Rear Shock | FOX FLOAT X Performance, trunnion mount, 205mm length x 65mm stroke Option: FOX FLOAT X2 Factory |
| Fork | FOX FLOAT 38 Performance, E-Tune, GRIP damper, 44mm offset Option: FOX FLOAT 38 Factory |
| Fork Travel | 170mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | Cane Creek 40, integrated, 41mm upper, 52mm lower |
| Handlebar | Yeti Carbon, 800mm width, 35mm clamp diameter |
| Stem | Burgtec Enduro MK3, 50mm length, 35mm bar clamp |
| Grips | ODI Elite Pro |
| Brakes | SRAM Code R, 4-piston Rotors: SRAM HS2, 220mm |
| Brake Levers | SRAM Maven Bronze, tool-free reach adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless |
| Front Derailleur | None |
| Rear Derailleur | SRAM GX Eagle Transmission, 12-speed, AXS electronic wireless |
| ISCG Tabs | N/A (Integrated with motor) |
| Chainguide | OneUp custom upper slider |
| Cranks | Shimano |
| Chainrings | SRAM XX Eagle Transmission, direct mount, 34 tooth |
| Bottom Bracket | N/A (Integrated with motor) |
| Pedals | None |
| Chain | SRAM GX Eagle Transmission Flattop, 12-speed |
| Cassette | SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth |
| Rims | DT Swiss HX 1700 Alloy, 30mm width Option: DT Swiss HXC 1501 Carbon, 30mm width |
| Hubs | DT Swiss HX 1700 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver |
| Spokes | DT Swiss HX 1700 wheelset |
| Tires | Front: Maxxis Assegai, 3C MaxxTerra compound, EXO+ casing, 29" x 2.5" Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, DoubleDown (DD) casing, 29" x 2.4" |
| Saddle | WTB Silverado Custom |
| Seatpost | RockShox Reverb AXS dropper, electronic wireless Drop: 150mm (SM/MD), 170mm (LG/XL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 36.4mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29" x 2.6" |
| Bottle Cage Mounts | One inside front triangle |

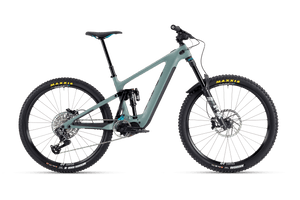

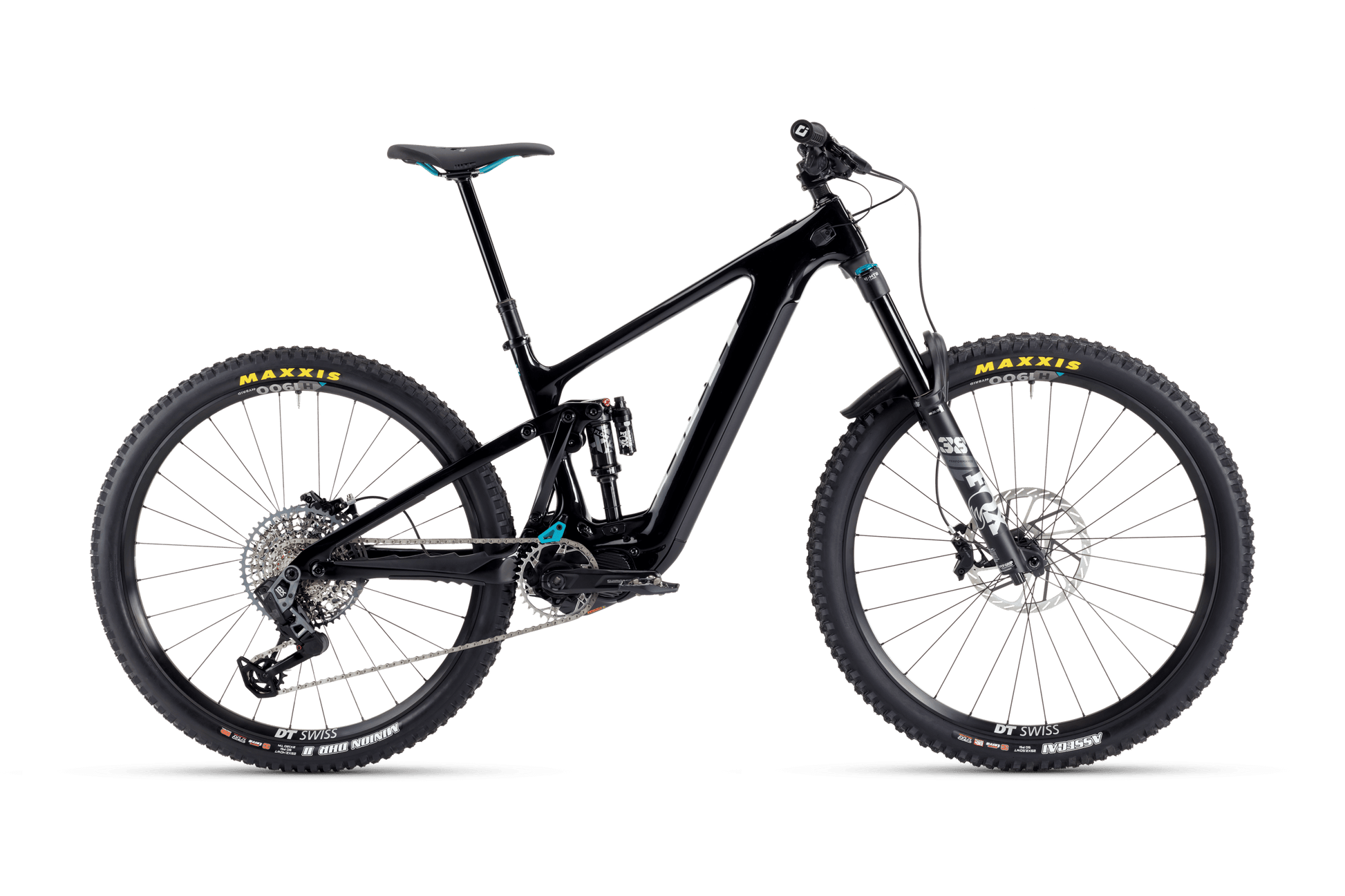

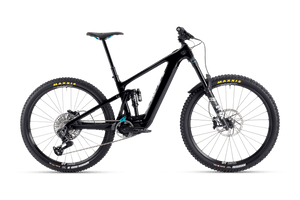

| Colors | Black, Rhino |
| Warranty | Lifetime frame, 1 year paint/finish |
| Weight | 50 lb 3.4 oz (22775 g) |
| Miscellaneous |
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 561mm | 592mm | 614mm | 642mm |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Head Tube Length | 95.0mm | 98.3mm | 103.8mm | 114.9mm |
| Seat Tube Angle | 78° | 78° | 78° | 78° |
| Seat Tube Length | 380mm | 410mm | 450mm | 495mm |
| Bottom Bracket Height | 350mm | 350mm | 350mm | 350mm |
| Chainstay Length | 446mm | 446mm | 446mm | 446mm |
| Wheelbase | 1208.3mm | 1239.7mm | 1262.1mm | 1291.9mm |
| Standover | 754mm | 754mm | 754mm | 754mm |
| Reach | 430mm | 460mm | 480mm | 505mm |
| Stack | 617mm | 620mm | 625mm | 635mm |
