2025 Specialized Turbo Vado SL 4.0 Step-Through EQ
- Free Domestic Shipping On Orders Over $100
- In stock
- Backordered, shipping soon
- Add To Cart For Final Price

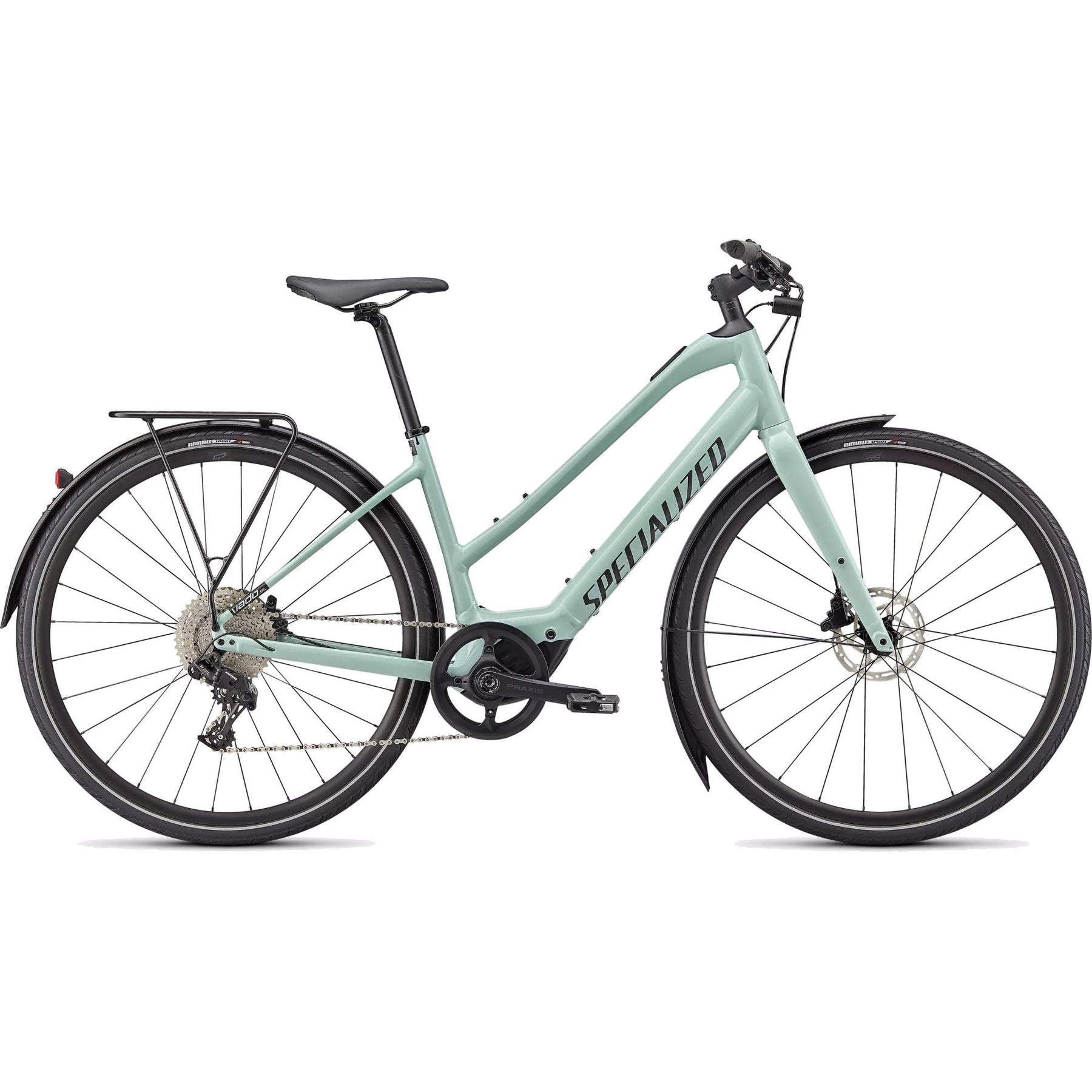

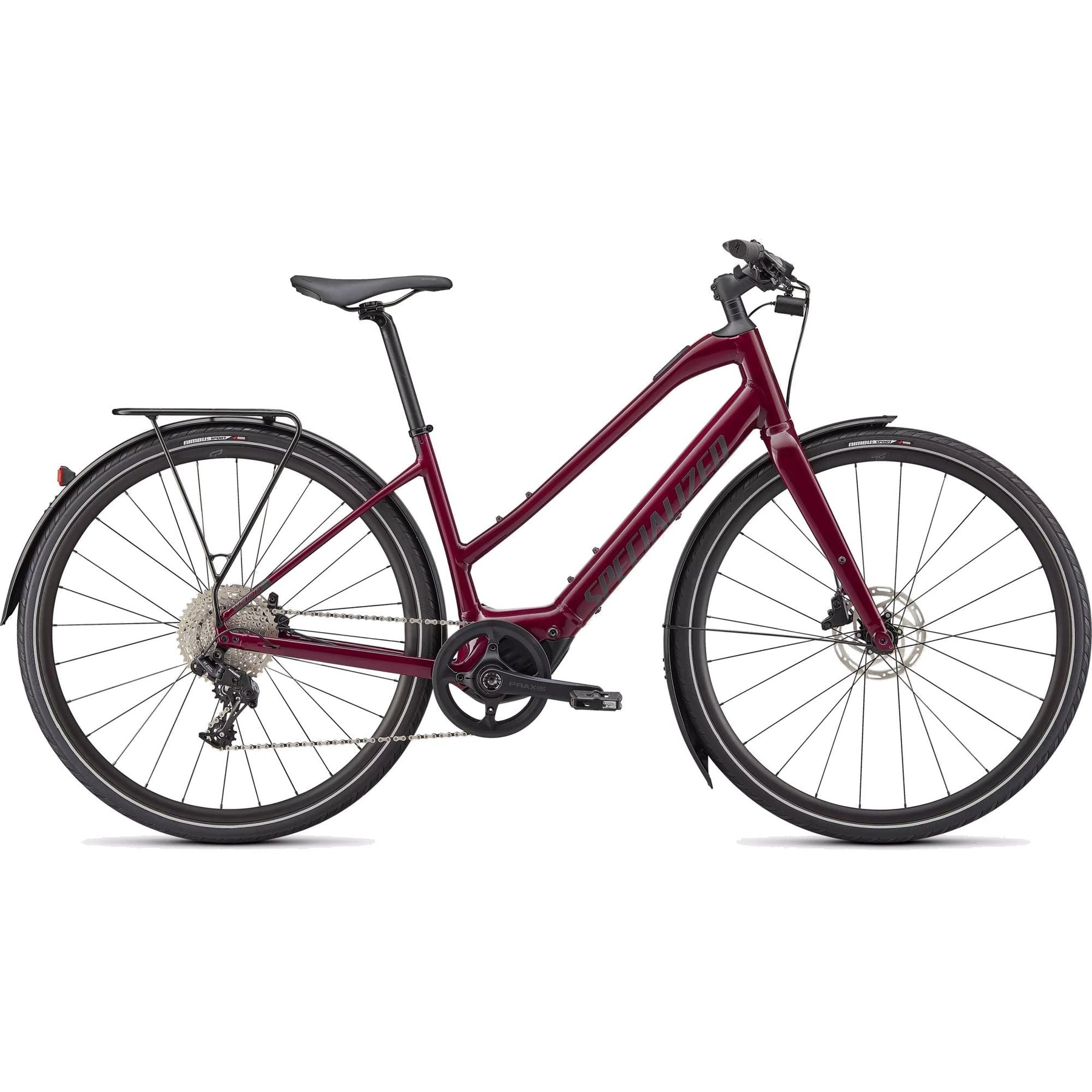

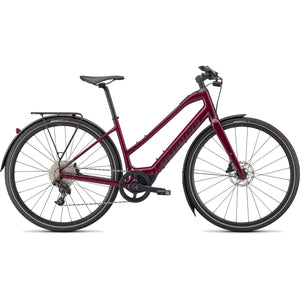

Turbo Vado SL 4.0 Step-Through EQ
Super-Light E-Bike · Step-Through · EQ
Meet the Vado SL 4.0 Step-Through EQ — the equipped, easy-access version of the super-light e-bike. Step-through frame for easier on/off, plus everything you need for city commuting. 40% lighter than the full-power Vado.
- SL 1.1 Motor: Peak 240W, 35Nm torque, 2x rider amplification (180%), up to 28 mph.
- 320Wh Battery: Up to 80 miles (130 km) range. Optional Range Extender adds up to 120 miles total.
- Step-Through Frame: Easy on/off for city riding and commuter traffic.
- EQ Equipment: Turbo SL rack (15kg), DRYTECH fenders, LED lights, kickstand.
- SRAM NX 11-Speed: Reliable shifting for daily riding.
- Tektro HD-R290 Brakes: Hydraulic disc brakes for confident stopping.
Whether you're going fast or far or both, the Vado SL Step-Through EQ provides the confidence to do it all at a fraction of the weight.
SL 1.1 Motor
Specialized SL 1.1 custom lightweight motor, peak 240W / 35Nm. 2x rider amplification (180%) up to 28 mph.
320Wh + Range Extender Option
Fully integrated 320Wh downtube battery. Up to 80 miles (130 km) or 6 hours in eco mode. Optional Range Extender bumps that to 120 miles (200 km) / 9 hours.
Step-Through Frame
Low step-through frame design — easy on and off for city riding, managing traffic lights, and commuter convenience.
EQ — Fully Equipped
Turbo SL Rack (15kg/Racktime-compatible), DRYTECH fenders, LED lights, kickstand. Ready to commute.
Nimbus II Sport Reflect Tires
Fast rolling Nimbus II Sport Reflect tires with BlackBelt flat protection and reflective accents for visibility.
Rigid Aluminum Fork
Lightweight rigid aluminum fork with Boost 12x110mm thru-axle — stiff, clean, no added weight.
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170 | 172.5 | 172.5 | 175 |
| Handlebar Width | 680 | 680 | 680 | 680 |
| Stem Length | 60 | 75 | 75 | 90 |
| Saddle Width | 155 | 155 | 155 | 155 |
| Seatpost Length | 350 | 350 | 350 | 350 |
| BB Height | 291 | 291 | 291 | 291 |
| BB Drop | 70 | 70 | 70 | 70 |
| Trail | 71 | 67 | 64 | 61 |
| Head Tube Angle | 70° | 70.5° | 71° | 71.5° |
| Head Tube Length | 130 | 161.5 | 194.5 | 230 |
| Chain Stay Length | 445 | 445 | 445 | 445 |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| Stack | 542 | 574 | 607 | 643 |
| Bike Stand Over Height | 616 | 631 | 655 | 688 |
| Reach | 397 | 419 | 433 | 442 |
| Fork Length (full) | 390 | 390 | 390 | 390 |
| Fork Rake/Offset | 50 | 50 | 50 | 50 |
| Front Center | 626 | 655 | 675 | 690 |
| Wheelbase | 1062 | 1091 | 1110 | 1126 |
| Top Tube Length (horizontal) | 558 | 587 | 610 | 630 |
| Seat Tube Length | 405 | 431.5 | 469.5 | 510 |
E-Bike
Motor
Specialized SL 1.1, custom lightweight motor, 240W peak, 35Nm torque, 2x rider amplification (180%), up to 28 mph
Battery
Specialized SL1-320, fully integrated, 320Wh. Optional Range Extender compatible.
Charger
Custom charger, 48V System w/ SL system charger plug
UI/Remote
Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/ Handlebar remote
Frameset
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds, step-through design
Seat Binder
Specialized Alloy, 30.8mm
Suspension
Fork
Rigid full aluminum disc, Boost™ 12x110mm, front-rack-compatible
Brakes
Front Brake
Tektro HD-R290, hydraulic disc, 160mm
Rear Brake
Tektro HD-R290, hydraulic disc, 160mm
Drivetrain
Chainrings
Praxis, 44T, 110BCD
Crankset
Praxis, Forged alloy M30, custom offset
Chain
KMC e11S, 11-speed w/ Missing Link™
Shift Levers
SRAM NX, 11-speed
Rear Derailleur
SRAM NX, 11-speed
Cassette
SUNRACE CSMS7, 11-42t, 11-speed
Wheels & Tires
Rims
700C disc, 22mm rim depth, 21mm internal width
Spokes
DT Swiss Industry
Front Tire
Nimbus II Sport Reflect, 700x38mm, BlackBelt flat protection
Rear Tire
Nimbus II Sport Reflect, 700x38mm, BlackBelt flat protection
Front Hub
Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h
Rear Hub
Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h
Inner Tubes
700x32-50mm, 40mm Presta valve
Cockpit
Stem
Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount
Handlebars
Specialized alloy, 9-degree backsweep, 15mm rise, 31.8mm
Seatpost
Specialized alloy, dual-bolt, 25mm offset, 27.2mm
Saddle
Bridge Sport, hollow Cr-mo rails, 155mm
Grips
Specialized Body Geometry
Accessories
Headlight
Lezyne Ebike Hecto STVZO E65, 210 Lumens, 12V
Taillight
Lezyne Ebike Rear Fender STVZO, 11 Lumens, 12V
Fenders
Specialized DRYTECH, Aluminum
Rack
Turbo SL Rack, Closed Platform, direct fender mount, Racktime-compatible, 15kg max load
Bell
Bell
Kickstand
Specialized kickstand, 40mm mount
Pedals
Specialized Commuter w/ grip tape & reflectors
Weight
Weight
16.6kg (36 lb, 9.5 oz)
