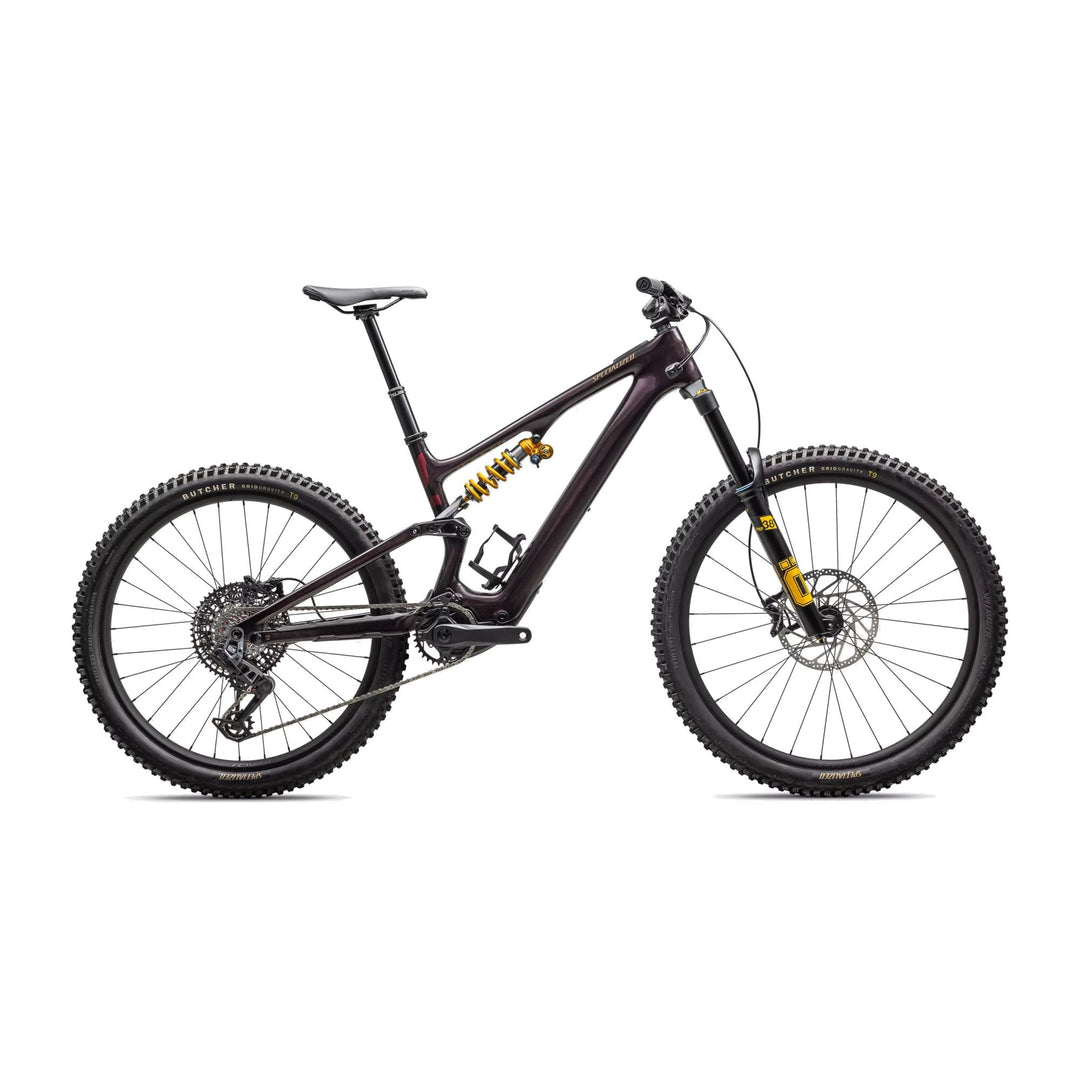

2025 Specialized Turbo Levo SL 2 Öhlins Coil
Specialized

2025 Specialized Turbo Levo SL 2 Öhlins Coil

$10,000.00
/
Shipping calculated at checkout.
Color
Size
  • Free Domestic Shipping On Orders Over $100
  • Low stock - 1 item left
  • Backordered, shipping soon
  • Add To Cart For Final Price
Turbo Levo SL 2 Öhlins Coil
Turbo Levo SL 2 Öhlins Coil
Trail E-MTB · 150mm · 320Wh · Öhlins Coil · Mixed Wheels

The Turbo Levo SL 2 Öhlins Coil is the coil-shock option in the Levo SL 2 lineup — Öhlins TTX22 rear shock and RXF38 fork deliver a different ride feel than the air-sprung FOX models. For riders who prefer the predictable, supple response of coil suspension on technical terrain. Same SL 1.2 motor, same mixed-wheel platform, same adjustability.

  • SL 1.2 Motor: 320W, 50Nm — most efficient e-bike system, whisper quiet.
  • 320Wh SL1-320 Battery: Fully integrated, range-extender compatible.
  • Öhlins TTX22 Coil: World Cup-proven rear shock with pedaling efficiency.
  • Öhlins RXF38: 160mm enduro fork, traction and control focus.
  • SRAM GX Eagle Transmission: Wireless groupset, 10-52t cassette.
  • Traverse Alloy Wheels: Roval Traverse Alloy, DT Swiss 370 hubs, mixed wheels.
  • Bike Yoke Revive Max: Short stack, smooth action, 125–213mm by size.
  • 19.61kg (43 lb): Heaviest Levo SL 2 — but still under 20kg.

Coil-shocked and confident — the Öhlins option for riders who want a different feel from their Levo SL 2.

SL 1.2 Rx Trail Tuned Motor
320W, 50Nm, 33% more power and 43% more torque than previous gen. Most efficient e-bike system in the world.
320Wh SL1-320 Battery
Fully integrated, 320Wh. Range-extender compatible for longer adventures.
Öhlins TTX22 Coil Rear Shock
World Cup DH proven, still pedals efficiently. Spring rates by size: S2=411lb, S3=457lb, S4=502lb, S5=548lb, S6=605lb.
Öhlins RXF38 Fork
160mm travel, 29", optimized for traction and control on trail and enduro terrain.
SRAM GX Eagle Transmission
Wireless groupset — AXS Pod Controller, GX derailleur, 10-52t cassette, GX Flattop chain.
Traverse Alloy + DT Swiss 370
Roval Traverse Alloy rims, DT Swiss 370 hubs, 29" front / 27.5" rear, XD freehub body.
S1 S2 S3 S4 S5 S6
Crank Length 165 165 165 165 165 165
Handlebar Width 800 800 800 800 800 800
Stem Length 40 40 40 40 40 40
Saddle Width 155 155 143 143 143 143
Seatpost Length 125 125 160 185 213 213
Stack 609 617 626 635 645 654
Reach 405 425 445 470 495 525
Head-Tube Length 95 100 110 120 130 140
Head-Tube Angle 64.6° 64.6° 64.6° 64.6° 64.6° 64.6°
B-B Height 343 348 348 348 348 348
B-B Drop -34 -29 -29 -29 -29 -29
Trail 132 132 132 132 132 132
Fork Length (full) 560 570 570 570 570 570
Fork Rake/Offset 42 42 42 42 42 42
Front Center 726 752 776 806 835 869
Chain-Stay Length 433 432 432 432 432 432
Wheelbase 1158 1184 1208 1238 1267 1301
Top Tube Length 560 582 604 631 659 691
Bike Stand-Over Height 727 763 766 767 773 778
Seat-Tube Length 385 385 405 425 445 465
Seat-Tube Angle 75.8° 75.8° 75.8° 75.8° 75.8° 75.8°
E-Bike
Motor
Specialized 1.2 SL Custom RX Trail Tuned Motor, 320W, 50Nm
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
UI/Remote
Specialized MasterMind TCU, 120 display configurations, MicroTune, ANT+/Bluetooth, w/ Handlebar remote
Frameset
Frame
Levo SL FACT 11m carbon frame, alloy shock extension, 150mm travel, adjustable head angle, BB height, compatible with 27.5" or 29" wheels
Seat Binder
Alloy, 38.6mm
Suspension
Fork
Öhlins RXF38, 160mm travel, 29"
Rear Shock
Öhlins TTX22 Coil. S2: 411lb, S3: 457lb, S4: 502lb, S5: 548lb, S6: 605lb
Brakes
Front Brake
Tektro DHR EVO, hydraulic disc, 220mm rotor
Rear Brake
Tektro DHR EVO, hydraulic disc, 220mm rotor
Drivetrain
Shift Levers
SRAM AXS Pod Controller
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Cassette
SRAM GX Eagle Transmission Cassette, 12-speed, 10-52t
Chain
SRAM GX Eagle Transmission Flattop Chain, 12-speed
Crankset
SRAM GX Eagle Crankset, 32T T-type ring, integrated guard, 55mm chainline, 165mm
Wheels & Tires
Front Wheel
Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h
Rear Wheel
Roval Traverse Alloy 27.5", DT Swiss 370, XD freehub body, 12x148mm, 28h
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 27.5x2.3"
Inner Tubes
Standard, Presta valve
Cockpit
Handlebars
RaceFace Turbine Alloy, 35mm diameter, 5° upsweep, 8° backsweep. S1-S2: 20mm rise; S3-S6: 40mm rise. 800mm width.
Stem
RaceFace Aeffect R, 35mm bore, 40mm length
Seatpost
Bike Yoke Revive Max, 34.9mm. S1-S2: 125mm, S3: 160mm, S4: 185mm, S5-S6: 213mm
Saddle
Specialized Bridge Mimic, hollow cromo rail
Grips
Deity Grips
Accessories
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Weight
Weight
19.61kg (43 lb, 3.7 oz)
Weight Size
S4
