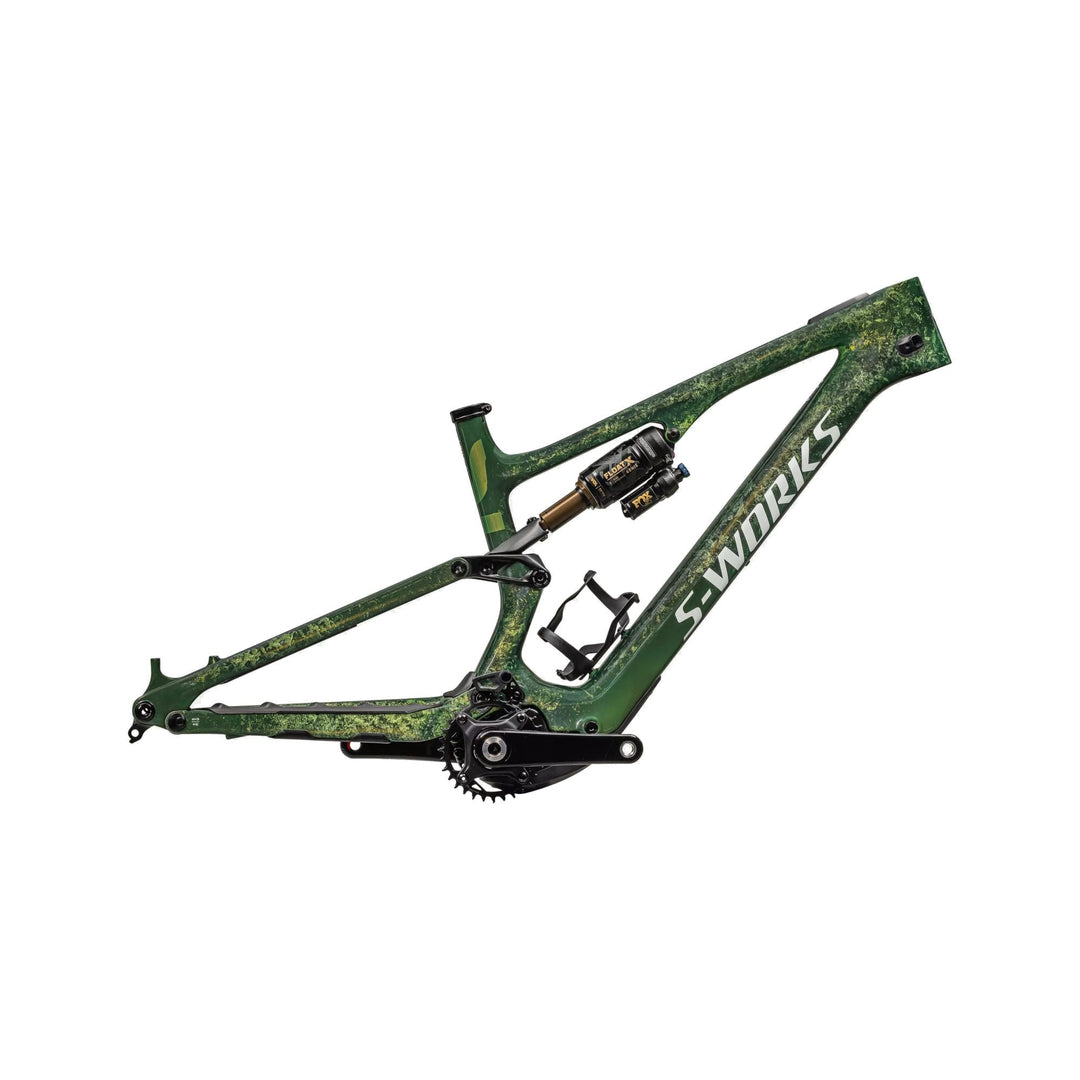

S-Works Turbo Levo SL 2 Frameset
S-Works Turbo Levo SL 2 Frameset
Trail E-MTB Frameset · 150mm · SL 1.2 · 320Wh · GENIE · S-Sizing

The S-Works Turbo Levo SL 2 Frameset is the top-tier carbon frame for the Levo SL 2 platform — ready for you to build your dream bike. FACT 11m carbon frame, FOX FLOAT X Factory rear shock with GENIE technology, and the SL 1.2 motor system integrated into the chassis. Build it your way.

  • FACT 11m Carbon Frame: Lightest Levo SL 2 frame, 150mm travel, alloy shock extension.
  • FOX FLOAT X Factory + GENIE: Kashima-coated, Ride Dynamics tuned, 2-position lever, LSR.
  • SL 1.2 Motor Integration: 320W, 50Nm, fully integrated into the frame design.
  • 320Wh SL1-320 Battery: Fully integrated, range-extender compatible.
  • 6-Way Geometry Adjust: Head angle and BB height adjustable for any terrain.
  • Mixed Wheel Compatible: 27.5" or 29" rear wheel — flip the chip.
  • SRAM Eagle Crankset: Carbon crankset, 32T T-type ring, 165mm.
  • 7.55kg (16 lb): Frameset weight — build it light.

This is a frameset — fork not included. Build with your choice of enduro fork (150–170mm). The rest is all there: motor, battery, shock, crankset, SWAT tool.

FACT 11m Carbon Frame
Lightest carbon frame in the Levo SL 2 lineup. 150mm travel, alloy shock extension, adjustable head angle, adjustable BB height, compatible with 27.5" or 29" wheels.
SL 1.2 Motor Integration
320W, 50Nm — most efficient e-bike system in the world. Fully integrated into the frame, whisper quiet. Range-extender compatible.
320Wh SL1-320 Battery
Fully integrated, 320Wh. Seamless fit with the FACT 11m frame.
FOX FLOAT X Factory + GENIE
Kashima-coated shock with Specialized GENIE air spring technology. 2-position lever, 3-setting Open mode tuning range, LSR adjustment. S1: 210x52.5mm, S2-S6: 210x55mm.
SRAM Eagle Crankset
Carbon crankset, 32T T-type chainring, integrated guard, 55mm chainline, 165mm.
6-Way Geometry Adjust
Adjustable head angle and BB height. Compatible with 27.5" or 29" rear wheel — flip the pivot link chip.
S1 S2 S3 S4 S5 S6
Crank Length 165 165 165 165 165 165
Stack 609 617 626 635 645 654
Reach 405 425 445 470 495 525
Head-Tube Length 95 100 110 120 130 140
Head-Tube Angle 64.6° 64.6° 64.6° 64.6° 64.6° 64.6°
B-B Height 343 348 348 348 348 348
B-B Drop -34 -29 -29 -29 -29 -29
Trail 132 132 132 132 132 132
Fork Length (full) 560 570 570 570 570 570
Fork Rake/Offset 42 42 42 42 42 42
Front Center 726 752 776 806 835 869
Chain-Stay Length 433 432 432 432 432 432
Wheelbase 1158 1184 1208 1238 1267 1301
Top Tube Length 560 582 604 631 659 691
Bike Stand-Over Height 727 763 766 767 773 778
Seat-Tube Length 385 385 405 425 445 465
Seat-Tube Angle 75.8° 75.8° 75.8° 75.8° 75.8° 75.8°
E-Bike
Motor
Specialized 1.2 SL Custom RX Trail Tuned Motor, 320W, 50Nm
Battery
Specialized SL1-320, fully integrated, 320Wh
Charger
Custom charger, 48V System w/ SL system charger plug
UI/Remote
Specialized MasterMind TCU, 120 display configurations, MicroTune, over-the-air updates, ANT+/Bluetooth, w/ Handlebar remote
Frameset
Frame
Levo SL FACT 11m carbon frame, alloy shock extension, 150mm travel, adjustable head angle, BB height, compatible with 27.5" or 29" wheels
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/ 3-setting Open mode tuning range, LSR adjustment. S1: 210x52.5mm, S2-S6: 210x55mm
Drivetrain
Crankset
SRAM Eagle Crankset, 32T T-type ring, integrated guard, 55mm chainline, 165mm
Chainrings
SRAM T-type ring, 32T
Accessories
SWAT
SWAT CC steerer tube integrated tool with chain tool and link
Weight
Frameset Weight
7.55kg (16 lb, 10.3 oz)
Weight Size
S4
