2023 Transition Relay Carbon GX AXS E-Bike
No reviews
- Free Domestic shipping
- Low stock - 3 items left
- Backordered, shipping soon
Key Features
- Fazua Ride 60 Motor System: Class 1 E-Bike featuring the lightweight Fazua Ride 60 (60Nm/450W Peak) and a 430 Wh removable, integrated battery.
- Modular Design: Can be ridden with or without the battery installed (tool-free removal) for a quiet, natural, non-electric ride experience.
- SRAM GX Eagle AXS Drivetrain: Precise, high-performance 1x12 electronic wireless shifting.
- Performance Elite Suspension: 160mm of travel handled by a FOX FLOAT 36 Performance Elite fork and FOX FLOAT X Performance Elite rear shock.
- Versatile Wheel Sizing: Frames SM-XXL come with 29" wheels, XS with 27.5". Frame is Mullet (mixed wheel) compatible via a geometry-compensating flip chip.
- SRAM Code RSC Brakes: Top-tier 4-piston hydraulic brakes with tool-free adjustments and 200mm rotors for maximum control.
- Enduro-Ready Build: Race Face Aeffect R rims, Race Face Trace hubs, Maxxis Assegai/Minion DHR II EXO+ tires, and a OneUp V2 Dropper Post.
- Warranty & Support: Lifetime Frame Warranty, plus 2 years for the motor and battery.
Full Specifications
| Product | Transition Relay Carbon GX AXS E-Bike |
|---|---|
| Model Year | 2023 |
| Intended Use | Enduro / All-Mountain |
| Rider | Unisex |
| Sizes and Geometry | XS, SM, MD, LG, XL, XXL |
| Wheel Size | 27.5" (XS only) / 29" (SM-XXL) |
| E-Bike Class | Class 1: Pedal Assist (Pedelecs) |
| Motor | Fazua Ride 60, 60Nm max torque, 250W continuous power, 450W peak power |
| Battery | Fazua Energy, integrated, removable via tool-free door |
| Battery Capacity | 430 Wh |
| Display/Remote | Fazua LED Hub (5-bar display/charging port), Fazua Ring Controller remote switch |
| Modes | Breeze, River, Rocket |
| Max Speed with Assist | 20 mph (32.2 km/h) |
| Frame Material | Carbon Fiber |
| Frame Material Details | Carbon front and rear triangles, molded down tube and chainstay protection |
| Rear Travel | 160mm (Upgradable to 170mm with 65mm stroke shock) |
| Rear Shock | FOX FLOAT X Performance Elite, 2-position compression lever, trunnion mount, 205mm length x 60mm stroke |
| Fork | FOX FLOAT 36 Performance Elite, 44mm offset |
| Fork Travel | 160mm |
| Head Tube Diameter | Tapered |
| Headset | FSA No.55R, ZS56 upper, ZS66 lower |
| Handlebar | ANVL Mandrel Alloy, 800mm width, 35mm clamp diameter Rise: 20mm (XS/SM), 30mm (MD-XL), 40mm (XXL) |
| Stem | ANVL Swage, 40mm length, 35mm bar clamp |
| Grips | ODI Elite Flow, lock-on |
| Brakes | SRAM Code RSC, 4-piston, SRAM Centerline 200mm rotors |
| Brake Levers | SRAM Code RSC |
| Drivetrain | 1x |
| Shifters | SRAM GX Eagle AXS Controller, 12-speed, electronic wireless |
| Front Derailleur | None |
| Rear Derailleur | SRAM GX Eagle AXS, 12-speed, electronic wireless |
| Chainguide | None (Includes Transition forged spider-mounted bashguard) |
| Cranks | Praxis Alloy ETOR Length: 160mm (XS), 165mm (SM-XXL) |
| Chainrings | SRAM Eagle, 32 tooth, alloy |
| Bottom Bracket | Integrated with Fazua motor unit |
| Pedals | None |
| Chain | SRAM GX Eagle, 12-speed |
| Cassette | SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth |
| Rims | Race Face Aeffect R, alloy, 28 hole |
| Hubs | Race Face Trace, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver |
| Spokes | Race Face, 2.0/1.7/2.0 butted |
| Tires | Front: Maxxis Assegai, 3C compound, EXO+ casing, 2.5" Rear: Maxxis Minion DHR II, 3C compound, EXO+ casing, 2.4" |
| Saddle | SDG Bel-Air V3 |
| Seatpost | OneUp V2 dropper Drop: 120mm (XS), 150mm (SM), 180mm (MD), 210mm (LG-XXL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 37.0mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 2.6" |
| Bottle Cage Mounts | One inside front triangle (450ml Fidlock bottle only on XS/SM) plus accessory mounts under top tube |

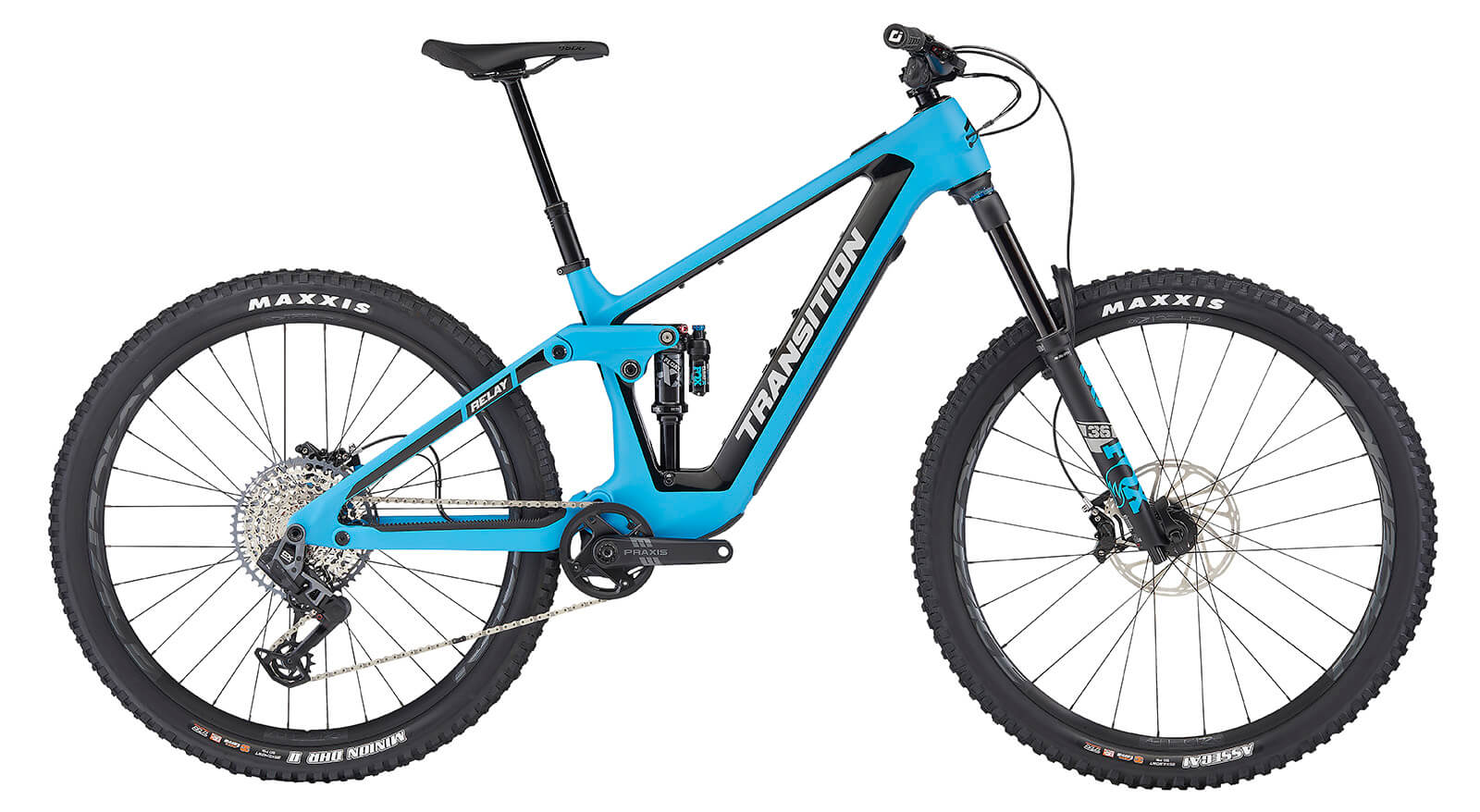

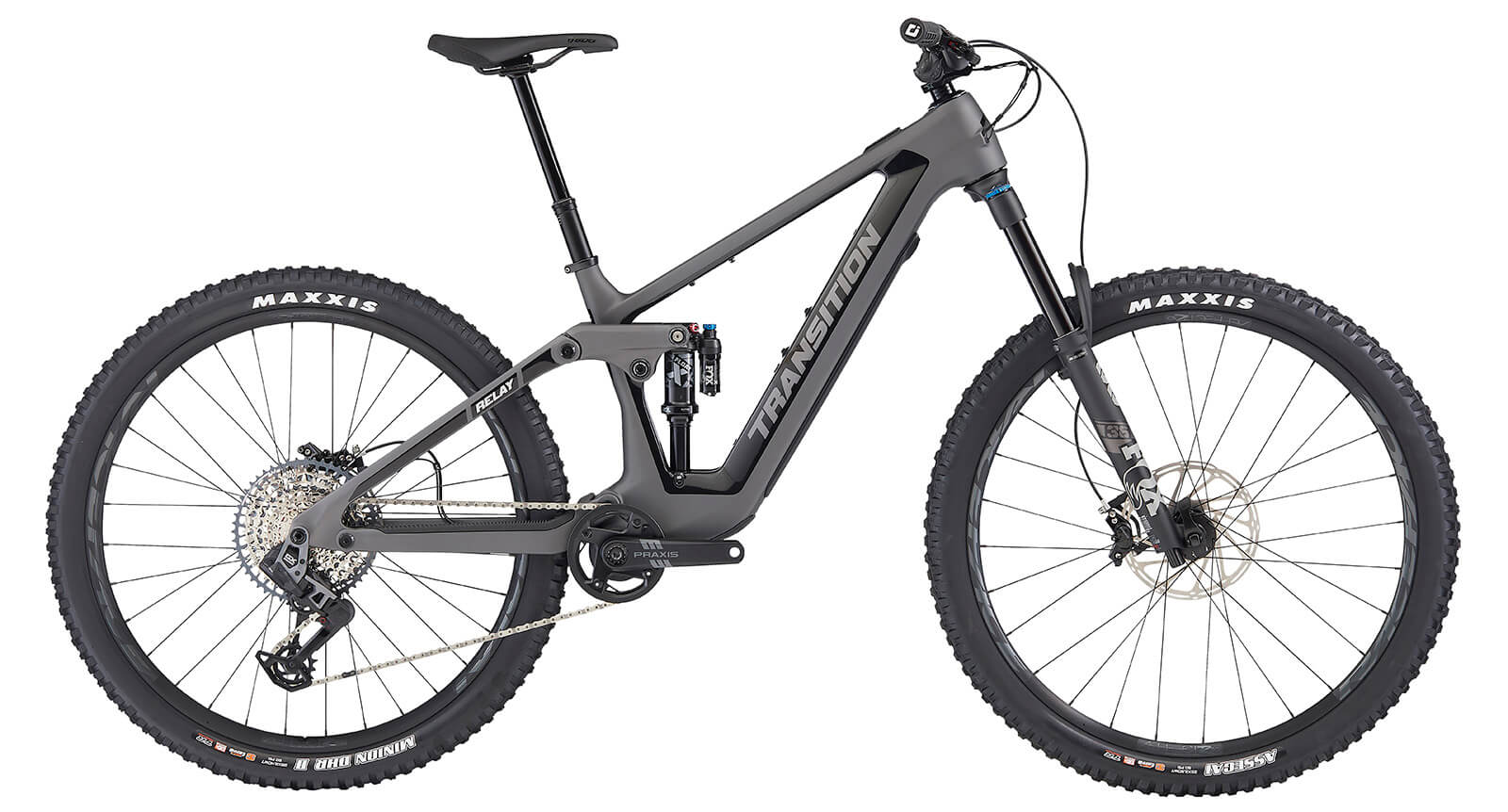

| Colors | TR Blue, Oxide Grey |
| Warranty | Lifetime frame, 2 years motor and battery |
| Weight | Starting at 42.5 lb / 19.3 kg (with battery) |
| Miscellaneous |
|
Geometry
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Reach (mm) | 410 | 430 | 460 | 485 | 510 | 535 |
| Stack (mm) | 590 | 615 | 628 | 637 | 646 | 655 |
| Top Tube Length (Effective, mm) | 523 | 553 | 586 | 614 | 642 | 671 |
| Seat Tube Length (mm) | 380 | 390 | 410 | 430 | 460 | 490 |
| Head Tube Angle | 64.0° | 64.0° | 64.0° | 64.0° | 64.0° | 64.0° |
| Seat Tube Angle (Effective) | 79.7° | 79.1° | 78.4° | 77.8° | 77.3° | 77.0° |
| Chainstay Length (mm) | 436 | 442 | 442 | 448 | 448 | 448 |
| Wheelbase (mm) | 1,167 | 1,208 | 1,244 | 1,280 | 1,309 | 1,338 |
| Head Tube Length (mm) | 100 | 100 | 115 | 125 | 135 | 145 |
| Bottom Bracket Drop (mm) | 15 | 25 | 25 | 25 | 25 | 25 |
| Bottom Bracket Height (mm) | 340 | 350 | 350 | 350 | 350 | 350 |
| Standover (mm) | 662 | 667 (Est.) | 670 (Est.) | 677 (Est.) | 703 (Est.) | 730 (Est.) |
| Sizing Guide (Rider Height) | 4'8" – 5'3" | 5'0" – 5'7" | 5'4" – 6'0" | 5'8" – 6'3" | 6'0" – 6'7" | 6'2" – 6'10" |
| Additional Info |
|
|||||
