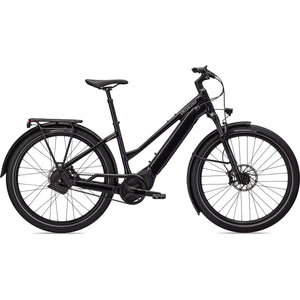

2023 Specialized Turbo Vado 5.0 IGH Step-Through
- Free Domestic Shipping On Orders Over $100
- Low stock - 6 items left
- Backordered, shipping soon
- Add To Cart For Final Price
Turbo Vado 5.0 IGH Step-Through
E5 Aluminum · Specialized 2.2 · 710Wh · enviolo IGH
Consider Vado your high-performance transportation bike, getting you where you're going with an unmatched combination of speed, reliability, and confidence. Whether you load it up with your stuff, or jump on and go, commute to work, or ride to the gym, Vado's full power and huge range will get you from 'point A' to 'point B' ASAP.
- Powerful: It's you, just faster — it's 4x You. The Turbo Full Power system senses the force you apply to the pedals and naturally quadruples it for an experience that makes getting up any hill or to any destination no sweat. Literally.
- Comfortable & Confident: Body position and handling are optimized to deliver unsurpassed riding comfort, confidence, and control. Powerful hydraulic disc brakes reign in your speed, while larger tires provide maximum traction for turning and stopping.
- Smooth: Stay comfortable in the saddle with an 80mm front suspension fork, higher volume tires, and a plush suspension seat post that smooths harsh bumps from points A to B.
- Secure: Anti-theft lock built right into the bike. Disable the motor with a press of a button so no one can turn it on without your phone or personalized pin. The battery locks in the bike or can be easily taken with you. An alarm sounds if anyone tries to move your bike.
- Silent: Turbo Full Power Motor provides smooth, quiet, and seamless amplification for a quiet ride on any terrain.
- Turbo Full Power 2.2 Motor: 90Nm torque with a 710Wh battery delivers seamless pedal assistance up to 28 mph. Go up to 62 miles (100 km) or 4.5 hours on a single charge (eco mode).
- enviolo AUTOMATiQ IGH: Stepless shifting technology automatically shifts gears based on your pedal pace. Set your preferred cadence and forget it.
- Garmin Radar Integration: Detects cars up to 140 meters away with visual, audible, and haptic alerts on the MasterMind display.
- Adventure-Ready: DRYTECH Fenders, LED lights, 27kg capacity rear HD Rack (child seat compatible), and thru-axle trailer rated.
- Step-Through Frame: Easy on, easy off design for maximum accessibility and convenience in urban environments.
The speed limit at which the motor will stop supporting may vary significantly by region and is based on local requirements. It may also affect range: a higher speed limit may result in less range.
Turbo Full Power 2.2 Motor & 710Wh Battery
90Nm torque, custom tuned motor with 250W nominal output and a 710Wh battery. Delivers incredible, seamless pedal assistance up to 28 mph with ride-anywhere range — up to 62 miles (100 km) or 4.5 hours in eco mode.
MasterMind Display & Specialized App
The MasterMind display reveals all relevant ride info and allows real-time tuning of support levels. Seamlessly integrates with the Specialized app for range optimization tools, advanced tuning, on-ride diagnostics, and Turbo System Lock security.
enviolo AUTOMATiQ Internal Gear Hub
Stepless shifting technology automatically shifts gears based on a rider's pedal pace, taking changes in surroundings into account. Select a preferred cadence and "set it and forget it" for added safety and comfort.
Proven Smooth Efficiency
Custom testing mechanism analyzes bumps at the smallest frequency to increase comfort and vision. Paired with a suspended seatpost, higher volume tires, and an 80mm suspension fork to flatten roads before your eyes.
Turbo System Lock
Use the Specialized app to disable your bike's motor and activate the motion sensor alarm. Once locked, the motor cannot be enabled again except by the owner.
Garmin Radar
Integrated Garmin Radar sensor detects cars up to 140 meters away. MasterMind provides visual, audible, and haptic alerts of an approaching vehicle's relative distance and rate of speed.
Fully Integrated Removable Battery
Lockable downtube battery is easy to charge and easy to secure. Remove it for charging or leave it locked in the frame.
Urban Adventure Kit
Equipped with DRYTECH Fenders, LED front and rear lights, and a 27kg capacity rear HD Rack. The rear rack is compatible with child bike seats, and the bike is rated to pull a thru-axle trailer.
Gates Carbon Drive Belt
Clean, quiet, and virtually maintenance-free Gates Carbon Drive CDX belt system paired with the enviolo IGH for a grease-free, reliable drivetrain.
Step-Through Design
Low step-through frame makes mounting and dismounting effortless. Perfect for commuters, casual riders, and anyone who values easy accessibility.
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170 | 170 | 170 | 170 |
| Handlebar Width | 680 | 680 | 680 | 680 |
| Stem Length | 60 | 60 | 75 | 75 |
| Saddle Width | 155 | 155 | 155 | 155 |
| Seatpost Length | 350 | 350 | 400 | 400 |
| Stack | 625 | 639 | 652 | 676 |
| Reach | 423 | 444 | 464 | 481 |
| Head-Tube Length | 135 | 150 | 165 | 190 |
| Head-Tube Angle | 68° | 68° | 68° | 68° |
| B-B Height | 285 | 285 | 285 | 285 |
| B-B Drop | 70 | 70 | 70 | 70 |
| Trail | 96 | 96 | 96 | 96 |
| Fork Length (full) | 480 | 480 | 480 | 480 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Front-Center | 699 | 724 | 750 | 777 |
| Chain-Stay Length | 470 | 470 | 470 | 470 |
| Wheelbase | 1160 | 1186 | 1212 | 1239 |
| Top-Tube Length (horizontal) | 585 | 615 | 645 | 675 |
| Bike Stand-Over Height | 618 | 617 | 617 | 626 |
| Seat-Tube Length | 400 | 450 | 460 | 500 |
| Seat-Tube Angle (Virtual) | 75.5° | 75° | 74.5° | 74° |
E-bike
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
UI/Remote
MasterMind TCD, w/handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages
Motor
Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal
Battery
Specialized U2-710, alloy casing, state of charge display, 710Wh
Frameset
Frame
E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
Seat Binder
Specialized Alloy 34.9, Steel Bolt
Suspension
Fork
Rockshox Recon Silver RL, 80mm travel, Motion-Control
Brakes
Front Brake
SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm
Rear Brake
SRAM G2 RS, 4-piston caliper, hydraulic disc, 180mm
Drivetrain
Crankset
Custom alloy forged crankarms
Chain
Gates Carbon Drive CDX 122t belt, black
Cassette
Gates Carbon Drive CDX 22t sprocket, silver
Chainrings
Gates Carbon Drive CDX 50T front sprocket, black
Chaincase
Custom chaincover
Internal Gear Hub
enviolo AUTOMATiQ Pro shifting interface
Wheels & Tires
Rims
29 front, 27.5 rear, 30mm inner width, 32h
Spokes
DT Swiss Industry
Front Tire
Pathfinder Sport Reflect, 650Bx2.3
Rear Tire
Pathfinder Sport Reflect, 650Bx2.3
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub
enviolo Heavy Duty, 380% range, 6-bolt, 10x135mm, 32h
Inner Tubes
Standard 40mm Schrader valve 650Bx1.75-2.4
Cockpit
Stem
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Seatpost
Suspension, 40mm travel, 34.9mm
Saddle
Bridge Sport, Steel rails, 155mm
Handlebars
Specialized, alloy, 15-degree backsweep, 46mm rise, 31.8mm
Grips
Ergon GA30
Accessories
Headlight
Lezyne Ebike Power E115, 310 Lumen, 12V
Taillight
Spanninga Commuter Glow XE, 12V
Radar
Integrated Garmin Radar, with custom information displayed directly on the Mastermind TCD
Fenders
Specialized DRYTECH fenders, 65mm width, extra strong aluminum fenderstay
Rack
Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load
Pedals
Specialized Commuter w/ grip tape & reflectors
Bell
Specialized brass bell
Kickstand
Specialized kickstand, 40mm mount
Bike Lock
Turbo System Lock
Mirror
Handlebar rear view mirror, aluminum
Weight
Weight
27.57kg (60 lb, 12.5 oz)
Weight Size
MD
