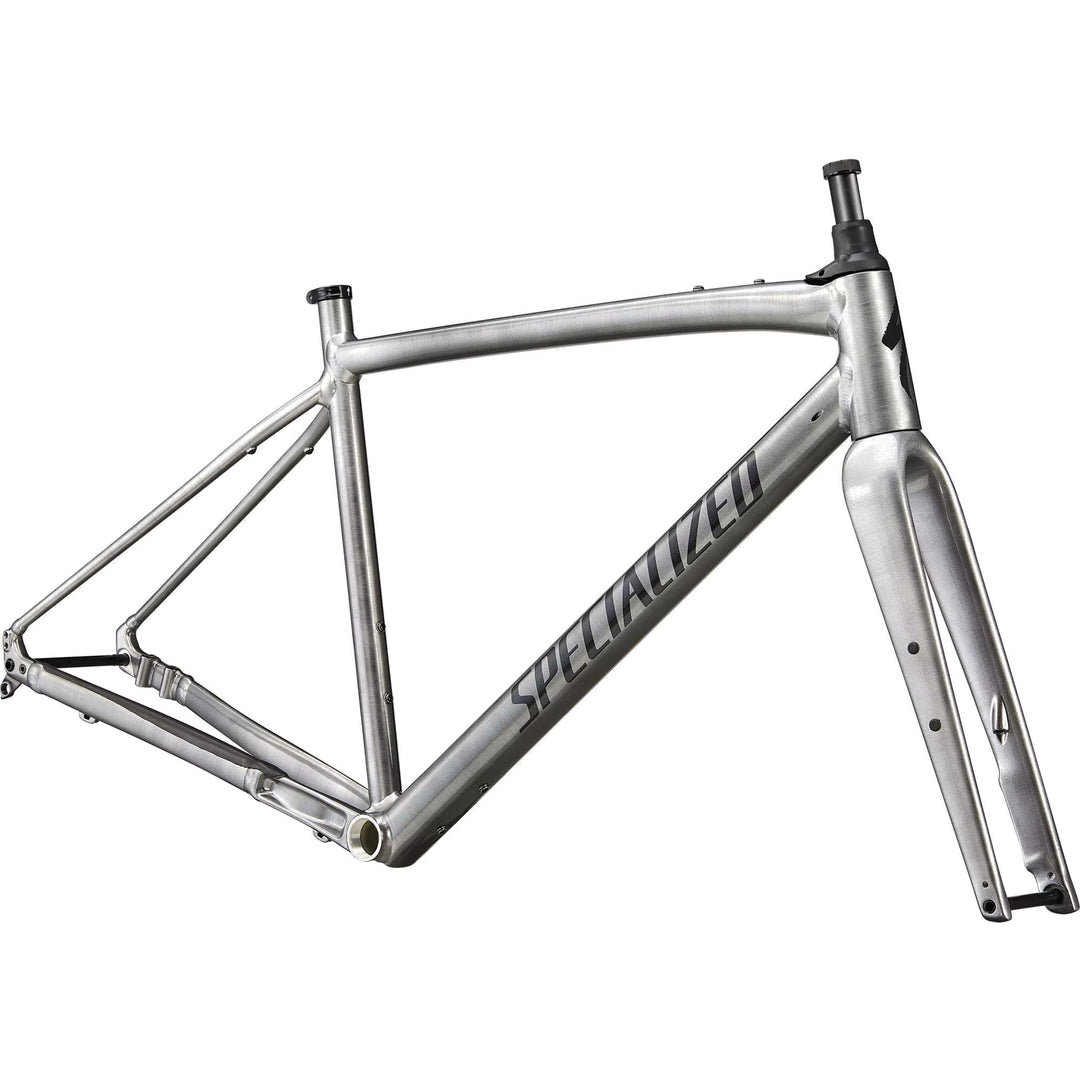

2023 Specialized Diverge E5 EVO Frameset
Specialized

2023 Specialized Diverge E5 EVO Frameset

$1,700.00
/
Shipping calculated at checkout.
Color
Size
  • Free Domestic Shipping On Orders Over $100
  • Low stock - 5 items left
  • Backordered, shipping soon
  • Add To Cart For Final Price
Diverge E5 EVO Frameset
Diverge E5 EVO Frameset
Premium E5 Aluminum · Future Shock 2.0 · Flat Bar · Gravel

Gravel riding is evolving. The Diverge E5 EVO is designed to get aggressive — to push the boundaries of what we thought was possible on a gravel bike. With flat bars and progressive geometry even more extreme than the drop-bar Diverge, this thing is built for riders who want to take their gravel riding to new levels.

  • Premium E5 Aluminum Frame: Stiff, light, and durable platform mated to a full carbon FACT fork.
  • Future Shock 2.0: 20mm of axial compliance, progressively tuned for gravel riding.
  • EVO Progressive Geometry: Longer reach, slackered head tube (70°), lower bottom bracket (85mm drop).
  • Flat Bar Position: Puts you "in" the bike for a super planted feeling.
  • 1x Specific: Designed for single-ring drivetrains, clean and simple.
  • Threaded BB: Easy maintenance, no proprietary standards.
  • 12x142mm Thru-Axle: Stiff rear end for power transfer.
  • Internal Cable Routing: Clean aesthetics, protected from the elements.

Frameset weight: 2.57kg (MD). Three sizes: S, M, L.

Premium E5 Aluminum + FACT Carbon Fork
Stiff, light, and durable aluminum frame when mated to our full carbon FACT fork. A light, lively, and versatile bike ready to tackle the most technical gravel and dirt as aggressively as you could wish.
Future Shock 2.0
20mm of axial compliance progressively tuned for gravel riding. Keeps you confident and in control — able to keep the power down and stay off the brakes over rough dirt roads and thick loose gravel, all while keeping your hands, arms, and neck fresh.
EVO Progressive Geometry
We lengthened the frame 30mm over a drop bar Diverge (Size Medium), lowered the bottom bracket (85mm drop), and slackened the head tube (70°). More confidence over technical terrain while keeping the cockpit comfortable with flat bars. Short stem makes stability feel nimble at the bars.
Built for Aggressive Gravel
From sending technical single track to ripping flowing fire road descents — if you're looking for a partner to take your gravel riding to new levels, nothing's faster, more fun, or rowdier than the Diverge EVO.
S M L
Seatpost Length — — —
Stack 580 607 632
Reach 395 420 440
Head Tube Length 104 133 159
Head Tube Angle 70° 70° 70°
BB Height 265 265 265
BB Drop 85 85 85
Trail 69 69 69
Fork Length, Full 390 390 390
Fork Rake/Offset 55 55 55
Front Center 639 674 703
Chainstay Length 432 432 432
Wheelbase 1057 1092 1121
Top Tube Length, Horizontal 456 600 627
Bike Standover Height 732 754 774
Seat Tube Length 470 500 530
Seat Tube Angle 73.5° 73.5° 73.5°
Frameset
Frame
Specialized Diverge E5 Premium Aluminum, Future Shock suspension, 1x specific EVO geometry, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Fork
Future Shock 2.0 w/ Smooth Boot, FACT carbon, 12x100mm thru-axle, flat-mount
Cockpit
Seat Binder
Specialized Alloy, 30.8mm
