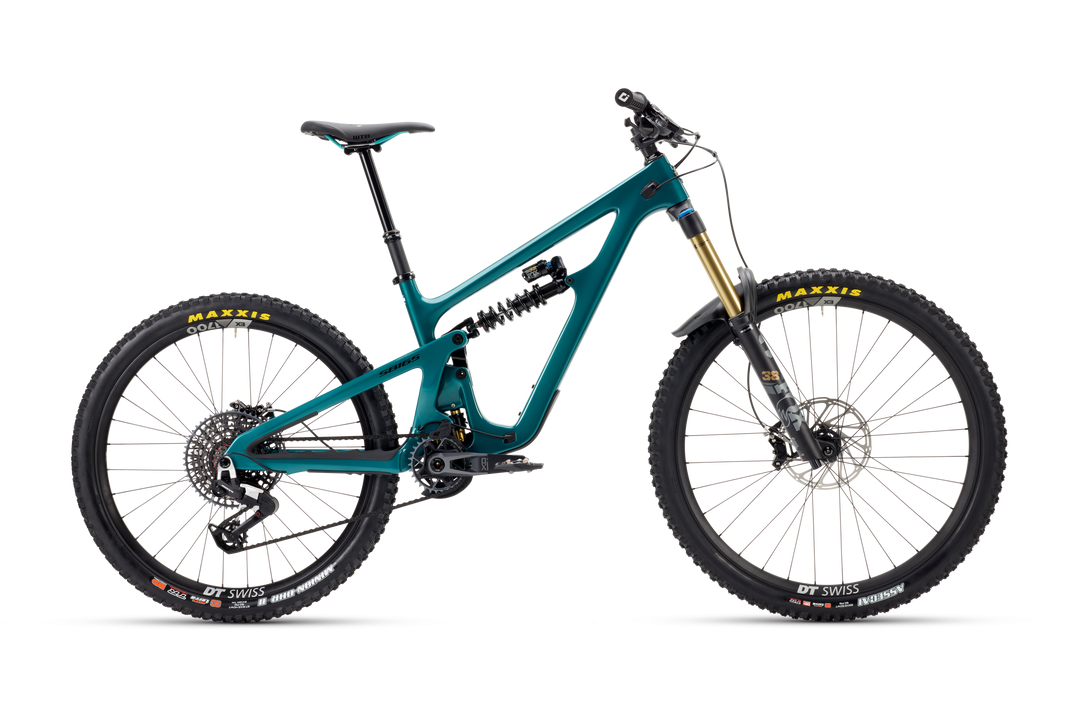

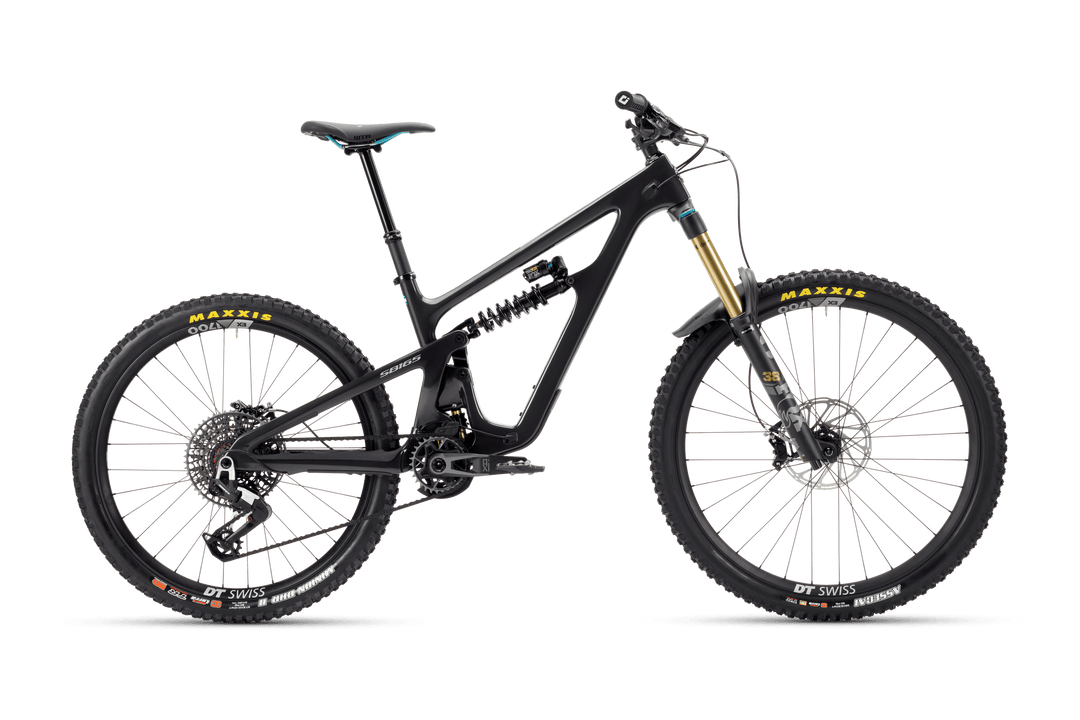

2026 Yeti SB165 T2 X0/90 Transmission Bike
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Switch Infinity rear suspension with mixed wheel setup
- Carbon TURQ Series frame with reinforced protection
- FOX DHX2 Factory rear shock and FOX FLOAT 38 Factory fork
- SRAM X0 and 90 Transmission 12-speed drivetrain
- DT Swiss Custom EX 1700 wheels with Schwalbe tires
- FOX Transfer dropper seatpost with size-specific travel
- Lifetime frame and Switch Infinity Link warranty
Full Specifications
| Product | Yeti SB165 T2 X0/90 Transmission Bike |
|---|---|
| Model Year | 2026 |
| Intended Use | Enduro / All-Mountain Freeride / Bike Park |
| Rider | Unisex |
| Sizes and Geometry | SM MD LG XL |
| Wheel Size | Mixed Wheel Size |
| Frame Material | Carbon Fiber |
| Frame Material Details | TURQ Series carbon fiber front and rear triangles, molded chainstay and seatstay protection, dual-density lower down tube protection |
| Rear Travel | 165mm |
| Rear Shock | FOX DHX2 Factory, 2-position platform lever, 230mm x 65mm Spring rates: 400lbs (SM), 450lbs (MD), 500lbs (LG), 550lbs (XL) |
| Fork | FOX FLOAT 38 Factory, GRIP X2 damper, Kashima coating, 44mm offset, includes bolt-on mudguard/fender |
| Fork Travel | 170mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | Cane Creek 40 Integrated, 41mm upper, 52mm lower |
| Handlebar | Yeti Carbon, 780mm width, 35mm rise, 35mm clamp diameter |
| Stem | Burgtec Enduro MK3, 50mm length, 35mm bar clamp |
| Grips | ODI Elite Pro |
| Brakes | SRAM Maven Bronze, 4-piston Rotors: SRAM HS2, 200mm |
| Brake Levers | SRAM Maven Bronze Stealth, tool-free reach adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle 90 Transmission, 12-speed |
| Front Derailleur | None |
| Rear Derailleur | SRAM Eagle 90 Transmission, 12-speed |
| ISCG Tabs | ISCG05 |
| Chainguide | MRP AMg SL upper slider with bashguard |
| Cranks | SRAM X0 Eagle Transmission Alloy DUB, 165mm length |
| Chainrings | SRAM X0 Eagle Transmission, 30 tooth |
| Bottom Bracket | SRAM DUB, 73mm English/BSA threaded |
| Pedals | None |
| Chain | SRAM X0 Eagle Transmission Flattop, 12-speed |
| Cassette | SRAM X0 Eagle Transmission XS-1295, 12-speed, 10-52 tooth |
| Rims | DT Swiss Custom EX 1700 Alloy, 30mm inner width Option: DT Swiss EXC 1501 Carbon |
| Hubs | DT Swiss Custom EX 1700 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) with Star Ratchet freehub and XD driver |
| Spokes | DT Swiss Custom EX 1700 wheelset |
| Tires | Front: Schwalbe Magic Mary, Trail Pro Radial casing, Ultra Soft compound, 29" x 2.5" Rear: Schwalbe Albert, Gravity Pro Radial casing, Soft compound, 27.5" x 2.5" |
| Saddle | WTB Solano, Chromoly rails |
| Seatpost | FOX Transfer dropper Drop: 150mm (SM), 175mm (MD), 200mm (LG/XL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 36.4mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 27.5" x 2.6" |
| Bottle Cage Mounts | One inside front triangle |
| Colors | Raw Gloss, Spruce Gloss |
| Warranty | Lifetime frame and Switch Infinity Link, 1 year paint and finish |
| Weight | 34 lb 10.7 oz (15,726 g) |
| Miscellaneous |
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 573mm | 604mm | 625mm | 653mm |
| Head Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| Head Tube Length | 95mm | 101mm | 107mm | 118mm |
| Seat Tube Angle | 76.8° | 76.9° | 76.9° | 76.9° |
| Seat Tube Length | 365mm | 400mm | 440mm | 470mm |
| Bottom Bracket Height | 345mm | 345mm | 345mm | 345mm |
| Chainstay Length | 433mm | 435mm | 437mm | 439mm |
| Wheelbase | 1207mm | 1242mm | 1266mm | 1298mm |
| Standover | 730mm | 738mm | 744mm | 750mm |
| Reach | 430mm | 460mm | 480mm | 505mm |
| Stack | 620mm | 625mm | 630mm | 640mm |
