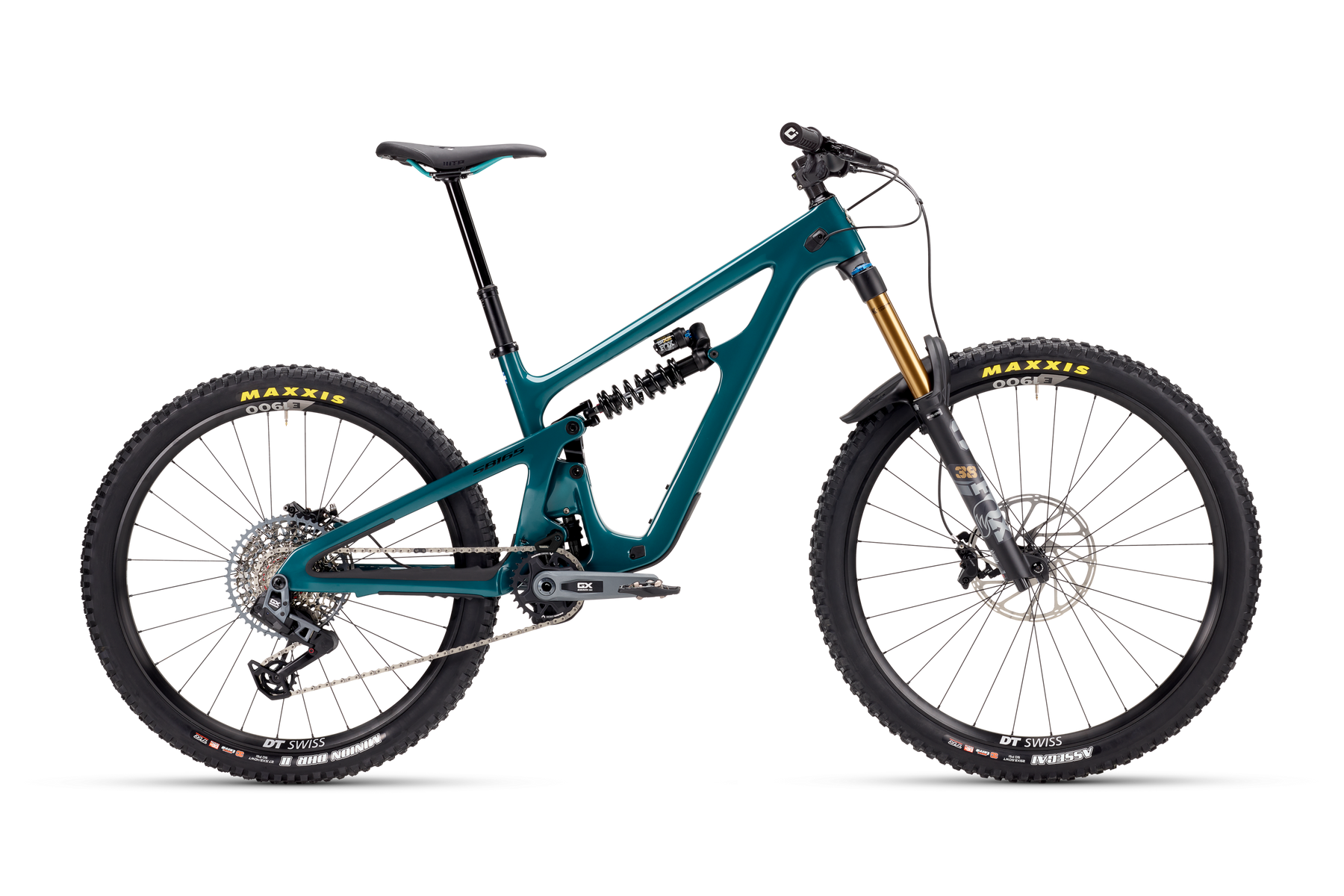

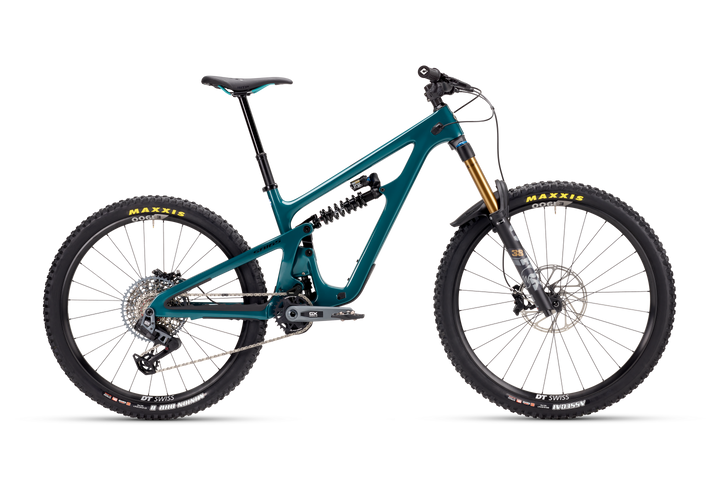

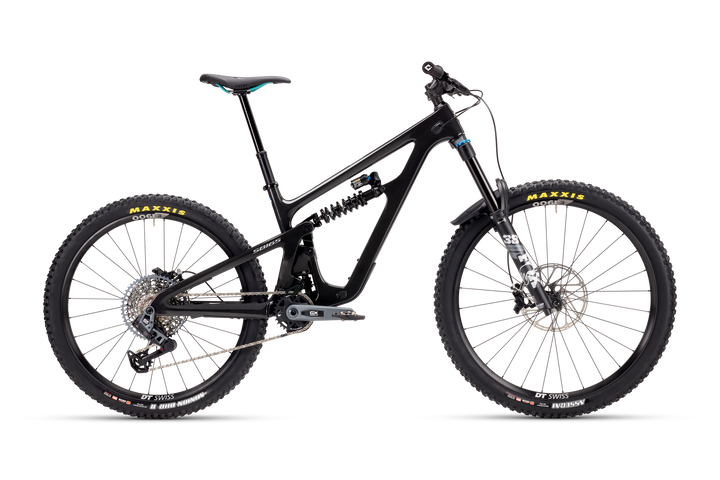

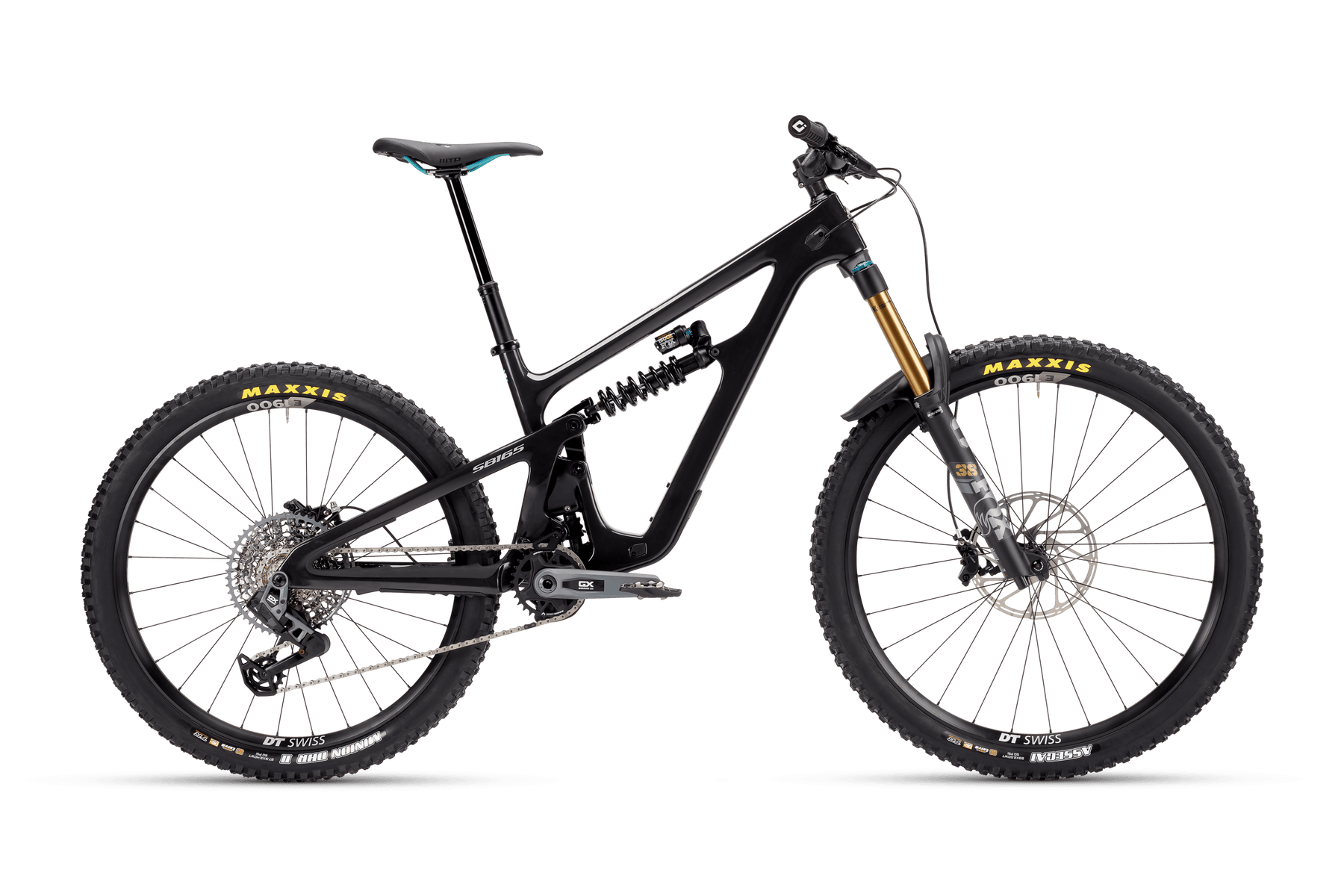

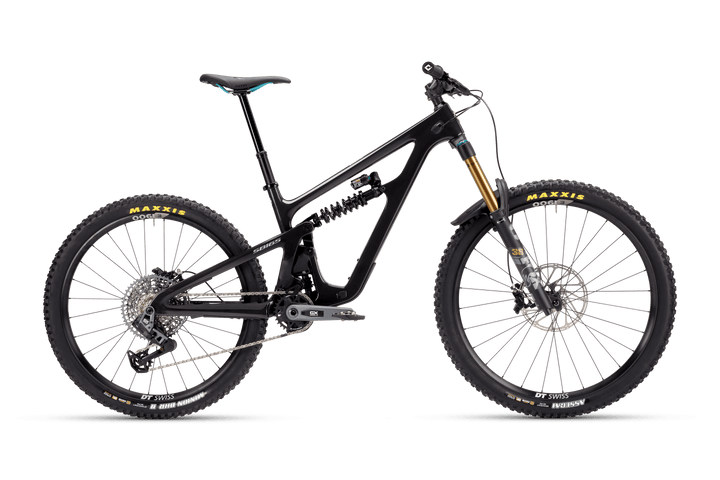

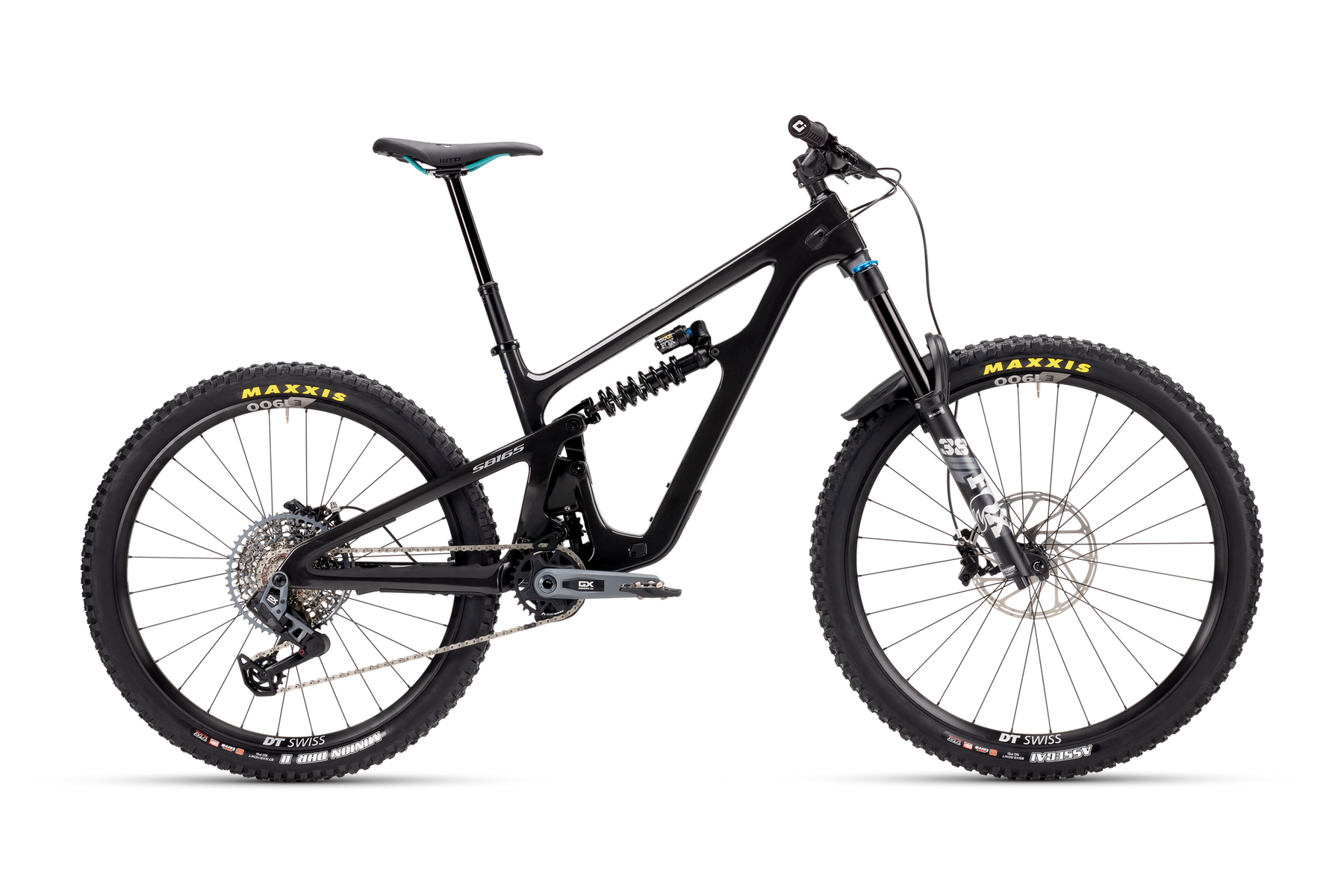

2026 Yeti SB165 C3 GX AXS Transmission Bike
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Switch Infinity rear suspension design with mixed ("Mullet") 29" front and 27.5" rear wheels
- C Series carbon fiber frame with molded chainstay and seatstay protection and dual-density lower down tube protection
- FOX DHX2 Performance rear shock, 2-position platform lever, 230mm x 65mm stroke, optional FOX DHX2 Factory
- FOX FLOAT 38 Performance 170mm fork with GRIP damper, 44mm offset, and bolt-on mudguard/fender (Factory option available)
- SRAM GX Eagle Transmission 12-speed AXS wireless drivetrain with MRP AMg SL upper chainguide with bashguard
- DT Swiss E 1900 Alloy wheels with Schwalbe Magic Mary and Albert tires
- OneUp dropper seatpost with size-dependent travel
- SRAM Maven Base 4-piston brakes with 200mm rotors and tool-free reach adjust
- Lifetime frame and Switch Infinity Link warranty with 1 year paint/finish warranty
- Compatible with dual-crown forks
Full Specifications
| Product | Yeti SB165 C3 GX AXS Transmission Bike |
|---|---|
| Model Year | 2026 |
| Intended Use | Enduro / All-Mountain Freeride / Bike Park |
| Rider | Unisex |
| Sizes and Geometry | SM MD LG XL |
| Wheel Size | Mixed Wheel Size |
| Frame Material | Carbon Fiber |
| Frame Material Details | C Series carbon fiber front and rear triangles, molded chainstay and seatstay protection, dual-density lower down tube protection |
| Rear Travel | 165mm |
| Rear Shock | FOX DHX2 Performance, 2-position platform lever, 230mm x 65mm Option: FOX DHX2 Factory Spring rates: 400lbs (SM), 450lbs (MD), 500lbs (LG), 550lbs (XL) |
| Fork | FOX FLOAT 38 Performance, GRIP damper, 44mm offset, bolt-on mudguard/fender included Option: FOX FLOAT 38 Factory, GRIP2 damper |
| Fork Travel | 170mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | Cane Creek 40 Integrated, 41mm upper, 52mm lower |
| Handlebar | Burgtec Ride Wide Alloy Enduro, 780mm width, 30mm rise, 35mm clamp diameter |
| Stem | Burgtec Enduro MK3, 50mm length, 35mm bar clamp |
| Grips | ODI Elite Pro |
| Brakes | SRAM Maven Base, 4-piston Rotors: SRAM CenterLine, 200mm |
| Brake Levers | SRAM Maven Base Stealth, tool-free reach adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless |
| Front Derailleur | None |
| Rear Derailleur | SRAM GX Eagle Transmission, 12-speed, AXS electronic wireless |
| ISCG Tabs | ISCG05 |
| Chainguide | MRP AMg SL upper slider with bashguard |
| Cranks | SRAM GX Eagle Transmission Alloy DUB, 165mm length |
| Chainrings | SRAM GX Eagle Transmission, 30 tooth |
| Bottom Bracket | SRAM DUB, 73mm English/BSA threaded |
| Pedals | None |
| Chain | SRAM GX Eagle Transmission Flattop, 12-speed |
| Cassette | SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth |
| Rims | DT Swiss E 1900 Alloy, 30mm inner width |
| Hubs | DT Swiss E 1900 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with Ratchet LN freehub and XD driver |
| Spokes | DT Swiss E 1900 wheelset |
| Tires | Front: Schwalbe Magic Mary, Trail Pro Radial casing, Ultra Soft compound, 29" x 2.5" Rear: Schwalbe Albert, Gravity Pro Radial casing, Soft compound, 27.5" x 2.5" |
| Saddle | WTB Solano, Chromoly rails |
| Seatpost | OneUp dropper Drop: 150mm (SM), 180mm (MD), 210mm (LG/XL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 36.4mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 27.5" x 2.6" |
| Bottle Cage Mounts | One inside front triangle |
| Colors | Raw Gloss, Spruce Gloss |
| Warranty | Lifetime frame and Switch Infinity Link, 1 year paint and finish |
| Weight | 35 lb 3.4 oz (15,971 g) |
| Miscellaneous |
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 573mm | 604mm | 625mm | 653mm |
| Head Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| Head Tube Length | 95mm | 101mm | 107mm | 118mm |
| Seat Tube Angle | 76.8° | 76.9° | 76.9° | 76.9° |
| Seat Tube Length | 365mm | 400mm | 440mm | 470mm |
| Bottom Bracket Height | 345mm | 345mm | 345mm | 345mm |
| Chainstay Length | 433mm | 435mm | 437mm | 439mm |
| Wheelbase | 1207mm | 1242mm | 1266mm | 1298mm |
| Standover | 730mm | 738mm | 744mm | 750mm |
| Reach | 430mm | 460mm | 480mm | 505mm |
| Stack | 620mm | 625mm | 630mm | 640mm |
| Additional Info |
|
|||
