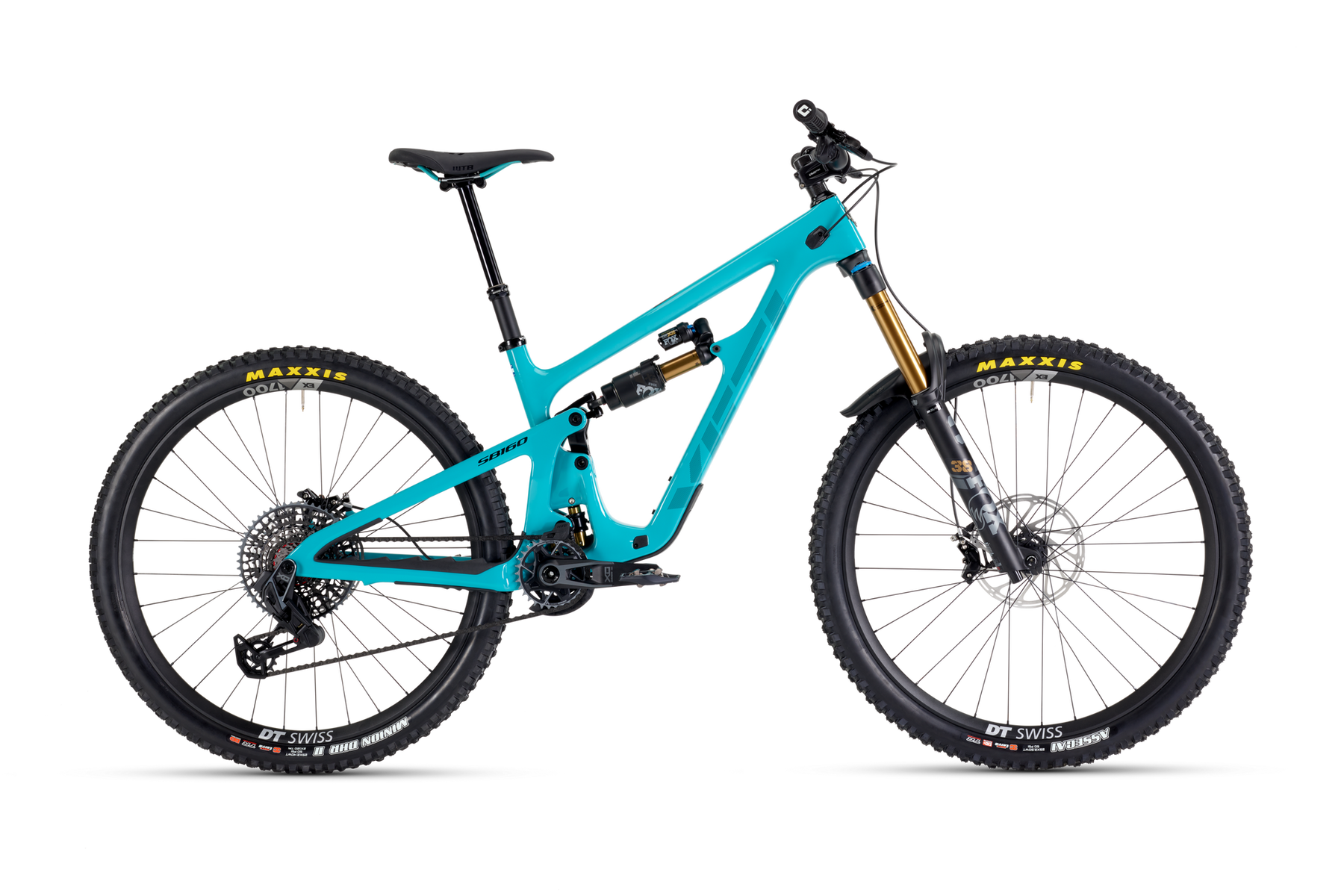

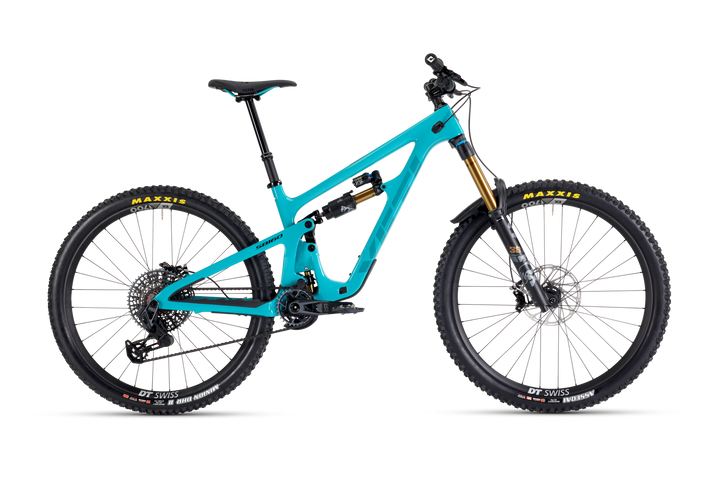

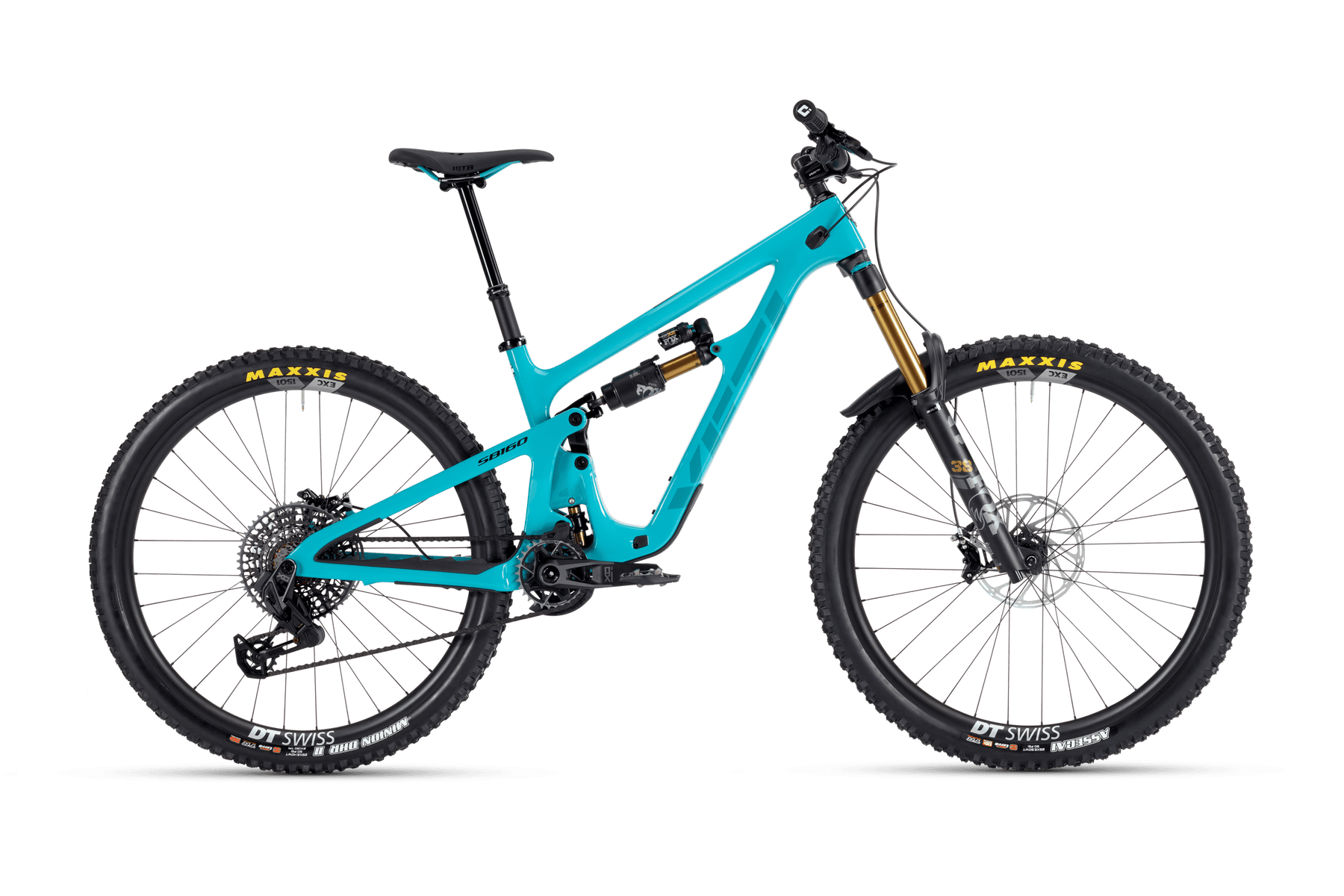

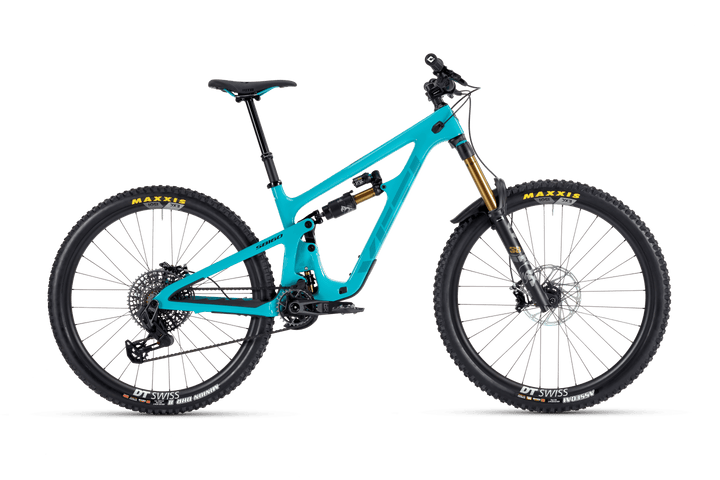

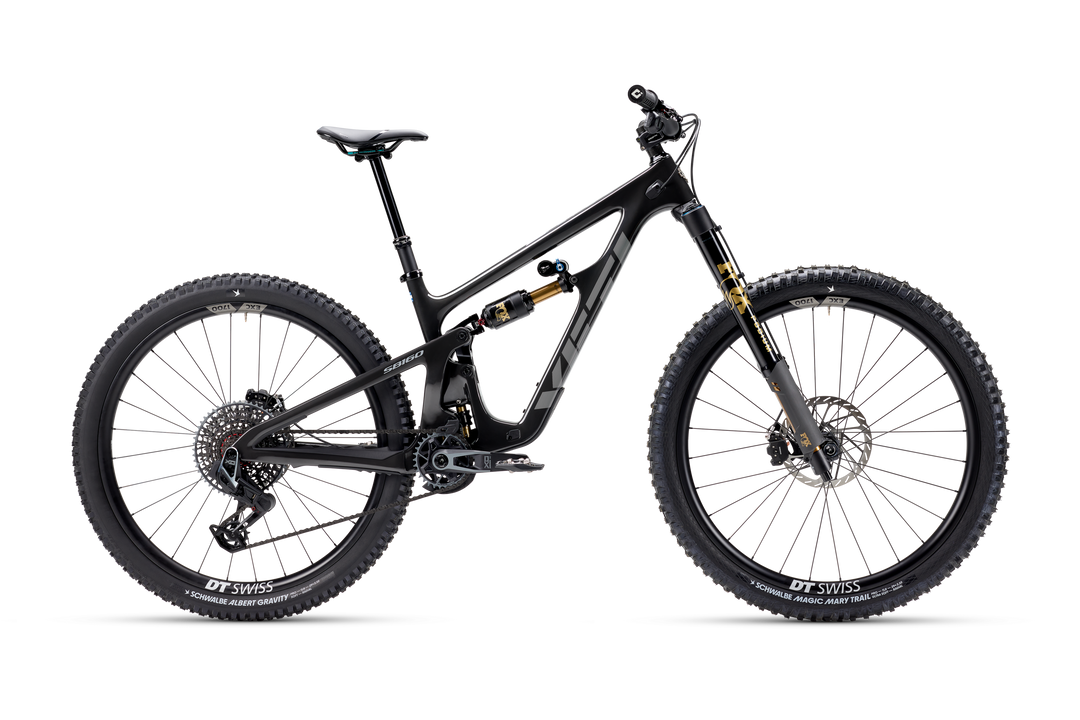

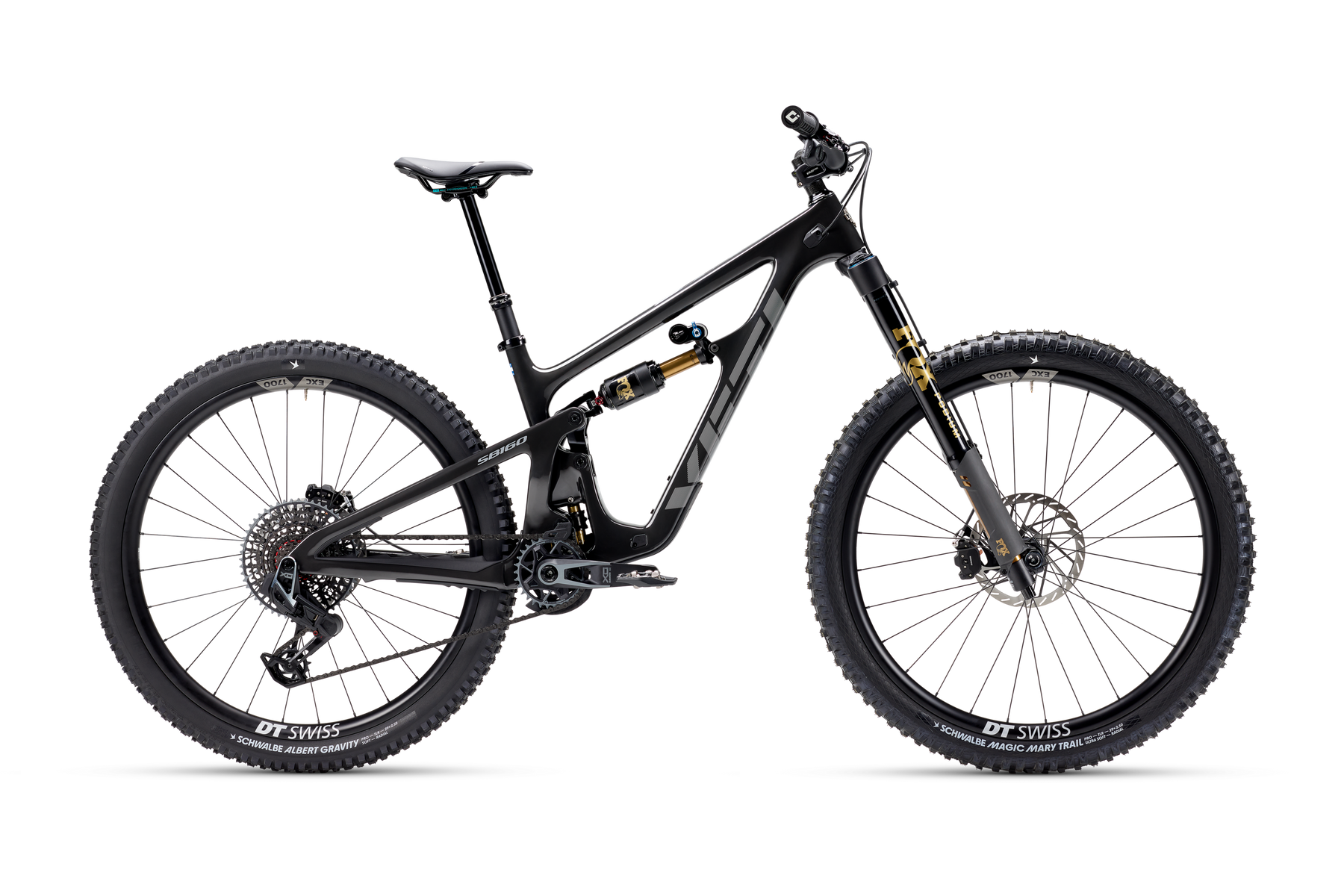

2026 Yeti SB160 T3 X0 AXS Transmission Bike
- Free Domestic shipping
- In stock, ready to ship
- Backordered, shipping soon
Key Features
- Switch Infinity V2 suspension
- TURQ Series carbon frame
- FOX FLOAT Podium Factory fork and FOX FLOAT X2 Factory rear shock, Kashima coating
- SRAM X0 Eagle Transmission 12-speed wireless
- DT Swiss Custom EXC 1700 Carbon wheelset, 30mm inner width
- Schwalbe Magic Mary (front) and Albert (rear) tires, 29"
- FOX Transfer dropper seatpost, up to 200mm travel
- SRAM Maven Silver 4-piston brakes and HS2 200mm rotors
- Yeti Carbon bar, Burgtec Enduro MK3 stem, ODI Elite Pro grips
- Lifetime frame and Switch Infinity Link warranty (1 year paint/finish)
Full Specifications
| Product | Yeti SB160 T3 X0 AXS Transmission Bike |
|---|---|
| Model Year | 2026 |
| Intended Use | Enduro / All-Mountain Freeride / Bike Park |
| Rider | Unisex |
| Sizes and Geometry | SM MD LG XL XXL |
| Wheel Size | 29" |
| Frame Material | Carbon Fiber |
| Frame Material Details | TURQ Series carbon fiber front and rear triangles; molded chainstay, seatstay, and lower down tube protection |
| Rear Travel | 160mm |
| Rear Shock | FOX FLOAT X2 Factory, Kashima coating, 230mm x 65mm |
| Fork | FOX FLOAT Podium Factory, GRIP X2 damper, Kashima coating, 44mm offset |
| Fork Travel | 170mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | Cane Creek 40 Integrated, 41mm upper, 52mm lower |
| Handlebar | Yeti Carbon, 780mm width, 35mm rise, 35mm clamp diameter |
| Stem | Burgtec Enduro MK3, 50mm length, 35mm bar clamp |
| Grips | ODI Elite Pro |
| Brakes | SRAM Maven Silver, 4-piston Rotors: SRAM HS2, 200mm |
| Brake Levers | SRAM Maven Silver Stealth, tool-free reach and contact point adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless |
| Front Derailleur | None |
| Rear Derailleur | SRAM X0 Eagle Transmission, 12-speed, AXS electronic wireless |
| ISCG Tabs | ISCG05 |
| Chainguide | MRP AMg SL upper slider with bashguard |
| Cranks | SRAM X0 Eagle Transmission Alloy DUB, 165mm length |
| Chainrings | SRAM X0 Eagle Transmission, 30 tooth |
| Bottom Bracket | SRAM DUB, 73mm English/BSA threaded |
| Pedals | None |
| Chain | SRAM X0 Eagle Transmission Flattop, 12-speed |
| Cassette | SRAM X0 Eagle Transmission XS-1295, 12-speed, 10-52 tooth |
| Rims | DT Swiss Custom EXC 1700 Carbon, 30mm inner width |
| Hubs | DT Swiss Custom EXC 1700 wheelset, 20mm x 110mm (Boost) front, 12mm x 148mm (Boost) with Star Ratchet freehub and XD driver |
| Tires | Front: Schwalbe Magic Mary, Trail Pro Radial casing, Ultra Soft, 29" x 2.5" Rear: Schwalbe Albert, Gravity Pro Radial casing, Soft, 29" x 2.5" |
| Saddle | WTB Solano, Chromoly rails |
| Seatpost | FOX Transfer dropper, 150mm (SM), 175mm (MD), 200mm (LG-XXL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 36.4mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29" x 2.6" |
| Bottle Cage Mounts | One inside front triangle |

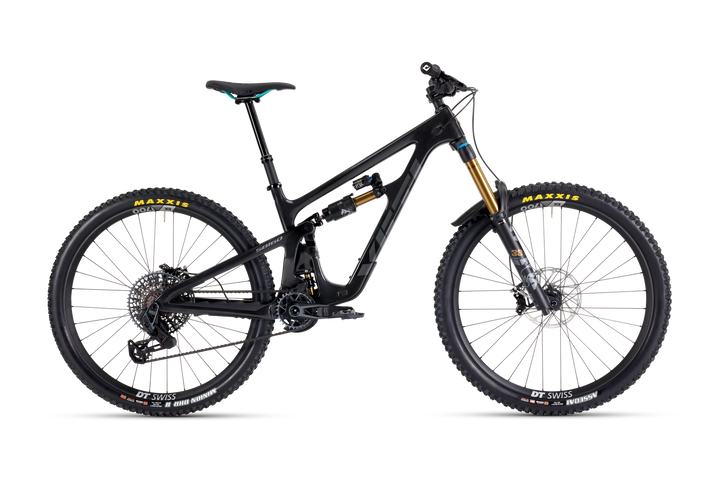

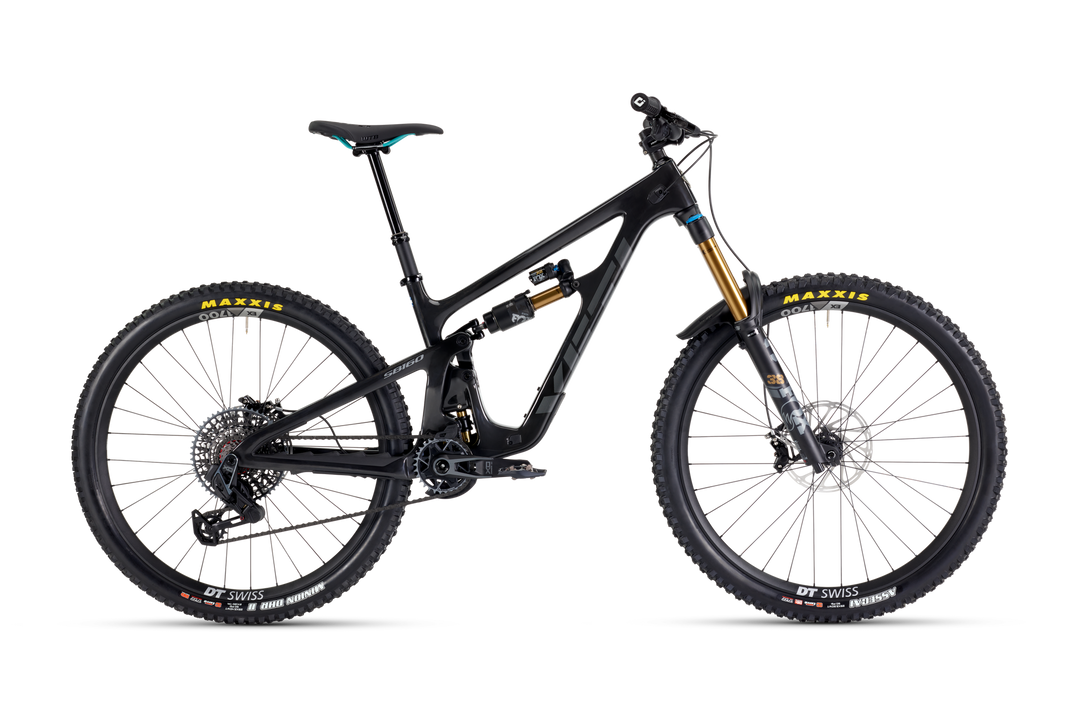

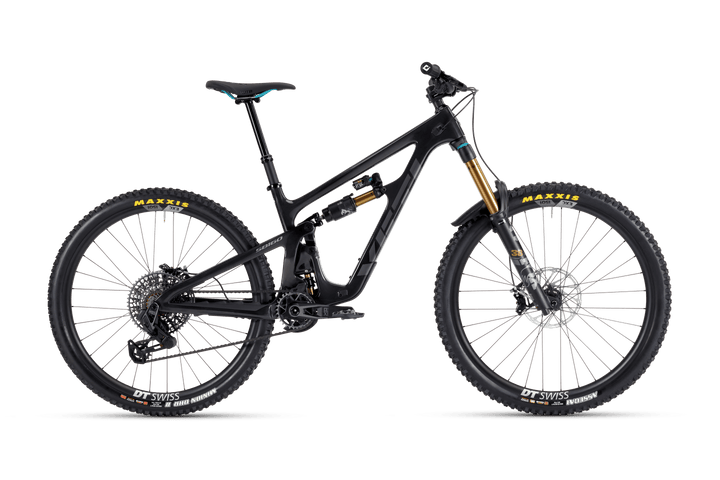

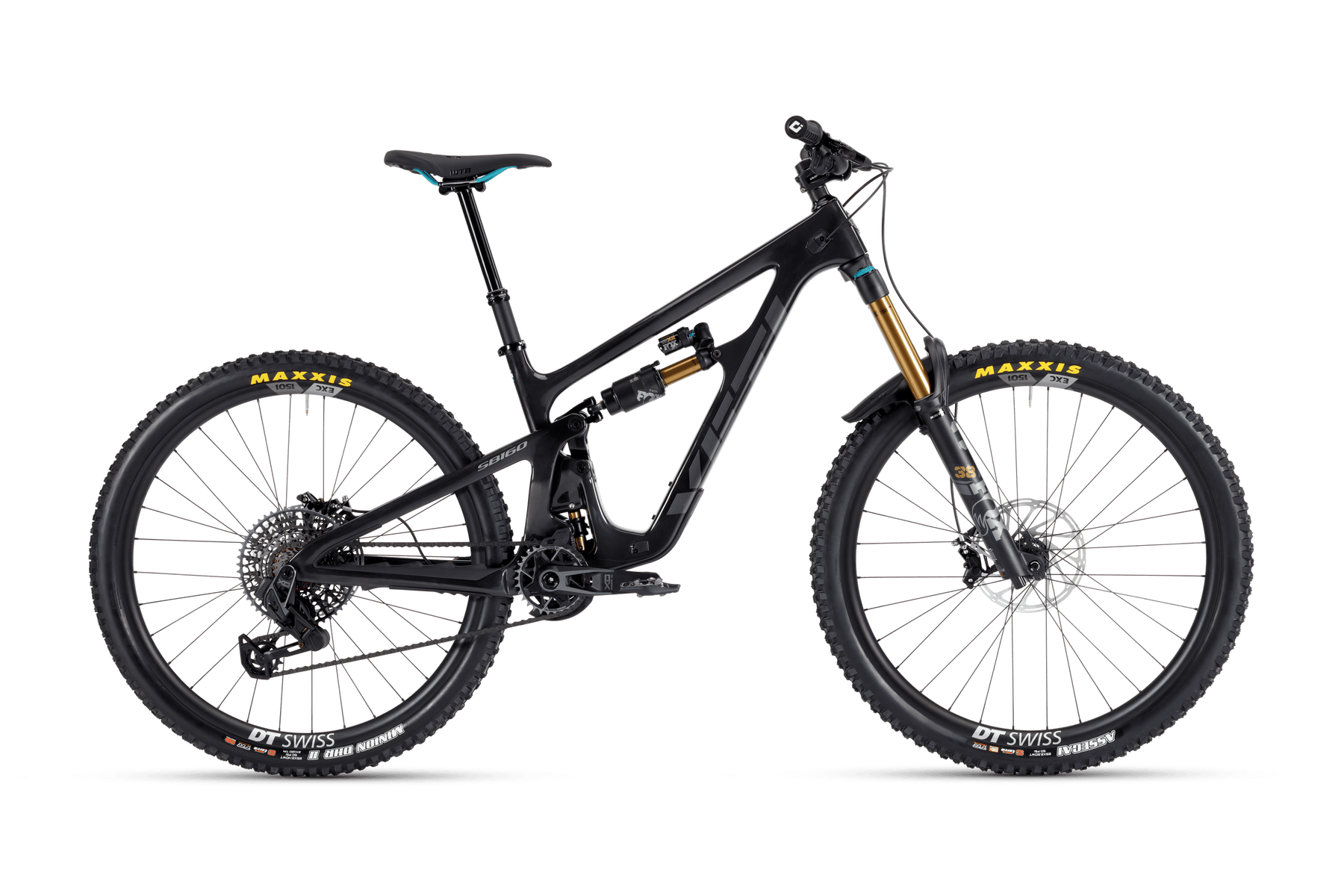

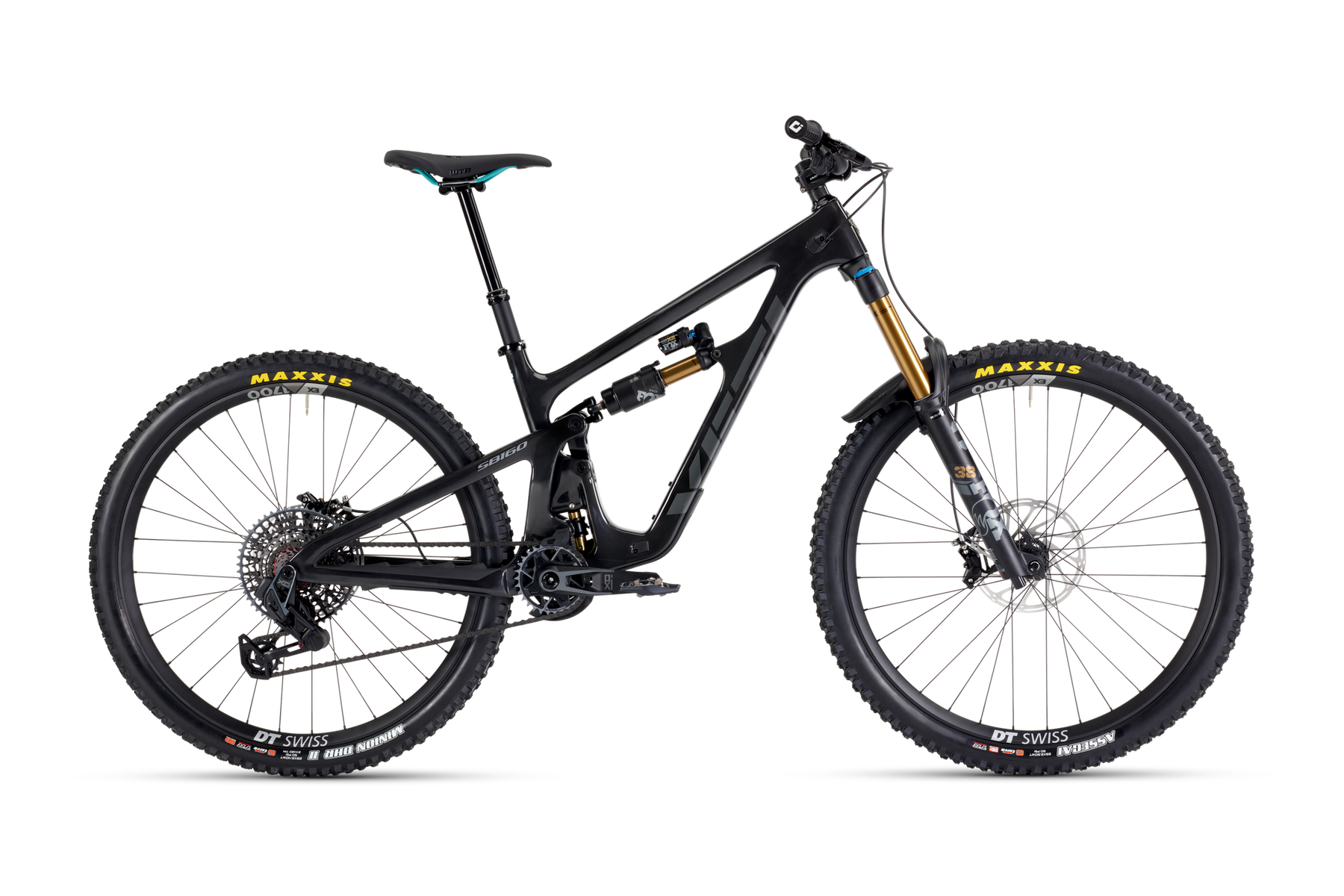

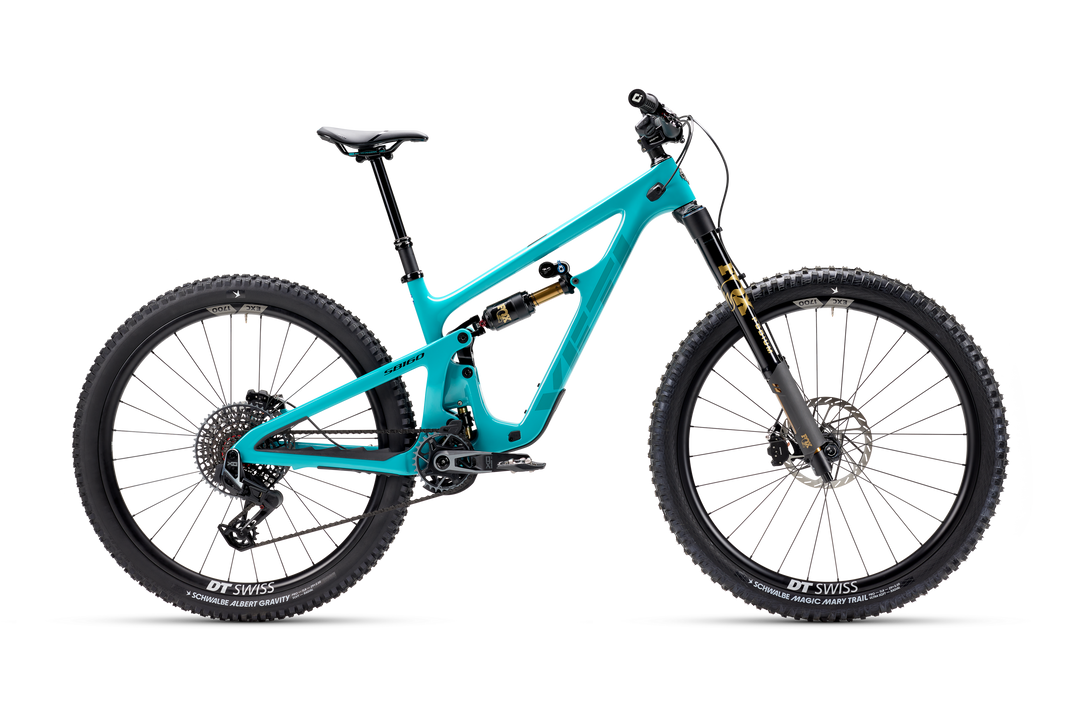

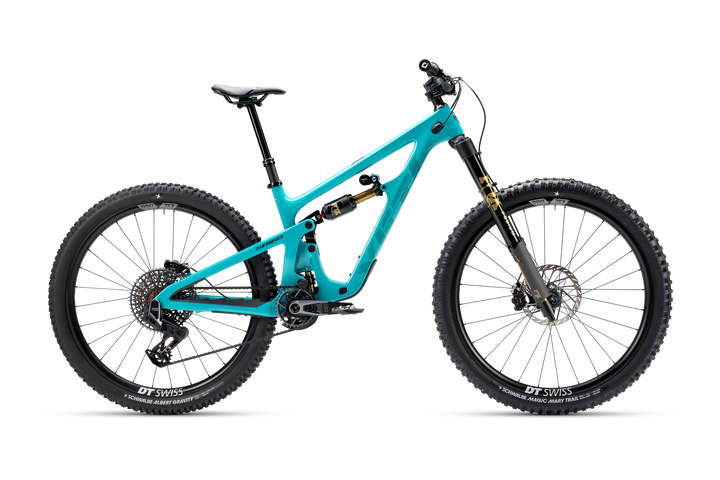

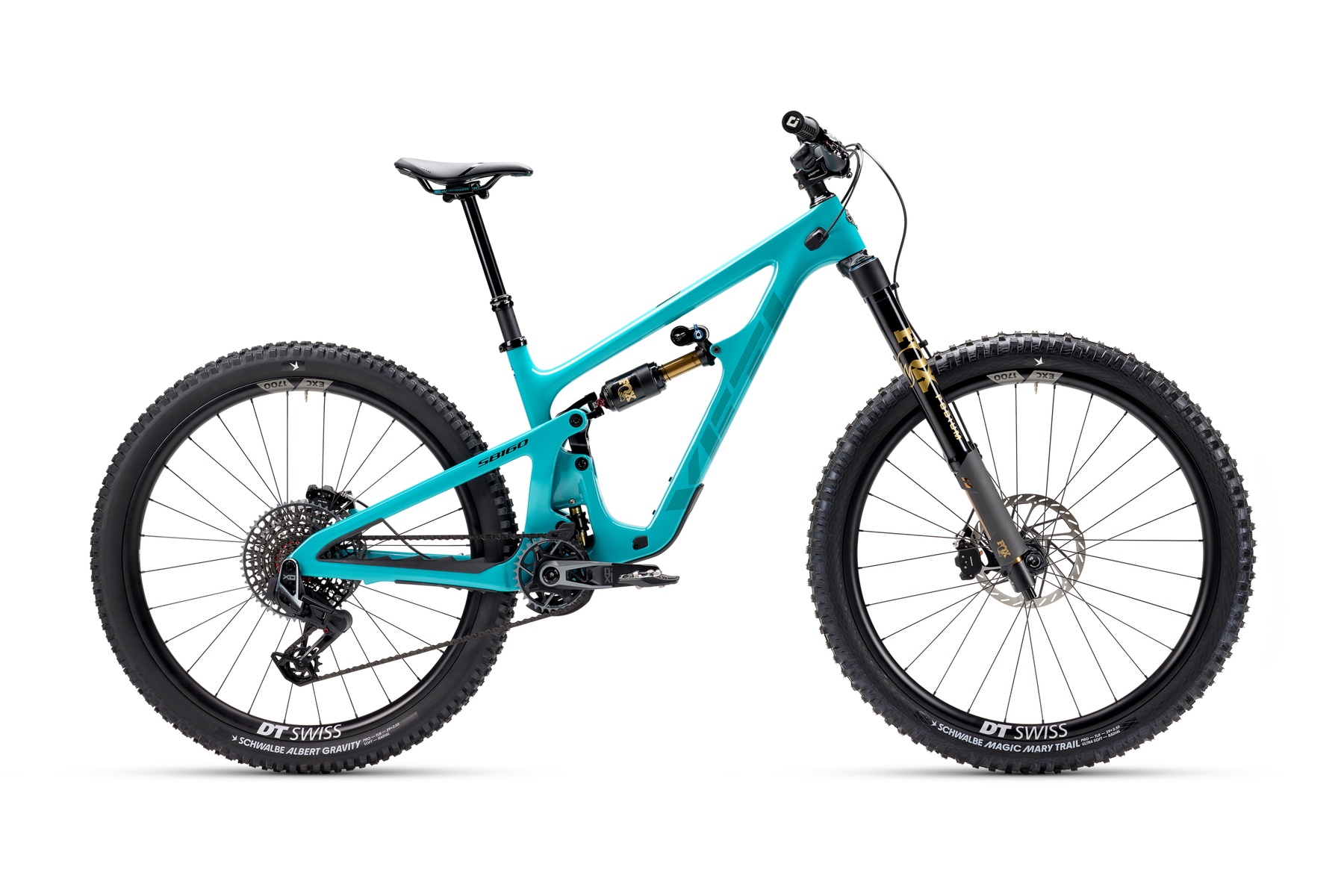

| Colors | Turquoise, Raw Carbon |
| Warranty | Lifetime frame and Switch Infinity Link, 1 year paint and finish |
| Weight | 34 lb 12.5 oz (15,776 g) |
| Miscellaneous |
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Top Tube Length | 571mm | 602mm | 624mm | 651mm | 670mm |
| Head Tube Angle | 64° | 64° | 64° | 64° | 64° |
| Head Tube Length | 95mm | 101mm | 107mm | 118mm | 140mm |
| Seat Tube Angle | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° |
| Seat Tube Length | 365mm | 400mm | 440mm | 470mm | 485mm |
| Bottom Bracket Height | 353mm | 353mm | 353mm | 353mm | 353mm |
| Chainstay Length | 437mm | 439mm | 441mm | 443mm | 445mm |
| Wheelbase | 1211mm | 1246mm | 1270mm | 1302mm | 1329mm |
| Standover | 735mm | 744mm | 750mm | 756mm | 757mm |
| Reach | 435mm | 465mm | 485mm | 510mm | 525mm |
| Stack | 615mm | 620mm | 625mm | 635mm | 655mm |
| Additional Info |
|
||||
