2026 Yeti SB140 C2 90 Transmission Bike
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Efficient SRAM Eagle 90 Transmission 12-speed direct-mount drivetrain
- C Series carbon frame with 140mm Switch Infinity V2 rear suspension
- Reliable FOX FLOAT 36 Performance fork (150mm) and FOX FLOAT X Performance rear shock
- Powerful four-piston braking from SRAM Maven Base brakes
- Durable DT Swiss M 1900 Alloy wheelset with 30mm inner width
- Industry-leading travel with the OneUp dropper post (up to 240mm drop on XL/XXL)
- Aggressive Maxxis Minion DHF (front) and DHR II (rear) tire combination
- Quality cockpit components from Burgtec (bar and stem) and Cane Creek (headset)
- Lifetime frame and Switch Infinity Link warranty
Full Specifications
| Product | Yeti SB140 C2 90 Transmission Bike |
|---|---|
| Model Year | 2026 |
| Intended Use | Enduro / All-Mountain Trail |
| Rider | Unisex |
| Sizes and Geometry | SM MD LG XL XXL |
| Wheel Size | 29" |
| Frame Material | Carbon Fiber |
| Frame Material Details | C Series carbon fiber front and rear triangles; molded chainstay, seatstay, and lower down tube protection |
| Rear Travel | 140mm |
| Rear Shock | FOX FLOAT X Performance Option: FOX FLOAT X Factory |
| Fork | FOX FLOAT 36 Performance, GRIP damper, 44mm offset Option: FOX FLOAT 36 Factory, GRIP X2 damper |
| Fork Travel | 150mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | Cane Creek 40 Integrated, 41mm upper, 52mm lower |
| Handlebar | Burgtec Ride Wide Enduro Alloy, 780mm width, 35mm clamp diameter |
| Stem | Burgtec Enduro MK3, 50mm length, 35mm bar clamp |
| Grips | ODI Elite Pro |
| Brakes | SRAM Maven Base, 4-piston Rotors: SRAM CenterLine, 200mm front, 180mm rear |
| Brake Levers | SRAM Maven Base Stealth, tool-free reach adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle 90 Transmission, 12-speed |
| Front Derailleur | None |
| Rear Derailleur | SRAM Eagle 90 Transmission, 12-speed |
| ISCG Tabs | ISCG05 |
| Chainguide | None |
| Cranks | SRAM Eagle 90 Transmission Alloy DUB, 165mm length |
| Chainrings | SRAM Eagle 90 Transmission, 30 tooth |
| Bottom Bracket | SRAM DUB, 73mm English/BSA threaded |
| Pedals | None |
| Chain | SRAM GX Eagle Transmission Flattop, 12-speed |
| Cassette | SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth |
| Rims | DT Swiss M 1900 Alloy, 30mm inner width |
| Hubs | DT Swiss M 1900 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) with Ratchet LN freehub and XD driver |
| Spokes | DT Swiss M 1900 wheelset |
| Tires | Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO casing, 29" x 2.5" Rear: Maxxis Minion DHR II, Dual compound, EXO casing, 29" x 2.4" |
| Saddle | WTB Solano, Chromoly rails |
| Seatpost | OneUp dropper Drop: 150mm (SM), 180mm (MD), 210mm (LG), 240mm (XL/XXL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 36.4mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29" x 2.6" |
| Bottle Cage Mounts | One inside front triangle |

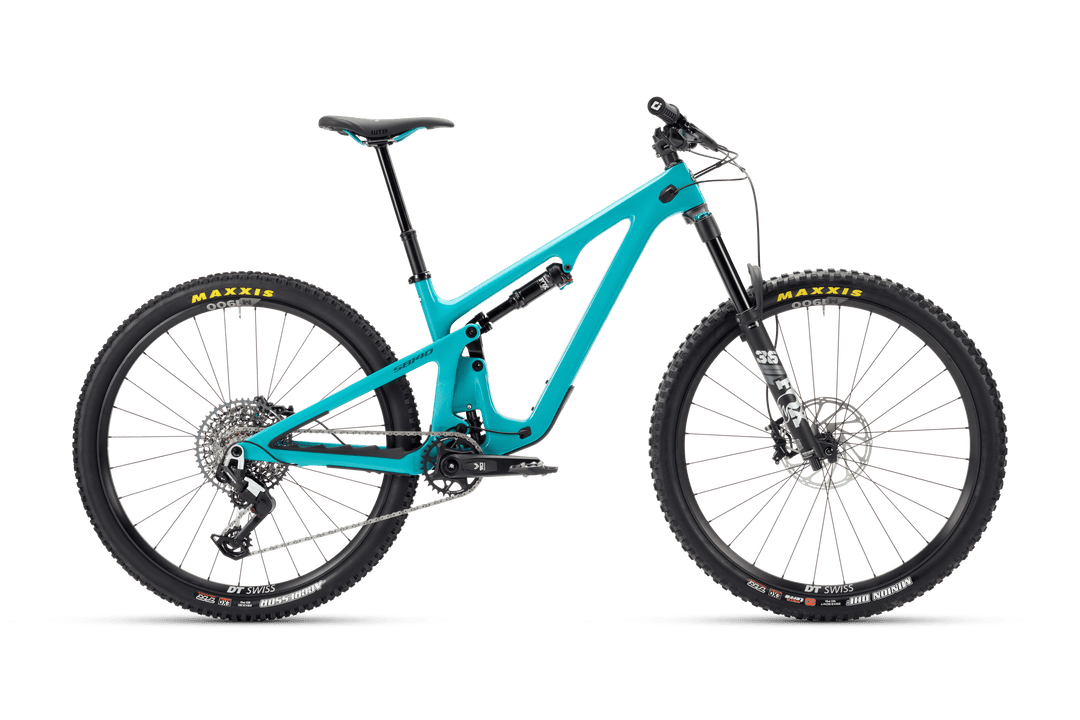

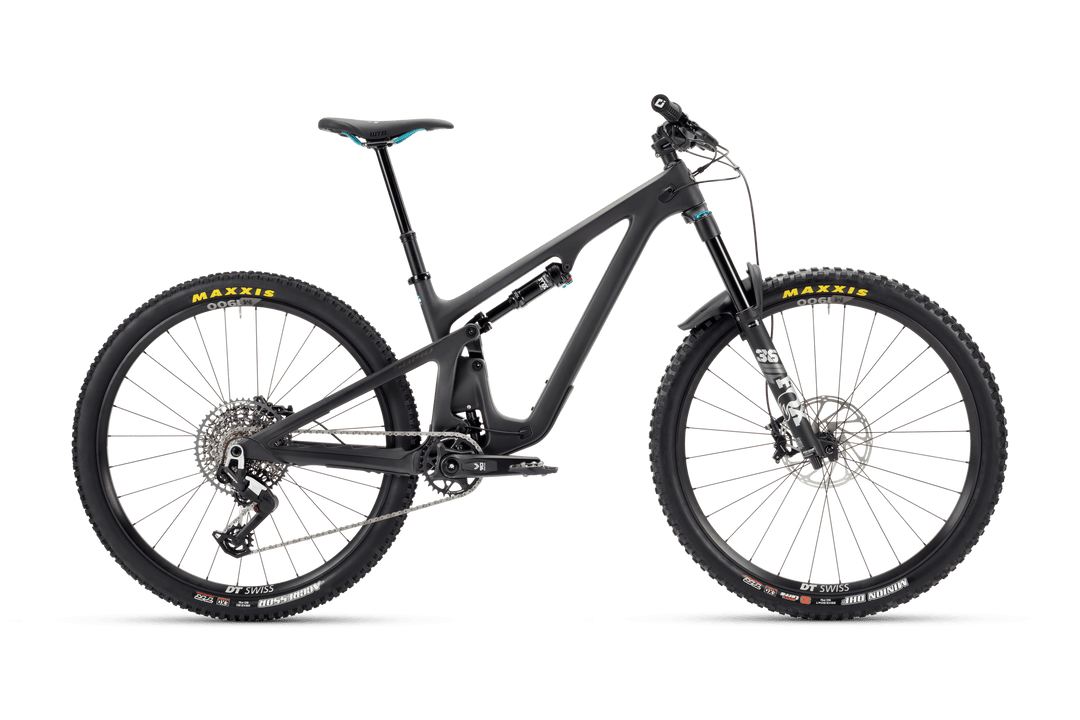

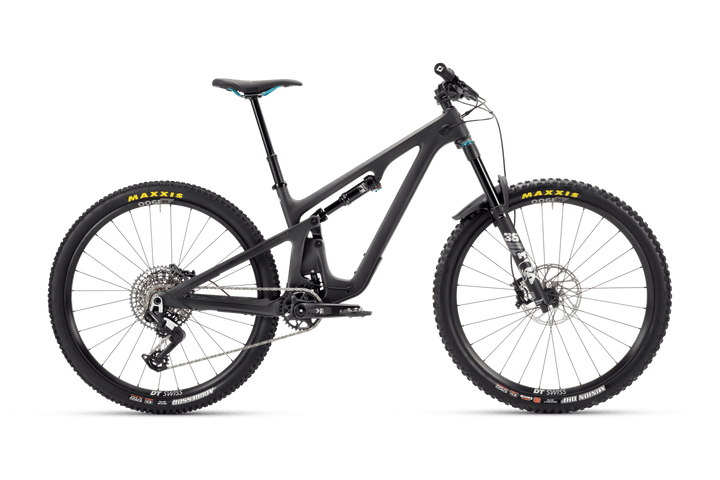

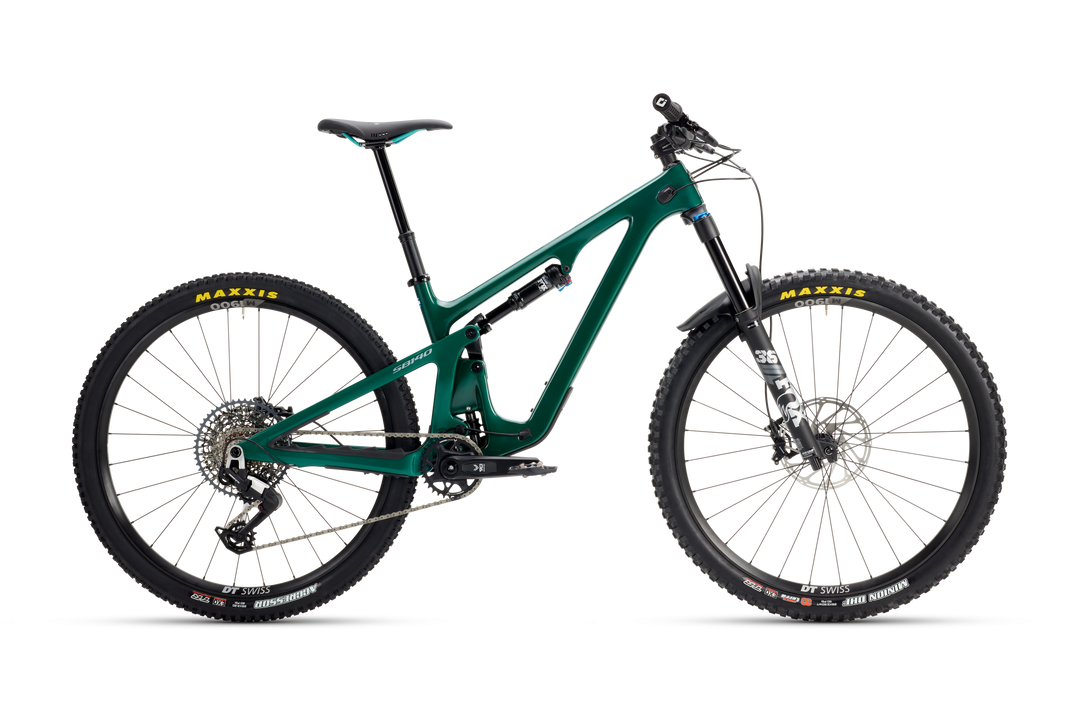

| Colors | Turquoise, Raw Carbon, Emerald |
| Warranty | Lifetime frame and Switch Infinity Link, 1 year paint and finish |
| Weight | 32 lb 0.8 oz (14,538 g) |
| Miscellaneous |
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Top Tube Length | 571mm | 602mm | 623mm | 650mm | 670mm |
| Head Tube Angle | 65.4° | 65.5° | 65.4° | 65.4° | 65.4° |
| Head Tube Length | 92mm | 95mm | 100mm | 112mm | 134mm |
| Seat Tube Angle | 77.5° | 77.5° | 77.5° | 77.4° | 77.4° |
| Seat Tube Length | 365mm | 400mm | 440mm | 470mm | 485mm |
| Bottom Bracket Height | 339mm | 339mm | 339mm | 339mm | 339mm |
| Chainstay Length | 436mm | 438mm | 440mm | 442mm | 444mm |
| Wheelbase | 1184mm | 1217mm | 1242mm | 1273mm | 1300mm |
| Standover | 722mm | 729mm | 733mm | 735mm | 740mm |
| Reach | 435mm | 465mm | 485mm | 510mm | 525mm |
| Stack | 614mm | 617mm | 621mm | 631mm | 651mm |
| Additional Info |
|
||||
