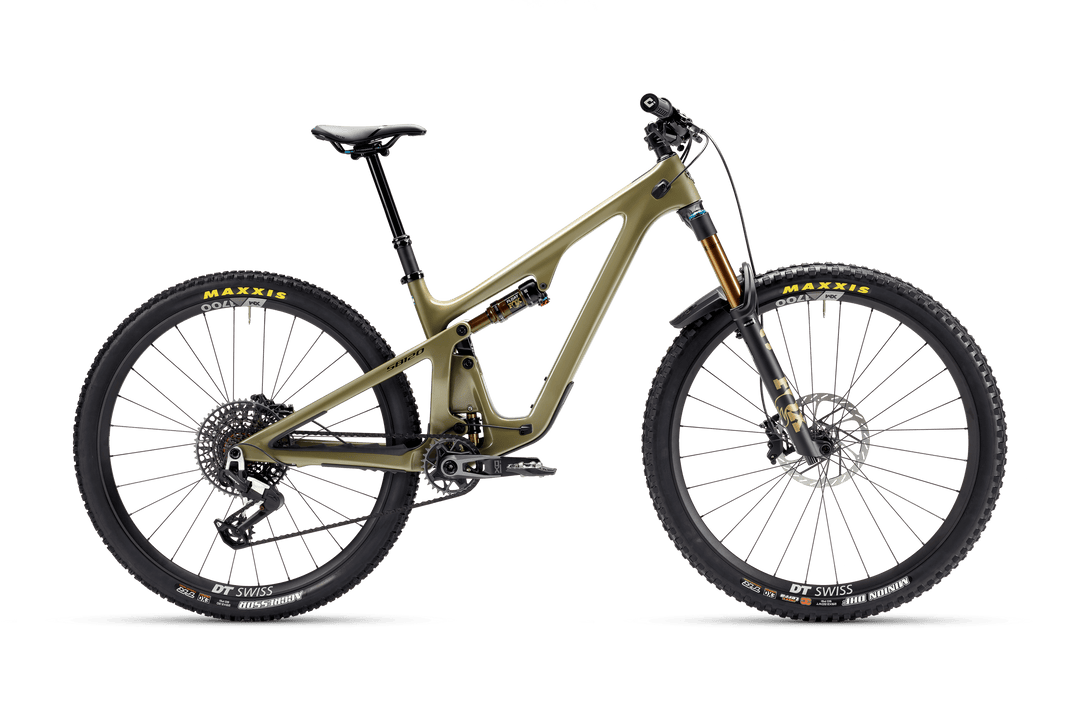

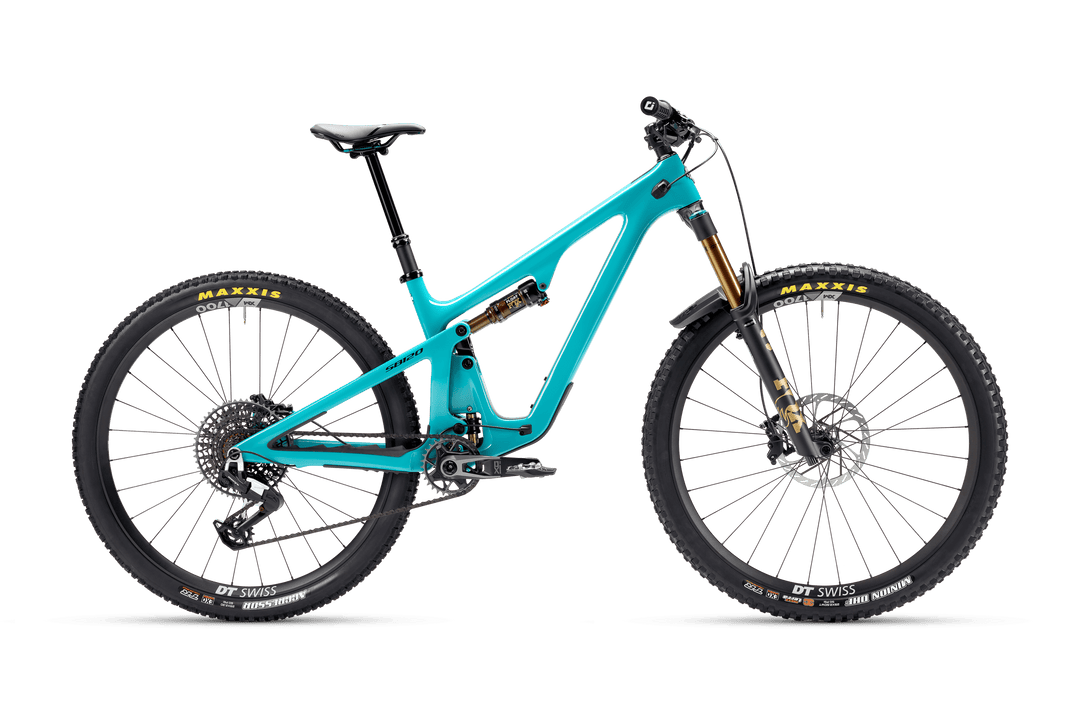

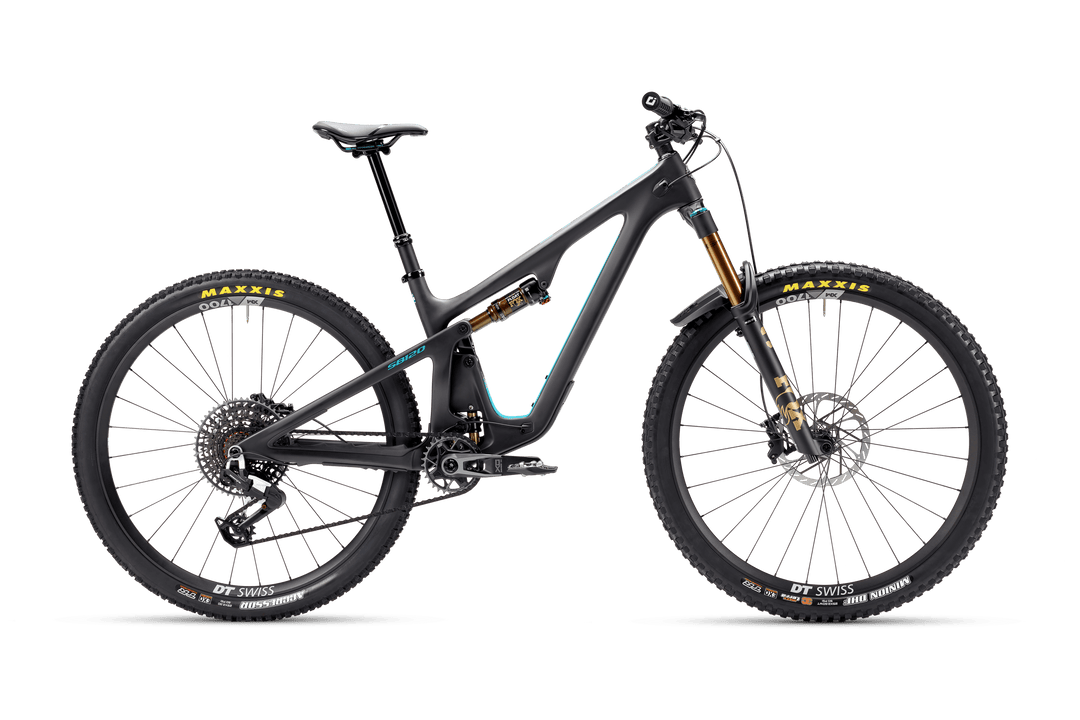

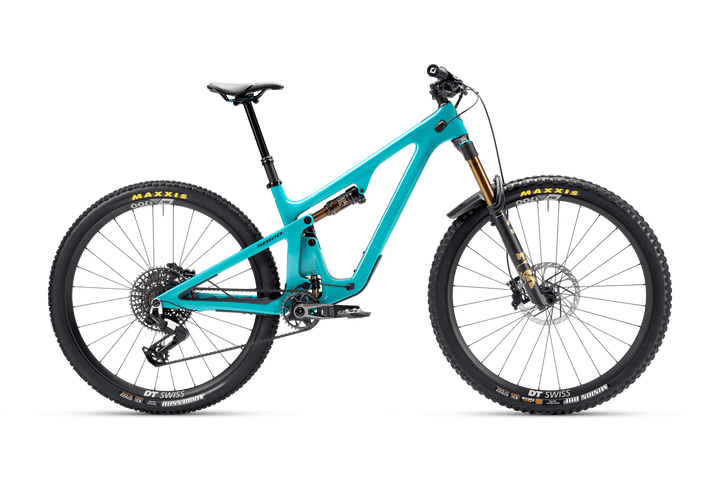

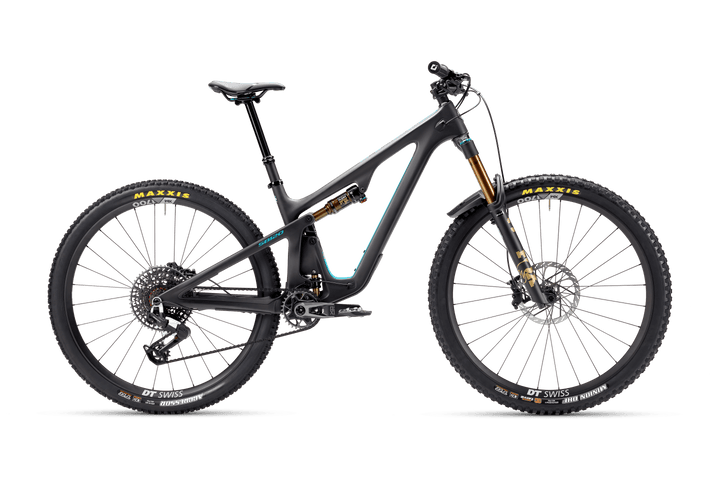

2026 Yeti SB120 T2 X0/90 Transmission Bike
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Lightweight TURQ Series carbon frame with 120mm Switch Infinity V2 rear suspension
- High-end FOX Factory suspension: 130mm FLOAT 34 Factory fork and FLOAT Factory rear shock, both Kashima coated
- SRAM X0 Transmission crankset and SRAM X0 Flattop chain paired with the SRAM Eagle 90 Transmission system
- Powerful and adjustable SRAM G2 RSC 4-piston brakes
- Performance-oriented DT Swiss XM 1700 Alloy wheelset (Carbon upgrade available)
- Race-ready components including a Yeti Carbon handlebar and FOX Transfer dropper post
- Efficient and light build, weighing just 29 lb 8.5 oz (13,395 g)
- Trail-focused tire combo: Maxxis Minion DHF (front) and Aggressor (rear)
- Lifetime frame and Switch Infinity Link warranty
Full Specifications
| Product | Yeti SB120 T2 X0/90 Transmission Bike |
|---|---|
| Model Year | 2026 |
| Intended Use | Cross Country Trail |
| Rider | Unisex |
| Sizes and Geometry | XS SM MD LG XL XXL |
| Wheel Size | 29" |
| Frame Material | Carbon Fiber |
| Frame Material Details | TURQ Series carbon fiber front and rear triangles; molded chainstay, seatstay, and lower down tube protection |
| Rear Travel | 120mm |
| Rear Shock | FOX FLOAT Factory, Kashima coating, 190mm length x 45mm stroke |
| Fork | FOX FLOAT 34 Factory, GRIP X damper, Kashima coating, 44mm offset |
| Fork Travel | 130mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | Cane Creek 40 Integrated, 41mm upper, 52mm lower |
| Handlebar | Yeti Carbon, 780mm width, 35mm clamp diameter |
| Stem | Burgtec Enduro MK3, 50mm length, 35mm bar clamp |
| Grips | ODI Elite Pro |
| Brakes | SRAM G2 RSC, 4-piston Rotors: SRAM CenterLine, 180mm (front and rear) |
| Brake Levers | SRAM G2 RSC, tool-free reach adjust and contact point adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle 90 Transmission, 12-speed |
| Front Derailleur | None |
| Rear Derailleur | SRAM Eagle 90 Transmission, 12-speed |
| ISCG Tabs | 2-bolt ISCG05 |
| Chainguide | None |
| Cranks | SRAM X0 Eagle Transmission Alloy DUB, 170mm length |
| Chainrings | SRAM X0 Eagle Transmission, 30 tooth |
| Bottom Bracket | SRAM DUB, 73mm English/BSA threaded |
| Pedals | None |
| Chain | SRAM X0 Eagle Transmission Flattop, 12-speed |
| Cassette | SRAM X0 Eagle Transmission XS-1295, 12-speed, 10-52 tooth |
| Rims | DT Swiss XM 1700 Alloy, 30mm inner width Option: DT Swiss EXC 1501 Carbon |
| Hubs | DT Swiss XM 1700 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) with XD driver |
| Spokes | DT Swiss XM 1700 wheelset |
| Tires | Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO casing, 29" x 2.5" Rear: Maxxis Aggressor, Dual compound, EXO casing, 29" x 2.3" |
| Saddle | WTB Silverado Custom |
| Seatpost | FOX Transfer dropper Drop: 125mm (XS), 150mm (SM), 175mm (MD), 200mm (LG-XXL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 36.4mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29" x 2.6" |
| Bottle Cage Mounts | One inside front triangle |
| Colors | Turquoise, Lichen, Raw Carbon |
| Warranty | Lifetime frame and Switch Infinity Link, 1 year paint and finish |
| Weight | 29 lb 8.5 oz (13,395 g) |
| Miscellaneous |
|
Geometry
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Top Tube Length | 540mm | 571mm | 603mm | 625mm | 652mm | 672mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| Head Tube Length | 92mm | 98mm | 104mm | 115mm | 126mm | 147mm |
| Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° |
| Seat Tube Length | 345mm | 365mm | 400mm | 440mm | 470mm | 485mm |
| Bottom Bracket Height | 335mm | 335mm | 335mm | 335mm | 335mm | 335mm |
| Chainstay Length | 433mm | 435mm | 437mm | 439mm | 441mm | 443mm |
| Wheelbase | 1122mm | 1157mm | 1191mm | 1217mm | 1249mm | 1274mm |
| Standover | 699mm | 709mm | 714mm | 718mm | 720mm | 725mm |
| Reach | 395mm | 425mm | 455mm | 475mm | 500mm | 515mm |
| Stack | 604mm | 610mm | 615mm | 625mm | 635mm | 655mm |
| Additional Info |
|
|||||
