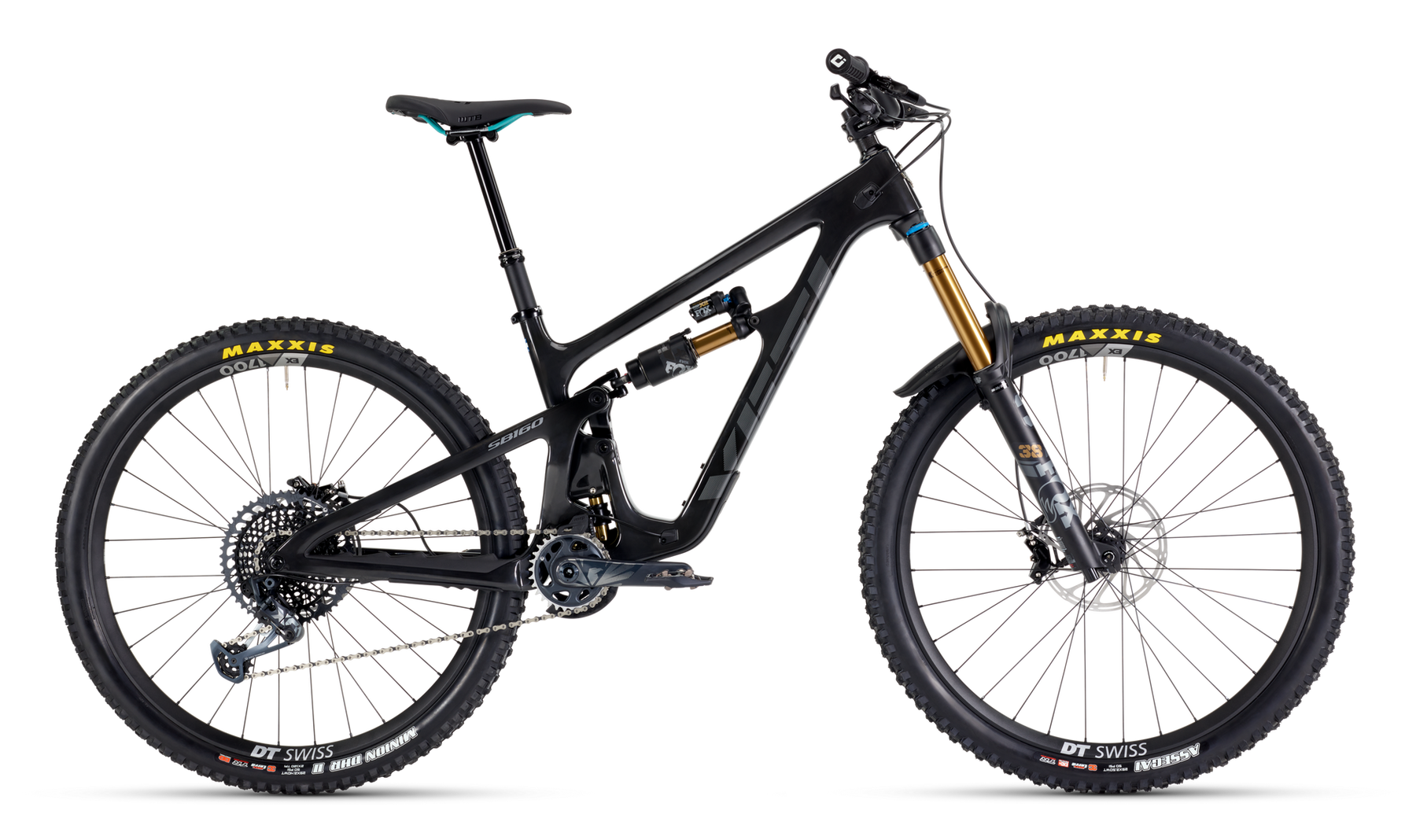

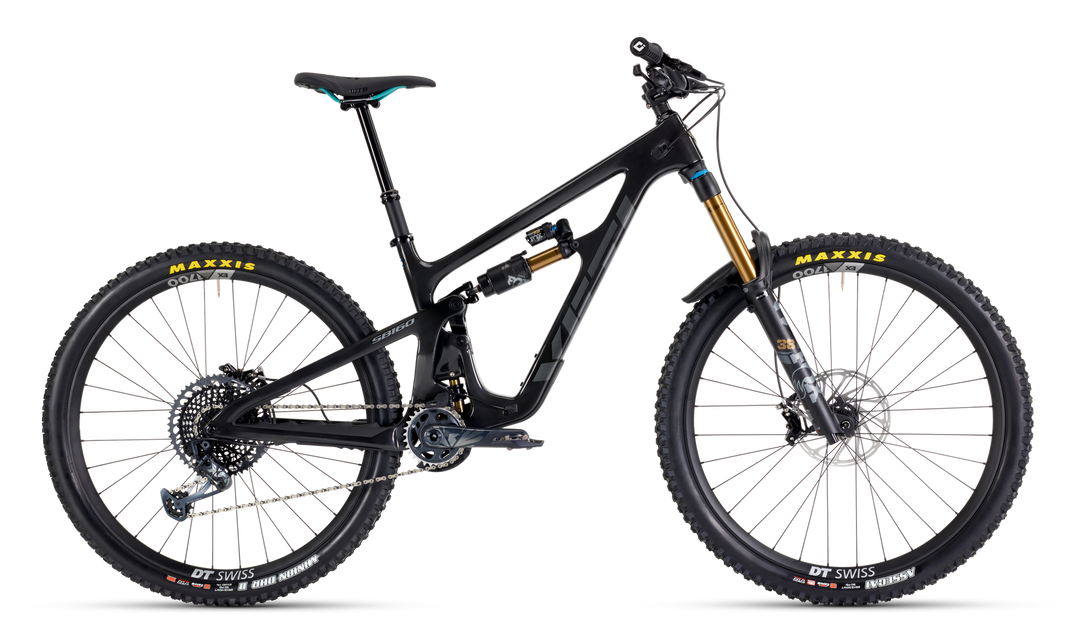

2025 Yeti SB160 T3 X0 Transmission Bike
- Free Domestic shipping
- Low stock - 3 items left
- Backordered, shipping soon
Key Features
- Switch Infinity V2 suspension for consistent traction and efficient travel (160mm rear)
- FOX Factory 38 GRIP2 fork and FOX FLOAT X2 rear shock with Kashima coating, 170mm/160mm travel
- TURQ Series carbon frame with molded chainstay, seatstay, and down tube protection
- SRAM X0 Eagle Transmission 12-speed AXS wireless drivetrain
- DT Swiss Custom EX 1700 wheelset, 30mm inner width
- Maxxis Assegai (front) and Minion DHR II (rear) tires, top-end compounds/casings
- FOX Transfer dropper post with size-specific travel (up to 200mm)
- SRAM Code RSC 4-piston brakes and CenterLine 200mm rotors
- Yeti Carbon bar, Burgtec Enduro MK3 stem, ODI Elite Pro grips Ergonomic cockpit
- Lifetime frame & Switch Infinity warranty (1 year paint/finish)
Full Specifications
| Product | Yeti SB160 T3 X0 Transmission Bike |
|---|---|
| Model Year | 2025 |
| Intended Use | Enduro / All-Mountain Freeride / Bike Park |
| Rider | Unisex |
| Sizes and Geometry | SM MD LG XL XXL |
| Wheel Size | 29" |
| Frame Material | Carbon Fiber |
| Frame Material Details | TURQ Series carbon fiber front and rear triangles; molded chainstay, seatstay, and down tube protection |
| Rear Travel | 160mm |
| Rear Shock | FOX FLOAT X2 Factory, Kashima coating, 230mm x 65mm |
| Fork | FOX FLOAT 38 Factory, GRIP2 damper, Kashima coating, 44mm offset |
| Fork Travel | 170mm |
| Head Tube Diameter | Tapered, 1.125" top, 1.5" bottom |
| Headset | Cane Creek 40 Integrated, 41mm upper, 52mm lower |
| Handlebar | Yeti Carbon, 800mm width, 35mm clamp diameter |
| Stem | Burgtec Enduro MK3, 50mm length, 35mm bar clamp |
| Grips | ODI Elite Pro |
| Brakes | SRAM Code RSC, 4-piston Rotors: SRAM CenterLine, 200mm |
| Brake Levers | SRAM Code RSC, tool-free reach and contact point adjust |
| Drivetrain | 1x |
| Shifters | SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless |
| Front Derailleur | None |
| Rear Derailleur | SRAM X0 Eagle Transmission, 12-speed, AXS electronic wireless |
| ISCG Tabs | ISCG05 |
| Chainguide | MRP AMg SL upper slider with bashguard |
| Cranks | SRAM X0 Eagle Transmission Alloy DUB, 170mm length |
| Chainrings | SRAM X0 Eagle Transmission, 30 tooth |
| Bottom Bracket | SRAM DUB, 73mm English/BSA threaded |
| Pedals | None |
| Chain | SRAM X0 Eagle Transmission Flattop, 12-speed |
| Cassette | SRAM X0 Eagle Transmission XS-1295, 12-speed, 10-52 tooth |
| Rims | DT Swiss Custom EX 1700 wheelset, 30mm inner width Option: DT Swiss EXC 1501 Carbon |
| Hubs | DT Swiss Custom EX 1700 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) with XD driver |
| Tires | Front: Maxxis Assegai, 3C MaxxTerra compound, EXO+ casing, 29" x 2.5" Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, DoubleDown casing, 29" x 2.4" |
| Saddle | WTB Silverado Custom |
| Seatpost | FOX Transfer dropper Drop: 150mm (SM), 175mm (MD), 200mm (LG-XXL) |
| Seatpost Diameter | 31.6mm |
| Seatpost Clamp | Single bolt, 36.4mm |
| Rear Dropout / Hub Dimensions | 12mm x 148mm (Boost) |
| Max. Tire Size | 29" x 2.6" |
| Bottle Cage Mounts | One inside front triangle |

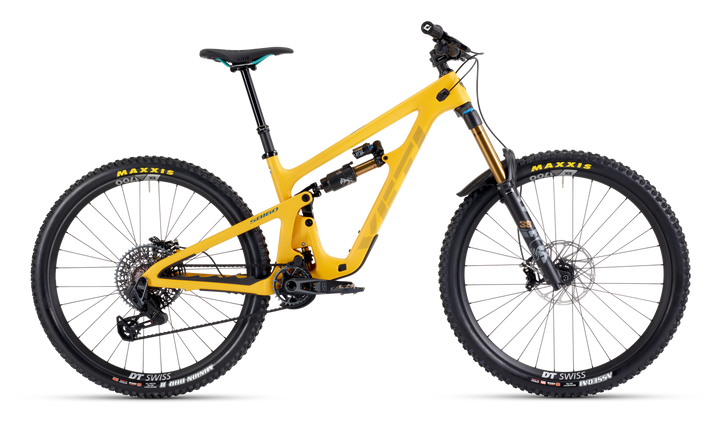

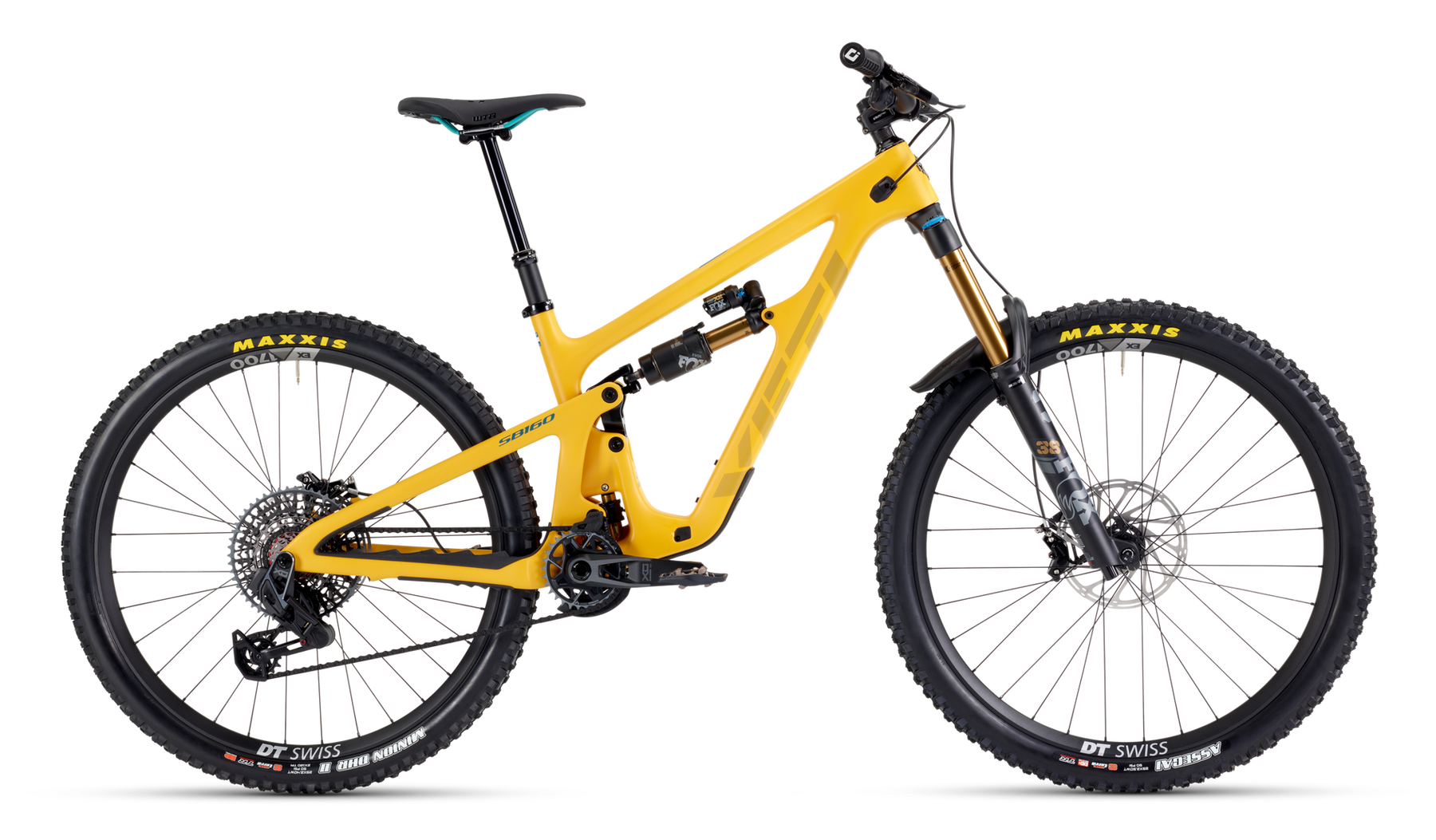

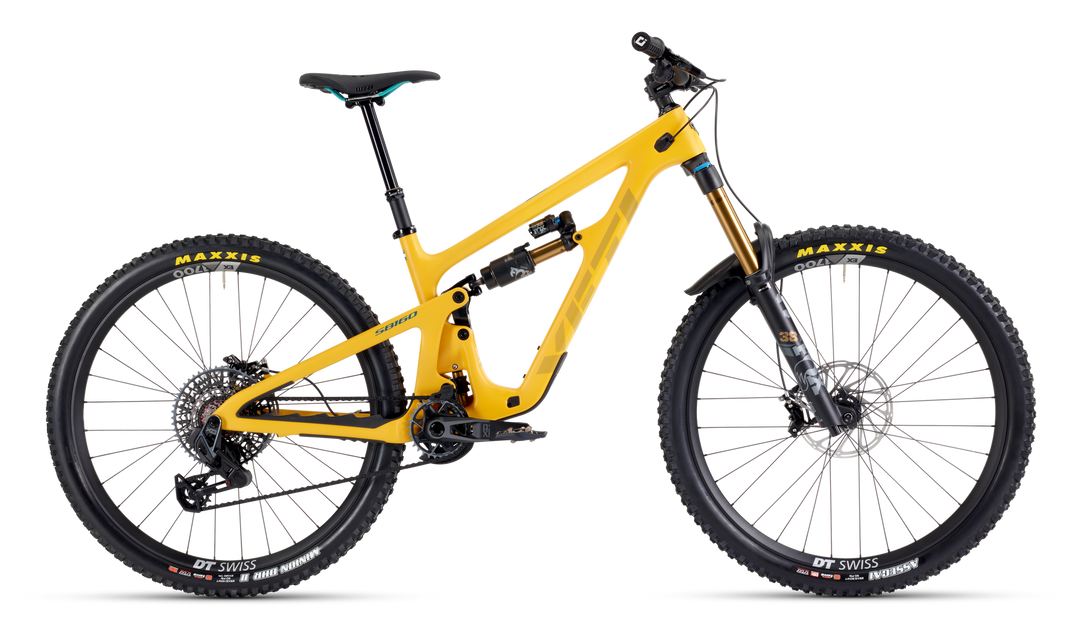

| Colors | Turquoise, Raw Carbon, Mustard |
| Warranty | Lifetime frame and Switch Infinity Link, 1 year paint and finish |
| Weight | 34 lb 2.4 oz (15,490 g) |
| Miscellaneous |
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Top Tube Length | 571mm | 602mm | 624mm | 651mm | 670mm |
| Head Tube Angle | 64° | 64° | 64° | 64° | 64° |
| Head Tube Length | 95mm | 101mm | 107mm | 118mm | 140mm |
| Seat Tube Angle | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° |
| Seat Tube Length | 365mm | 400mm | 440mm | 470mm | 485mm |
| Bottom Bracket Height | 353mm | 353mm | 353mm | 353mm | 353mm |
| Chainstay Length | 437mm | 439mm | 441mm | 443mm | 445mm |
| Wheelbase | 1211mm | 1246mm | 1270mm | 1302mm | 1329mm |
| Standover | 735mm | 744mm | 750mm | 756mm | 757mm |
| Reach | 435mm | 465mm | 485mm | 510mm | 525mm |
| Stack | 615mm | 620mm | 625mm | 635mm | 655mm |
| Additional Info |
|
||||
