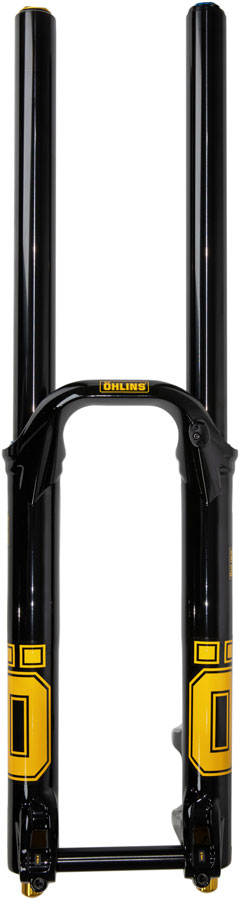

New DH38 m.2 air sprung suspension fork with features reworked internals and updated settings built around the race-proven TTX18 cartridge. This powerful fork is the ultimate downhill weapon delivering hard-hitting performance through its dual-crown design. The new DH38 m.2 fork is the most advanced downhill fork Ohlins has ever created offering improvements in comfort sensitivity and bottom-out control. Bottom-out progressiveness has been increased with the addition of a spring booster and the system is further optimized for use with volume spacers giving riders greater flexibility to fine-tune their ride feel. With these upgrades the new DH38 m.2 is the ultimate fork for gravity riders charging down the steepest lines and attacking the most demanding courses—engineered to push harder land bigger and inspire full confidence.

Four separately sold DH Crowns you can choose from 46- 50- 54- or 58-mm offset options to match your setup and preferred riding style

Independent cartridge spring and damper systems

Air-sprung for maximum adjustability

Cartridge-based spring system allows for quick swaps between Air and Coil setups when needed (coil cartridge sold separatelty)

Race-proven setting bank that features 3 HSC Clicks 16 LSC Clicks and 16 LSR Clicks

New surface treatment on the 38mm stanchions improves small-bump sensitivity and overall ride smoothness and also reduces wear for long-term performance

20mm x 110mm Boost floating thru-axle set up for minimum friction

Compatible with 29" and 27.5" wheels

eMTB compatible

Steerer Type	Straight
Lockout Switch	Crown
Brake Type	Post Mount 200
Negative Spring	Air
Travel (mm)	200
Front Axle	20mm Thru x 110mm Boost
Maximum Tire Width	71
S.H.I.S. Stem Clamp Diameter	28.6
Color	Gloss Black
Crown Race	30
Wheel Size	27.5"
External Adjustments	Rebound Damping
Defined Color	Black
Positive Spring	Air
Stanchion Diameter	38
