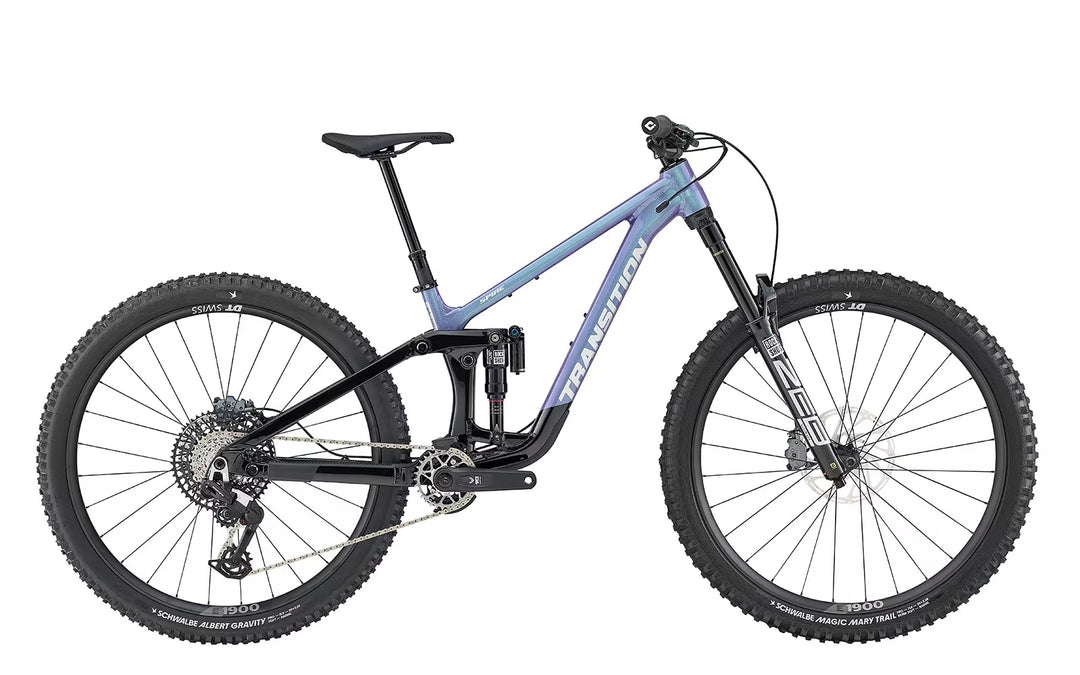

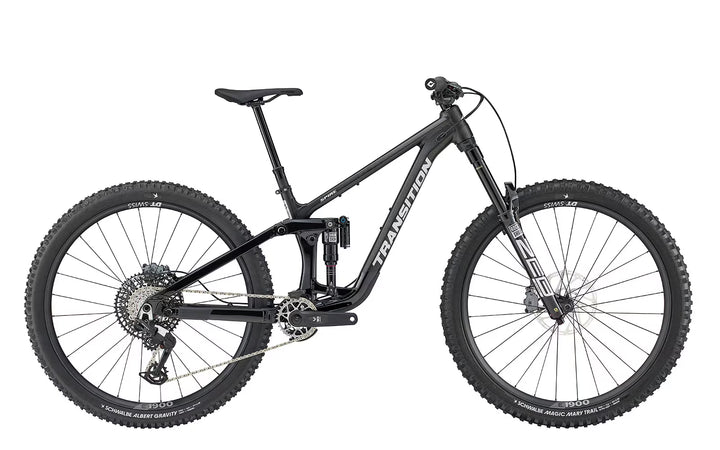

2026 Transition Spire Alloy Eagle 90
- Free Domestic Shipping On Orders Over $100
- Low stock - 2 items left
- Backordered, shipping soon
- Add To Cart For Final Price
Transition Spire
Alloy Eagle 90
Alloy Eagle 90
2026 · 29" · 170mm · Aluminum
Frame & Suspension
Frame
6061 heat-treated alloy; molded chainstay, seatstay, and down tube protection
Rear Travel
170mm
Rear Shock
RockShox Super Deluxe Ultimate, trunnion mount, 205mm × 65mm stroke
Fork
RockShox ZEB Ultimate, 38mm stanchions, 44mm offset
Fork Travel
170mm
Head Tube
Straight, 56mm
Headset
FSA No.55R/57, ZS56 upper/lower
Cockpit
Handlebar
Burgtec Ride Wide Alloy Enduro, 35mm clamp — SM: 800mm / 20mm rise · MD: 780mm / 30mm rise · LG/XL: 800mm / 38mm rise
Stem
Burgtec Enduro MK3, 35mm length, 35mm bar clamp
Grips
ODI Longneck V2.1, lock-on
Brakes
Brakes
SRAM Maven Bronze, 4-piston · Rotors: SRAM CenterLine, 200mm
Levers
SRAM Maven Bronze Stealth, tool-free reach adjust
Drivetrain
Configuration
1× 12-speed
Shifter
SRAM Eagle 90 Transmission, 12-speed, MMX mounting bracket
Front Derailleur
None
Rear Derailleur
SRAM Eagle 90 Transmission, 12-speed
ISCG Tabs
ISCG05
Chainguide
e*thirteen Vario Enduro upper slider with bashguard
Cranks
SRAM Eagle 90 Transmission Alloy DUB, 165mm
Chainring
SRAM Eagle 90 Transmission, 30T
Bottom Bracket
SRAM DUB, 73mm English/BSA threaded
Pedals
None
Chain
SRAM GX Eagle Transmission Flattop, 12-speed
Cassette
SRAM GX Eagle Transmission XS-1275, 12-speed, 10–52T
Wheels & Tires
Wheel Size
29"
Rims
DT Swiss E 1900 Spline 30 Alloy, 30mm inner width
Hubs
DT Swiss 370 · 15×110mm Boost front · 12×148mm Boost rear with Ratchet LN freehub and XD driver
Spokes
DT Swiss Champion
Tires
Front: Schwalbe Magic Mary, Radial Trail Pro casing, Ultra Soft compound, 29" × 2.5"
Rear: Schwalbe Albert, Radial Gravity Pro casing, Soft compound, 29" × 2.5"
Rear: Schwalbe Albert, Radial Gravity Pro casing, Soft compound, 29" × 2.5"
Max Tire
29" × 2.6"
Seatpost & Saddle
Saddle
SDG Bel-Air V3
Dropper Post
OneUp Dropper — 150mm (SM) · 190mm (MD) · 210mm (LG) · 240mm (XL)
Post Diameter
31.6mm
Clamp
Single bolt, 34.9mm
General
Rear Dropout
12mm × 148mm (Boost)
Bottle Mounts
One inside front triangle, plus accessory mounts under top tube
Colors
Galactic Black, Ultra Violet
Warranty
Lifetime frame
Weight
TBA
Notes
- GiddyUp Four-Bar Horst-Link rear suspension design
- Geometry adjustable via two-position flip chip at lower shock mount
- Internal cable routing
- SRAM UDH (Universal Derailleur Hanger)
- Rear travel can be decreased to 160mm with 60mm-stroke shock
- Compatible with coil shocks and dual-crown forks
- Includes tubeless valves and tire sealant
- Frame weight, size MD with FOX FLOAT X2 Factory shock: 10.6 lbs (4.81 kg)
Geometry adjustable via two-position flip chip at lower shock mount (High / Low) · Available in SM, MD, LG, XL, XXL · Paste geometry numbers here when available
| Measurement | SMHigh / Low | MDHigh / Low | LGHigh / Low | XLHigh / Low | XXLHigh / Low |
|---|---|---|---|---|---|
| Top Tube Length | — | — | — | — | — |
| Reach | — | — | — | — | — |
| Stack | — | — | — | — | — |
| Head Tube Angle | — | — | — | — | — |
| Head Tube Length | — | — | — | — | — |
| Seat Tube Angle | — | — | — | — | — |
| Seat Tube Length | — | — | — | — | — |
| BB Height | — | — | — | — | — |
| Chainstay Length | — | — | — | — | — |
| Wheelbase | — | — | — | — | — |
