Carbon Frame

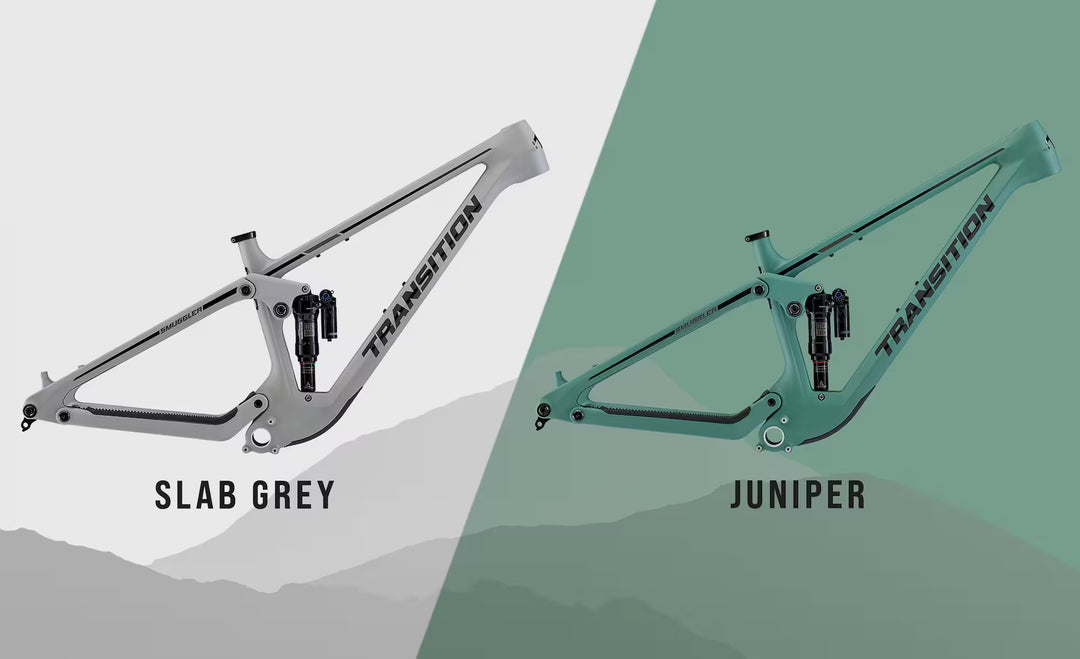

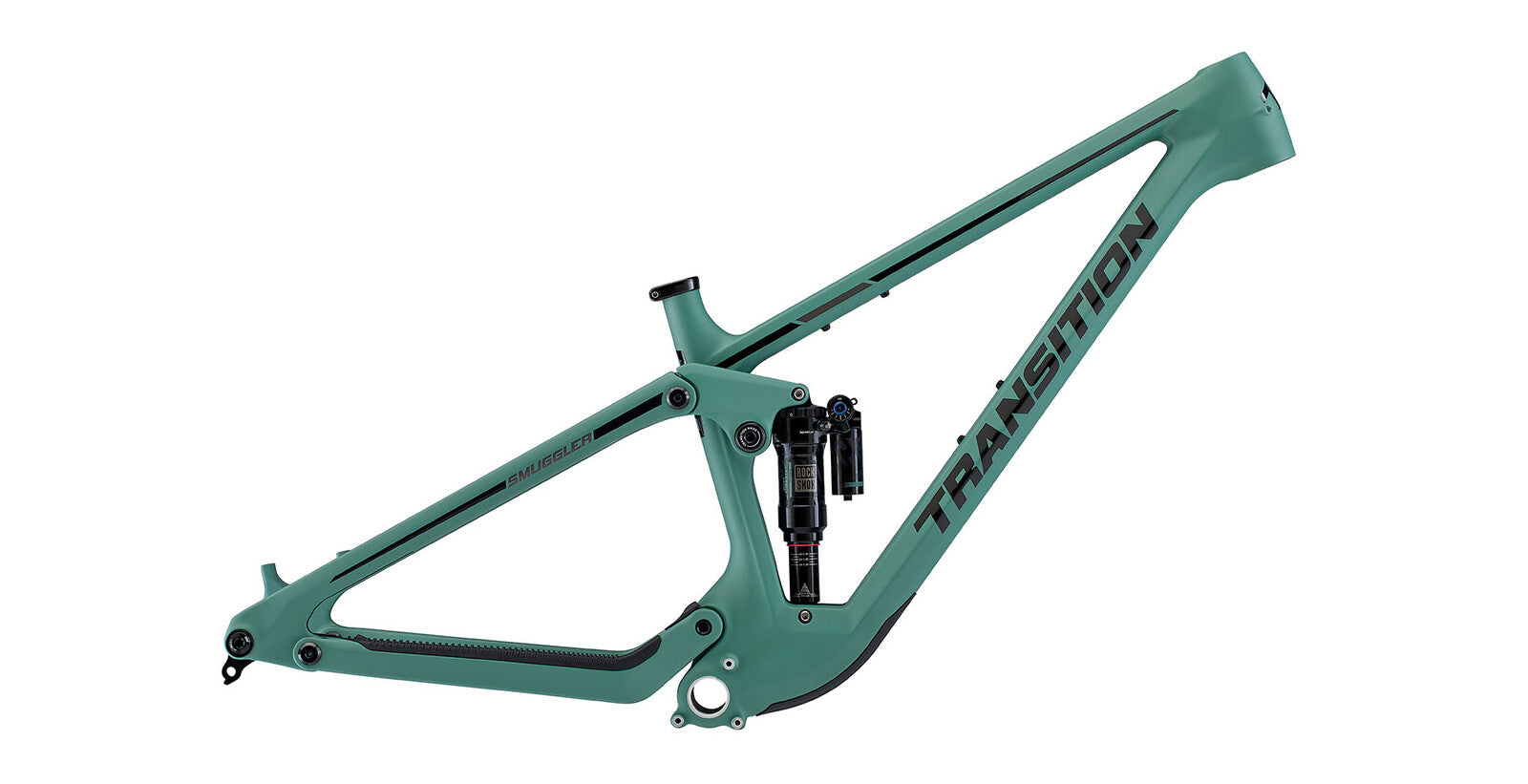

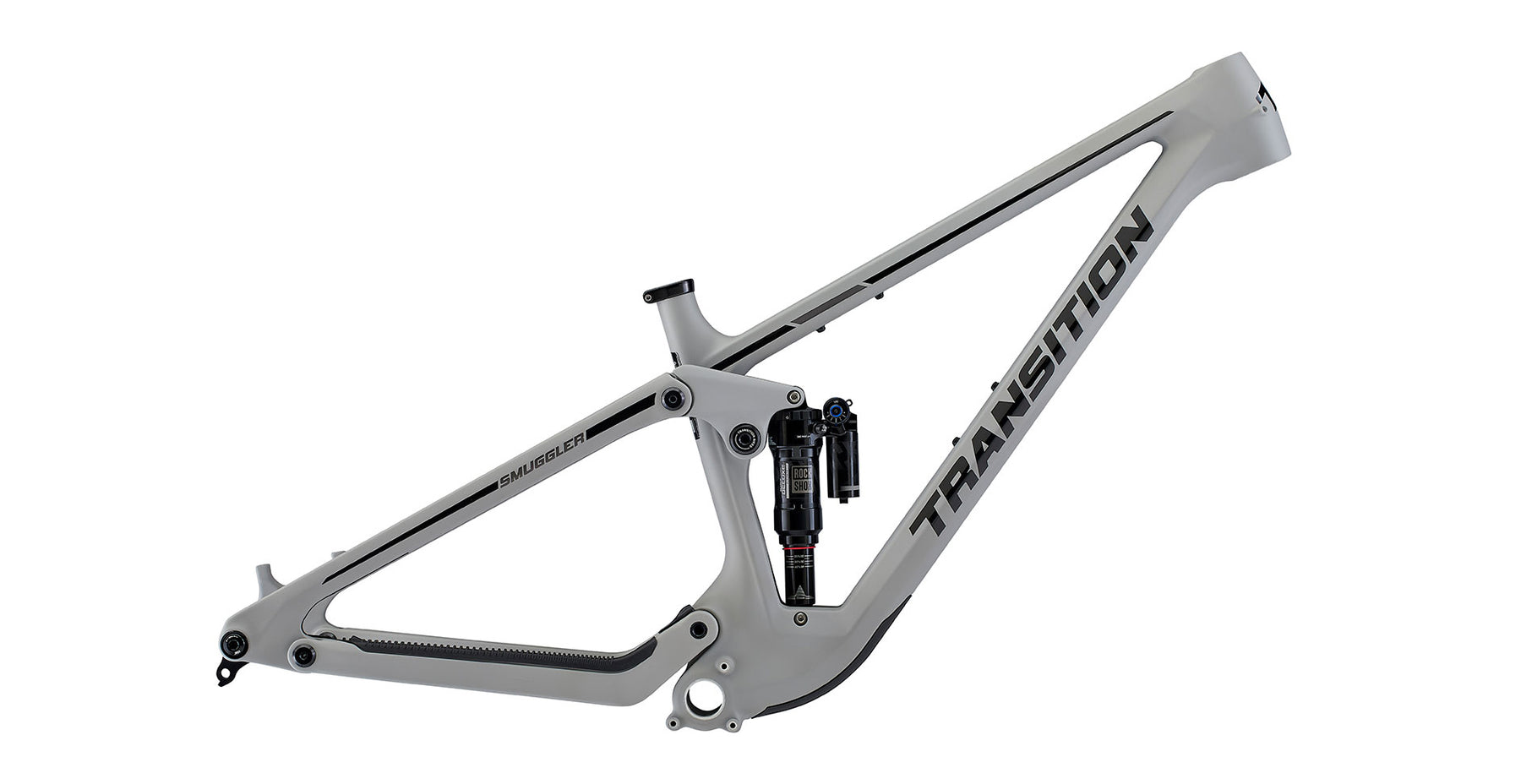

The Transition Smuggler Carbon Frame is a 130mm-travel trail frameset built on full carbon front and rear triangles with Transition's efficient GiddyUp four-bar Horst-Link rear suspension. Designed for 140mm forks and compatible with 130-150mm front travel, the Smuggler sits squarely between the Spur and Sentinel in travel and capability.
Supplied with a RockShox Super Deluxe Ultimate rear shock (2024). Rear travel can be increased to 140mm with a longer-stroke 55mm shock, and the frame is coil shock compatible. Bare frame weight is just 6 lbs 9.8 oz (3,000g).
- Full carbon front and rear triangles -- 130mm GiddyUp Horst-Link rear suspension
- RockShox Super Deluxe Ultimate rear shock (2024) -- 210x50mm
- Coil shock compatible
- Rear travel upgradable to 140mm with longer-stroke 55mm shock
- Designed for 140mm forks (42-44mm offset), compatible with 130-150mm front travel
- Molded chainstay and lower downtube protection
- Internal cable routing with guide tubes, SRAM UDH
- Includes FSA No.42/48/ACB headset
- Bare frame weight 6 lbs 9.8 oz (3,000g)
- Lifetime warranty
| Measurement | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Reach (mm) | 430 | 460 | 485 | 510 | 535 |
| Stack (mm) | 607 | 616 | 625 | 635 | 644 |
| Top Tube (mm) | 555 | 588 | 617 | 645 | 670 |
| Head Tube Angle (deg) | 65 | 65 | 65 | 65 | 65 |
| Head Tube Length (mm) | 100 | 110 | 120 | 130 | 140 |
| Seat Tube Angle (deg) | 79.3 | 78.6 | 78.1 | 77.6 | 77.3 |
| Seat Tube Length (mm) | 360 | 390 | 430 | 460 | 490 |
| Chainstay (mm) | 435 | 435 | 440 | 440 | 440 |
| Wheelbase (mm) | 1179 | 1213 | 1247 | 1277 | 1306 |
| BB Height (mm) | 340 | 340 | 340 | 340 | 340 |
| BB Drop (mm) | 35 | 35 | 35 | 35 | 35 |
All figures measured with a 140mm-travel fork (552mm axle-to-crown, 44mm offset). Saddle heights for effective seat tube angles: 600mm (SM), 660mm (MD), 720mm (LG), 780mm (XL), 820mm (XXL).
