Carbon Frame

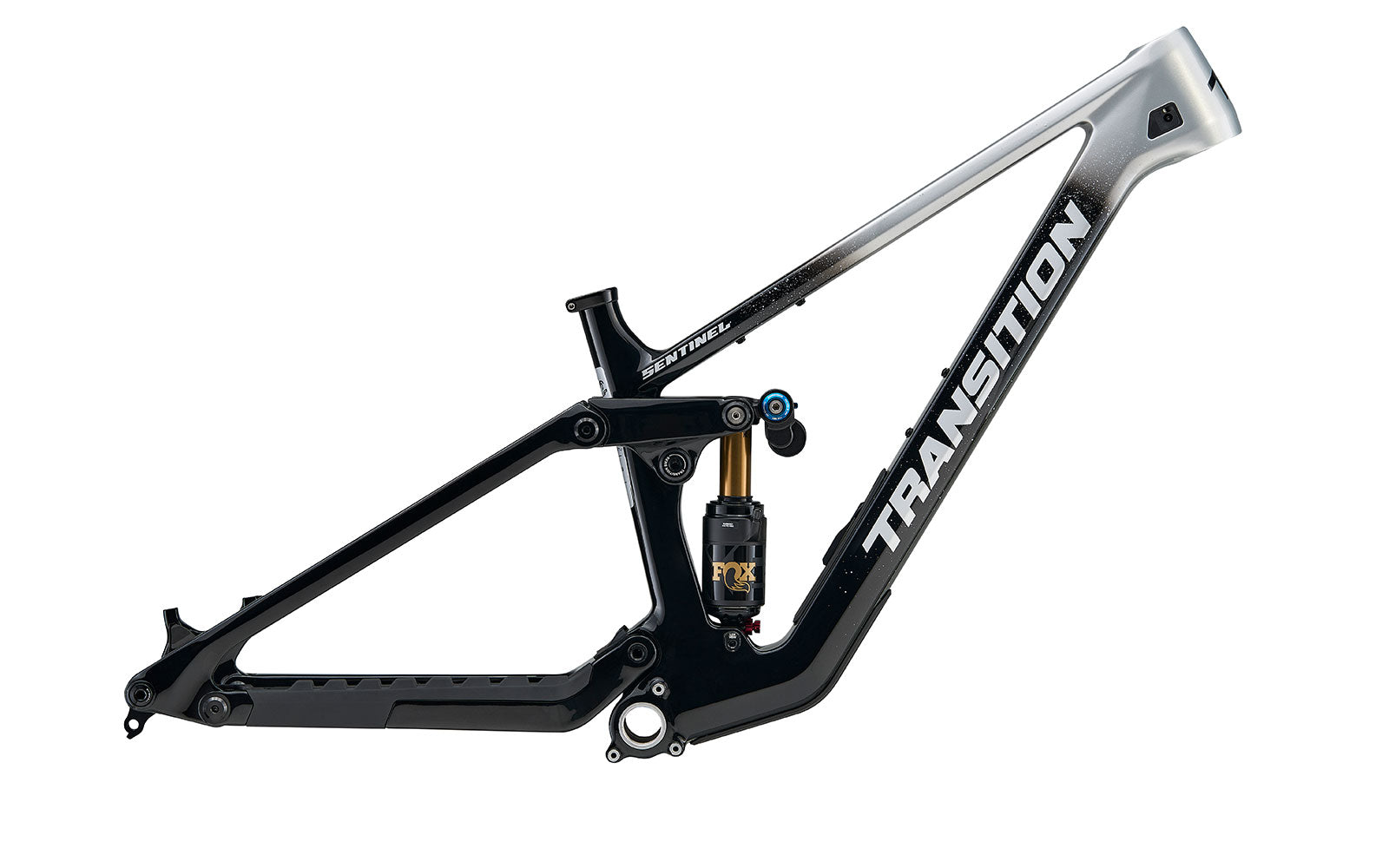

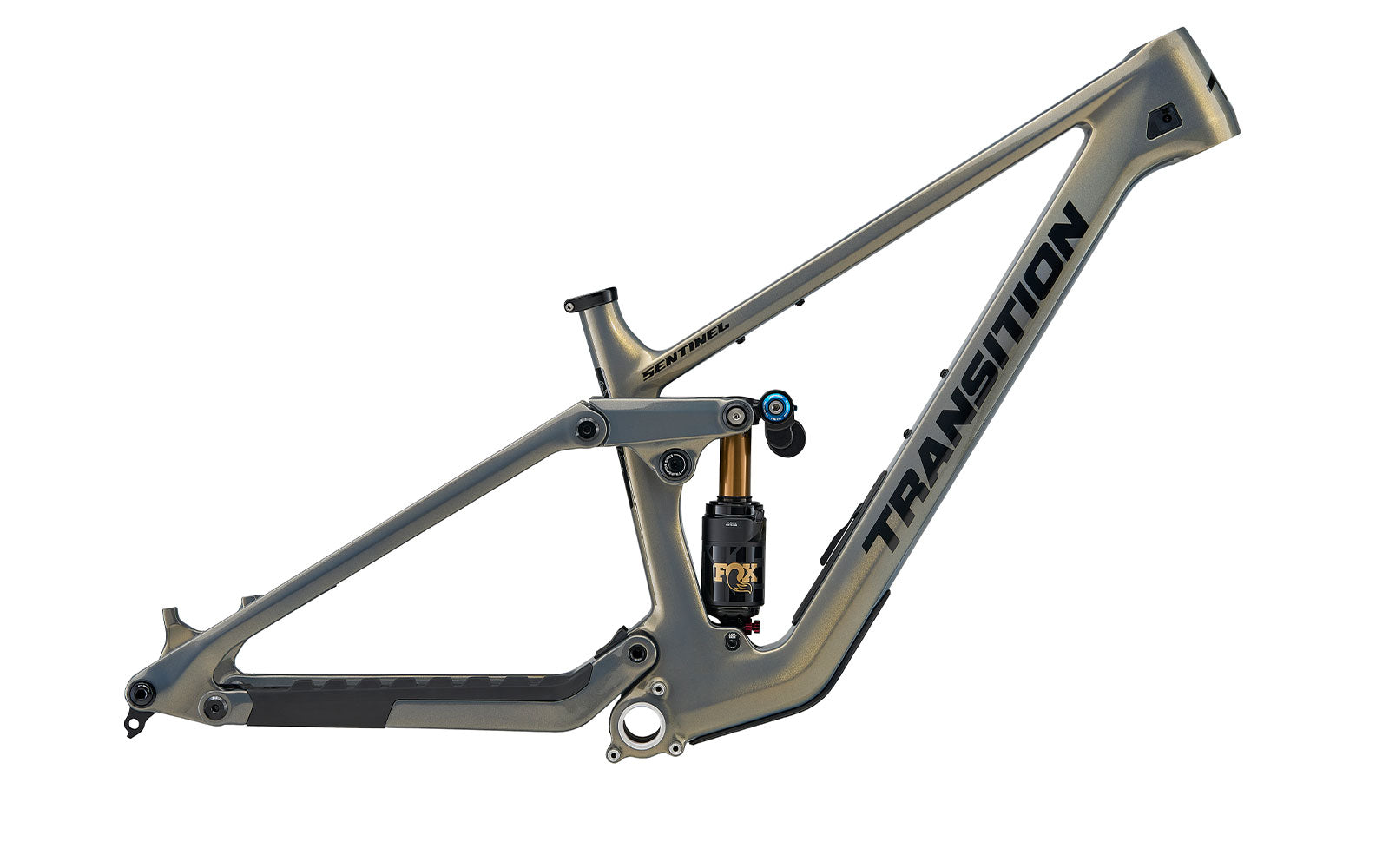

The Transition Sentinel Carbon Frame is a 150mm-travel enduro/all-mountain frameset built around full carbon front and rear triangles. The V3 Sentinel brings refined kinematics for a lively, progressive platform with 24% rear shock progression, in-frame BOOM Box storage, and geo-adjust flip chip for mixed-wheel compatibility.
Supplied with a 2026 FOX Float X2 Factory rear shock (205x60mm). Runs 29" wheels on sizes S-XXL (mixed wheel compatible) and dual 27.5" on size XS. Coil and air shock compatible.
- Full carbon front and rear triangles -- 150mm rear travel
- FOX Float X2 Factory rear shock (2026) -- 205x60mm, coil and air compatible
- BOOM Box in-frame storage with supplied storage bags
- Refined V3 kinematics -- lively, progressive, 24% rear shock progression
- Mixed-wheel compatible -- geo-adjust flip chip in lower shock mount
- 29" on S-XXL, dual 27.5" on XS
- Molded chainstay, seatstay, and lower downtube protection
- Main pivot mudguard and new cable-routing ports
- SRAM UDH derailleur hanger, ISCG 05 tabs
- Lifetime warranty against manufacturing defects + crash replacement policy
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Reach (mm) | 426 | 451 | 476 | 501 |
| Stack (mm) | 618 | 624 | 636 | 646 |
| Effective Top Tube (mm) | 549 | 577 | 605 | 632 |
| Seat Tube Length (mm) | 360 | 390 | 430 | 460 |
| Effective Seat Angle (deg) | 78.9 | 78.3 | 77.9 | 77.5 |
| Saddle Height for Eff. Seat Angle (mm) | 600 | 660 | 720 | 780 |
| Actual Seat Angle (deg) | 72.6 | 72.6 | 72.6 | 72.6 |
| Seat Tube Offset at BB (mm) | 69 | 69 | 69 | 69 |
| Head Tube Length (mm) | 100 | 110 | 120 | 130 |
| Head Tube Angle (deg) | 63.6 | 63.6 | 63.6 | 63.6 |
| Chainstay (mm) | 440 | 440 | 440 | 446 |
| Wheelbase (mm) | 1208 | 1237 | 1269 | 1302 |
| BB Drop Front (mm) | 31 | 31 | 31 | 31 |
| BB Drop Rear (mm) | 11 | 11 | 11 | 11 |
| Est. BB Height (mm) | 344 | 344 | 344 | 344 |
| Standover Height (mm) | 690 | 690 | 695 | 705 |
29" wheel setting. Front and rear BB drop differ due to the mixed-wheel-capable geometry; size-specific chainstay on XL. XS (dual 27.5") and XXL geometry not shown -- contact us for full chart.
