Carbon Frame

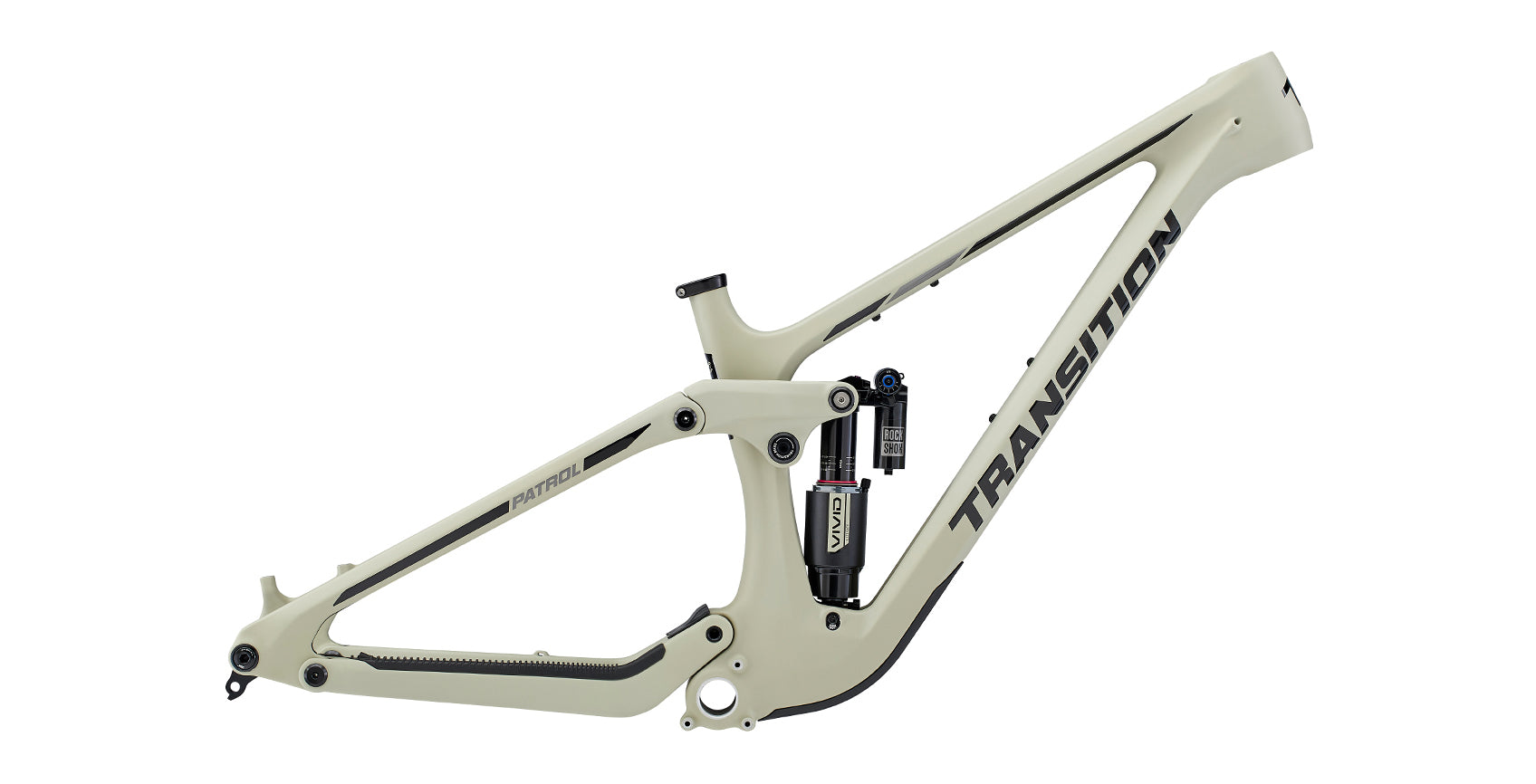

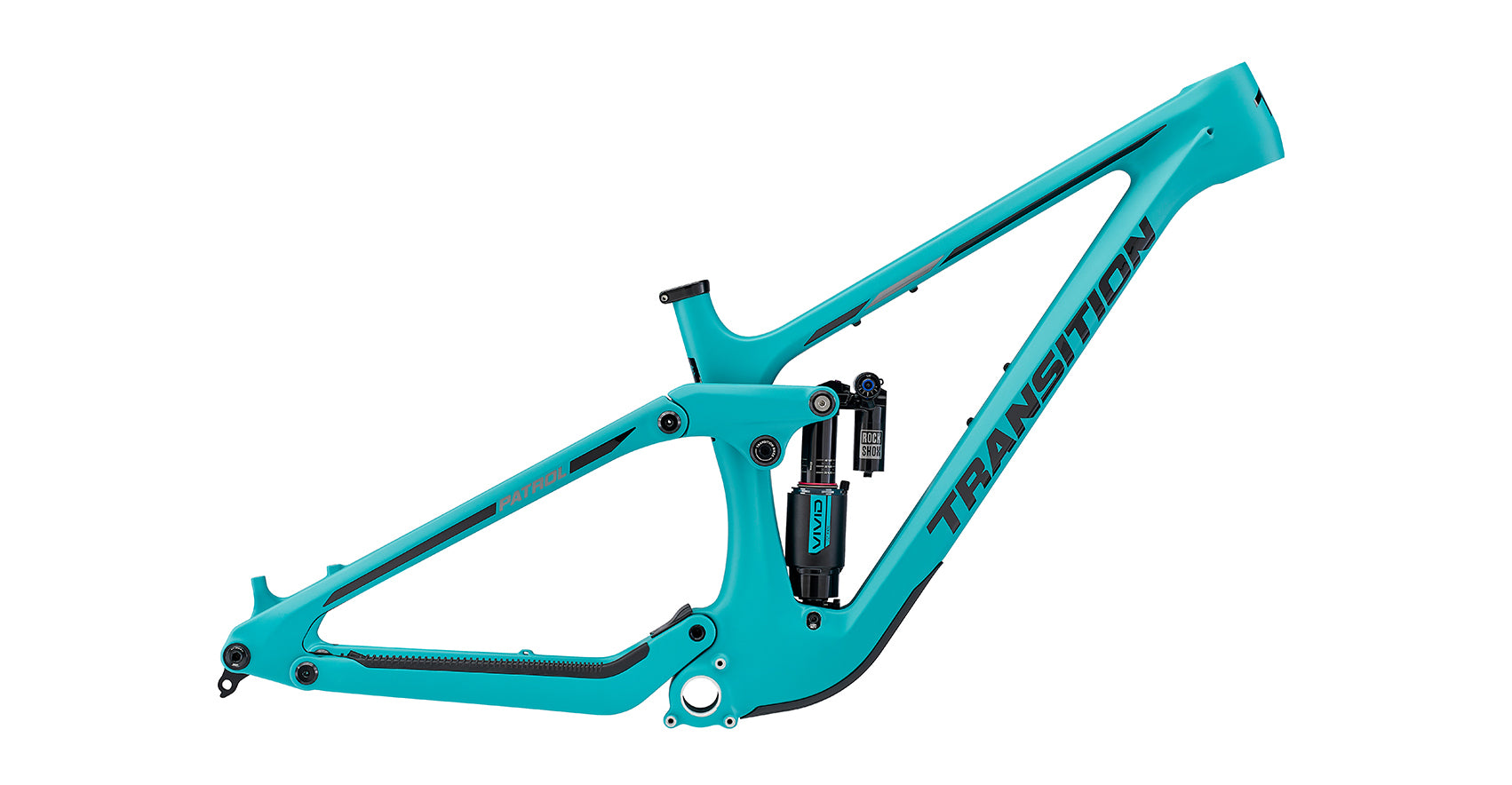

The Transition Patrol Carbon Frame is a 160mm-travel enduro/all-mountain frameset built around EPS-molded Toray carbon front and rear triangles with GiddyUp four-bar rear suspension. Set up as a mixed "Mullet" wheel platform -- 29" front, 27.5" rear -- with geometry adjustable via flip chip at the lower shock mount.
Supplied with a RockShox Vivid Ultimate rear shock (205x60mm, trunnion mount). Designed for 160mm forks and compatible with dual-crown and 150-170mm travel forks, plus coil shock compatible. Bare frame weight is 7 lbs 6.5 oz (3,360g).
- EPS-molded Toray carbon front and rear triangles -- 160mm rear travel
- RockShox Vivid Ultimate rear shock (205x60mm, trunnion mount)
- Mixed "Mullet" wheels -- 29" front, 27.5" rear
- GiddyUp four-bar rear suspension
- Geometry adjustable via flip chip at lower shock mount (High/Low)
- Coil shock compatible
- Designed for 160mm forks (44mm offset); compatible with dual-crown and 150-170mm forks
- Molded chainstay, seatstay, and downtube protection
- SRAM UDH derailleur hanger, ISCG05 tabs, includes headset
- Lifetime warranty
| Measurement | SM | MD | LG | XL |
|---|---|---|---|---|
| Reach (mm) | 420 / 415 | 455 / 450 | 480 / 475 | 510 / 505 |
| Stack (mm) | 623 / 628 | 623 / 628 | 632 / 637 | 641 / 646 |
| Top Tube (mm) | 540 / 543 | 575 / 578 | 603 / 606 | 636 / 639 |
| Head Tube Angle (deg) | 63.5 / 63.0 | 63.5 / 63.0 | 63.5 / 63.0 | 63.5 / 63.0 |
| Head Tube Length (mm) | 100 | 100 | 110 | 120 |
| Seat Tube Angle (deg) | 79.6 / 79.1 | 78.8 / 78.3 | 78.1 / 77.6 | 77.5 / 77.0 |
| Seat Tube Length (mm) | 360 | 390 | 430 | 460 |
| Chainstay (mm) | 434 / 436 | 434 / 436 | 440 / 442 | 440 / 442 |
| Wheelbase (mm) | 1196 / 1198 | 1231 / 1233 | 1266 / 1268 | 1301 / 1303 |
| BB Height (mm) | 340 / 333 | 340 / 333 | 340 / 333 | 340 / 333 |
| BB Drop (mm) | 15 / 22 | 15 / 22 | 15 / 22 | 15 / 22 |
| Standover (mm) | 675 / 685 | 690 / 700 | 705 / 715 | 720 / 730 |
Values shown as High / Low flip-chip settings. Mixed "Mullet" wheels (29" front, 27.5" rear). Measured with a 160mm fork (574mm axle-to-crown, 44mm offset). Saddle heights for given seat tube angles: 600mm (SM), 660mm (MD), 720mm (LG), 780mm (XL).
