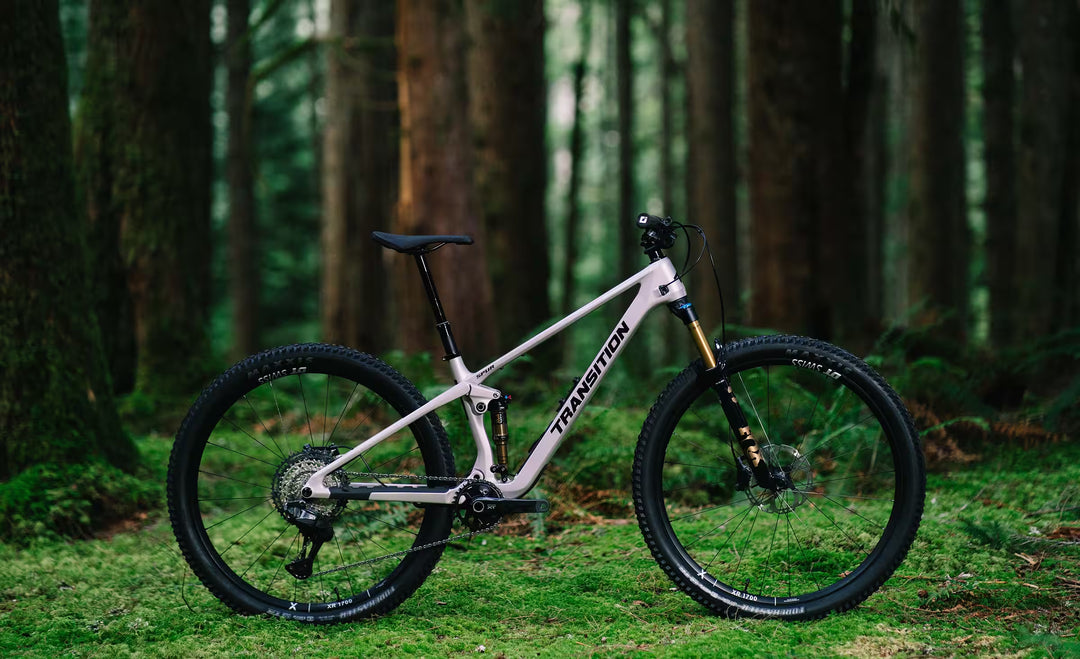

2026 Transition Spur XT Di2
- Free Domestic Shipping On Orders Over $50
- Low stock - 2 items left
- Backordered, shipping soon
Transition Spur
Carbon XT Di2
Carbon XT Di2
2026 · 29" · 120mm · Carbon
Frame & Suspension
Frame
Carbon fiber front and rear triangles; molded chainstay, seatstay, and lower down tube protection
Rear Travel
120mm
Rear Shock
FOX FLOAT SL Factory, Kashima coating, 190mm × 45mm stroke
Fork
FOX FLOAT 34 SL Factory, GRIP X damper, Kashima coating
Fork Travel
130mm
Head Tube
Tapered, 1.125" top, 1.5" bottom
Headset
FSA No.42/48/ACB, IS42 upper, IS52 lower
Cockpit
Handlebar
Race Face ERA Carbon — SM: 760mm / 20mm rise · MD: 780mm / 40mm rise · LG/XL: 800mm / 40mm rise
Stem
Race Face Aeffect R, 40mm
Grips
ODI Elite Flow, lock-on
Brakes
Brakes
Shimano Deore XT M8220, 4-piston · Rotors: Shimano RT86, 180mm
Levers
Shimano Deore XT
Drivetrain
Configuration
1× 12-speed
Shifter
Shimano Deore XT M8250 Di2, 12-speed, electronic wireless
Front Derailleur
None
Rear Derailleur
Shimano Deore XT M8250 Di2, 12-speed, electronic wireless, SGS cage
ISCG Tabs
ISCG05
Chainguide
None
Cranks
Shimano Deore XT M8200 Alloy, 165mm
Chainring
Shimano Deore XT M8200, 32T
Bottom Bracket
73mm English/BSA threaded
Pedals
None
Chain
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8200, 12-speed, 10–51T
Wheels & Tires
Wheel Size
29"
Rims
DT Swiss XR 1700 SPLINE Alloy
Hubs
DT Swiss 350 · 15×110mm Boost front · 12×148mm Boost rear with 54-tooth Ratchet freehub and MICRO SPLINE driver
Spokes
DT Swiss Competition, straight-pull
Tires
Maxxis Forekaster, 3C MaxxTerra compound, EXO+ casing, 29" × 2.4"
Max Tire
29" × 2.4"
Seatpost & Saddle
Saddle
SDG Bel-Air V3, Lux-Alloy rails
Dropper Post
OneUp Dropper — 150mm (SM) · 180mm (MD) · 210mm (LG/XL)
Post Diameter
31.6mm
Clamp
Single bolt, 37.0mm
General
Rear Dropout
12mm × 148mm (Boost)
Bottle Mounts
One inside front triangle, plus accessory mounts under top tube

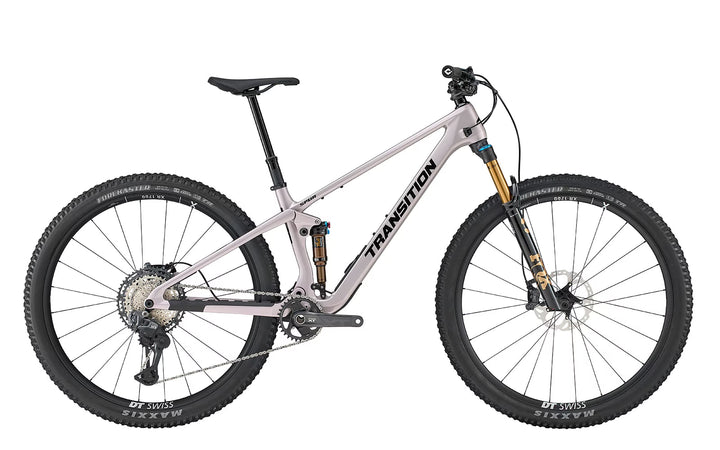

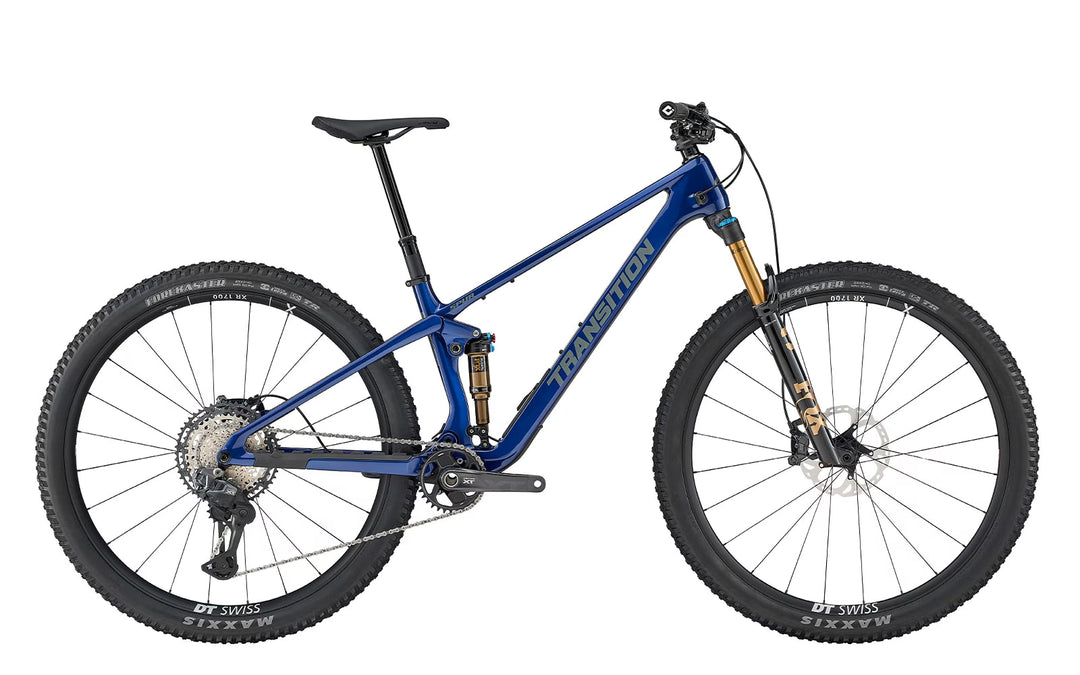

Colors
Frostberry, Nightshade
Warranty
Lifetime frame
Weight
26 lb 12.6 oz · 12,150 g (size MD)
Notes
- V2 version
- GiddyUp rear suspension design with one-piece pivot-less flex-stay rear triangle
- Geometry adjustable via two-position lower shock mount

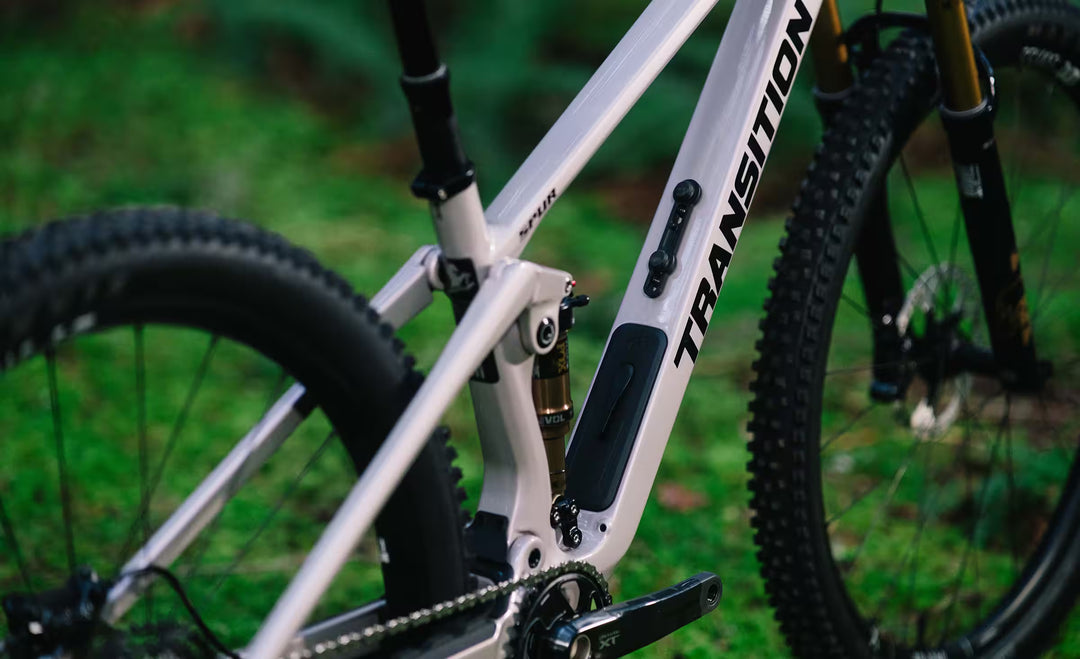

- B.O.O.M. Box internal frame storage in down tube
- Internal cable routing with fully-guided tubes
- Loam Hat integrated rear main pivot protection flaps
- SRAM UDH (Universal Derailleur Hanger)
- Includes Shimano Di2 battery charger
- Includes tubeless valves and sealant
- Photos may show alternate builds
All measurements with 130mm travel fork (541mm axle-to-crown, 44mm offset) · Geometry adjustable via two-position lower shock mount (High / Low) · Effective saddle heights: 600mm (SM) · 660mm (MD) · 720mm (LG) · 780mm (XL)
| Measurement | SMHigh / Low | MDHigh / Low | LGHigh / Low | XLHigh / Low |
|---|---|---|---|---|
| Top Tube Length | 570 / 572mm | 603 / 605mm | 631 / 633mm | 660 / 662mm |
| Reach | 430 / 425mm | 460 / 455mm | 485 / 480mm | 510 / 505mm |
| Stack | 607 / 612mm | 616 / 621mm | 626 / 630mm | 640 / 644mm |
| Head Tube Angle | 66.0° / 65.5° | 66.0° / 65.5° | 66.0° / 65.5° | 66.0° / 65.5° |
| Head Tube Length | 100mm | 110mm | 120mm | 135mm |
| Seat Tube Angle | 77.3° / 76.7° | 76.8° / 76.3° | 76.4° / 75.9° | 76.0° / 75.6° |
| Seat Tube Length | 360mm | 390mm | 430mm | 460mm |
| BB Height | 335mm (−40mm drop) / 328mm (−47mm drop) | 335mm (−40mm drop) / 328mm (−47mm drop) | 335mm (−40mm drop) / 328mm (−47mm drop) | 335mm (−40mm drop) / 328mm (−47mm drop) |
| Chainstay Length | 434 / 436mm | 434 / 436mm | 439 / 441mm | 439 / 441mm |
| Wheelbase | 1163 / 1165mm | 1197 / 1199mm | 1231 / 1233mm | 1262 / 1264mm |
