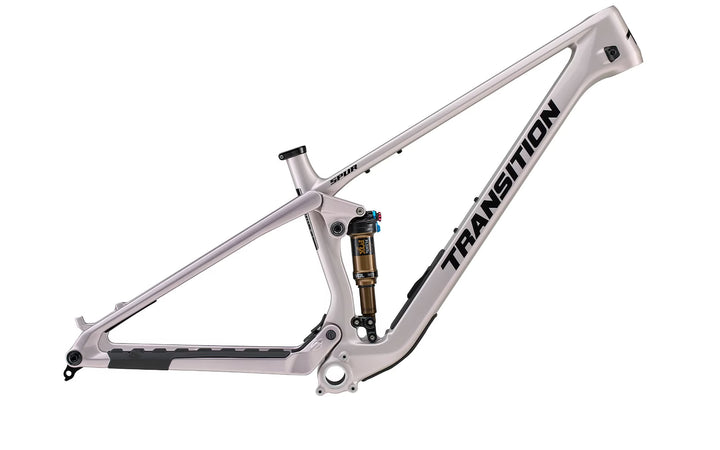

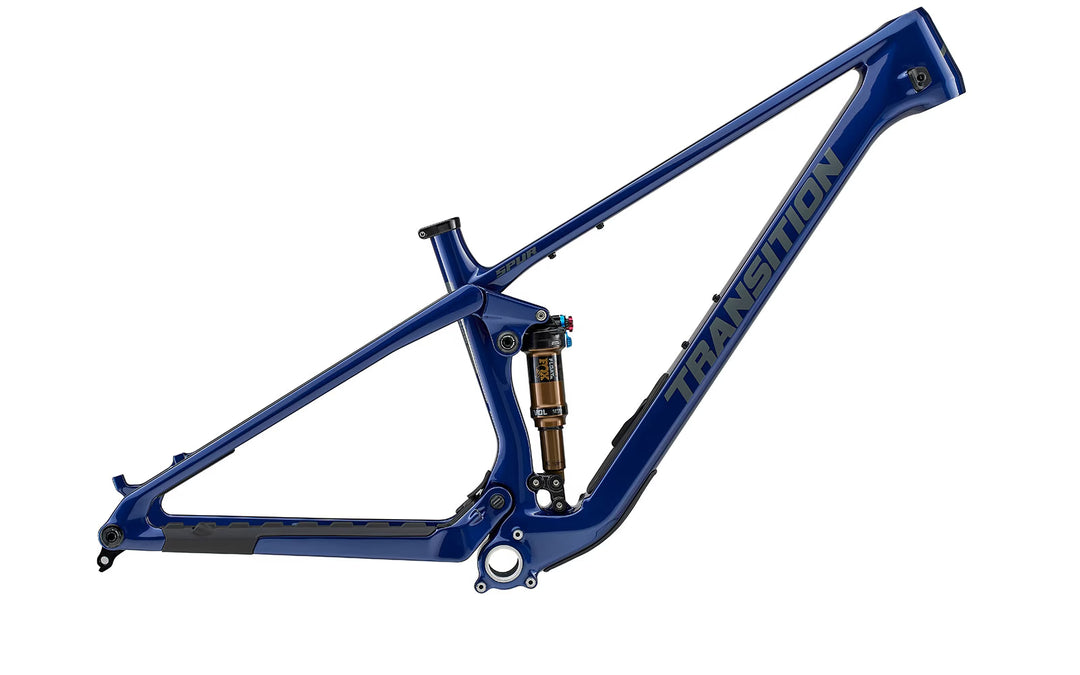

2026 Transition Spur V2 Carbon Frameset
2026 Transition Spur V2 Carbon Frameset

2026 Transition Spur V2 Carbon Frameset

Regular price$3,599.00
/
Shipping calculated at checkout.

Color
Size
  • Free Domestic Shipping On Orders Over $100
  • Low stock - 1 item left
  • Backordered, shipping soon
  • Add To Cart For Final Price
Transition
Spur V2
120mm Rear Travel · 130mm Fork · Flex-Stay Suspension · XC / Downcountry
About This Bike

The Transition Spur V2 is the cross-country bike that refuses to be boxed in. Now featuring 120mm of progressive rear travel paired with 130mm up front, the updated Spur blurs the line between XC race machine and aggressive downcountry trail bike. It's lightweight and razor-sharp on climbs, yet confident and composed when the trail points down. Fast enough for race day and versatile enough for everyday trail duty, the Spur delivers pure singletrack performance without compromise.

For V2, Transition refined everything that made the original special while adding meaningful upgrades. A longer 130mm front end built around the latest Fox 34 Float SL increases confidence on modern, technical courses without adding unnecessary weight. The proven flex-stay suspension design remains, offering a highly progressive leverage curve that feels supple off the top and bottomless when pushing hard. A new geo-adjust at the lower shock mount allows riders to fine-tune head angle by 0.5 deg and bottom bracket height by 7mm, maintaining that perfect balance of enduro-inspired speed and XC pedaling efficiency.

Beyond suspension, the Spur V2 gains smart rider-focused details like the B.O.O.M. Box internal frame storage, fully guided internal cable routing with updated head tube ports, and hidden linkage hardware for a cleaner aesthetic and improved durability. Size-specific geometry ensures a dialed ride feel across the range, while the evolved industrial design keeps the Spur looking as fast as it rides. Playful, lively, and unapologetically quick -- the Spur V2 is built for riders who want to charge climbs, rail corners, and turn every trail feature into an opportunity for speed and fun.

Highlights
  • 120mm progressive rear travel -- proven flex-stay suspension with highly progressive leverage curve
  • 130mm Fox 34 Float SL fork -- longer front end for increased confidence on technical terrain
  • Geo-adjust at lower shock mount -- adjusts head angle by 0.5 deg and BB height by 7mm
  • B.O.O.M. Box internal frame storage -- trail snacks and essentials always within reach
  • Loam Hat main pivot cover -- keeps dirt out and extends bearing life
  • Fully guided internal cable routing with updated head tube cable ports
  • Hidden linkage hardware for cleaner aesthetics and improved durability
  • Size-specific geometry across the range
Frame
Frame Material
Carbon
Wheel Size
29"
Fork Travel
130mm
Rear Travel
120mm
Rear Shock
Fox Float SL Factory -- 190x45mm
Shock Hardware
30mm x 8mm top and bottom
Rear Axle
12x148mm Boost
Standards and Compatibility
Headset
FSA No.42/48/ACB -- IS42mm / IS52mm
Bottom Bracket
73mm BSA
ISCG Tabs
ISCG 05 3-bolt
Brake Mount
Post-mount 160mm
Rear Rotor Size
160mm min / 200mm max
Max Chainring
36t
Max Tire Size
29" x 2.4"
Seatpost Diameter
31.6mm
Seat Clamp
37mm
Frame Features
Frame Storage
Large internal B.O.O.M. Box storage with easy-access door -- two gear bags with organization pockets included
Water Bottle
1 cage mount on downtube
Intended Use
XC
Warranty
Lifetime for original owner
Frame Geometry
High setting shown. Low setting adjusts head angle by -0.5 deg and BB height by -7mm.
Measurement SM MD LG XL
Reach (mm) 430 460 485 510
Stack (mm) 607 616 626 640
Top Tube (mm) 570 603 631 660
Wheelbase (mm) 1163 1197 1231 1262
Head Angle (deg) 66 66 66 66
Head Tube Length (mm) 100 110 120 135
Seat Angle (deg) 77.3 76.8 76.4 76
Seat Tube Length (mm) 360 390 430 460
BB Height (mm) 335 335 335 335
BB Drop (mm) 40 40 40 40
Chainstay (mm) 434 434 439 439

High setting. Low setting: head angle -0.5 deg / BB height -7mm. Measured with 130mm Fox 34 Float SL fork.
