2025 Spur Carbon Eagle 90
- Free Domestic shipping
- Low stock - 5 items left
- Backordered, shipping soon
Key Features
- Lightweight full carbon frame built from Japanese Toray fibers with EPS molding
- 120 mm front and rear travel for efficient XC and trail riding
- FOX 34 Performance Elite fork with GRIP X damper and FLOAT DPS Performance Elite shock
- SRAM Eagle 90 Transmission 12-speed with seamless wireless shifting
- DT Swiss M 1900 Spline Alloy wheels with reliable Ratchet LN hub system
- SRAM Motive Bronze 4-piston brakes for confident control on descents
- Maxxis Dissector/Rekon 2.4” tires with 3C MaxxTerra EXO casings
- OneUp dropper post (150–240 mm travel by size)
- Lifetime frame warranty
Full Specifications
Product | Transition Spur Carbon Eagle 90 Bike |
---|---|
Model Year | 2025 |
Intended Use | Cross Country / Trail |
Rider | Unisex |
Wheel Size | 29" |
Frame Material | Carbon Fiber |
Frame Material Details | Japanese Toray fiber front and rear triangles (24T/30T/40T blend), EPS molding, molded chainstay and lower down tube protection |
Rear Travel | 120 mm |
Rear Shock | FOX FLOAT DPS Performance Elite, 190 × 45 mm |
Fork | FOX FLOAT 34 Performance Elite, GRIP X damper, 44 mm offset |
Fork Travel | 120 mm |
Head Tube Diameter | Tapered 1 ⅛" – 1 ½" |
Headset | FSA No.57E (ZS44/ZS56) |
Handlebar | ANVL Mandrel Alloy, 800 mm width (20 mm rise SM/MD, 30 mm LG/XL), 35 mm clamp |
Stem | ANVL Swage, 40 mm length, 35 mm bar clamp |
Grips | ODI Elite Flow, lock-on |
Brakes | SRAM Motive Bronze, 4-piston |
Rotors | SRAM CenterLine 180 mm |
Brake Levers | SRAM Motive Bronze Stealth, tool-free reach adjust |
Drivetrain | 1× |
Shifters | SRAM Eagle 90 Transmission, 12-speed, MMX mount |
Front Derailleur | None |
Rear Derailleur | SRAM Eagle 90 Transmission, 12-speed |
Cranks | SRAM Eagle 90 Transmission Alloy DUB, 170 mm |
Chainring | SRAM Eagle 90 Transmission, 32 T |
Bottom Bracket | SRAM DUB 73 mm BSA threaded |
Pedals | None |
Chain | SRAM GX Eagle Transmission Flattop, 12-speed |
Cassette | SRAM GX Eagle Transmission XS-1275, 10–52 T |
Rims | DT Swiss M 1900 Spline 30 Alloy |
Hubs | DT Swiss 370 (15×110 Boost front / 12×148 Boost rear), Ratchet LN XD driver |
Spokes | DT Swiss Champion |
Tires | Front: Maxxis Dissector 3C MaxxTerra EXO 29 × 2.4" Rear: Maxxis Rekon 3C MaxxTerra EXO 29 × 2.4" |
Saddle | SDG Bel-Air V3 |
Seatpost | OneUp Dropper (150 mm SM / 180 mm MD / 210 mm LG / 240 mm XL) |
Seatpost Diameter | 31.6 mm |
Seatpost Clamp | 37.0 mm single-bolt |
Rear Dropout / Hub Dimensions | 12×148 mm (Boost) |
Max Tire Size | 29 × 2.4" |
Bottle Cage Mounts | Inside front triangle, under down tube, accessory mounts under top tube |

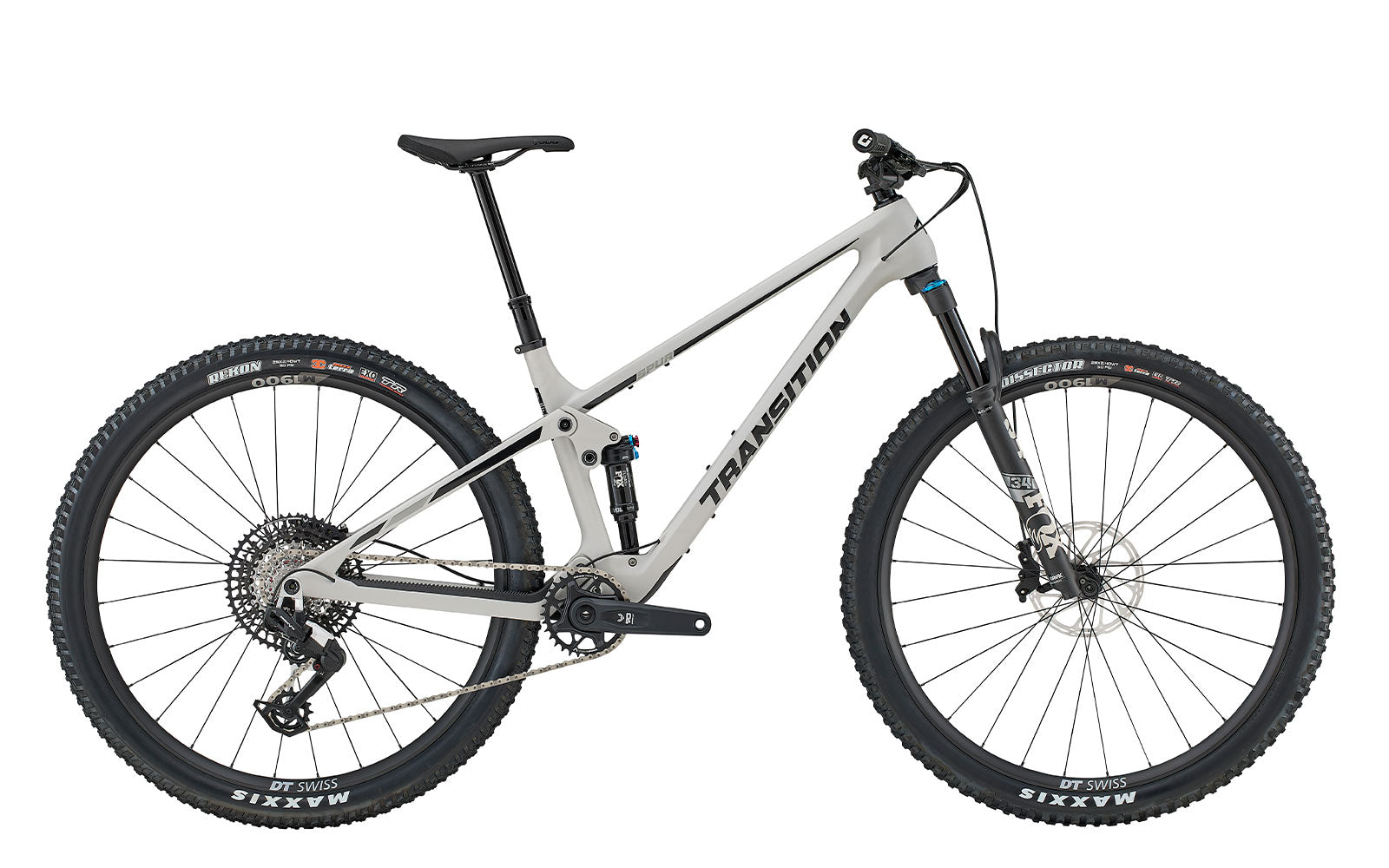

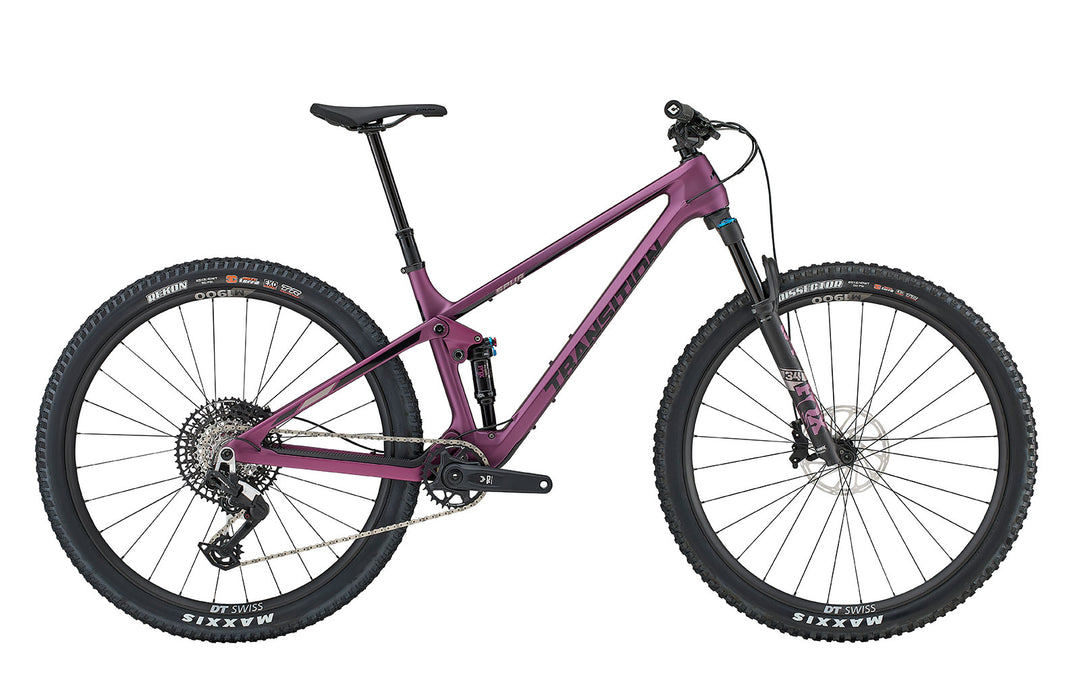

Colors | Hazy Grey, Blackberry |
Warranty | Lifetime frame |
Weight | Not specified |
Miscellaneous |
|
Geometry
Size | SM | MD | LG | XL |
---|---|---|---|---|
Top Tube Length | 569 mm | 602 mm | 630 mm | 664 mm |
Head Tube Angle | 66° | 66° | 66° | 66° |
Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
Seat Tube Angle | 76.7° | 76.2° | 75.9° | 75.6° |
Seat Tube Length | 380 mm | 410 mm | 460 mm | 500 mm |
Bottom Bracket Height | 335 mm (40 mm drop) | 335 mm (40 mm drop) | 335 mm (40 mm drop) | 335 mm (40 mm drop) |
Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
Wheelbase | 1156 mm | 1190 mm | 1219 mm | 1255 mm |
Standover | 662 mm | 667 mm | 670 mm | 677 mm |
Reach | 425 mm | 455 mm | 480 mm | 510 mm |
Stack | 600 mm | 610 mm | 619 mm | 632 mm |
