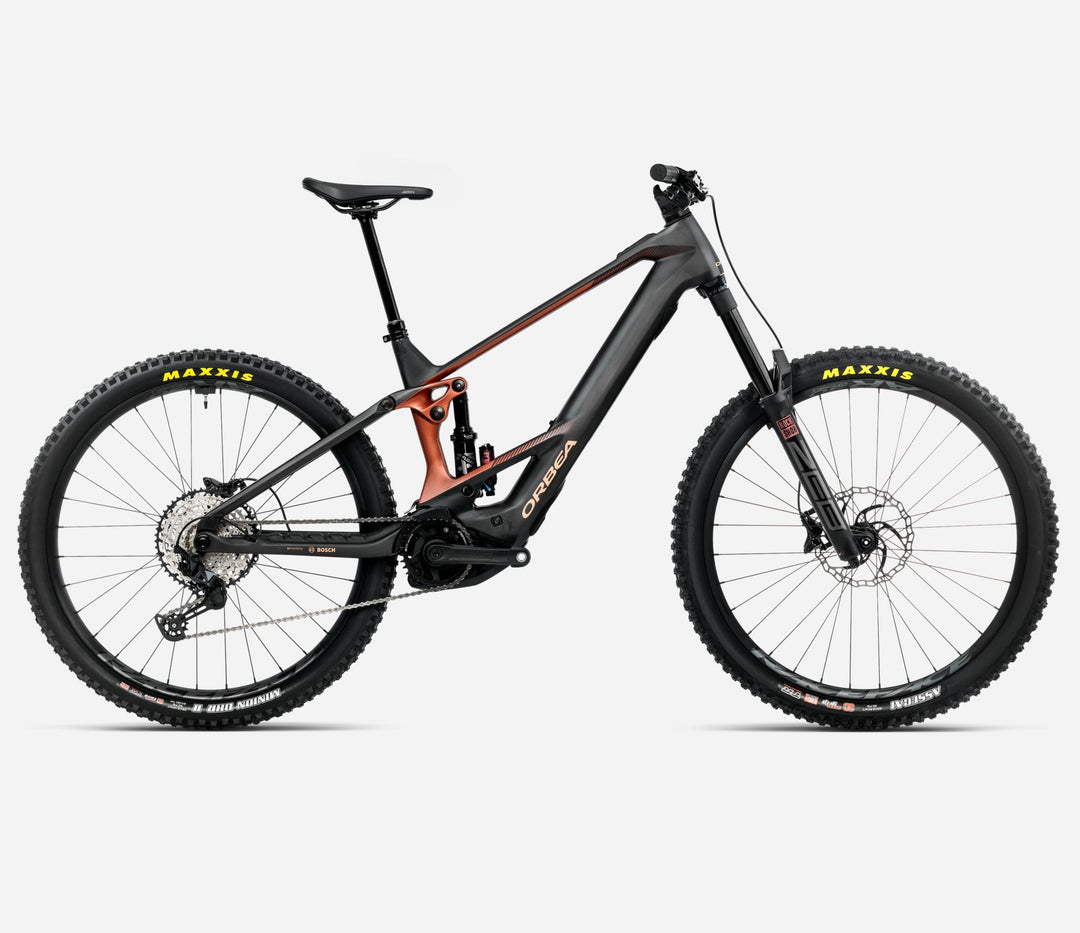

Name: 2026 Orbea Wild M20 E-Bike
Brand: Orbea
Price: 7499.0 USD
Availability: InStock

$7,499.00

Shipping calculated at checkout.

Free Domestic shipping

In stock, ready to ship
Backordered, shipping soon

Key Features

Orbea Wild OMR Carbon frame, providing a lightweight, aggressive e-enduro chassis.
Long-lasting Bosch Powertube 750Wh battery paired with the powerful Bosch Performance Line CX motor.
Robust suspension package featuring the RockShox ZEB Base-A2 DebonAir+ 170mm E-MTB fork and Fox Float X Performance rear shock.
Reliable Shimano Deore/SLX 1x12-speed drivetrain for precise shifting and a wide gear range.
Confident stopping power provided by Shimano MT420 4-piston Hydraulic Disc Brakes with 203mm Galfer Wave Rotors.
Durable Race Face AR 30c Tubeless Ready wheelset.
High-traction tire setup with Maxxis Assegai (front, MaxxGrip) and Minion (rear, MaxxTerra/DD).
Features the clean Bosch System Controller and Mini Remote interface.
Frame geometry supports both full 29" and mixed ("Mullet") wheel configurations.

Full Specifications

Frame	Orbea Wild OMR 2025 Carbon, 29" wheels, Concentric Boost 12x148
Rear Shock	Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
Fork	RockShox ZEB Base-A2 DebonAir+ 170 E-MTB specific, 15X110 Boost
Fork Travel	170mm
Head Tube Diameter	1-1/2" (Steerer tube: Alloy, Black Oxidated Bearing)
Motor	Bosch Performance Line CX BDU3843
Battery	Bosch Powertube 750Wh Horizontal BBP3775
Display / Remote	Bosch System Controller BRC3100 (Display) / Bosch Mini Remote BRC3300 (Remote)
Charger	Bosch Charger 4A (110V) BPC3410
Chainring	ethirteen espec Direct Mount 34T Boost
Cranks	e*thirteen Helix Core
Shifters	Shimano Deore M6100 I-Spec EV, 12-speed
Cassette	Shimano CS-M7100 (SLX), 10-51t, 12-Speed
Rear Derailleur	Shimano SLX M7100 SGS Shadow Plus, 12s
Chain	Shimano M6100 (Deore)
Chainguide	e*thirteen Plus Bosch CX Gen4 CL 55 32-36t
Handlebar	OC Mountain Control MC30, Rise 20, Width 800mm
Stem	OC Mountain Control MC20, 0º
Computer Mount	OC Computer Mount CM-05, Garmin/Sigma
Brakes	Shimano MT420 Hydraulic Disc (4-piston)
Rotors	Galfer Wave Rotors, 203mm front / 203mm rear
Wheels	Race Face AR 30c Tubeless Ready
Front Tire	Maxxis Assegai 2.50", 60TPI, 3CG/EXO+/TR, MaxxGrip
Rear Tire	Maxxis Minion 2.40", 120 TPI, 3CT/DD/TR, MaxxTerra
Seatpost	OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever	Shimano SL-MT500 I-Spec EV
Saddle	Fizik Aidon 208x145mm, manganese rail
Grips	OC Lock On

Geometry

Size	SM 29"	MD 29"	LG 29"	XL 29"	SM Mullet	MD Mullet	LG Mullet	XL Mullet
Top Tube Length	563mm	586mm	612mm	639mm	561mm	583mm	610mm	636mm
Head Tube Angle	63.5°	63.5°	63.5°	63.5°	63.5°	63.5°	63.5°	63.5°
Head Tube Length	110mm	120mm	130mm	140mm	110mm	120mm	130mm	140mm
Seat Tube Angle	77.5°	77.5°	77.5°	77.5°	77.5°	77.5°	77.5°	77.5°
Seat Tube Length	415mm	415mm	435mm	460mm	415mm	415mm	435mm	460mm
Bottom Bracket Height	358mm (22mm drop)	358mm (22mm drop)	358mm (22mm drop)	358mm (22mm drop)	358mm (22mm drop)	358mm (22mm drop)	358mm (22mm drop)	358mm (22mm drop)
Chainstay Length	448mm	448mm	448mm	448mm	448mm	448mm	448mm	448mm
Wheelbase	1228mm	1252mm	1282mm	1311mm	1226mm	1250mm	1279mm	1309mm
Standover	730mm	730mm	730mm	730mm	727mm	727mm	727mm	727mm
Reach	435mm	455mm	480mm	505mm	435mm	455mm	480mm	505mm
Stack	625mm	634mm	643mm	652mm	627mm	636mm	645mm	654mm
Additional Info	Compatible with 29" wheels front/rear or mixed ("Mullet") wheels (29" front, 27.5" rear) via alternate linkages. All specifications listed are with 170mm travel fork with 585mm axle-to-crown length and 44mm offset.

Shipping Policy

Components:

All component items (wheels, drivetrains, suspension, brakes, etc.) ship within 1–4 business days of purchase.

Bicycles:

Complete bikes typically ship within 2–3 weeks due to build, tuning, and inspection times. You will receive tracking information as soon as your order is ready to ship.

Riding Gear & Apparel:

Riding gear and apparel orders (helmets, jerseys, gloves, etc.) ship within 1–3 business days.

Returns & Exchanges:

If you received the wrong size or wish to exchange an item, it must be returned in original condition—unused, uninstalled, and with all packaging intact.

For full details, please see our Refund Policy before initiating a return.
