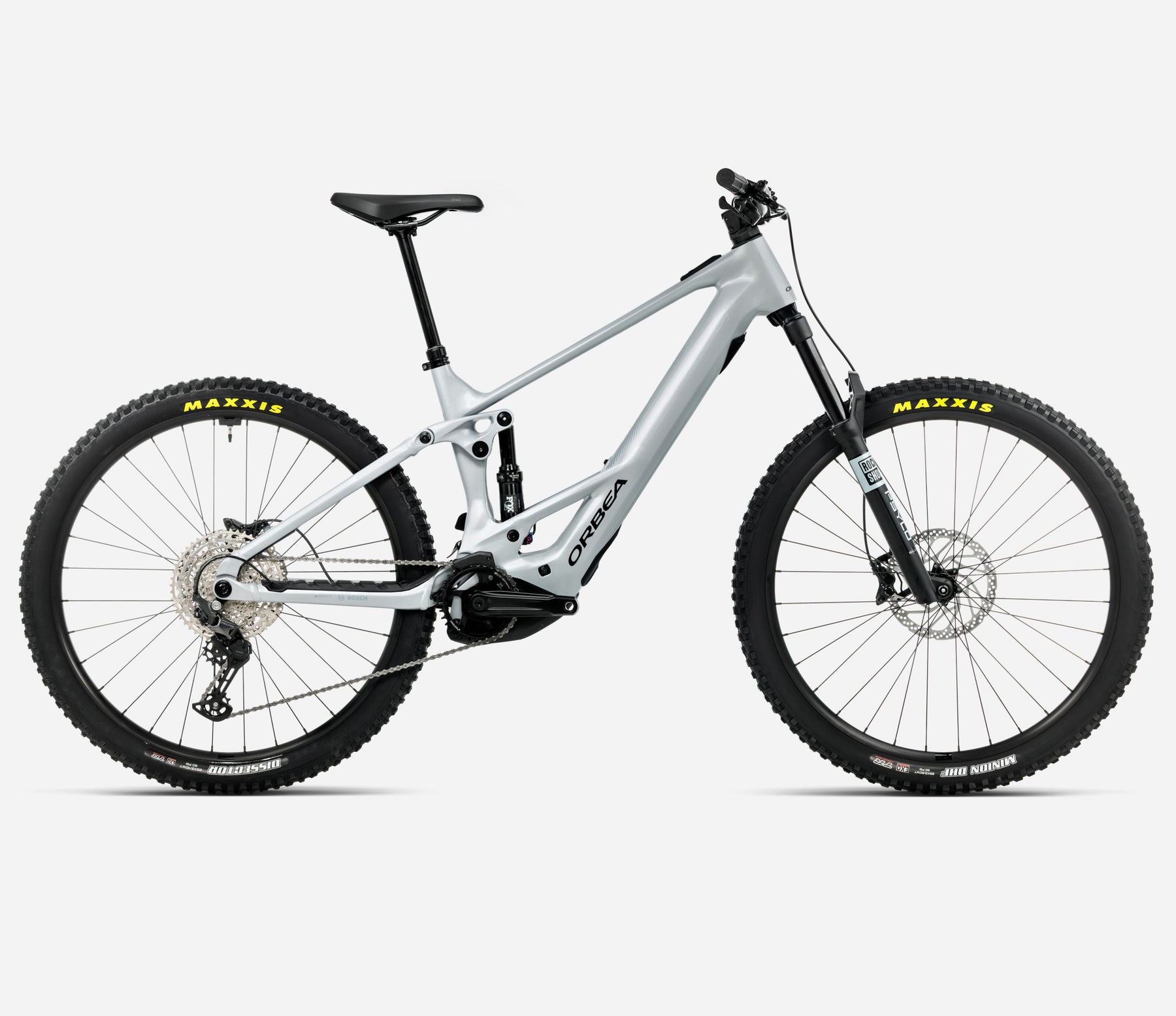

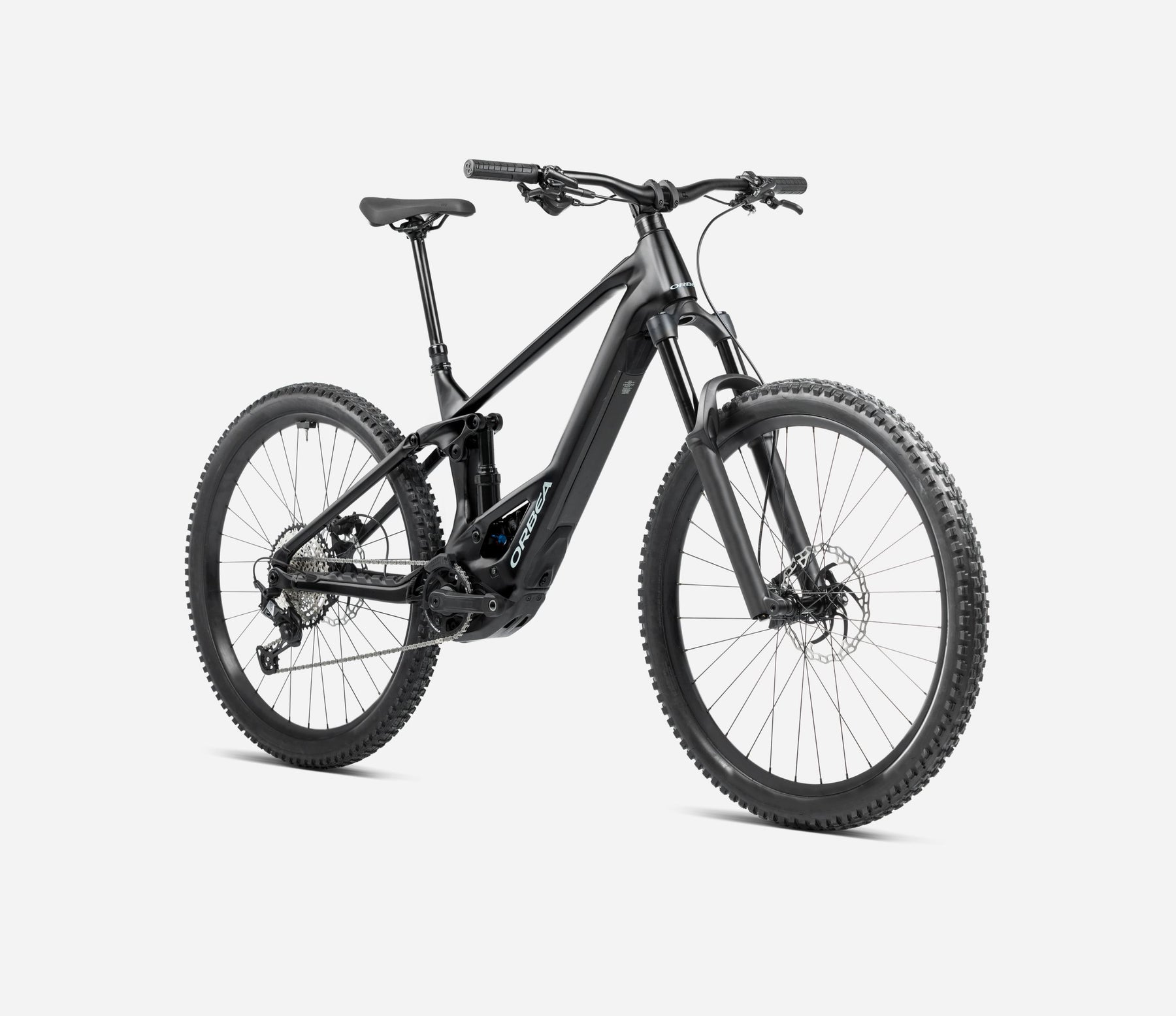

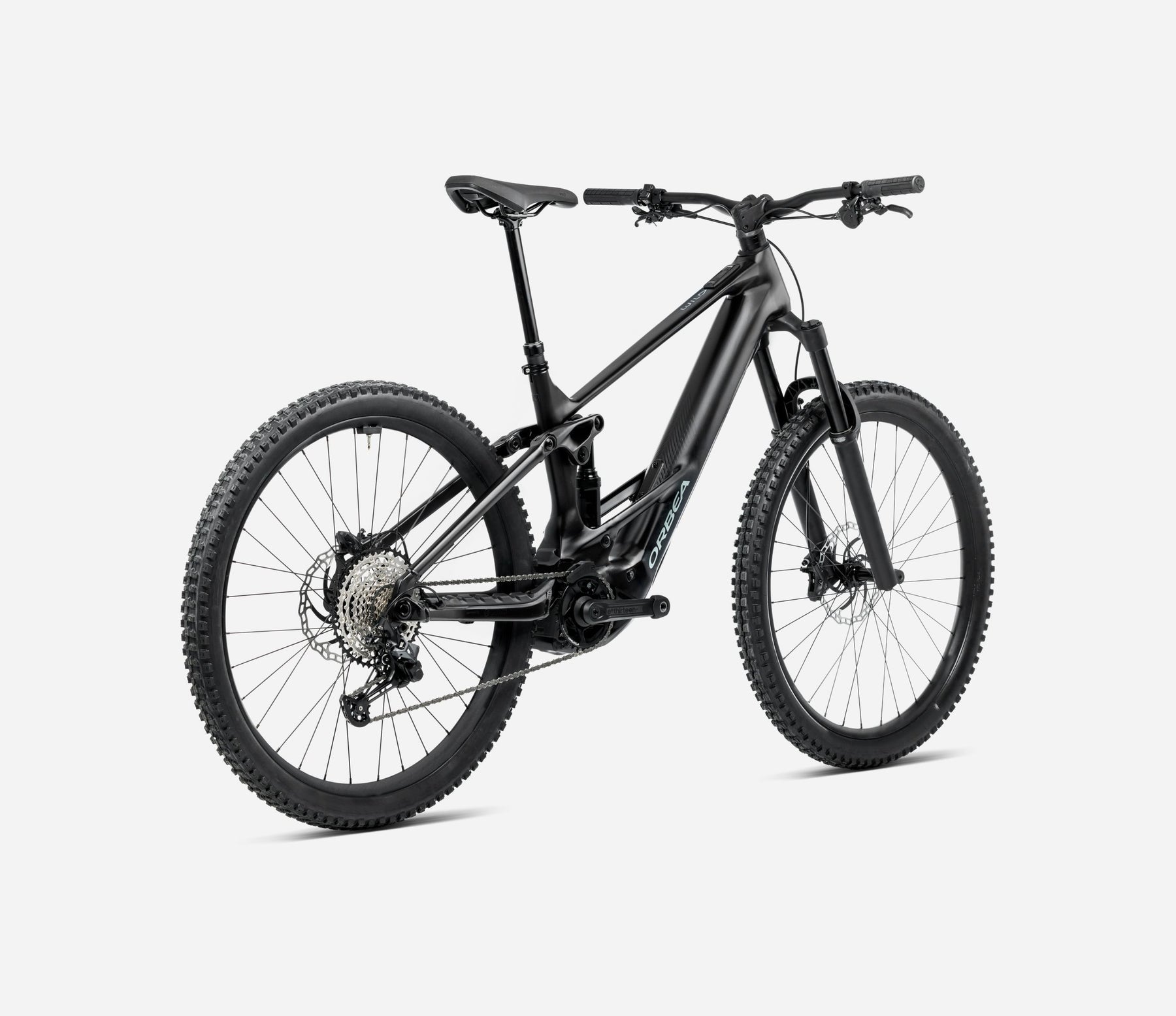

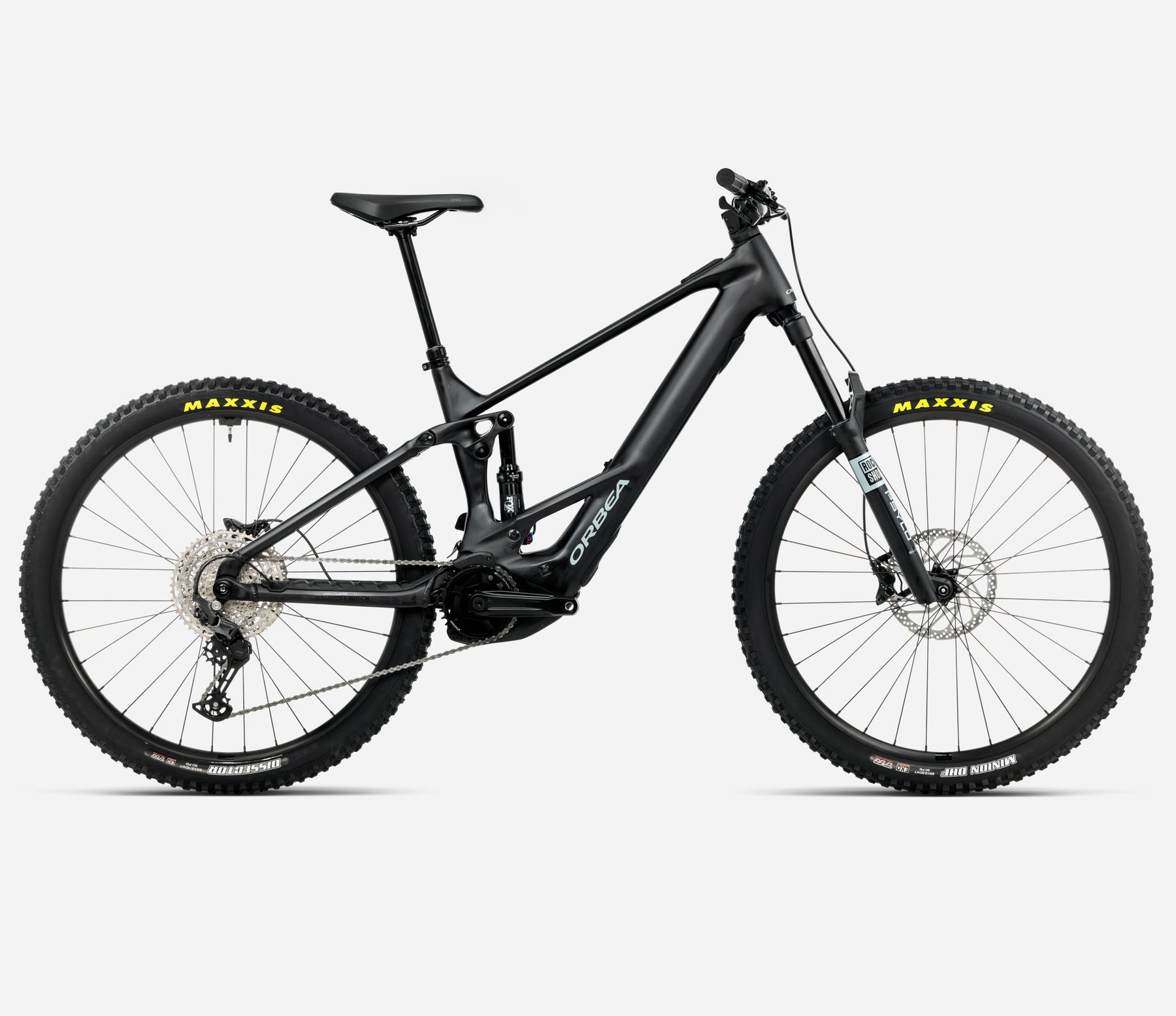

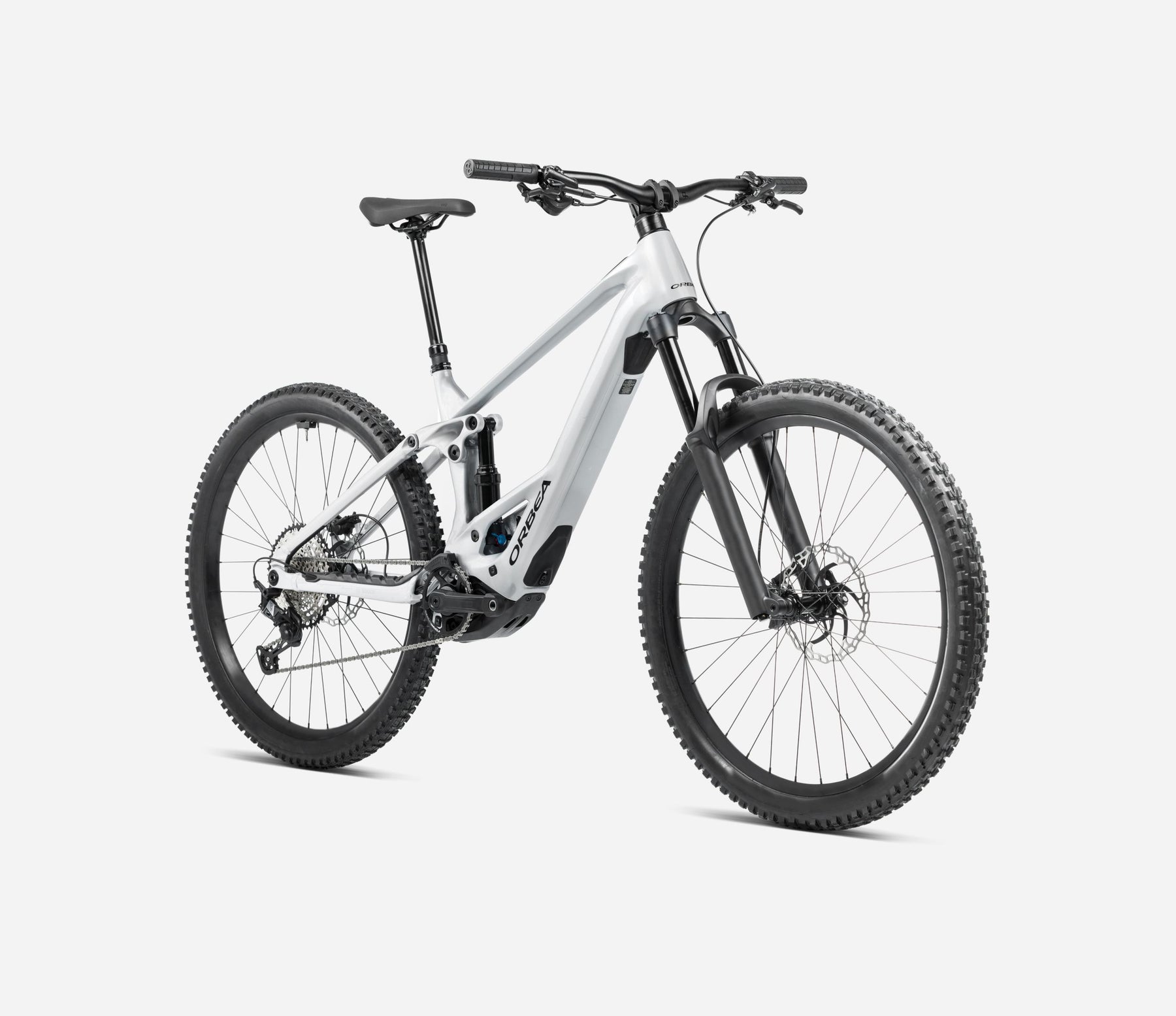

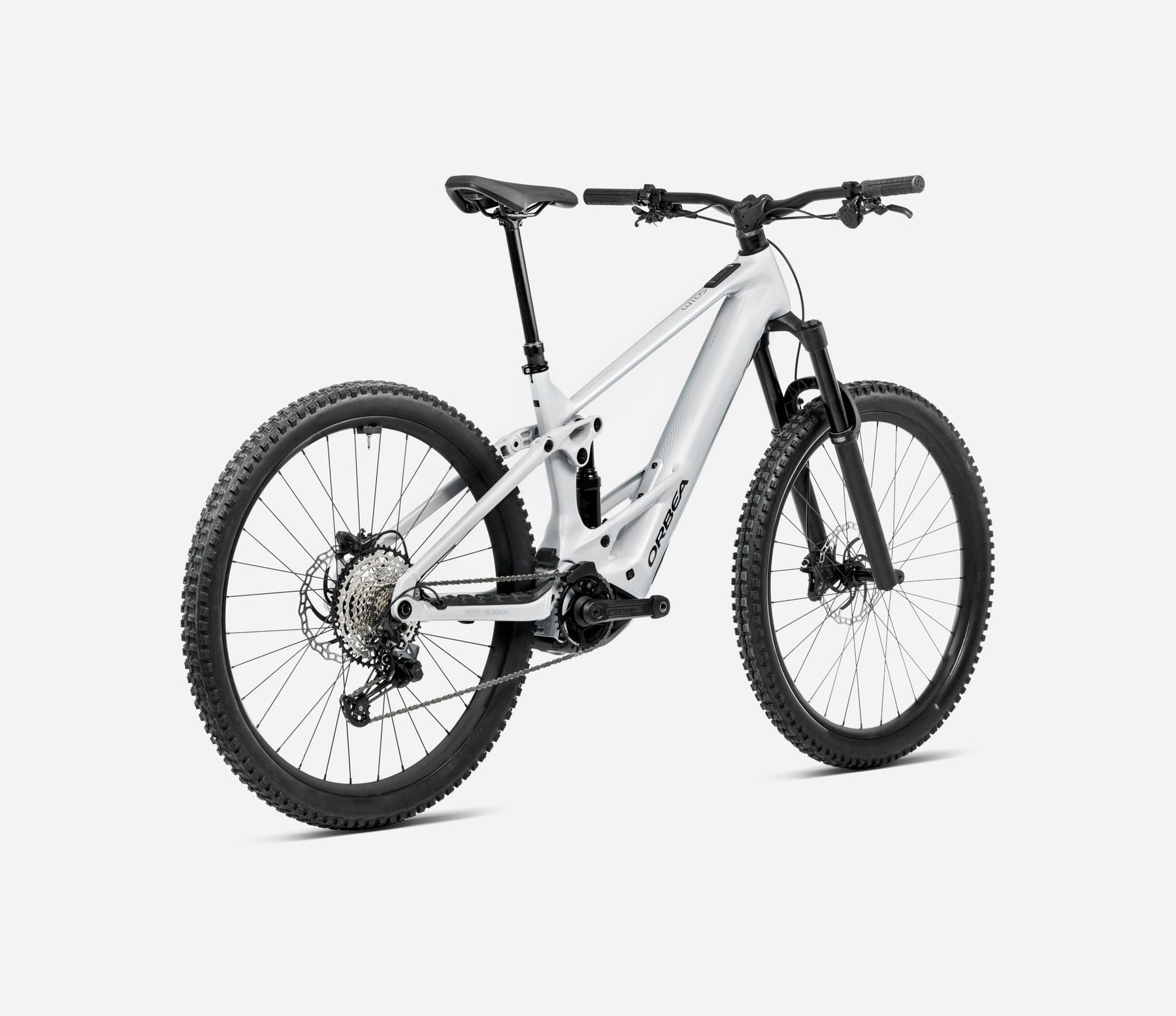

2026 Orbea Wild ST H30 E-Bike
No reviews
- Free Domestic shipping
- Low stock - 2 items left
- Backordered, shipping soon
Key Features
- Orbea Wild Hydro aluminum frame, built with a durable, aggressive enduro geometry.
- Powerful Bosch Performance Line CX motor paired with a lighter 600Wh Powertube battery.
- Reliable and robust suspension featuring the RockShox Psylo Silver RC fork and a Fox Float Performance rear shock.
- Durable Shimano Deore 1x12-speed drivetrain components for wide-range gearing (10-51t cassette).
- Effective 4-piston braking from Shimano MT420 Hydraulic Disc Brakes paired with 203mm Shimano SMRT30 Rotors.
- Tough alloy Tubeless Ready wheelset with 29mm inner width.
- Proven Maxxis Minion DHF (front) and Maxxis Dissector (rear) tire combination for balanced grip and speed.
- Clean, integrated cockpit using the Bosch System Controller and Mini Remote interface.
- Frame geometry supports both full 29" and mixed ("Mullet") wheel configurations.
Full Specifications
| Frame | Orbea Wild Hydro (Aluminum), 29" wheels, Concentric Boost 12x148 |
|---|---|
| Rear Shock | Fox Float Performance Trunion 2-Pos Evol LV custom tune 205x57.5mm |
| Fork | RockShox Psylo Silver RC, 15x110 Boost |
| Fork Travel | 150mm (Actual travel not specified, assumed from Psylo platform/context) |
| Head Tube Diameter | 1-1/2" (Steerer tube: Alloy, Black Oxidated Bearing) |
| Motor | Bosch Performance Line CX BDU3843 |
| Battery | Bosch Powertube 600Wh Horizontal BBP3865 |
| Display / Remote | Bosch System Controller BRC3100 (Display) / Bosch Mini Remote BRC3300 (Remote) |
| Charger | Bosch Charger 2A (100-120V) |
| Chainring | Steel 32t |
| Cranks | Prowheel EB17 alloy |
| Shifters | Shimano Deore M6100 I-Spec EV, 12-speed |
| Cassette | Shimano CS-M6100 (Deore), 10-51t, 12-Speed |
| Rear Derailleur | Shimano Deore M6100 SGS Shadow Plus, 12s |
| Chain | Shimano M6100 (Deore) |
| Chainguide | e*thirteen Plus Bosch CX Gen4 CL 55 32-36t |
| Handlebar | OC Mountain Control MC30, Rise 20, Width 800mm |
| Stem | OC Mountain Control MC20, 0º |
| Computer Mount | OC Computer Mount CM-05, Garmin/Sigma |
| Brakes | Shimano MT420 Hydraulic Disc (4-piston) |
| Rotors | Shimano SMRT30 Rotors, 203mm front / 203mm rear |
| Wheels | Alloy, Tubeless, 29", 29c, 32H |
| Front Tire | Maxxis Minion 2.50" DHF, 60TPI, Rigid, EXO/TR |
| Rear Tire | Maxxis Dissector 2.40", 60TPI, Rigid, EXO/TR |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Seatpost Lever | Shimano SL-MT500 I-Spec EV |
| Saddle | Selle Royal Vivo Sport Men 145 x 269mm |
| Grips | OC Lock On |
Geometry
| Size | SM 29" | MD 29" | LG 29" | XL 29" | SM Mullet | MD Mullet | LG Mullet | XL Mullet |
|---|---|---|---|---|---|---|---|---|
| Top Tube Length | 563mm | 586mm | 612mm | 639mm | 561mm | 583mm | 610mm | 636mm |
| Head Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° | 63.5° | 63.5° | 63.5° | 63.5° |
| Head Tube Length | 110mm | 120mm | 130mm | 140mm | 110mm | 120mm | 130mm | 140mm |
| Seat Tube Angle | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° |
| Seat Tube Length | 415mm | 415mm | 435mm | 460mm | 415mm | 415mm | 435mm | 460mm |
| Bottom Bracket Height | 358mm (22mm drop) | 358mm (22mm drop) | 358mm (22mm drop) | 358mm (22mm drop) | 358mm (22mm drop) | 358mm (22mm drop) | 358mm (22mm drop) | 358mm (22mm drop) |
| Chainstay Length | 448mm | 448mm | 448mm | 448mm | 448mm | 448mm | 448mm | 448mm |
| Wheelbase | 1228mm | 1252mm | 1282mm | 1311mm | 1226mm | 1250mm | 1279mm | 1309mm |
| Standover | 730mm | 730mm | 730mm | 730mm | 727mm | 727mm | 727mm | 727mm |
| Reach | 435mm | 455mm | 480mm | 505mm | 435mm | 455mm | 480mm | 505mm |
| Stack | 625mm | 634mm | 643mm | 652mm | 627mm | 636mm | 645mm | 654mm |
